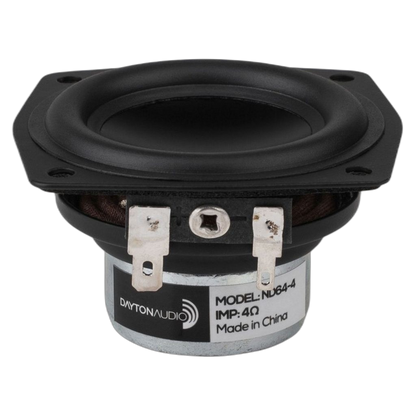

Dayton Audio - 2½" Full Range Driver - ND64-4
Dayton Audio - 2½" Full Range Driver - ND64-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

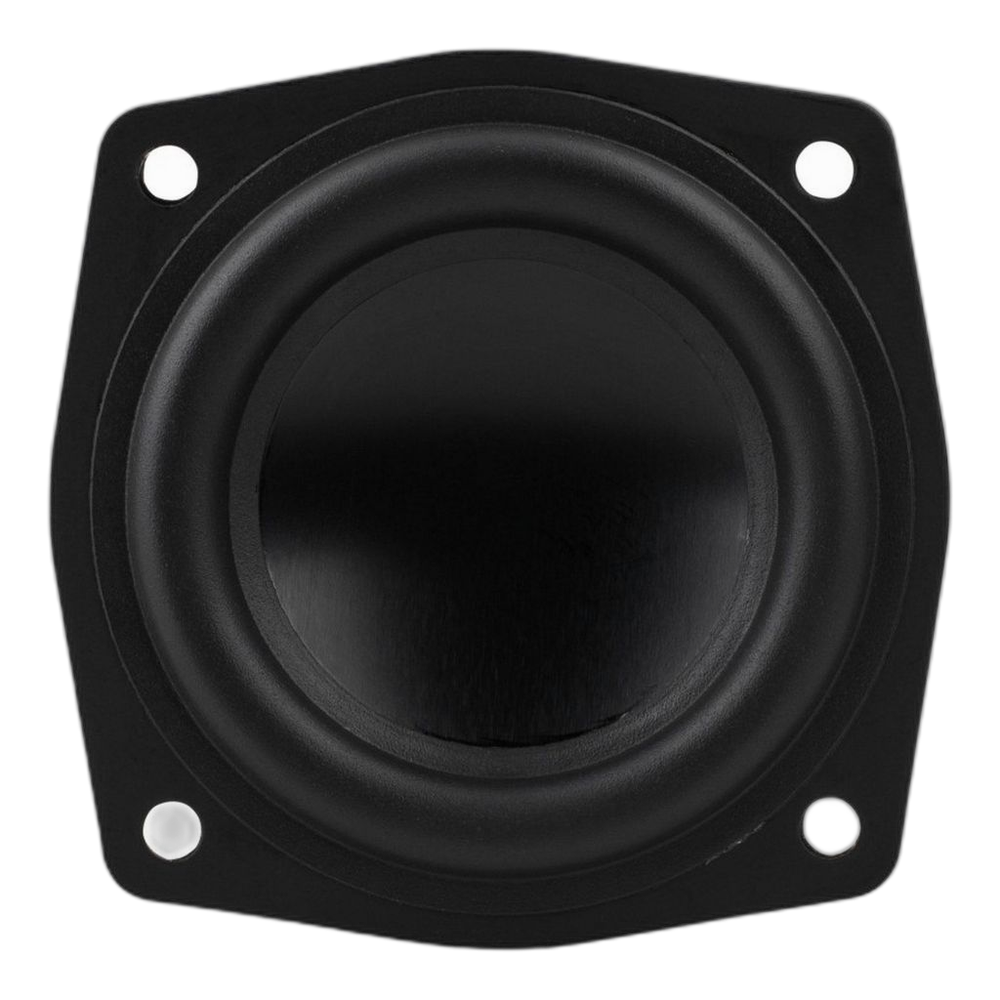

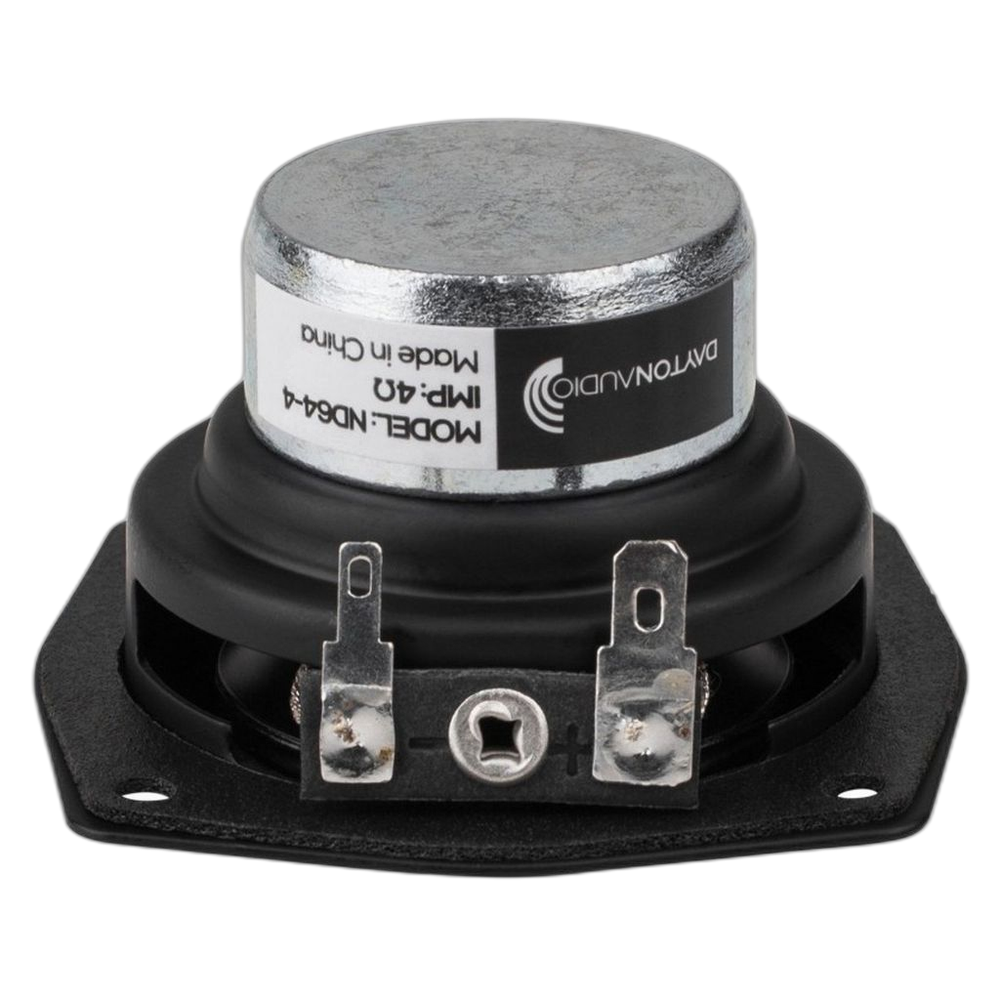

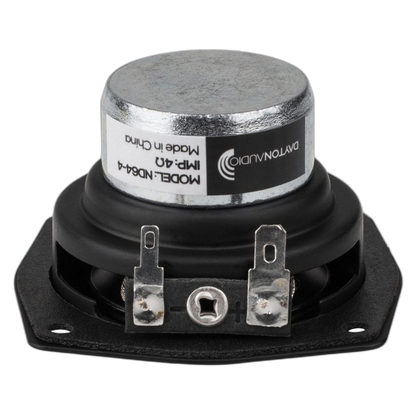

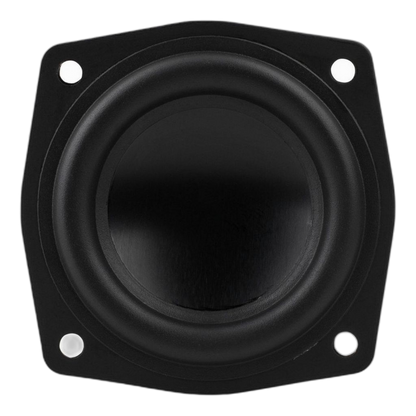

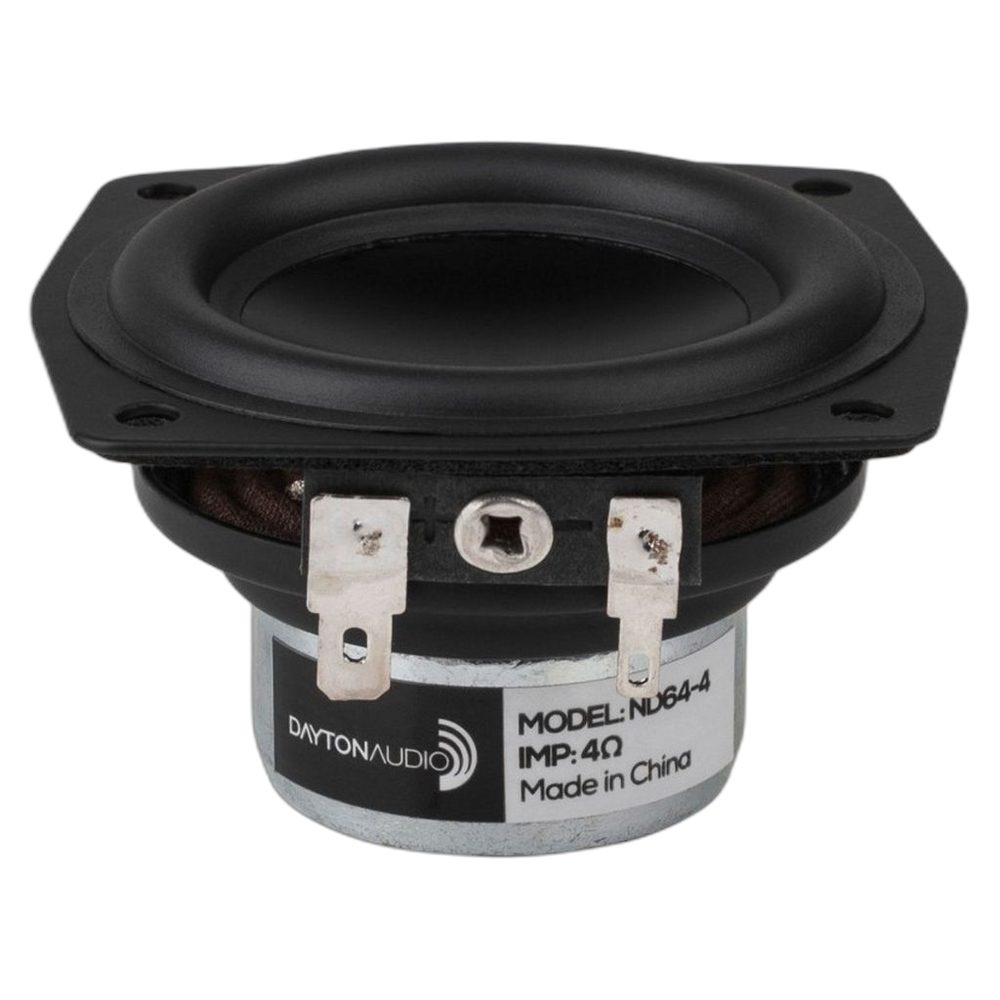

Dayton Audio’s ND64-4 is truly a full-range driver and capable of over 6 mm of peak-to-peak excursion. It features a dual Neo-Balanced magnet structure, a 3/4" CCAW voice coil, and a copper sleeve to minimise distortion. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminium magnesium diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.
Features
- Rubber-edged aluminium magnesium alloy cone
- Dual neodymium motor structure
- 4-layer voice coil with polyimide former
- Copper sleeve to minimise distortion
- High power handling
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 2.5" |
| Nominal impedance | 4Ω |
| Series | ND |
| Power handling (RMS) | 15 W |
| Power handling (program) | 30 W |
| Sensitivity | 85.2 dB |

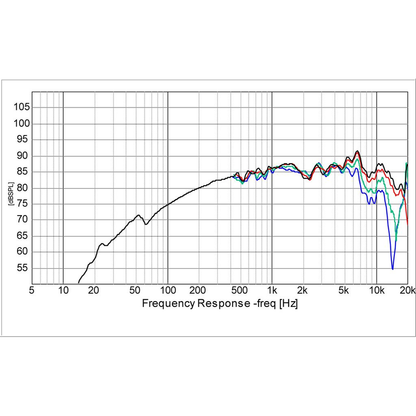

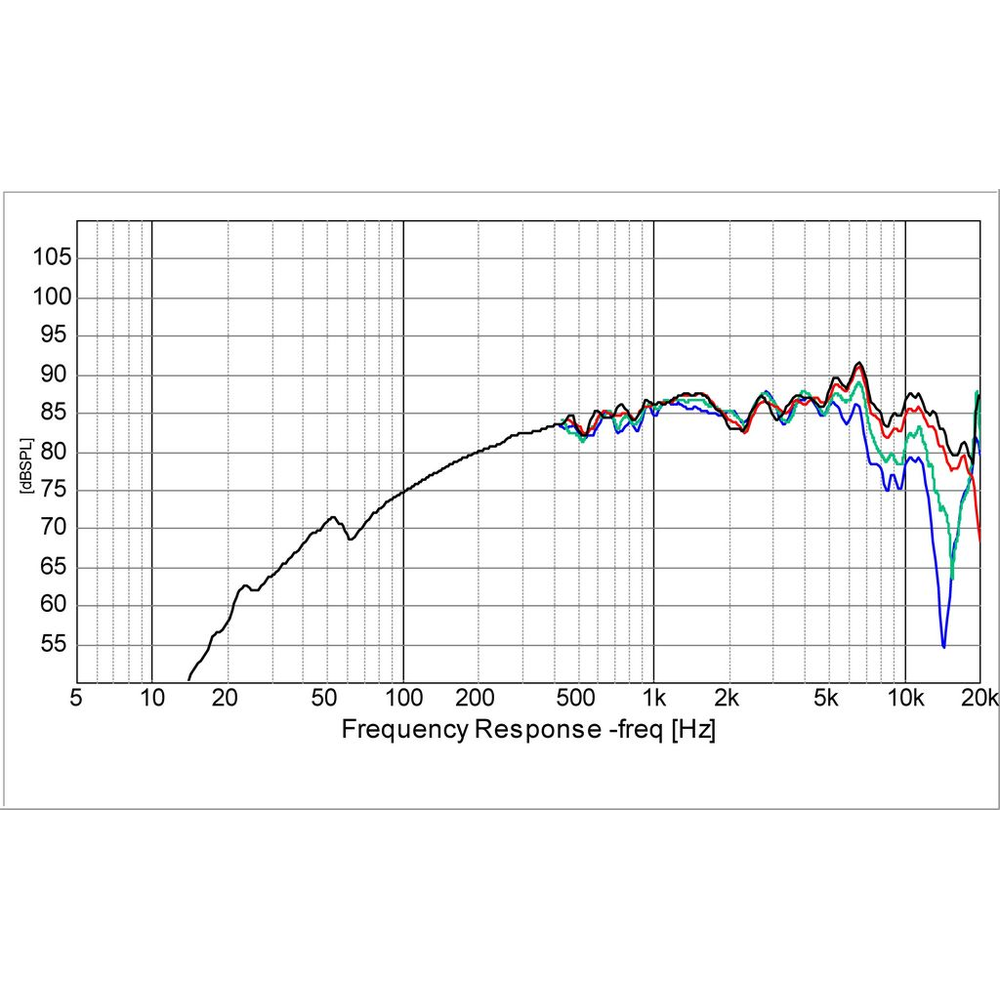

| Frequency range | 100 – 20,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 103 Hz |
|---|---|
| DC resistance (Re) | 3.7 Ω |
| Voice coil inductance (Le) | 0.37 mH |
| Mechanical Q (Qms) | 4.36 |
| Electrical Q (Qes) | 0.36 |
| Total Q (Qts) | 0.33 |
| Equivalent volume (Vas) | 0.42 L |
| Compliance (Cms) | 0.93 mm/N |
| Moving mass (Mms) | 2.56 g |
| Mechanical resistance (Rms) | 0.38 kg/s |
| Force factor (Bl) | 4.13 T·m |
| Effective piston area (Sd) | 15.6 cm² |
| Linear excursion (Xmax, one-way) | 1.9 mm |
| Efficiency bandwidth product (EBP) | 286.1 |
Motor
| Voice coil wire | CCA |
|---|
Mounting
| Overall diameter | 77 mm |
|---|---|

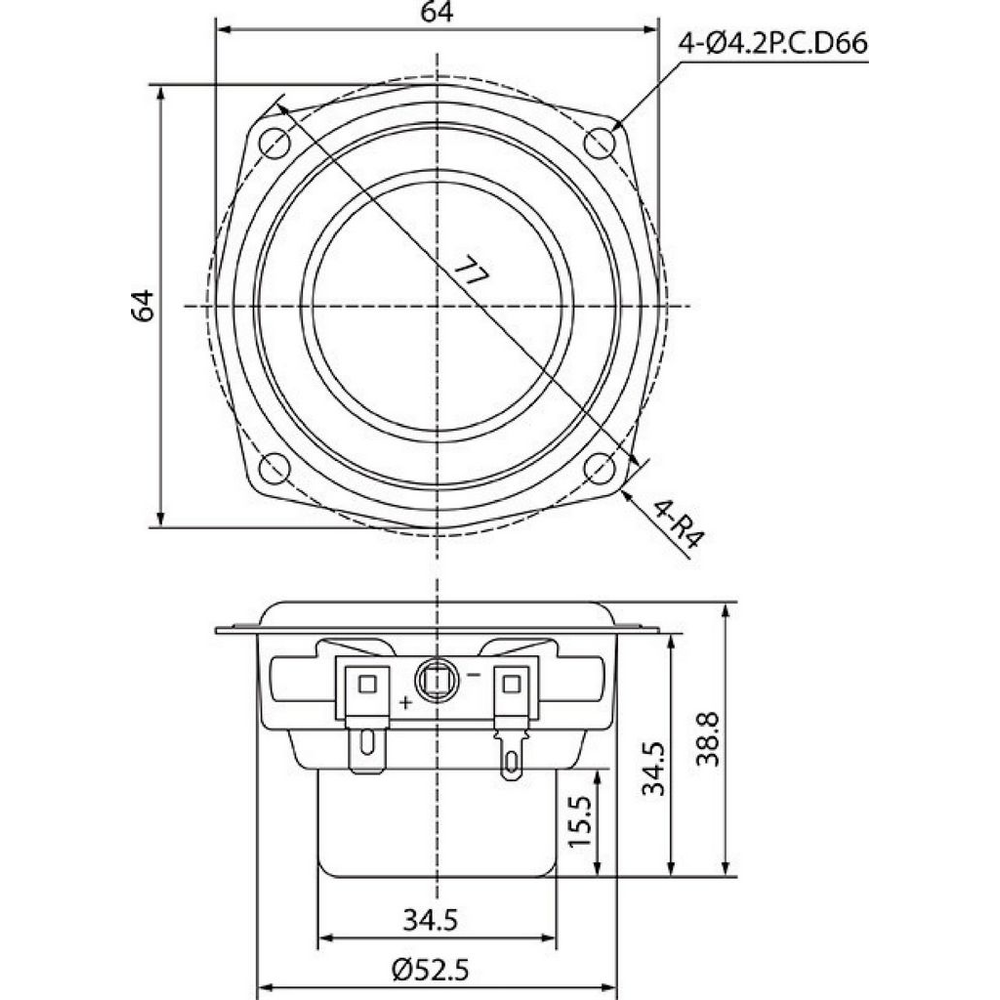

| Faceplate | Not round, 64 × 64 mm (see the maker's drawing) |
| Cutout diameter | 53 mm |
| Mounting depth | 34.5 mm |
| Voice coil diameter | 19 mm |
| Weight | 0.4536 kg |
| Mounting holes | 4 |
Materials
| Cone | Black Anodised Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Polyimide |
| Basket | Stamped Steel |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- ND64-4 Specification Sheet
- ND64-4 Data Files
- ND64-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
