Dayton Audio - 2½" Full Range Driver - ND65-4
Dayton Audio - 2½" Full Range Driver - ND65-4
Regular price
$64.95
Regular price
Sale price
$64.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

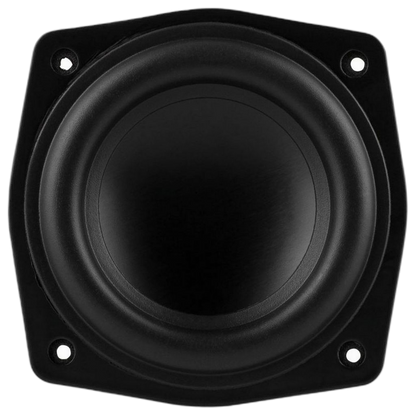

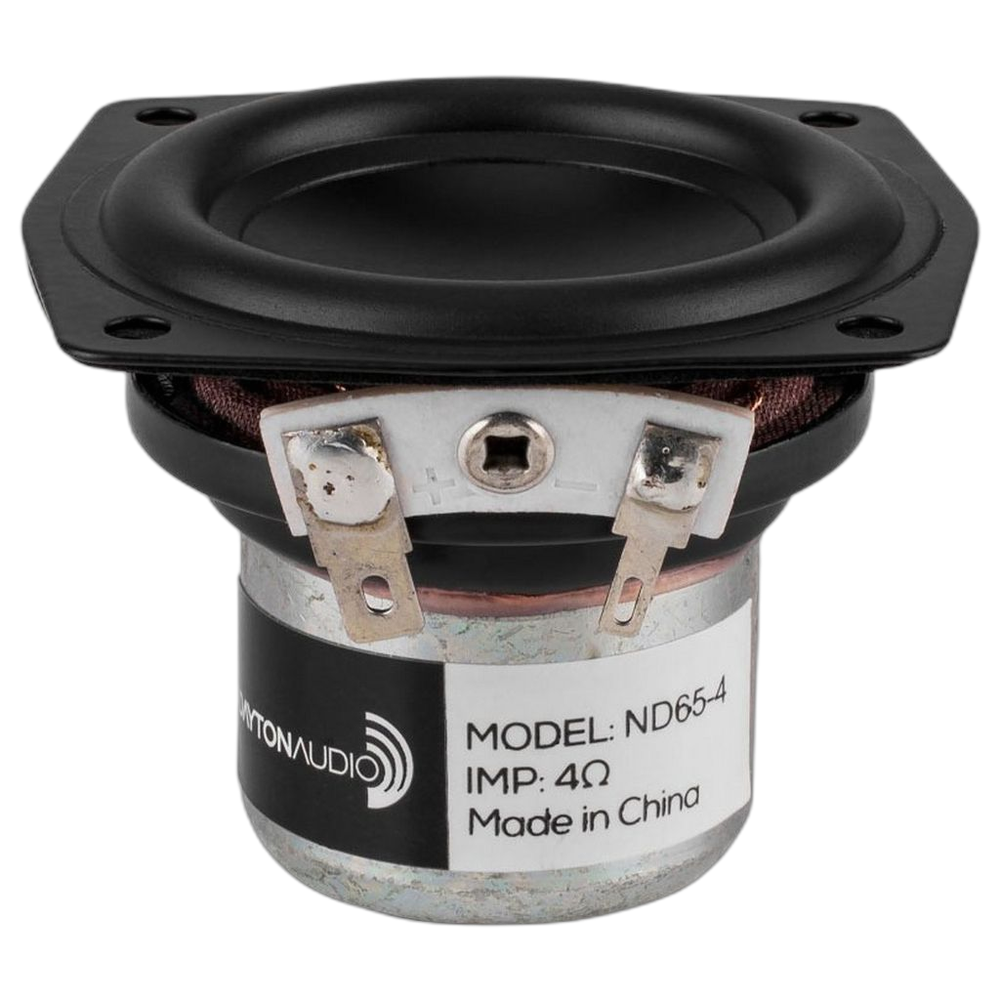

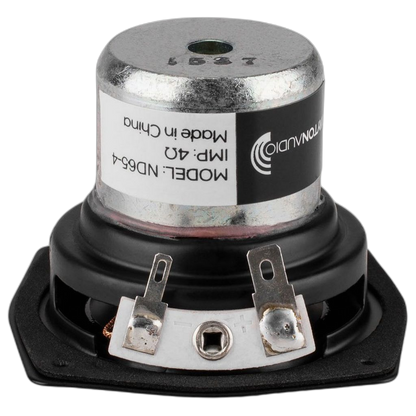

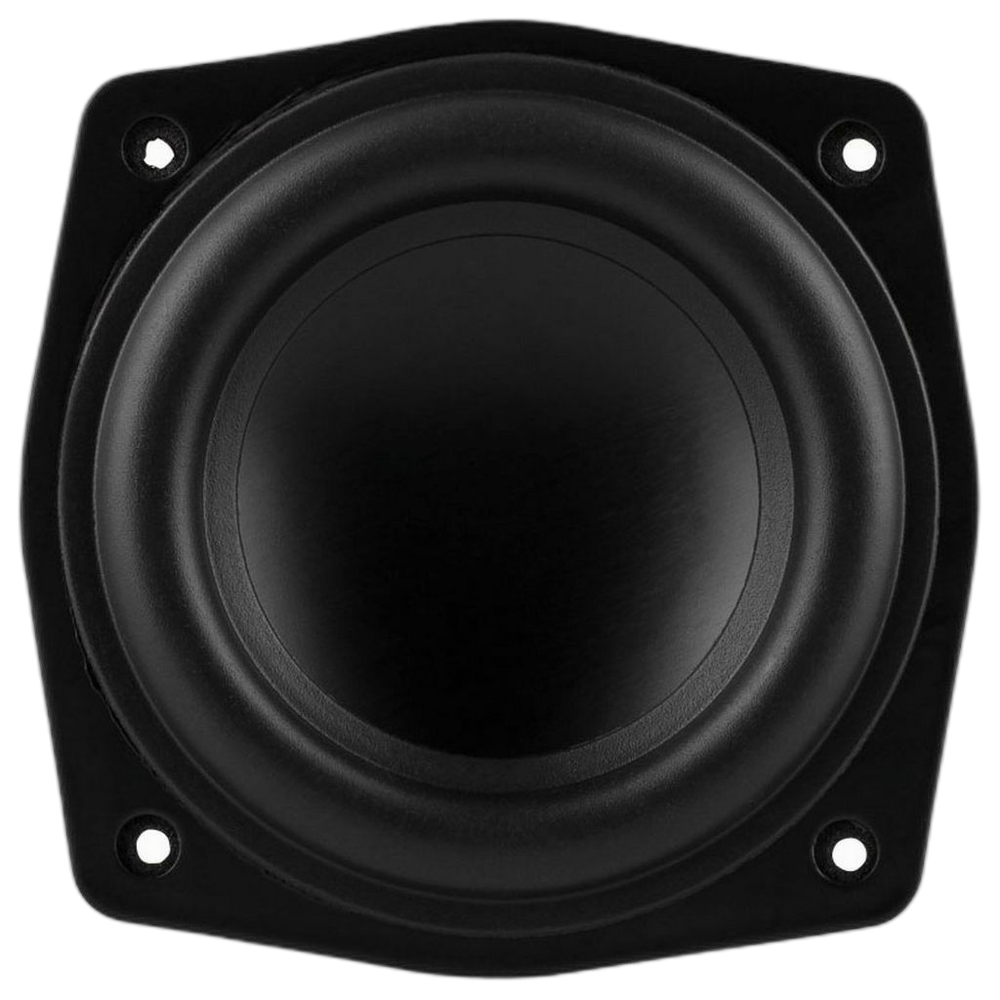

Dayton Audio's compact ND65-4 aluminium cone driver demonstrates the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminium diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.
Features
- Rubber-edged aluminium alloy cone
- Large excursion capability
- Self-shielded Neo-Balanced motor structure
- 4-layer underhung voice coil with polyimide former
- High power handling
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 2.5" |
| Nominal impedance | 4Ω |
| Series | ND |
| Power handling (RMS) | 15 W |
| Power handling (program) | 30 W |
| Sensitivity | 83 dB |

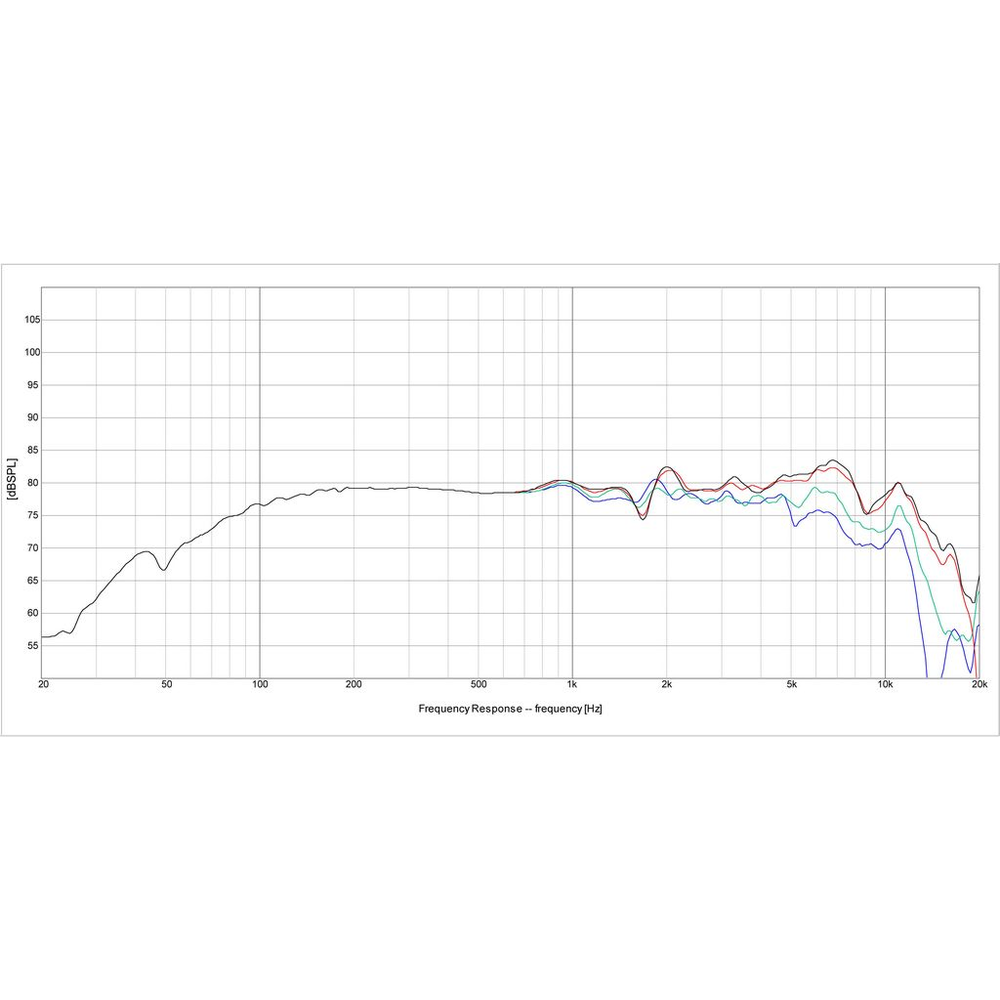

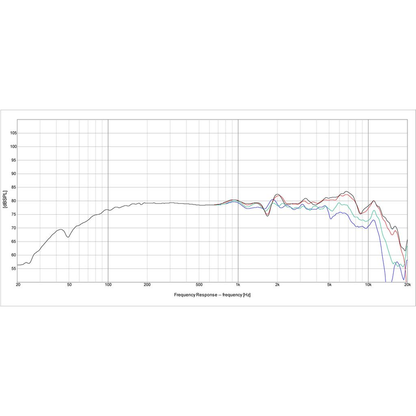

| Frequency range | 85 – 20,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 89.5 Hz |
|---|---|
| DC resistance (Re) | 3.5 Ω |
| Voice coil inductance (Le) | 0.44 mH |
| Mechanical Q (Qms) | 5.56 |
| Electrical Q (Qes) | 0.68 |
| Total Q (Qts) | 0.61 |
| Equivalent volume (Vas) | 0.53 L |
| Compliance (Cms) | 1.26 mm/N |
| Moving mass (Mms) | 2.5 g |
| Mechanical resistance (Rms) | 0.2529 kg/s |
| Force factor (Bl) | 2.68 T·m |
| Effective piston area (Sd) | 15.6 cm² |
| Linear excursion (Xmax, one-way) | 3.5 mm |
| Efficiency bandwidth product (EBP) | 131.6 |
Motor
| Voice coil wire | Copper |
|---|
Mounting

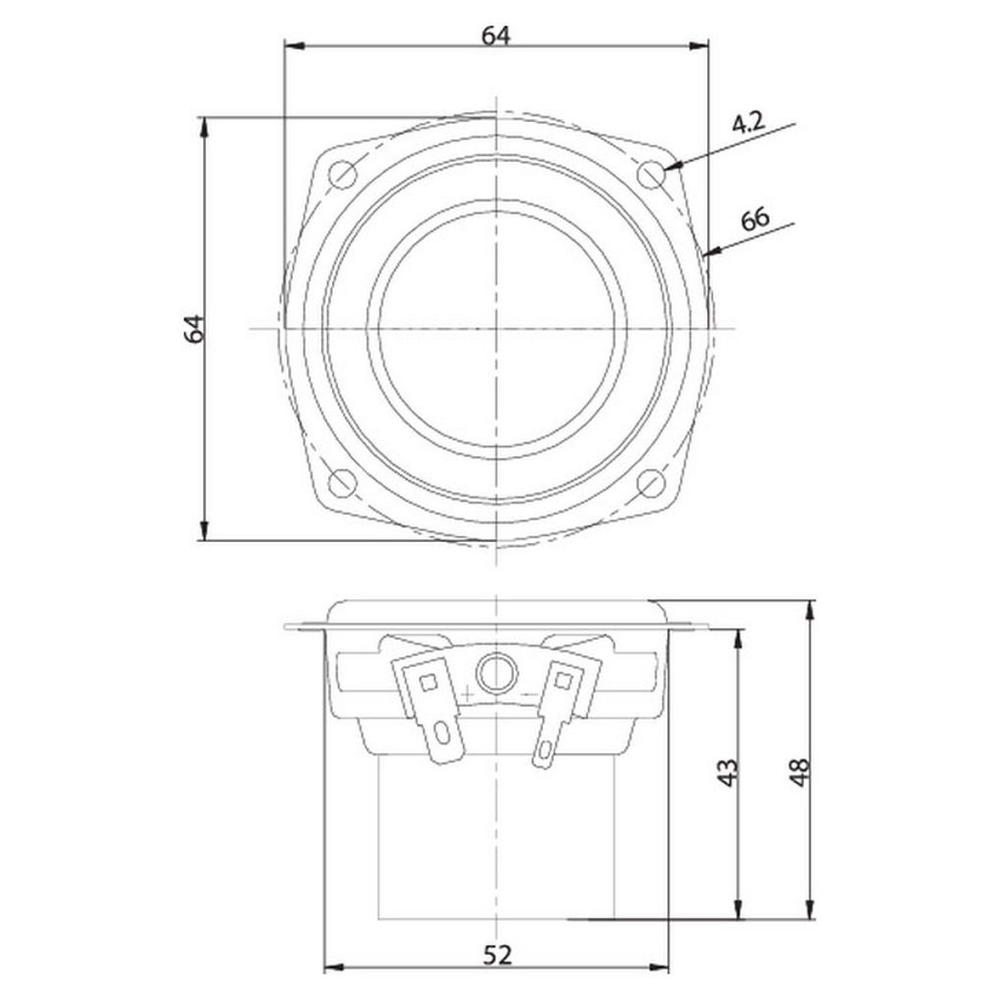

| Faceplate | Not round (see the maker's drawing) |
|---|---|
| Cutout diameter | 52 mm |
| Mounting depth | 43 mm |
| Voice coil diameter | 19 mm |
| Weight | 0.1814 kg |
| Mounting holes | 4 |
Materials
| Cone | Black Anodised Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Kapton® / Polyimide |
| Basket | Steel |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- ND65-4 Specification Sheet
- ND65-4 Data Files
- ND65-4 and 8 3D Files
- ND65-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
