Dayton Audio

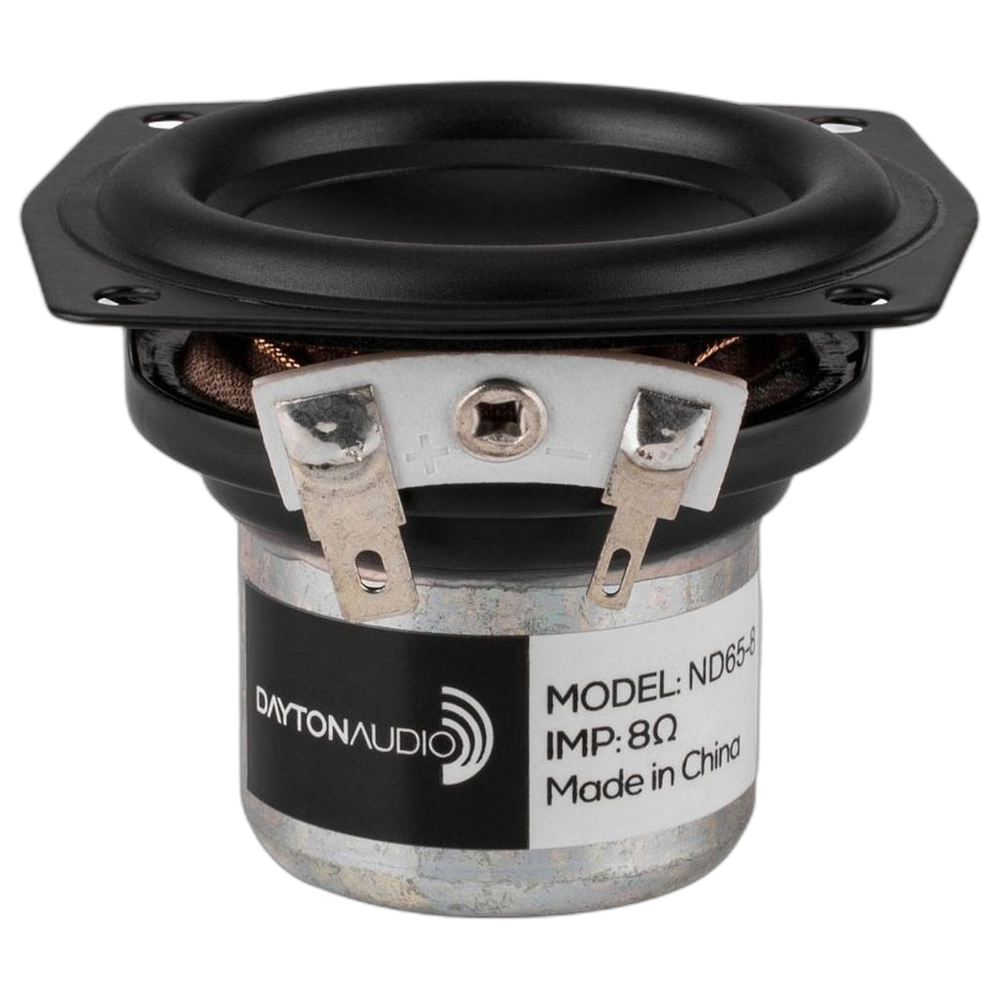

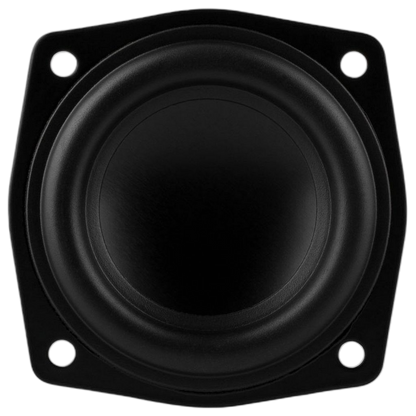

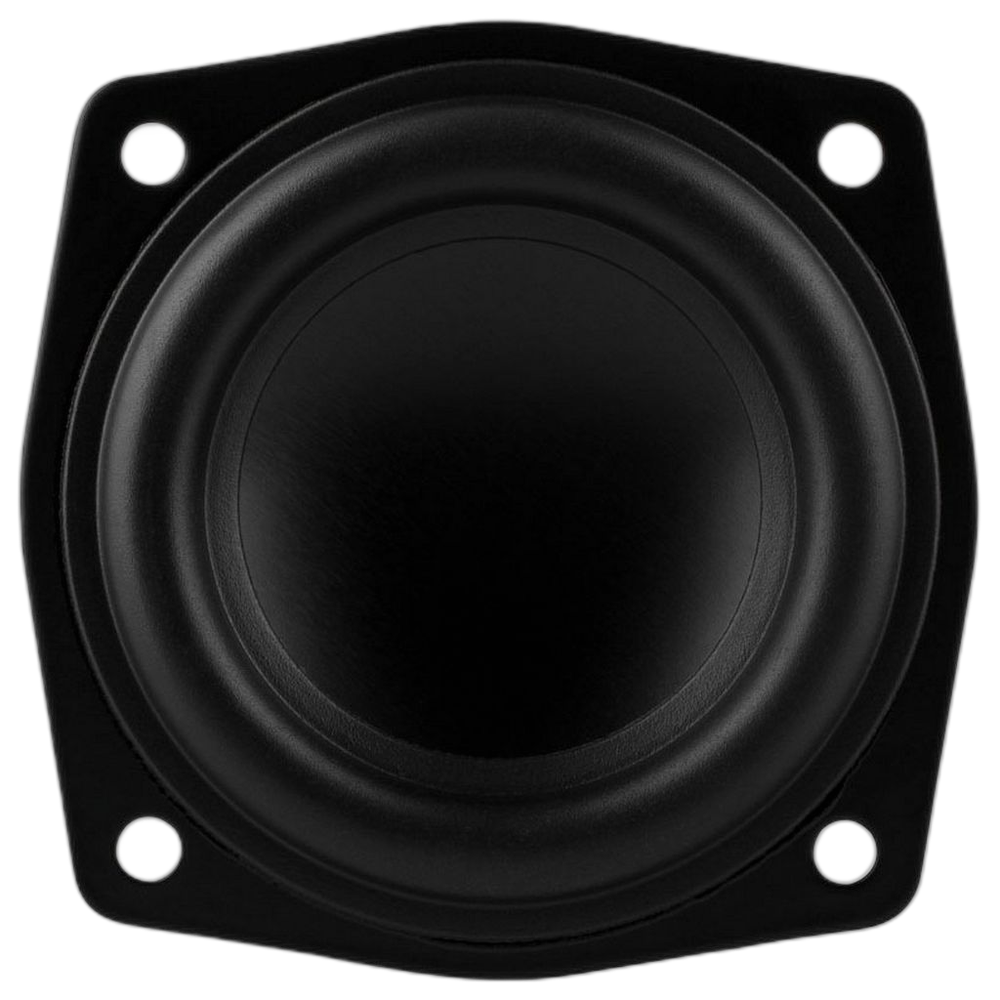

Dayton Audio - 2½" Full Range Driver - ND65-8
Dayton Audio - 2½" Full Range Driver - ND65-8
Regular price
$51.95 AUD
Regular price
Sale price
$51.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Dayton Audio's compact ND65 aluminium cone drivers demonstrate the latest advances in high-excursion design processes. An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminium diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source speaker applications, or combined in multiples and line arrays.
Features
- Rubber-edged aluminium alloy cone
- Large excursion capability
- Self-shielded Neo-Balanced motor structure
- 4-layer underhung voice coil with polyimide former
- High power handling
Specifications
| Type | Full Range |
|---|---|
| Size | 2.5' |
| Power | 15W |
| Coil | 19mmØ |
| Impedance | 8Ω Re 7.4Ω |
| Sens. | 80.8dB |
| Re | 7.4Ω |
| Qms | 4.01 |
| Qes | 0.46 |
| Qts | 0.41 |
| Vas | 0.71L |
| Sd | 15.6cm² |
| Cms | 1.68mm/N |
| Fs | 77.4Hz |
| Mms | 2.5g |
| Zn | 8Ω |
| Le | 1.04mH |

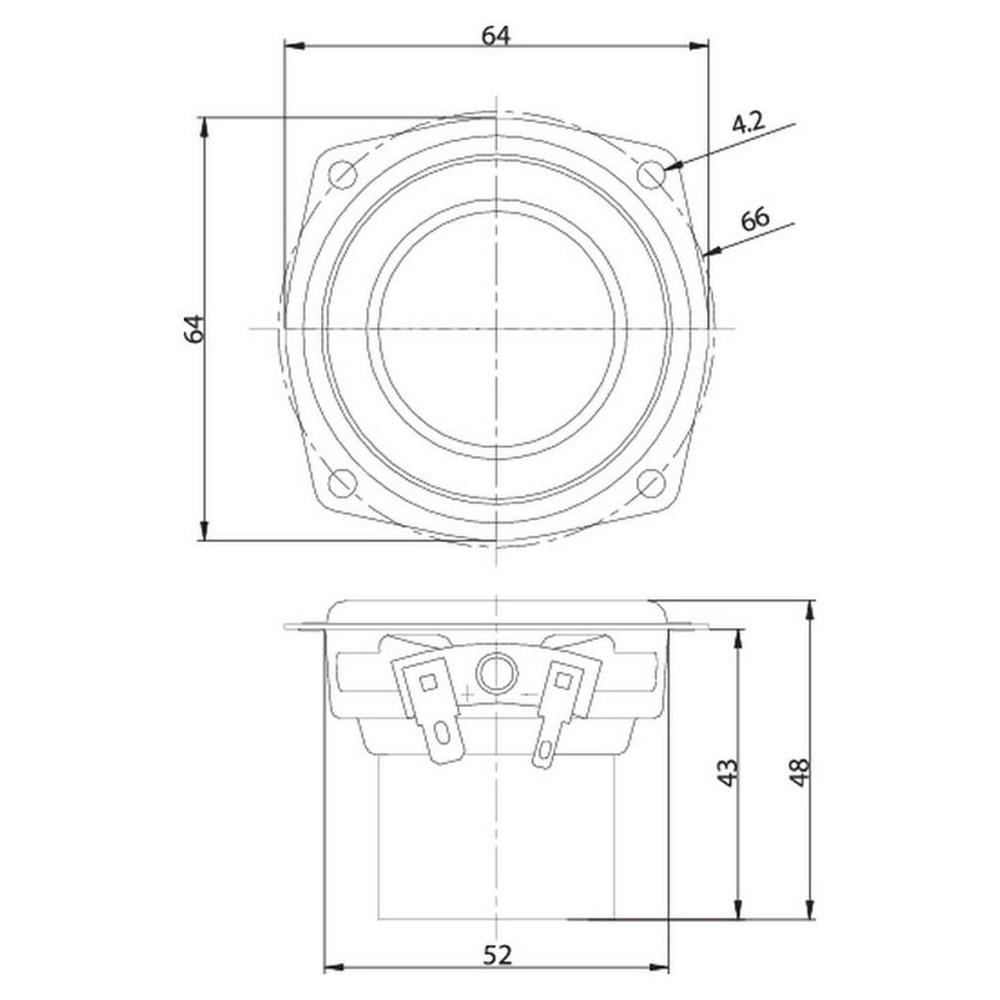

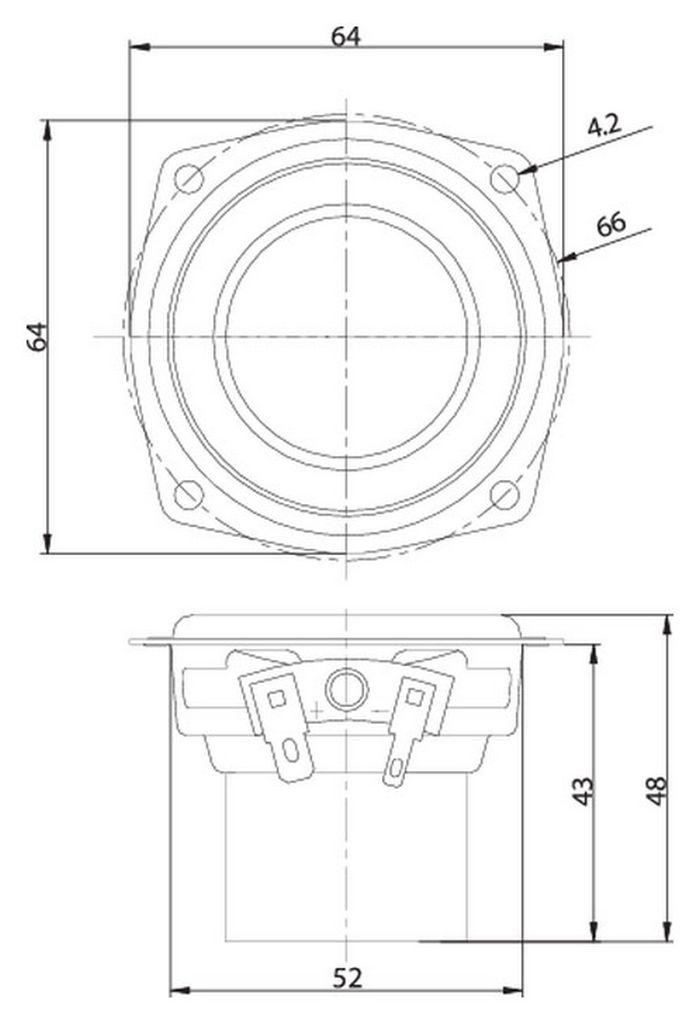

| Diam. | 64mmØ |
| Manufacturer | Dayton Audio |
| Hole | 52mmØ |
| Series | ND Series |
