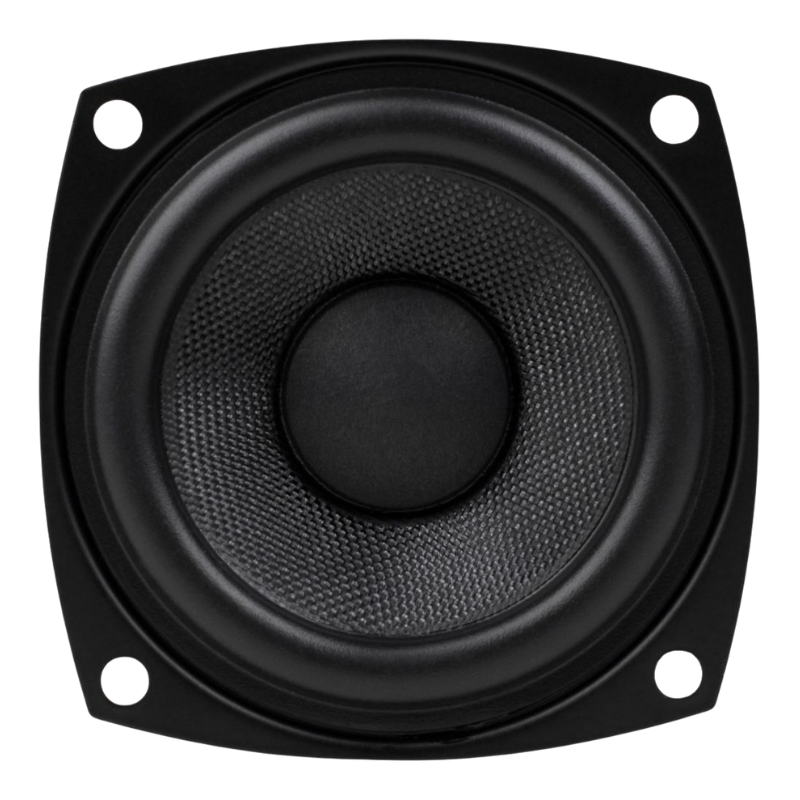

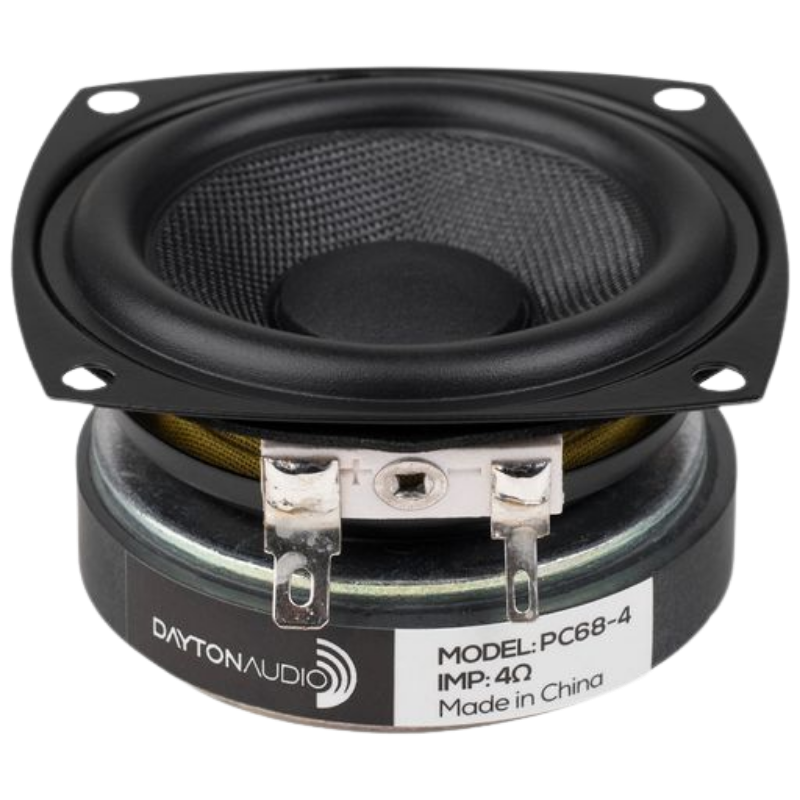

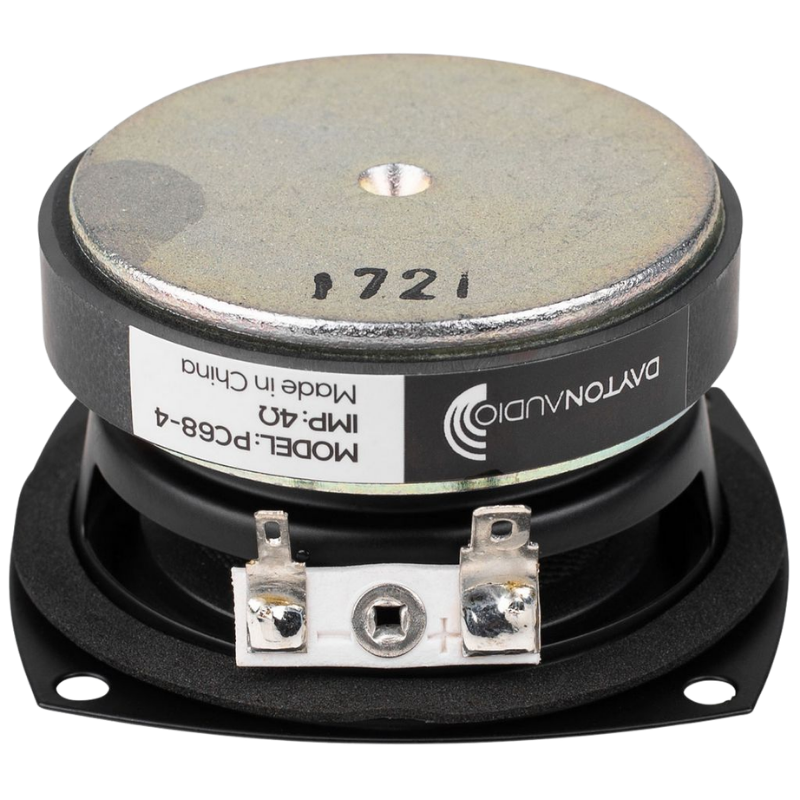

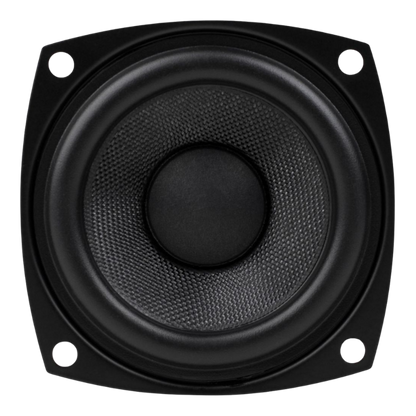

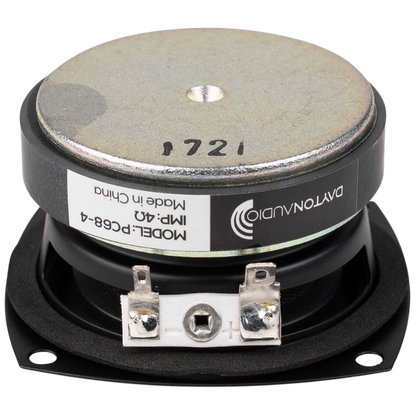

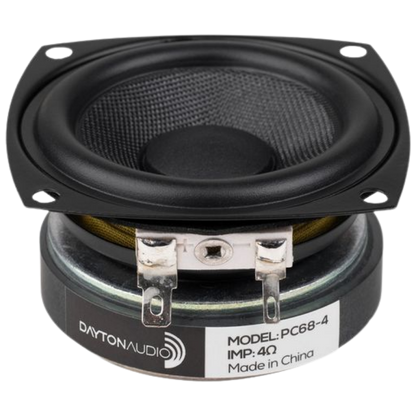

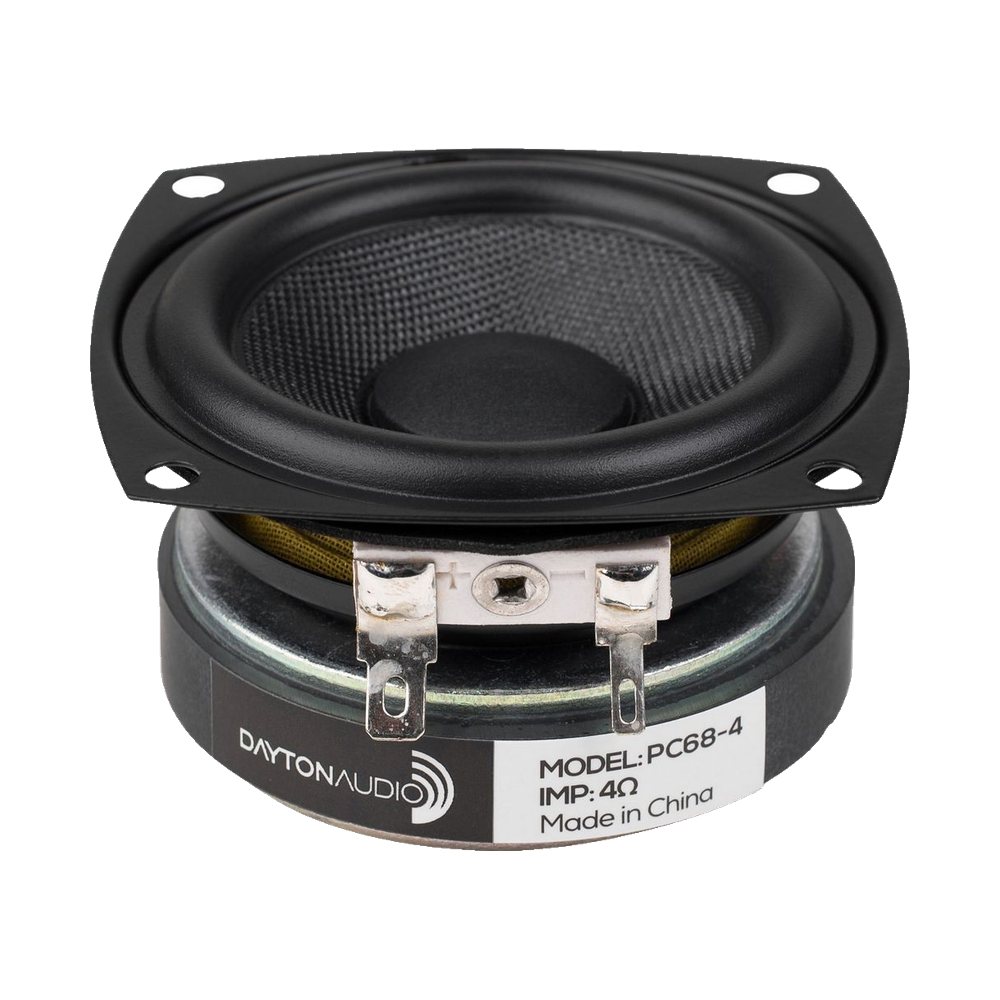

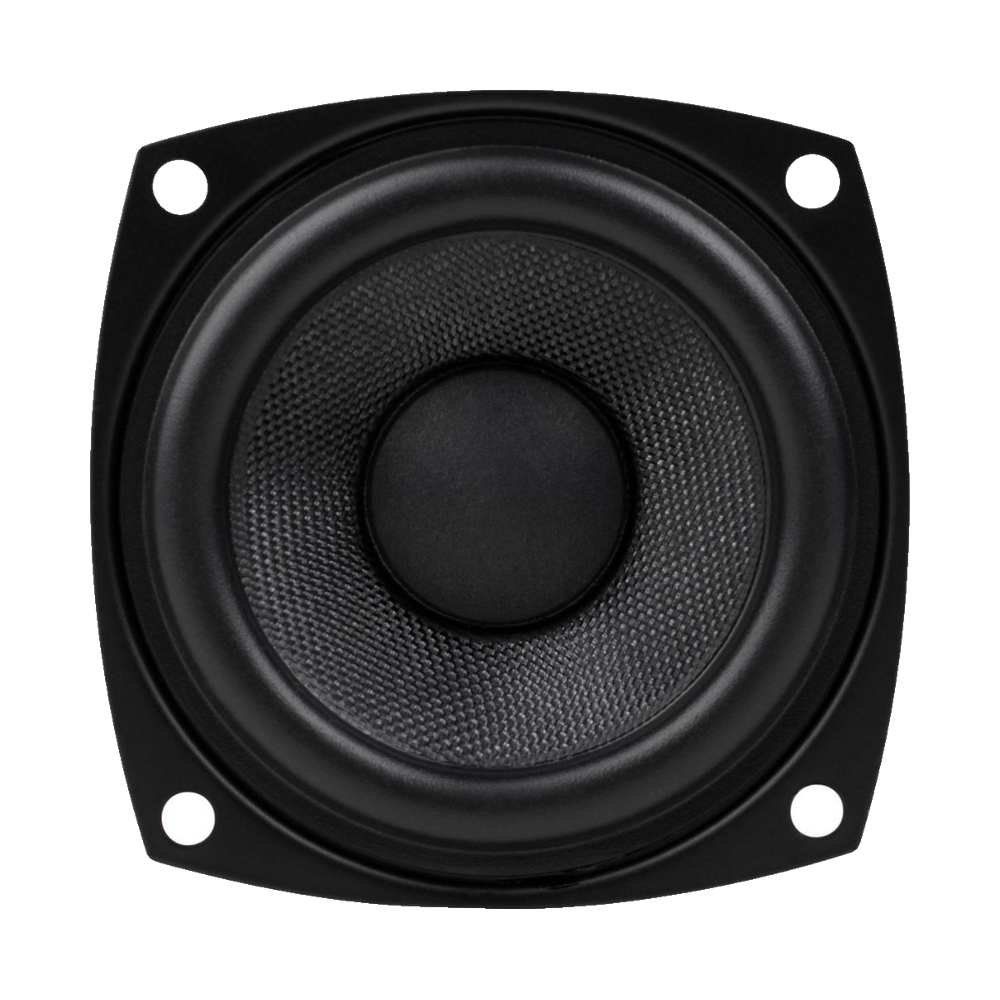

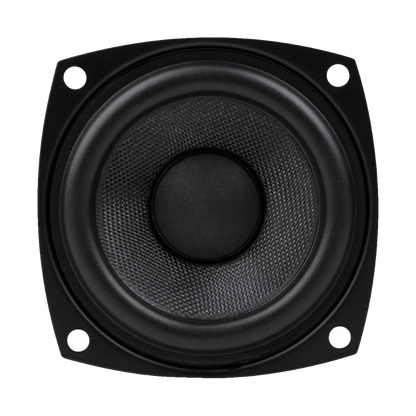

Dayton Audio - 2½" Full Range Driver - PC68-4
Dayton Audio - 2½" Full Range Driver - PC68-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Dayton Audio's PC68-4 2-1/2" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.
The Dayton Audio PC68-4 2-1/2" full-range driver features a poly damped woven glass fibre cone, rubber surround, and high energy motor. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio the Dayton Audio PC68-4 driver will deliver high fidelity and low distortion from compact applications for an amazing value.
Features
- Poly damped woven glass fibre cone controls cone break-up and provides a smooth roll-off
- High energy ferrite magnet increases BL for higher efficiency and increased output
- Rubber surround improves cone linearity and transients
- Smooth response with true full-range reproduction for simple speaker designs
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 2.5" |
| Nominal impedance | 4Ω |
| Series | Full-Range |
| Power handling (RMS) | 20 W |
| Power handling (program) | 40 W |
| Sensitivity | 86.1 dB |
| Frequency range | 120 – 17,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 117.1 Hz |
|---|---|
| DC resistance (Re) | 3.8 Ω |
| Voice coil inductance (Le) | 0.29 mH |
| Mechanical Q (Qms) | 2.49 |
| Electrical Q (Qes) | 0.87 |
| Total Q (Qts) | 0.65 |
| Equivalent volume (Vas) | 0.7 L |
| Compliance (Cms) | 1.07 mm/N |
| Moving mass (Mms) | 1.7 g |
| Mechanical resistance (Rms) | 0.5023 kg/s |
| Force factor (Bl) | 2.4 T·m |
| Effective piston area (Sd) | 21.2 cm² |
| Linear excursion (Xmax, one-way) | 2 mm |
| Displacement volume (Vd) | 4.24 cm³ |
| Efficiency bandwidth product (EBP) | 134.6 |
Motor
| Voice coil wire | Copper |
|---|
Mounting
| Faceplate | Not round (see the maker's drawing) |
|---|---|
| Cutout diameter | 64 mm |
| Mounting depth | 37 mm |
| Voice coil diameter | 19 mm |
| Weight | 0.2948 kg |
| Mounting holes | 4 |
| Bolt circle diameter | 73 mm |
Materials
| Cone | Poly Composite |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Stamped Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- PC68-4 Specifications Sheet

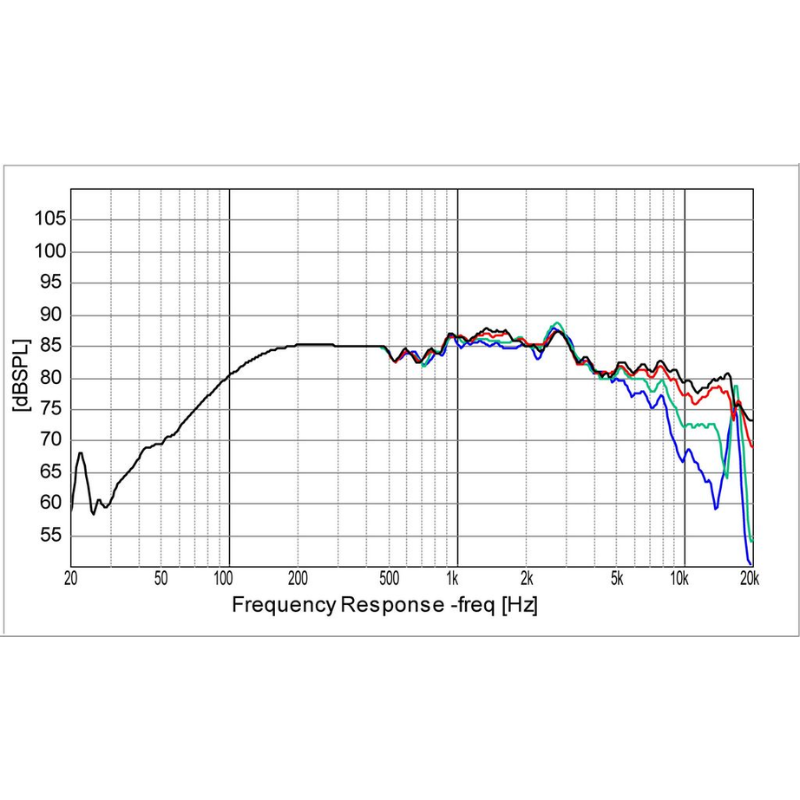

- PC68-4 Graphs/FRD/ZMA Data File
- PC68-4 3D Files

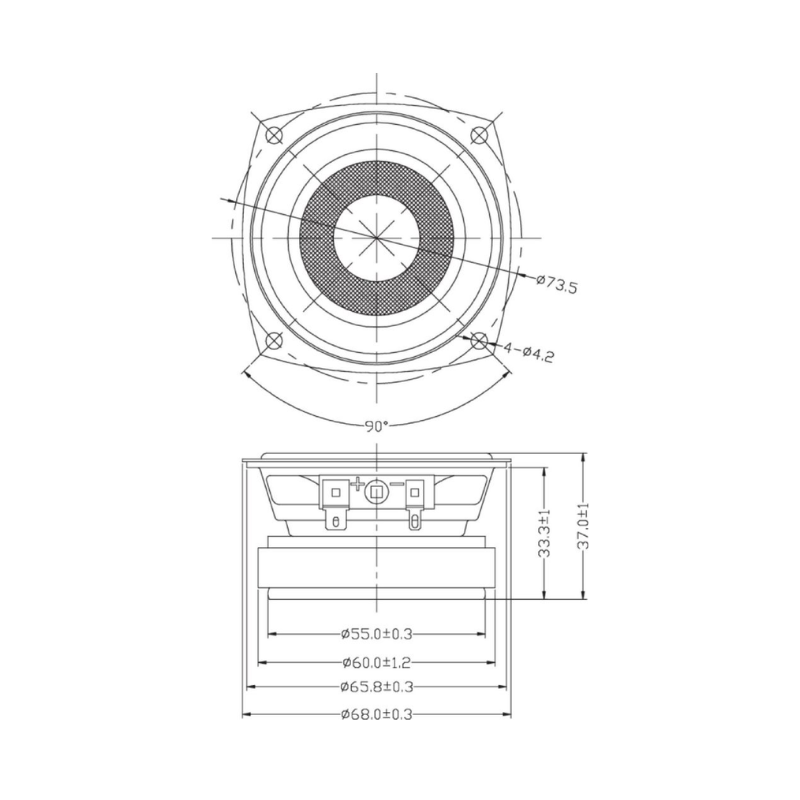

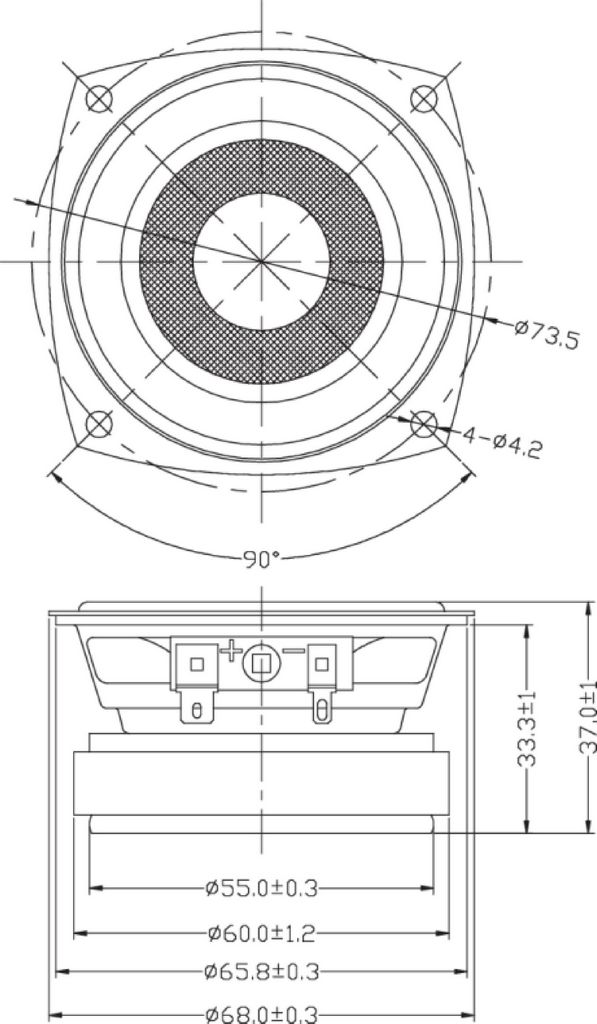

- PC68-4 Cutout & Recess Template (NB Audio) Straight off Dayton Audio's spec sheet: cutout. Scaled from Dayton Audio's drawing, so close but not guaranteed exact: flange outline. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
