Dayton Audio

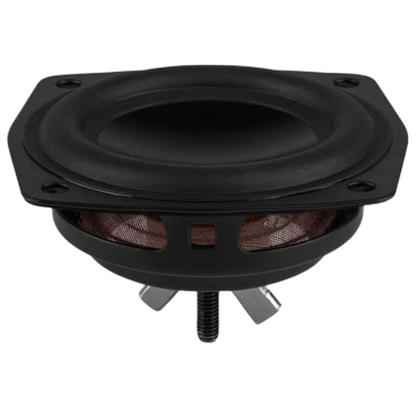

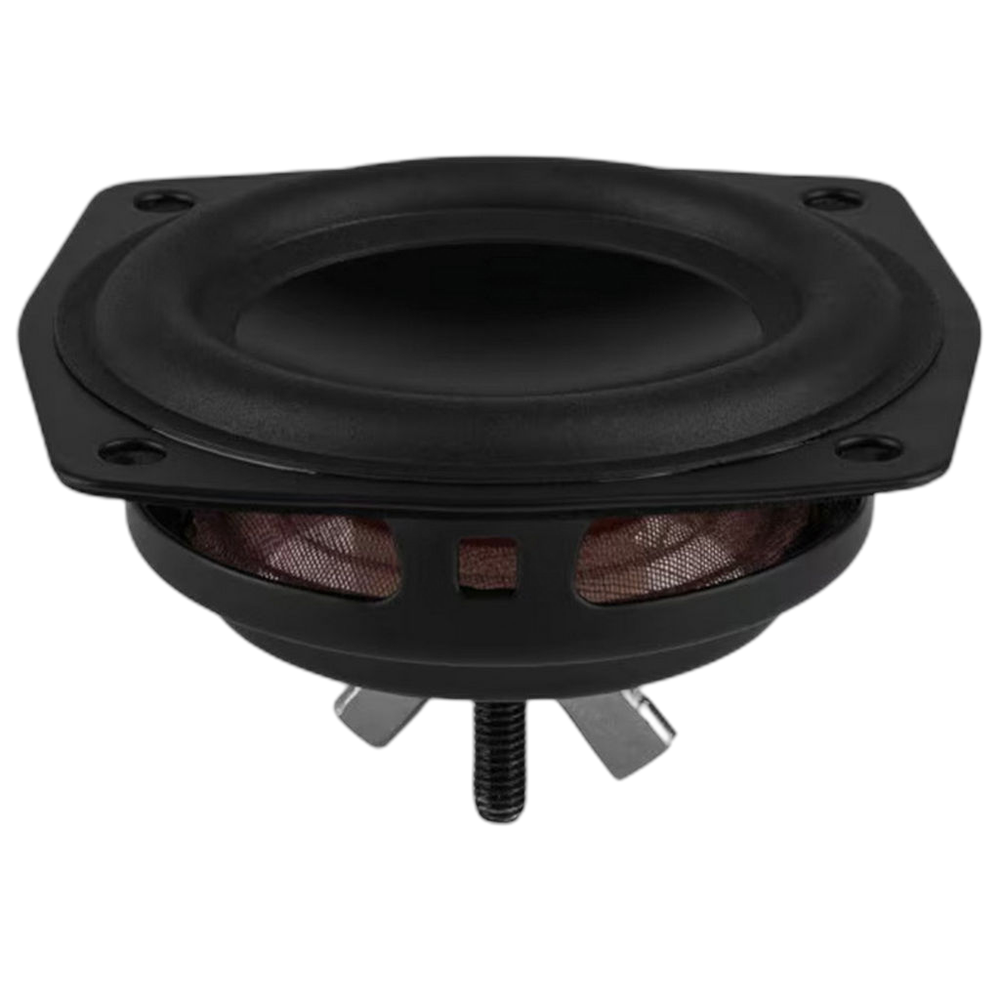

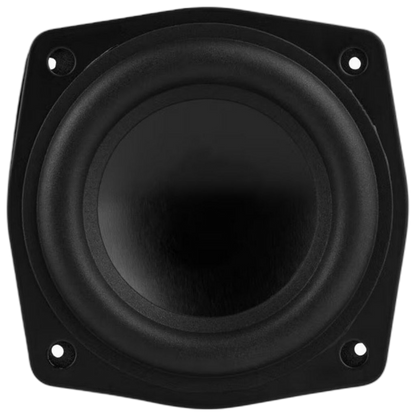

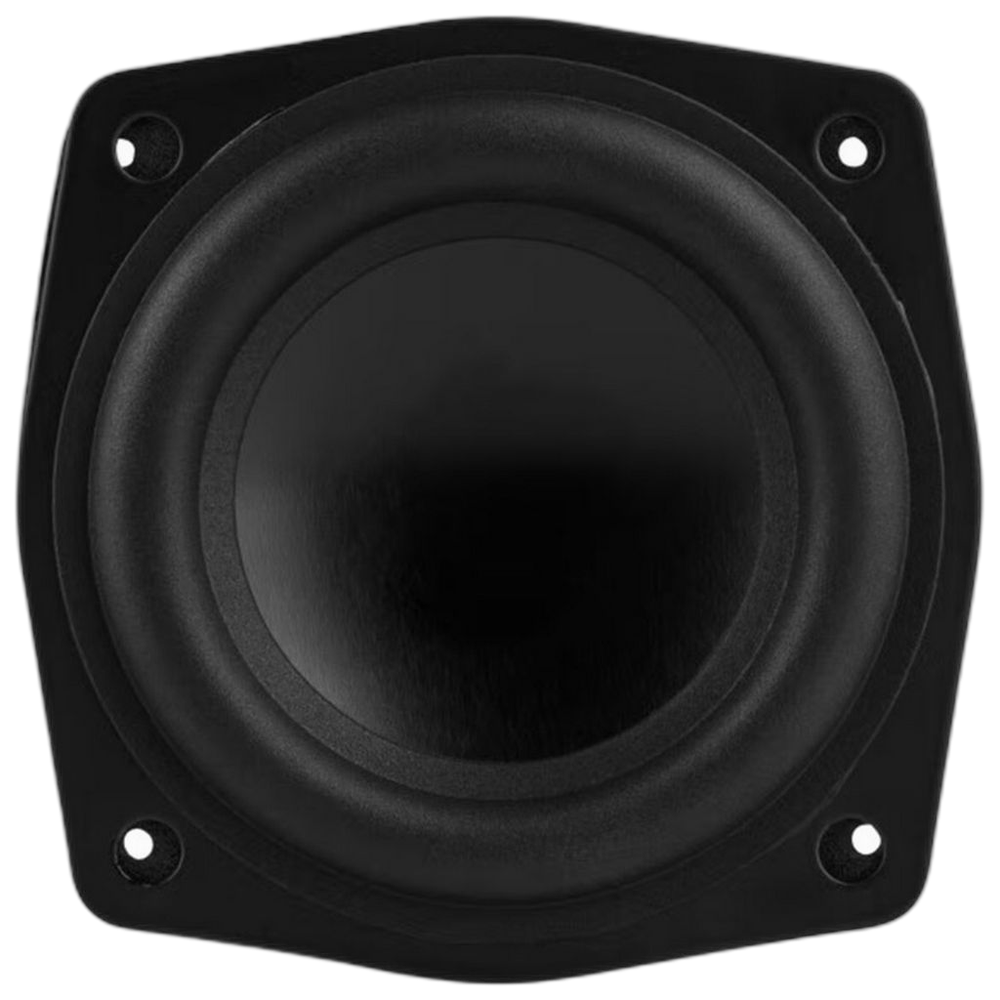

Dayton Audio - 2½" Passive Radiator Aluminium - ND65-PR

Dayton Audio - 2½" Passive Radiator Aluminium - ND65-PR

Regular price $22.95
Regular price Sale price $22.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.

View full details

Description

The Dayton Audio ND65-PR 2-1/2" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminium cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output.

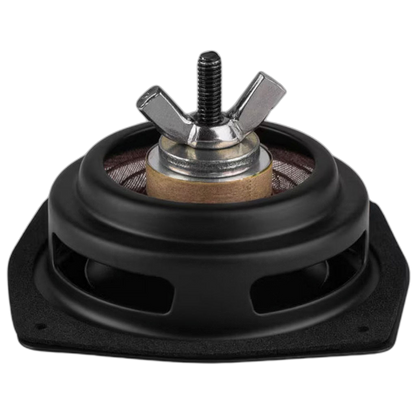

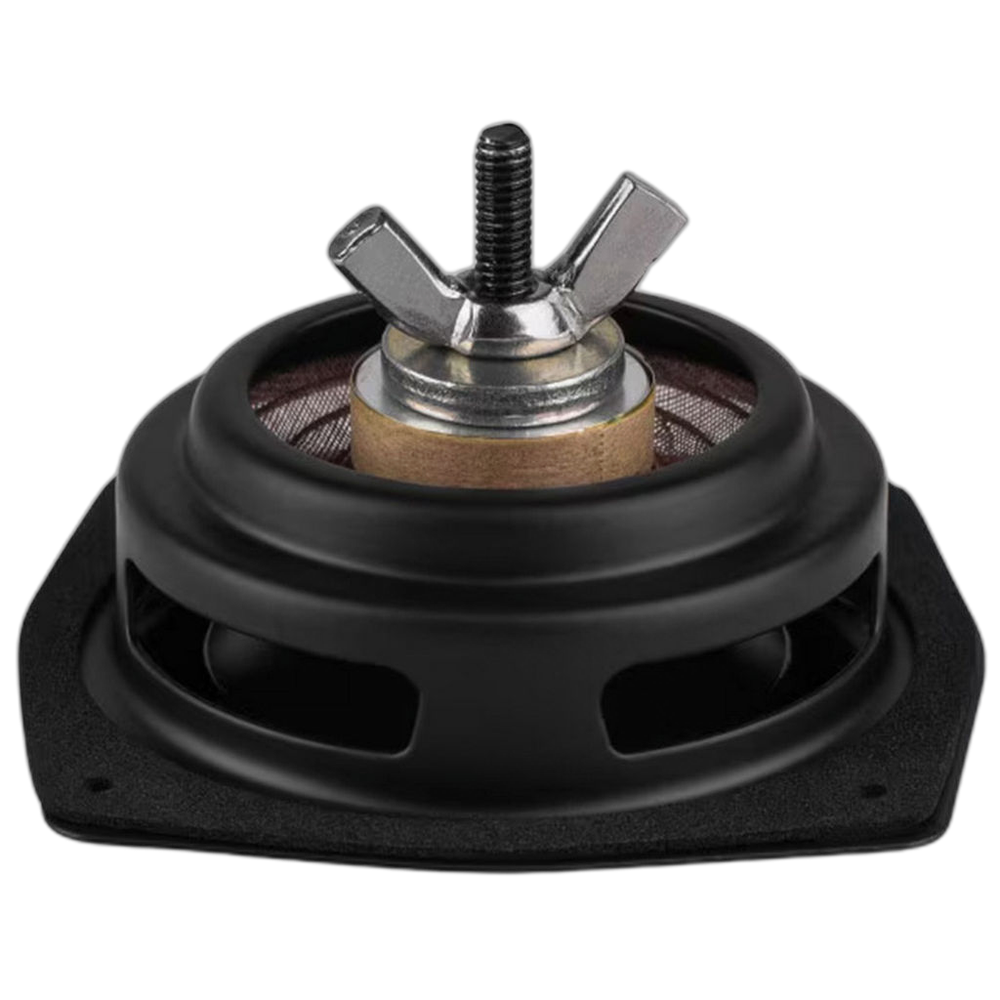

Tune small enclosures with Dayton Audio's ND65-PR 2-1/2" passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminium cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND65-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND65-PR introduces a new range of possibilities.

The ND65-PR 2-1/2" passive radiator includes: (1) Passive radiator (1) 4.3 gram disk weight (1) Wing nut

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd

Features

  • Rigid black anodised aluminium alloy cone
  • High excursion capability: 10 mm peak to peak
  • Same "family look" as ND Series woofers
  • Mass adjustable for a vast range of tuning frequencies

Specifications

General

Driver type Passive Radiator
Nominal size 2.5"
Series ND

Thiele/Small parameters

Resonant frequency (Fs) 73 Hz
Mechanical Q (Qms) 2.69
Equivalent volume (Vas) 0.5 L
Compliance (Cms) 1.45 mm/N
Moving mass (Mms) 3.2 g
Mechanical resistance (Rms) 0.56 kg/s
Effective piston area (Sd) 15.6 cm²
Linear excursion (Xmax, one-way) 5 mm
Displacement volume (Vd) 7.8 cm³

Mounting

Faceplate Not round (see the maker's drawing)
Cutout diameter 52 mm
Mounting depth 20 mm
Weight 0.04536 kg
Mounting holes 4

Materials

Cone Aluminium
Surround Rubber
Basket Steel
  • Xmax is quoted one-way (peak), not peak-to-peak.
