Description

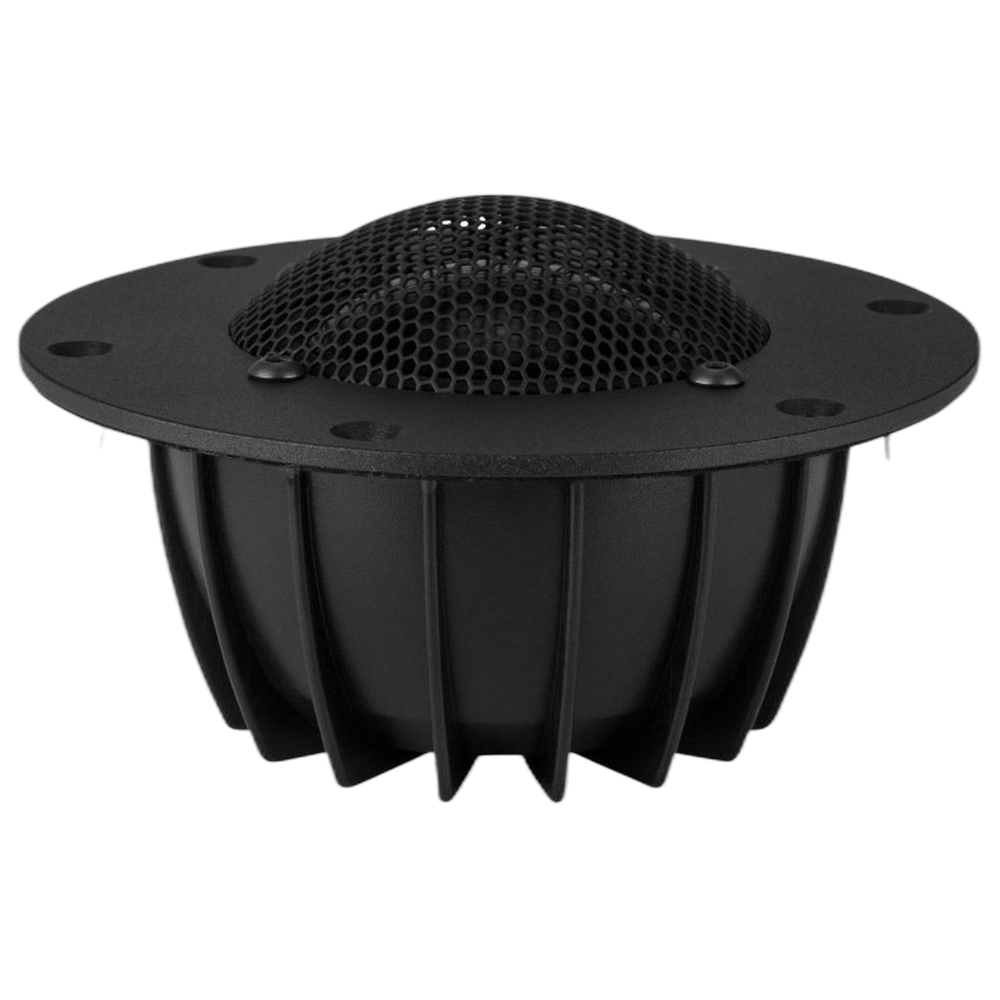

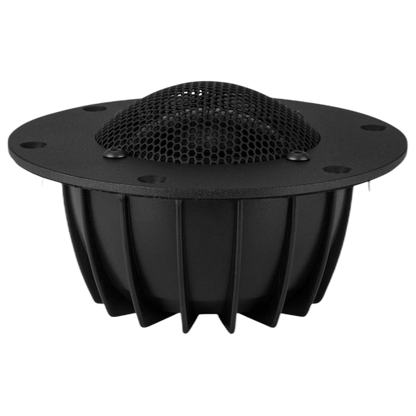

The Dayton Reference Series dome midrange delivers excellent off-axis response and midrange performance. Its black anodised 2" diaphragm is extremely linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical two-way designs with large woofers. High quality construction includes a cast aluminium faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance driver.
Features

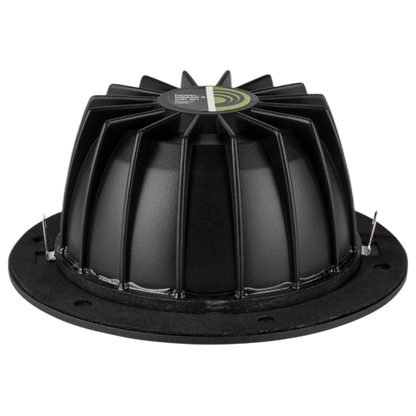

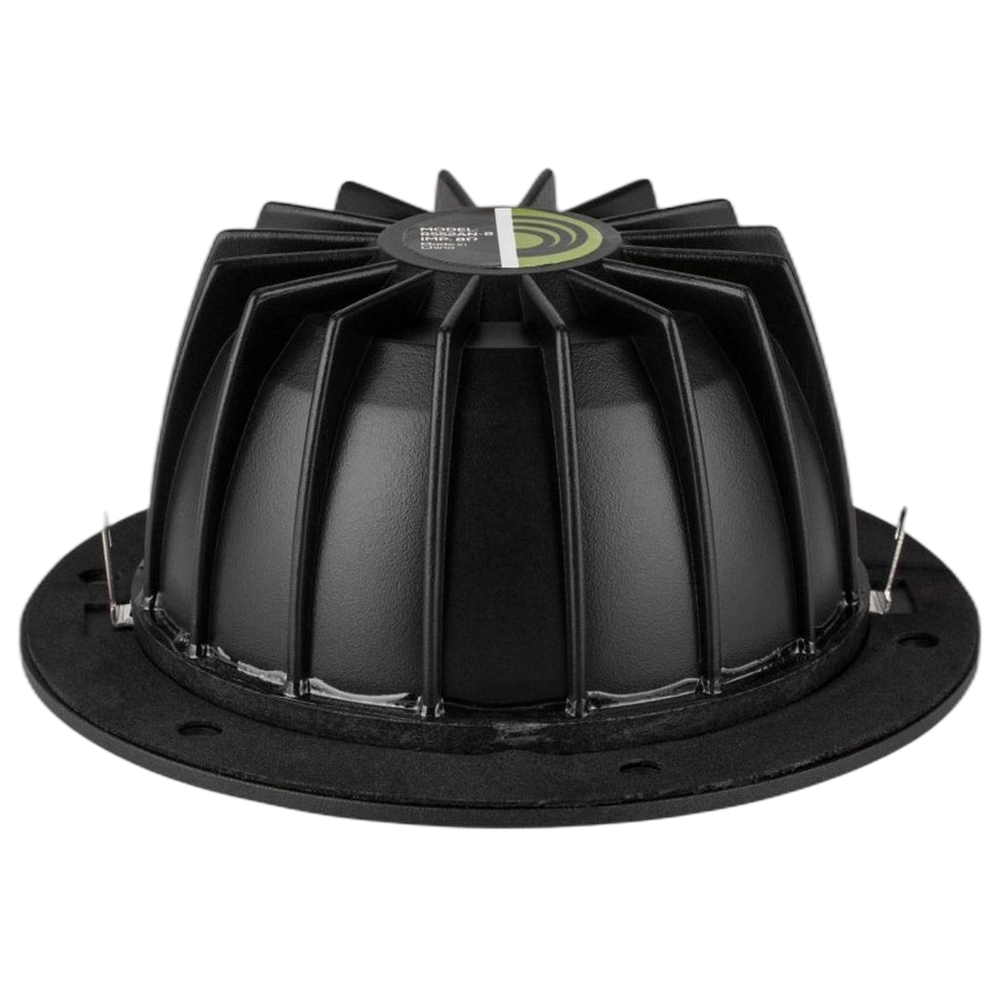

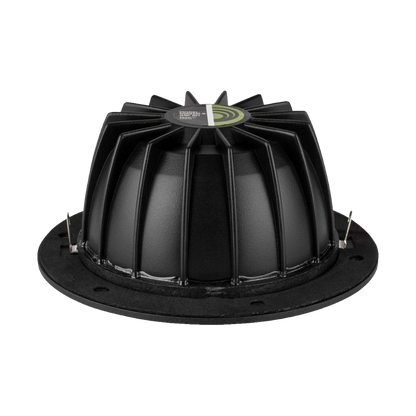

- Large damped rear chamber for low resonance point
- 2" Aluminium diaphragm for good clarity and dispersion
- Neodymium magnet minimises stray magnetic field
- Copper clad motor reduces distortion for transparent sound
Specifications
Specifications
General
| Driver type | Mid-Range |
|---|---|
| Nominal size | 2" |
| Nominal impedance | 8Ω |
| Series | Reference |
| Power handling (RMS) | 60 W |
| Power handling (program) | 120 W |
| Sensitivity | 89.4 dB |

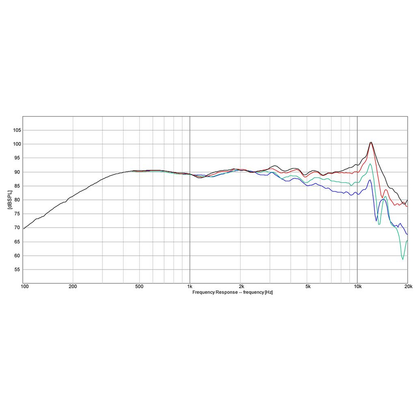

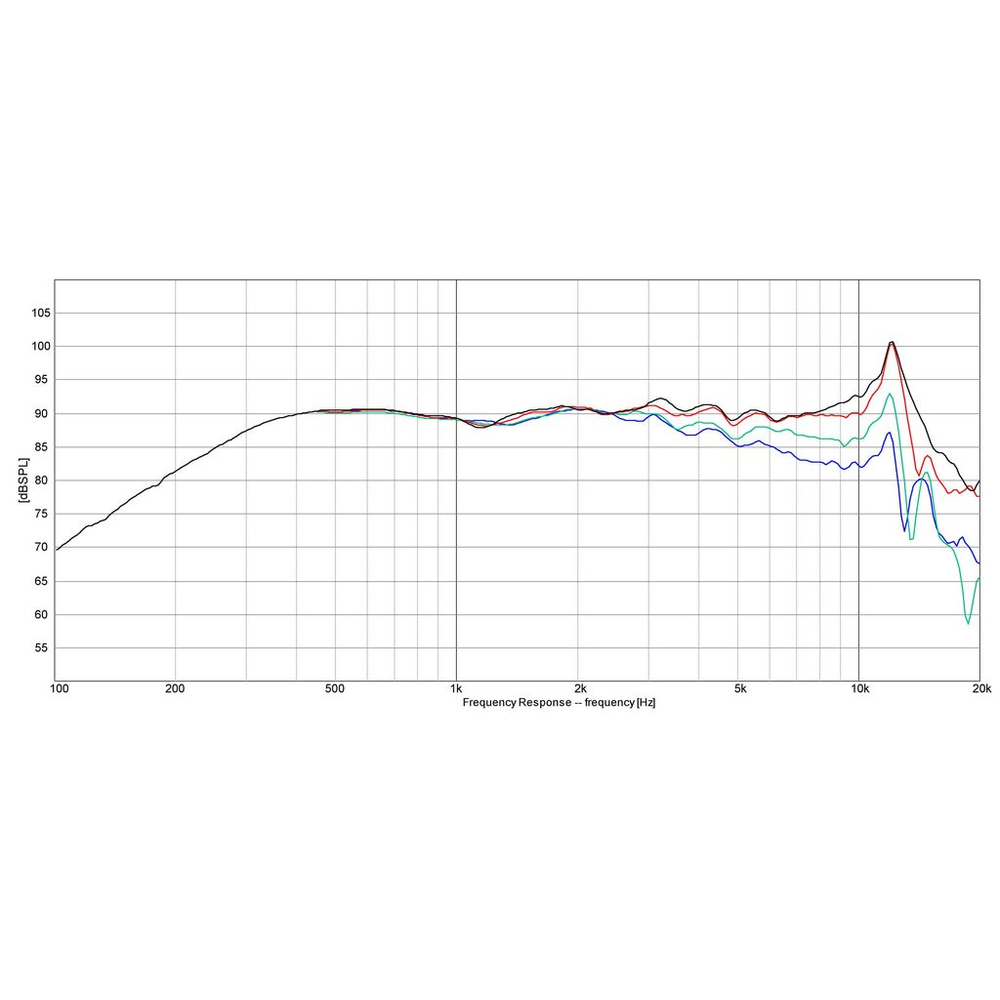

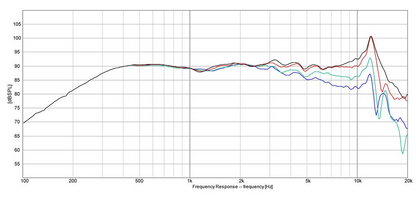

| Frequency range | 500 – 14,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 341 Hz |
|---|---|
| DC resistance (Re) | 6 Ω |
| Voice coil inductance (Le) | 0.13 mH |
| Mechanical Q (Qms) | 3.16 |
| Electrical Q (Qes) | 1.18 |
| Total Q (Qts) | 0.86 |
| Equivalent volume (Vas) | 0.13 L |
| Compliance (Cms) | 0.13 mm/N |
| Moving mass (Mms) | 1.7 g |
| Mechanical resistance (Rms) | 1.153 kg/s |
| Force factor (Bl) | 4.26 T·m |
| Effective piston area (Sd) | 26.4 cm² |
| Linear excursion (Xmax, one-way) | 1 mm |
| Displacement volume (Vd) | 2.64 cm³ |
| Efficiency bandwidth product (EBP) | 289 |
Motor
| Voice coil wire | Copper |
|---|
Mounting

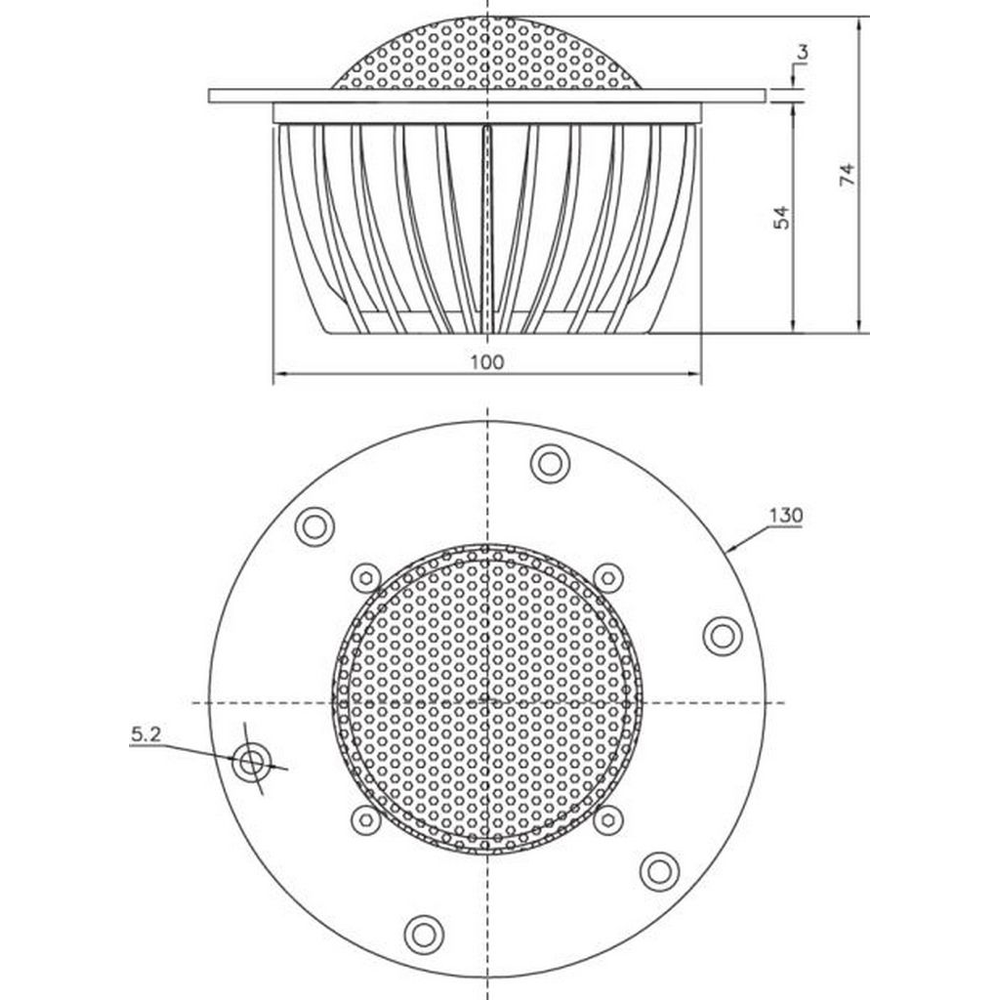

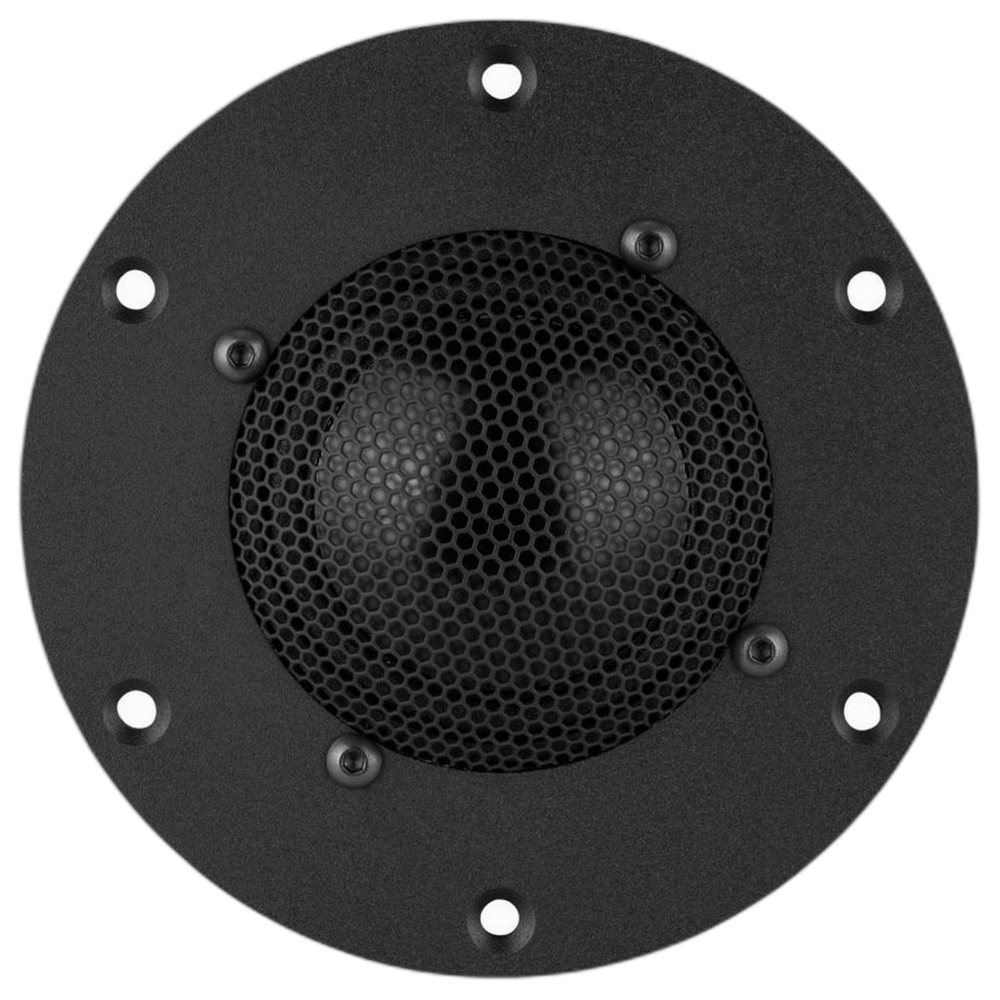

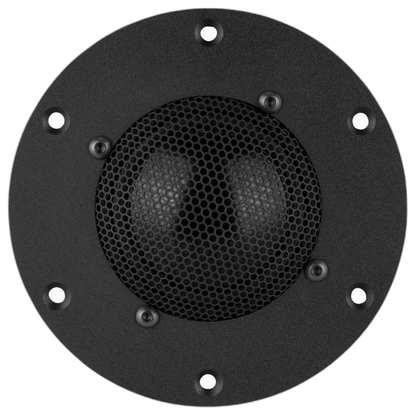

| Overall diameter | 130 mm |
|---|---|
| Cutout diameter | 100 mm |
| Mounting depth | 54 mm |
| Flange thickness | 3 mm |
| Bolt circle diameter | 113.5 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.2 mm |
| Voice coil diameter | 52 mm |
Materials
| Cone | Metal Dome |
|---|---|
| Voice coil former | Aluminium |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RS52AN-8 Specification Sheet
- RS52AN-8 Data Files
- RS52AN-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
