Dayton Audio - 200W Bass Shaker Amplifier - BSA-200

Description

Dayton Audio high power low-pass amplifier is designed to power Dayton’s range of tactile transducers and works equally as well as a dedicated subwoofer speaker amplifier. The frequency (50-200Hz) and balance knobs let you dial in the desired crossover point and output. Convenient wired remote volume & power control. Rated at 110Wrms per channel 2 ohm stable. In bridged mono mode, both amplifier channels are combined for high-power 230Wrms mono. Manual and automatic on/off modes allow easy integration into automated systems and saves power when not in use. 5V USB power output is designed for use with the Dayton Audio Wave-Link wireless system (sold separately, see WLS). Gold plated 4mm or bare wire speaker binding terminals. Compact 60x240x210mm. Includes brackets for vertical or horizontal mounting.

Features

• Powerful 200 watt amplifier optimised for bass shaker installations
• Robust 2 ohm minimum impedance provides maximum output to bass shakers

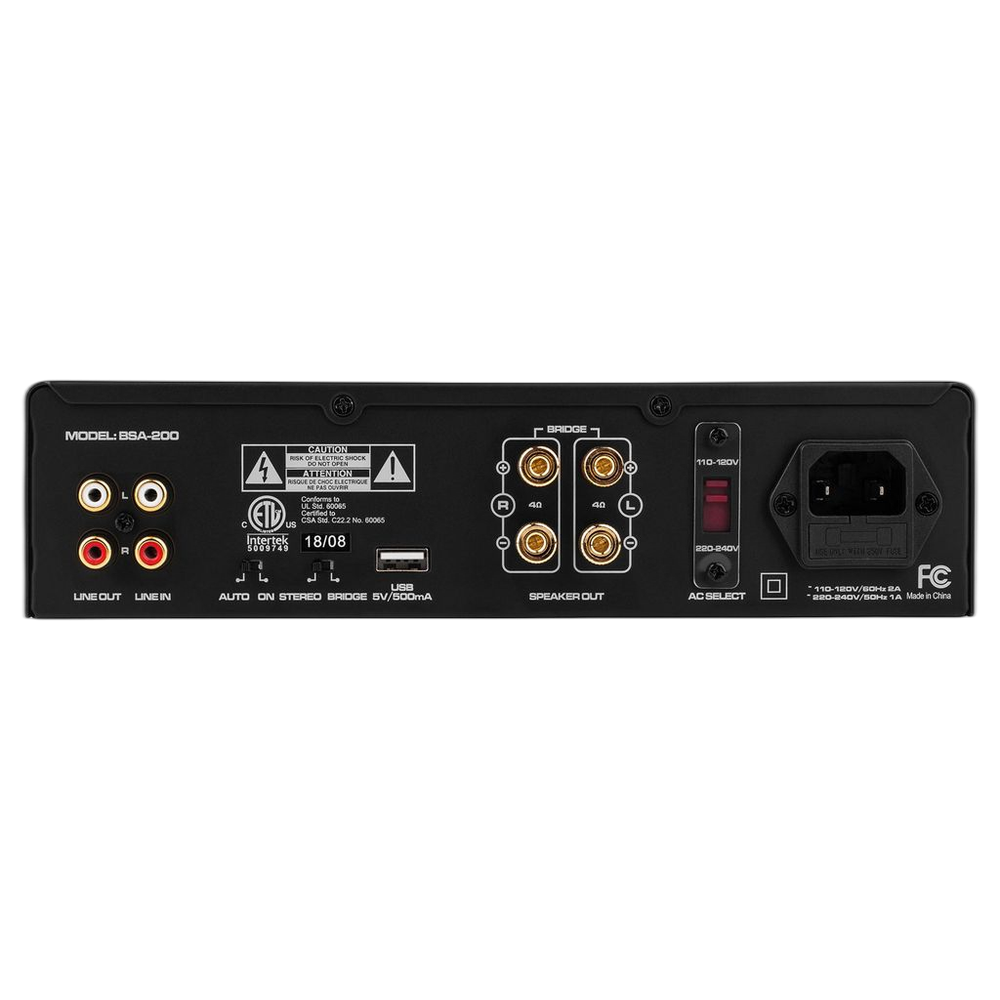

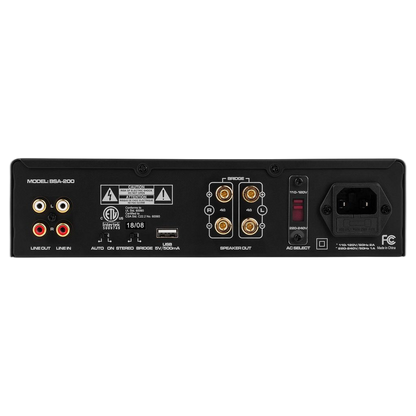

• RCA line in and out for daisy chaining multiple units

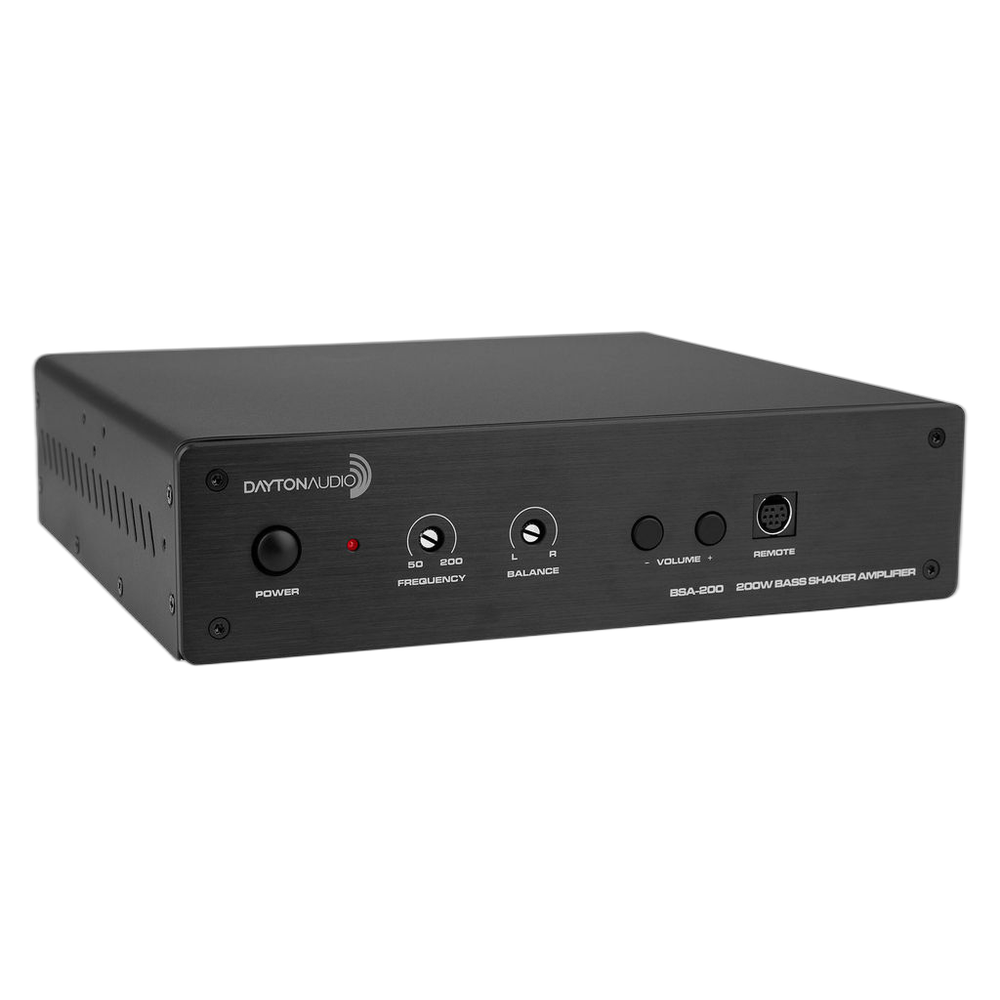

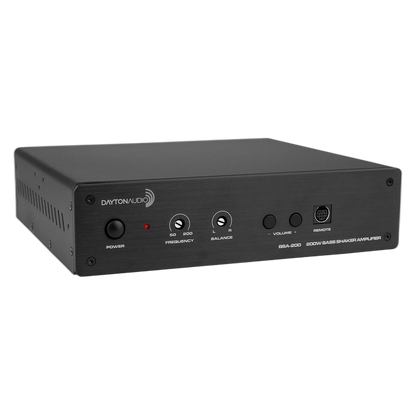

• Adjustable 50-200 Hz low pass crossover for seamless audio integration
• Built-in USB port for powering 5V devices or for use with the wireless Dayton Audio Wave-Link receiver (Optional, see WLS)

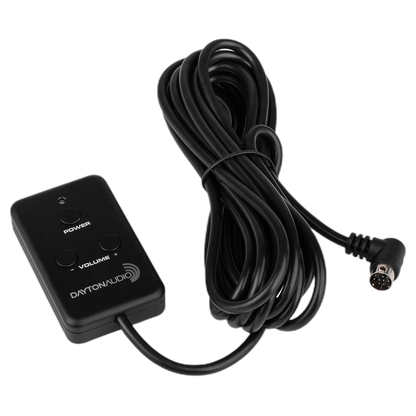

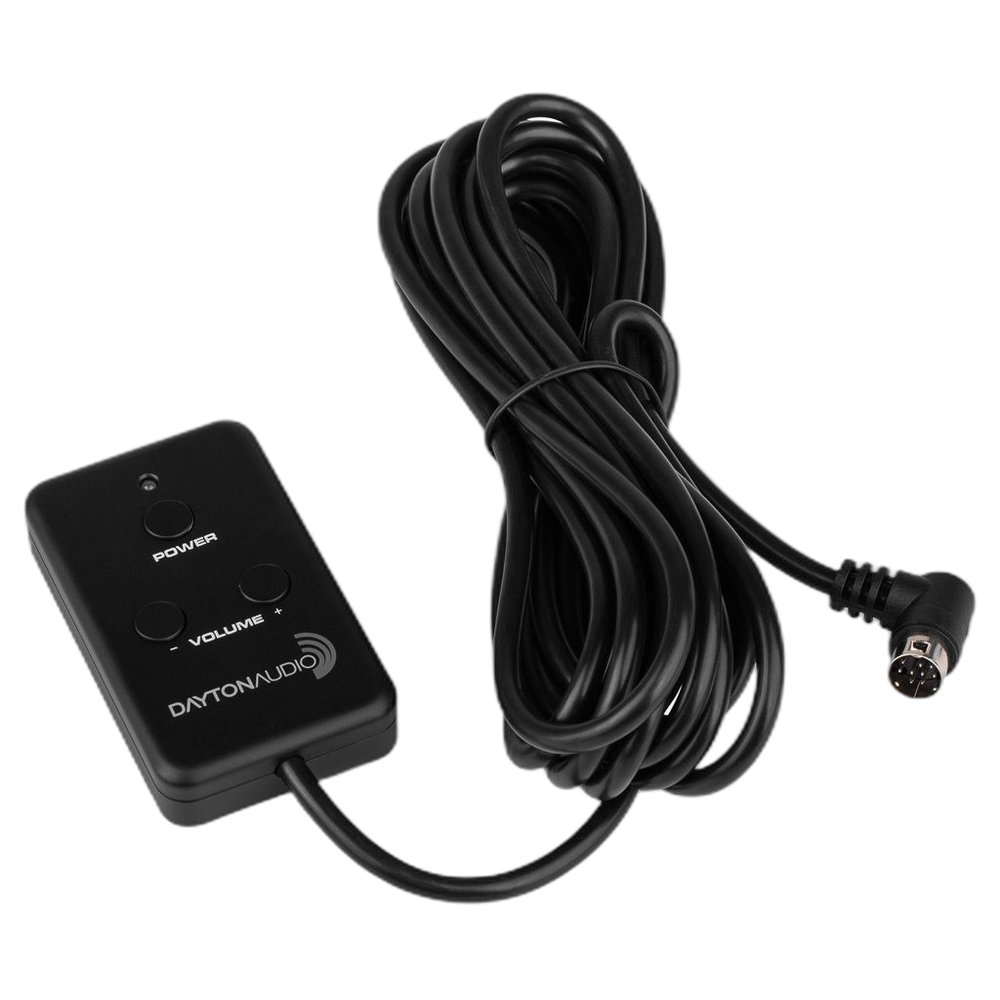

• Included wired remote provides a convenient location for the volume control
• Compact 64x241x216mm. Includes brackets for custom mounting solutions

Specifications
