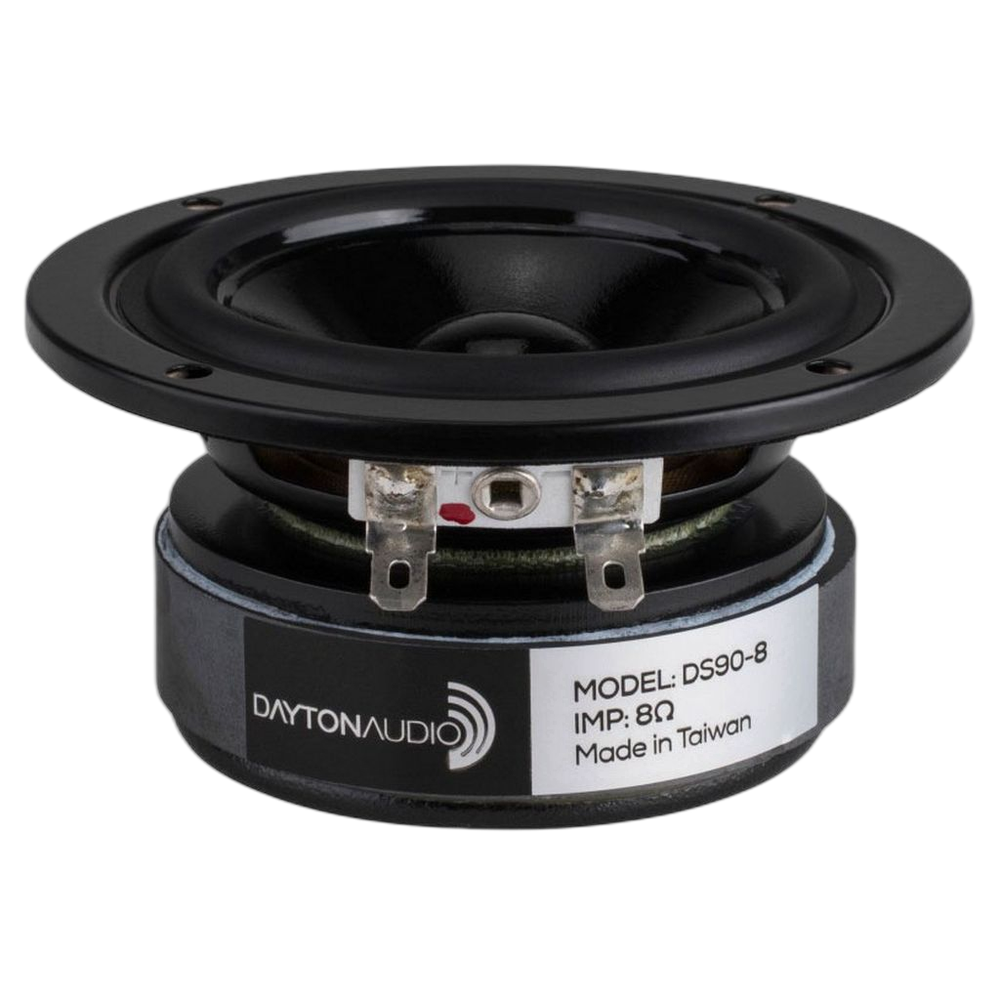

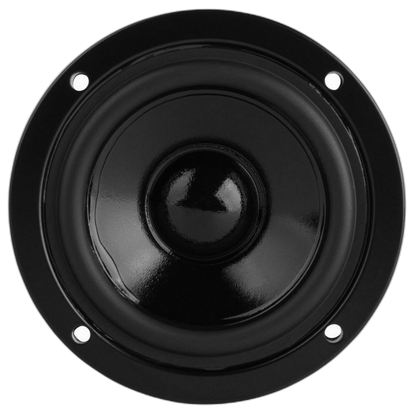

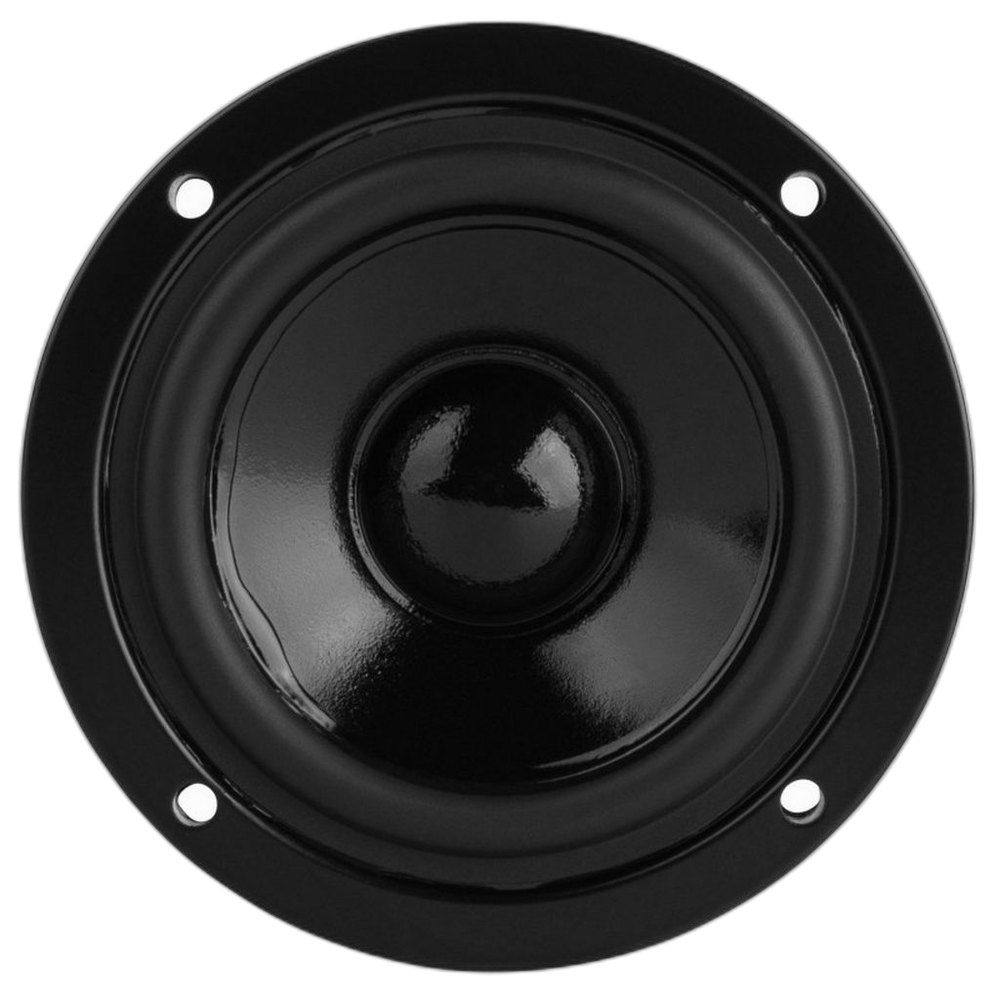

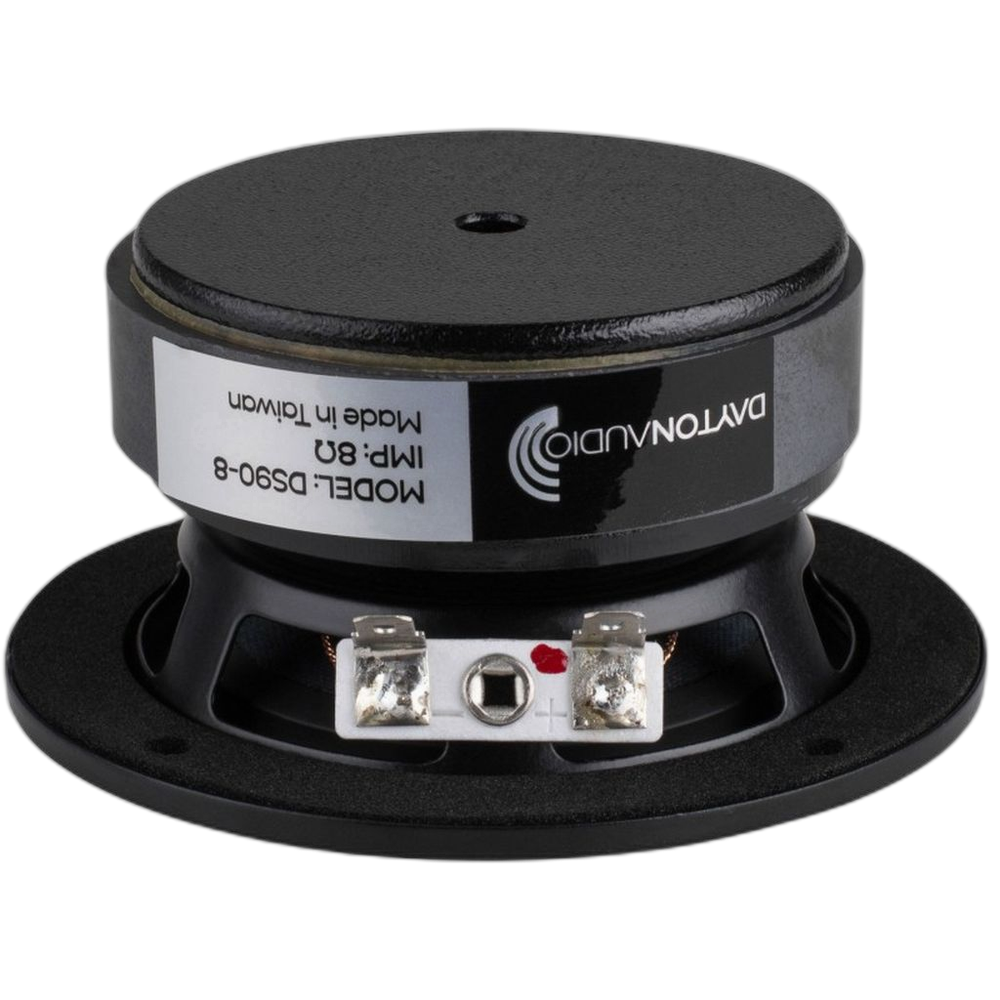

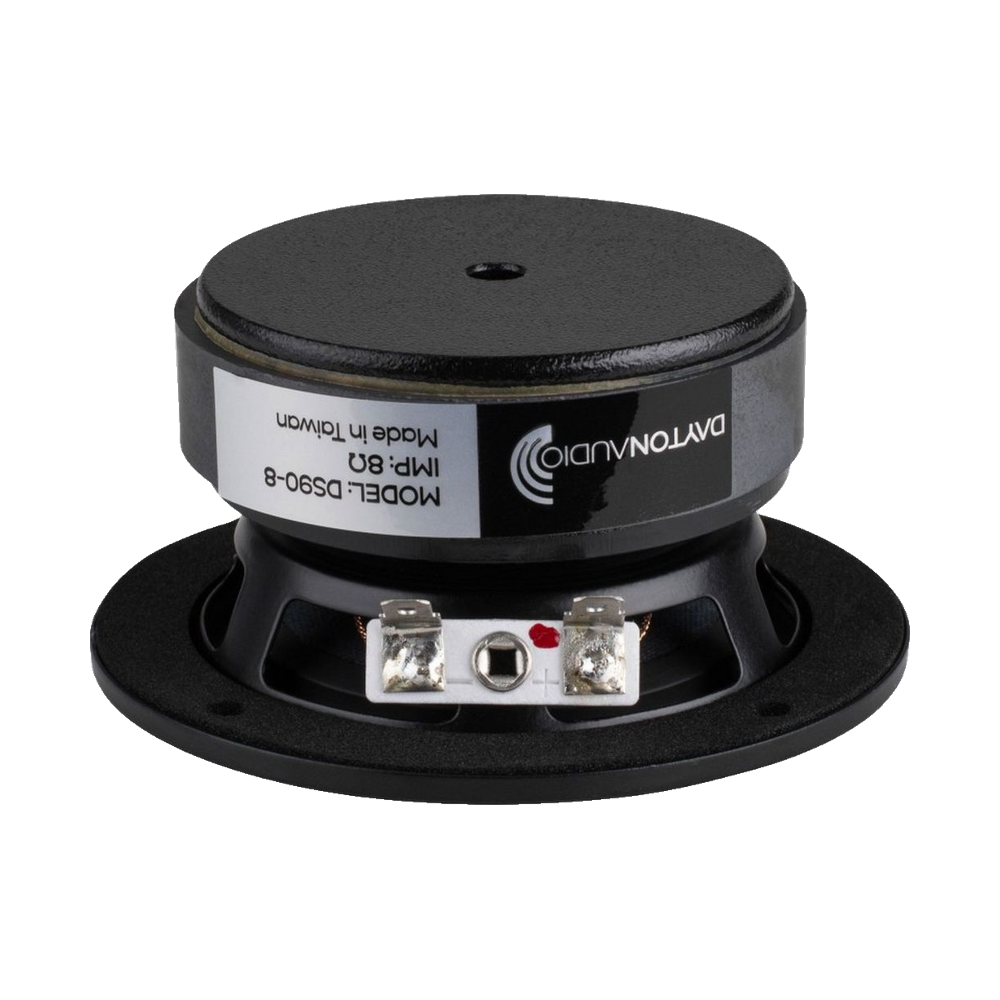

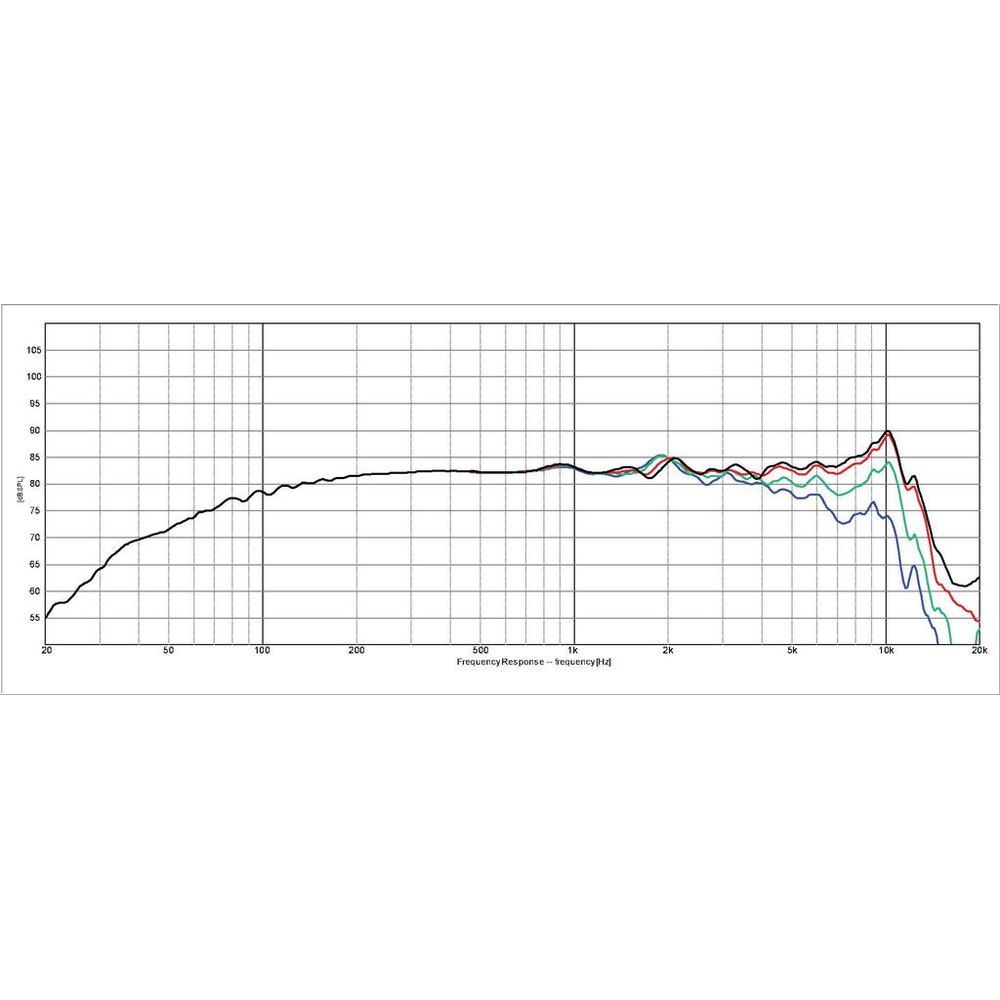

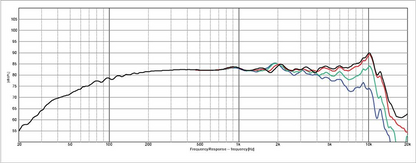

The Dayton Audio Designer Series DS90-8 3" driver adds extended high frequency response to its outstanding mini-woofer performance.
The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.
These speakers combine useful performance parameters with elegant style. Carefully optimised to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
Features
- Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
- Coated paper cone, half roll rubber surround for durability and accurate reproduction
- Optimised to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
- Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
- Vented pole piece for minimised power compression and maximised reliability
- Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
- Generous Xmax capability encourages use of moderate bass boost to tailor the response
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 3" |
| Nominal impedance | 8Ω |
| Series | Designer |
| Power handling (RMS) | 20 W |
| Power handling (program) | 40 W |
| Sensitivity | 84.1 dB |
| Frequency range | 80 – 13,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 81.4 Hz |
|---|---|
| DC resistance (Re) | 6.3 Ω |
| Voice coil inductance (Le) | 0.56 mH |
| Mechanical Q (Qms) | 2.19 |
| Electrical Q (Qes) | 0.53 |
| Total Q (Qts) | 0.43 |
| Equivalent volume (Vas) | 1.31 L |
| Compliance (Cms) | 1.02 mm/N |
| Moving mass (Mms) | 3.8 g |
| Mechanical resistance (Rms) | 0.8874 kg/s |
| Force factor (Bl) | 4.76 T·m |
| Effective piston area (Sd) | 31.2 cm² |
| Linear excursion (Xmax, one-way) | 2.5 mm |
| Displacement volume (Vd) | 7.8 cm³ |
| Efficiency bandwidth product (EBP) | 153.6 |
Motor
| Magnet weight | 0.227 kg |
|---|---|
| Voice coil wire | Copper |
Mounting

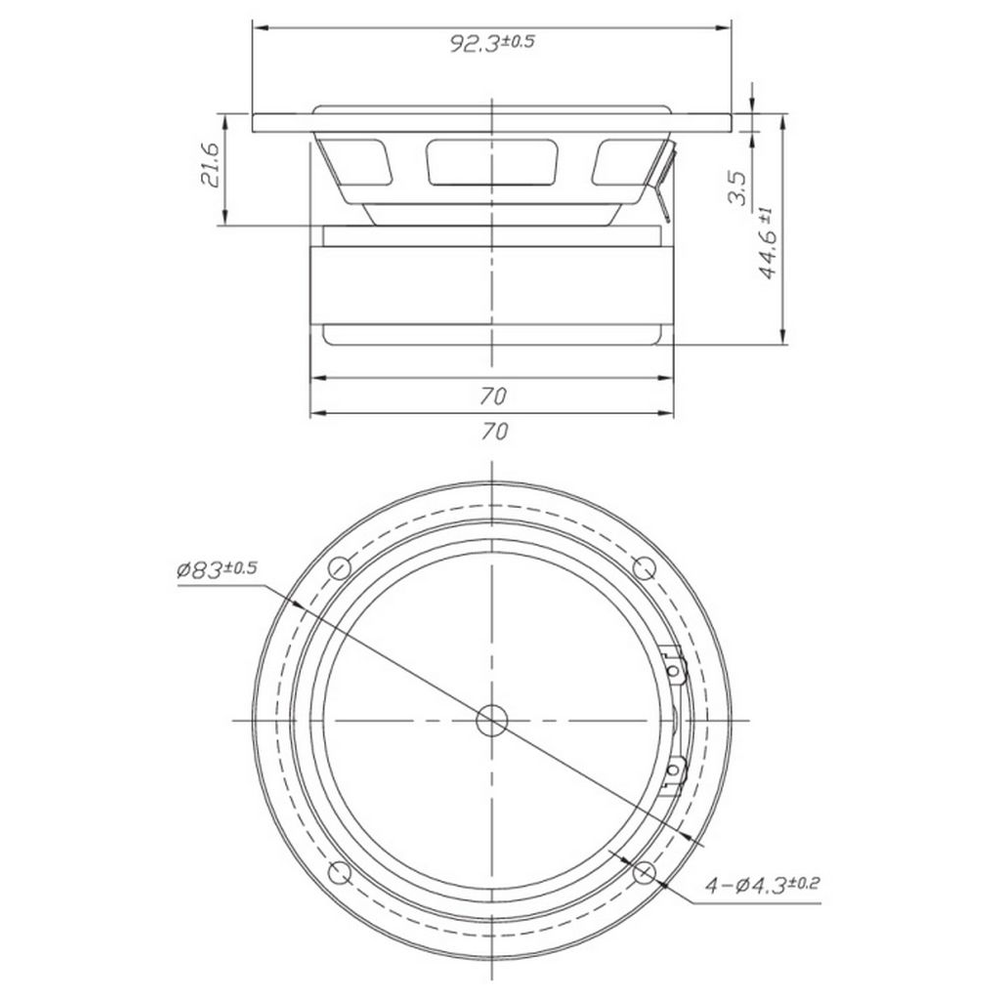

| Overall diameter | 92.3 mm |
|---|---|
| Cutout diameter | 70 mm |
| Mounting depth | 44.6 mm |
| Flange thickness | 3.5 mm |
| Bolt circle diameter | 83 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 20.4 mm |
| Weight | 0.5443 kg |
Materials
| Cone | Coated Paper |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- DS90-8 Specification Sheet
- DS90-8 Data Files
- DS90-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
