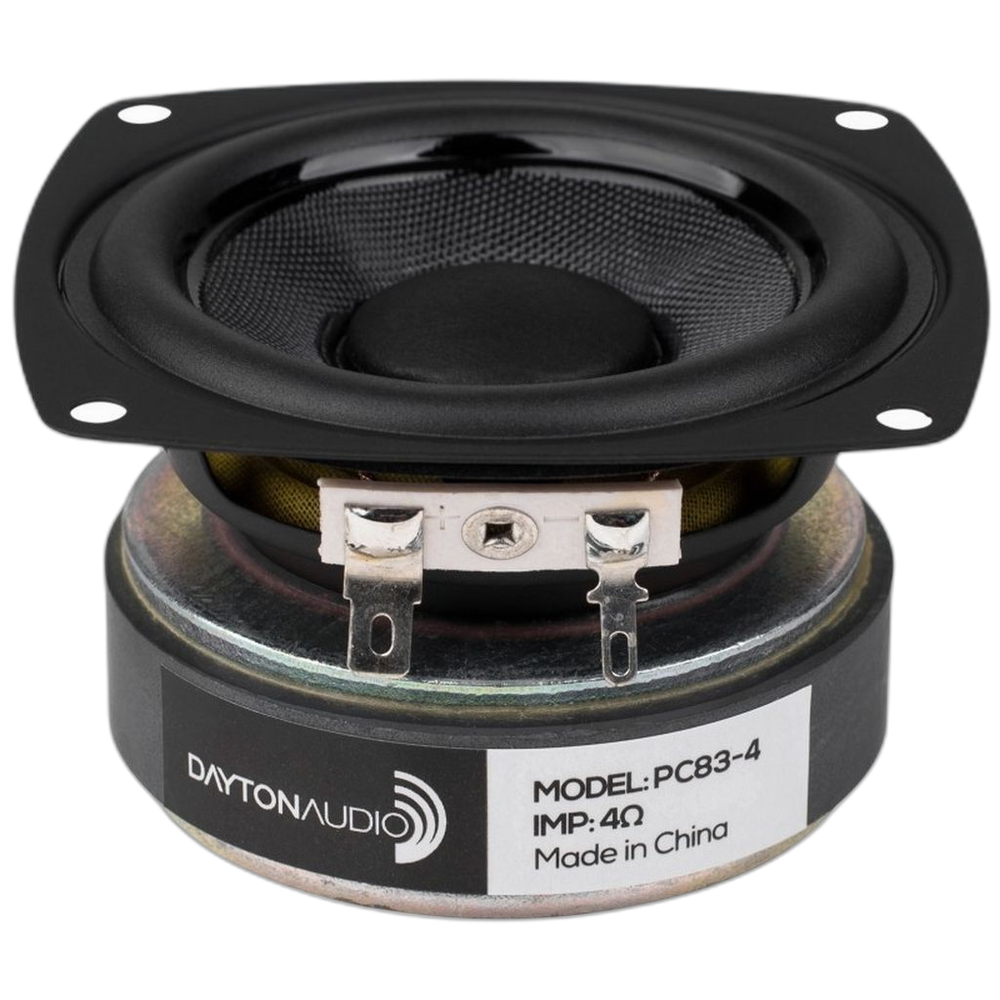

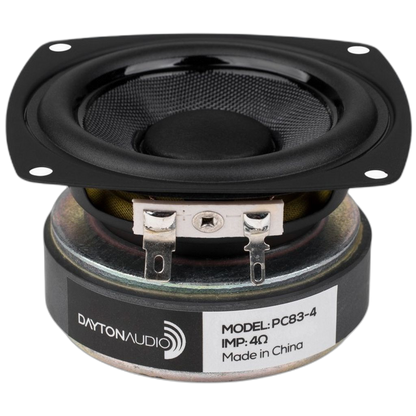

Dayton Audio - 3" Full Range Driver - PC83-4
Dayton Audio - 3" Full Range Driver - PC83-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Dayton Audio's PC83-4 3" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.
The Dayton Audio PC83-4 3" full-range driver features a poly damped woven glass fibre cone, damped rubber surround, and high energy motor. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high-frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC83-4 will deliver high fidelity and low distortion from compact applications for an amazing value.
Features
- Copper cap to keep inductance under control and extend high frequency response
- Poly damped woven glass fibre cone controls cone break-up and provides a smooth roll-off
- Smooth response with true full-range reproduction for simple speaker designs
- High energy ferrite magnet increases BL for higher efficiency and more output
- Great for MTM bookshelves, car audio, or line arrays
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 3" |
| Nominal impedance | 4Ω |
| Series | Full-Range |
| Power handling (RMS) | 30 W |
| Power handling (program) | 60 W |
| Sensitivity | 86.8 dB |
| Frequency range | 80 – 20,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 80 Hz |
|---|---|
| DC resistance (Re) | 3.9 Ω |
| Voice coil inductance (Le) | 0.38 mH |
| Mechanical Q (Qms) | 3.41 |
| Electrical Q (Qes) | 0.64 |
| Total Q (Qts) | 0.54 |
| Equivalent volume (Vas) | 2 L |
| Compliance (Cms) | 1.47 mm/N |
| Moving mass (Mms) | 2.7 g |
| Mechanical resistance (Rms) | 0.3985 kg/s |
| Force factor (Bl) | 2.9 T·m |
| Effective piston area (Sd) | 30.2 cm² |
| Linear excursion (Xmax, one-way) | 2 mm |
| Displacement volume (Vd) | 6.04 cm³ |
| Efficiency bandwidth product (EBP) | 125 |

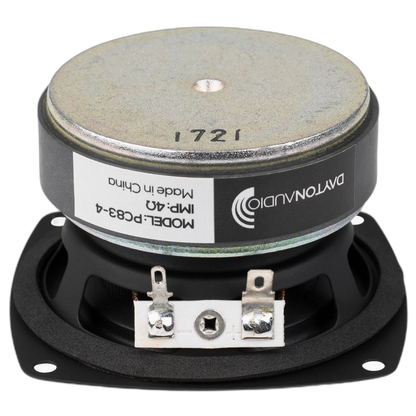

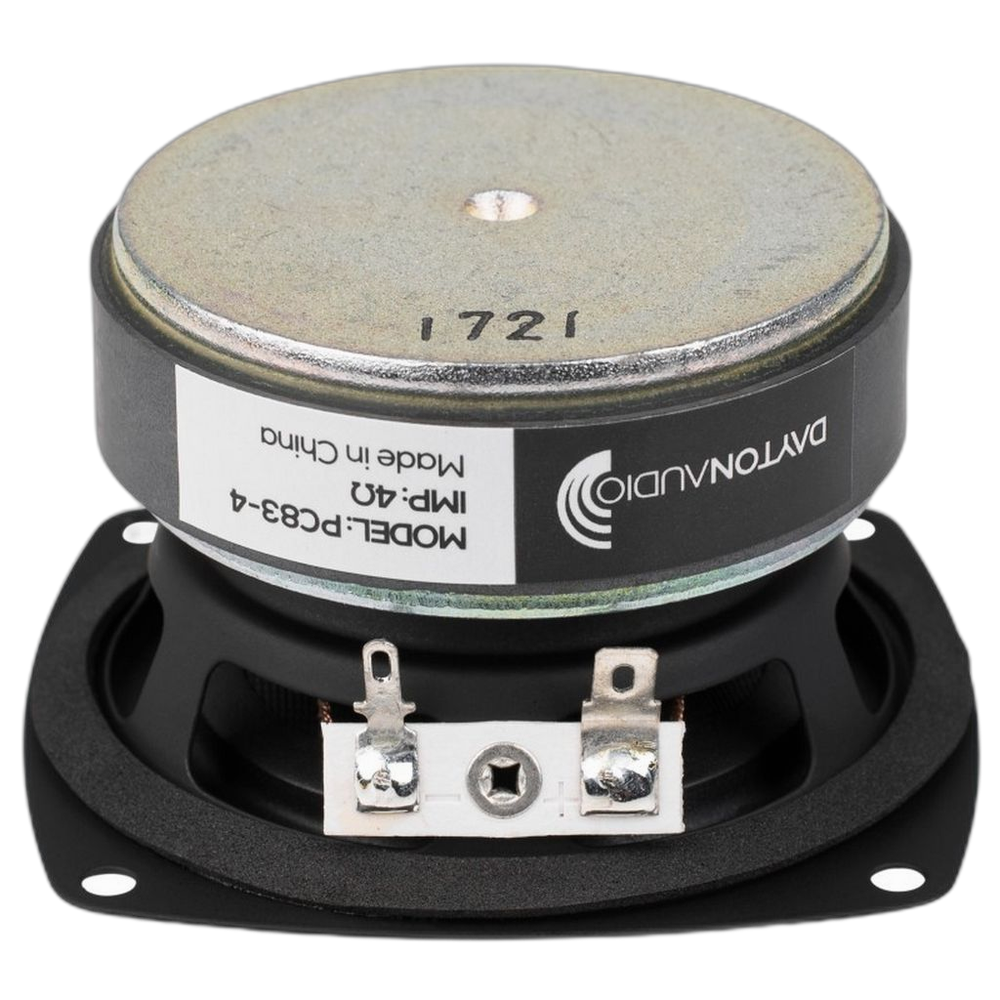

Motor
| Voice coil wire | Copper |
|---|
Mounting
| Overall diameter | 101 mm |
|---|---|

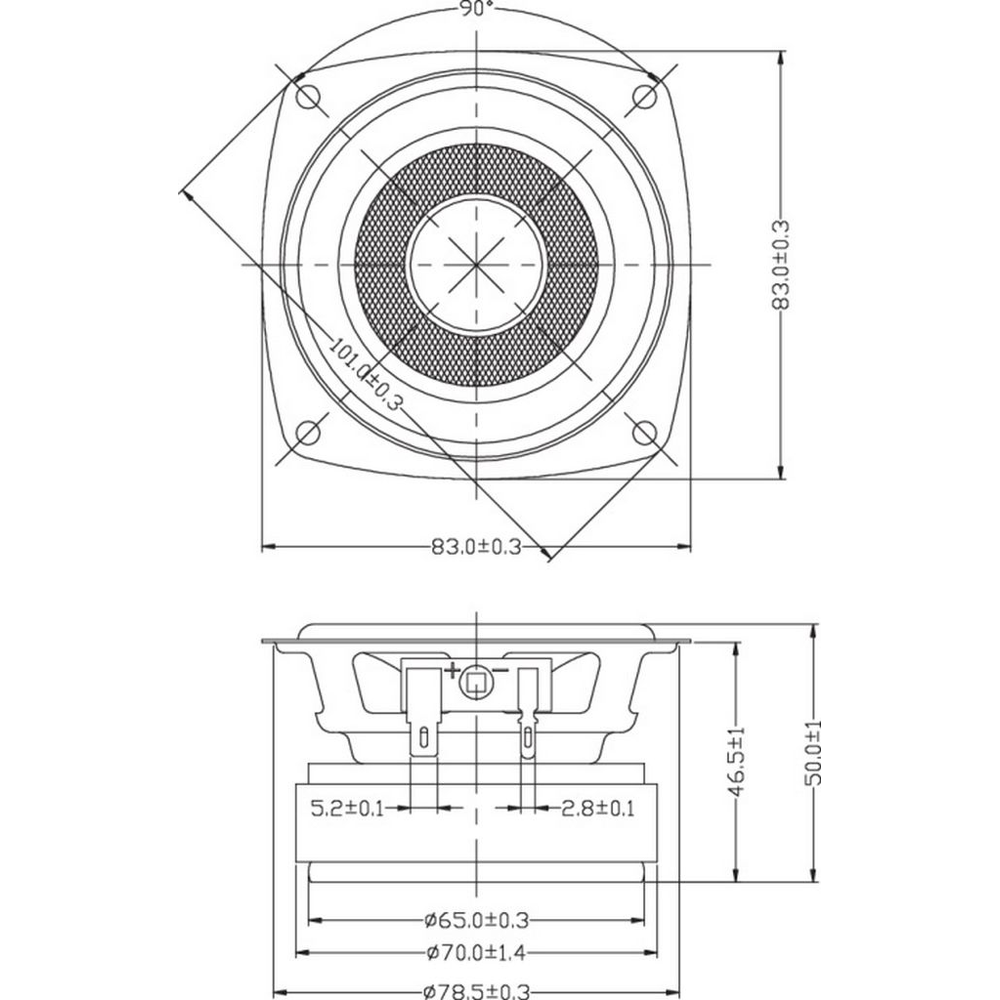

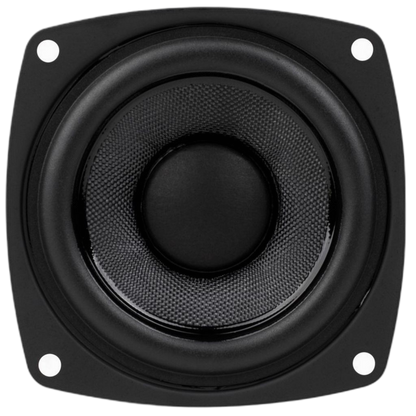

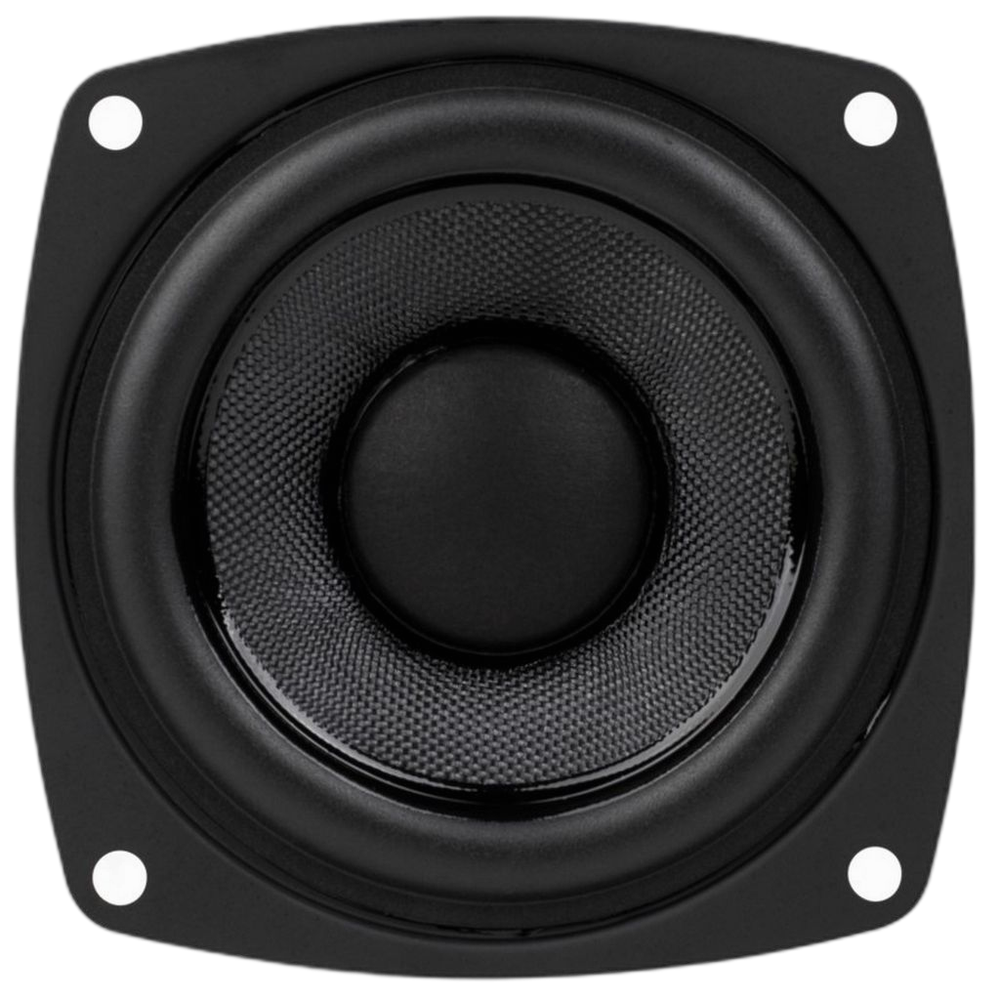

| Faceplate | Not round, 83 × 83 mm (see the maker's drawing) |
| Cutout diameter | 77 mm |
| Mounting depth | 46.5 mm |
| Voice coil diameter | 25.4 mm |
| Weight | 0.5216 kg |
| Mounting holes | 4 |
| Bolt circle diameter | 92 mm |
Materials
| Cone | Woven Glass Fibre |
|---|---|
| Surround | Rubber |
| Voice coil former | Kapton® |
| Basket | Stamped Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- PC83-4 Specification Sheet

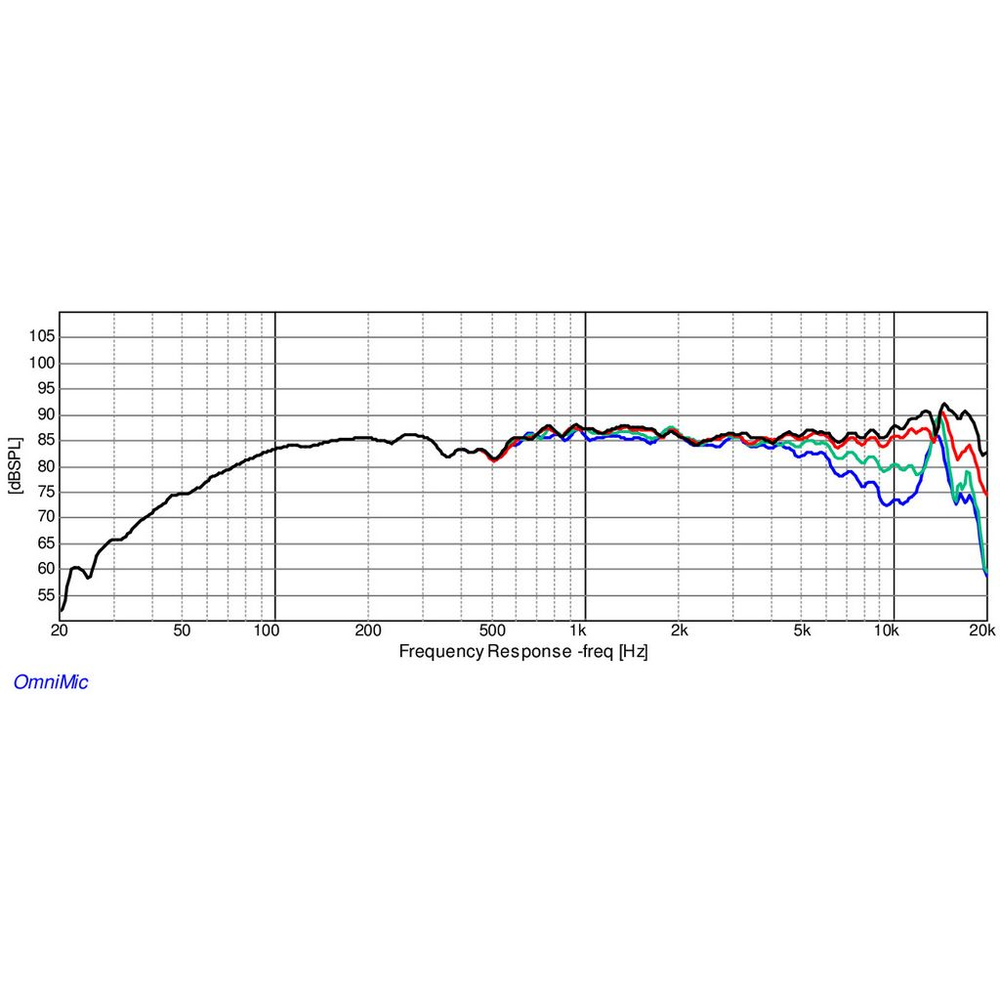

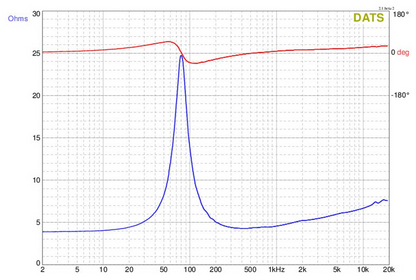

- PC83-4 Graphs/FRD/ZMA Data File
- PC83-4 3D Files
- PC83-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
