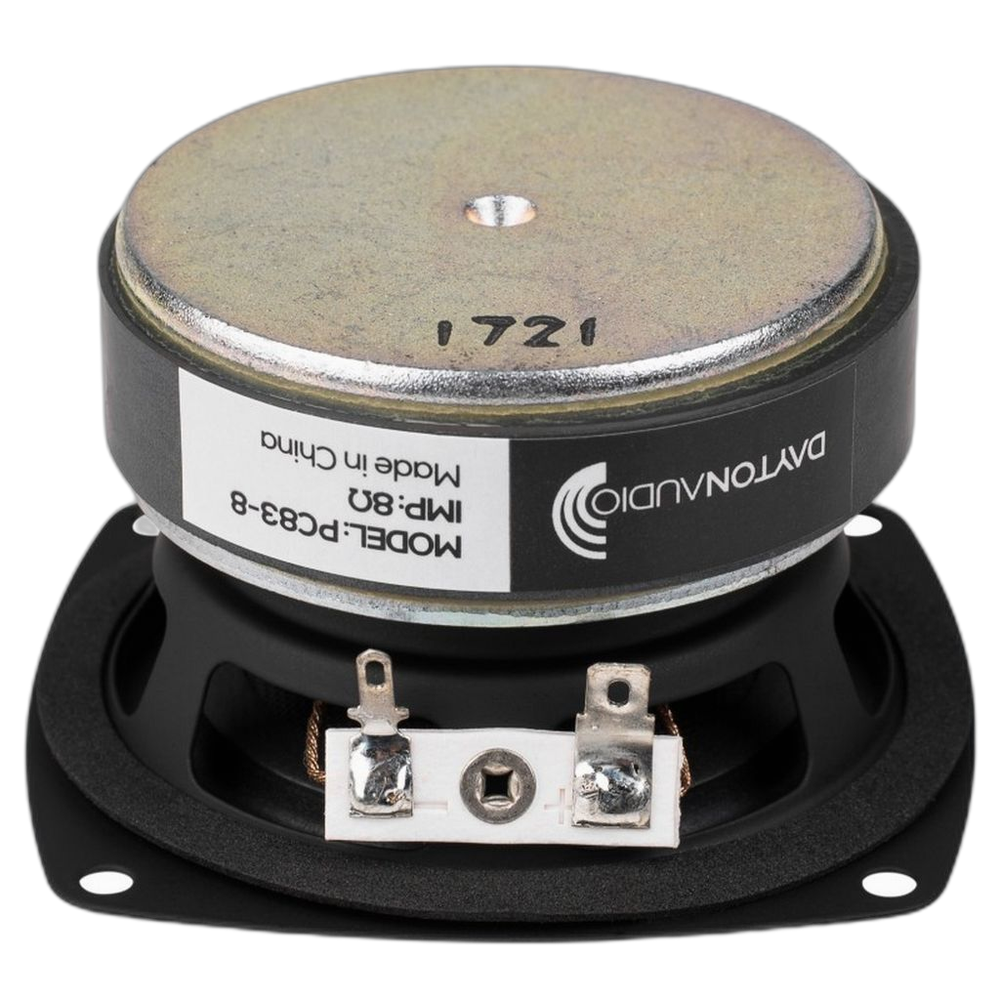

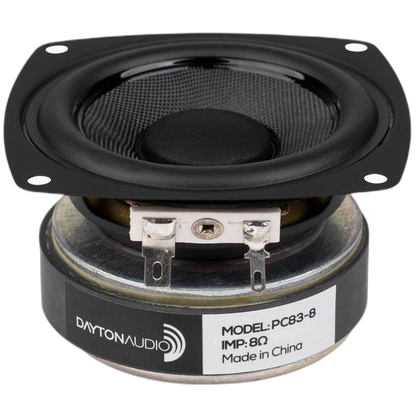

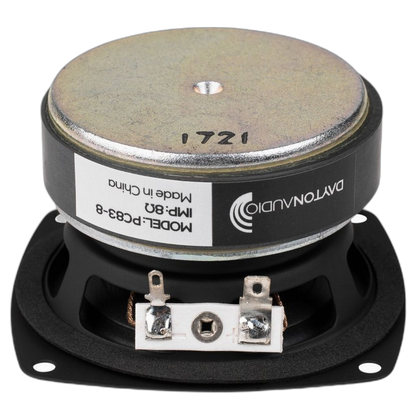

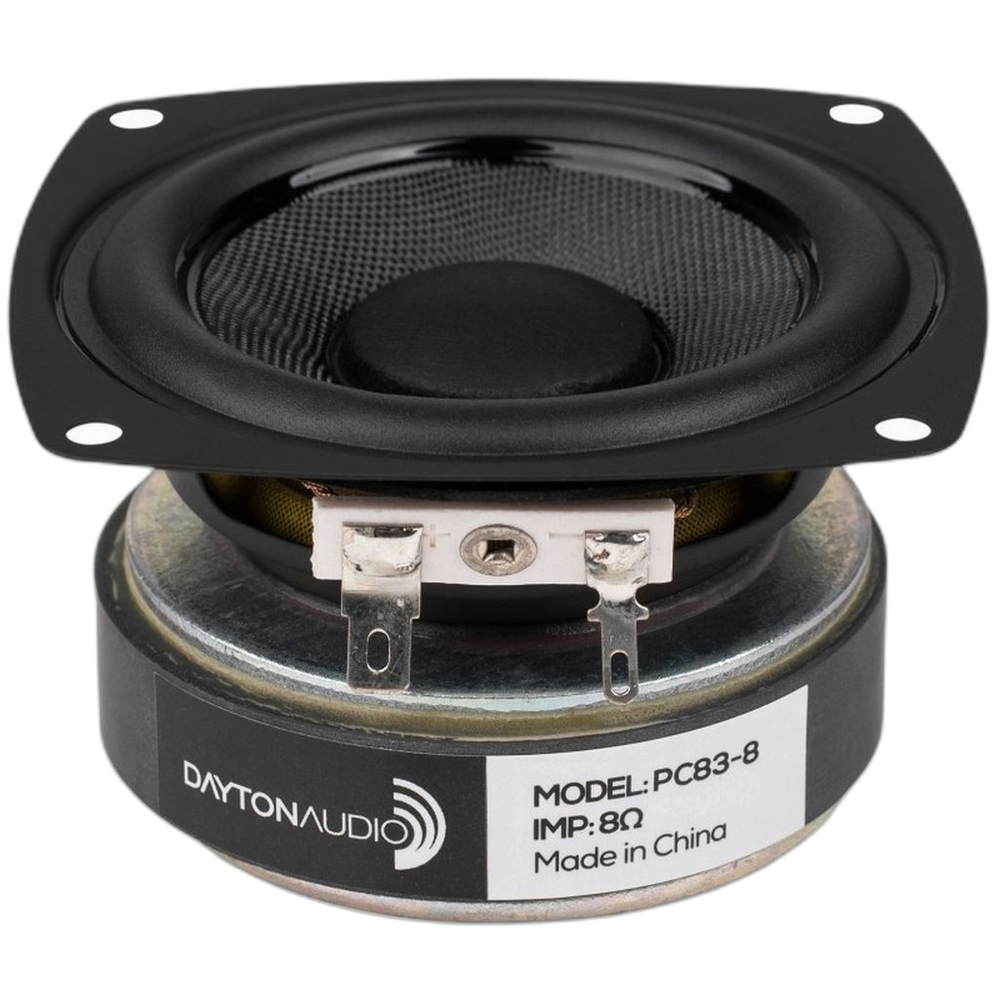

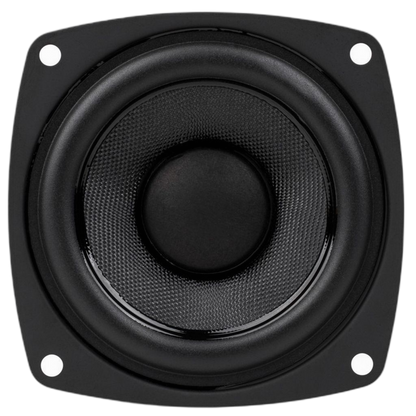

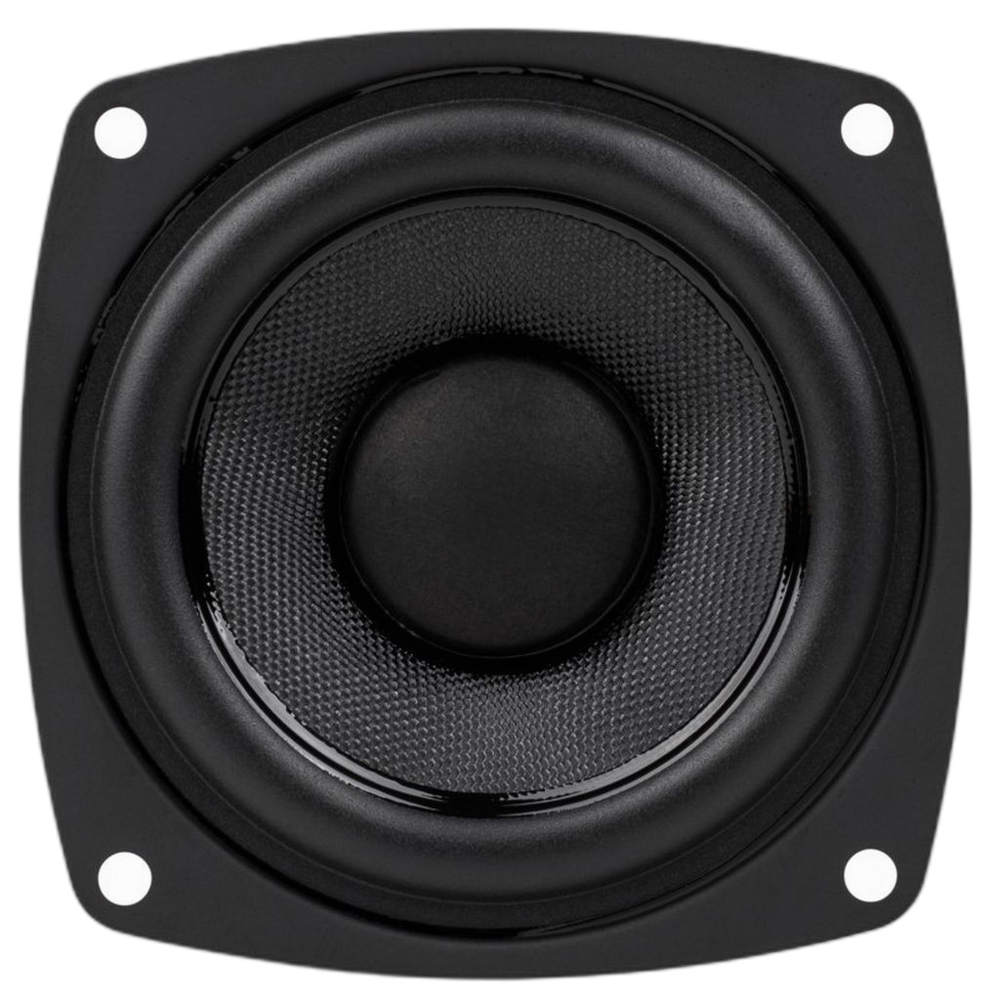

Dayton Audio - 3" Full Range Driver - PC83-8

Dayton Audio - 3" Full Range Driver - PC83-8

Regular price $35.95
Regular price Sale price $35.95
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.

View full details

Description

Dayton Audio's PC83-8 3" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.

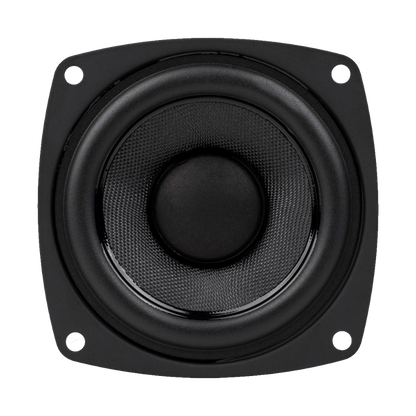

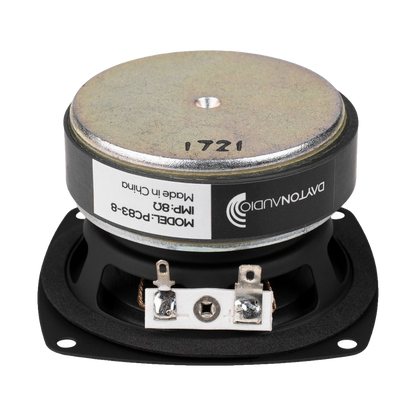

The Dayton Audio PC83-8 3" full-range driver features a poly damped woven glass fibre cone, damped rubber surround, and high energy motor. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high-frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC83-8 will deliver high fidelity and low distortion from compact applications for an amazing value.

Features

  • Smooth response with true full-range reproduction for simple speaker designs
  • Poly damped woven glass fibre cone controls cone break-up and provides a smooth roll-off
  • Copper cap keeps inductance under control and extends high frequency response
  • High energy ferrite magnet increases BL for higher efficiency and more output
  • Great for MTM bookshelves, car audio, or line arrays

Specifications

General

Driver type Full Range
Nominal size 3"
Nominal impedance 8Ω
Series Full-Range
Power handling (RMS) 30 W
Power handling (program) 60 W
Sensitivity 83.8 dB

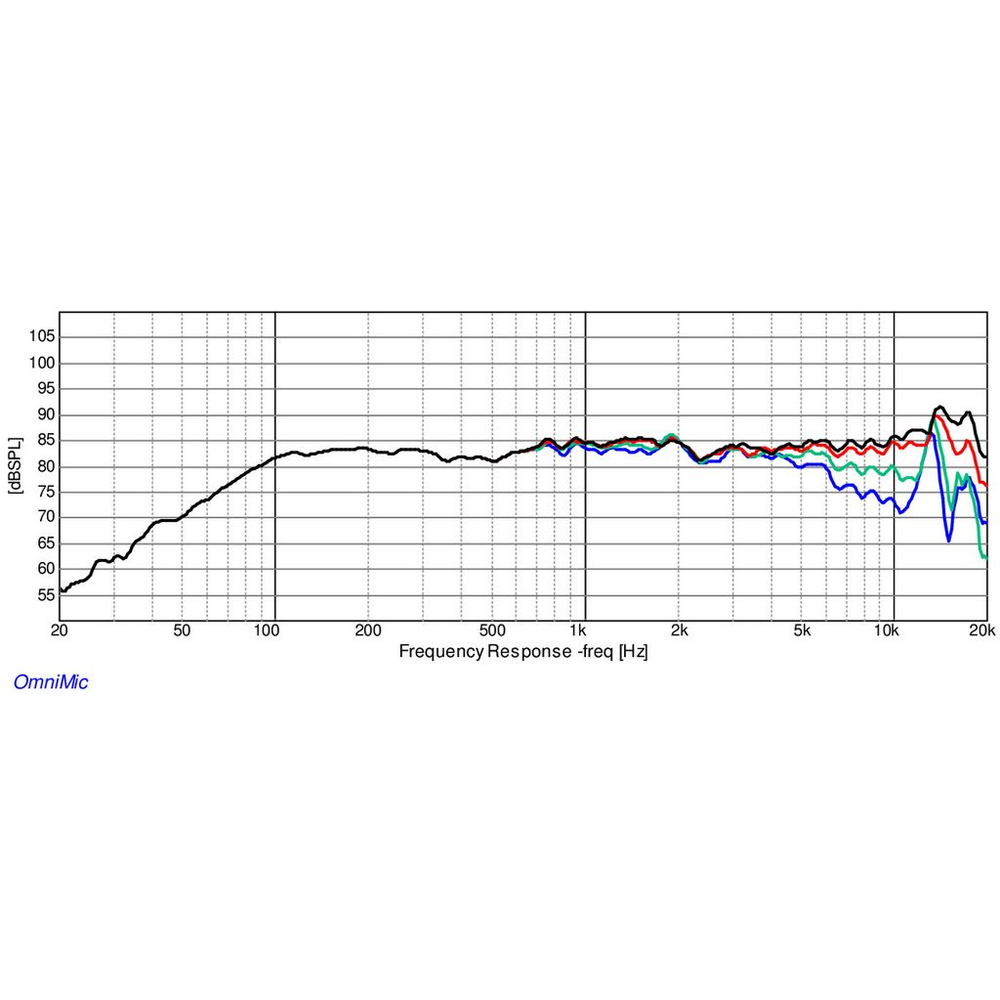

Frequency range 80 – 20,000 Hz
Suggested alignment Ported

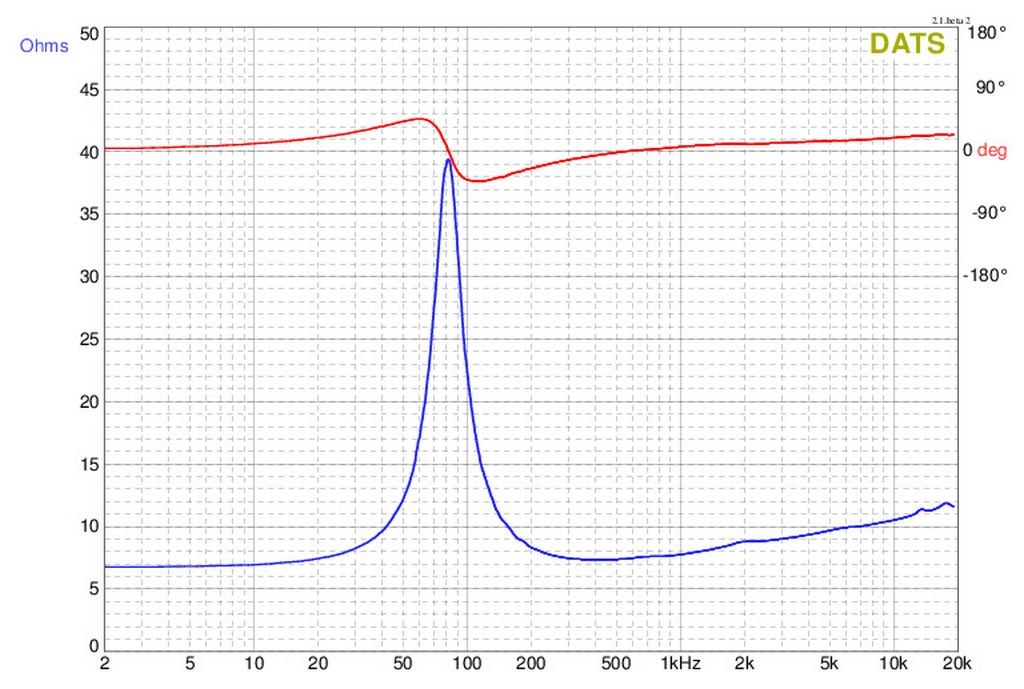

Thiele/Small parameters

Resonant frequency (Fs) 82.1 Hz
DC resistance (Re) 6.8 Ω
Voice coil inductance (Le) 0.38 mH
Mechanical Q (Qms) 3.68
Electrical Q (Qes) 0.76
Total Q (Qts) 0.63
Equivalent volume (Vas) 1.7 L
Compliance (Cms) 1.4 mm/N
Moving mass (Mms) 2.7 g
Mechanical resistance (Rms) 0.3785 kg/s
Force factor (Bl) 3.5 T·m
Effective piston area (Sd) 30.2 cm²
Linear excursion (Xmax, one-way) 2 mm
Displacement volume (Vd) 6.04 cm³
Efficiency bandwidth product (EBP) 108

Motor

Voice coil wire Copper

Mounting

Overall diameter 101 mm

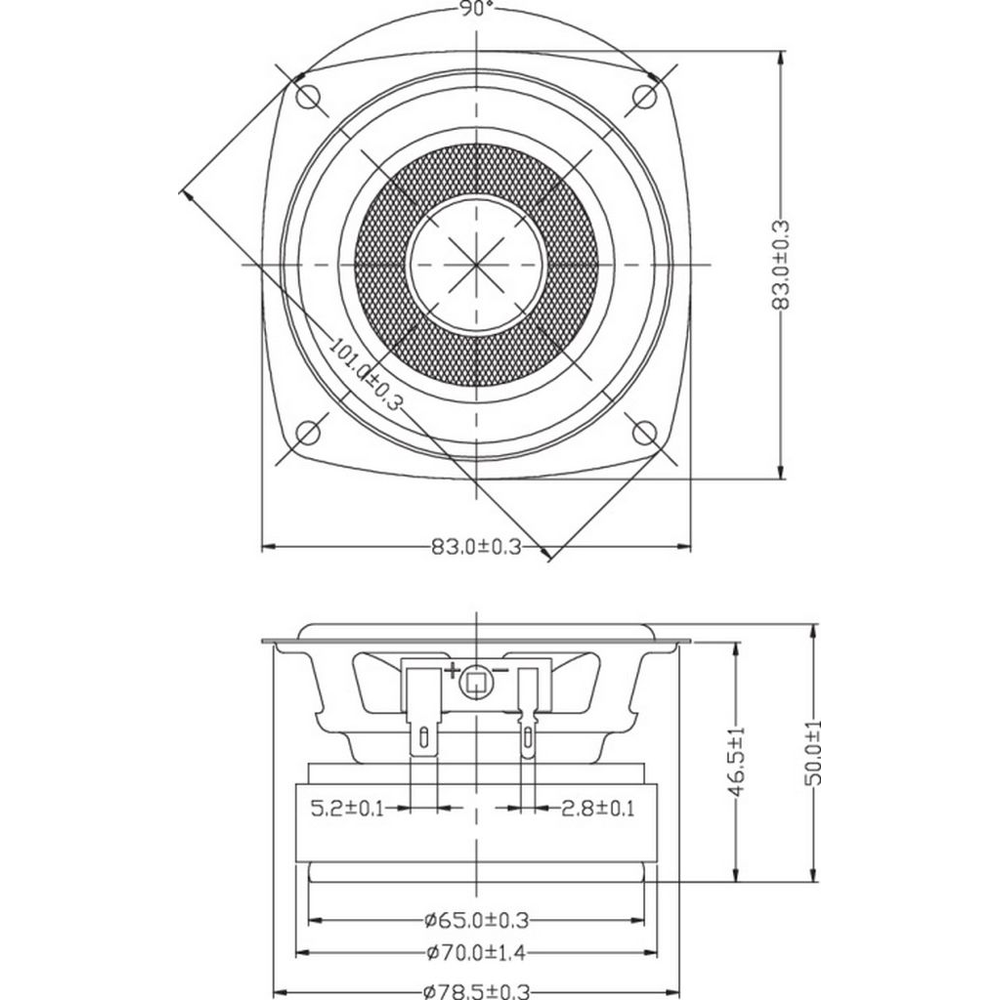

Faceplate Not round, 83 × 83 mm (see the maker's drawing)
Cutout diameter 77 mm
Mounting depth 46.5 mm
Voice coil diameter 25.4 mm
Weight 0.5216 kg
Bolt circle diameter 92 mm

Materials

Cone Poly Composite
Surround Rubber
Basket Stamped Steel
Magnet Ferrite
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.
