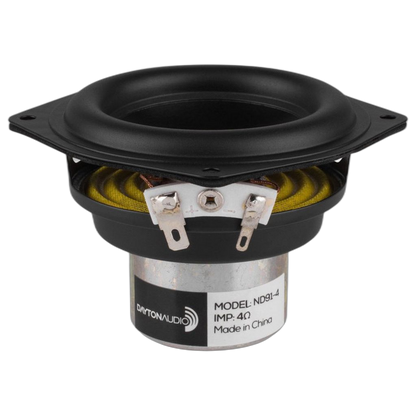

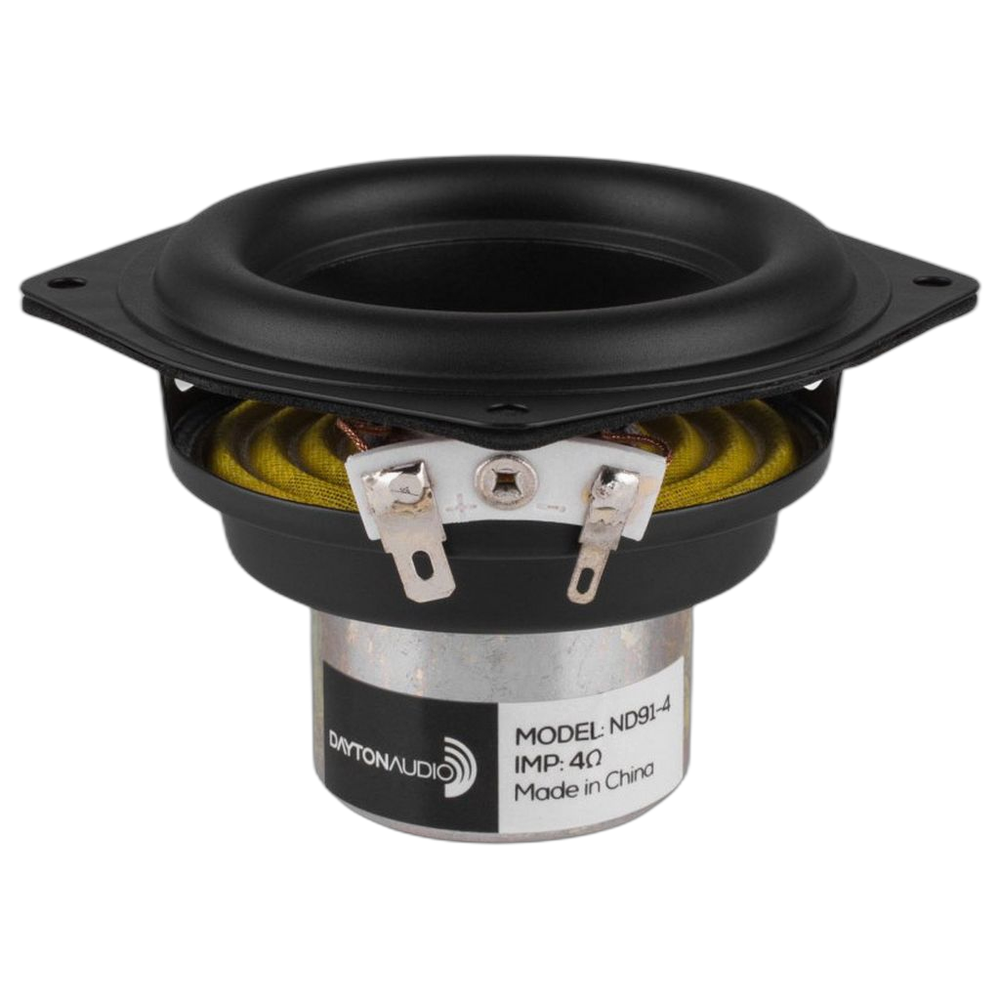

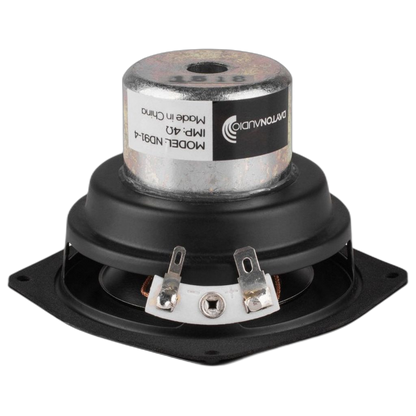

Dayton Audio - 3½" ND Full Range Driver - ND91-4
Dayton Audio - 3½" ND Full Range Driver - ND91-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The low distortion and high excursion capabilities of the Dayton Audio ND91-4 3-1/2" full-range driver make it an ideal candidate for miniature point-source monitors, surround speakers, and line arrays.
Dayton Audio's ND91 aluminium cone full-range drivers are the latest addition to the acclaimed ND Series high output/low distortion neodymium transducers. By increasing the original ND90s voice coil diameter from 3/4" to 1" and adding a copper alloy shorting ring, the ND91-4 features even lower distortion and delivers better bass impact and dynamic range—with peak Xmax up to 25 mm!
This high-BL version further exploits the low distortion characteristics of the Neo-Balanced motors optimised magnetic field, making the ND91 drivers an excellent choice for full-range point-source speaker enclosures, as well as extremely accurate, high resolution line arrays.
Features

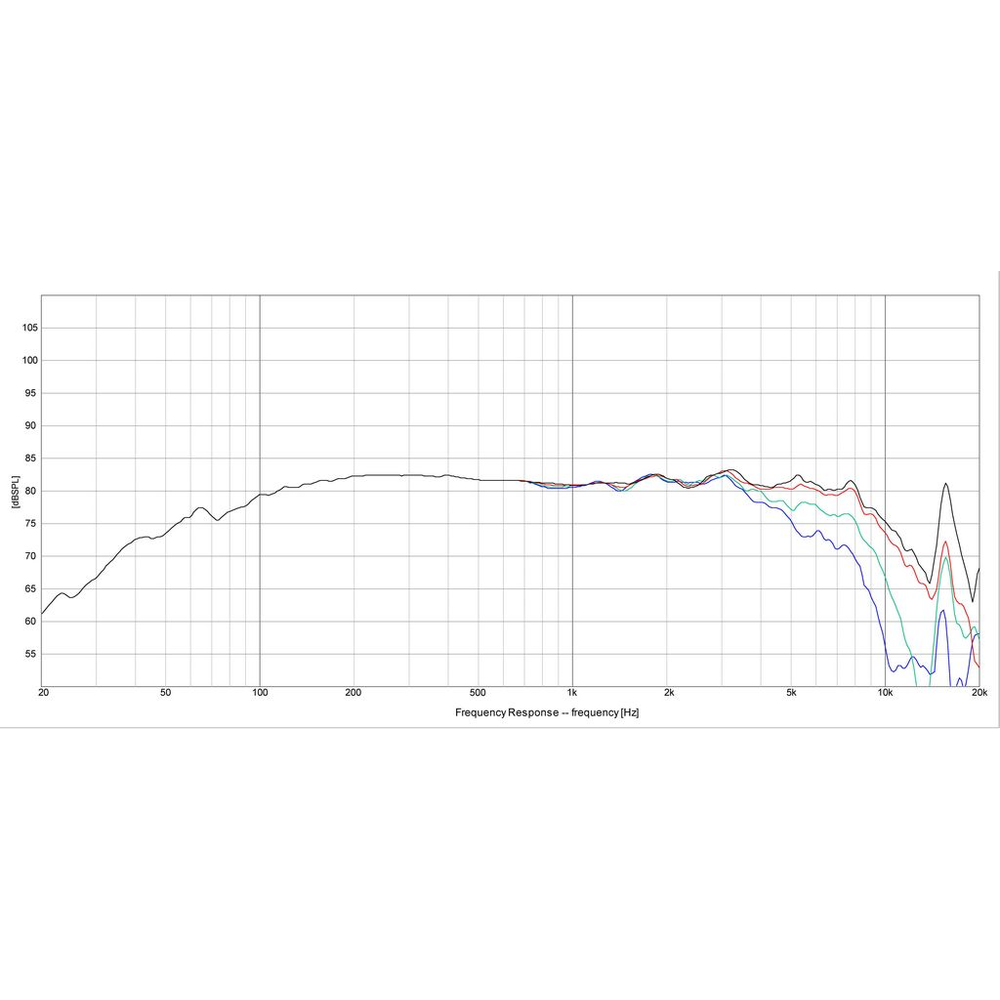

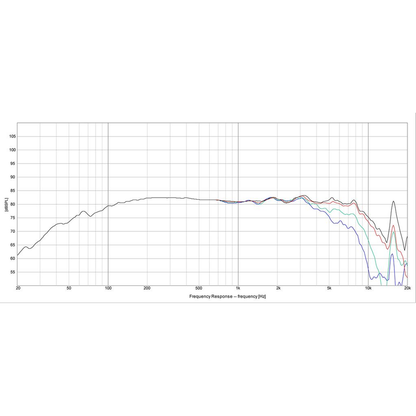

- Low distortion, full-range 65 Hz to 17 kHz performance

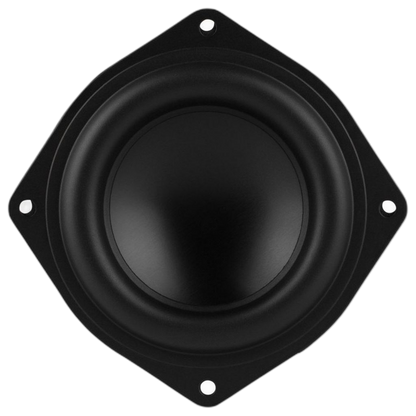

- Rubber-edged black anodised aluminium alloy cone
- Large excursion capability — 4.6 mm Xmax, 25 mm peak
- Self-shielded Neo-Balanced motor structure with copper alloy shorting ring
- 1" 4-layer underhung voice coil with polyimide former
- 30 watts RMS power handling
- Great for line arrays and micro monitors
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 3.5" |
| Nominal impedance | 4Ω |
| Series | ND |
| Power handling (RMS) | 30 W |
| Power handling (program) | 60 W |
| Sensitivity | 85.6 dB |
| Frequency range | 65 – 17,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 74 Hz |
|---|---|
| DC resistance (Re) | 4.3 Ω |
| Voice coil inductance (Le) | 0.83 mH |
| Mechanical Q (Qms) | 4.24 |
| Electrical Q (Qes) | 0.45 |
| Total Q (Qts) | 0.41 |
| Equivalent volume (Vas) | 1.4 L |
| Compliance (Cms) | 0.96 mm/N |
| Moving mass (Mms) | 4.8 g |
| Mechanical resistance (Rms) | 0.5264 kg/s |
| Force factor (Bl) | 4.59 T·m |
| Effective piston area (Sd) | 30.4 cm² |
| Linear excursion (Xmax, one-way) | 4.6 mm |
| Displacement volume (Vd) | 13.98 cm³ |
| Efficiency bandwidth product (EBP) | 164.4 |
Motor
| Voice coil wire | Aluminium |
|---|

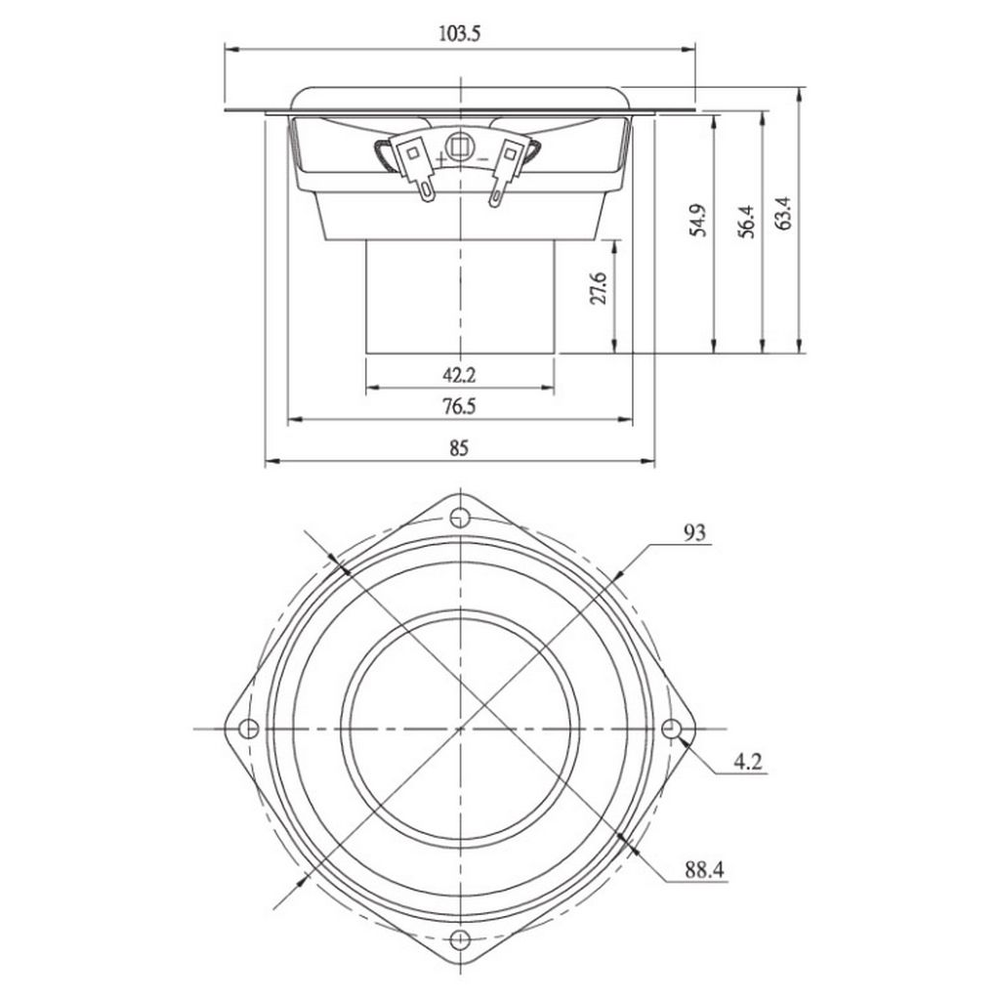

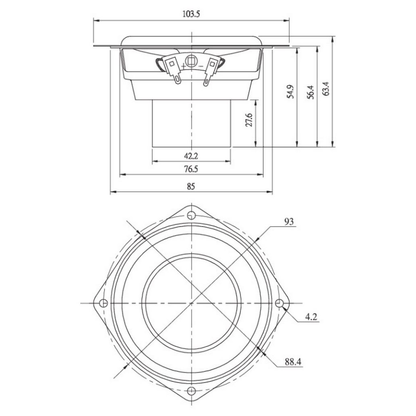

Mounting
| Overall diameter | 103.2 mm |
|---|---|
| Faceplate | Not round (see the maker's drawing) |
| Cutout diameter | 85 mm |
| Mounting depth | 56.8 mm |
| Voice coil diameter | 25 mm |
| Weight | 0.3175 kg |
| Mounting holes | 4 |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Kapton® / Polyimide |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- ND91-4 Specification Sheet
- ND91-4 Klippel Test Results
- ND91-4 Data Files
- ND91-4 & 8 3D Scans
- ND91-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
