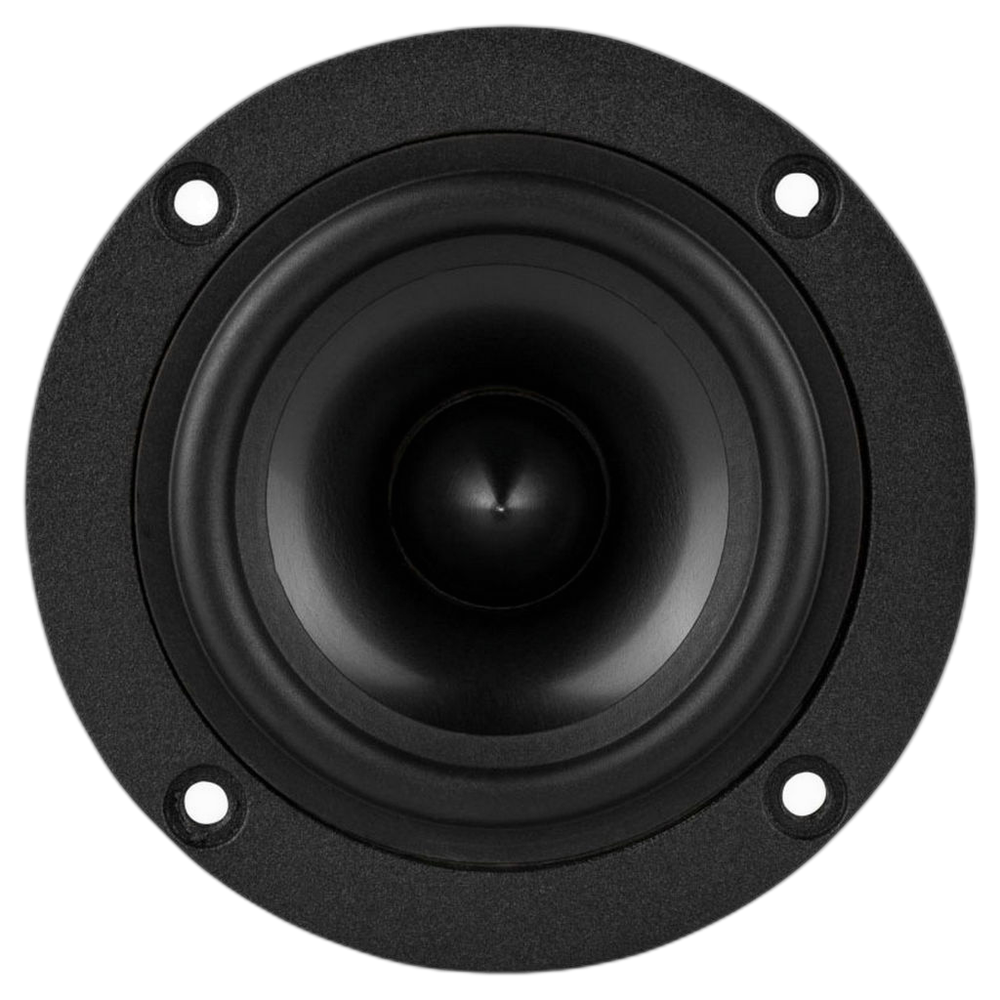

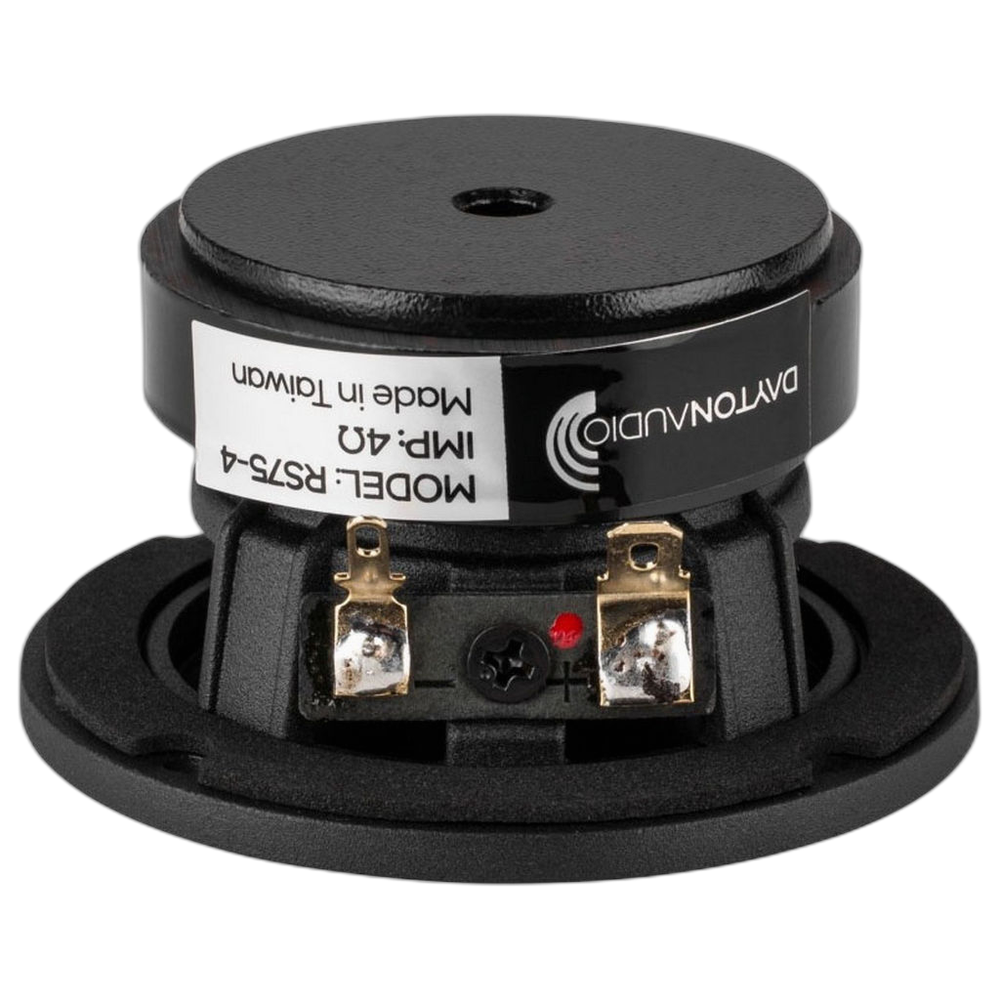

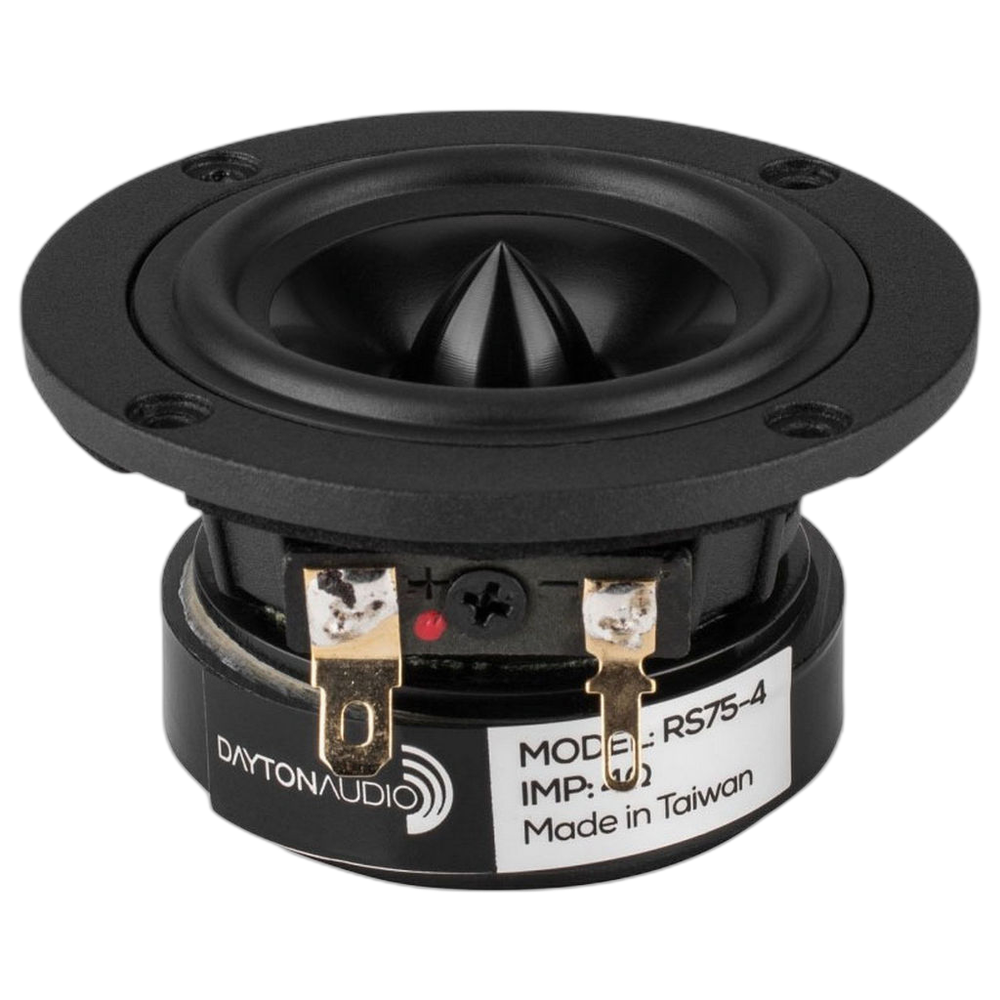

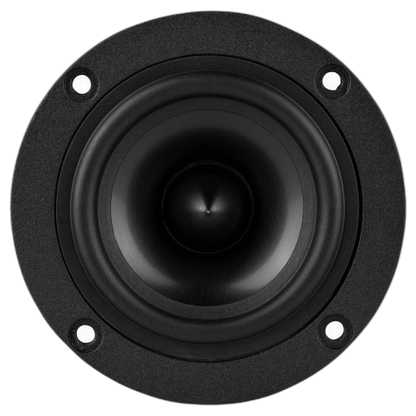

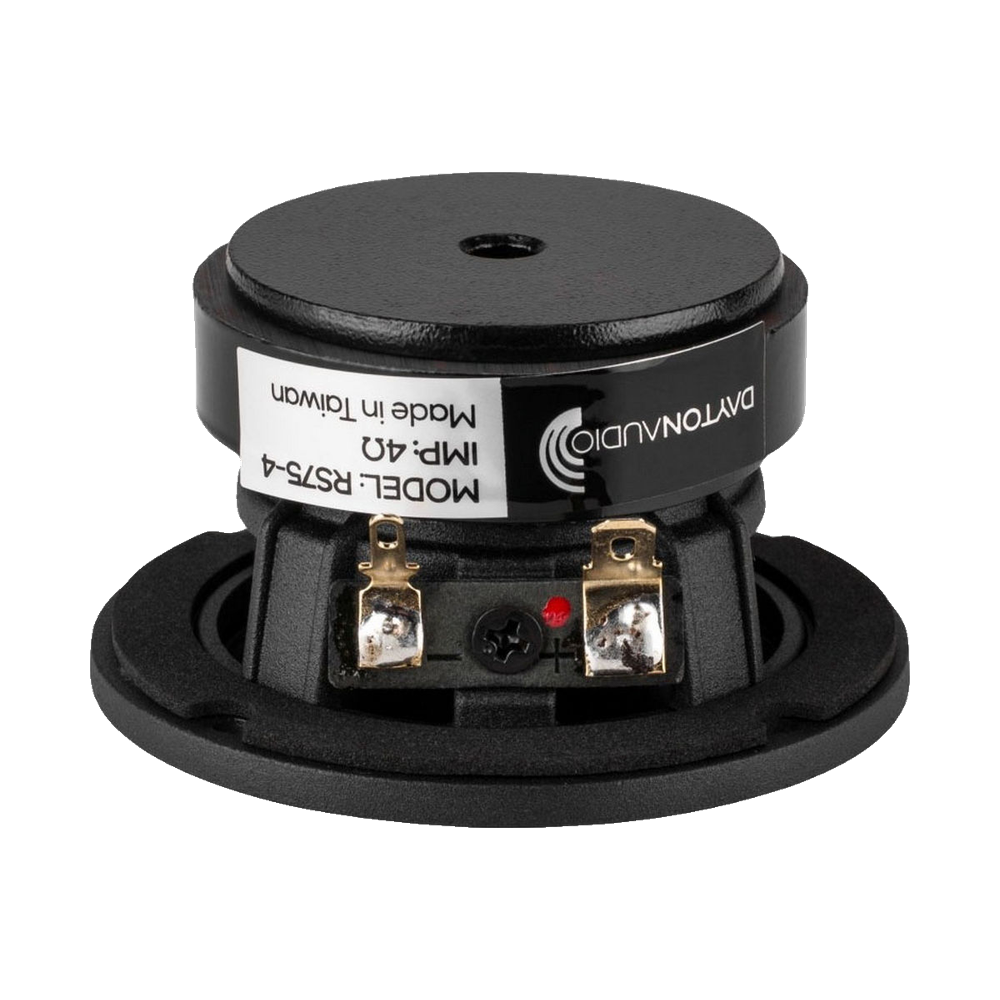

Dayton Audio - 3" Reference Full Range Driver - RS75-4
Dayton Audio - 3" Reference Full Range Driver - RS75-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminium phase plug, the RS75-4 can outperform "boutique" drivers that cost several times the price. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodised cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.
Features
- Full-range performance
- Low distortion and high resolution
- Aluminium frame, aluminium cone, rubber surround
- Distortion-reducing copper ring, copper cap, and aluminium phase plug
- Subtle yet high-tech look makes a bold cosmetic statement
Specifications
Specifications
General

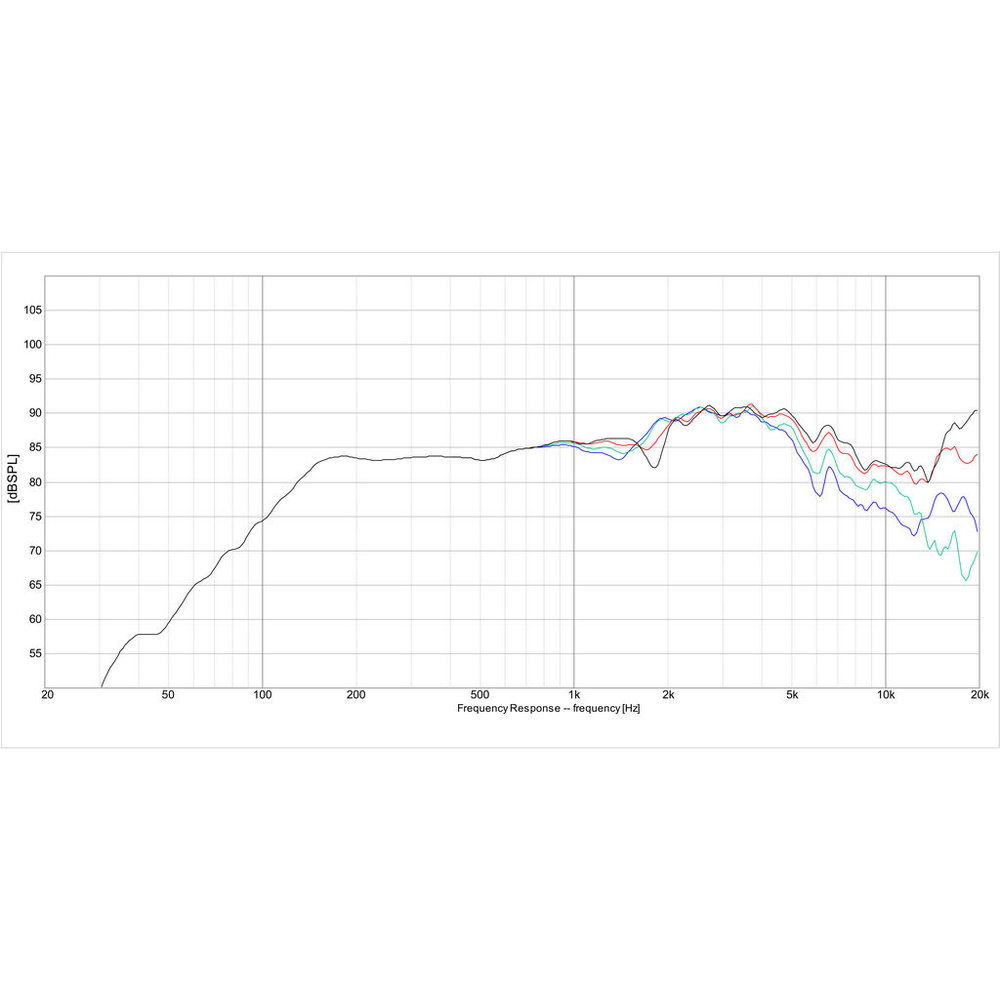

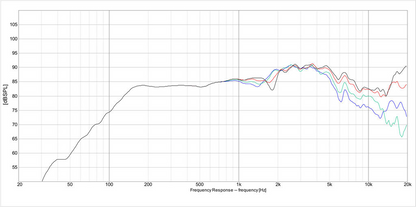

| Driver type | Full Range |
|---|---|
| Nominal size | 3" |
| Nominal impedance | 4Ω |
| Series | Reference |
| Power handling (RMS) | 15 W |
| Power handling (program) | 30 W |
| Sensitivity | 85.2 dB |
| Frequency range | 170 – 20,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 177 Hz |
|---|---|
| DC resistance (Re) | 3.1 Ω |
| Voice coil inductance (Le) | 0.072 mH |
| Mechanical Q (Qms) | 5.76 |
| Electrical Q (Qes) | 0.97 |
| Total Q (Qts) | 0.83 |
| Equivalent volume (Vas) | 0.14 L |
| Compliance (Cms) | 0.72 mm/N |
| Moving mass (Mms) | 1.1 g |
| Mechanical resistance (Rms) | 0.2124 kg/s |
| Force factor (Bl) | 2.01 T·m |
| Effective piston area (Sd) | 12 cm² |
| Linear excursion (Xmax, one-way) | 1.1 mm |
| Displacement volume (Vd) | 1.32 cm³ |
| Efficiency bandwidth product (EBP) | 182.5 |
Motor
| Voice coil wire | Copper |
|---|
Mounting

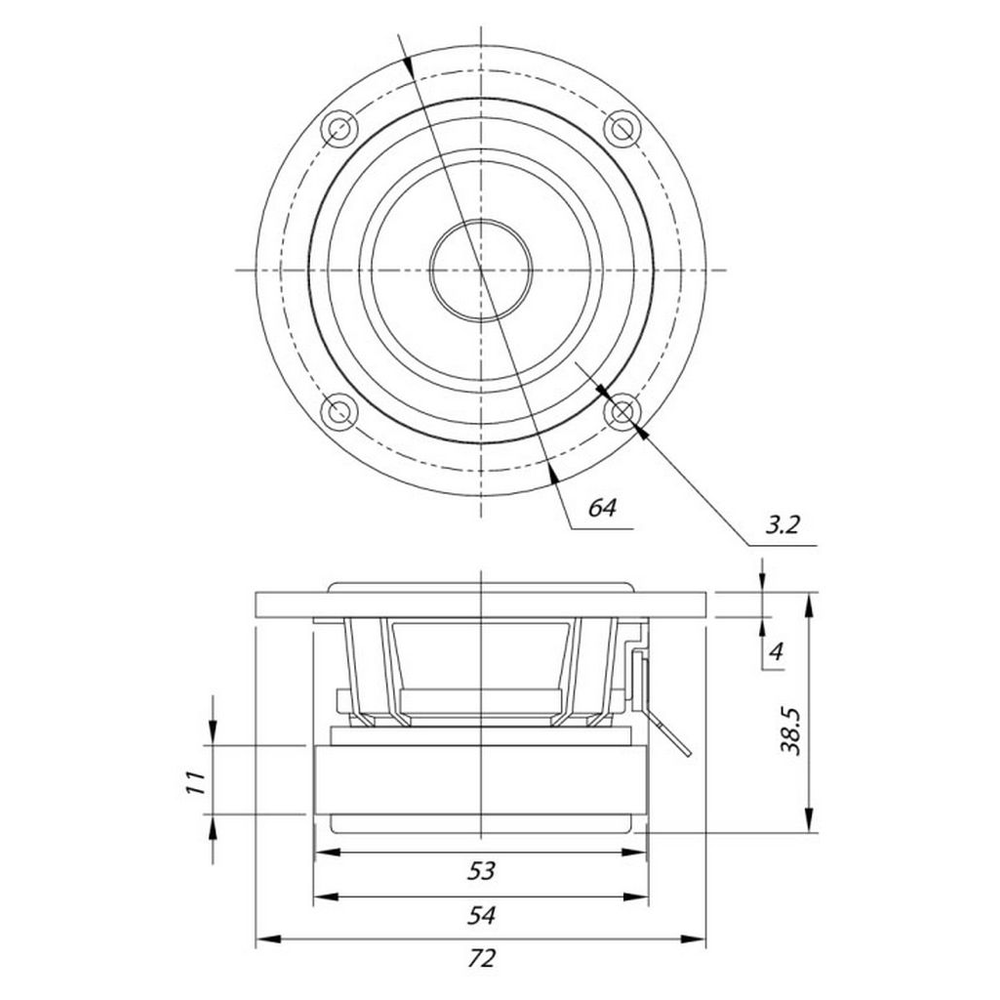

| Overall diameter | 72 mm |
|---|---|
| Cutout diameter | 54 mm |
| Mounting depth | 38.5 mm |
| Flange thickness | 4 mm |
| Bolt circle diameter | 64 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 3.2 mm |
| Voice coil diameter | 16 mm |
| Weight | 0.2722 kg |
Materials
| Cone | Black Anodised Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RS75-4 Specification Sheet
- RS75-4 Data Files
- RS75-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
