Dayton Audio

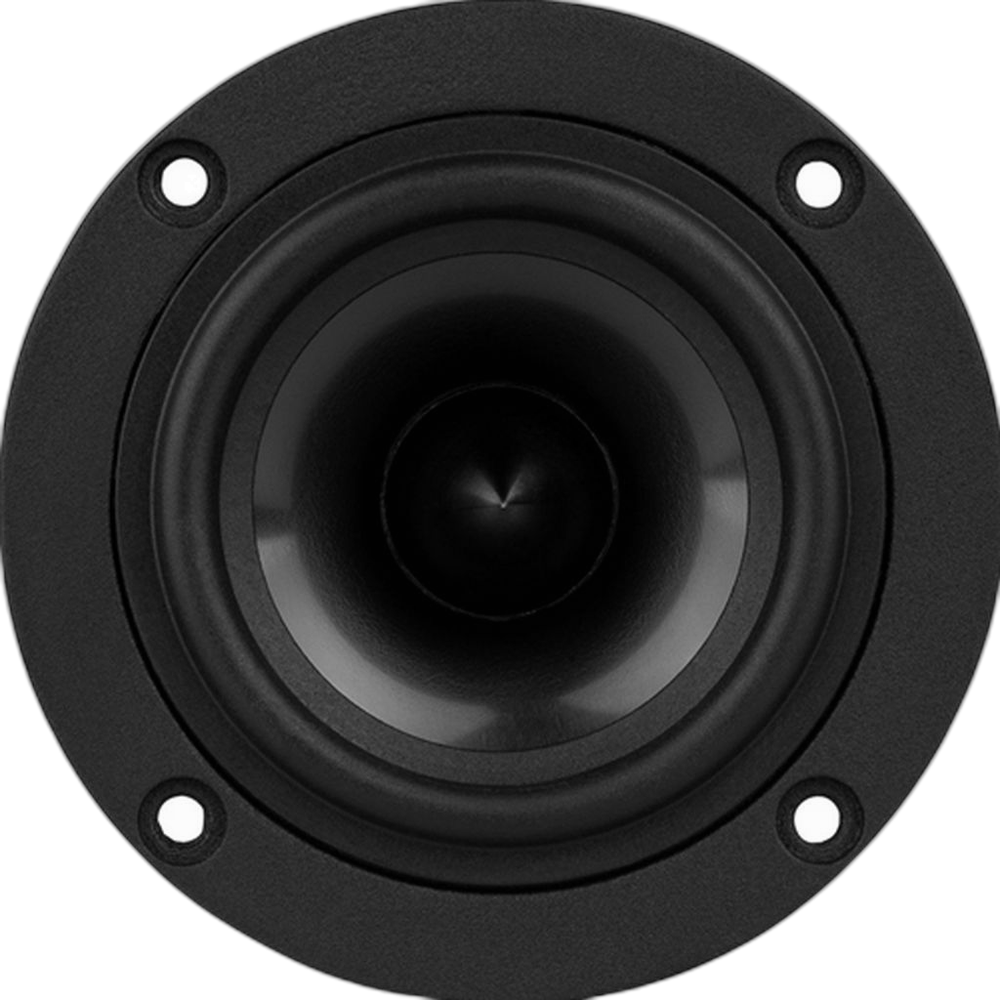

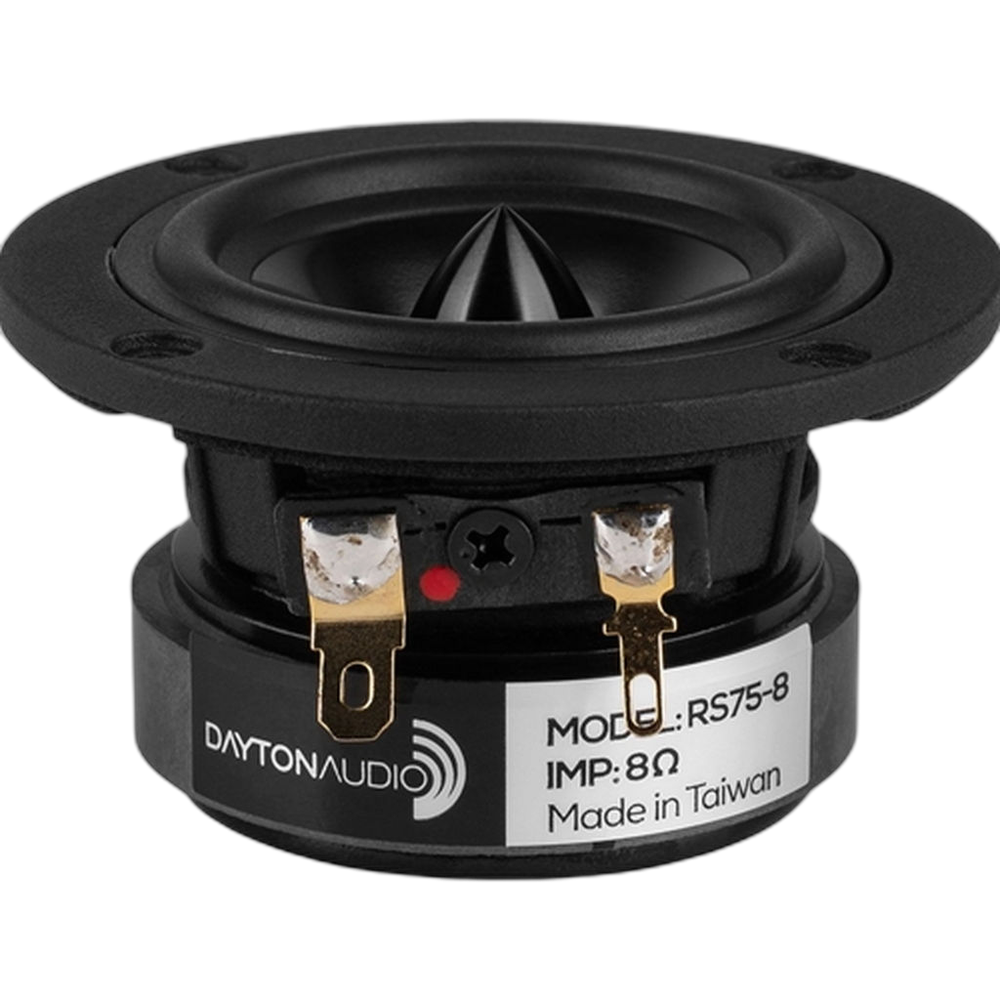

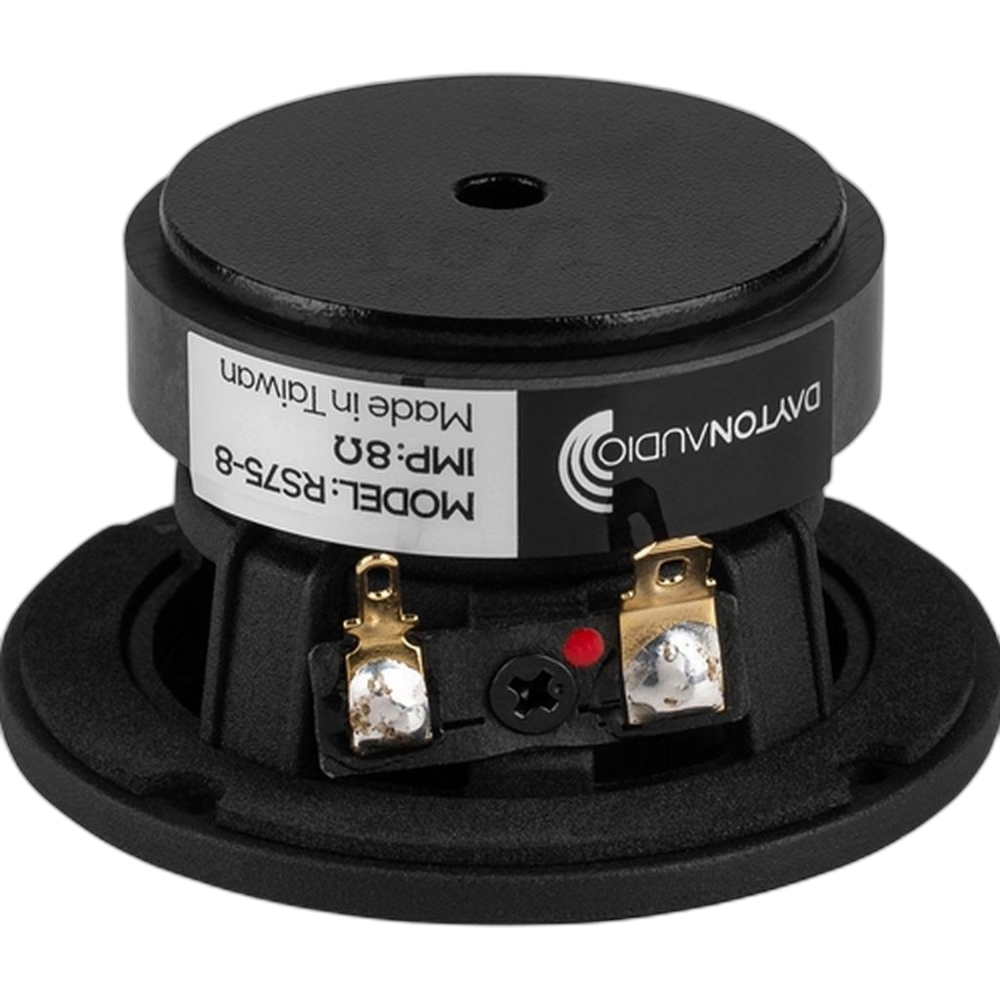

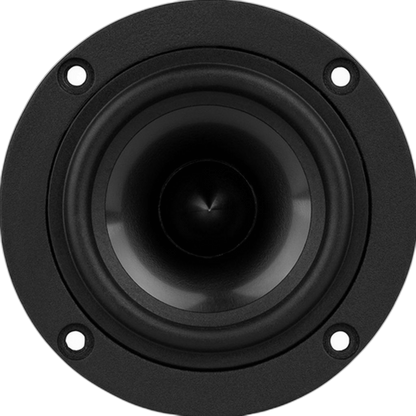

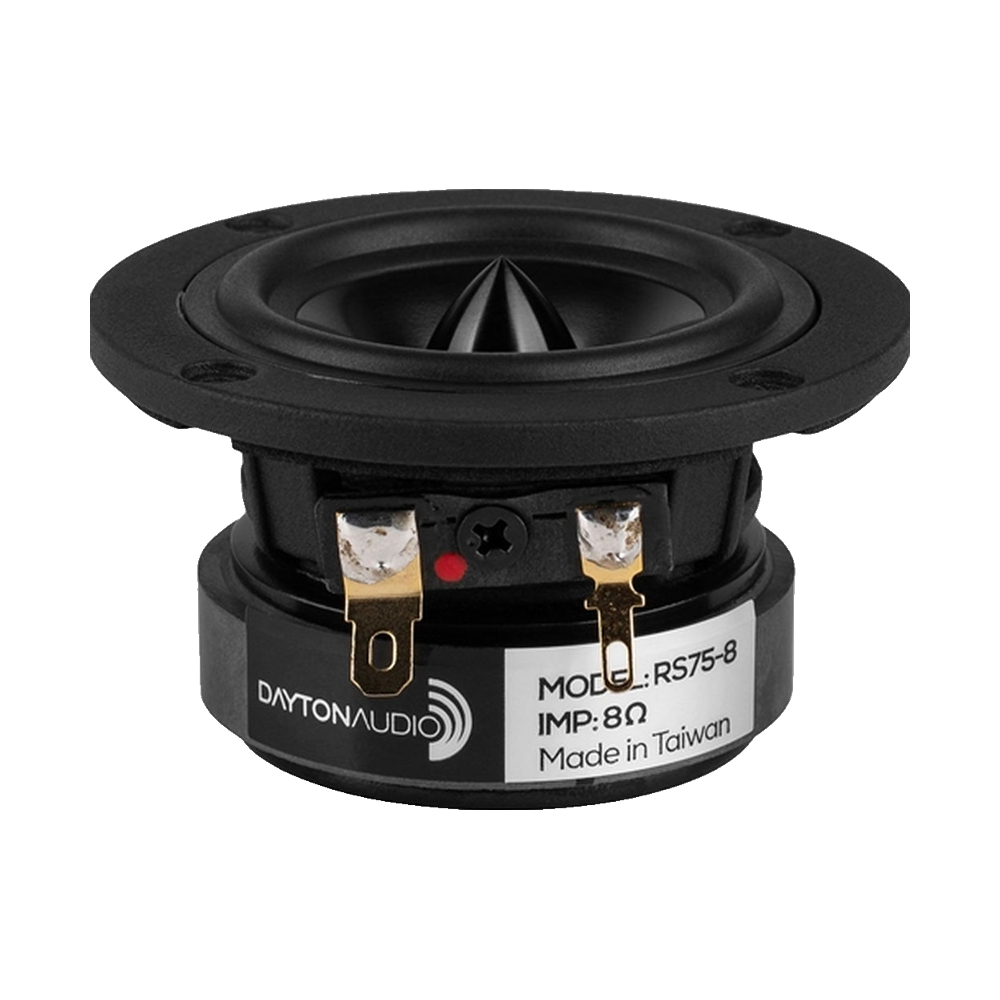

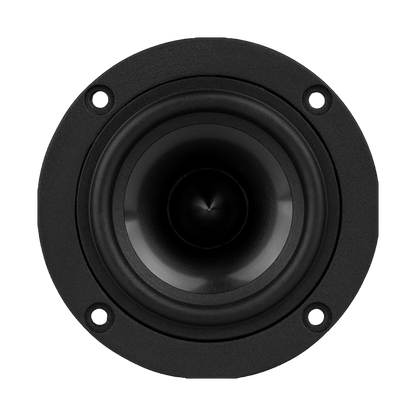

Dayton Audio - 3" Reference Full Range Driver - RS75-8
Dayton Audio - 3" Reference Full Range Driver - RS75-8
Regular price
$74.95 AUD
Regular price
Sale price
$74.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
This Dayton Audio Reference Series RS75 speaker incorporates a low-distortion motor system with a copper ring, a copper cap, and an aluminium phase plug. It can outperform "boutique" drivers that cost several times the price. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.
Features
- Full-range performance Low distortion and high resolution
- Aluminium frame, aluminium cone and rubber surround
- Solid alumium phase plug black anodised
- Distortion-reducing copper ring, cap, and aluminium phase plug
- Subtle yet high-tech look makes a bold cosmetic statement
Specifications
| Series | Reference Series |
|---|---|
| Type | Full Range |
| Size | 3' |
| Power | 15Wrms |
| Coil | 16mmØ |
| Impedance | 8Ω Re 6.2Ω |
| Sens. | 80.5 dB |
| Re | 6.2Ω |
| Qms | 5.12 |
| Qes | 1.35 |
| Qts | 1.07 |
| Vas | 0.11L |
| Sd | 12 cm² |
| Cms | 0.60mm/N |
| Fs | 185Hz |
| Mms | 1.23 g |
| Zn | 8Ω |
| Le | 0.32mH |
| Diam. | 72mmØ |
| Manufacturer | Dayton Audio |
| Hole | 54mmØ |
| Xmax | 1.3 mm |
| Bl | 2.55 Tm |
| Magnetic | AlNiCo |
| UPC | 848791005664 |
| Pmax | 30W |
| Wire | Copper |
| Colour | Black |
| Surround Material | Rubber |
