Dayton Audio - 3" Reference Full Range Driver - RS75T-8
Dayton Audio - 3" Reference Full Range Driver - RS75T-8
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

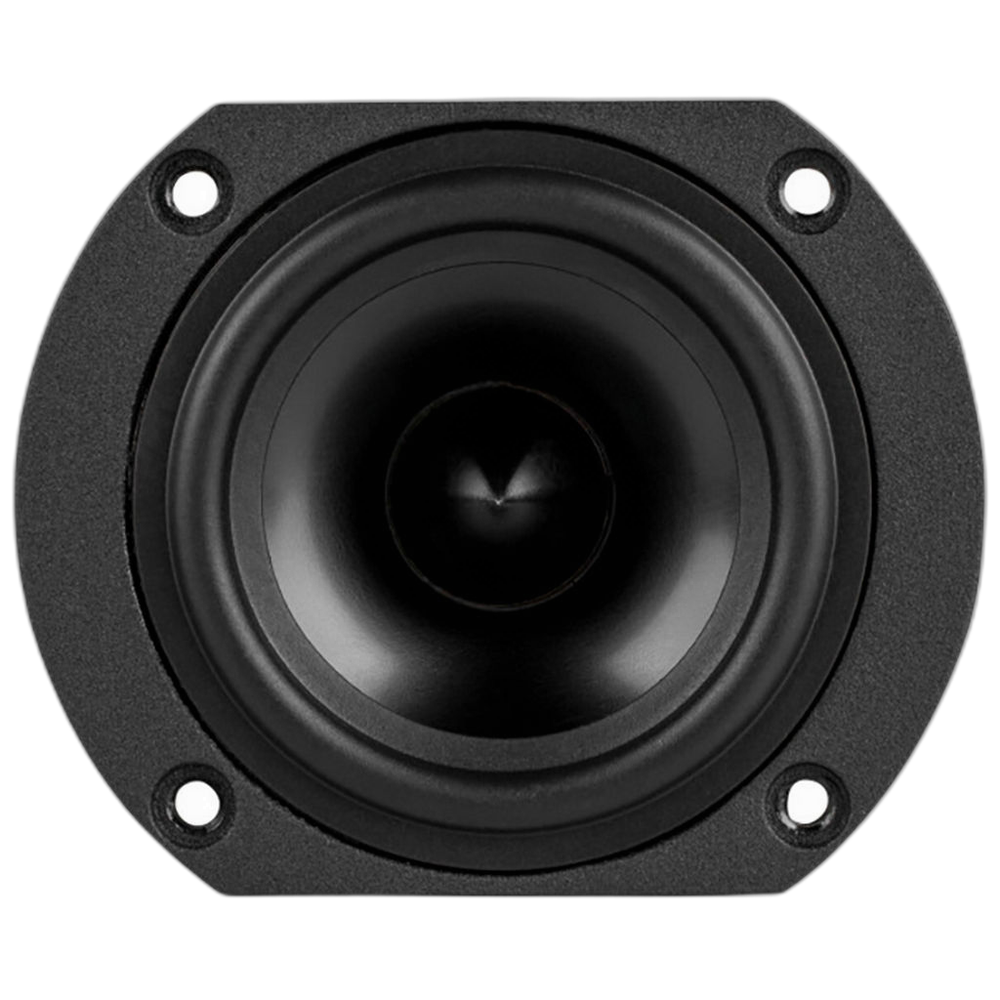

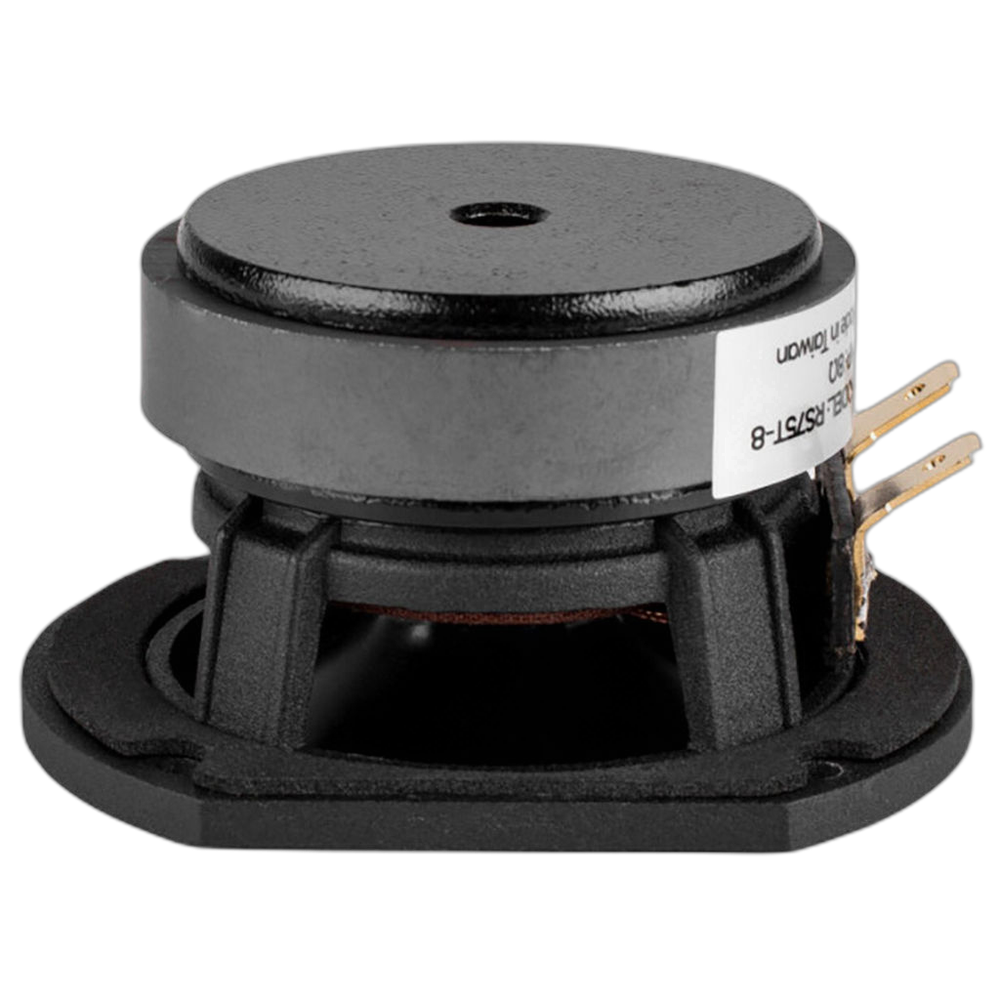

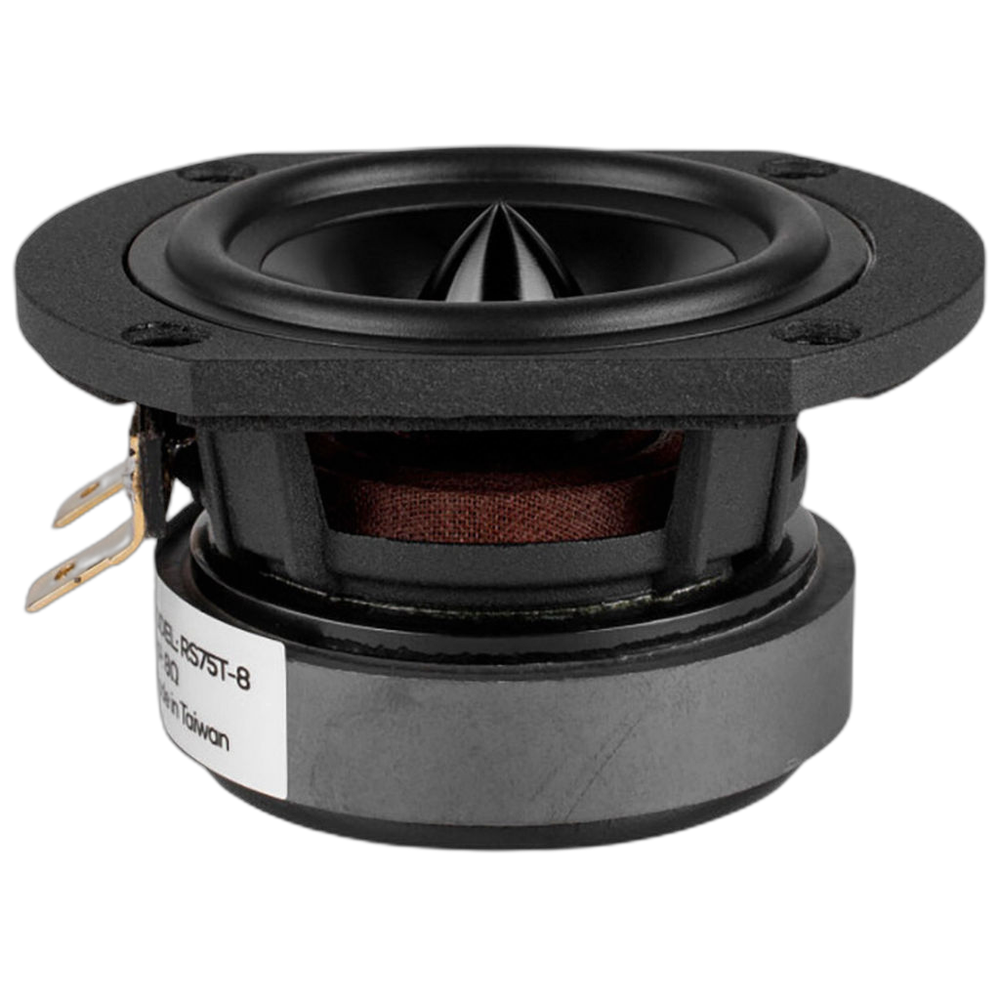

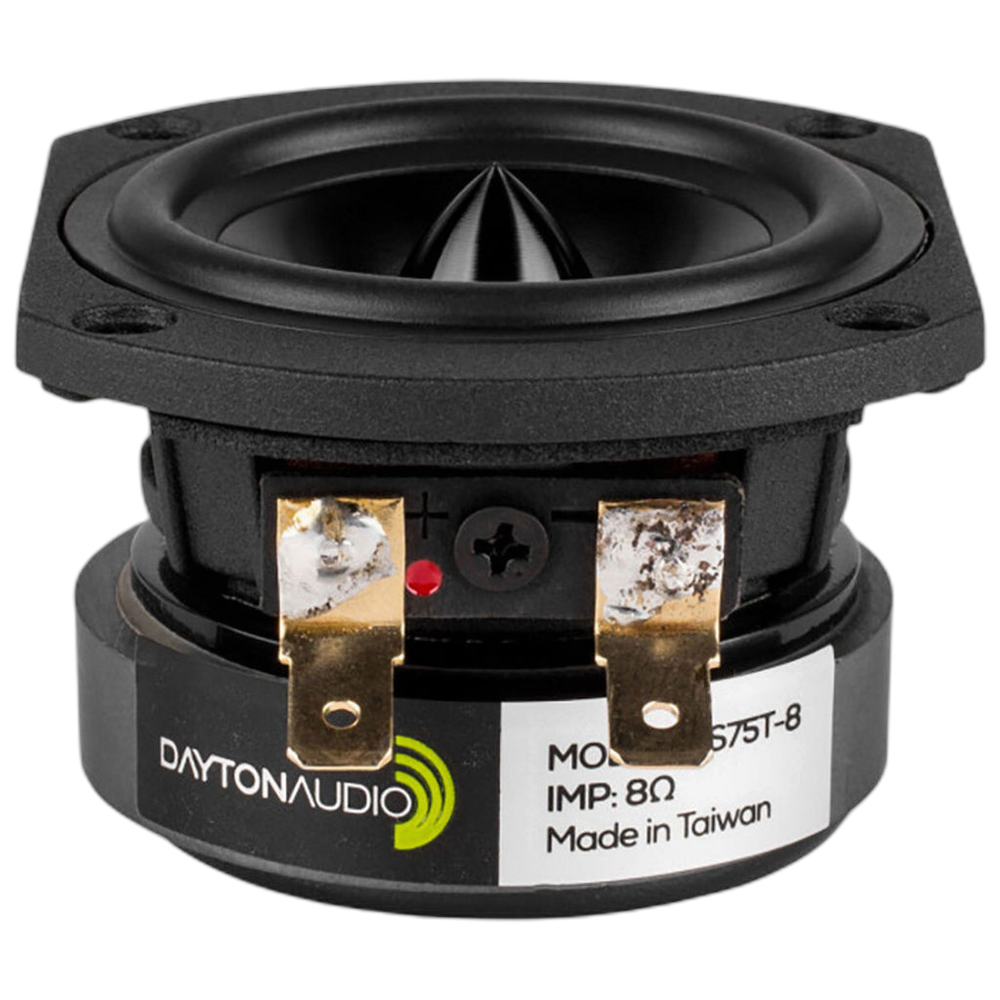

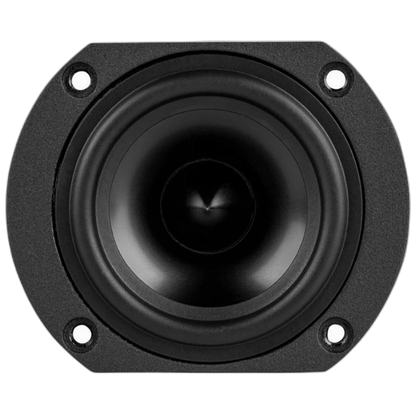

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminium phase plug, the RS75T-8 can outperform "boutique" drivers that cost several times the price. The drivers truncated frame makes it ideal for line arrays and ultra-compact MTM designs requiring minimal driver-to-driver spacing. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodised cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.
Features
- Truncated cast frame-great for line arrays and MTM speaker designs
- Full-range performance
- Low distortion and high resolution
- Aluminium frame, aluminium cone, rubber surround
- Distortion-reducing copper ring, copper cap, and aluminium phase plug
- Subtle yet high-tech look makes a bold cosmetic statement
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 3" |
| Nominal impedance | 8Ω |
| Series | Reference |
| Power handling (RMS) | 15 W |
| Power handling (program) | 30 W |
| Sensitivity | 84.3 dB |

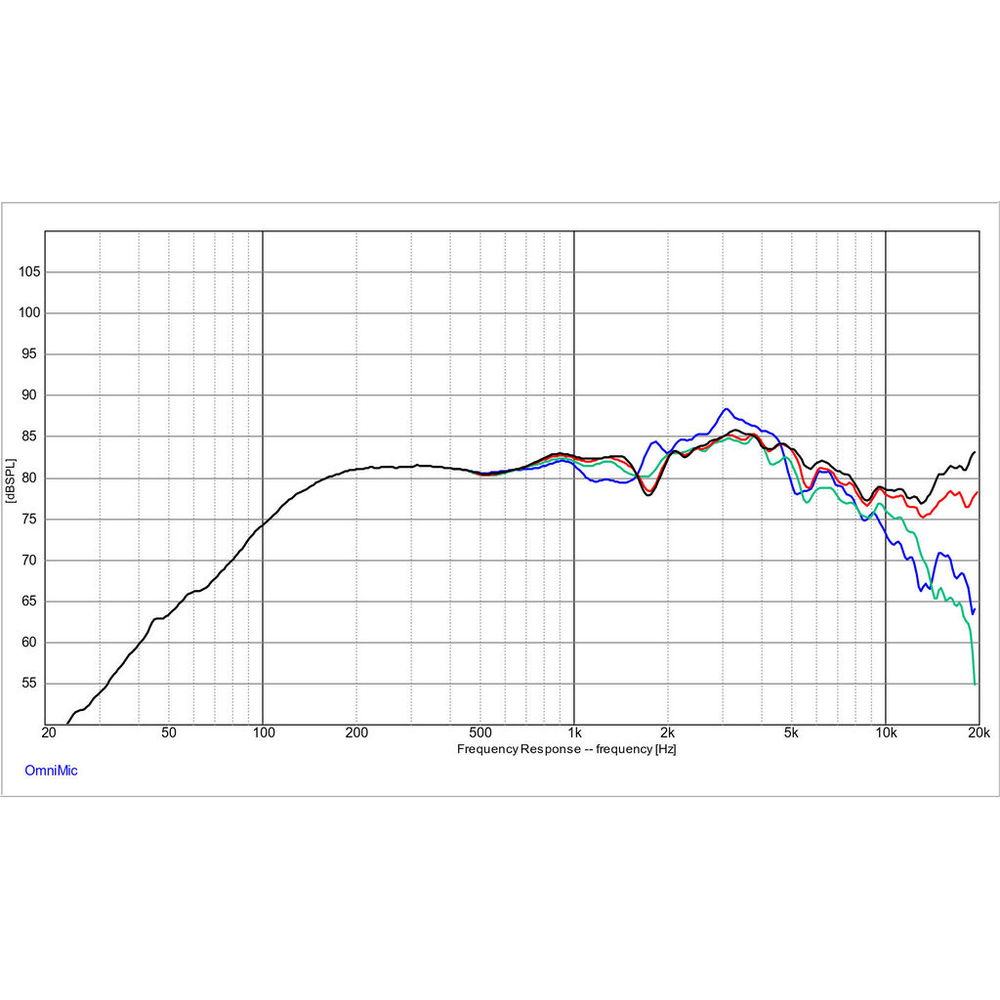

| Frequency range | 170 – 20,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 189 Hz |
|---|---|
| DC resistance (Re) | 6.1 Ω |
| Voice coil inductance (Le) | 0.32 mH |
| Mechanical Q (Qms) | 5.84 |
| Electrical Q (Qes) | 1.13 |
| Total Q (Qts) | 0.95 |
| Equivalent volume (Vas) | 0.22 L |
| Compliance (Cms) | 0.69 mm/N |
| Moving mass (Mms) | 1 g |
| Mechanical resistance (Rms) | 0.2033 kg/s |
| Force factor (Bl) | 2.58 T·m |
| Effective piston area (Sd) | 12 cm² |
| Linear excursion (Xmax, one-way) | 1.3 mm |
| Efficiency bandwidth product (EBP) | 167.3 |
Motor
| Voice coil wire | Copper |
|---|

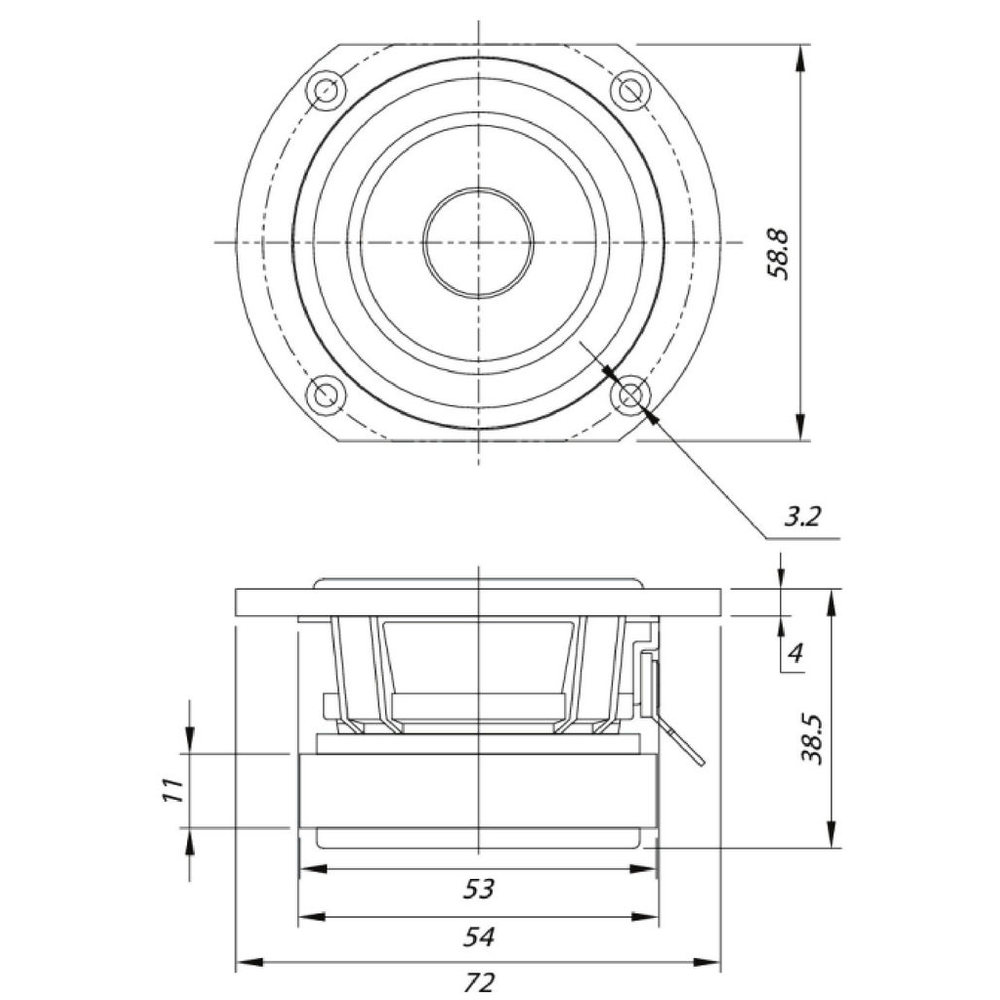

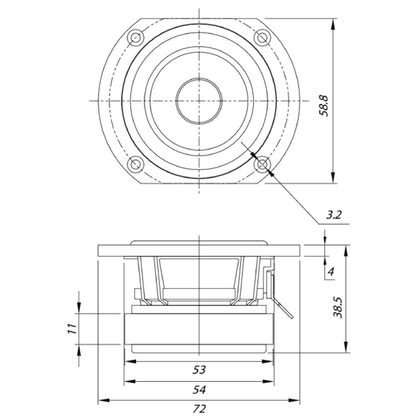

Mounting
| Overall diameter | 72 mm |
|---|---|
| Faceplate | Round with two flats, Ø72 mm, 58.8 mm across the flats |
| Cutout diameter | 54 mm |
| Mounting depth | 38.5 mm |
| Voice coil diameter | 16 mm |
| Weight | 0.2722 kg |
| Mounting holes | 4 |
Materials
| Cone | Black Anodised Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RS75T-8 Specification Sheet
- RS75T-8 Data Files
- RS75T-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
