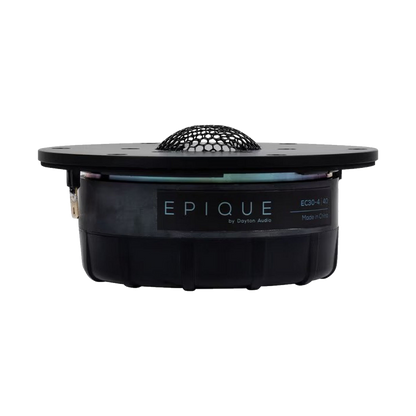

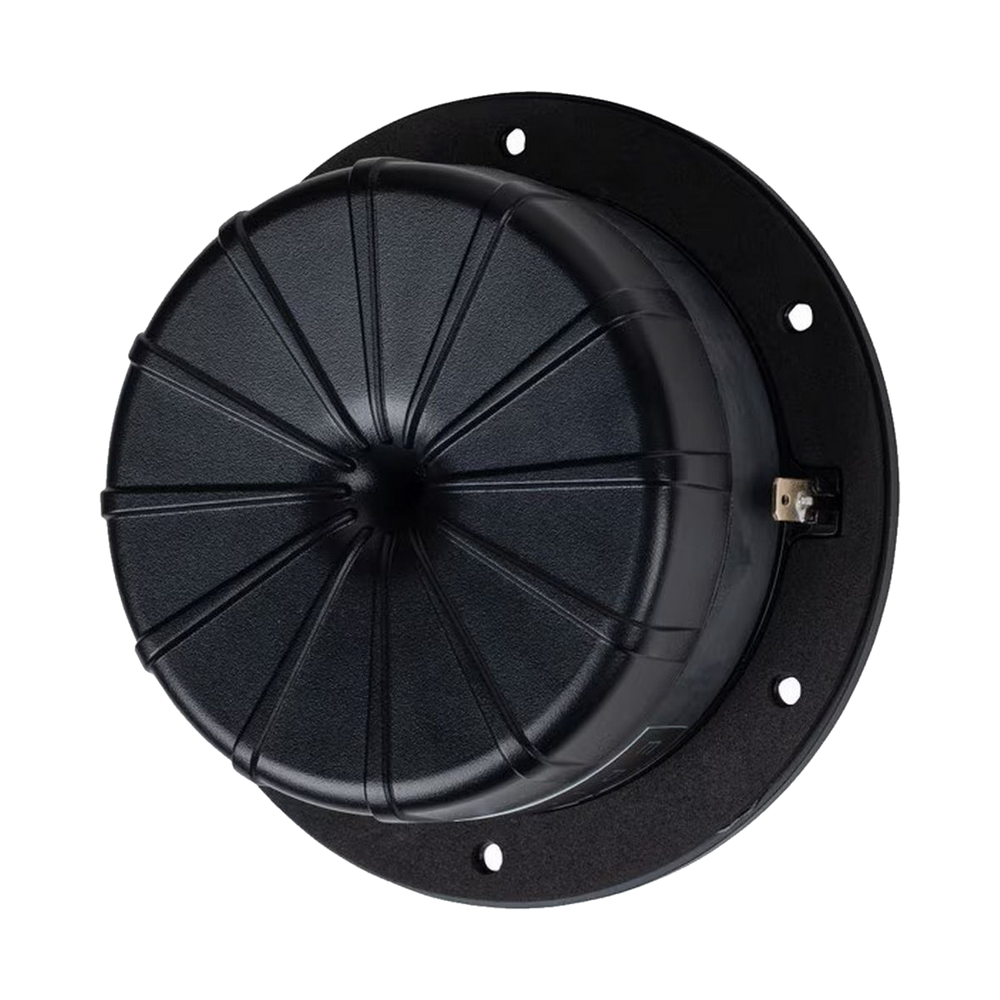

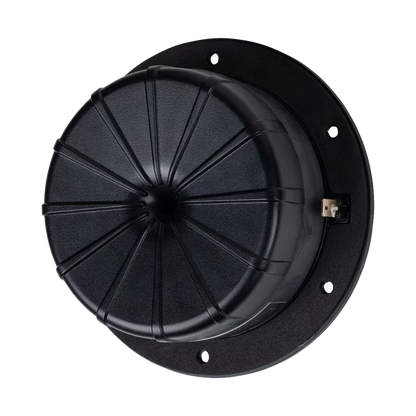

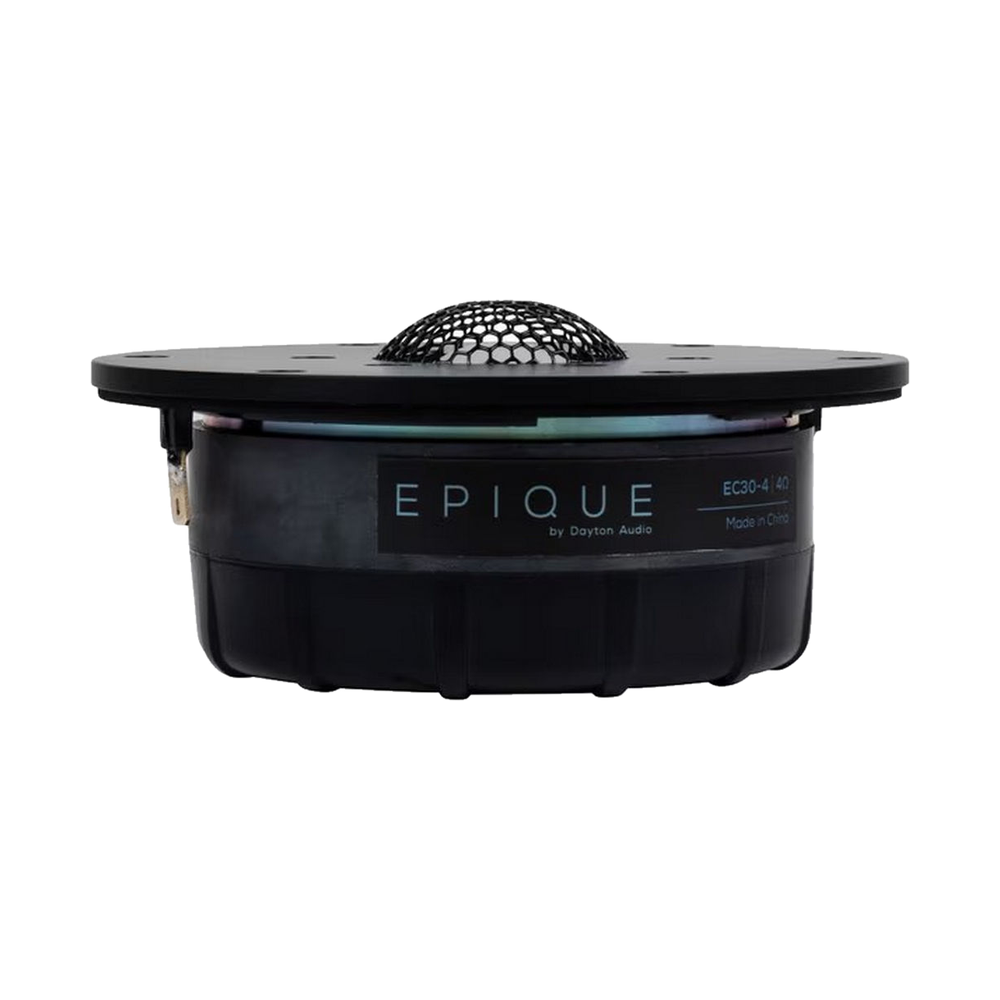

Dayton Audio - 30mm Epique Ceramic Dome Tweeter Matched Pair - EC30MP-4
Dayton Audio - 30mm Epique Ceramic Dome Tweeter Matched Pair - EC30MP-4
Regular price
$294.95 AUD
Regular price
Sale price
$294.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
A matched pair of Dayton Audio Epique EC30-4 tweeters: two tweeters, sold together. Each has a 30 mm aluminium dome with a vapour-deposited ceramic coating for stiffness, a copper cap and Kapton former to keep inductance low, and a 3.6 mm aluminium faceplate with a honeycomb mesh grille.
Features
- 30 mm aluminium dome with a vapour-deposited ceramic coating for rigid, piston-like motion
- Smooth, low-distortion output beyond 40 kHz
- Engineered back plate and damping materials minimise internal resonances
- Copper cap and Kapton former reduce inductance and distortion
- Oversized Y35 magnet and treated cloth surround for control and durability

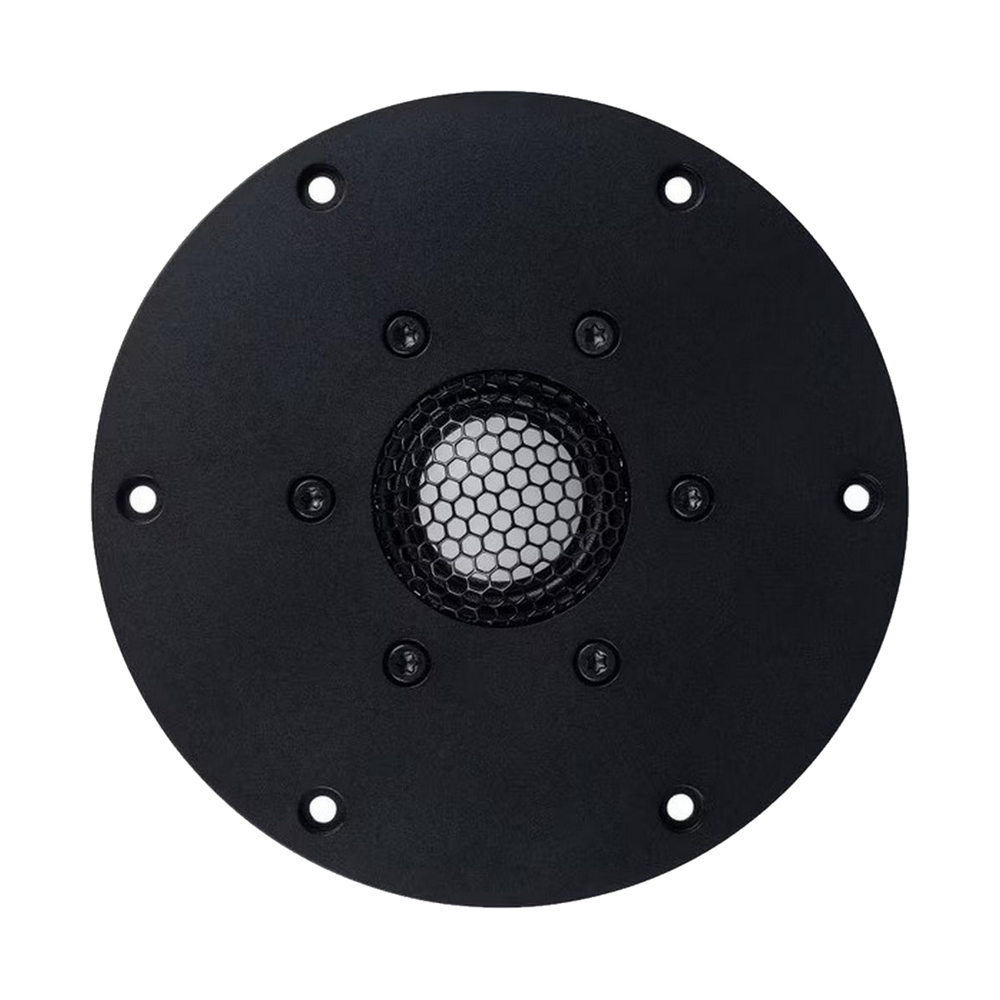

- 3.6 mm aluminium faceplate with honeycomb mesh grille

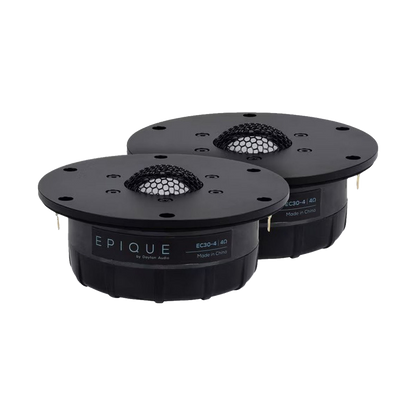

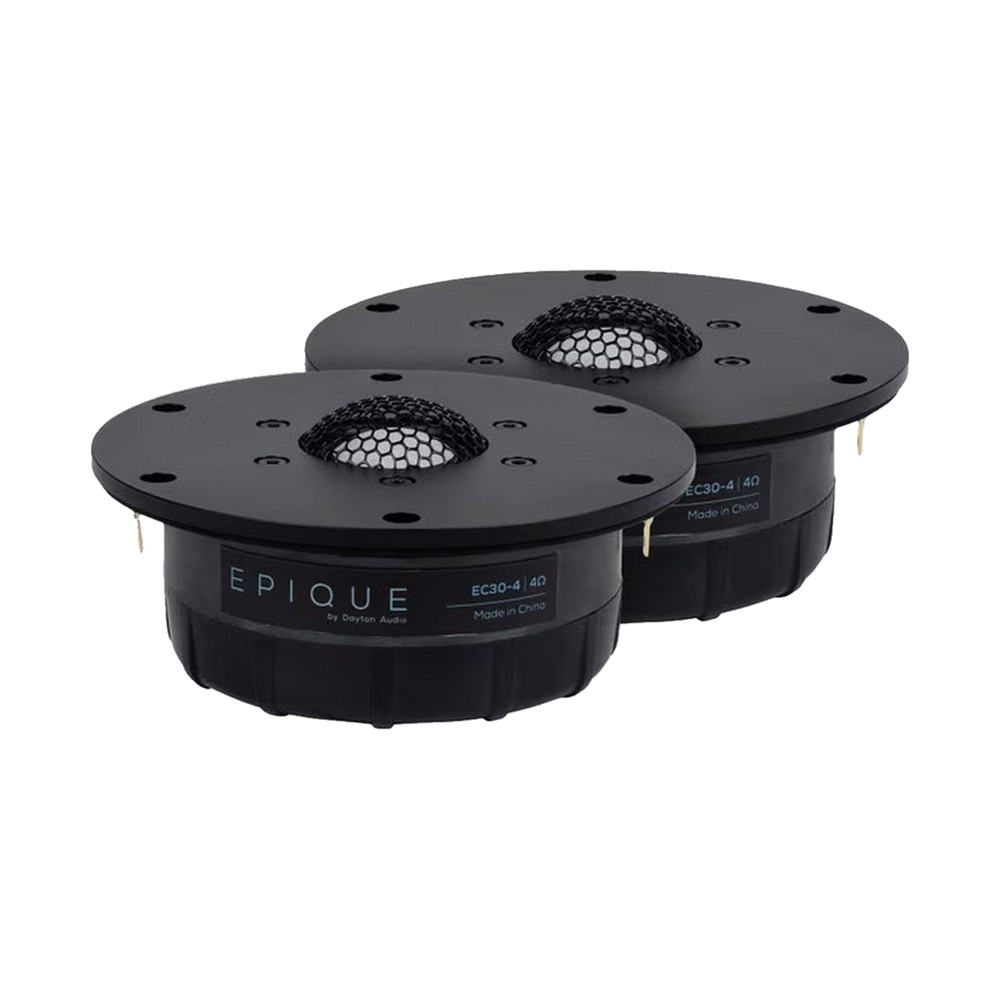

- Sold as a matched pair
Specifications
Specifications
General
| Driver type | Tweeter |
|---|---|
| Nominal impedance | 4Ω |
| Series | Epique |
| Power handling (RMS) | 80 W |
| Power handling (program) | 160 W |
| Sensitivity | 92 dB |
| Frequency range | 1,500 – 40,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 700 Hz |
|---|---|
| DC resistance (Re) | 4.03 Ω |
| Mechanical Q (Qms) | 3.376 |
| Electrical Q (Qes) | 1.163 |
| Total Q (Qts) | 0.8651 |
| Efficiency bandwidth product (EBP) | 601.9 |
Motor
| Voice coil wire | Copper |
|---|
Mounting
| Overall diameter | 129.7 mm |
|---|---|
| Cutout diameter | 101.8 mm |
| Mounting depth | 48.9 mm |
| Mounting holes | 6 |
| Voice coil diameter | 30 mm |
| Weight | 2.563 kg |
Materials
| Surround | Cloth |
|---|---|
| Voice coil former | Kapton® / Polyimide |
| Basket | Cast Aluminum |
| Magnet | Ferrite |
- Sensitivity measured at 2.83V/1m.
