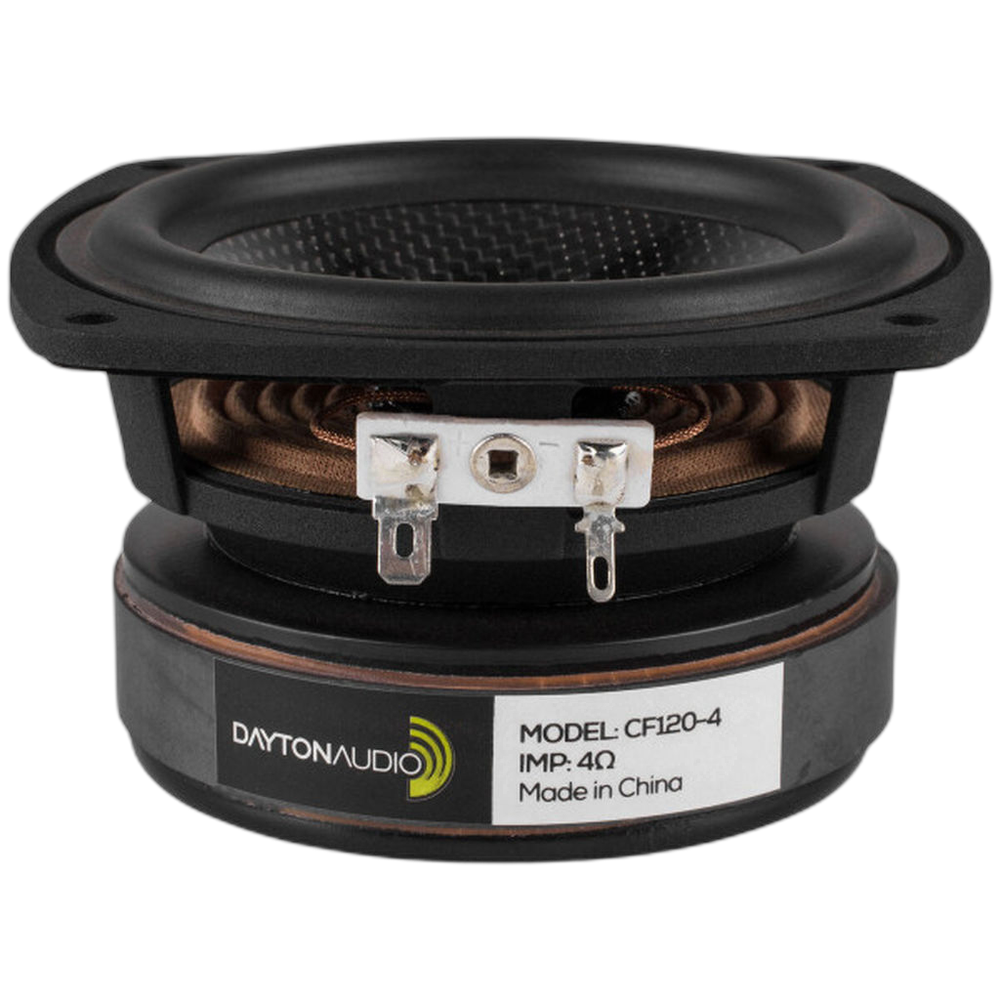

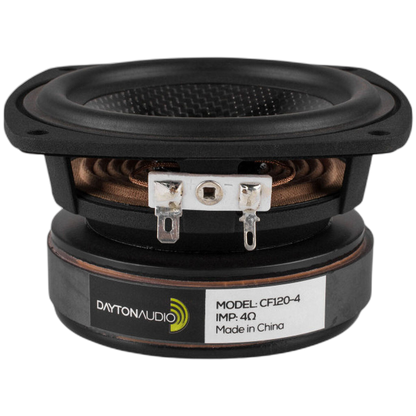

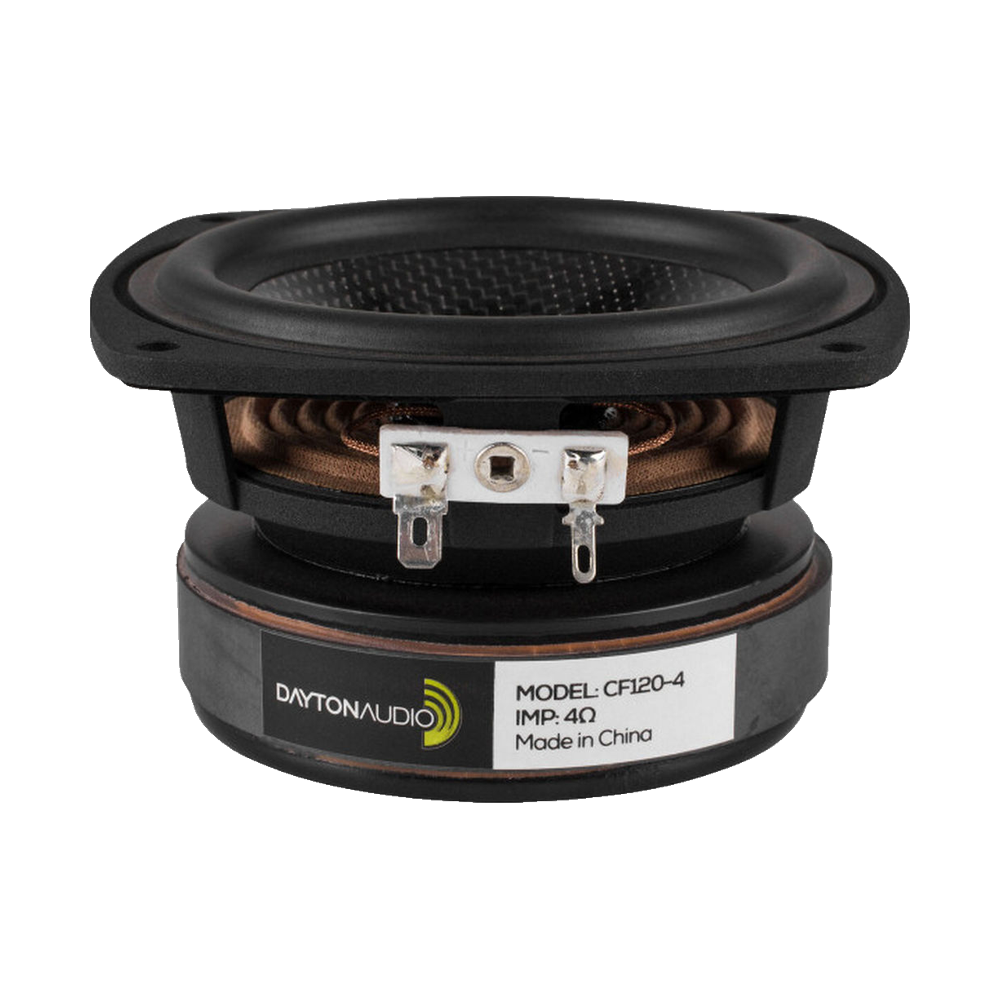

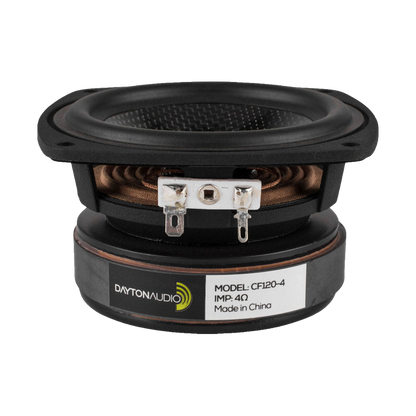

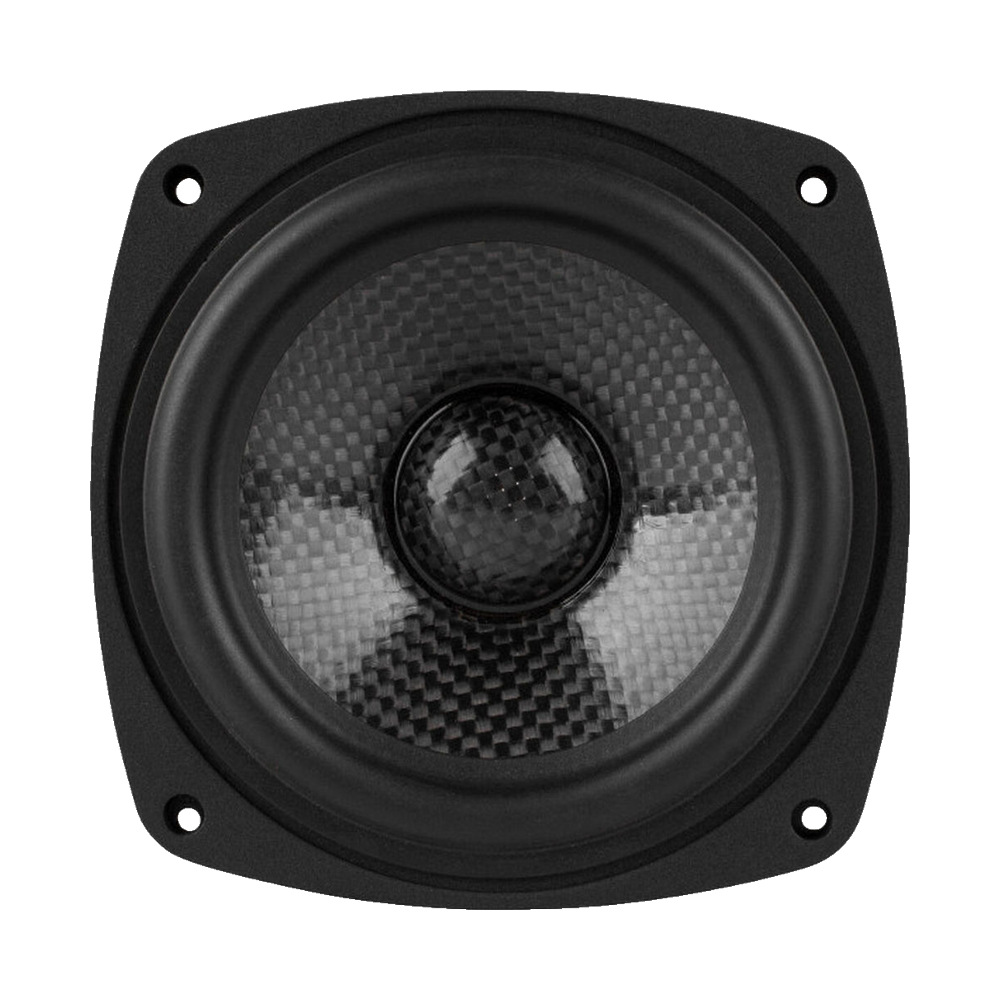

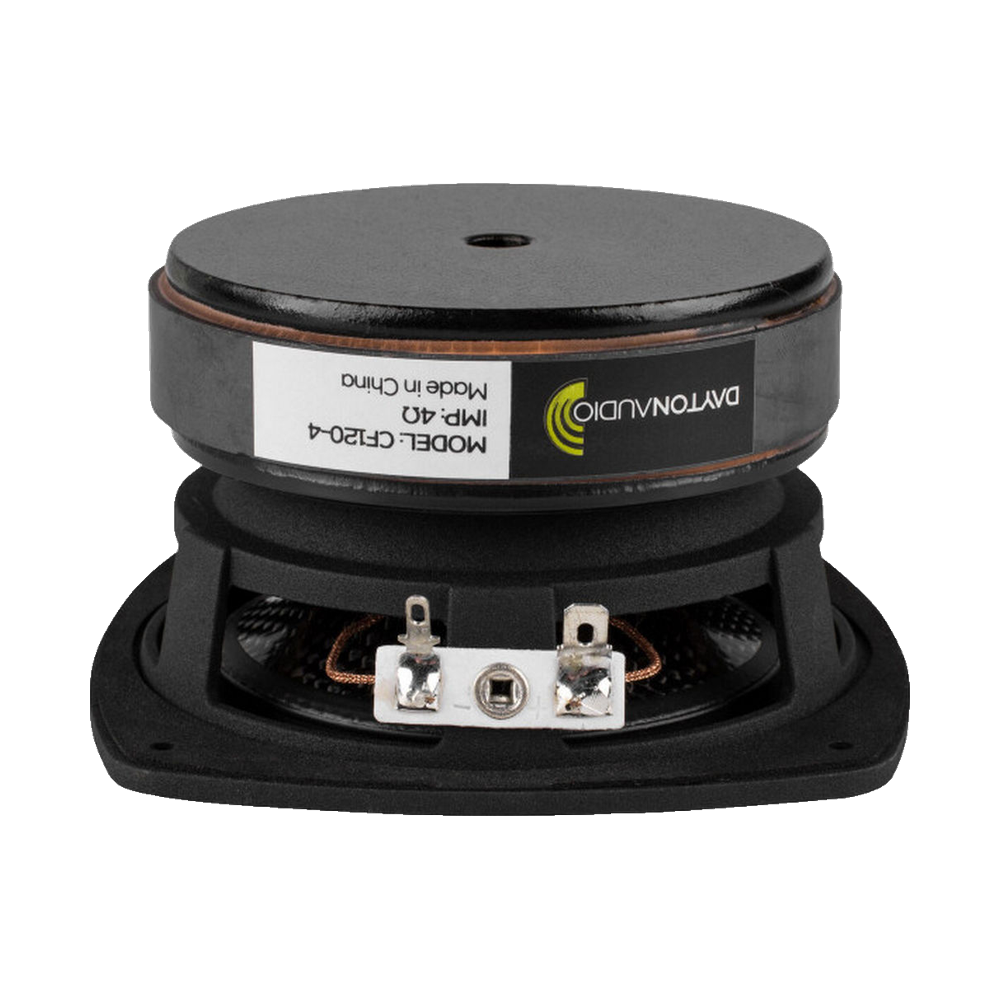

Dayton Audio's CF120-4 4-1/2" midwoofer utilises a high-tech carbon fibre cone to create its own perfect combination of visual aesthetics and uncompromising audio performance.

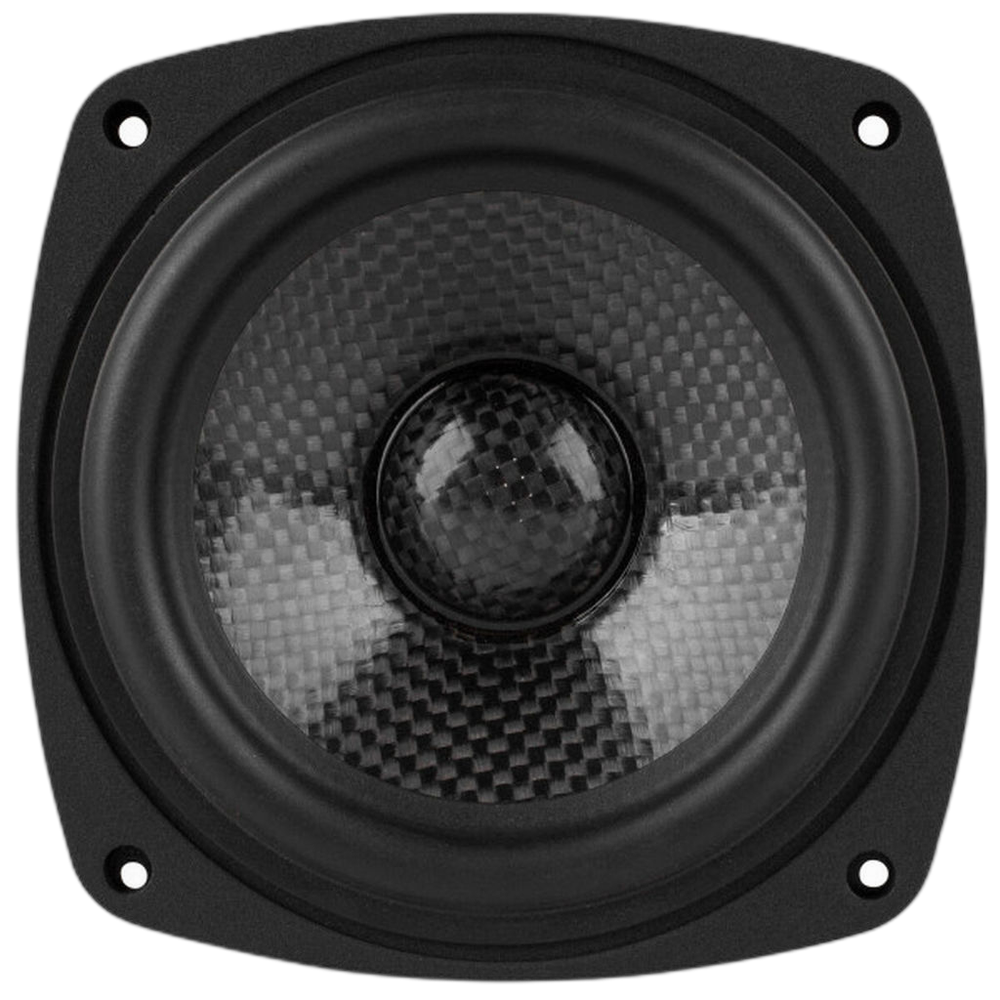

Take one longing glance at the Dayton Audio CF120-4 4-1/2" midwoofers carbon fibre cone, cast frame, and large magnet, and you'll realise performance, not cost, was the primary development criteria. Delve further into the product details, and the flat extended frequency response, strong motor, and well-balanced parameters will confirm your thoughts. This beautiful driver looks awesome -- and performs as well as it looks!
Features
- Pincushion cast aluminium frame
- Ultra-light and stiff woven carbon fibre cone
- Copper cap and large magnet provide a low distortion motor structure
- Durable and potent 1" diameter hi-temp 2-layer voice coil
- Black anodised aluminium vented former increases heat dissipation and power handling

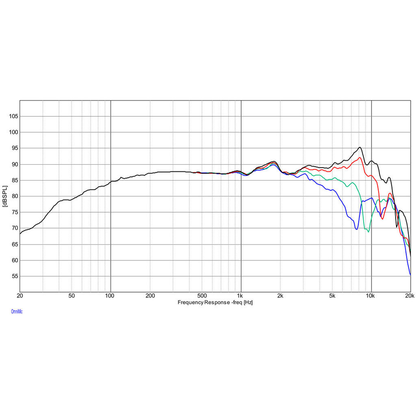

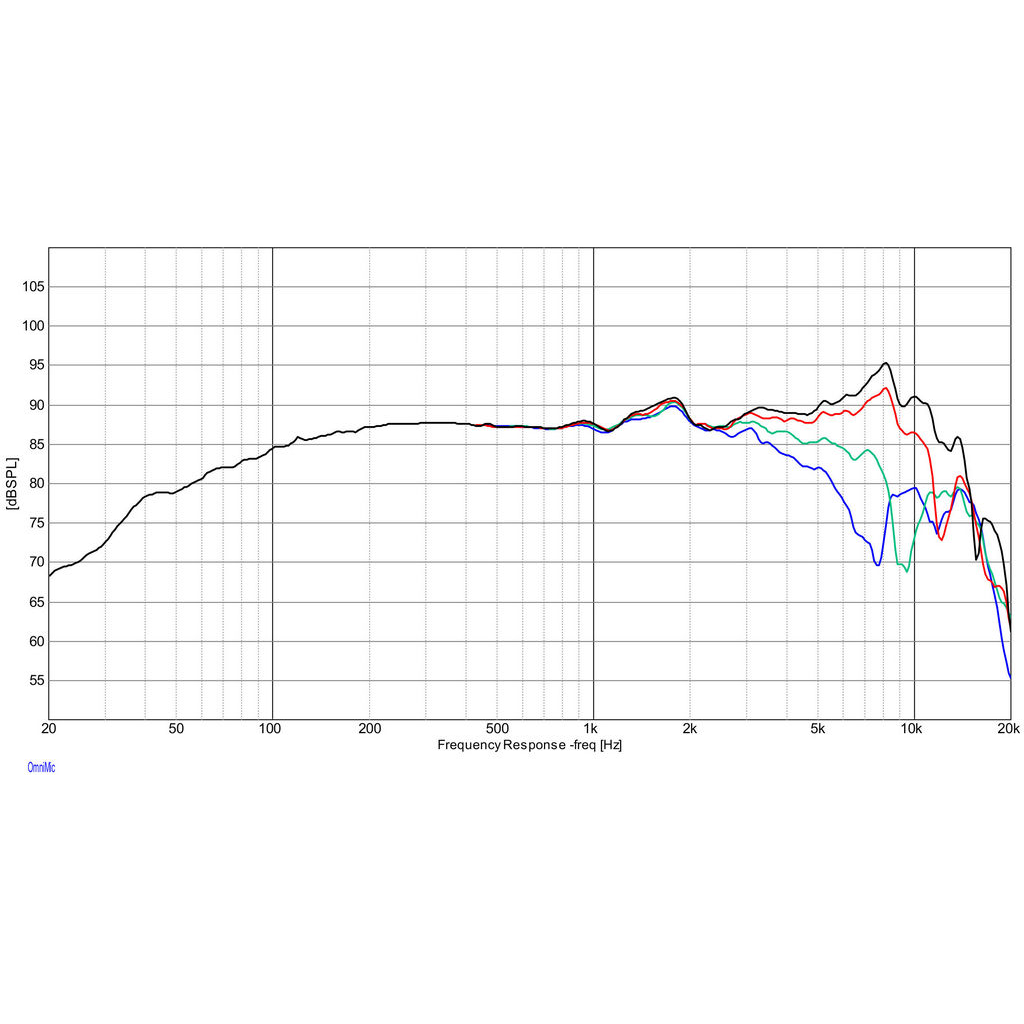

- Flat extended frequency response to 15,000 Hz
- Great for small satellite 2-way, MTM designs, or high-end car audio applications
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 4.5" |
| Nominal impedance | 4Ω |
| Series | CF |
| Power handling (RMS) | 30 W |
| Power handling (program) | 60 W |
| Sensitivity | 89.1 dB |
| Frequency range | 50 – 15,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 53.2 Hz |
|---|---|
| DC resistance (Re) | 3.4 Ω |
| Voice coil inductance (Le) | 0.45 mH |
| Mechanical Q (Qms) | 1.89 |
| Electrical Q (Qes) | 0.32 |
| Total Q (Qts) | 0.28 |
| Equivalent volume (Vas) | 4.87 L |
| Compliance (Cms) | 1.31 mm/N |
| Moving mass (Mms) | 6.9 g |
| Mechanical resistance (Rms) | 1.22 kg/s |
| Force factor (Bl) | 4.94 T·m |
| Effective piston area (Sd) | 51.5 cm² |
| Linear excursion (Xmax, one-way) | 3.5 mm |
| Displacement volume (Vd) | 18.02 cm³ |
| Efficiency bandwidth product (EBP) | 166.2 |
Mounting
| Overall diameter | 126.4 mm |
|---|---|

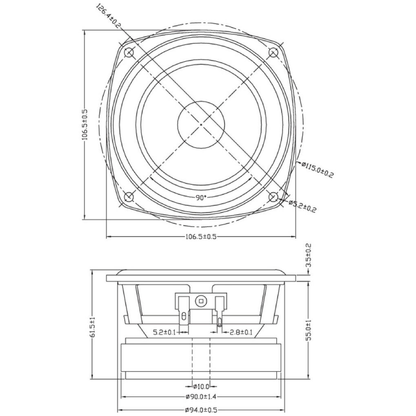

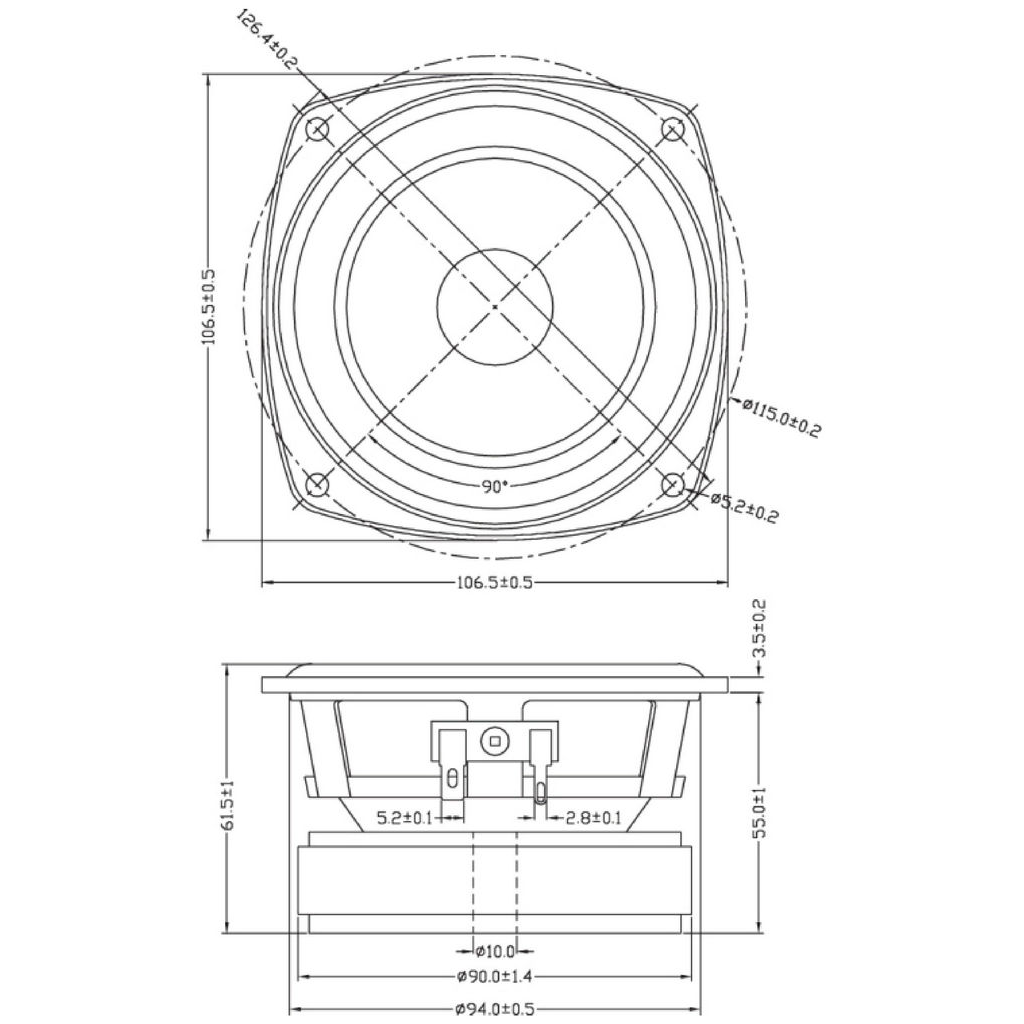

| Faceplate | Not round, 106.5 × 106.5 mm (see the maker's drawing) |
| Cutout diameter | 101.6 mm |
| Mounting depth | 55 mm |
| Voice coil diameter | 25.4 mm |
Materials
| Cone | Carbon Fibre |
|---|---|
| Voice coil former | Aluminium |
| Basket | Cast Aluminium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- CF120-4 Specification Sheet
- CF120-4 Data Files
- CF120-4 3D Files
- CF120-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
