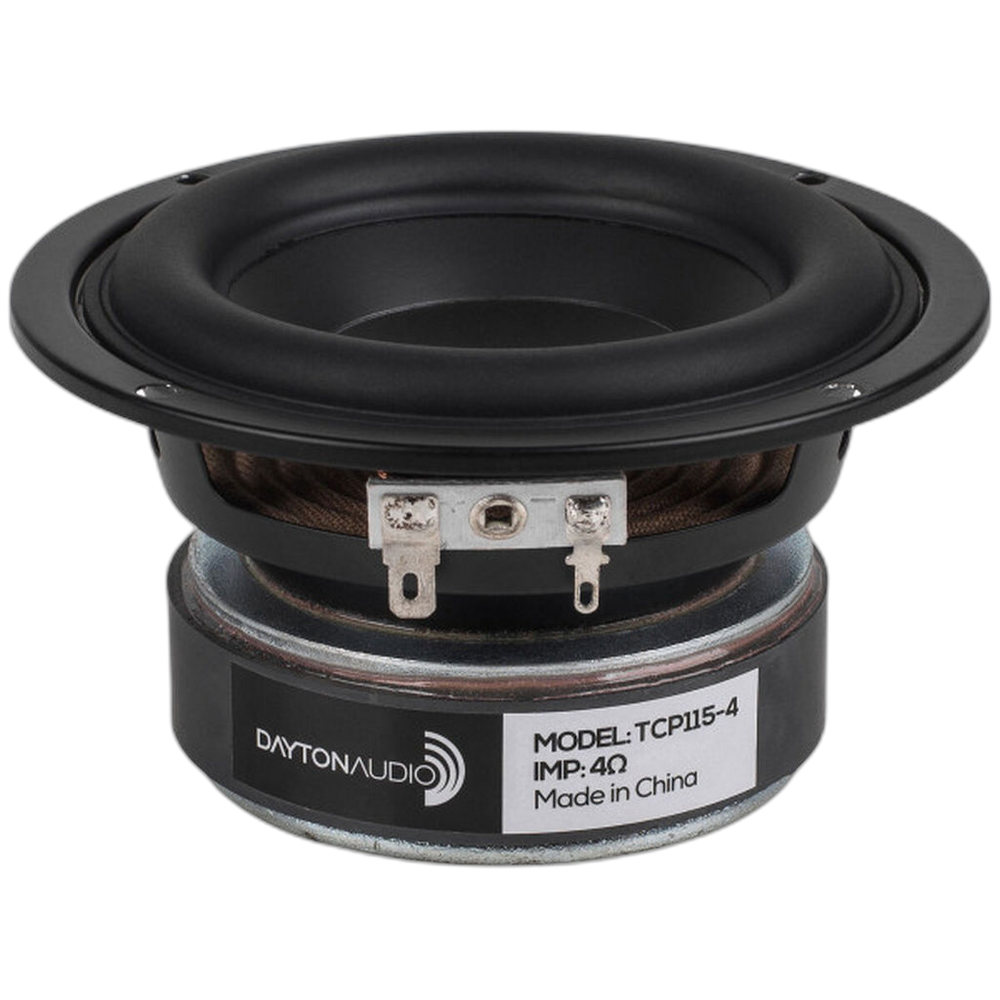

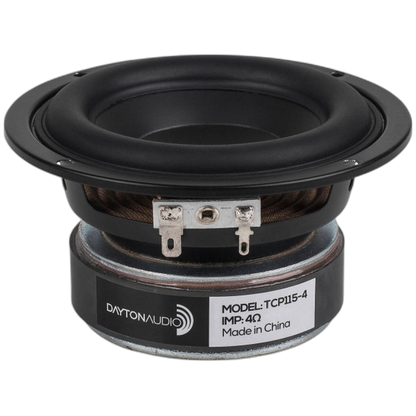

Dayton Audio - 4" Midbass Driver Paper - TCP115-4
Dayton Audio - 4" Midbass Driver Paper - TCP115-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
With high excursion capabilities and low Fs, Dayton Audio's TCP115-4 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal for use in smaller 2-way designs.

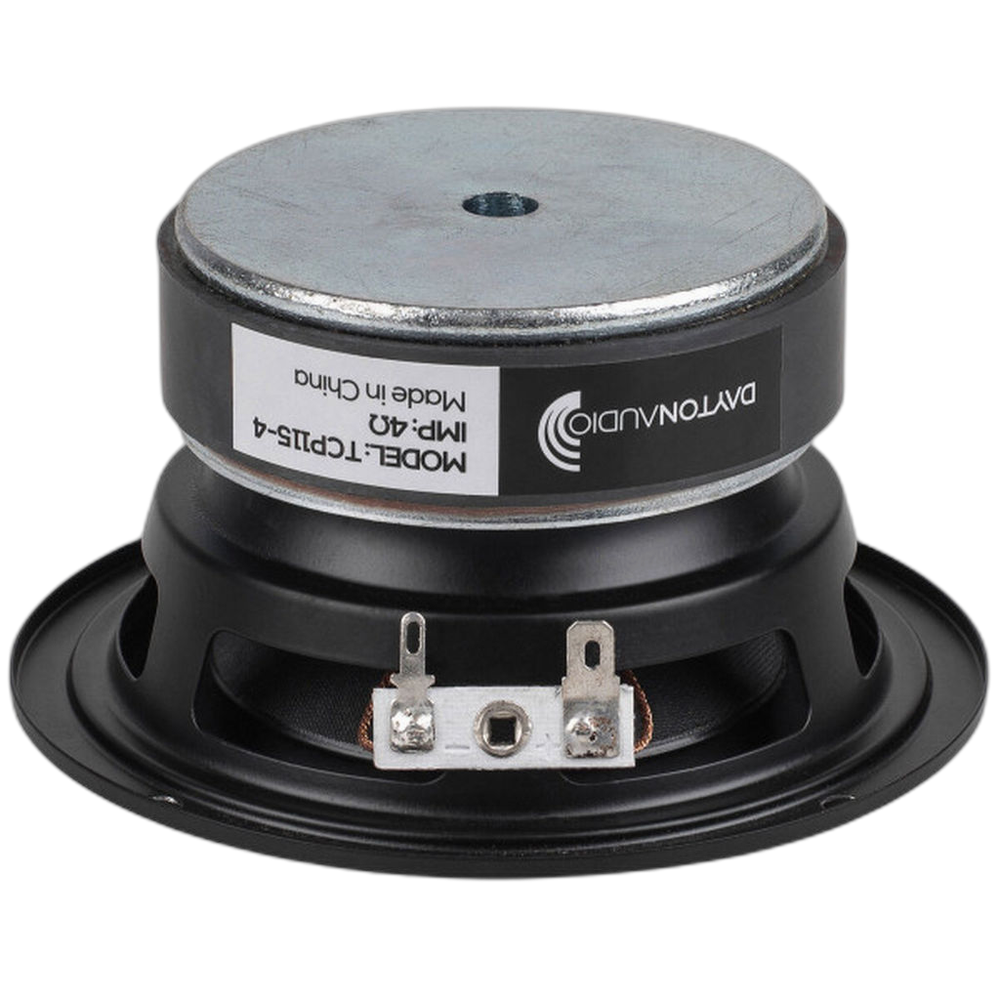

The TCP115-4 combines a large motor, 1" 4-layer voice coil, vented pole and a sizable rubber surround to make use of its 4 mm of x-max. This combination of features makes it a very versatile driver which can be used as a bass driver in a small 2-way system, centre channel, or even portable Bluetooth speaker designs.
Features
- Aluminium former keeps voice coil cool for high power handling
- 1" diameter 4-layer voice coil improves power handling and low frequency response
- Extended pole piece creates symmetrical magnetic field for lower distortion
- Cosmetic low-profile mounting flange looks good without flush mounting
- Powerful motor for efficiency and compact enclosure
Specifications
Specifications
General

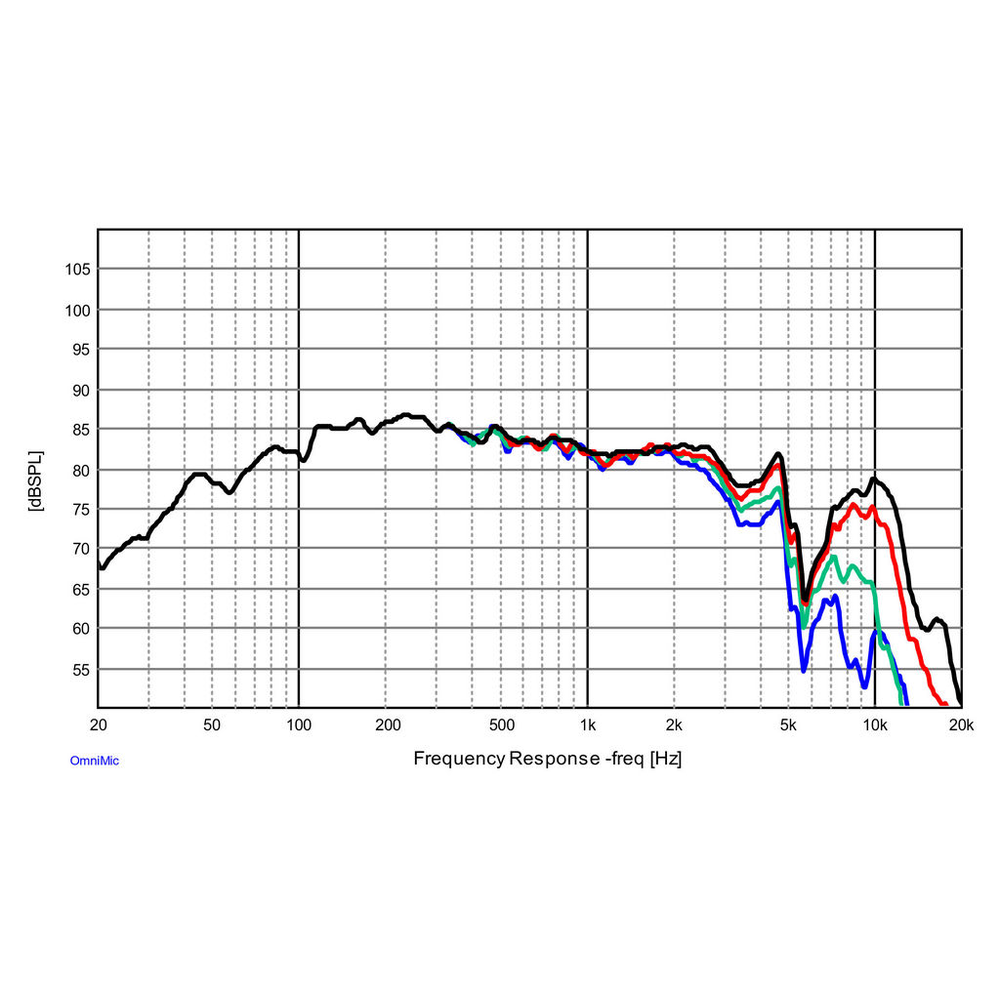

| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 4" |
| Nominal impedance | 4Ω |
| Series | Poly Cone |
| Power handling (RMS) | 40 W |
| Power handling (program) | 80 W |
| Sensitivity | 86.8 dB |
| Frequency range | 55 – 5,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 53.8 Hz |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Voice coil inductance (Le) | 0.97 mH |
| Mechanical Q (Qms) | 3.14 |
| Electrical Q (Qes) | 0.4 |
| Total Q (Qts) | 0.35 |
| Equivalent volume (Vas) | 3.1 L |
| Compliance (Cms) | 0.88 mm/N |
| Moving mass (Mms) | 9.9 g |
| Mechanical resistance (Rms) | 1.066 kg/s |
| Force factor (Bl) | 5.2 T·m |
| Effective piston area (Sd) | 50.3 cm² |
| Linear excursion (Xmax, one-way) | 4 mm |
| Displacement volume (Vd) | 20.12 cm³ |
| Efficiency bandwidth product (EBP) | 134.5 |
Motor
| Voice coil wire | CCAW |
|---|

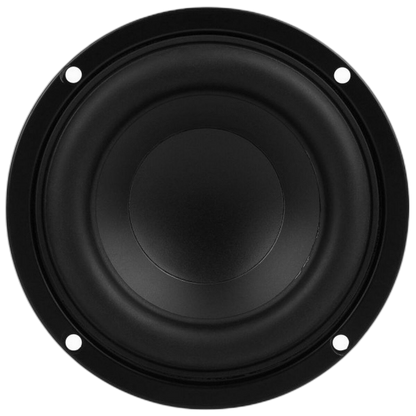

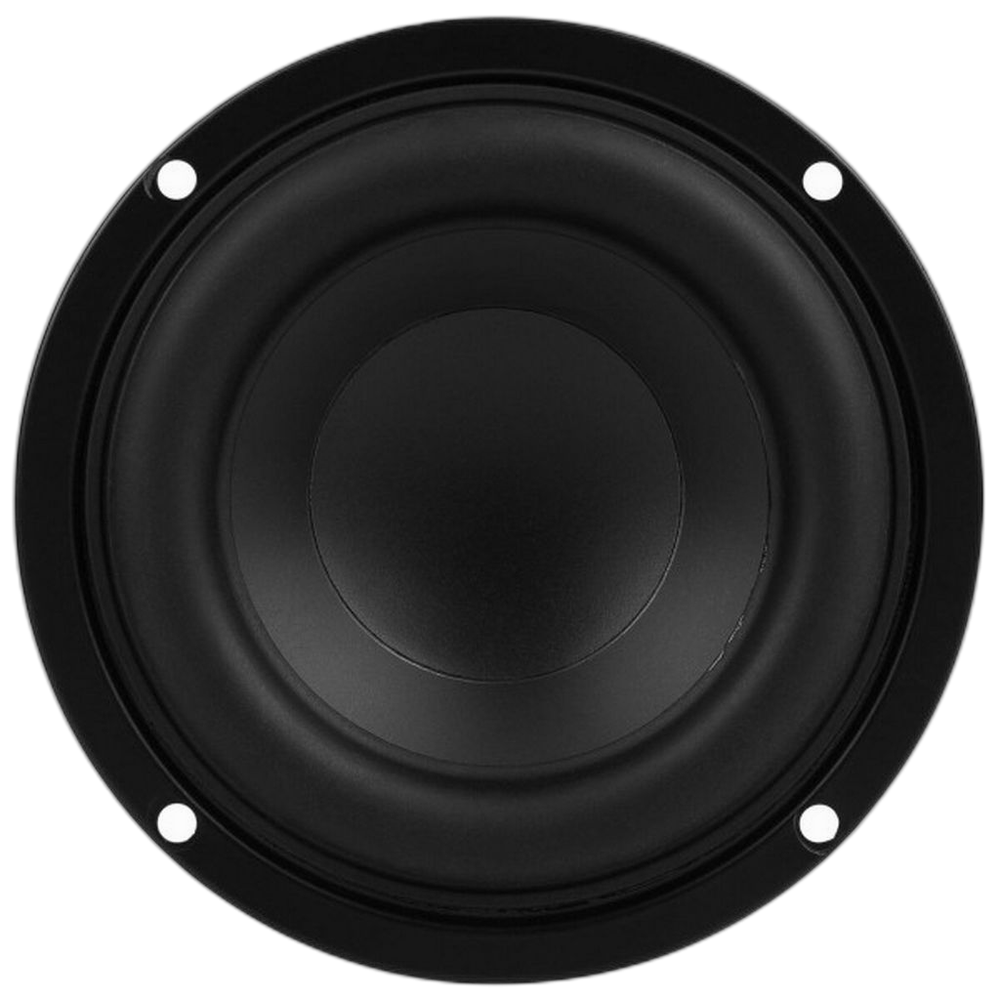

Mounting

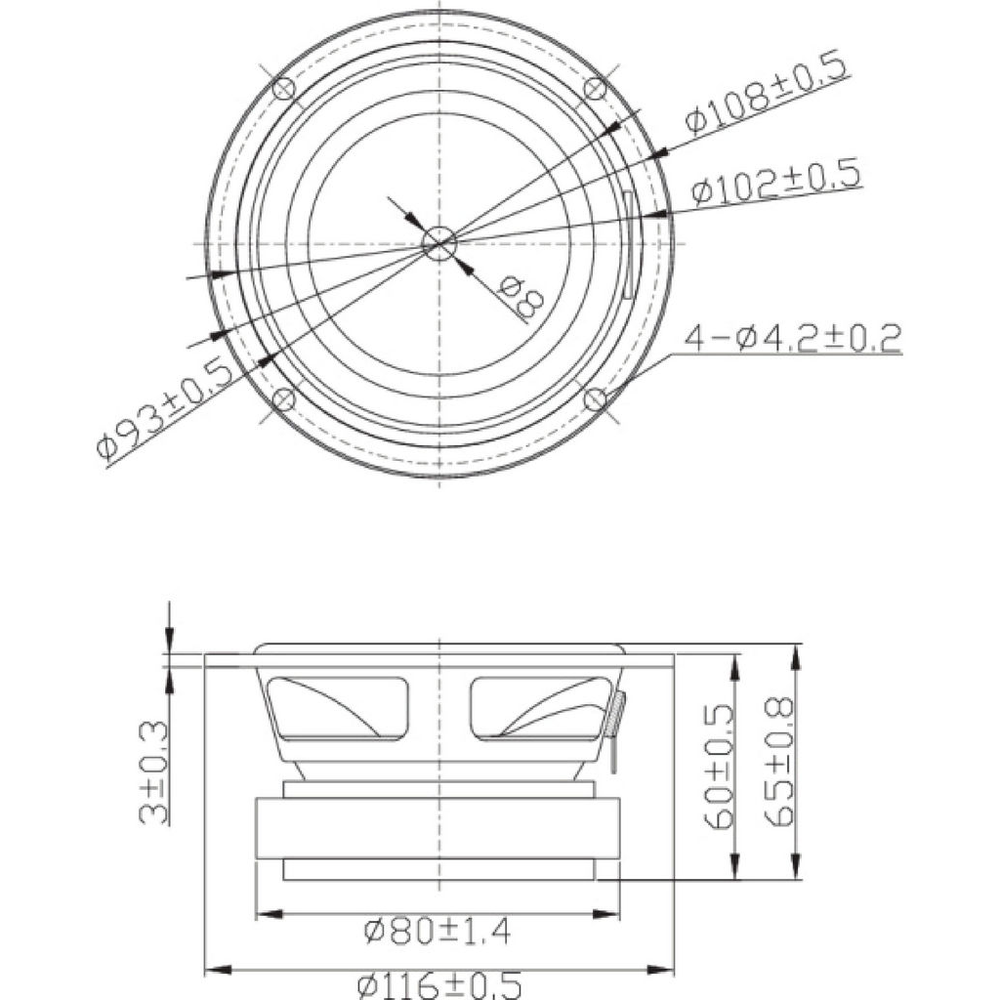

| Overall diameter | 116 mm |
|---|---|
| Cutout diameter | 92.96 mm |
| Mounting depth | 65.02 mm |
| Flange thickness | 3 mm |
| Bolt circle diameter | 108 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.2 mm |
| Voice coil diameter | 25.4 mm |
Materials
| Cone | Treated Paper |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- TCP115-4 Specification Sheet
- TCP115-4 Data Files
- TCP115-4 3D Files
- TCP115-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
