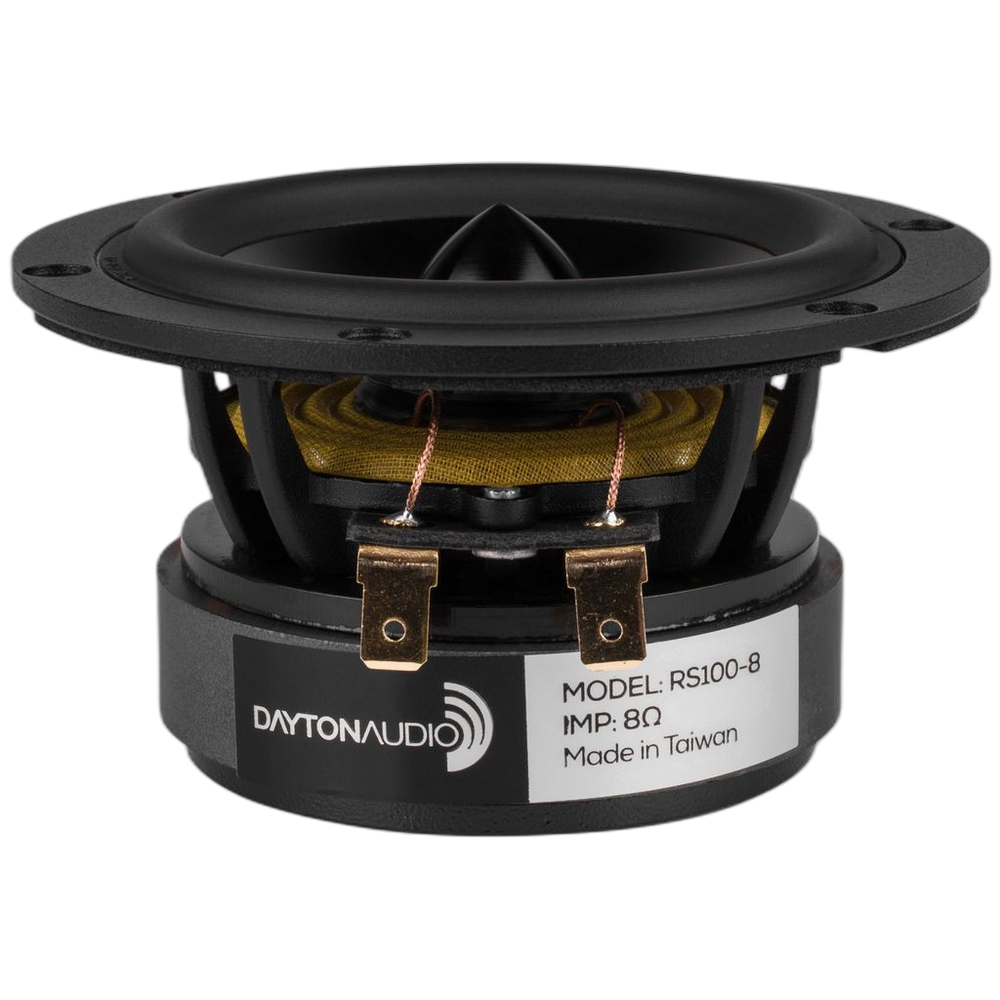

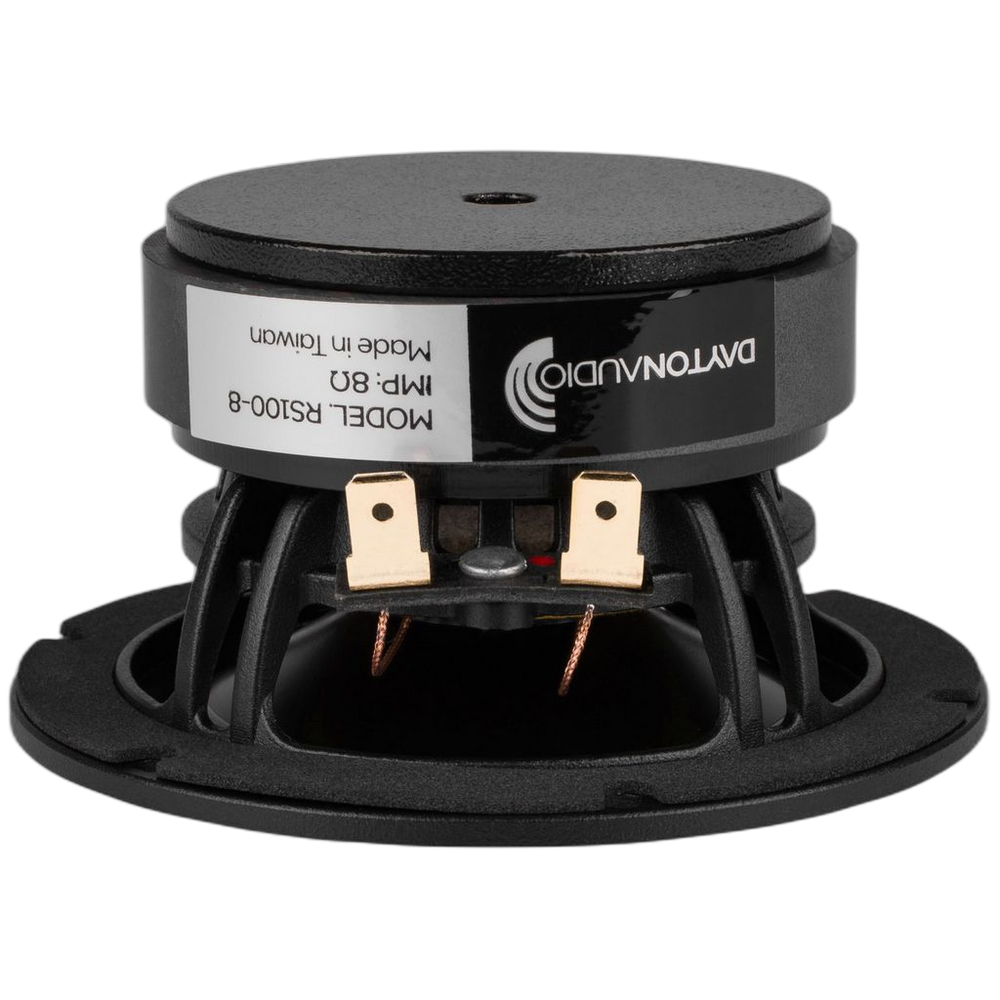

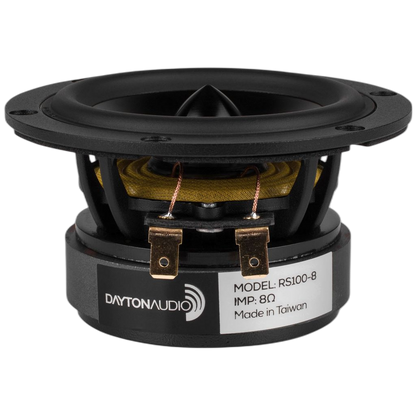

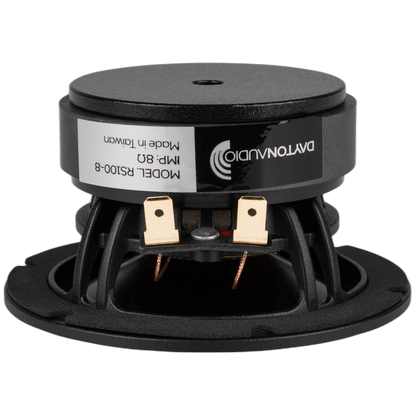

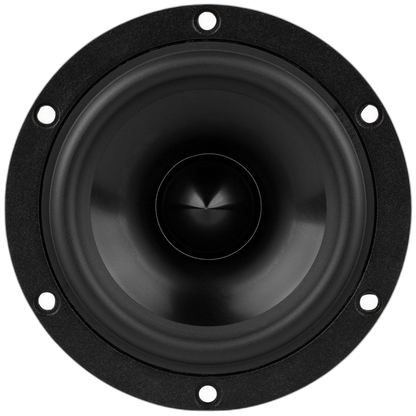

Dayton Audio - 4" Reference Full Range Driver - RS100-8
Dayton Audio - 4" Reference Full Range Driver - RS100-8
Regular price
$88.95 AUD
Regular price
Sale price
$88.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

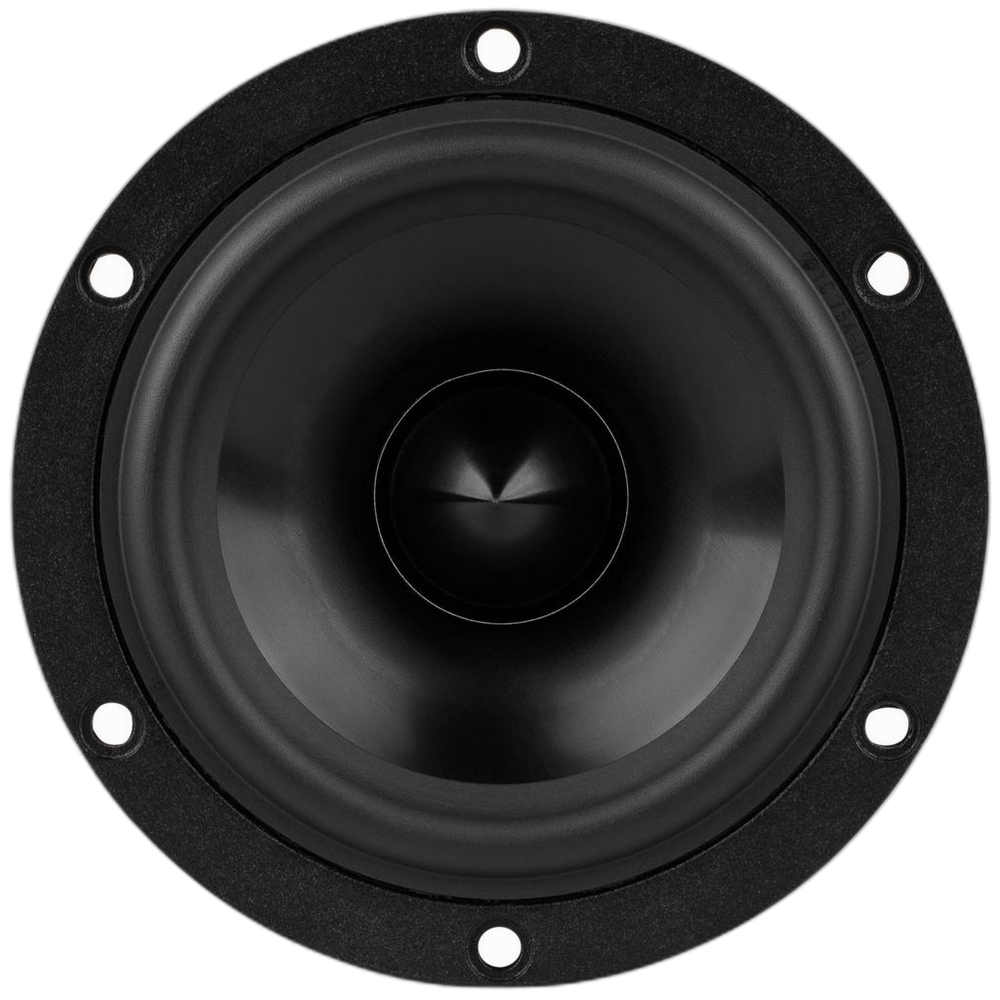

The Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminium cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodised cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminium phase plug, and gold terminals.
Features
- One of the lowest distortion, highest resolution driver series available
- Low-distortion high-excursion motor system with two short-circuit paths
- Compliant suspension and rigid black anodized aluminium cone for strong bass performance
- Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminium phase plug
Specifications
| Material | Alloy |
|---|---|
| Type | Full Range |
| Size | 4' |
| Power | 30Wrms |
| Coil | 25mmØ |
| Impedance | 8Ω Re 6.4Ω |
| Sens. | 84.6dB |
| Re | 6.4Ω |
| Qms | 2.37 |
| Qes | 0.76 |
| Qts | 0.58 |
| Vas | 1.43L |
| Sd | 35.3cm² |
| Cms | 0.82mm/N |
| Fs | 92.2Hz |
| Mms | 3.63g |
| Zn | 8Ω |
| Le | 0.5mH |

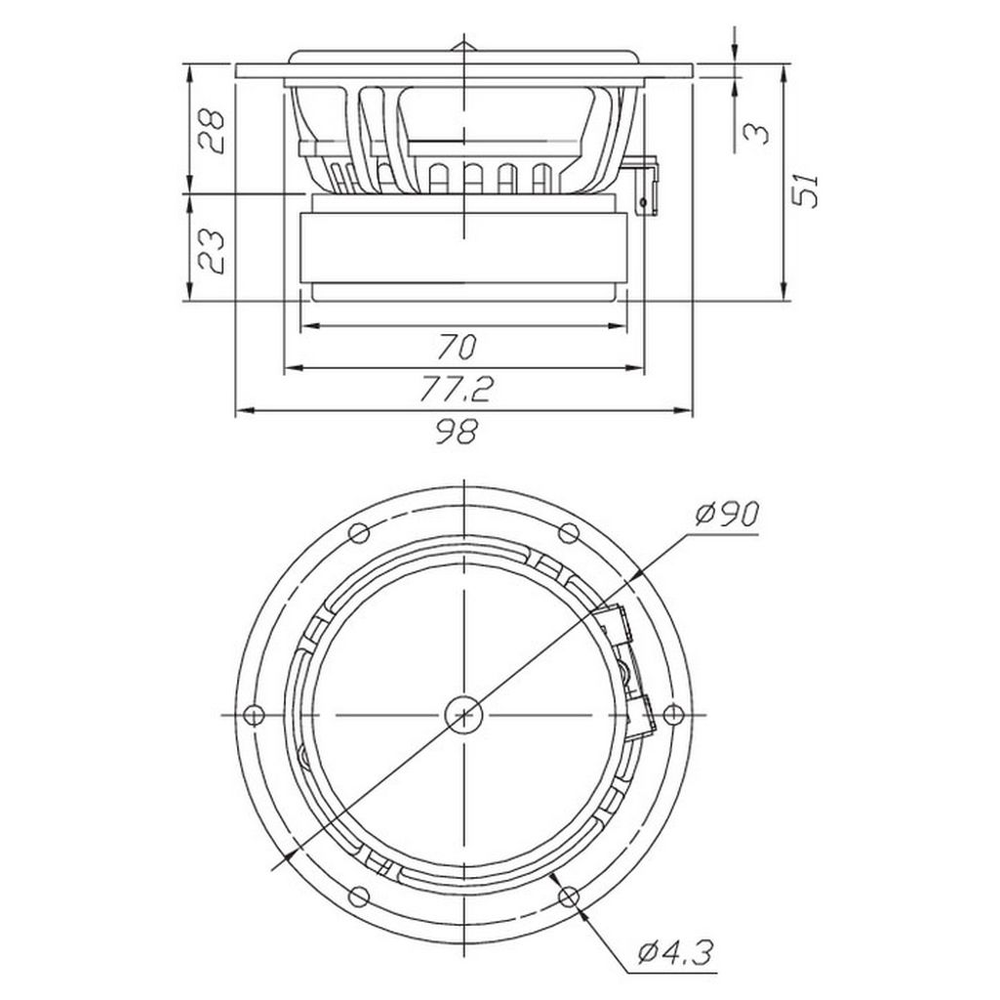

| Diam. | 98mmØ |
| Manufacturer | Dayton Audio |
| Hole | 77.2mmØ |
| Series | Reference Series |
