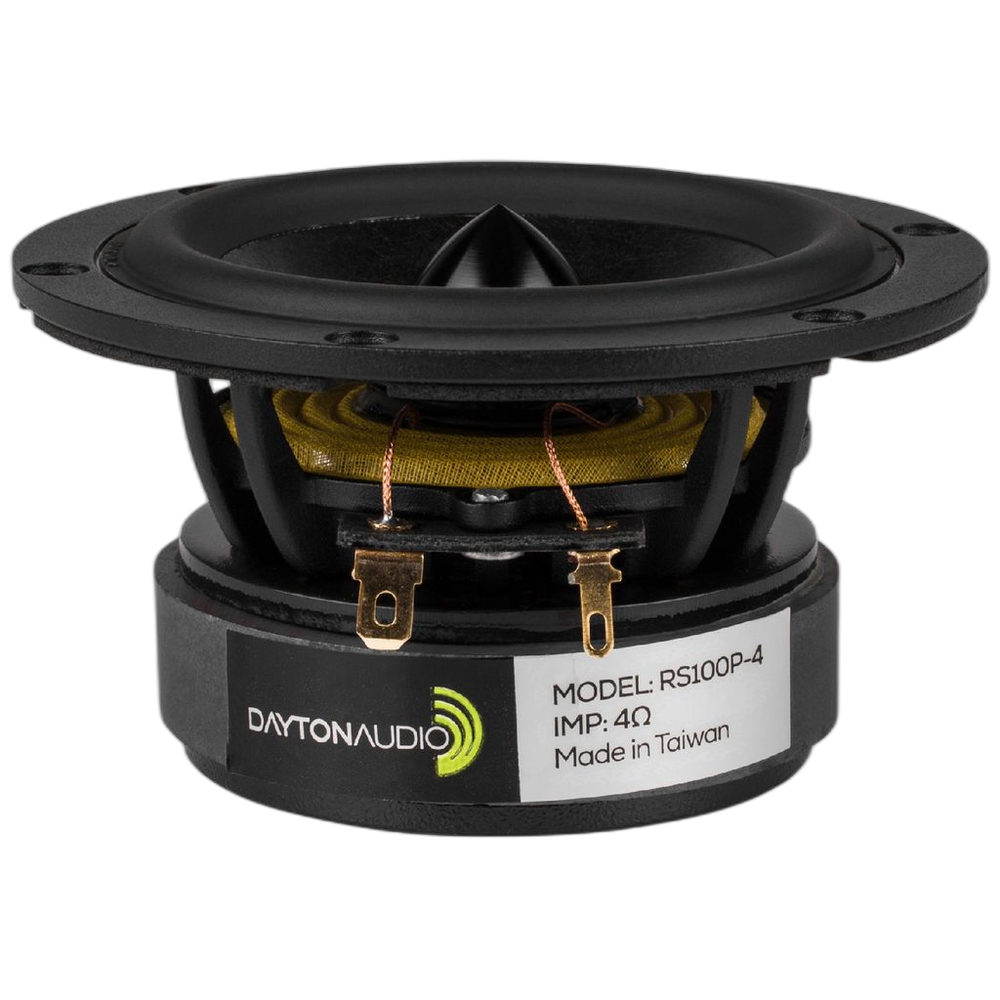

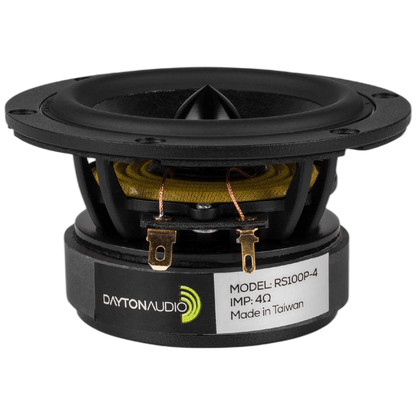

Description
The Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilising a low-distortion motor system with two short-circuit paths and a rigid aluminium cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodised cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminium phase plug, and gold terminals.
Features
- Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibres
- Similar cosmetics and design features as original Reference Series with low-distortion
- Perfect for use a woofer, midwoofer, or dedicated midrange driver
Specifications
Specifications
General

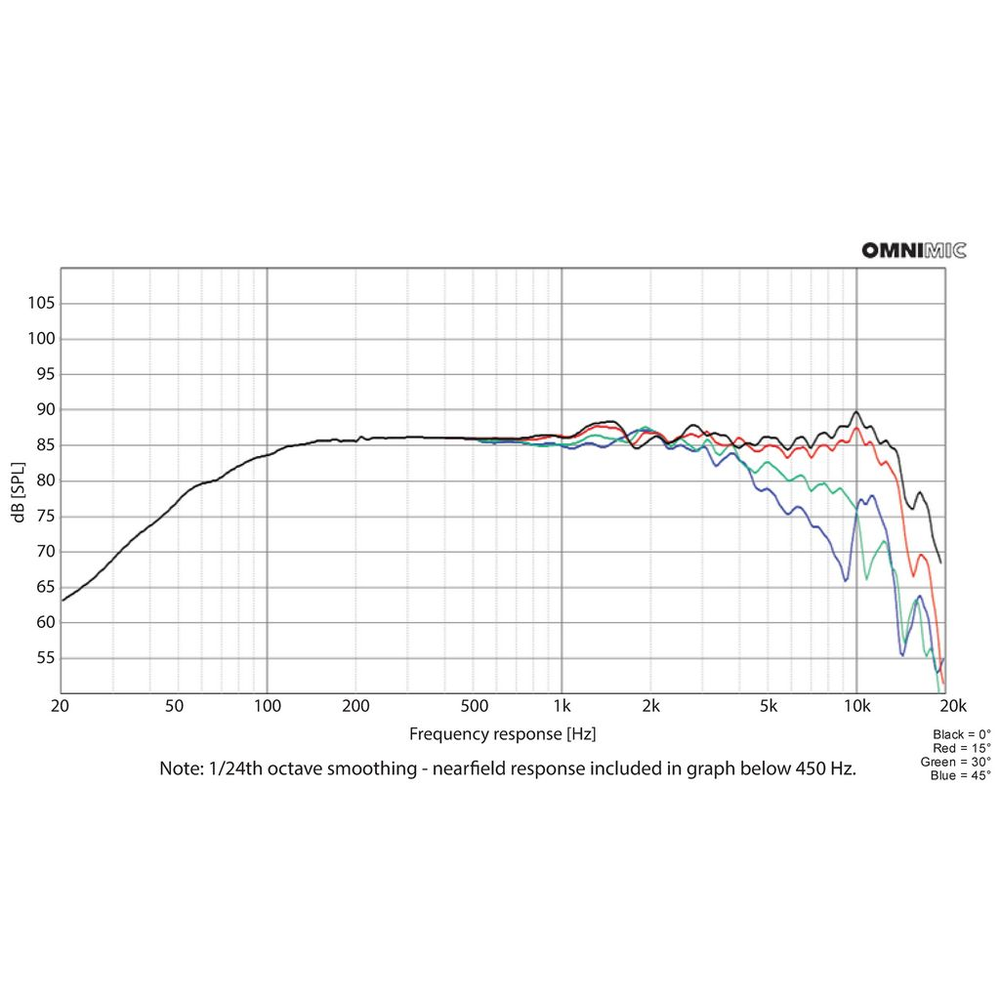

| Driver type | Woofer |
|---|---|
| Nominal size | 4" |
| Nominal impedance | 4Ω |
| Series | Reference |
| Power handling (RMS) | 30 W |
| Power handling (program) | 45 W |
| Sensitivity | 88.5 dB |
| Frequency range | 85 – 13,500 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 84.8 Hz |
|---|---|
| DC resistance (Re) | 3 Ω |
| Voice coil inductance (Le) | 0.26 mH |
| Mechanical Q (Qms) | 2.67 |
| Electrical Q (Qes) | 0.67 |
| Total Q (Qts) | 0.54 |
| Equivalent volume (Vas) | 1.86 L |
| Compliance (Cms) | 0.95 mm/N |
| Moving mass (Mms) | 3.7 g |
| Mechanical resistance (Rms) | 0.7384 kg/s |
| Force factor (Bl) | 2.95 T·m |
| Effective piston area (Sd) | 36.3 cm² |
| Linear excursion (Xmax, one-way) | 4 mm |
| Displacement volume (Vd) | 14.52 cm³ |
| Efficiency bandwidth product (EBP) | 126.6 |

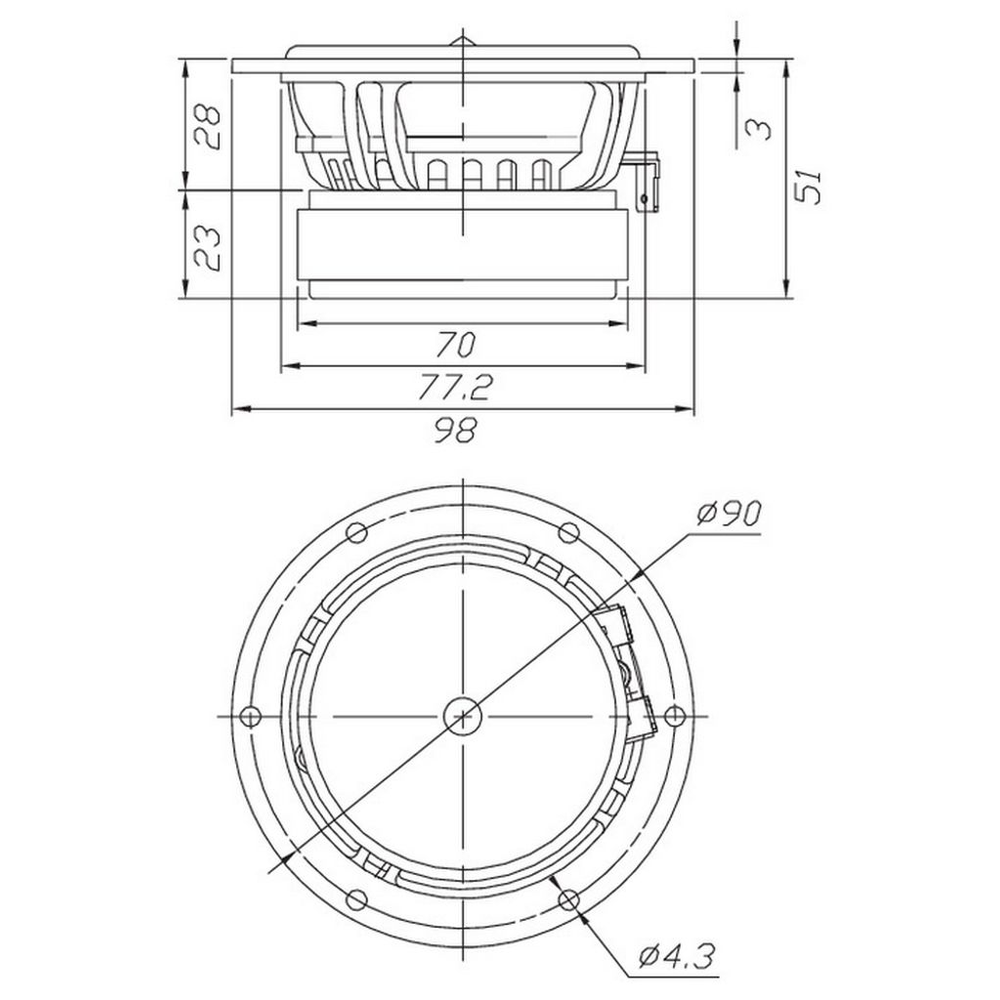

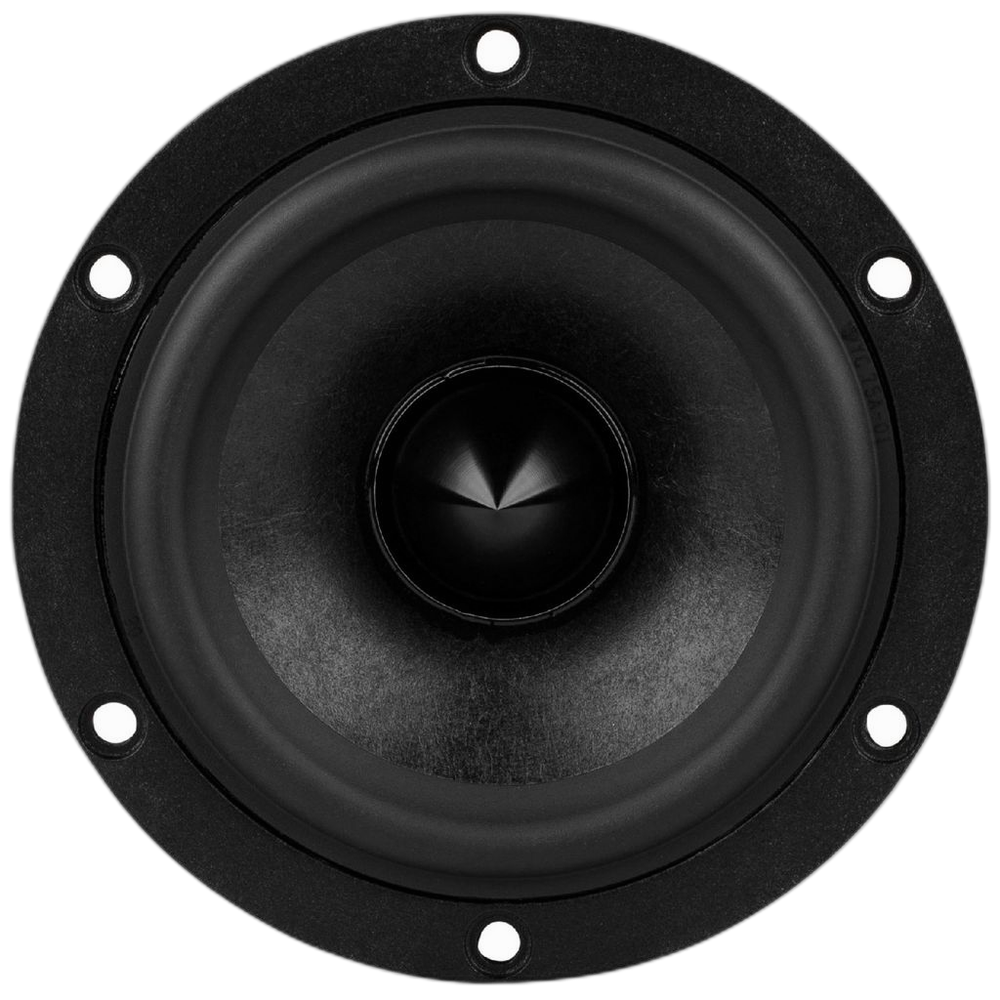

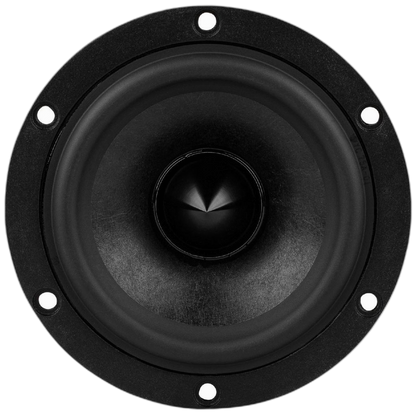

Mounting
| Overall diameter | 98 mm |
|---|---|
| Cutout diameter | 77.2 mm |
| Mounting depth | 51 mm |
| Flange thickness | 3 mm |
| Bolt circle diameter | 89.92 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 25 mm |

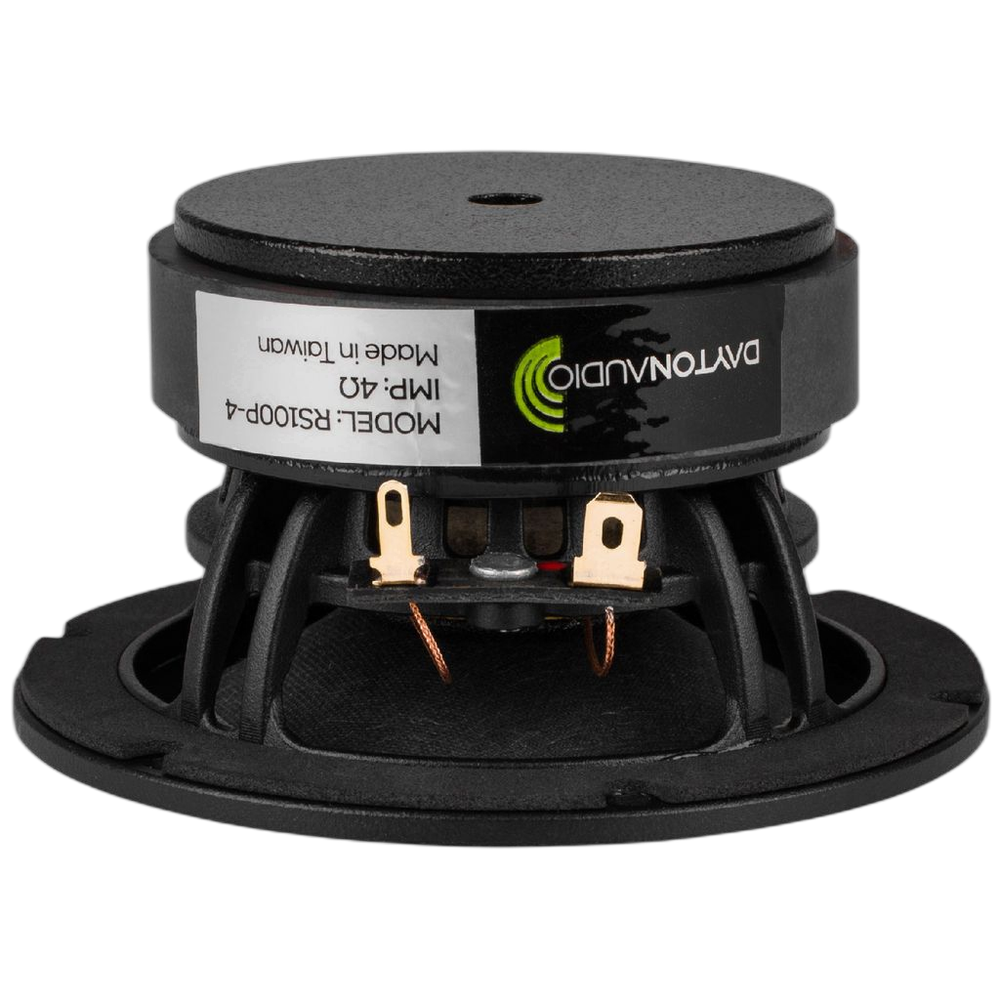

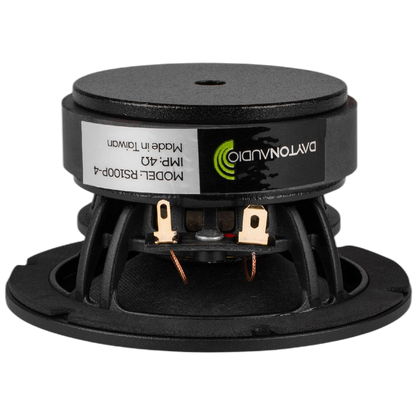

Materials
| Cone | Paper / Kevlar |
|---|---|
| Surround | Rubber |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RS100P-4 Specification Sheet
- RS100P-4 Data Files
- RS100P-4 RS100-4 and -8 3D Files
- RS100P-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
