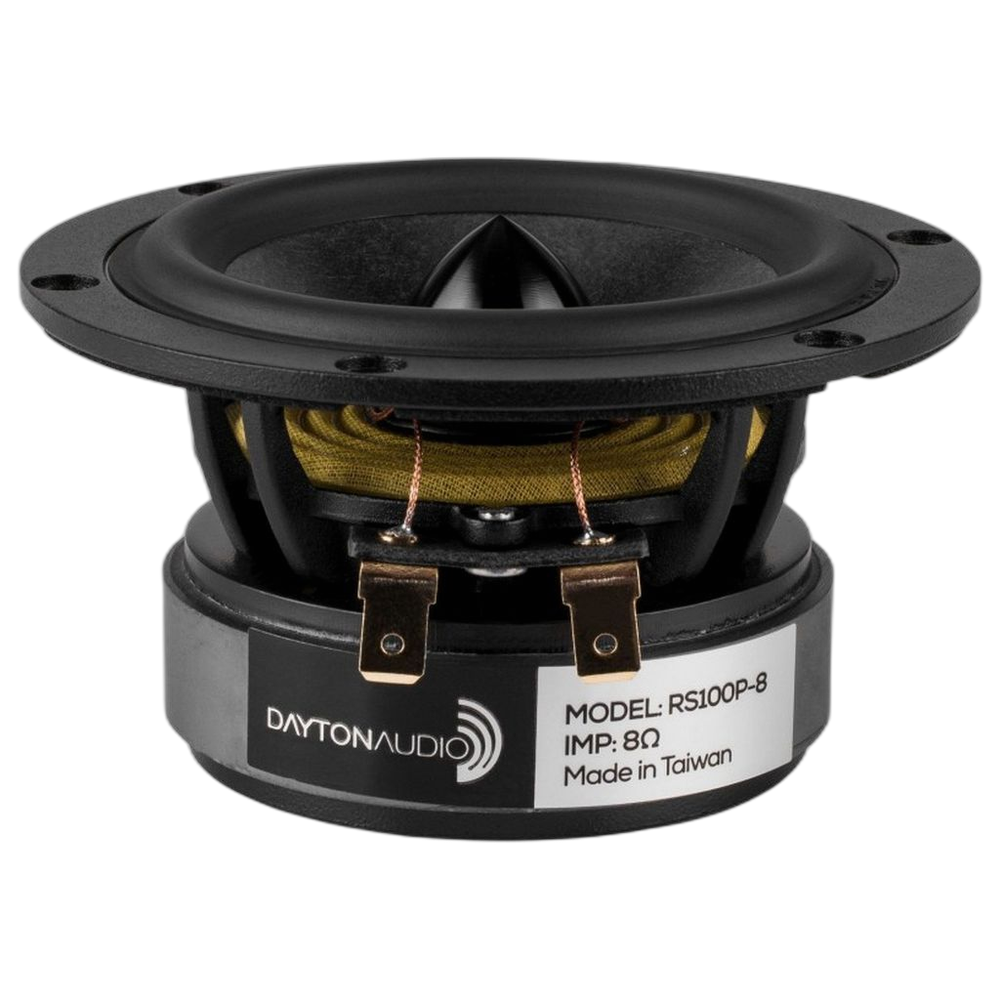

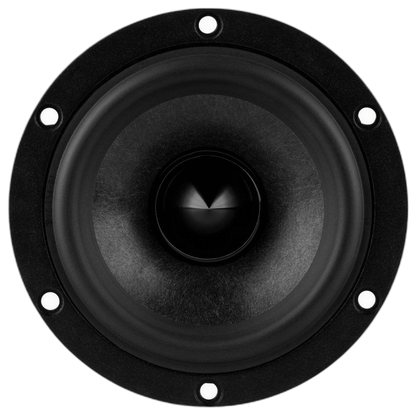

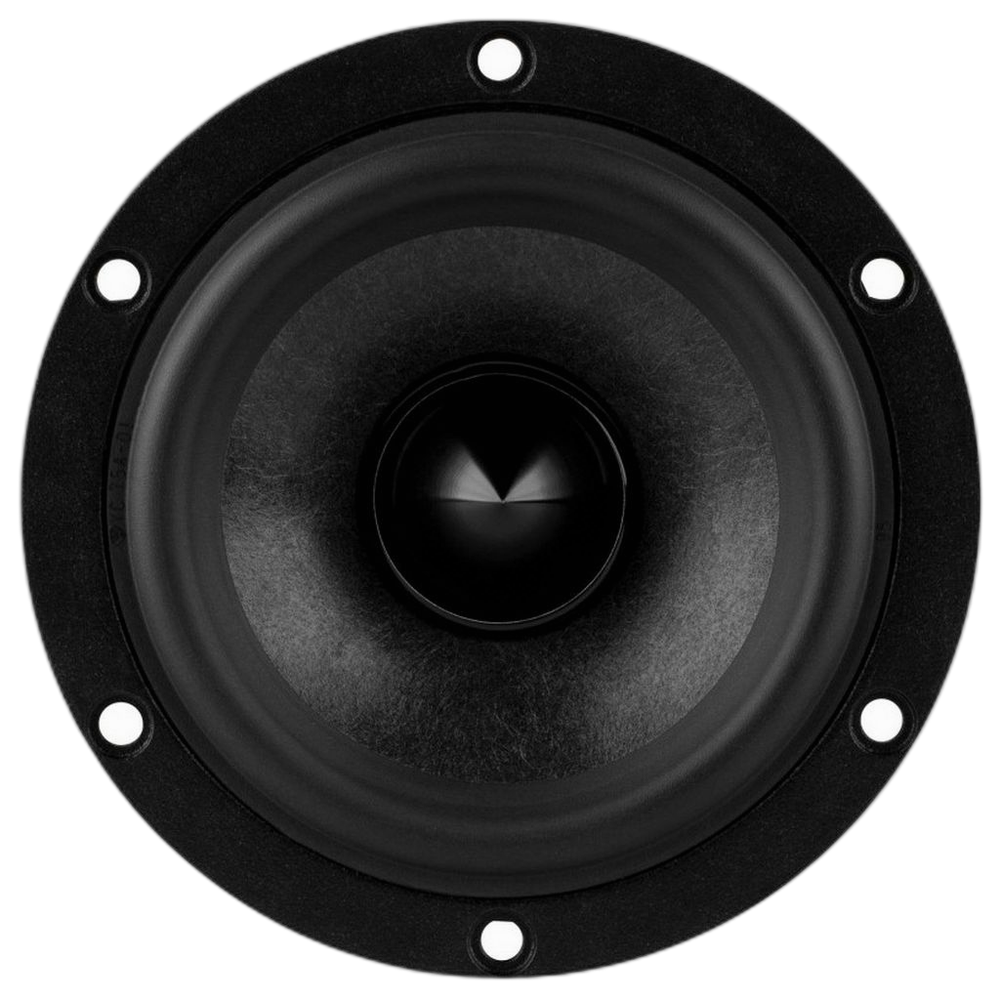

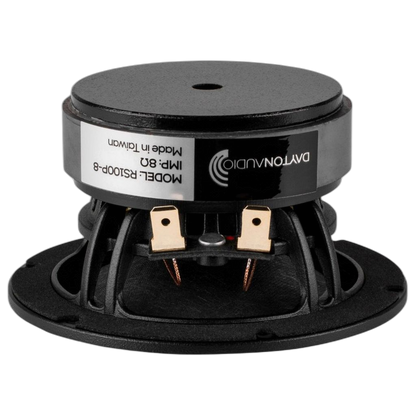

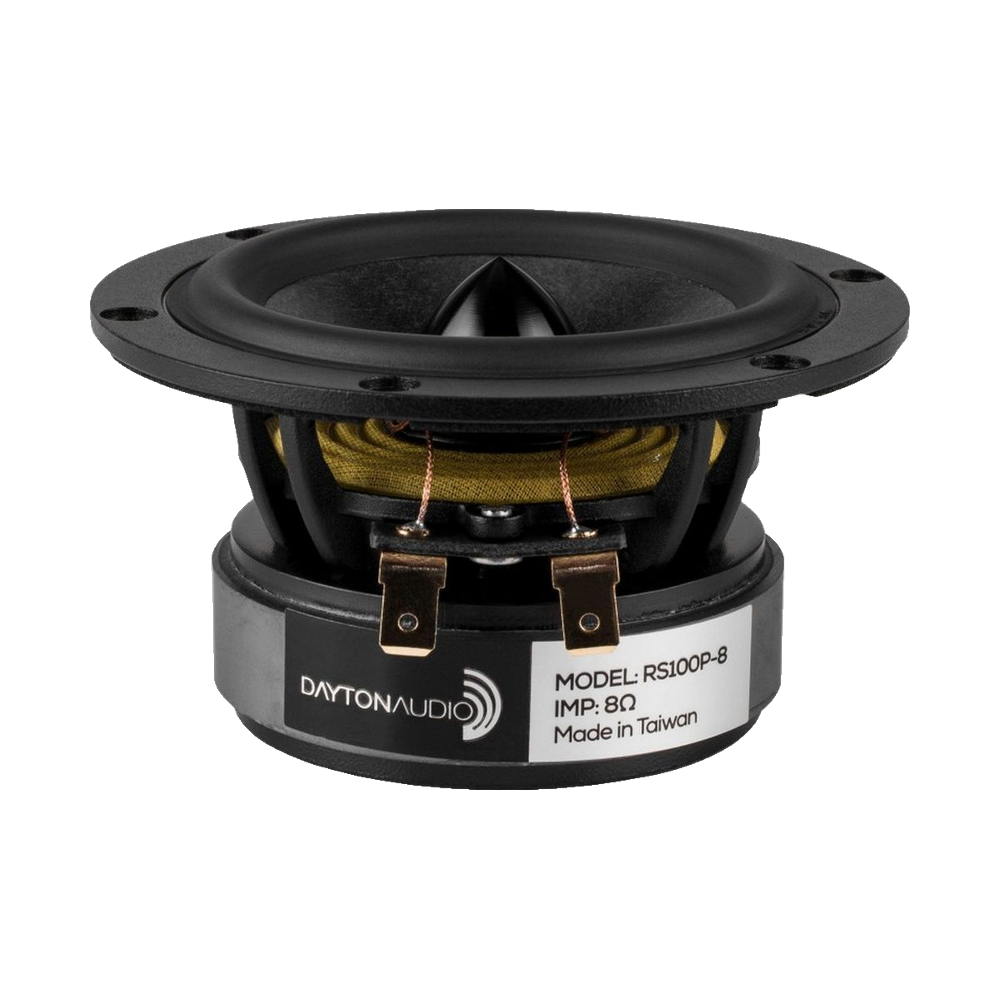

Dayton Audio - 4" Reference Mid-Woofer - RS100P-8

Name: Dayton Audio - 4" Reference Mid-Woofer - RS100P-8
Brand: Dayton Audio
SKU: RS100P-8
Price: 81.95 AUD
Availability: InStock

$81.95 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Description

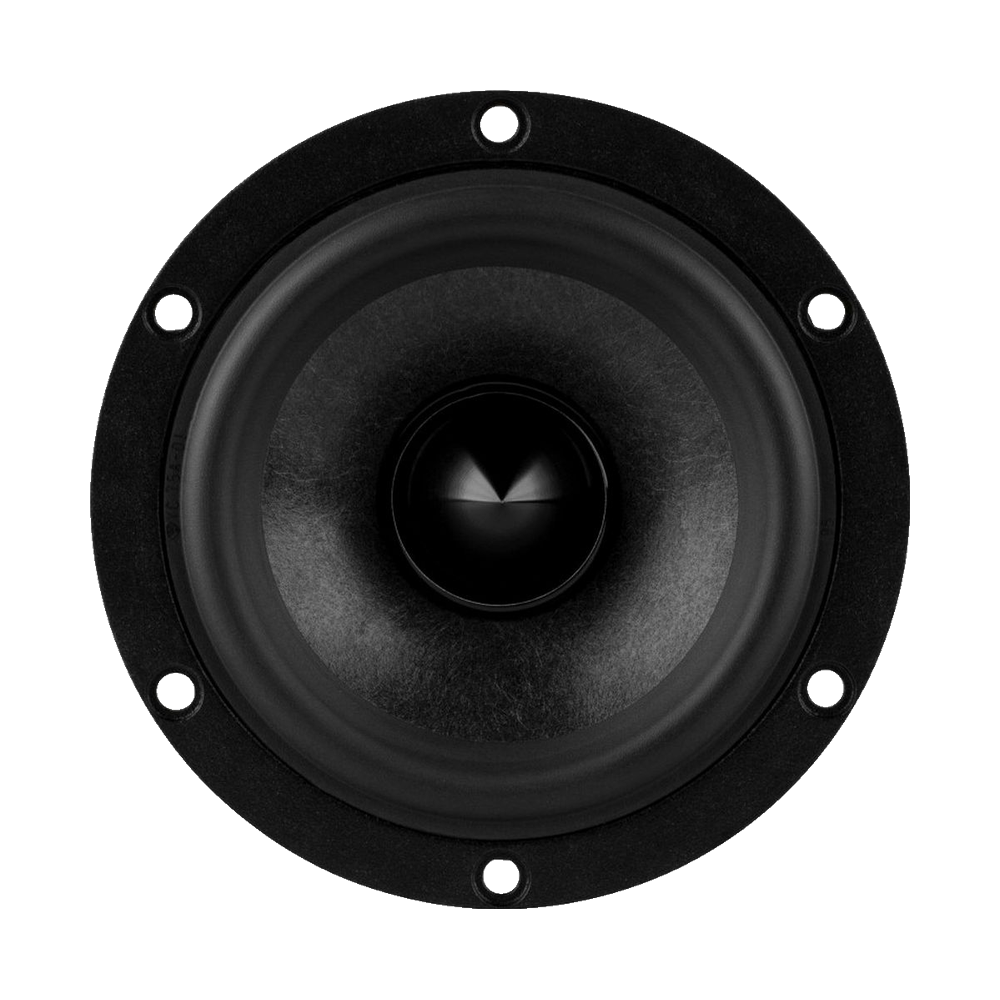

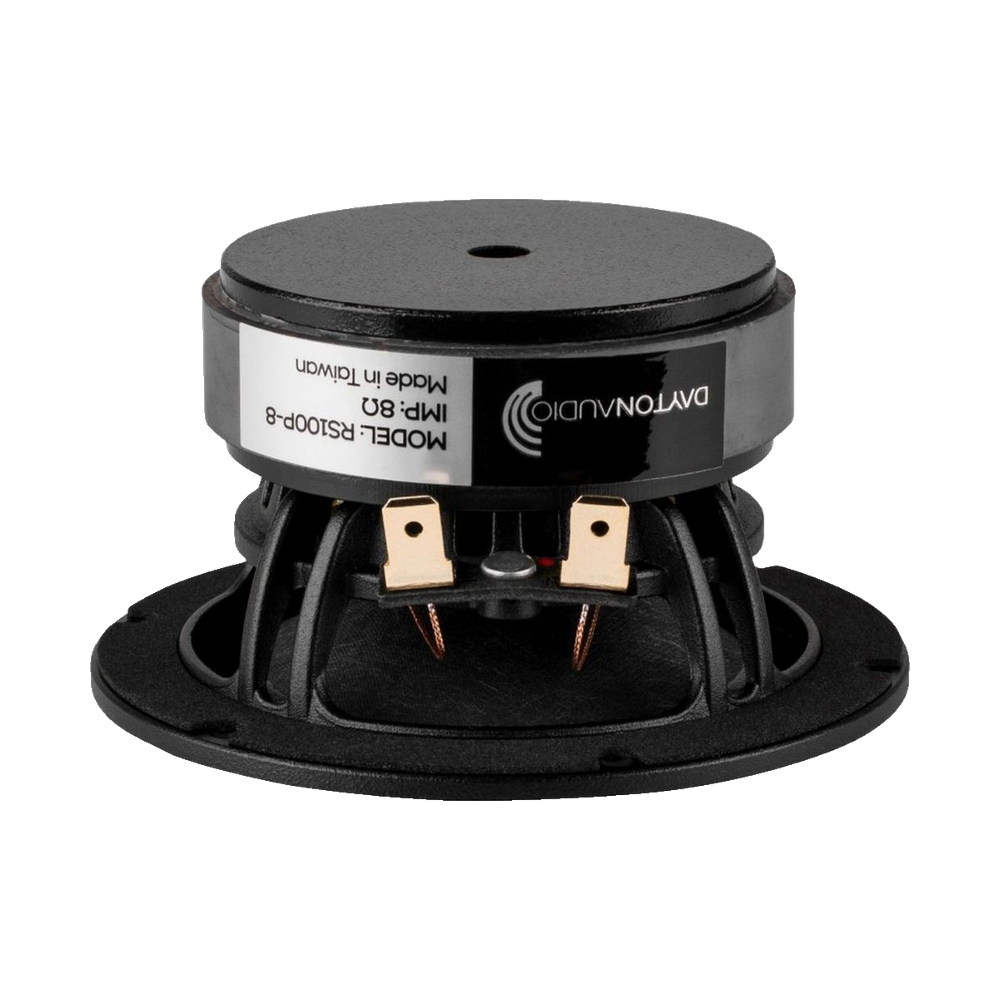

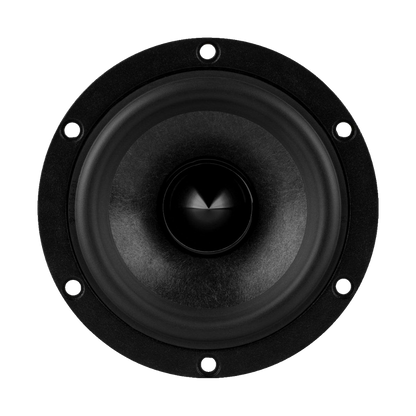

The Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilising a low-distortion motor system with two short-circuit paths and a rigid aluminium cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodised cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminium phase plug, and gold terminals.

Features

Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibres
Similar cosmetics and design features as original Reference Series with low-distortion
Perfect for use a woofer, midwoofer, or dedicated midrange driver

Specifications

General

Driver type	Mid-Woofer
Nominal size	4"
Nominal impedance	8Ω
Series	Reference
Power handling (RMS)	30 W
Power handling (program)	45 W
Sensitivity	86.2 dB

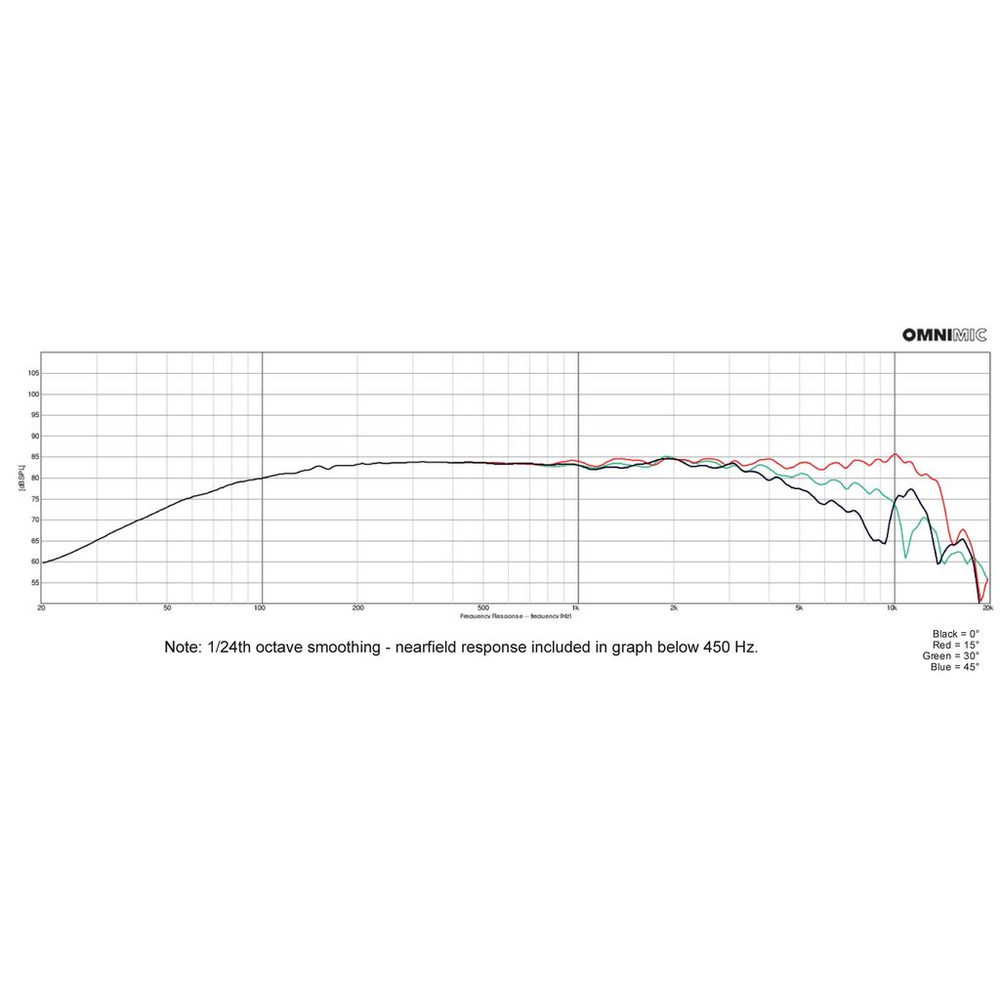

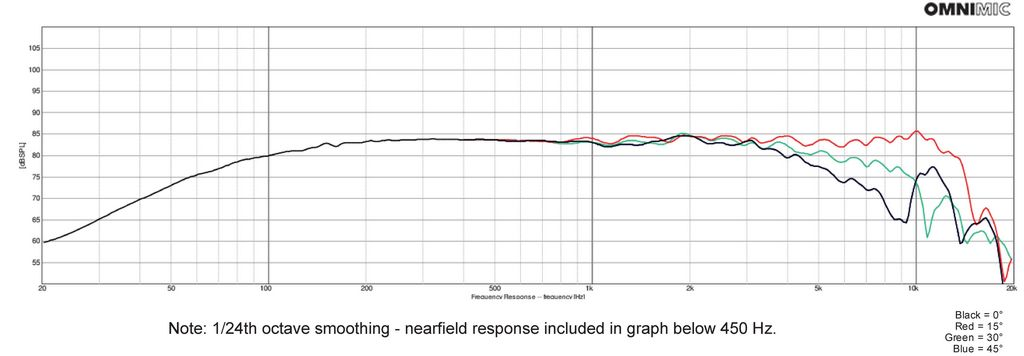

Frequency range	90 – 12,500 Hz
Suggested alignment	Ported

Thiele/Small parameters

Resonant frequency (Fs)	95.6 Hz
DC resistance (Re)	6.6 Ω
Voice coil inductance (Le)	0.51 mH
Mechanical Q (Qms)	2.18
Electrical Q (Qes)	0.71
Total Q (Qts)	0.54
Equivalent volume (Vas)	1.82 L
Compliance (Cms)	0.98 mm/N
Moving mass (Mms)	2.8 g
Force factor (Bl)	3.95 T·m
Effective piston area (Sd)	37.4 cm²
Linear excursion (Xmax, one-way)	3.7 mm
Displacement volume (Vd)	13.84 cm³
Efficiency bandwidth product (EBP)	134.6

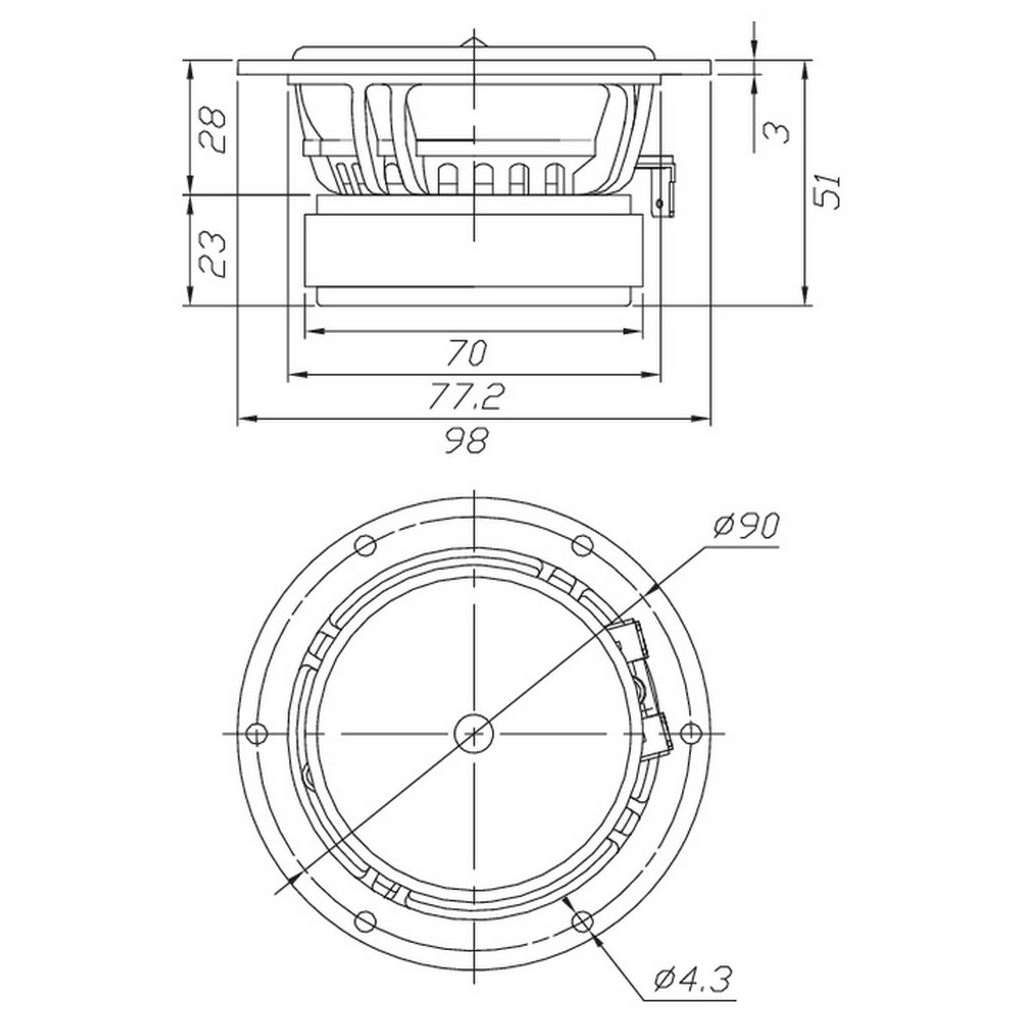

Mounting

Overall diameter	98 mm
Cutout diameter	77.2 mm
Mounting depth	51 mm
Flange thickness	3 mm
Bolt circle diameter	90 mm
Mounting holes	6
Mounting hole diameter	4.3 mm
Voice coil diameter	25 mm
Weight	0.635 kg
