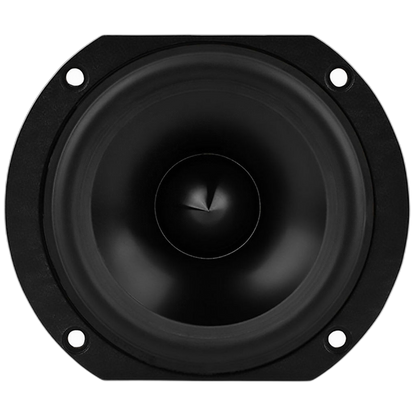

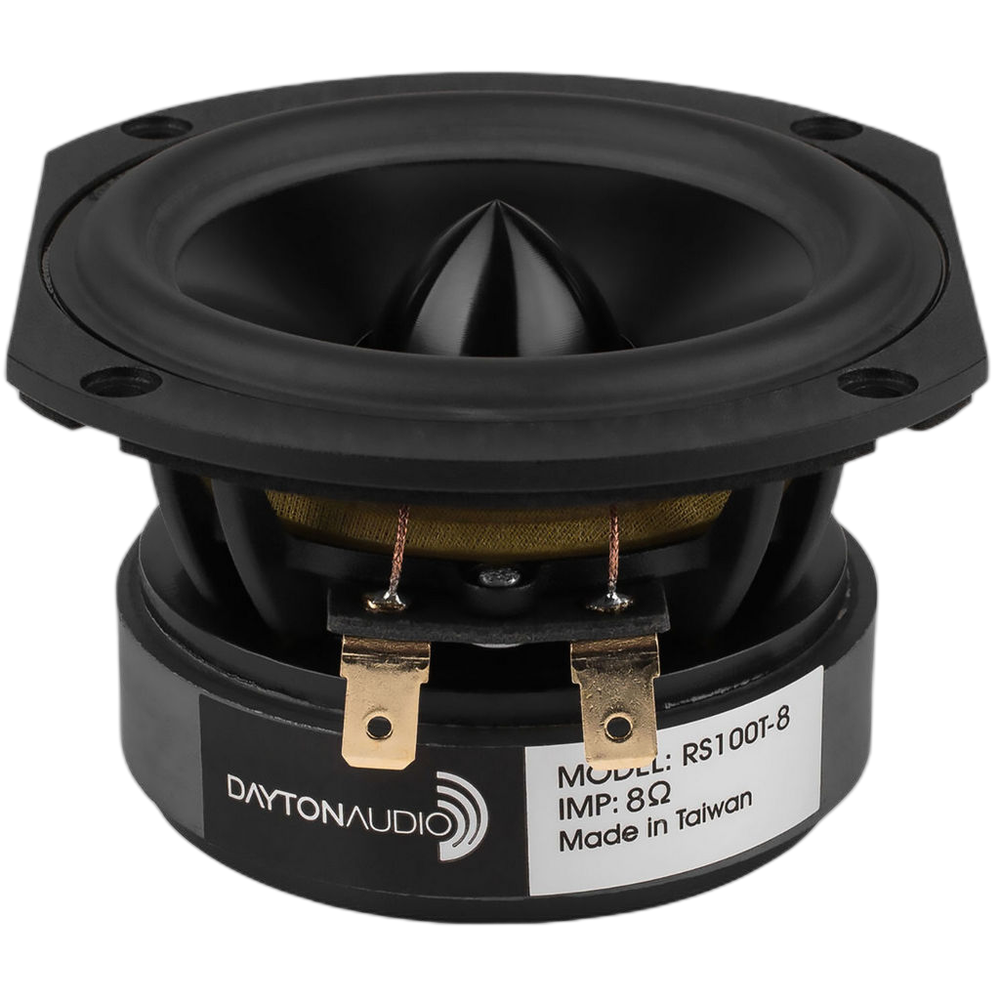

Dayton Audio - 4" Reference Woofer - RS100T-8
Dayton Audio - 4" Reference Woofer - RS100T-8
Regular price
$64.95 AUD
Regular price
Sale price
$64.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

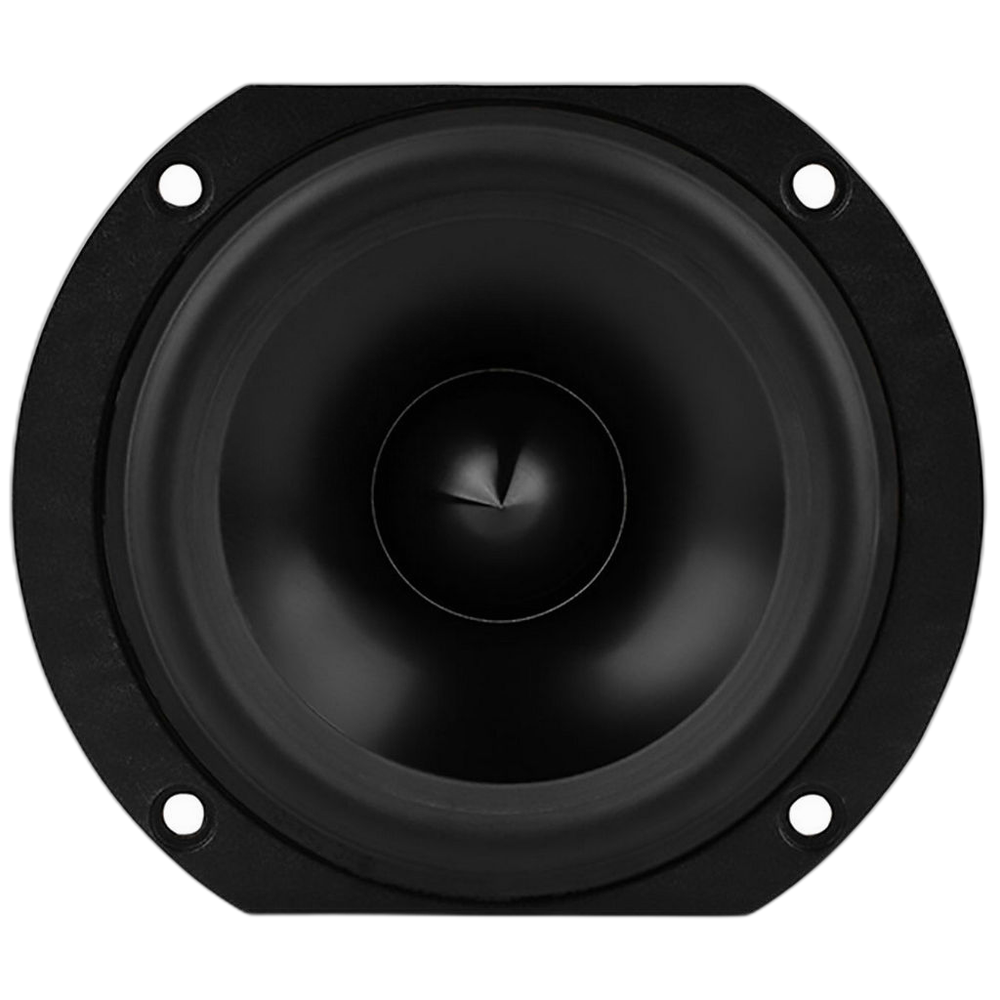

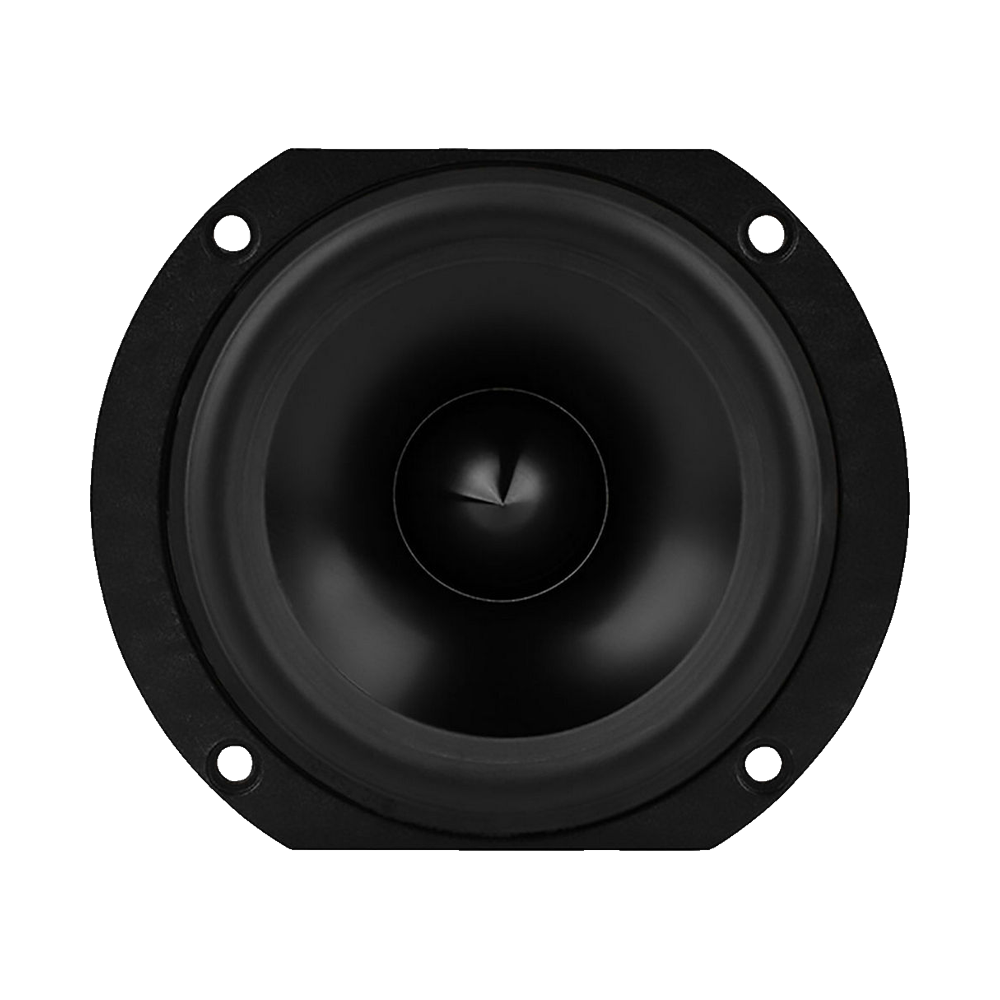

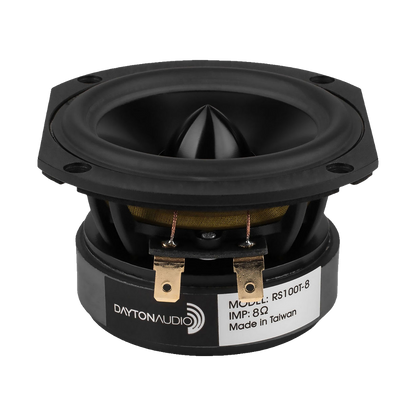

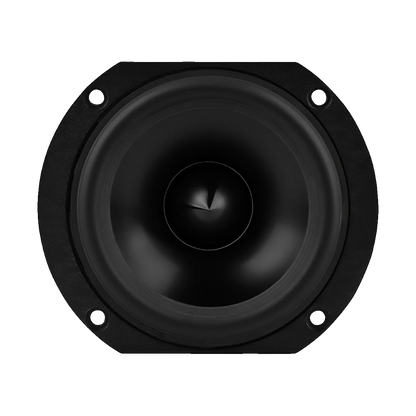

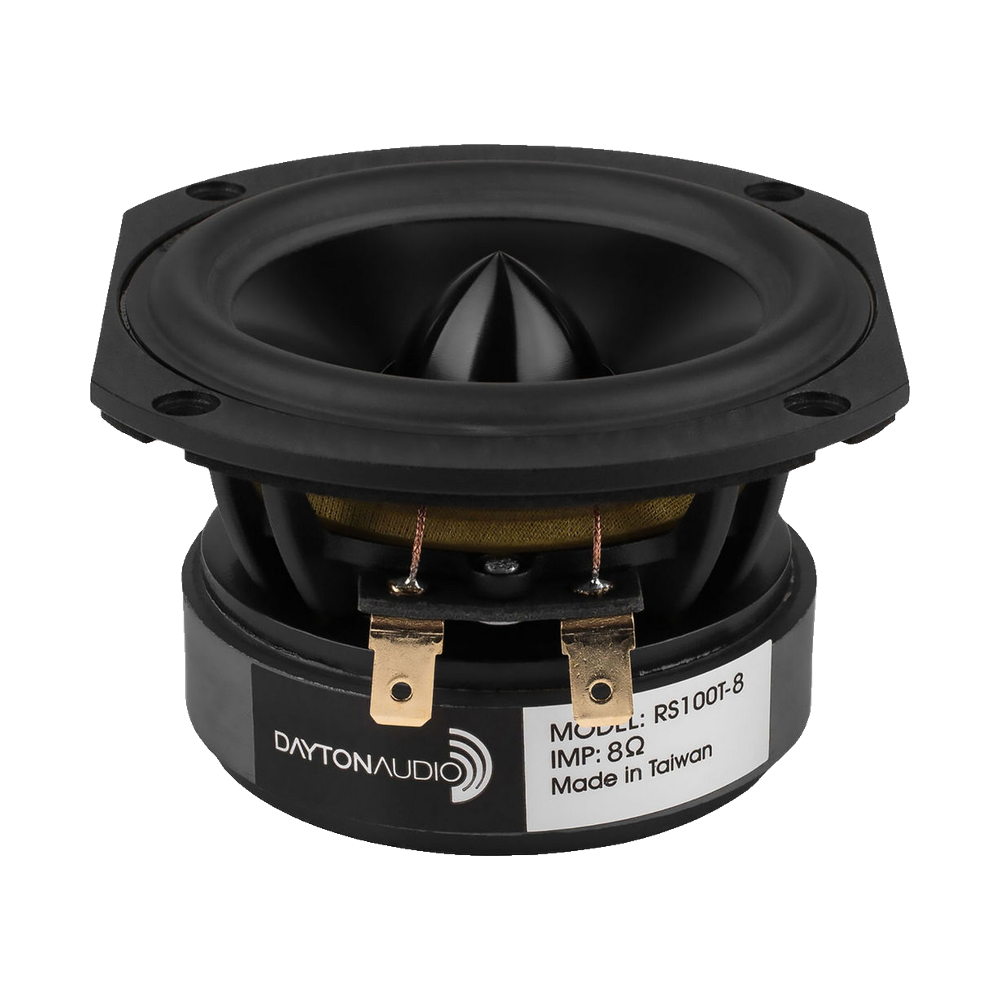

Dayton Audio’s RS100T-8 4" Woofer with truncated frame features an advanced motor system and a rigid aluminium cone. It can outperform drivers that cost several times the price. Its low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. The woofer features a black anodised cone, heavy-duty cast frame, low-loss rubber surround, solid aluminium phase plug, distortion-reducing magnetic gap copper ring, rubber magnet boot, and gold terminals.
Features
- Truncated cast frame, great for line arrays / MTM speaker designs
- Long-excursion motor and suspension for strong bass performance
- Advanced low-distortion motor design
- Distortion-reducing copper ring in magnetic gap
- Lightweight black anodised aluminium cone
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 4" |
| Nominal impedance | 8Ω |
| Series | Reference |
| Power handling (RMS) | 30 W |
| Power handling (program) | 30 W |
| Sensitivity | 87 dB |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 94.9 Hz |
|---|---|
| DC resistance (Re) | 6.5 Ω |
| Voice coil inductance (Le) | 0.5 mH |
| Mechanical Q (Qms) | 2.4 |
| Electrical Q (Qes) | 0.79 |
| Total Q (Qts) | 0.6 |
| Equivalent volume (Vas) | 2.4 L |
| Compliance (Cms) | 1.3 mm/N |
| Moving mass (Mms) | 2.2 g |
| Force factor (Bl) | 3.285 T·m |
| Effective piston area (Sd) | 36.3 cm² |
| Efficiency bandwidth product (EBP) | 120.1 |
Motor
| Voice coil wire | Copper |
|---|

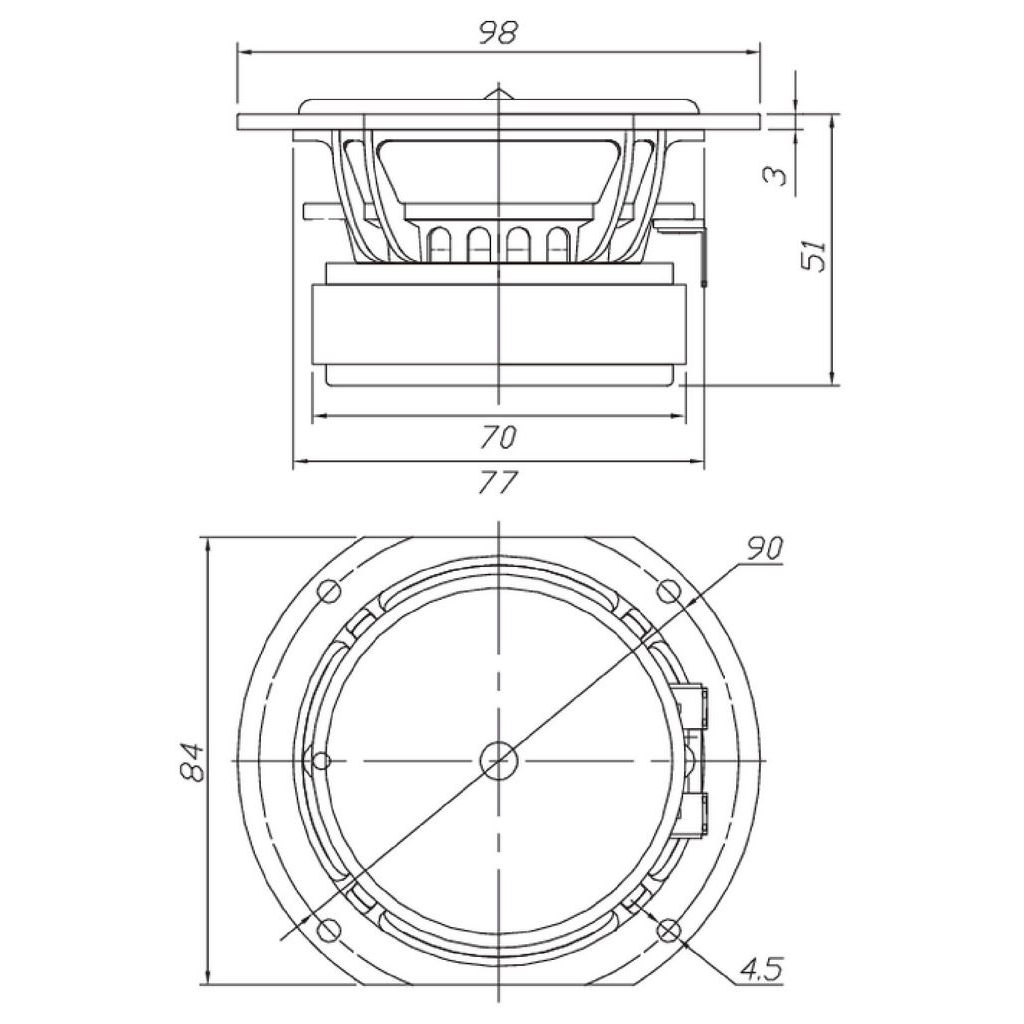

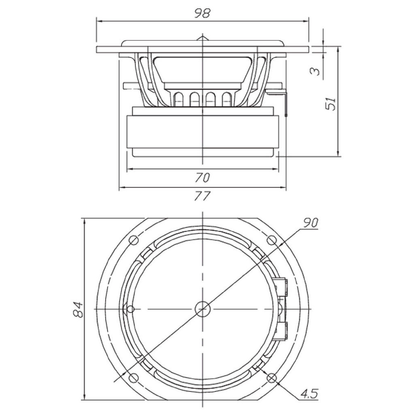

Mounting
| Overall diameter | 98 mm |
|---|---|
| Cutout diameter | 77 mm |
| Voice coil diameter | 25 mm |
Materials
| Voice coil former | Aluminium |
|---|
