Dayton Audio

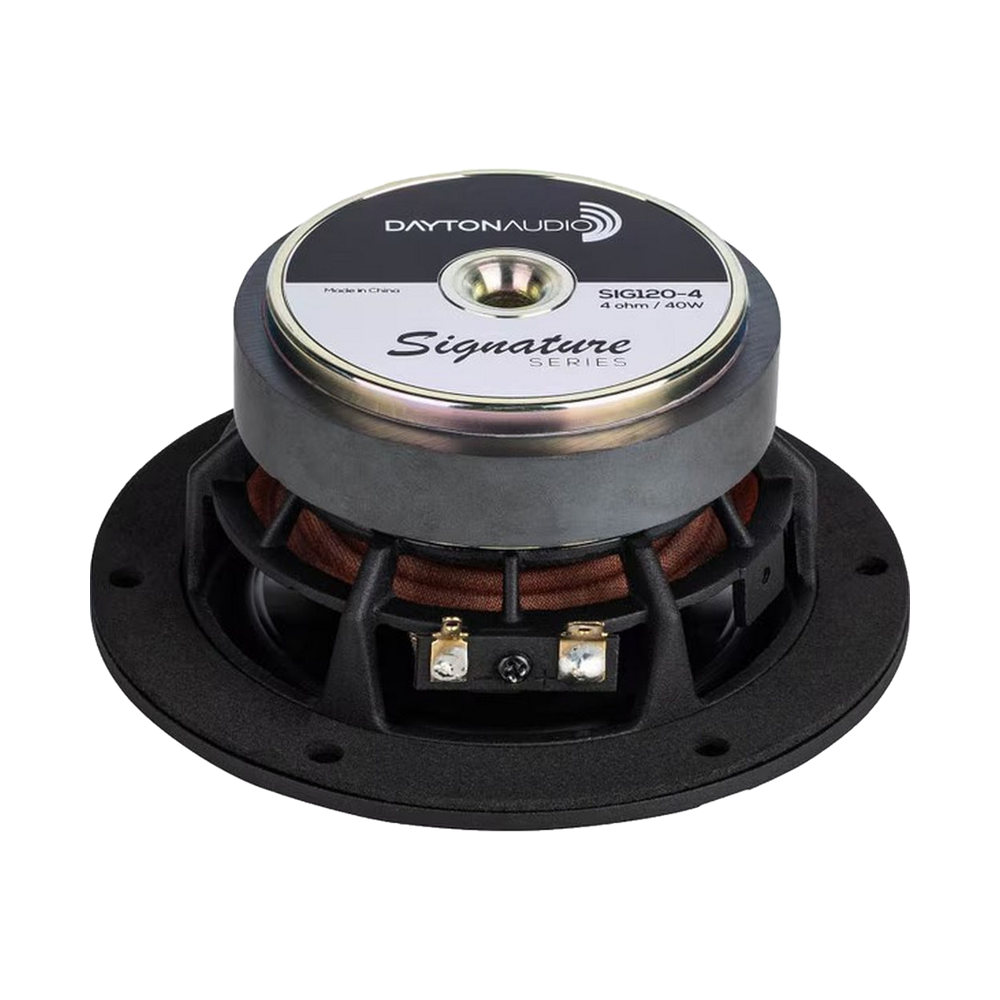

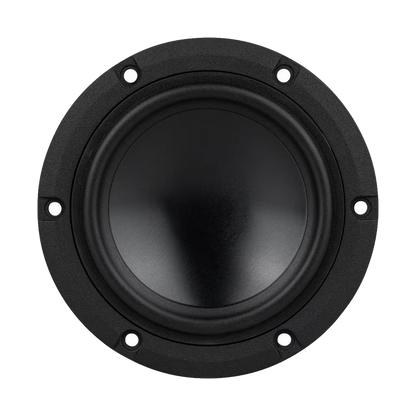

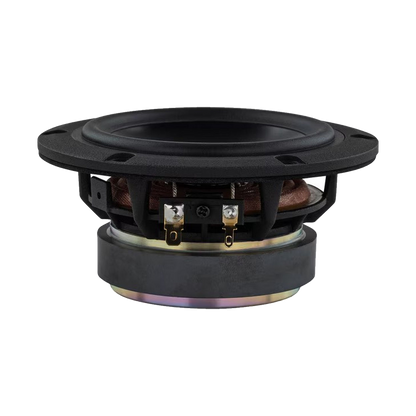

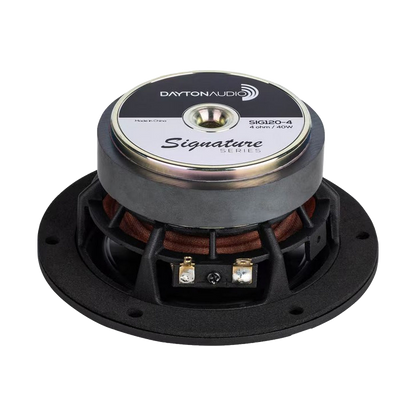

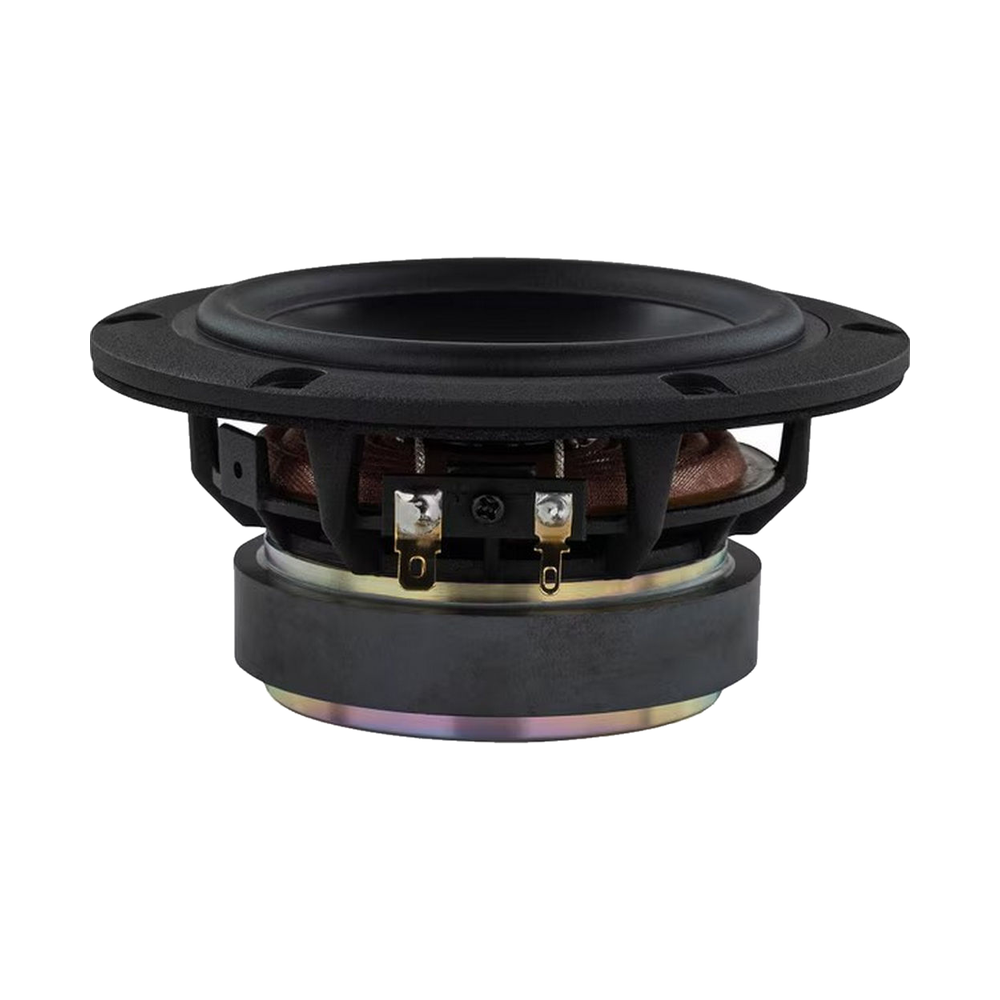

Dayton Audio - 4" Signature Extended Range Driver - SIG120-4
Dayton Audio - 4" Signature Extended Range Driver - SIG120-4
Regular price
$74.95 AUD
Regular price
Sale price
$74.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
A 4" extended-range driver from Dayton Audio's Signature Series, with a one-piece concave black anodised aluminium cone, a polyimide former and an open cast aluminium frame. Dayton developed the series with Klippel testing for low distortion, and the vented former and elevated spider help it run cool.
Features
- Extensive Klippel LPM and LSI testing to optimise Bl symmetry and parameters
- Indexed cone/surround junction for a smooth transition and frequency response
- Polyimide formers for improved mechanical damping and a smooth frequency response

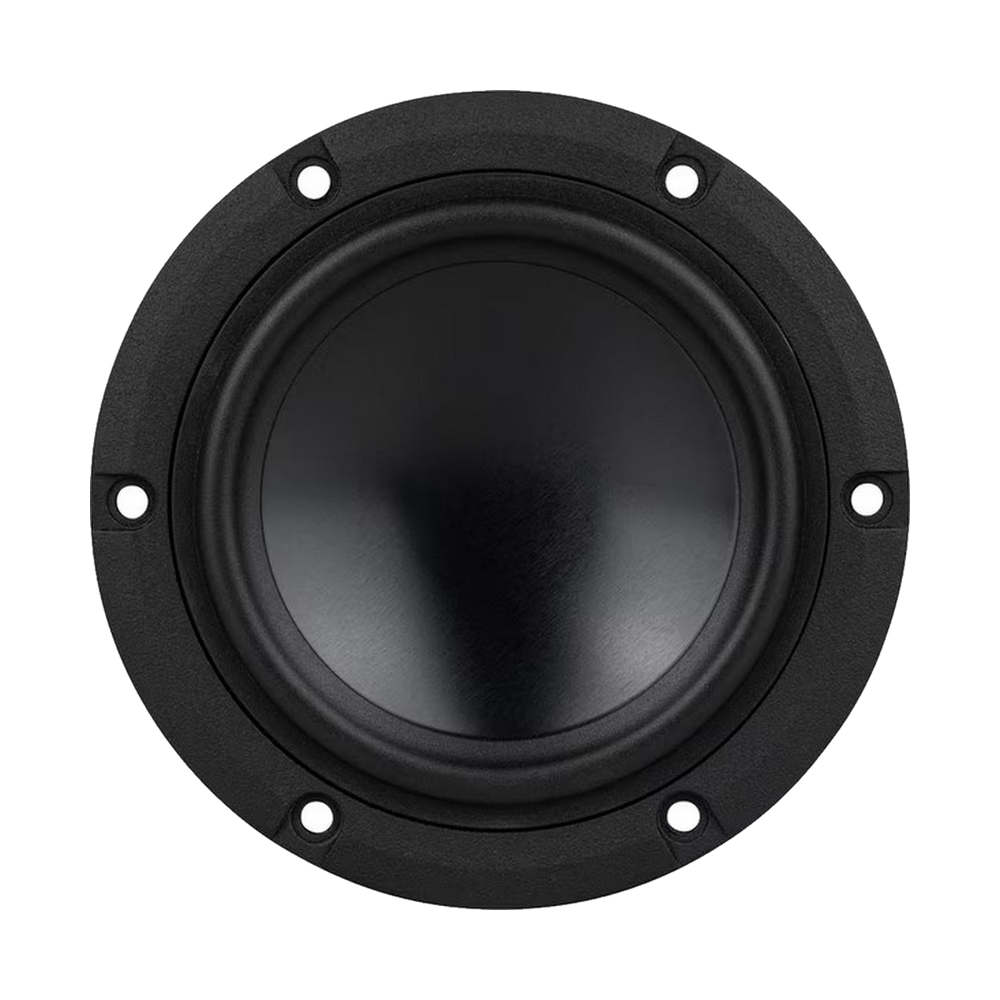

- One-piece concave black anodised aluminium cone
- Vented former and elevated spider for improved airflow
- Open cast aluminium frame for improved heat dissipation
- Countersunk stainless steel magnet badging for long-lasting looks
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 4" |
| Nominal impedance | 4Ω |
| Series | Signature |
| Power handling (RMS) | 40 W |
| Power handling (program) | 80 W |
| Sensitivity | 89.7 dB |
| Frequency range | 75 – 8,500 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 74.6 Hz |
|---|---|
| DC resistance (Re) | 3.7 Ω |
| Voice coil inductance (Le) | 0.22 mH |
| Mechanical Q (Qms) | 4.84 |
| Electrical Q (Qes) | 0.47 |
| Total Q (Qts) | 0.43 |
| Equivalent volume (Vas) | 3.1 L |
| Compliance (Cms) | 0.68 mm/N |
| Moving mass (Mms) | 6.7 g |
| Force factor (Bl) | 5 T·m |
| Effective piston area (Sd) | 56.4 cm² |
| Linear excursion (Xmax, one-way) | 4 mm |
| Displacement volume (Vd) | 22.56 cm³ |
| Efficiency bandwidth product (EBP) | 158.7 |
Motor
| Voice coil wire | Copper |
|---|

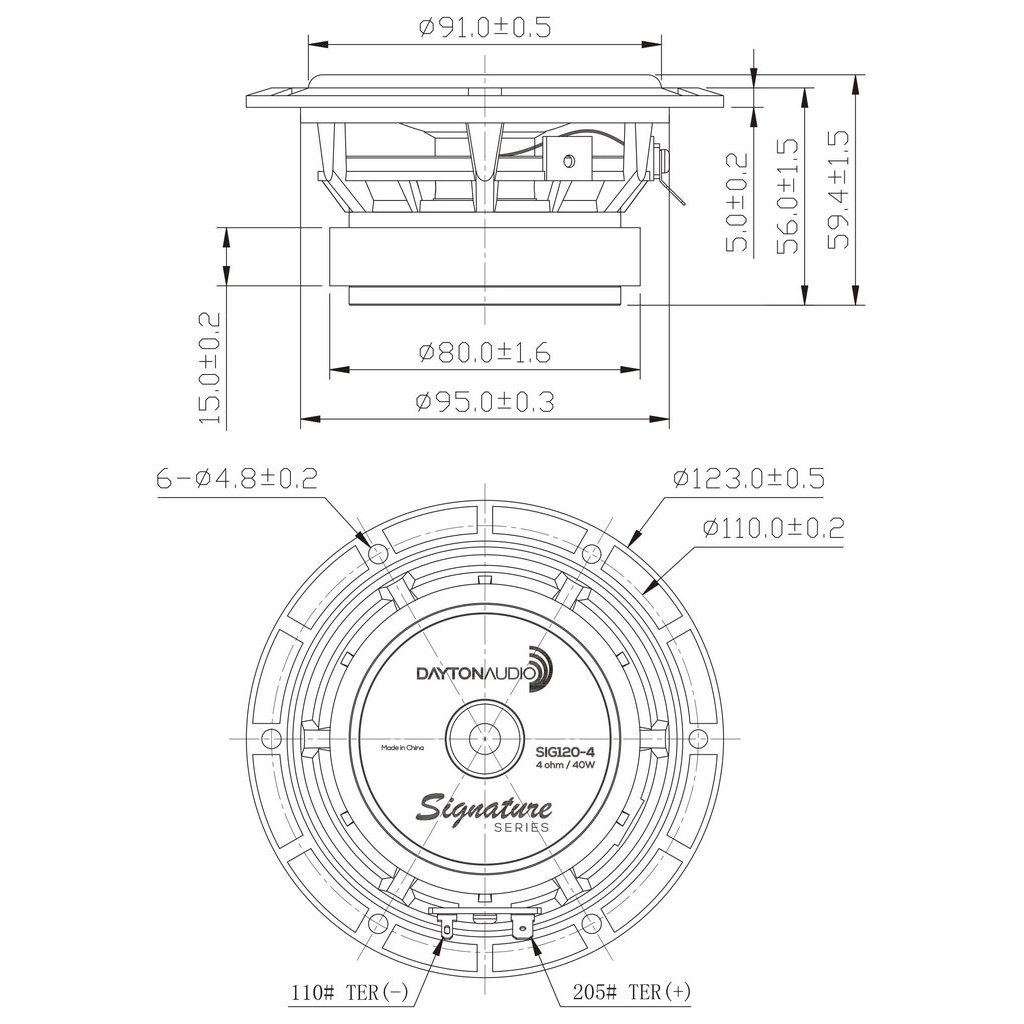

Mounting
| Overall diameter | 122.9 mm |
|---|---|
| Cutout diameter | 95 mm |
| Mounting depth | 56 mm |
| Mounting holes | 6 |
| Voice coil diameter | 26.6 mm |
| Weight | 0.8255 kg |
Materials
| Cone | Aluminum Cone |
|---|---|
| Surround | Rubber |
| Voice coil former | Glass fiber |
| Basket | Cast aluminum |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
