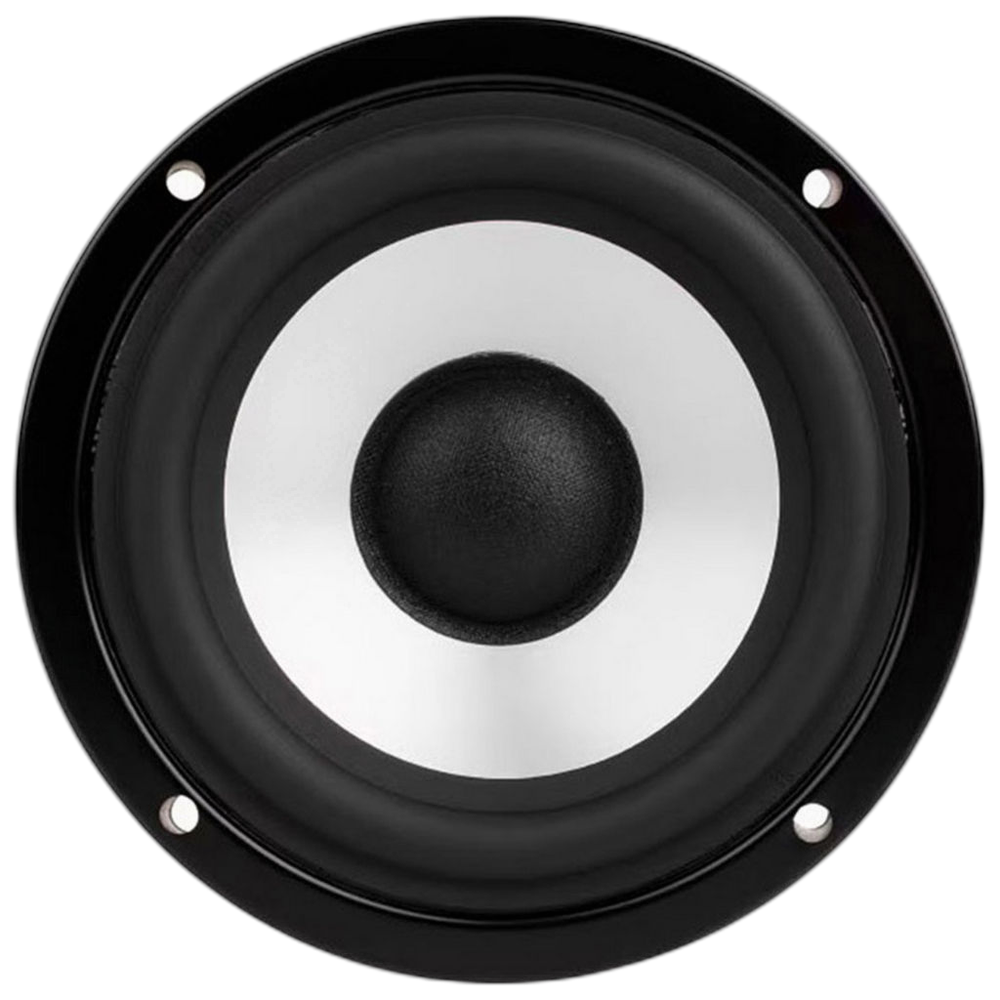

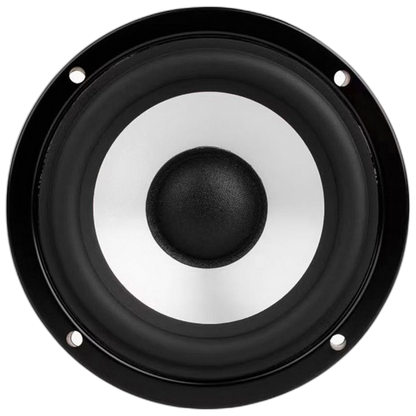

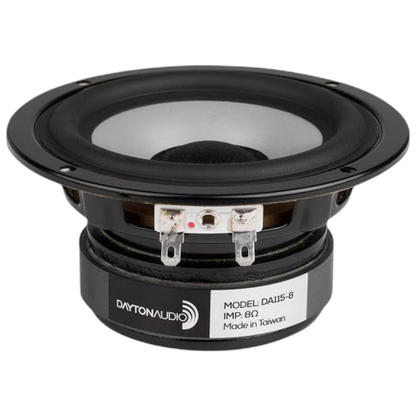

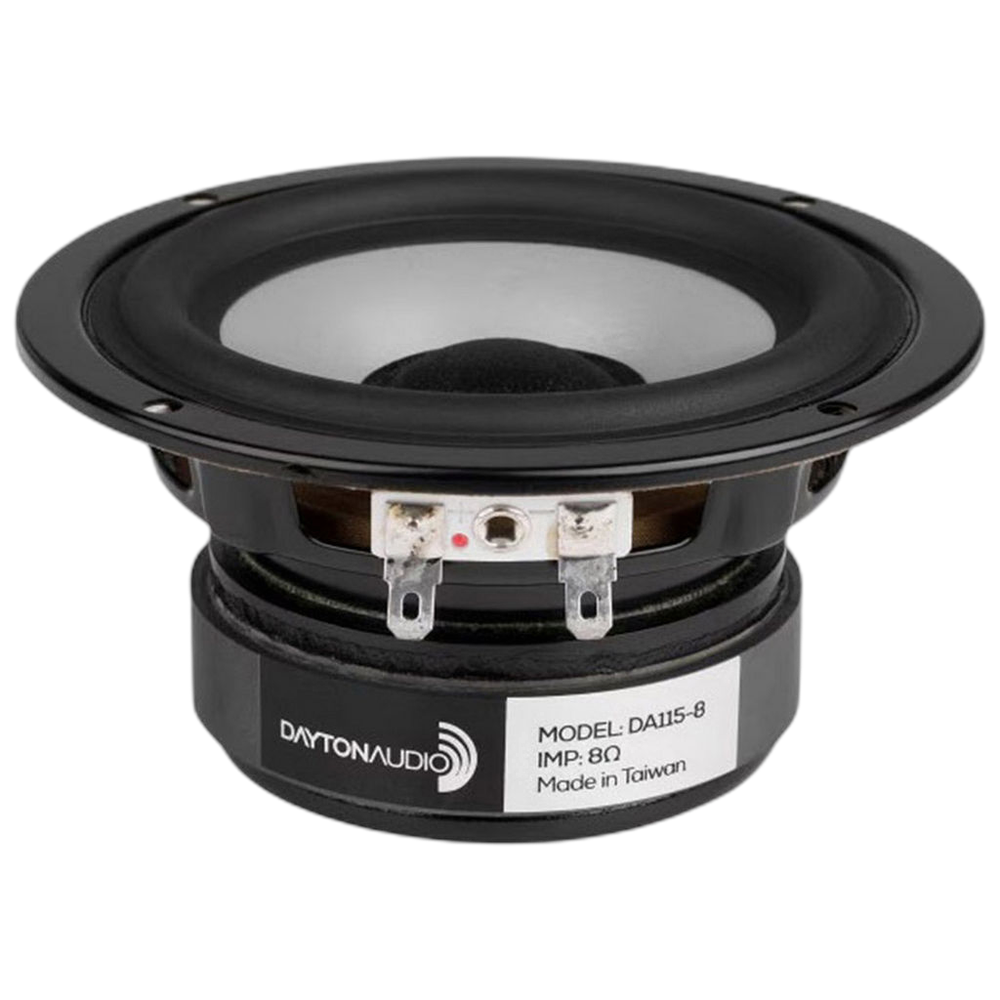

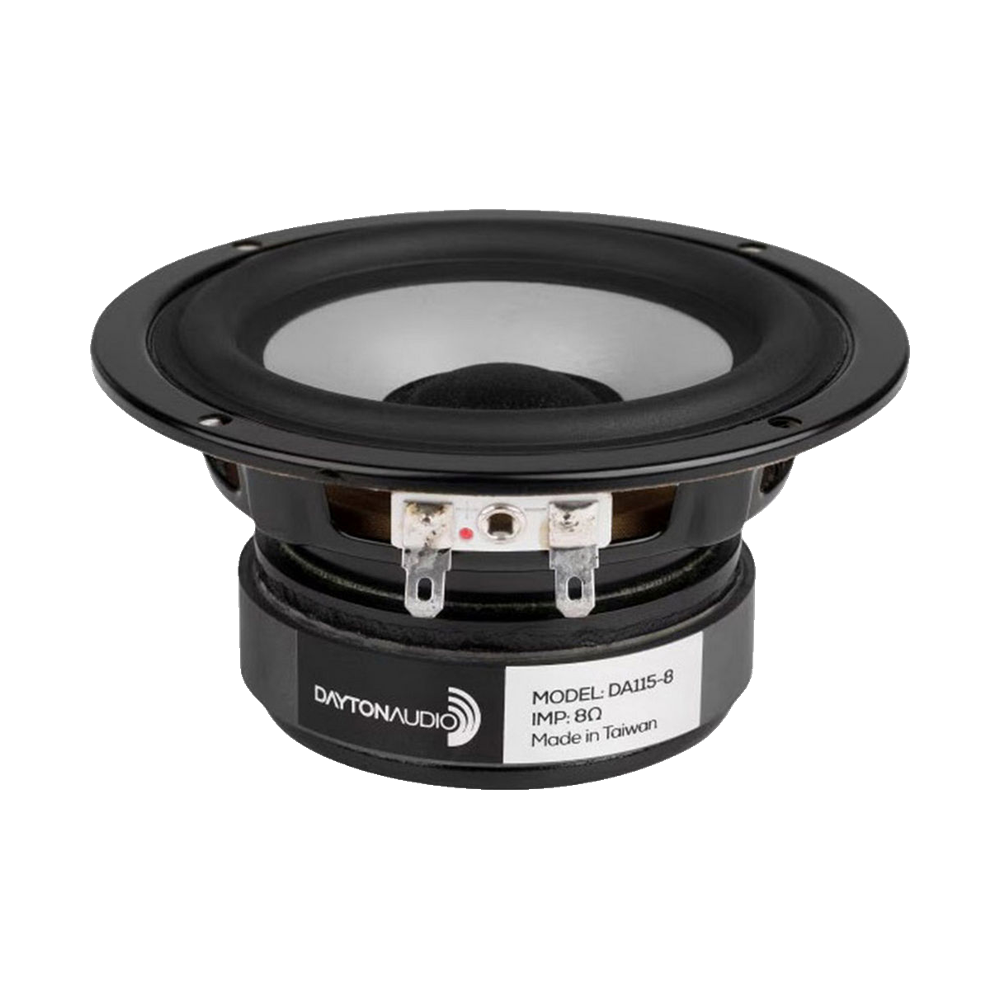

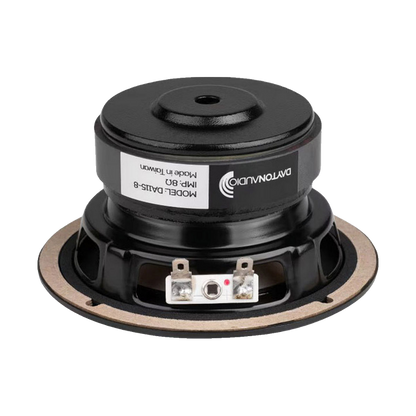

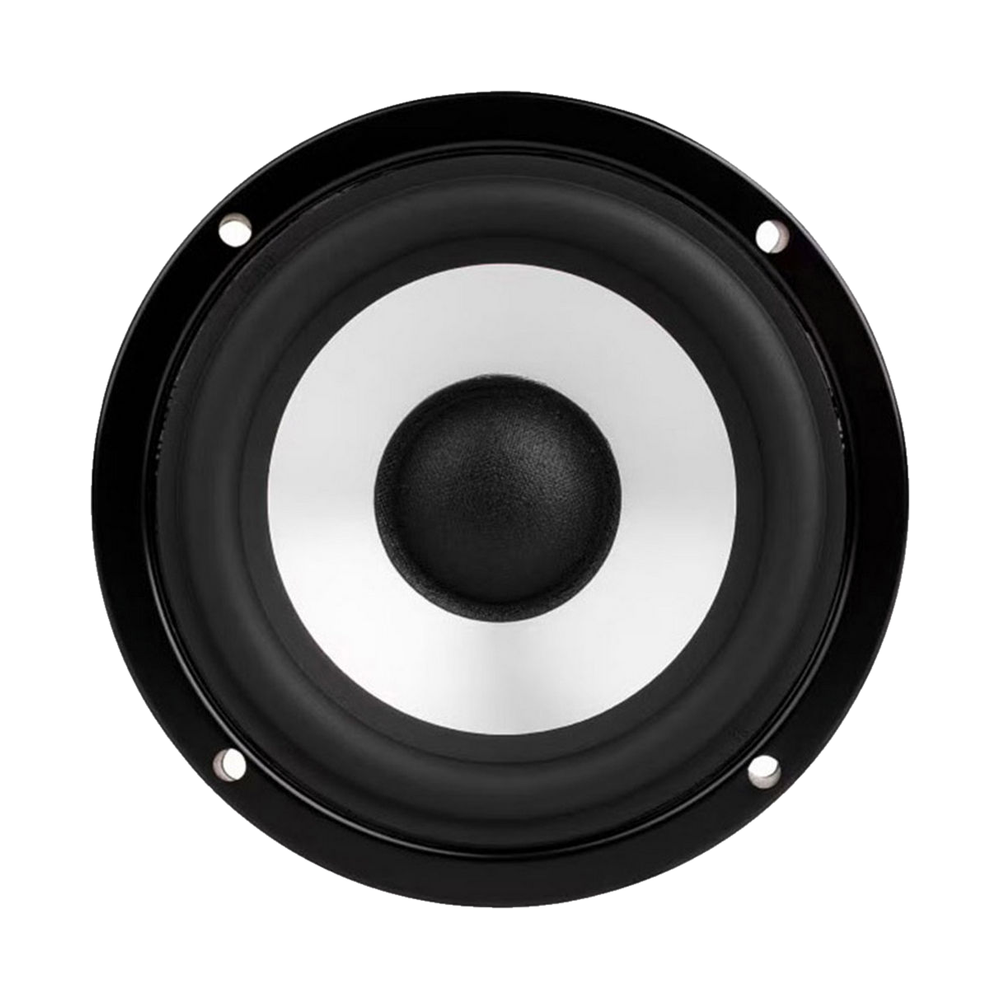

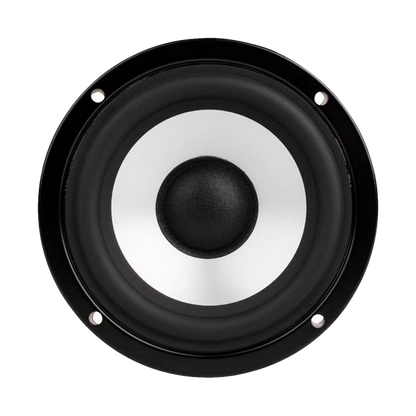

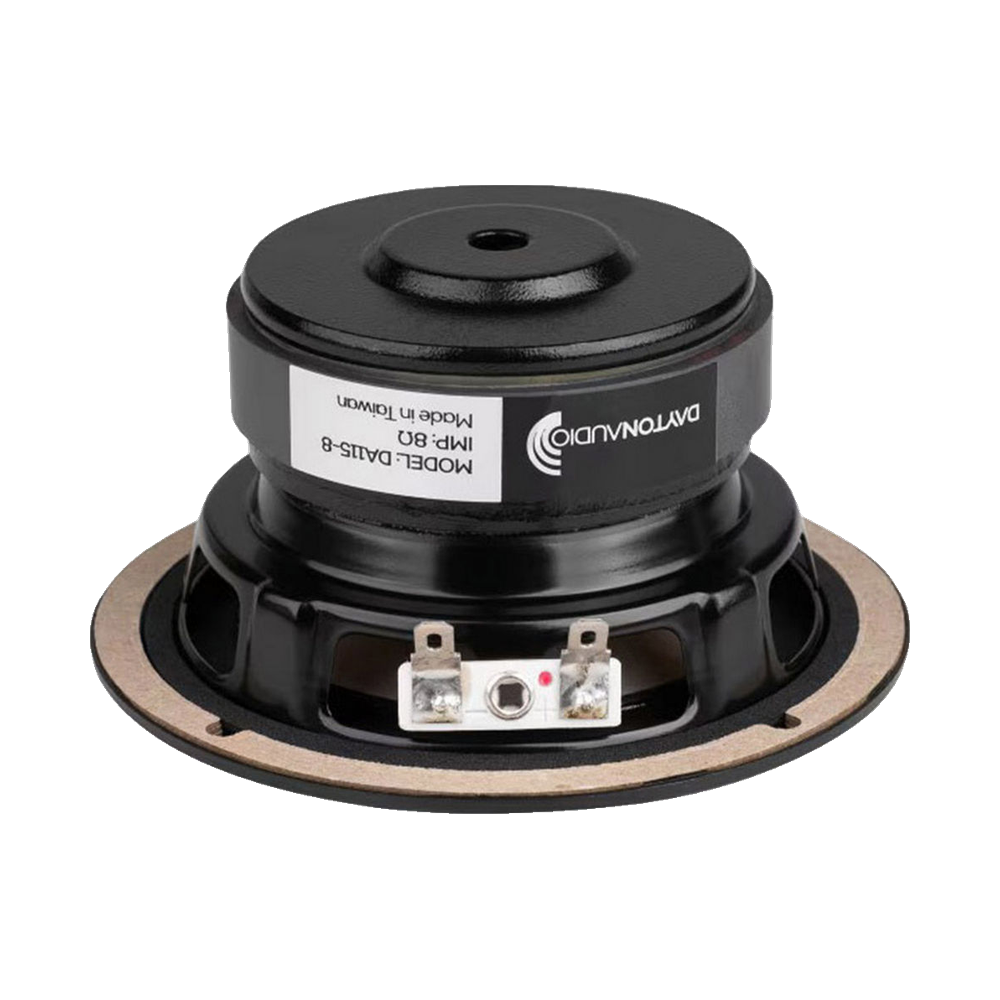

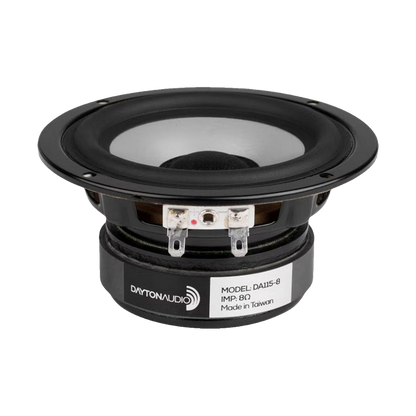

Dayton Audio - 4" Woofer Aluminium - DA115-8
Dayton Audio - 4" Woofer Aluminium - DA115-8
Regular price
$58.95
Regular price
Sale price
$58.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description
The aluminium cone on this driver is extremely rigid yet well damped, making the bass and midbass region very clean and low in distortion. When used with a well-designed crossover, an extremely flat frequency response can be achieved that is clean well into the midrange region.
Features
- Great looking and sounding woofer
- Cosmetic stamped steel frame

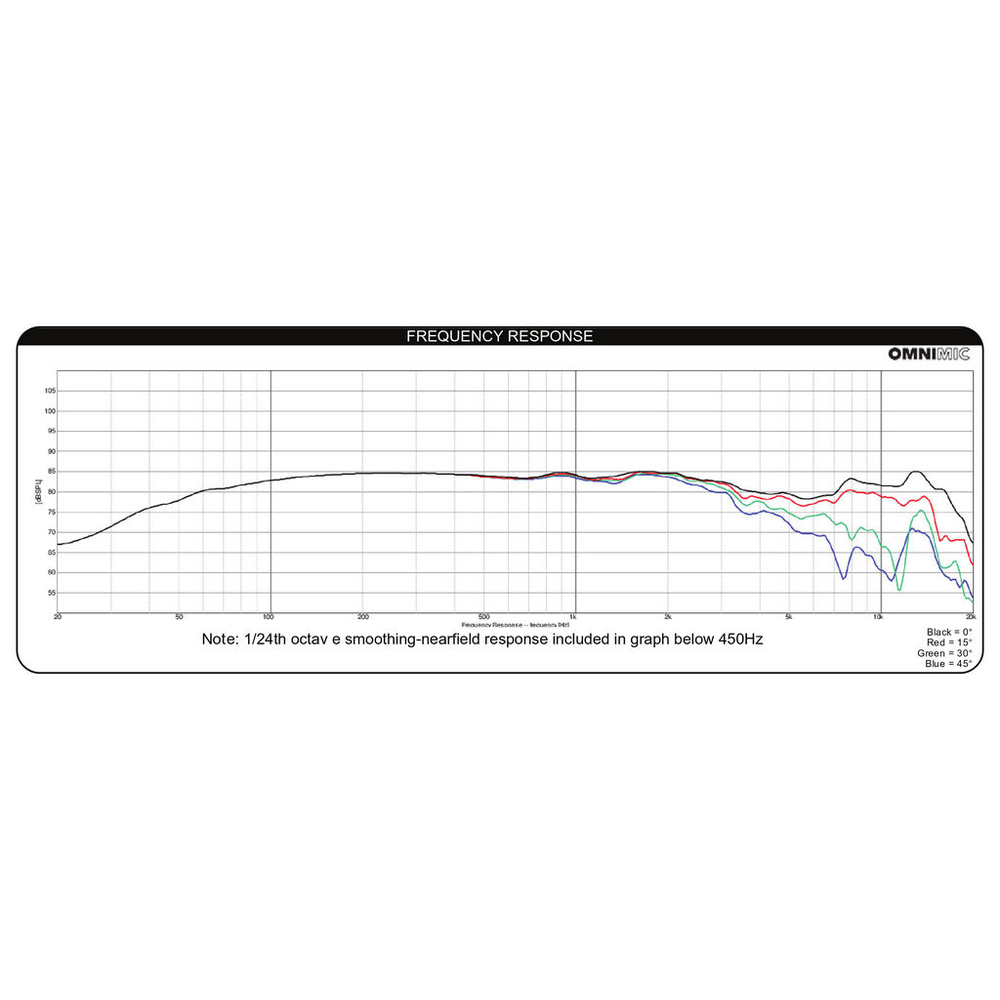

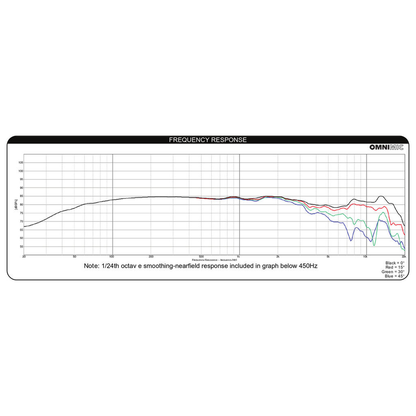

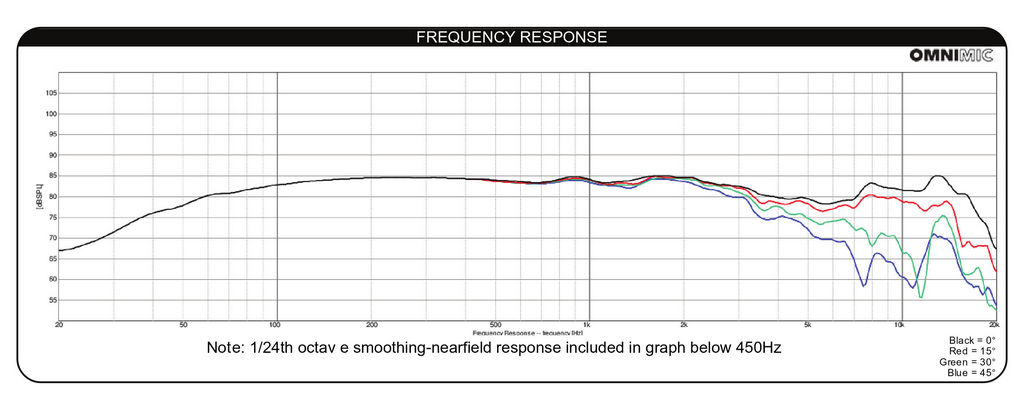

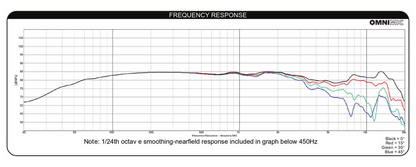

- Flat frequency response in passband region
- Impressive output capabilities when used in MTM designs
- Very low distortion
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 4" |
| Nominal impedance | 8Ω |
| Series | Designer |
| Power handling (RMS) | 20 W |
| Power handling (program) | 40 W |
| Sensitivity | 84.9 dB |
| Frequency range | 60 – 15,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 60 Hz |
|---|---|
| DC resistance (Re) | 6.4 Ω |
| Voice coil inductance (Le) | 0.7 mH |
| Mechanical Q (Qms) | 2.6 |
| Electrical Q (Qes) | 0.49 |
| Total Q (Qts) | 0.41 |
| Equivalent volume (Vas) | 4.4 L |
| Compliance (Cms) | 1.1 mm/N |
| Moving mass (Mms) | 6.6 g |
| Mechanical resistance (Rms) | 0.957 kg/s |
| Force factor (Bl) | 5.7 T·m |
| Effective piston area (Sd) | 53.1 cm² |
| Linear excursion (Xmax, one-way) | 2.5 mm |
| Displacement volume (Vd) | 13.28 cm³ |
| Efficiency bandwidth product (EBP) | 122.4 |
Motor
| Voice coil wire | Copper |
|---|

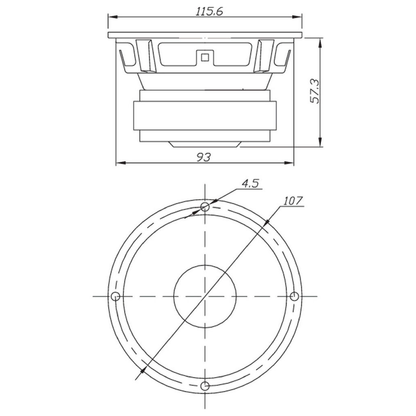

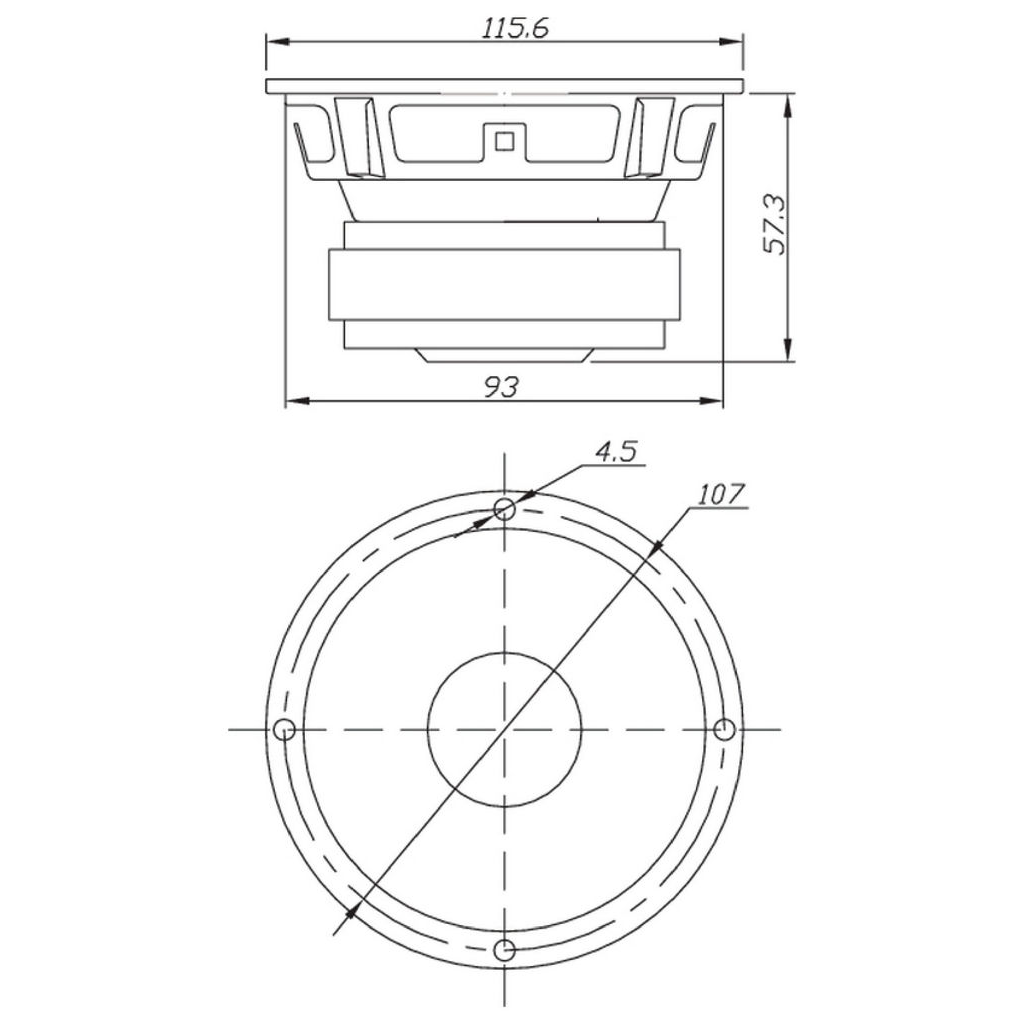

Mounting
| Overall diameter | 115.6 mm |
|---|---|
| Cutout diameter | 93 mm |
| Mounting depth | 57.3 mm |
| Bolt circle diameter | 107 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 4.5 mm |
| Voice coil diameter | 25 mm |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
Downloads
- DA115-8 Specification Sheet
- DA115-8 Data Files
- DA115-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
