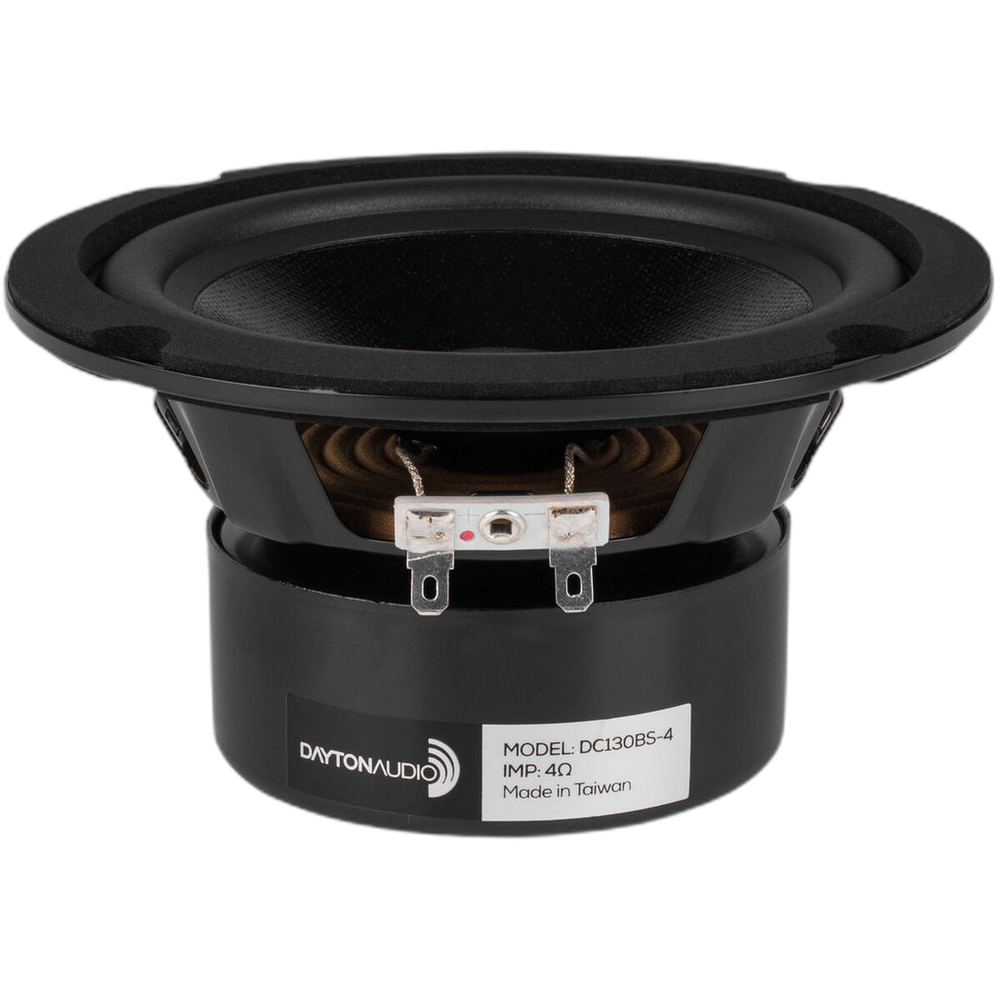

Dayton Audio - 5¼" Classic Shielded Woofer - DC130BS-4
Dayton Audio - 5¼" Classic Shielded Woofer - DC130BS-4
Regular price
$71.95
Regular price
Sale price
$71.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Dayton Audio Classic Series woofers are excellent as replacements or for new system design and construction. Their versatile set of parameters make them suitable for sealed or vented enclosure designs. With impressive bass performance and smooth overall response, they are popular in many DIY loudspeaker projects.
Features
- Treated paper cone provides smooth response and low energy storage
- Aluminium former and porous dustcap for high power handling
- Large diameter flat spider and good Xmax for clean bass
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 5.25" |
| Nominal impedance | 4Ω |
| Series | Classic |
| Power handling (RMS) | 30 W |
| Power handling (program) | 60 W |
| Sensitivity | 91.6 dB |

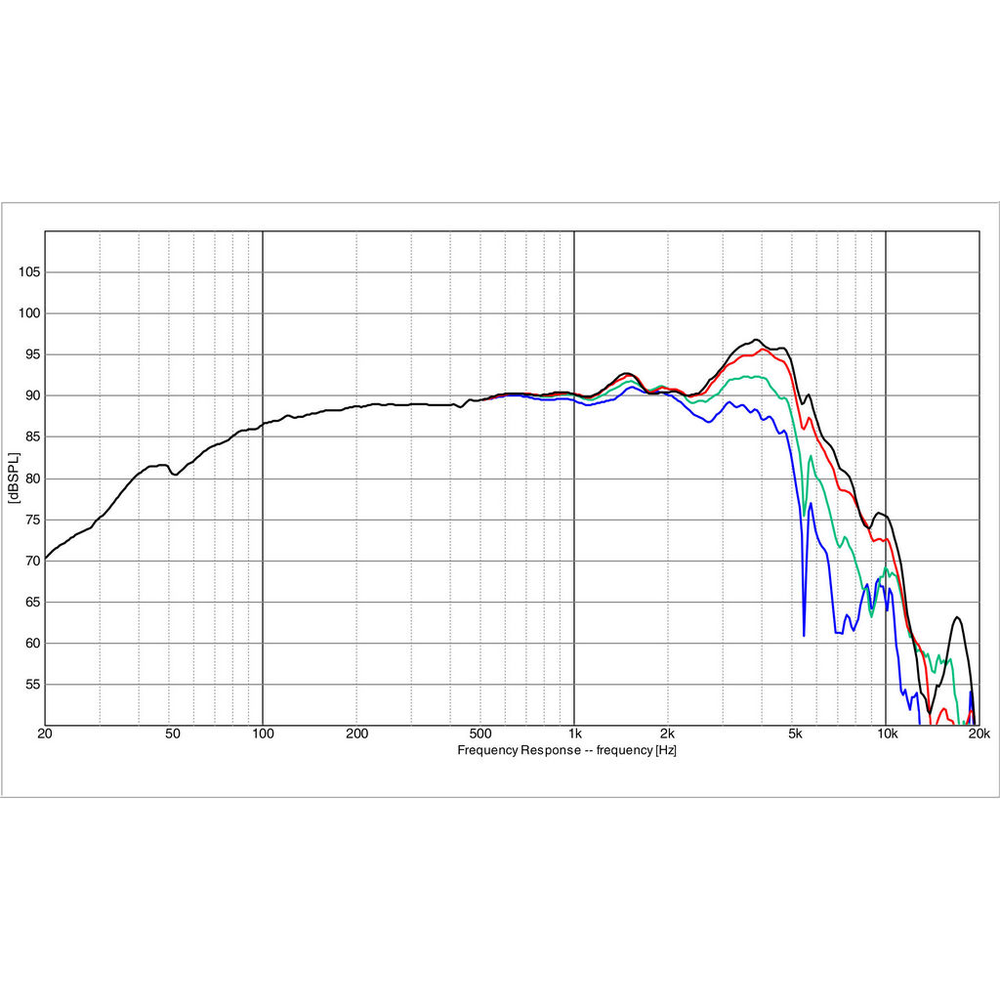

| Frequency range | 55 – 4,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 51.8 Hz |
|---|---|
| DC resistance (Re) | 3.55 Ω |
| Voice coil inductance (Le) | 0.5 mH |
| Mechanical Q (Qms) | 1.86 |
| Electrical Q (Qes) | 0.44 |
| Total Q (Qts) | 0.35 |
| Equivalent volume (Vas) | 13.2 L |
| Compliance (Cms) | 1.08 mm/N |
| Moving mass (Mms) | 8.8 g |
| Mechanical resistance (Rms) | 1.54 kg/s |
| Force factor (Bl) | 4.8 T·m |
| Effective piston area (Sd) | 93.3 cm² |
| Linear excursion (Xmax, one-way) | 2.5 mm |
| Displacement volume (Vd) | 23.32 cm³ |
| Efficiency bandwidth product (EBP) | 117.7 |
Motor
| Voice coil wire | Copper |
|---|

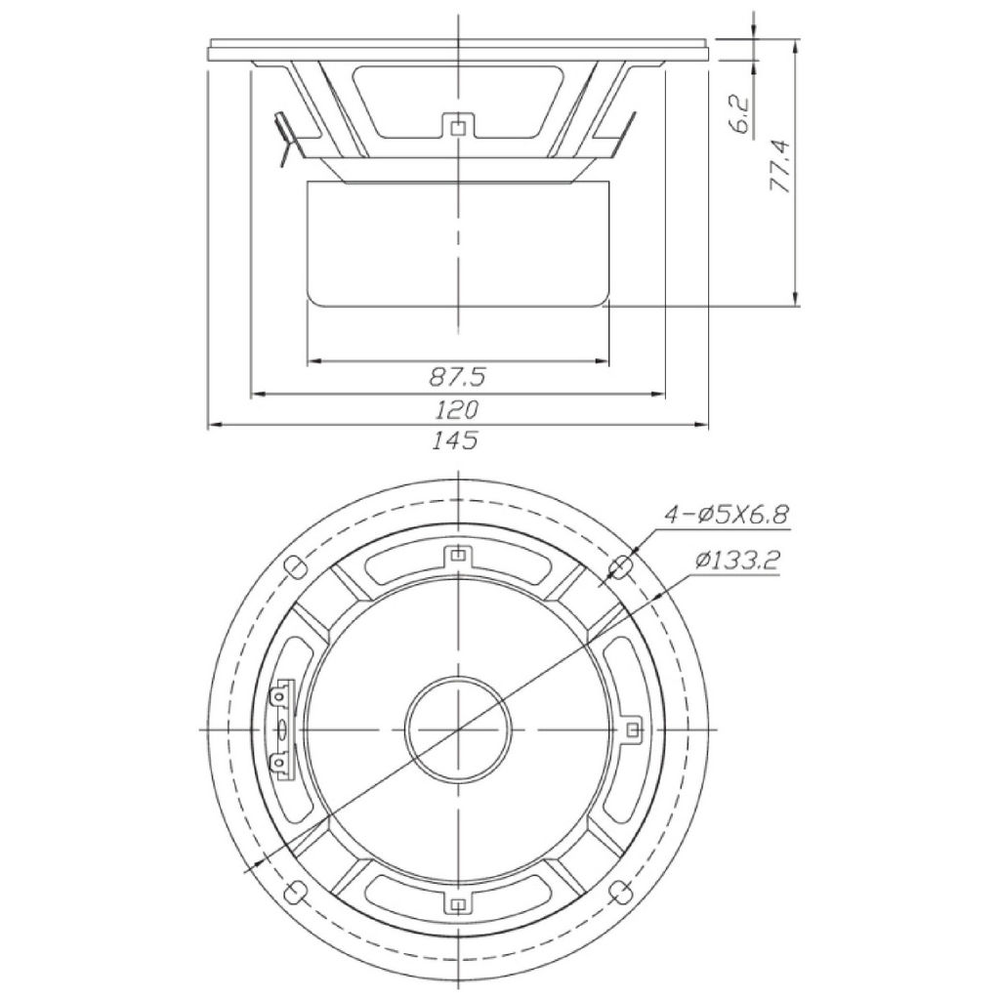

Mounting
| Overall diameter | 145 mm |
|---|---|
| Cutout diameter | 120 mm |
| Mounting depth | 77.4 mm |
| Flange thickness | 6.2 mm |
| Bolt circle diameter | 133.2 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 5 mm |
| Voice coil diameter | 25 mm |
| Weight | 1.179 kg |
Materials
| Cone | Coated Paper |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- DC130BS-4 Specification Sheet
- DC130BS-4 Data Files
- DC130BS-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
Where do these figures come from? See the source of each one
