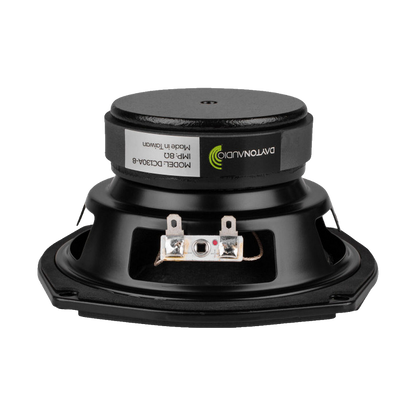

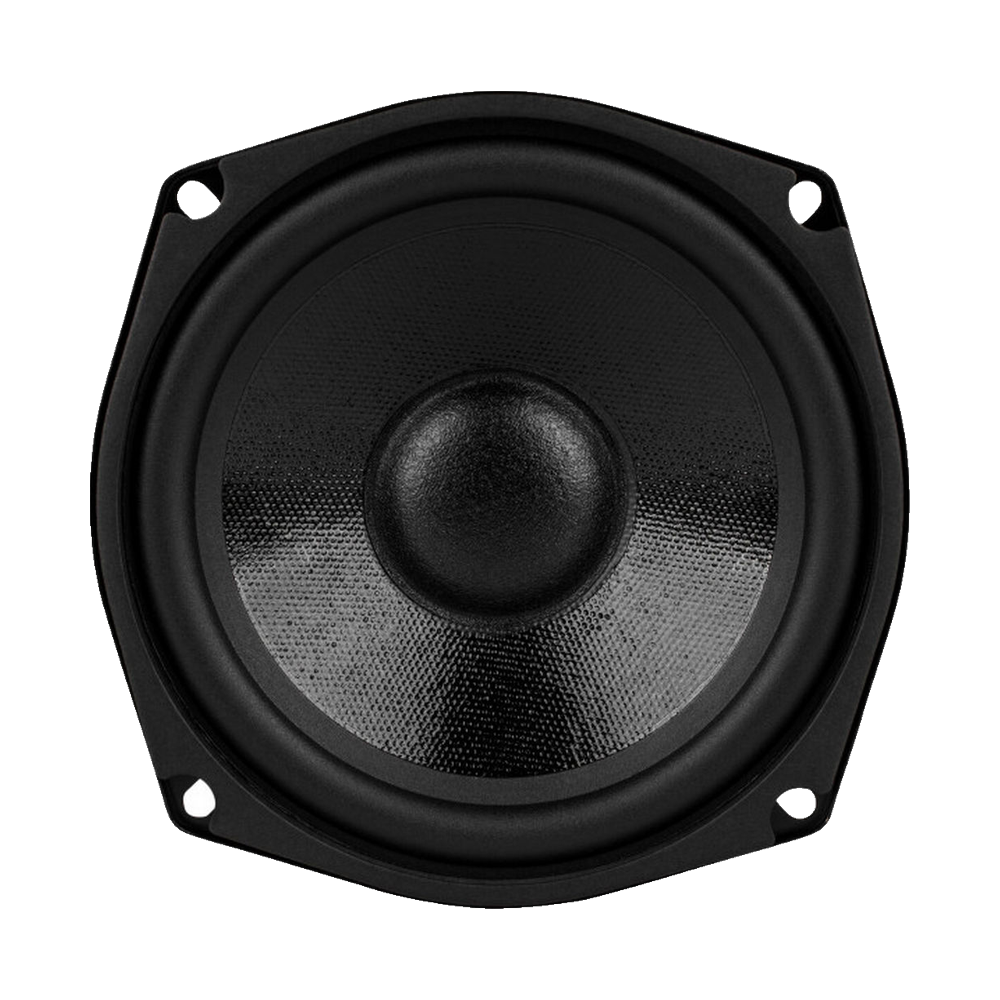

Dayton Audio - 5¼" Classic Woofer Paper - DC130A-8
Dayton Audio - 5¼" Classic Woofer Paper - DC130A-8
Regular price
$58.95
Regular price
Sale price
$58.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description

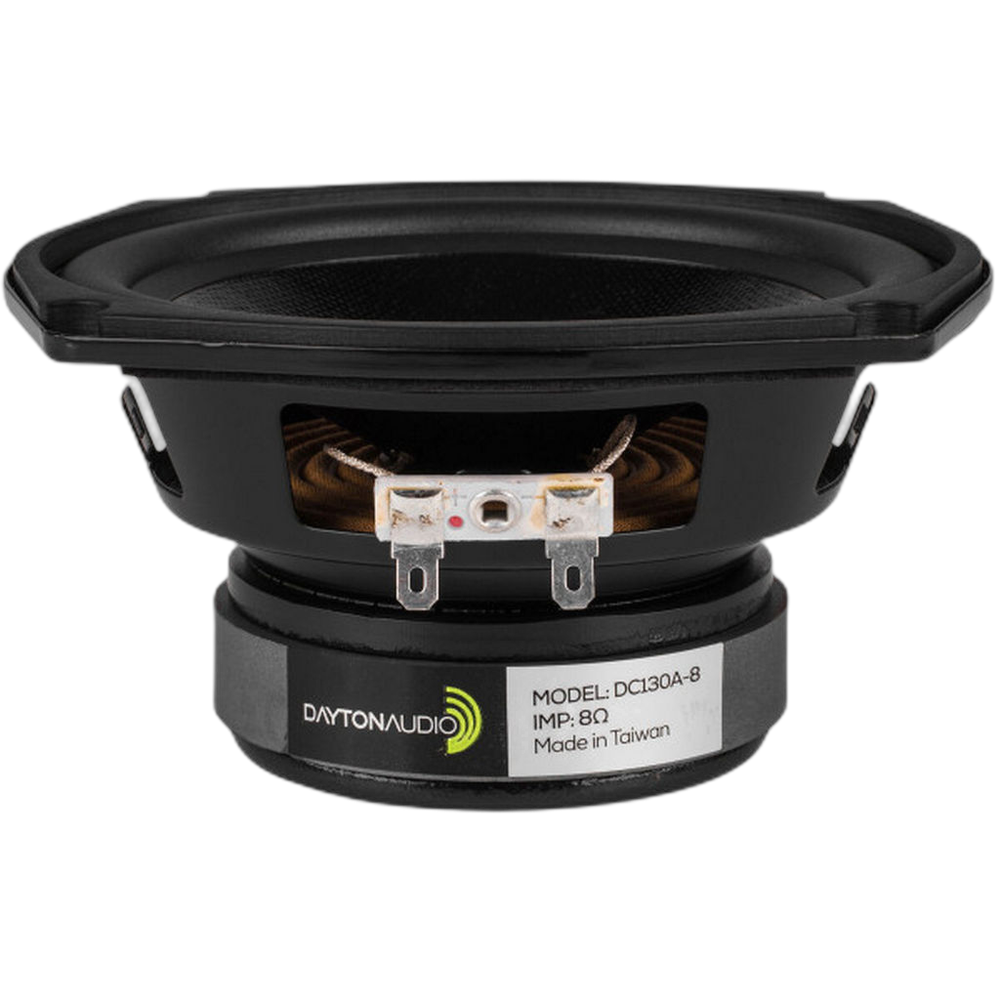

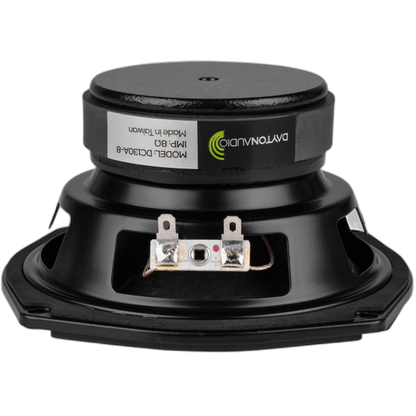

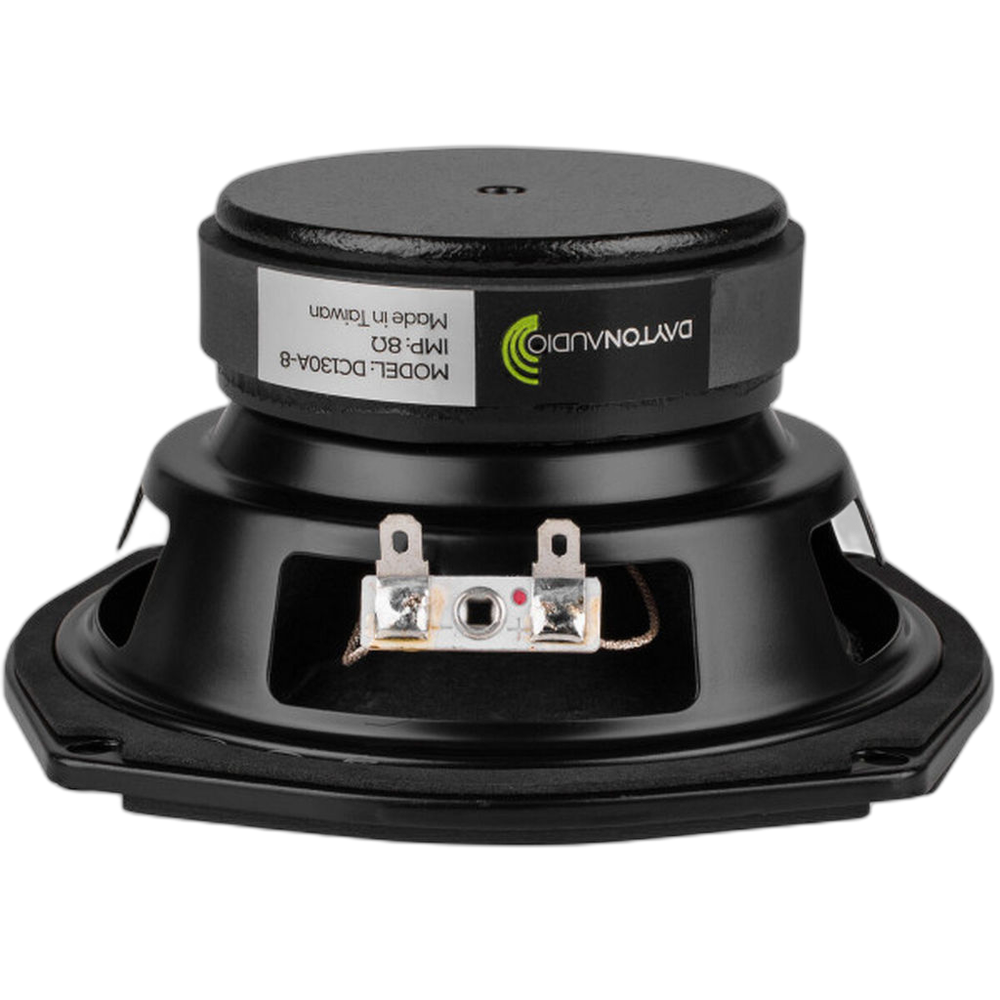

The Dayton Audio DC130A-8 is a compact and inexpensive unshielded variant of the popular DC130AS-8 magnetically shielded woofer.

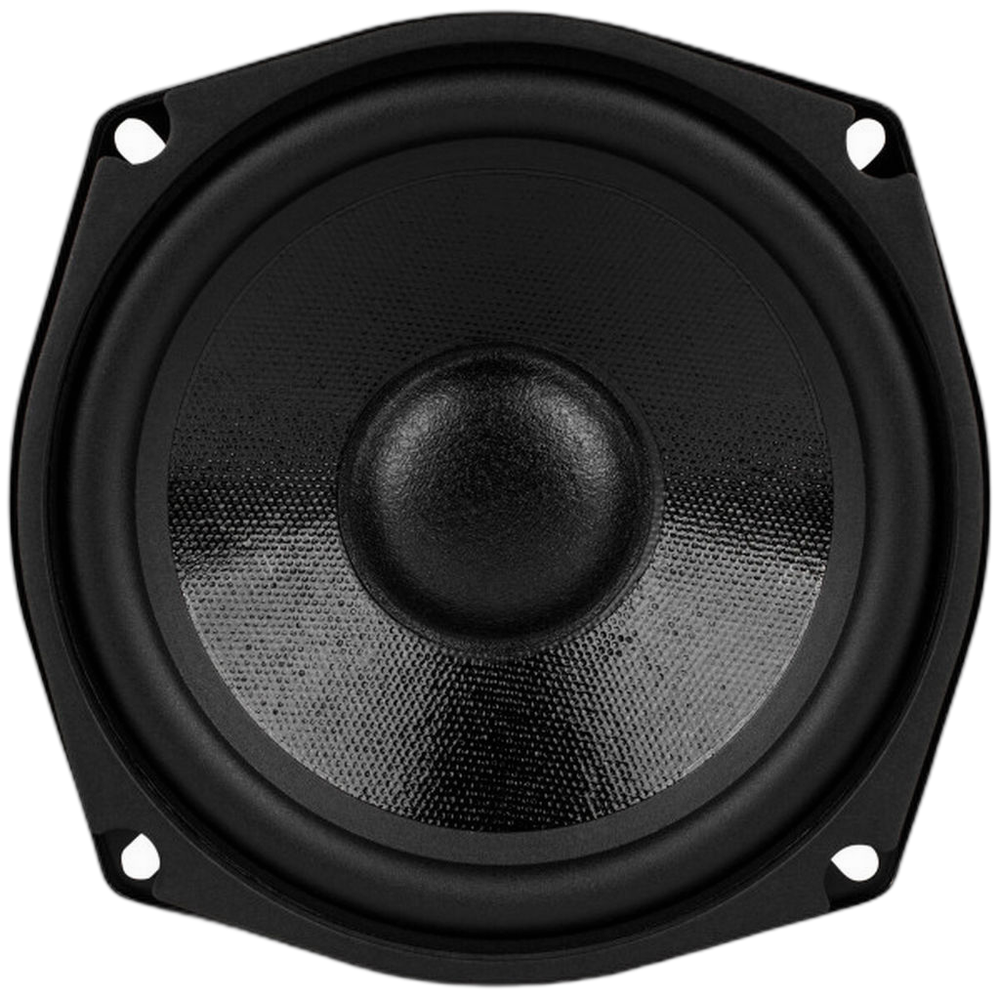

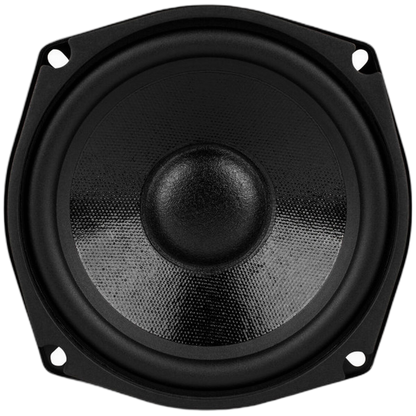

One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC130A-8 5-1/4" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, coated cloth dust cap, and excellent low frequency response.
Features
- "Pincushion" steel frame for great looks and strength
- Coated paper cone provides smooth response and reduced cone breakup
- Suitable for sealed or vented enclosures
- Large diameter flat spider and good Xmax for clean bass
- Aluminium voice coil former for high power handling
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 5.25" |
| Nominal impedance | 8Ω |
| Series | Classic |
| Power handling (RMS) | 40 W |
| Power handling (program) | 80 W |
| Sensitivity | 88.7 dB |

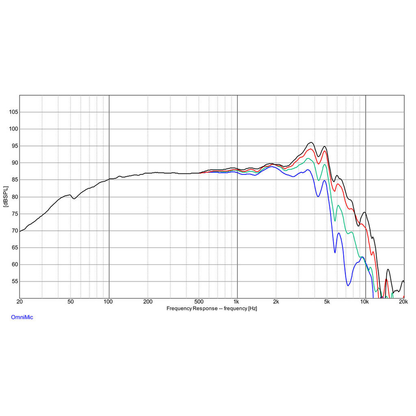

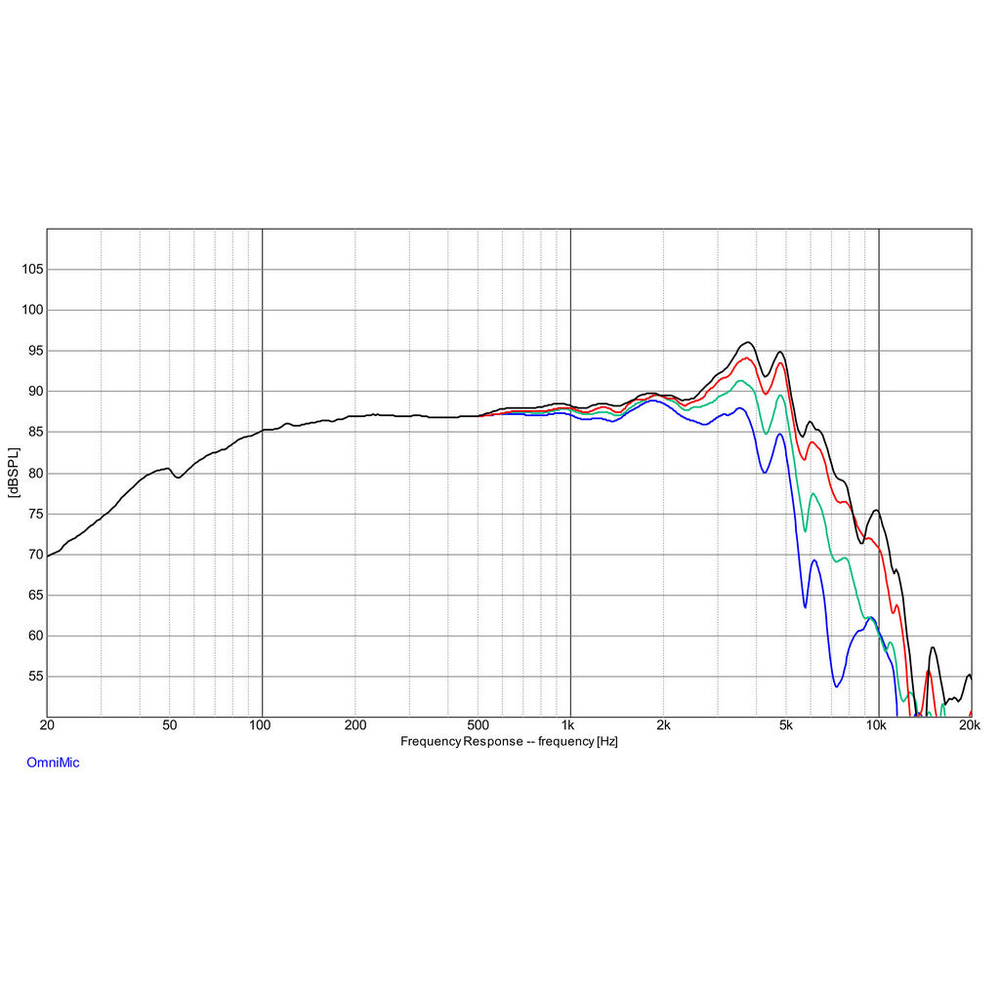

| Frequency range | 50 – 5,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 53.2 Hz |
|---|---|
| DC resistance (Re) | 5.7 Ω |
| Voice coil inductance (Le) | 0.75 mH |
| Mechanical Q (Qms) | 1.9 |
| Electrical Q (Qes) | 0.51 |
| Total Q (Qts) | 0.41 |
| Equivalent volume (Vas) | 11.8 L |
| Compliance (Cms) | 0.96 mm/N |
| Moving mass (Mms) | 9.3 g |
| Mechanical resistance (Rms) | 1.636 kg/s |
| Force factor (Bl) | 5.88 T·m |
| Effective piston area (Sd) | 91.6 cm² |
| Linear excursion (Xmax, one-way) | 2.5 mm |
| Displacement volume (Vd) | 22.9 cm³ |
| Efficiency bandwidth product (EBP) | 104.3 |
Motor
| Magnet weight | 0.312 kg |
|---|---|
| Voice coil wire | Copper |
Mounting

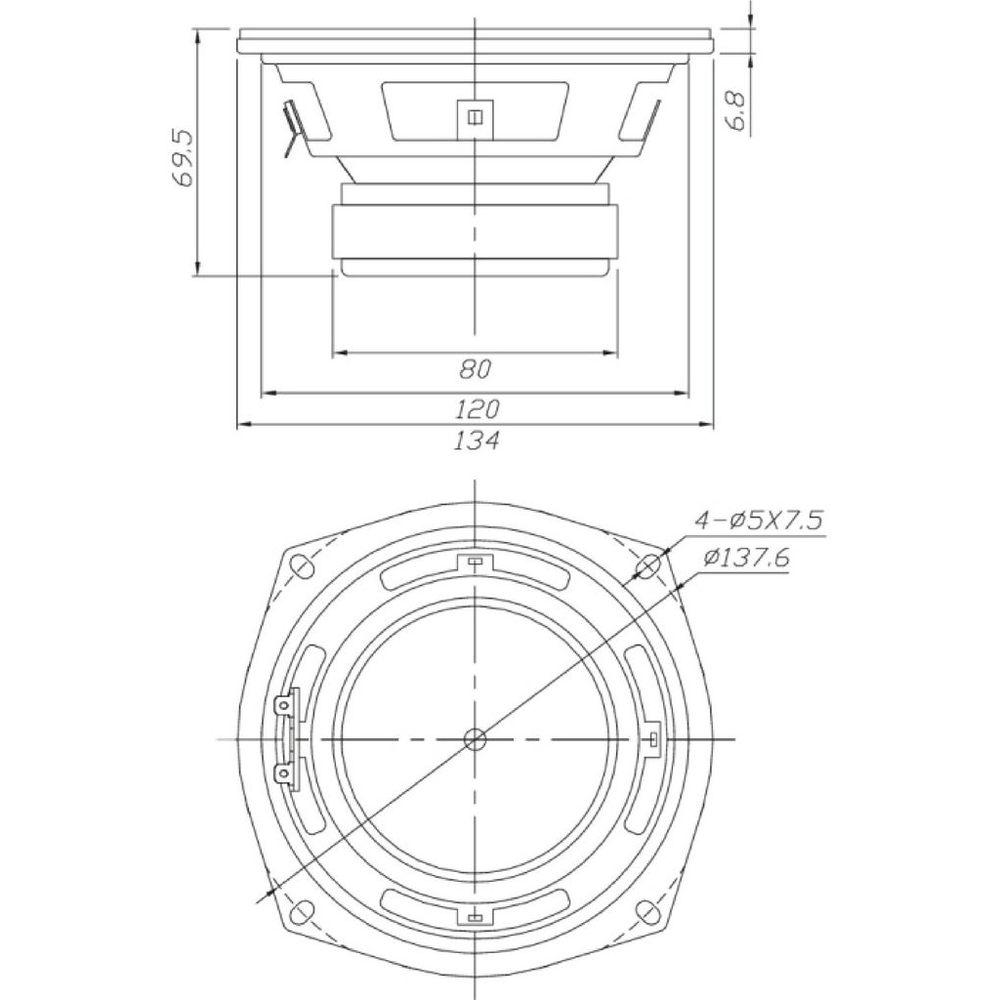

| Faceplate | Not round (see the maker's drawing) |
|---|---|
| Cutout diameter | 120 mm |
| Mounting depth | 69.5 mm |
| Voice coil diameter | 25.4 mm |
| Weight | 0.9072 kg |
| Mounting holes | 4 |
Materials
| Cone | Coated Paper |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- DC130A-8 Specification Sheet
- DC130A-8 Data Files
- DC130A-8 Cutout & Recess Template (NB Audio) Straight off Dayton Audio's spec sheet: cutout. Scaled from Dayton Audio's drawing, so close but not guaranteed exact: flange outline. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
