Dayton Audio

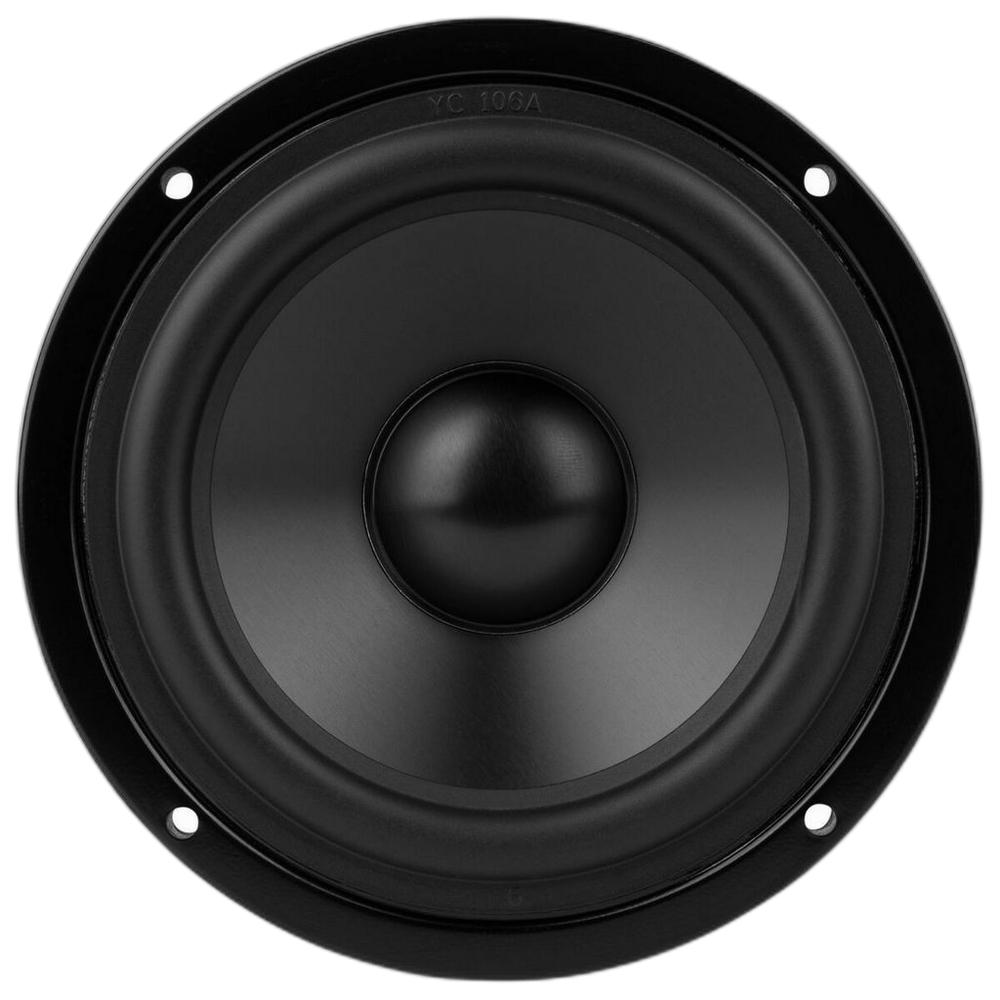

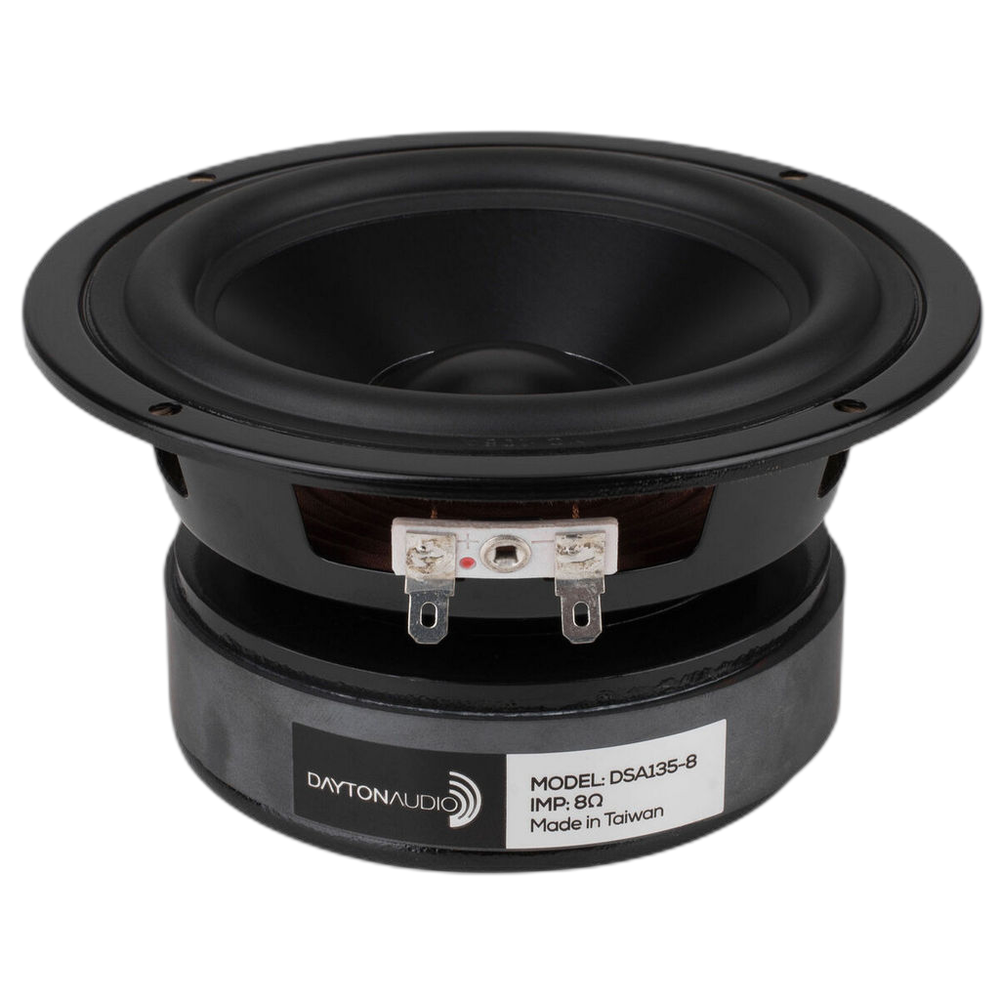

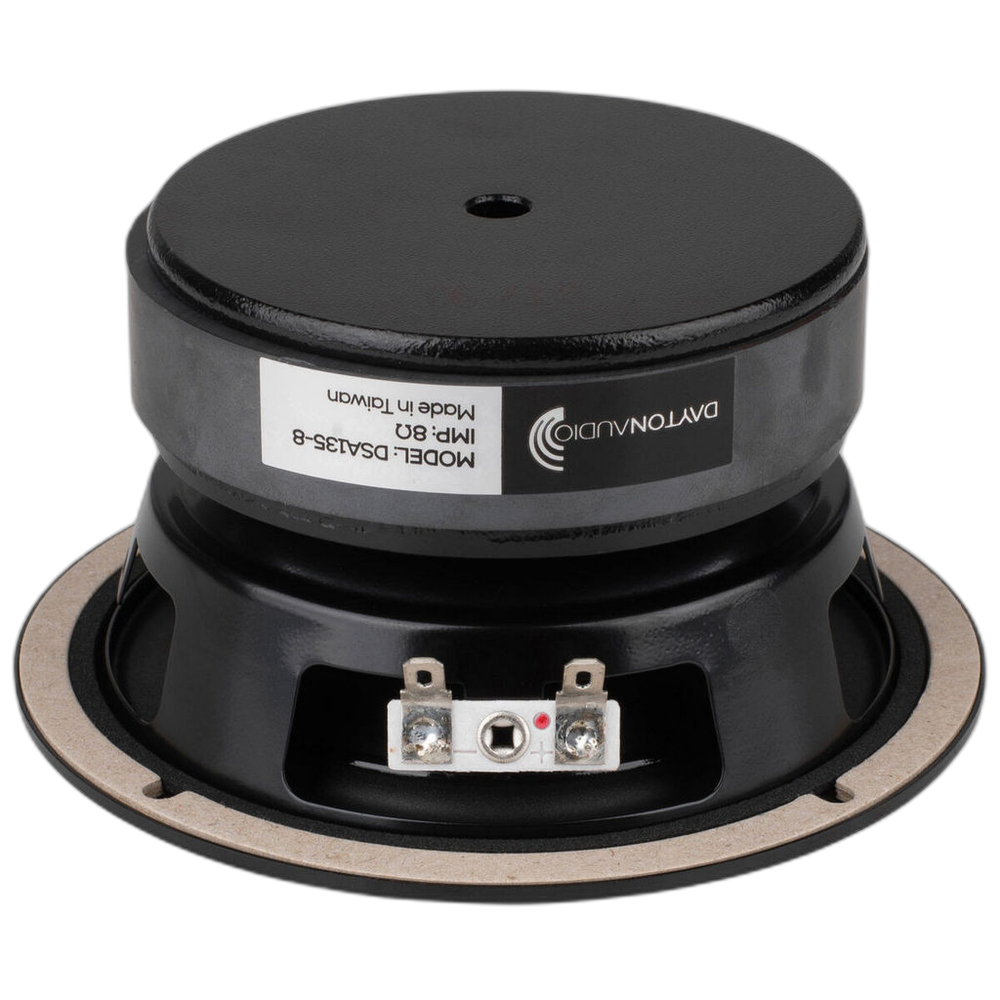

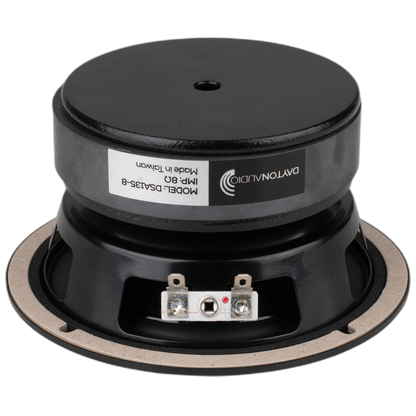

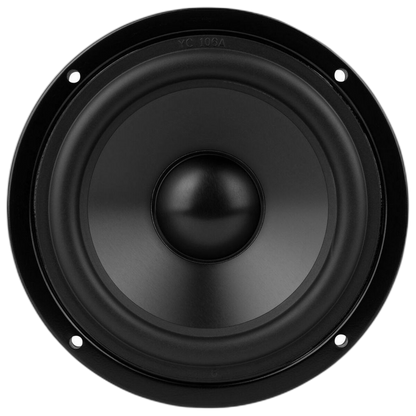

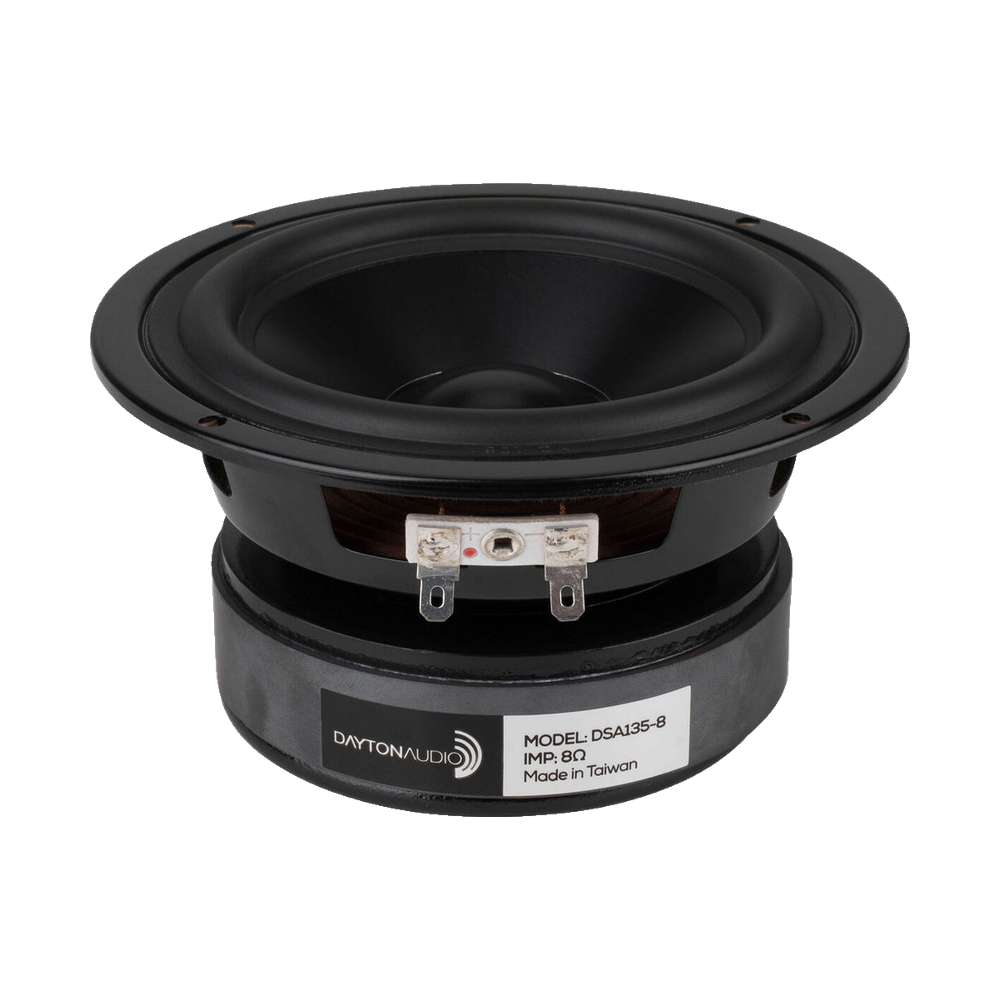

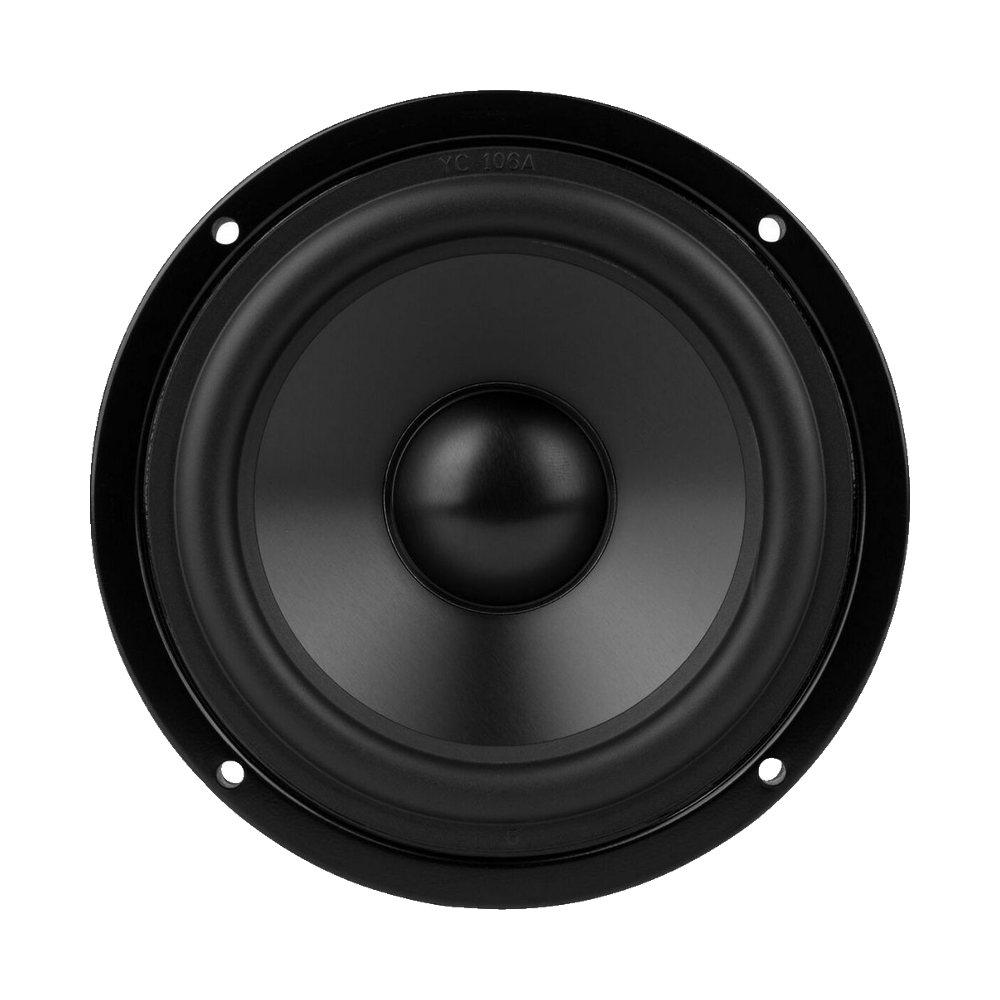

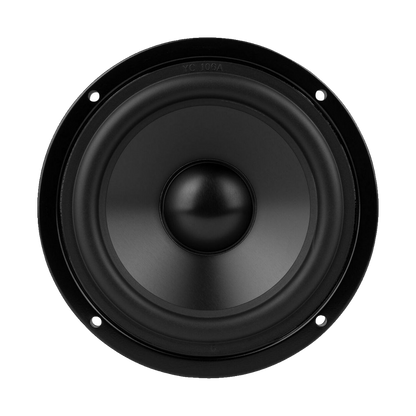

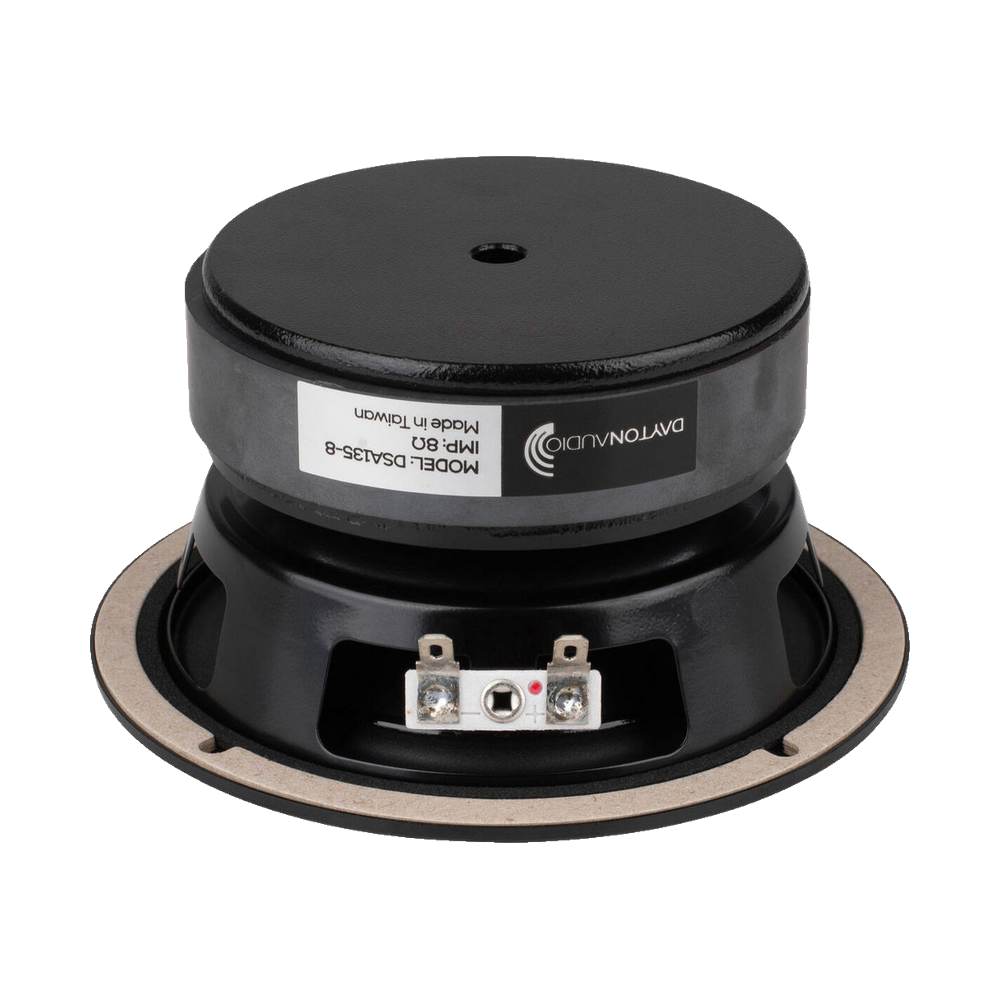

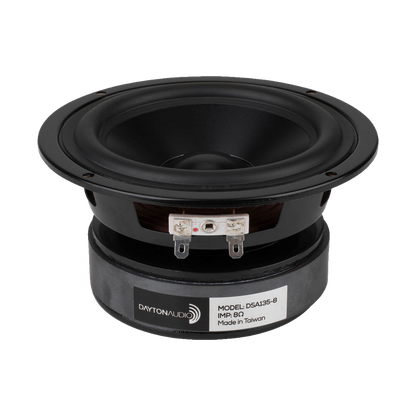

Dayton Audio - 5" Designer Woofer Aluminium - DSA135-8

Dayton Audio - 5" Designer Woofer Aluminium - DSA135-8

Regular price $84.95 AUD
Regular price Sale price $84.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

The 5" Designer Series aluminium cone woofer is an affordable and high-performance speaker. Careful engineering ensures the speaker is capable of handling full rated power at the lowest possible frequencies without exceeding Xmax. This speaker combines useful performance parameters with elegant style.

Features

  • 5” woofer offers exceptional audio fidelity and superior aesthetics.
  • Low distortion motor system with copper shorting ring.
  • Black anodised aluminium cone, half roll rubber surround for accurate sound.
  • Vented pole piece for minimised power compression and reliability.

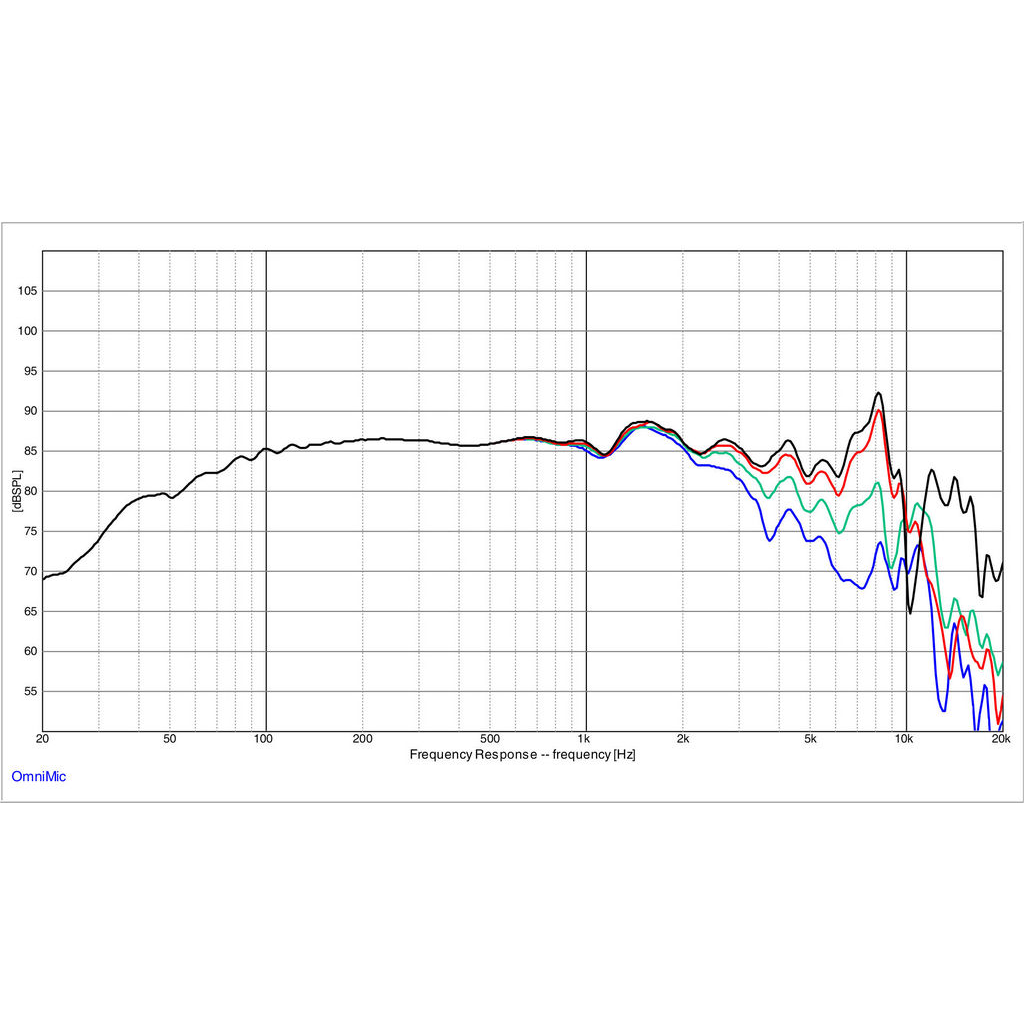

  • Smooth frequency response and linear roll-off simplify filter design.

Specifications

Cms 0.99mm/N
Coil 25.4mmØ

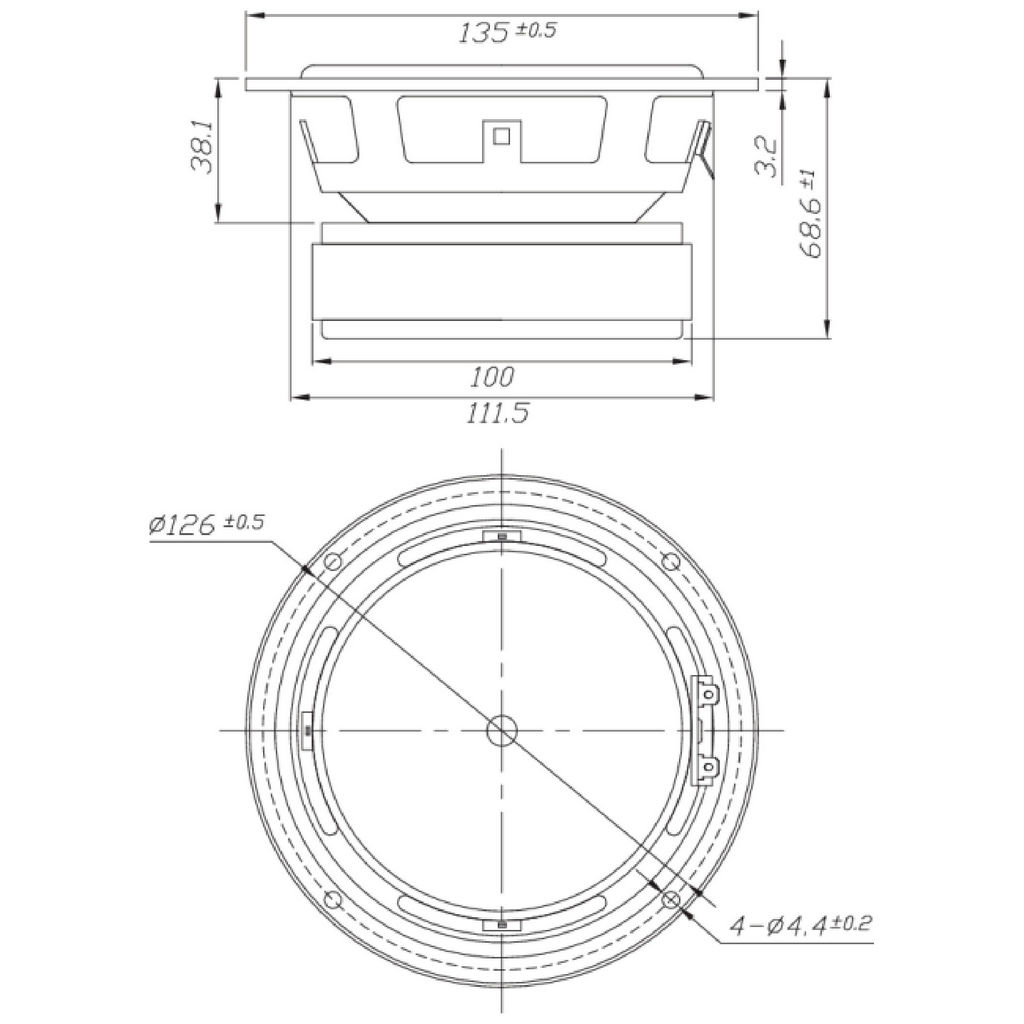

Diam. 135mmØ
Fs 51.81Hz
Hole 112mmØ
Impedance 8Ω Re 5.9Ω
Le 0.78mH
Manufacturer Dayton Audio
Mms 9.5g
Power 50Wrms
Qes 0.47
Qms 2.04
Qts 0.38
Re 5.9Ω
Sd 75.4cm²
Sens. 87dB
Series Designer
Size 5'
Type Woofer
Vas 7.93L
Zn
Freq. 24-2kHz
Xmax 4.9mm
Vd 36.6cm³
Bl 6.22Tm
Mag. Ferrite
VC 25.4mmØ
SPL 87dB
