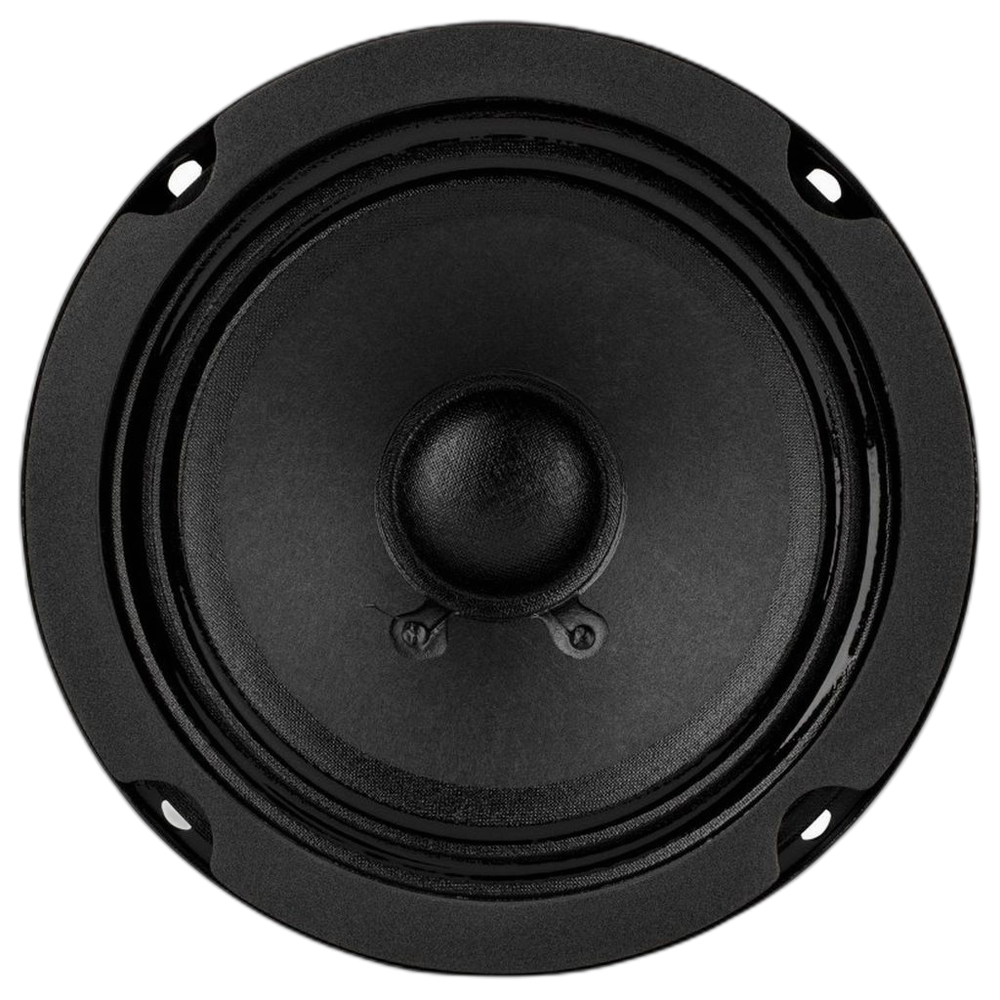

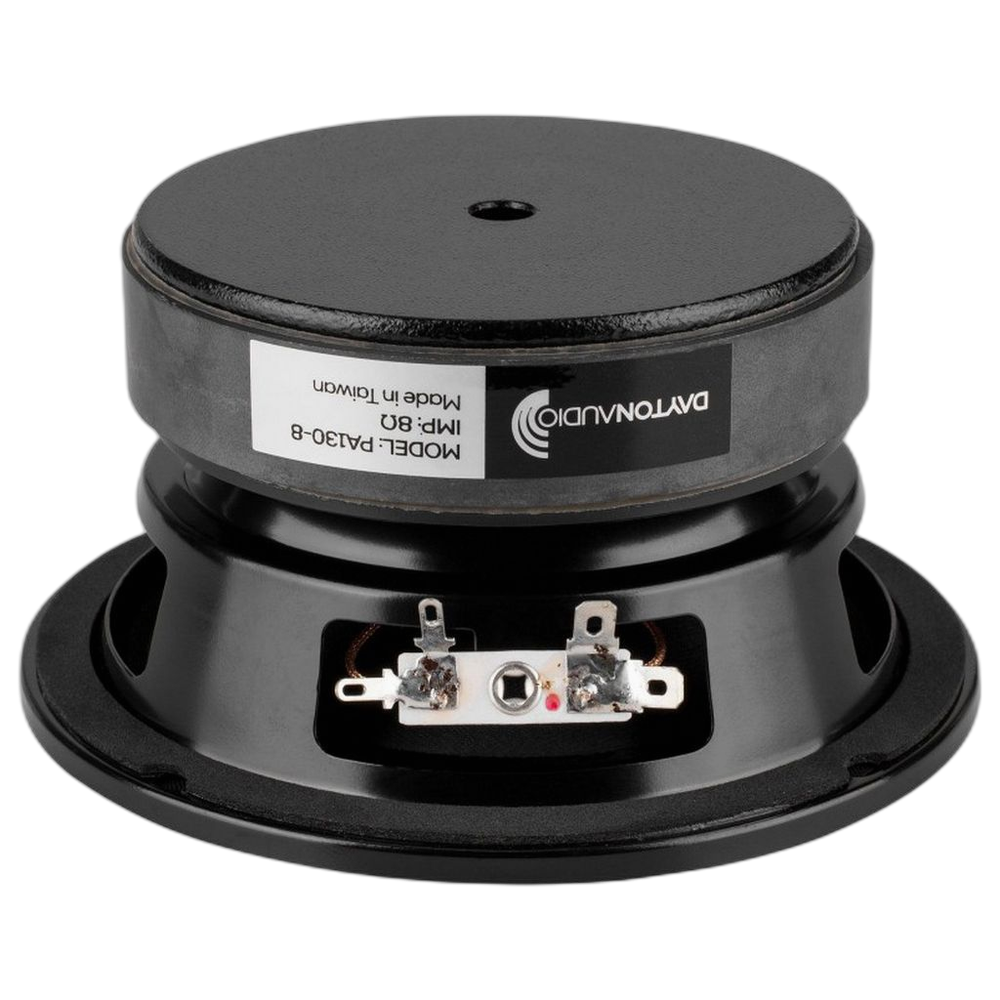

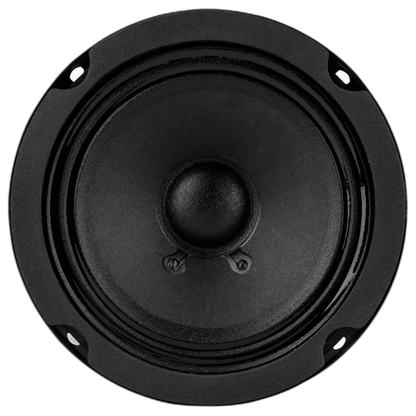

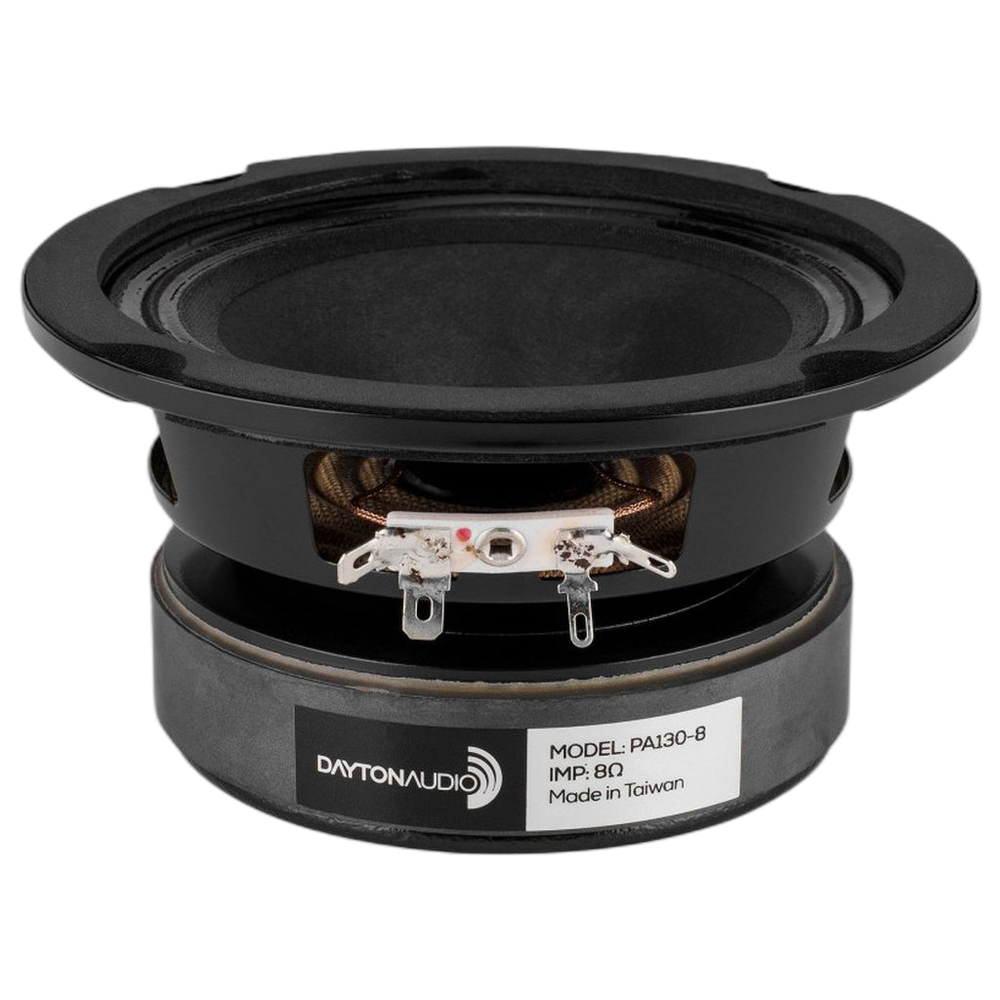

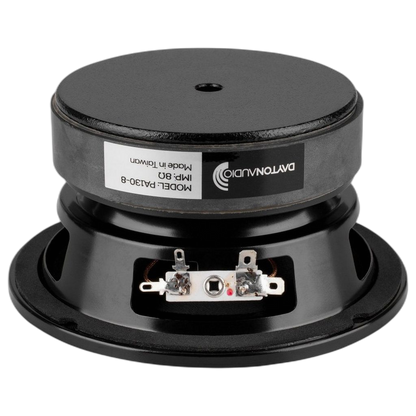

Dayton Audio - 5" Full Range Driver - PA130-8
Dayton Audio - 5" Full Range Driver - PA130-8
Regular price
$58.95
Regular price
Sale price
$58.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
A great low-cost driver designed for use in small stage monitors, either as a replacement driver or for new construction. The broad frequency coverage and flat midrange ensure that vocals and instruments will sound just like they should. Rugged construction includes a steel frame, paper cone, treated cloth surround, vented pole piece and a large 20 oz. magnet.
Features
- Great low-cost driver designed for use in small stage monitors
- Broad frequency coverage and flat midrange ensure that vocals and instruments sound perfect
- Rugged construction
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 5" |
| Nominal impedance | 8Ω |
| Series | Full-Range |
| Power handling (RMS) | 50 W |
| Power handling (program) | 100 W |
| Sensitivity | 88.2 dB |

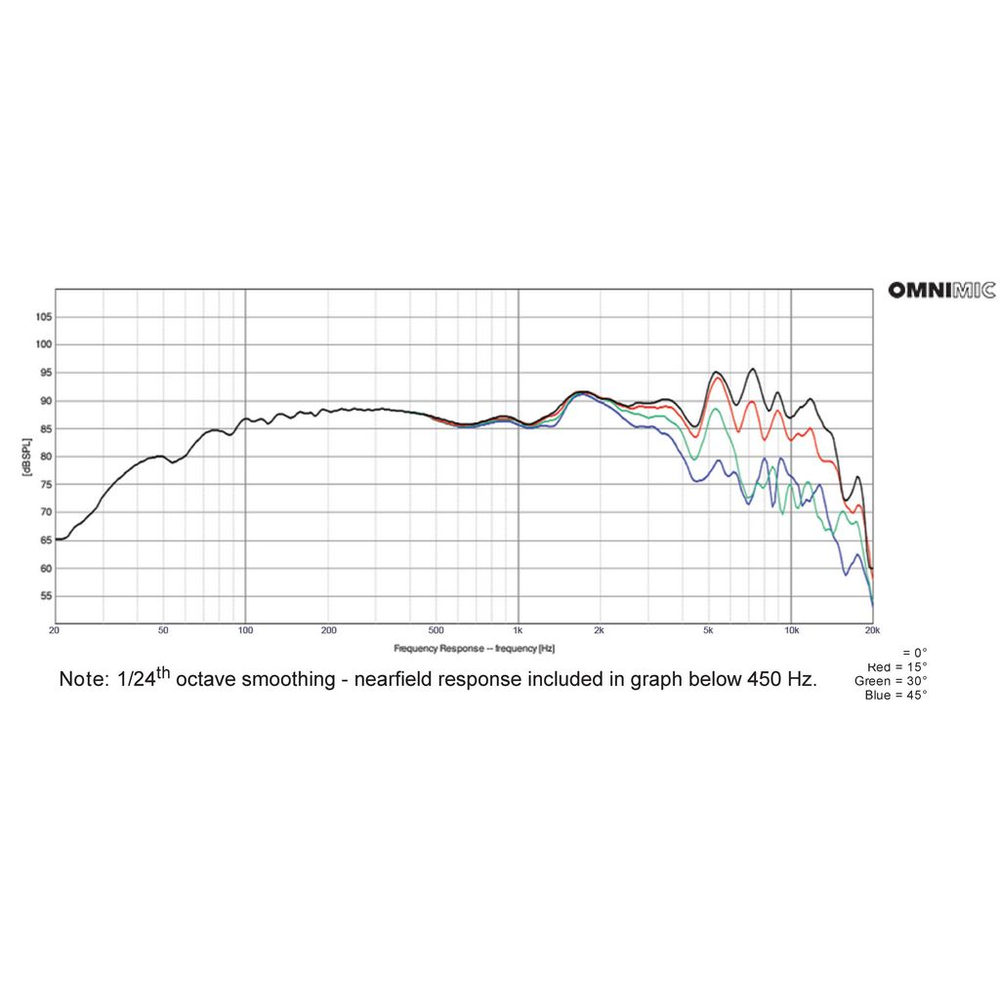

| Frequency range | 90 – 15,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 83.4 Hz |
|---|---|
| DC resistance (Re) | 7.1 Ω |
| Voice coil inductance (Le) | 0.71 mH |
| Mechanical Q (Qms) | 3.21 |
| Electrical Q (Qes) | 0.6 |
| Total Q (Qts) | 0.51 |
| Equivalent volume (Vas) | 3.95 L |
| Compliance (Cms) | 0.54 mm/N |
| Moving mass (Mms) | 6.8 g |
| Mechanical resistance (Rms) | 1.11 kg/s |
| Force factor (Bl) | 6.44 T·m |
| Effective piston area (Sd) | 73.9 cm² |
| Linear excursion (Xmax, one-way) | 2 mm |
| Displacement volume (Vd) | 14.78 cm³ |
| Efficiency bandwidth product (EBP) | 139 |
Motor
| Magnet weight | 0.567 kg |
|---|---|
| Voice coil wire | Copper |

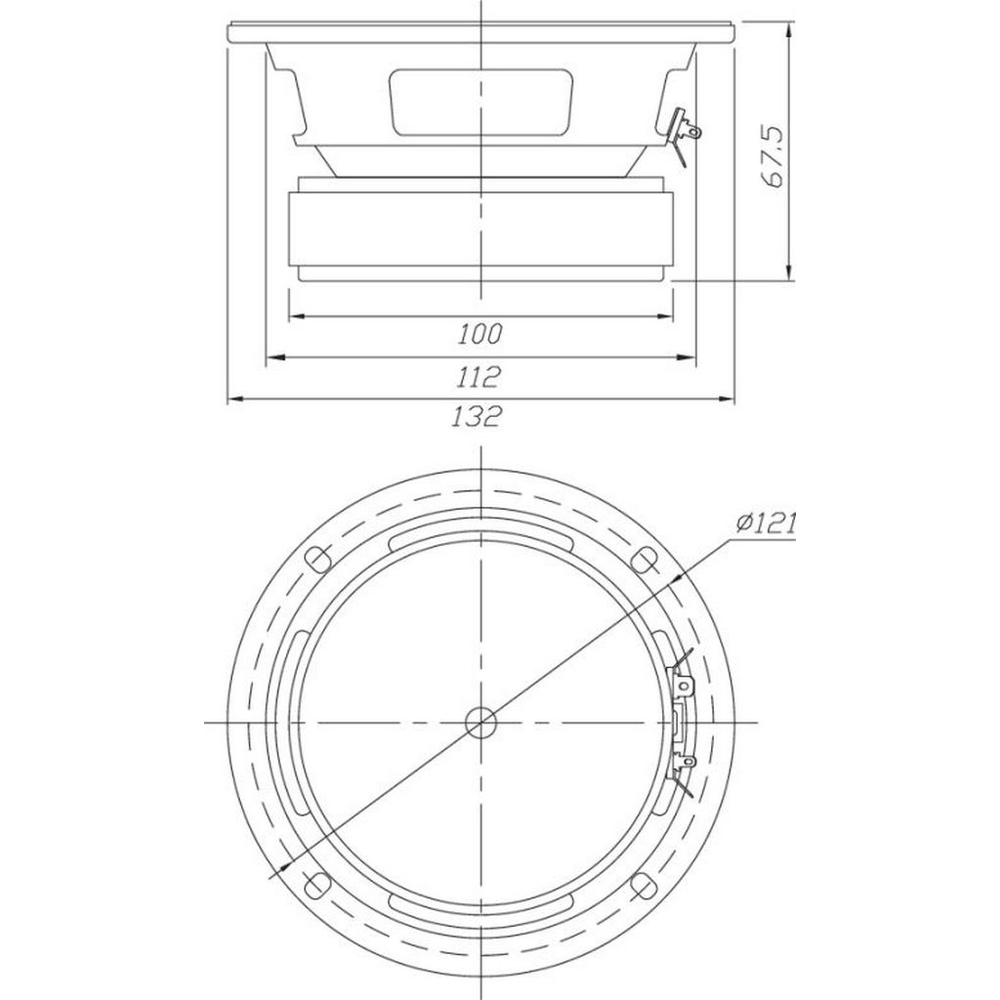

Mounting
| Overall diameter | 132 mm |
|---|---|
| Cutout diameter | 112 mm |
| Mounting depth | 67.5 mm |
| Bolt circle diameter | 121 mm |
| Mounting holes | 4 |
| Voice coil diameter | 25 mm |
| Weight | 1.361 kg |
Materials
| Cone | Paper |
|---|---|
| Surround | Cloth |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- PA130-8 Specification Sheet
- PA130-8 Data Files
- PA130-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
