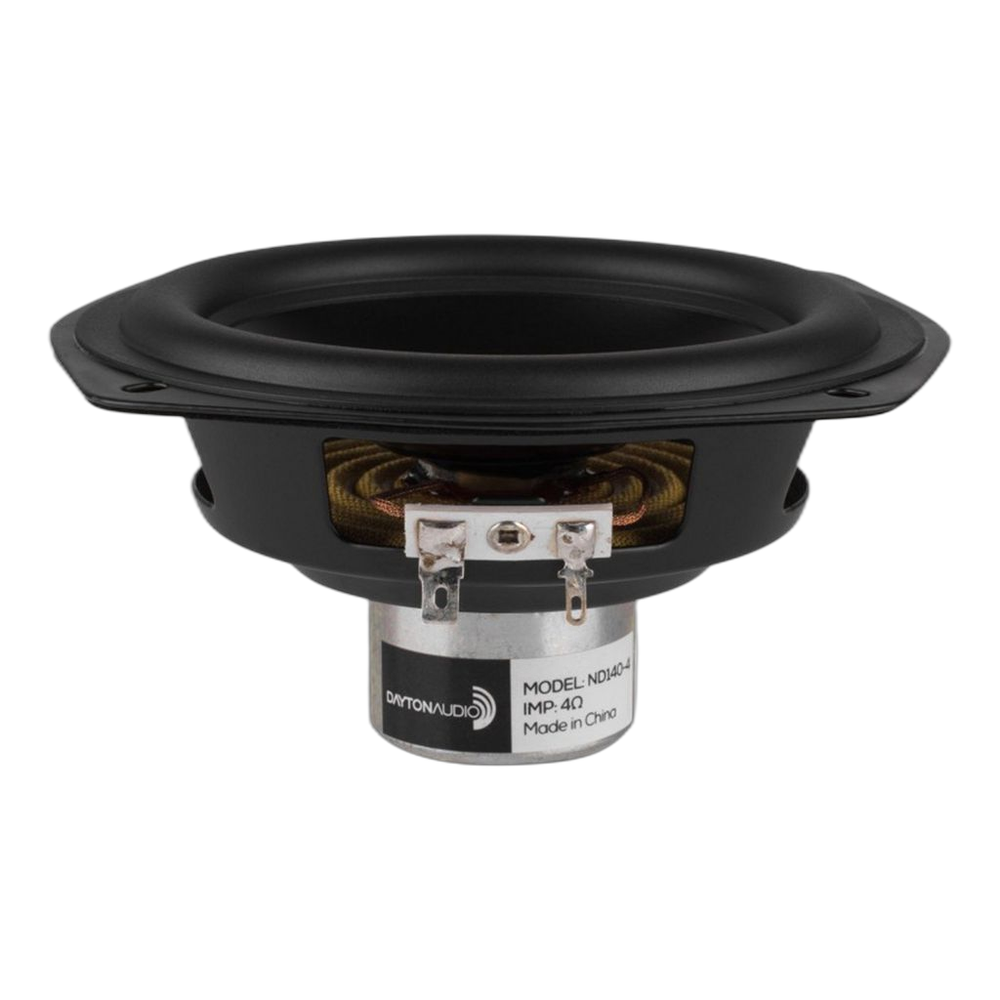

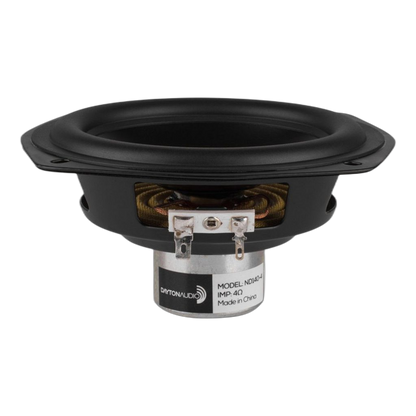

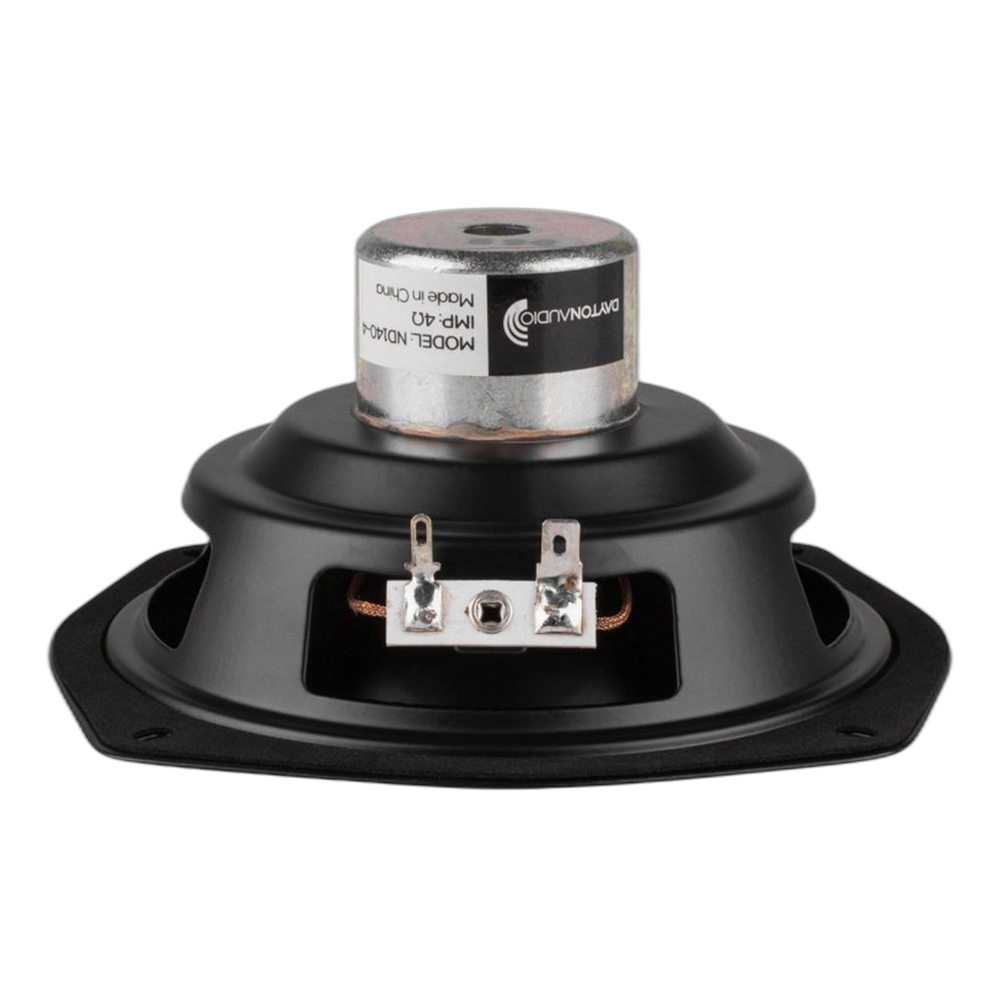

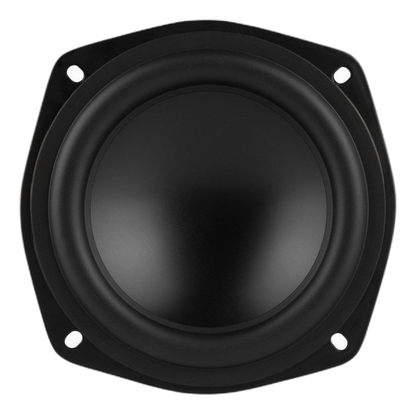

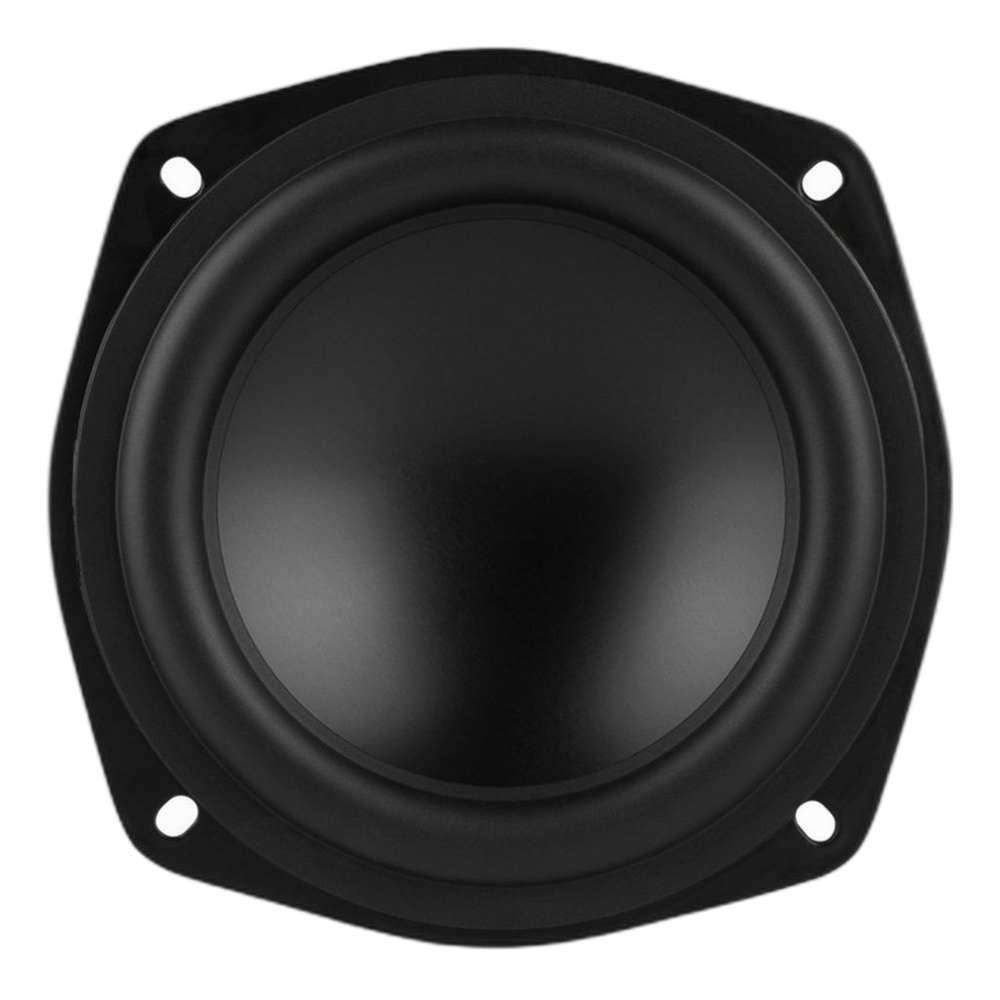

Dayton Audio - 5¼" Midbass Driver - ND140-4
Dayton Audio - 5¼" Midbass Driver - ND140-4
Regular price
$74.95
Regular price
Sale price
$74.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Dayton Audio's 5¼" ND140-8 midbass driver features an efficient, low-distortion Neo-Balanced motor that is combined with a rigid yet lightweight aluminium diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.
Features

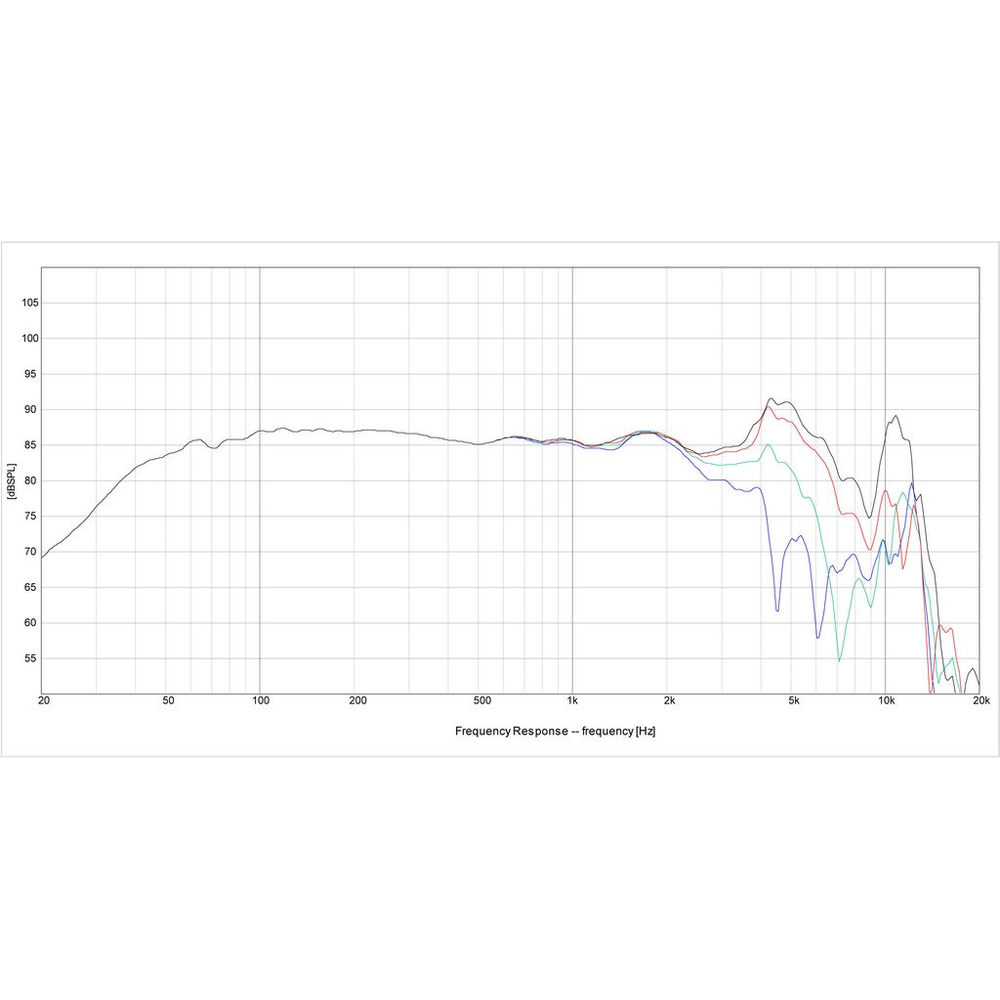

- Extended-range 54 Hz to 8 kHz performance
- Rubber-edged aluminium alloy cone
- Large excursion capability 4 mm Xmax, 20 mm peak
- Self-shielded Neo-Balanced motor structure
- 1" 4-layer underhung voice coil with polyimide former
- 40 watts RMS power handling
Specifications
Specifications
General
| Driver type | Mid-Woofer |
|---|---|
| Nominal size | 5.25" |
| Nominal impedance | 4Ω |
| Series | ND |
| Power handling (RMS) | 40 W |
| Power handling (program) | 80 W |
| Sensitivity | 88.4 dB |
| Frequency range | 54 – 8,000 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 59.2 Hz |
|---|---|
| DC resistance (Re) | 3.7 Ω |
| Voice coil inductance (Le) | 0.79 mH |
| Mechanical Q (Qms) | 5.35 |
| Electrical Q (Qes) | 0.72 |
| Total Q (Qts) | 0.63 |
| Equivalent volume (Vas) | 7.22 L |
| Compliance (Cms) | 0.71 mm/N |
| Moving mass (Mms) | 10.1 g |
| Mechanical resistance (Rms) | 0.7022 kg/s |
| Force factor (Bl) | 3.9 T·m |
| Effective piston area (Sd) | 86.6 cm² |
| Linear excursion (Xmax, one-way) | 4 mm |
| Displacement volume (Vd) | 34.64 cm³ |
| Efficiency bandwidth product (EBP) | 82.22 |

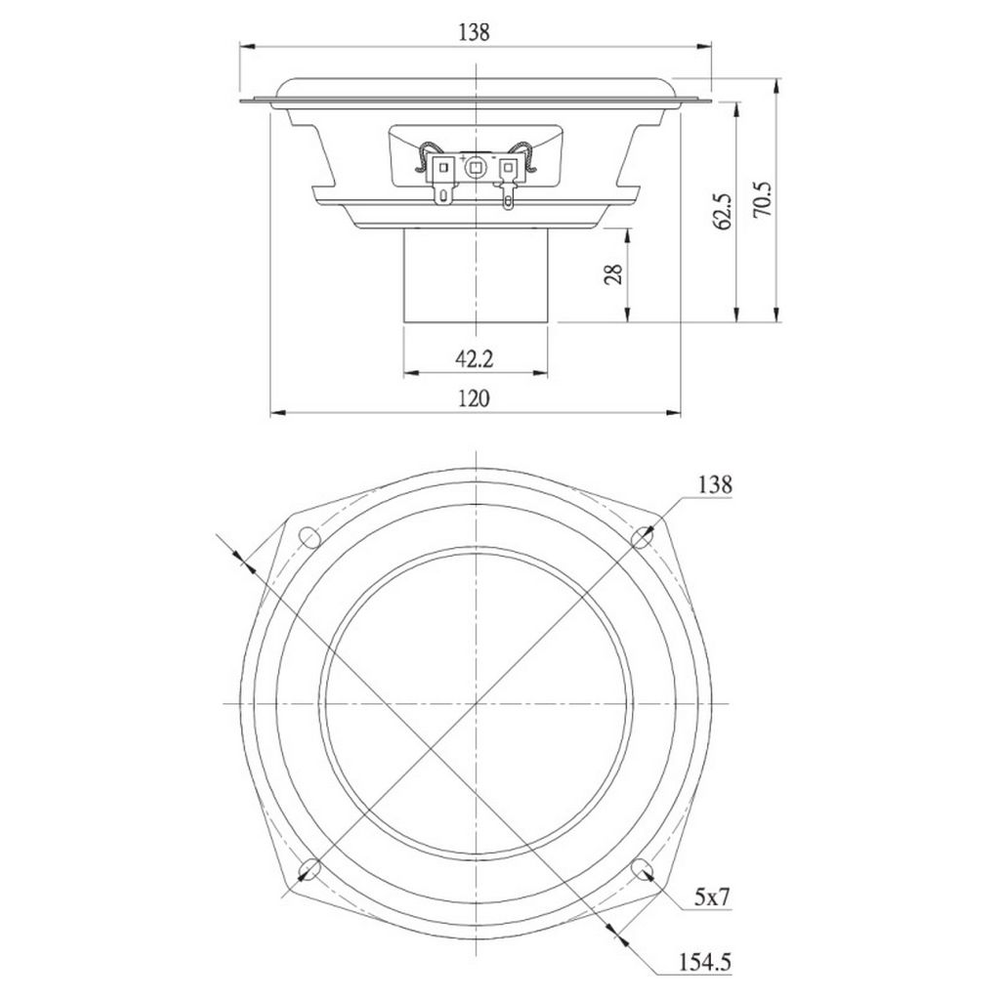

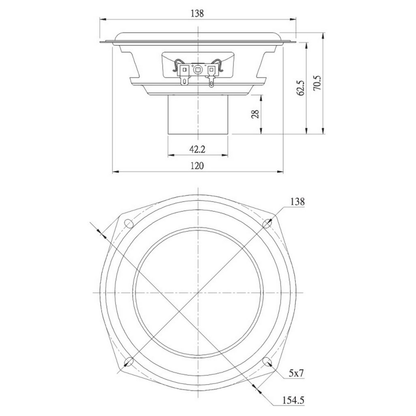

Mounting
| Overall diameter | 154.5 mm |
|---|---|
| Faceplate | Not round (see the maker's drawing) |
| Cutout diameter | 120 mm |
| Mounting depth | 62.5 mm |
| Voice coil diameter | 25.4 mm |
| Weight | 0.4536 kg |
| Mounting holes | 4 |
Materials
| Cone | Black Anodised Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Kapton Polyimide |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- ND140-4 Specifications Sheet
- ND140-4 Data Files
- ND140-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
