Dayton Audio

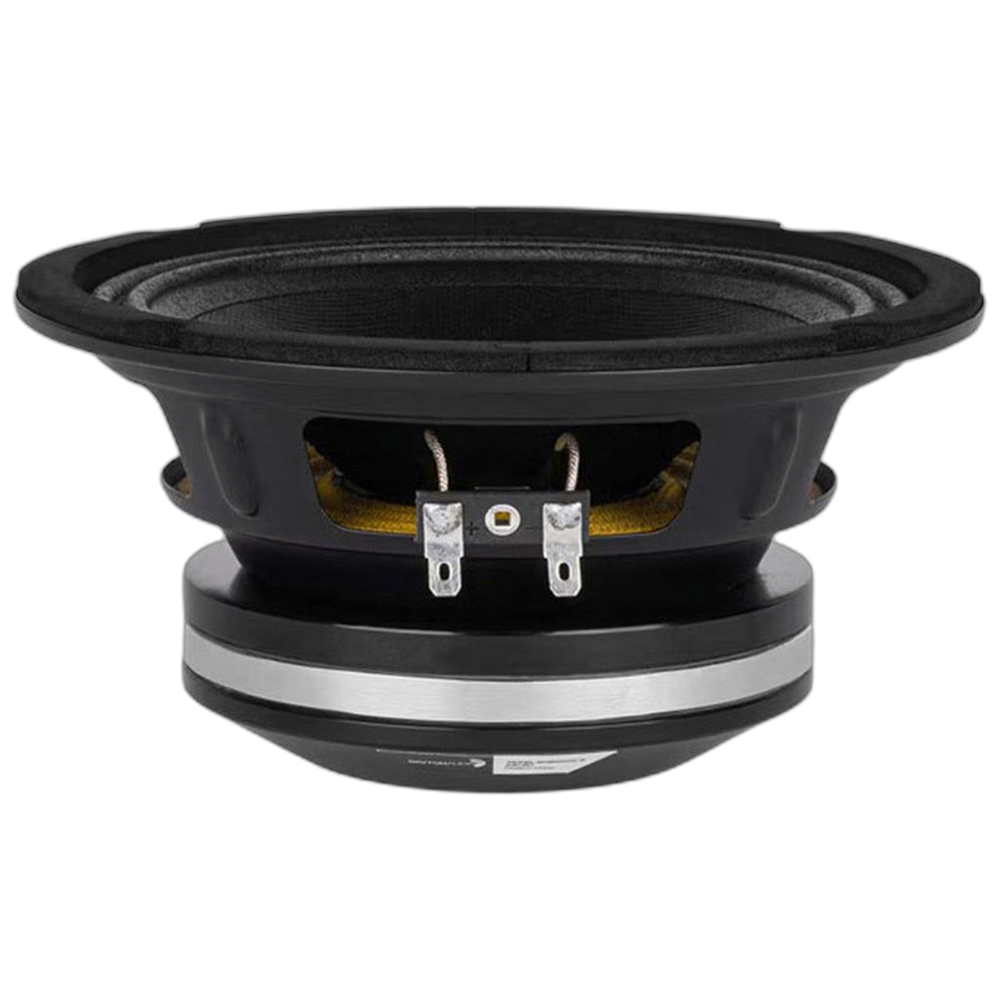

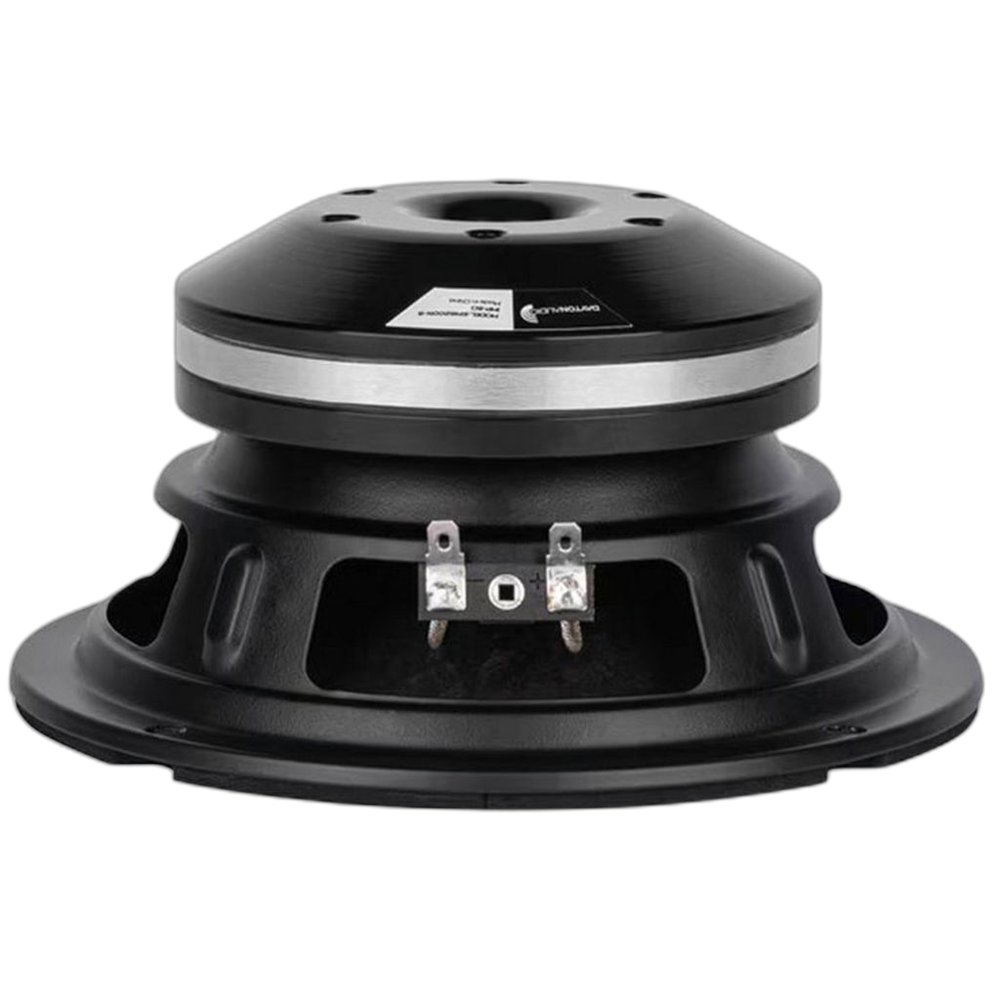

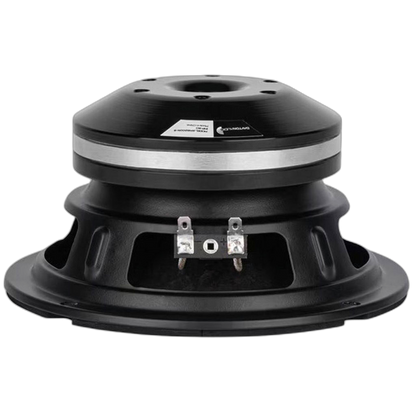

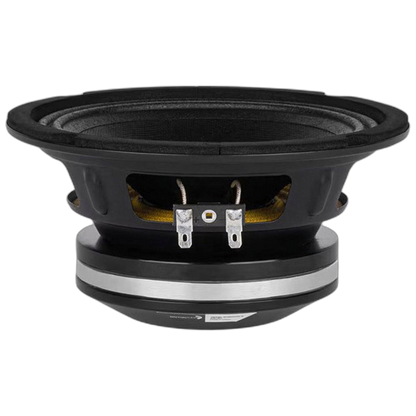

Dayton Audio - 5" Odeum Mid-Woofer Neo - 6MB200N-8
Dayton Audio - 5" Odeum Mid-Woofer Neo - 6MB200N-8
Regular price
$274.95 AUD
Regular price
Sale price
$274.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Dayton Audio ODEUM series 6½" midwoofer outperforms stock woofers in PA systems. The powerful 1200W Pro driver features a neodymium motor, a 2" voice coil with a fibreglass former, and a copper inductance cap to lower distortion. A paper cone with cloth M-roll surrounds provides a neutral tone that is easy to tune, and peripheral venting helps keep the whole system cool when playing.
Features
- Powerful neodymium motor for superior output.
- Copper inductance cap for low distortion.
- Paper cone and cloth m-roll surround for high clarity, smooth response, and linear excursion for pounds of punch.
- 2" inside/outside wound copper voice coil leads on fibreglass former lend solid power handling capability.
- Under spider and rear periphery venting allow for a cooler running voice coil.
- Low Qts means high damping and smaller boxes.
Specifications
| Bl | 14.94Tm |
|---|---|
| Cms | 0.141mm/N |
| Coil | 50.8mmØ |

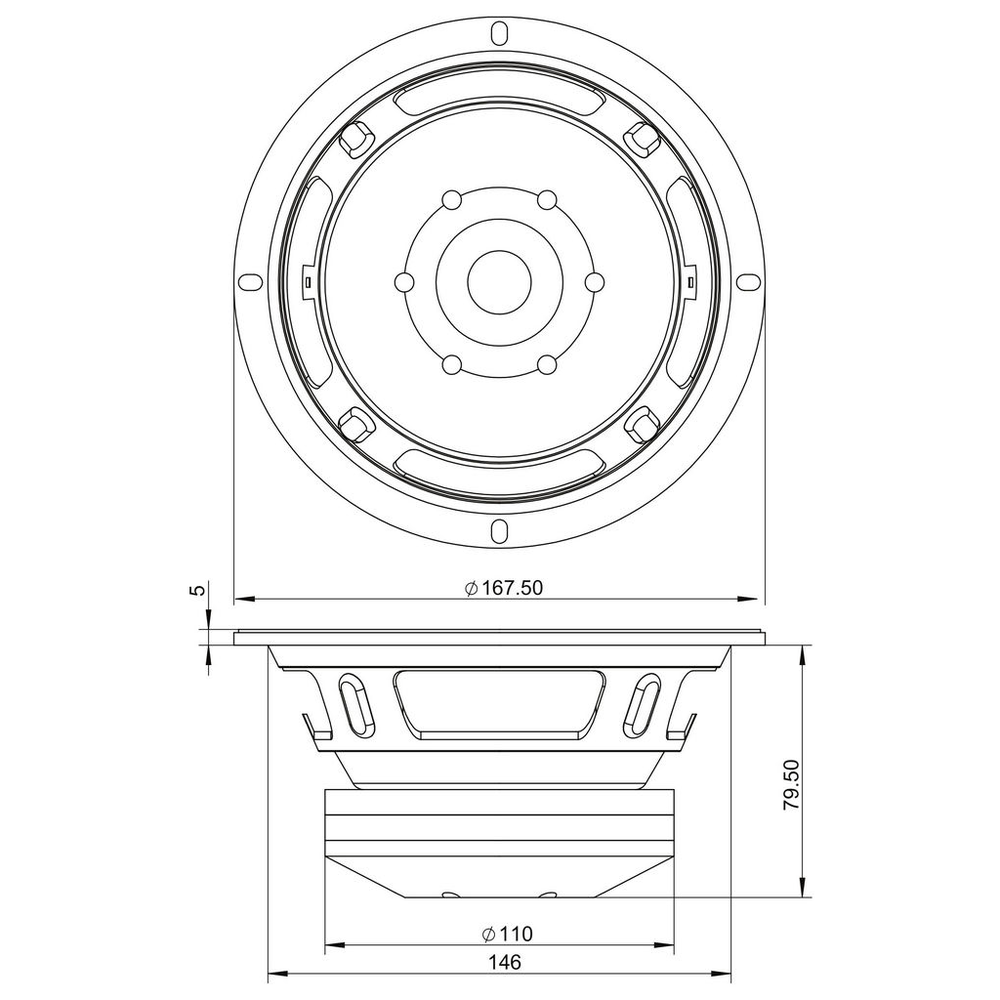

| Diam. | 168mmØ |

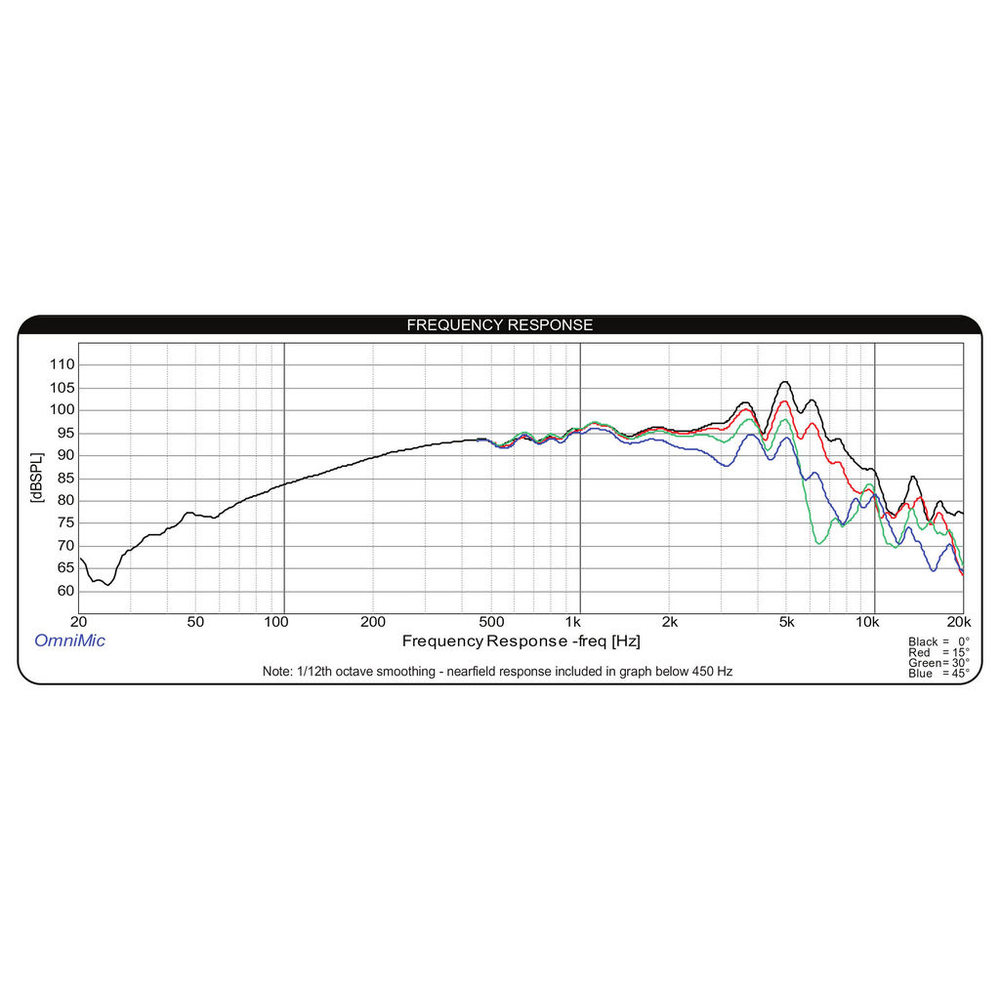

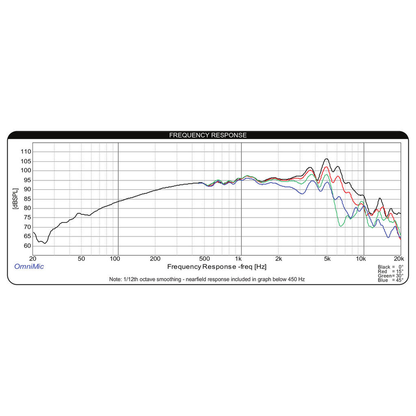

| Freq. | 90-8kHz |
| Fs | 102.9Hz |
| Hole | 146mmØ |
| Impedance | 8Ω Re 6.1Ω |
| Le | 1.29mH |
| Mag. | Neodymium |
| Manufacturer | Dayton Audio |
| Material | Paper |
| Mms | 16.92g |
| Power | 200Wrms |
| Qes | 0.29 |
| Qms | 8.02 |
| Qts | 0.28 |
| Re | 6.1Ω |
| Sd | 132.67cm² |
| Sens. | 94.4dB |
| Series | Odeum |
| Size | 6.5' |
| SPL | 94.4dB |
| Type | Midbass |
| Vas | 3.497L |
| VC | 50.8mmØ |
| Vd | 49.43cm³ |
| Xmax | 3.77mm |
| Zn | 8Ω |
