Dayton Audio

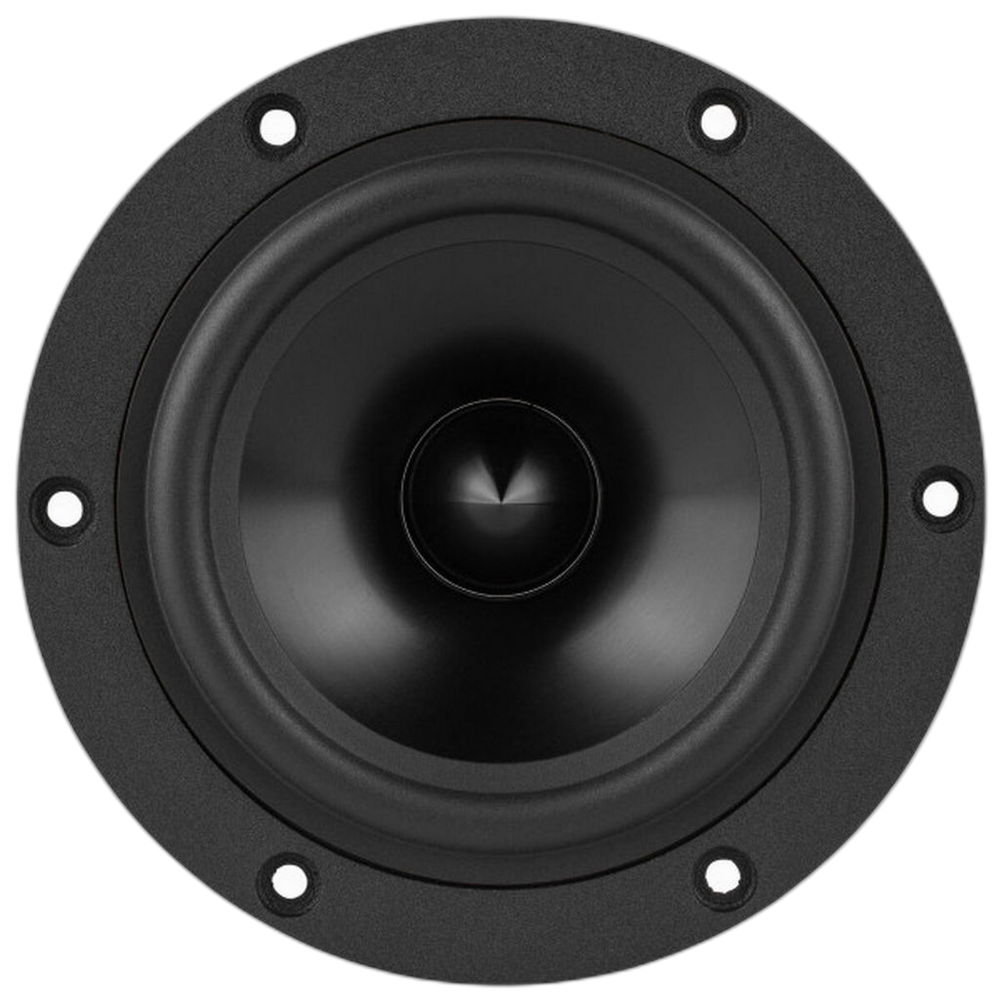

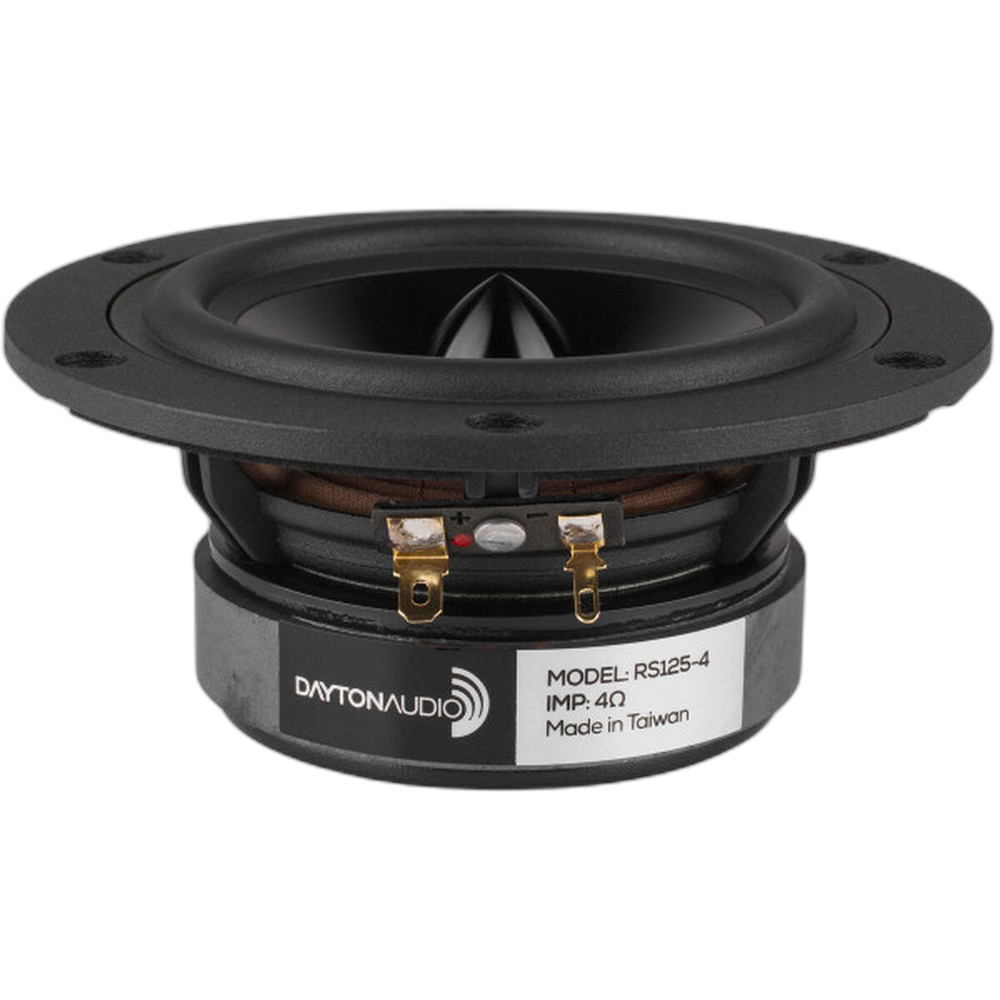

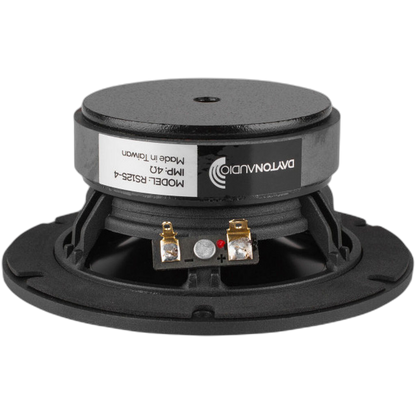

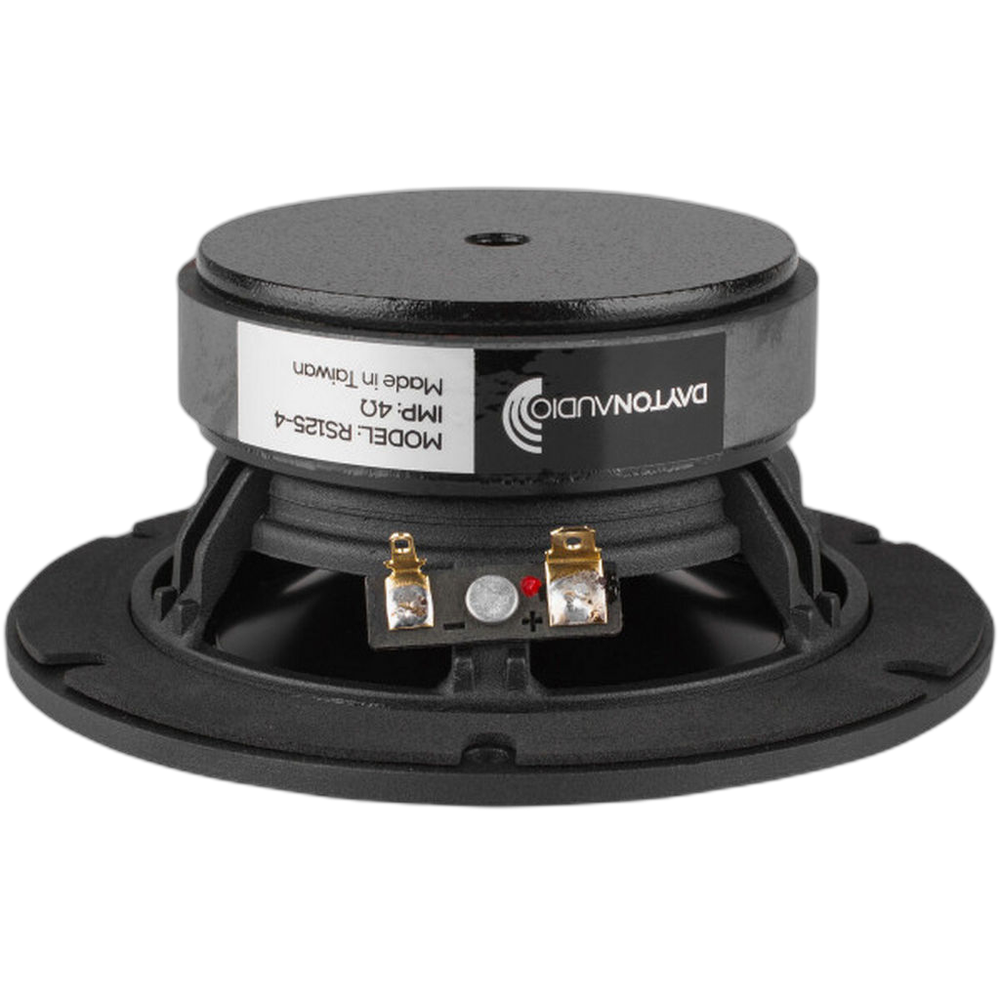

Dayton Audio - 5" Reference Woofer - RS125-4
Dayton Audio - 5" Reference Woofer - RS125-4
Regular price
$104.95 AUD
Regular price
Sale price
$104.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The 5" Reference Series Woofer RS125 features a low-distortion motor system with two short-circuit paths and a rigid aluminium cone. Its low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodised cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminium phase plug, and gold terminals. Available in 4Ω and 8Ω models.
Features
- 5” woofer delivers exceptional clarity, detail, and dynamics.
- Low-distortion high-excursion motor system with two short-circuit paths.
- One of the lowest distortion, highest resolution driver series available.
- Compliant suspension and aluminum cone for strong bass performance.
- 6-hole cast frame, low-loss rubber surround, and solid aluminium phase plug.
Specifications
| Cms | 1.35mm/N |
|---|---|
| Coil | 25mmØ |

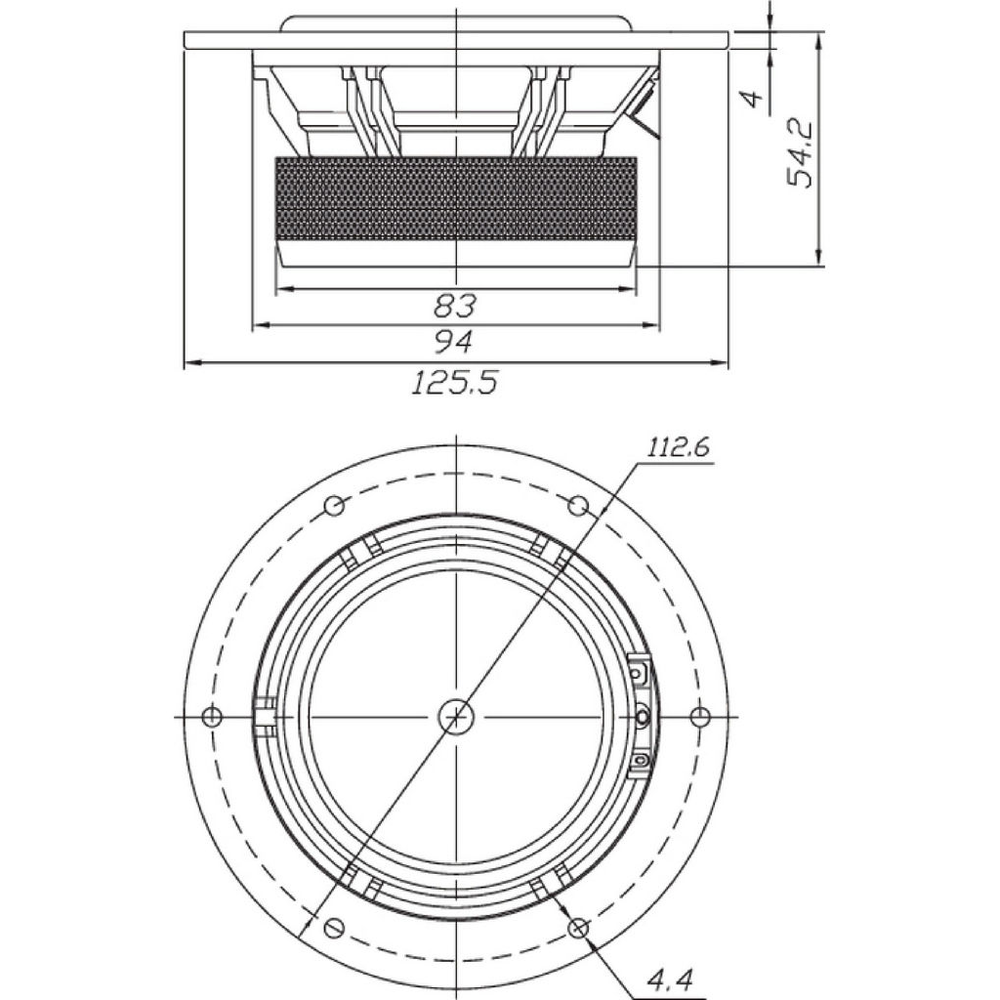

| Diam. | 126mmØ |
| Fs | 57.2Hz |
| Hole | 94mmØ |
| Impedance | 4Ω Re 2.9Ω |
| Le | 0.28mH |
| Manufacturer | Dayton Audio |
| Mms | 5.7g |
| Power | 30Wrms |
| Qes | 0.45 |
| Qms | 2.04 |
| Qts | 0.37 |
| Re | 2.9Ω |
| Sd | 52.8cm² |
| Sens. | 89.9dB |
| Series | Reference Series |
| Size | 5' |
| Type | Woofer |
| Vas | 5.29L |
| Zn | 4Ω |
