50mm Round Terminal Cup - CUP2-15/16

50mm Round Terminal Cup - CUP2-15/16

$11.95 AUD
$11.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

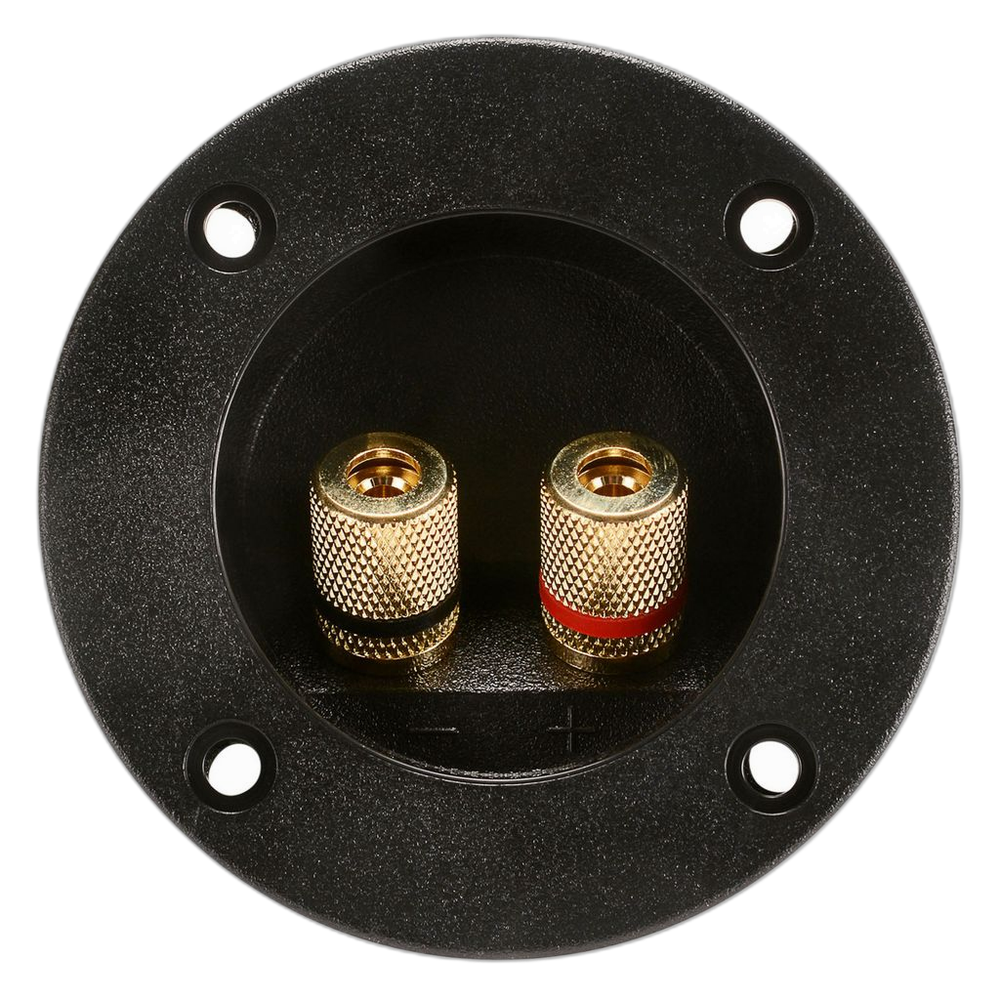

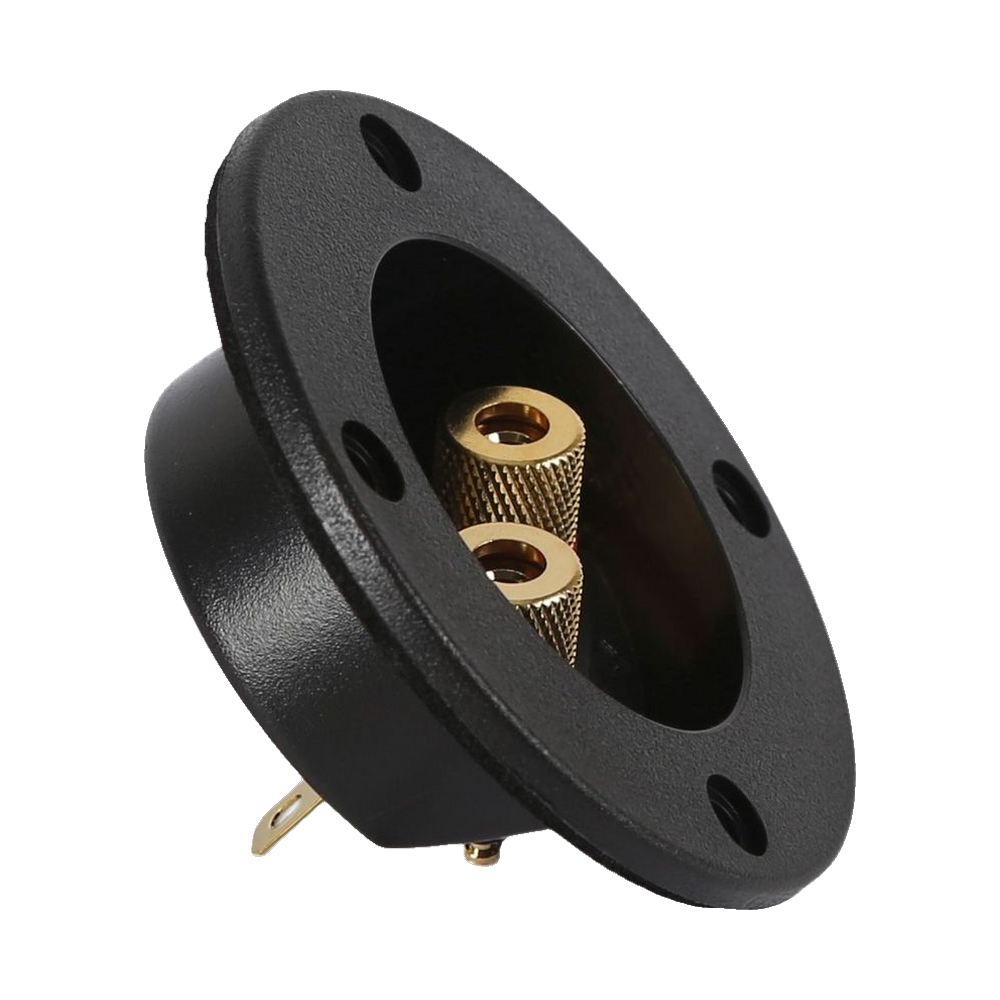

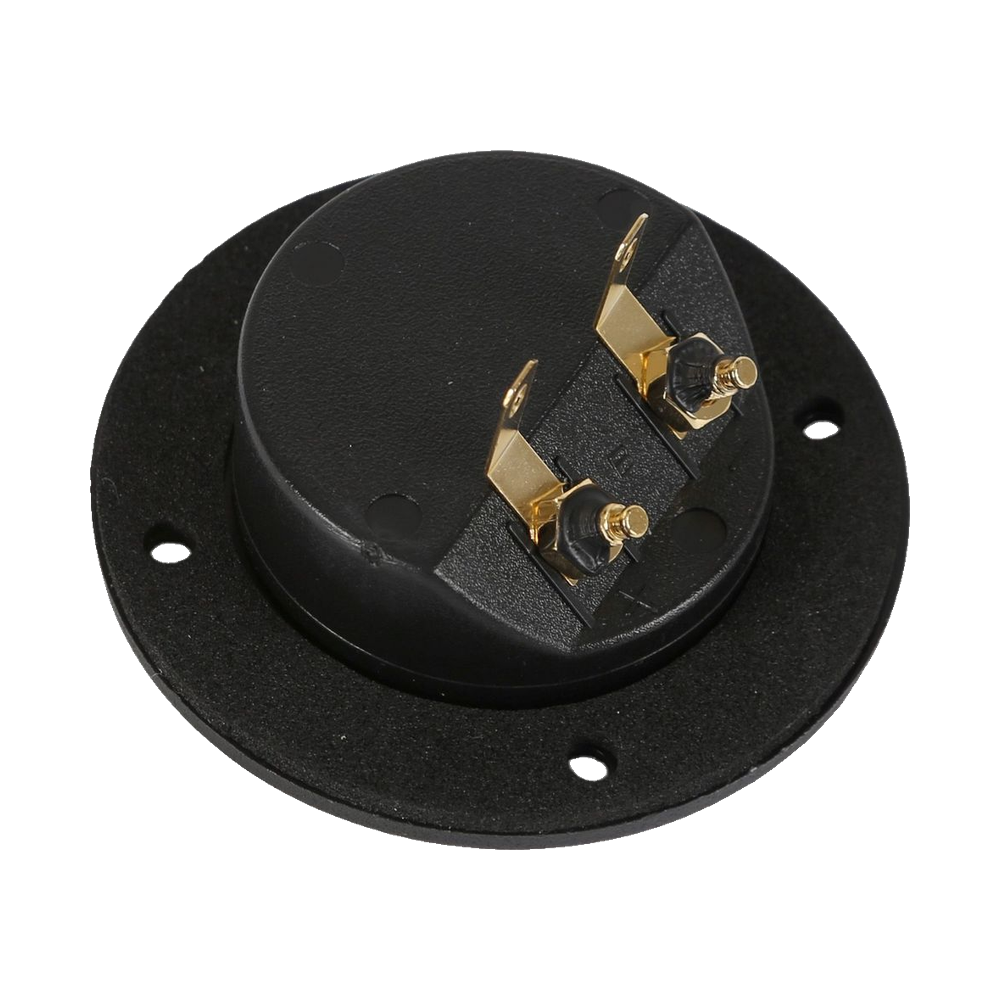

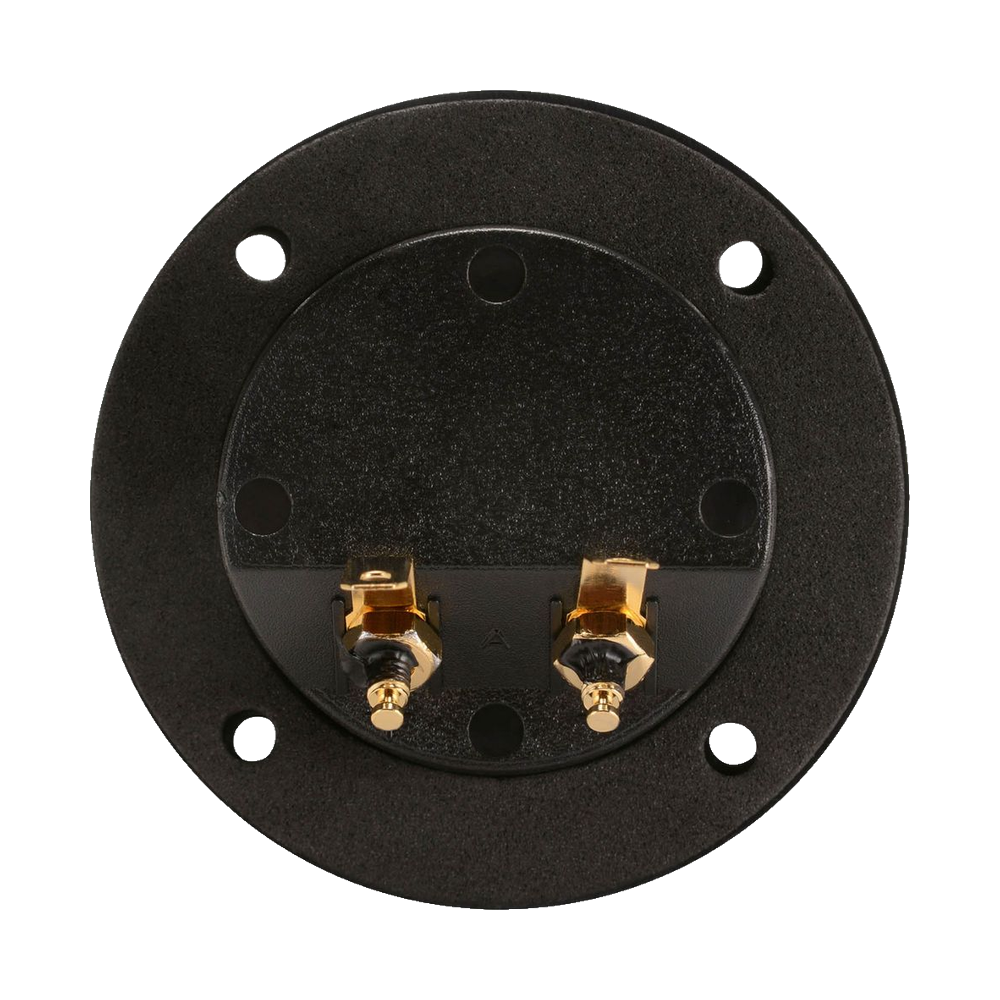

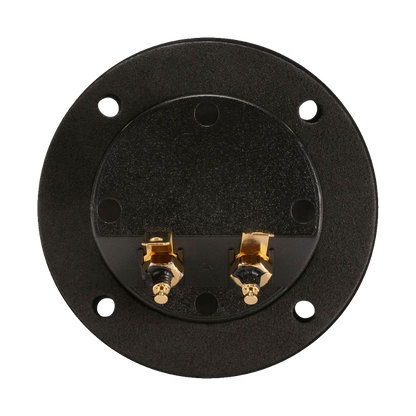

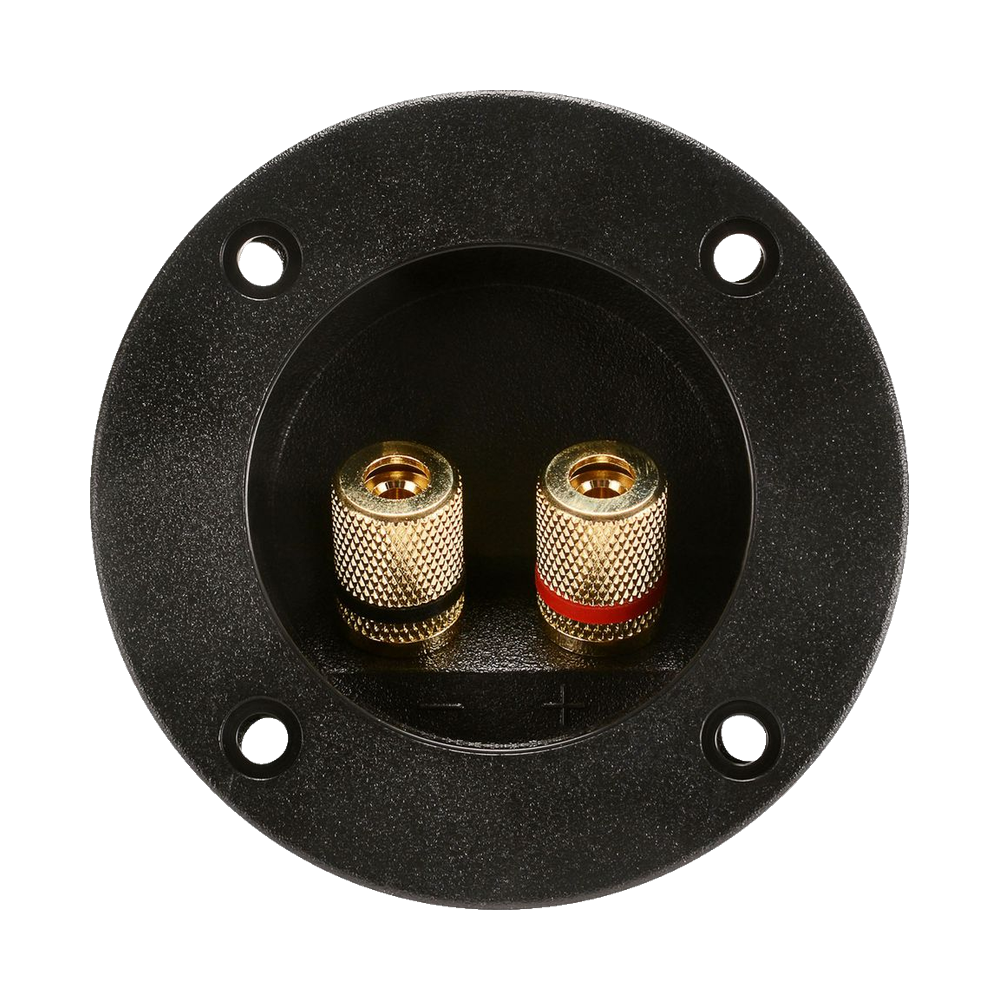

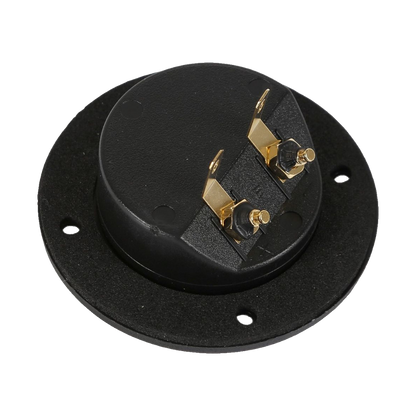

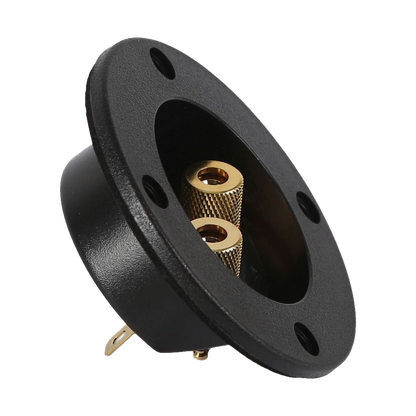

  • Round recessed panel with gold plated posts and knurled knobs.
  • Colour coded.
  • Accepts up to 8 gauge wire.
  • Can also be used with dual banana plugs.

Specifications

Cutout Size 50.8mmØ
Size 23x75mmØ

Specifications

Mounting

Cutout Ø50.8 mm (2")
Depth inside the box 20.1 mm (computed from the drawing)

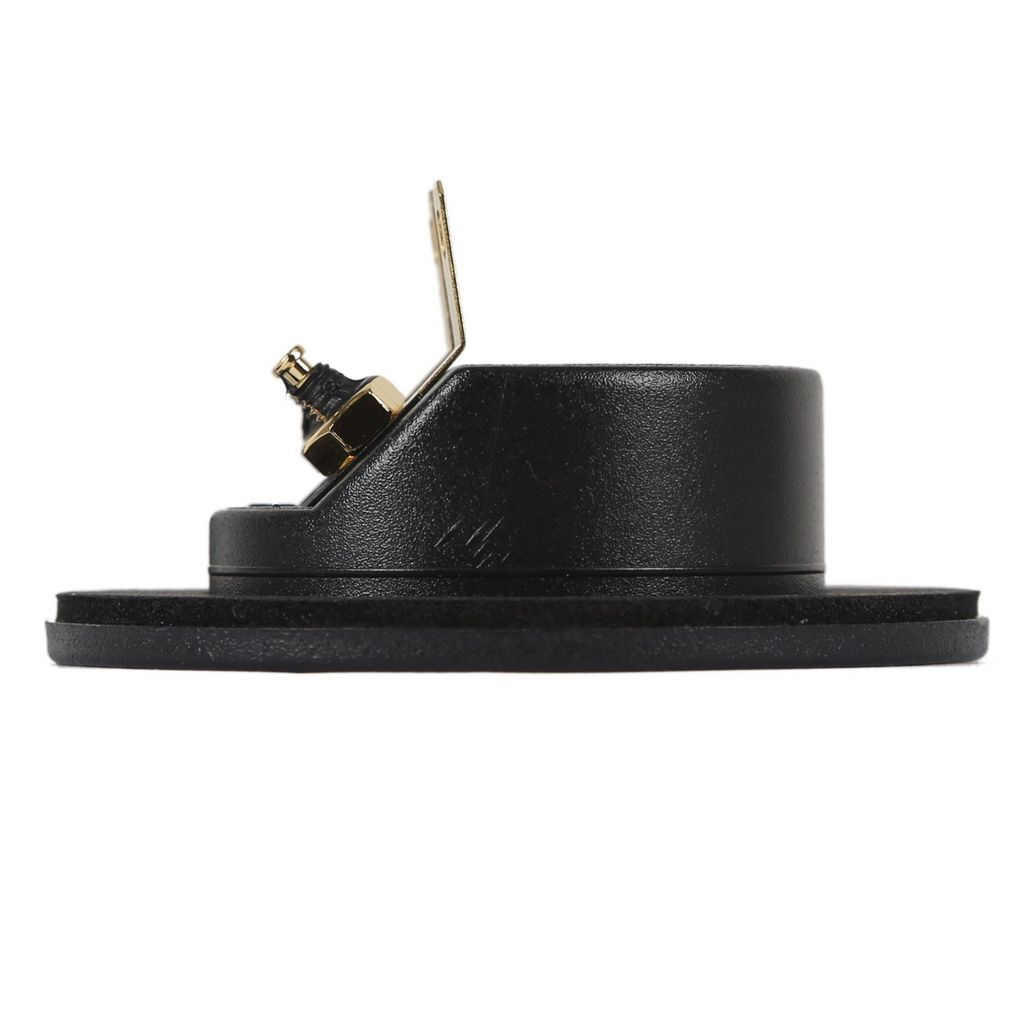

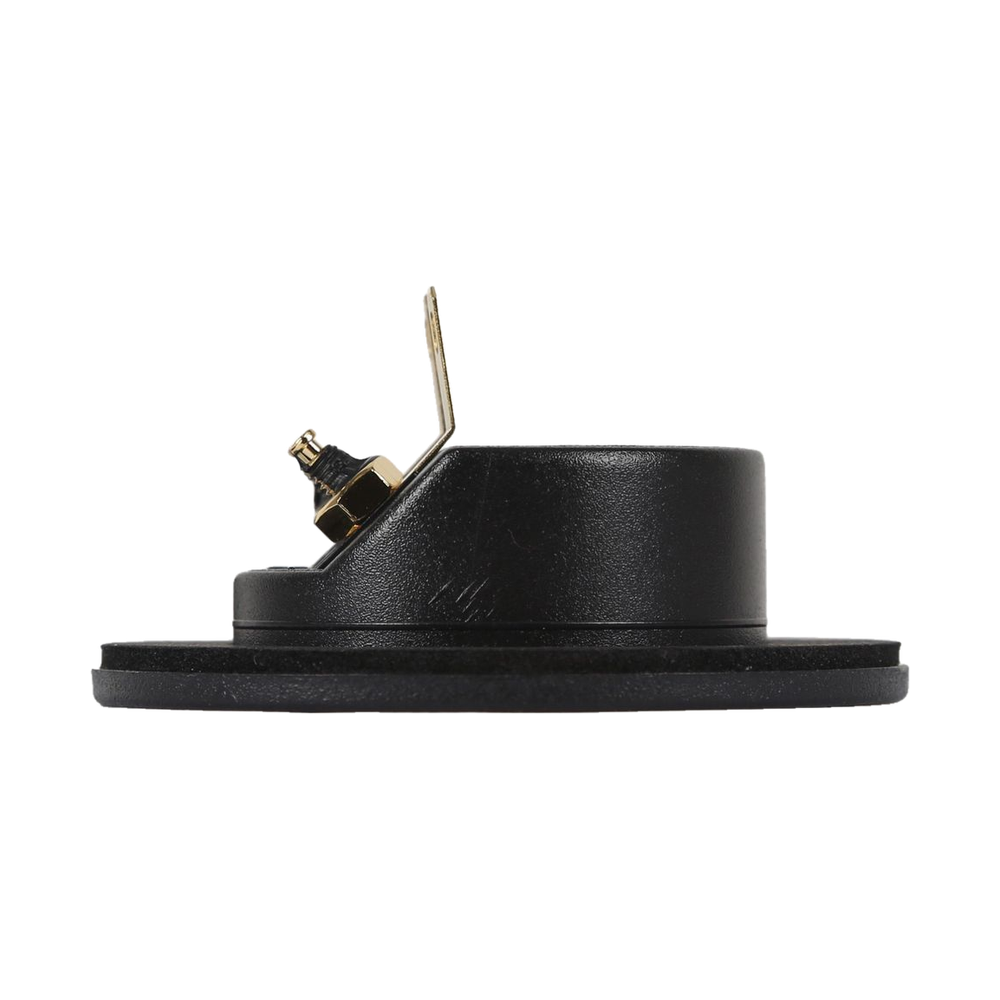

Overall depth (flange included) 23.42 mm

Size

Flange Ø74.9 mm, 3.3 mm thick
Body Ø49 mm
Screw holes 4, on a 61.28 mm circle
Posts 2, 19 mm apart
Gasket Included
  • Figures from the maker's drawing and page. Depth inside the box is computed from the drawing: the overall depth less the flange.
