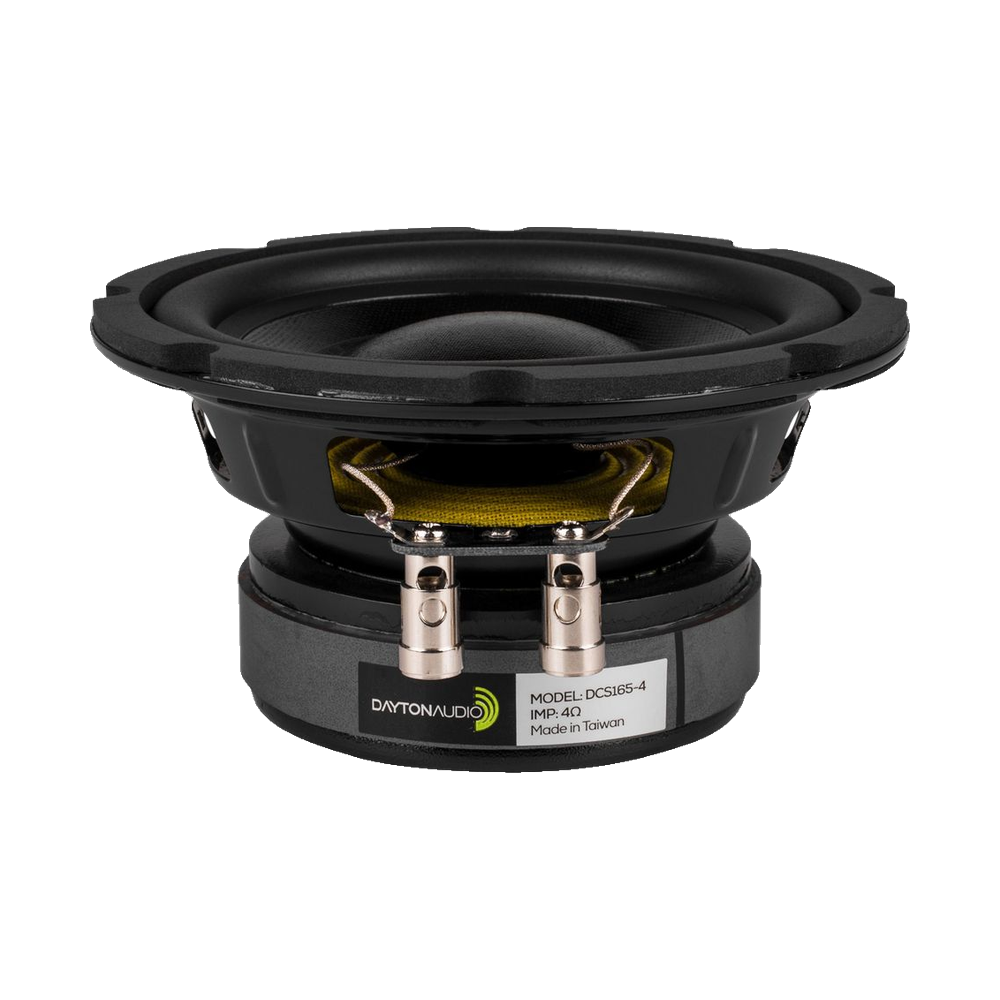

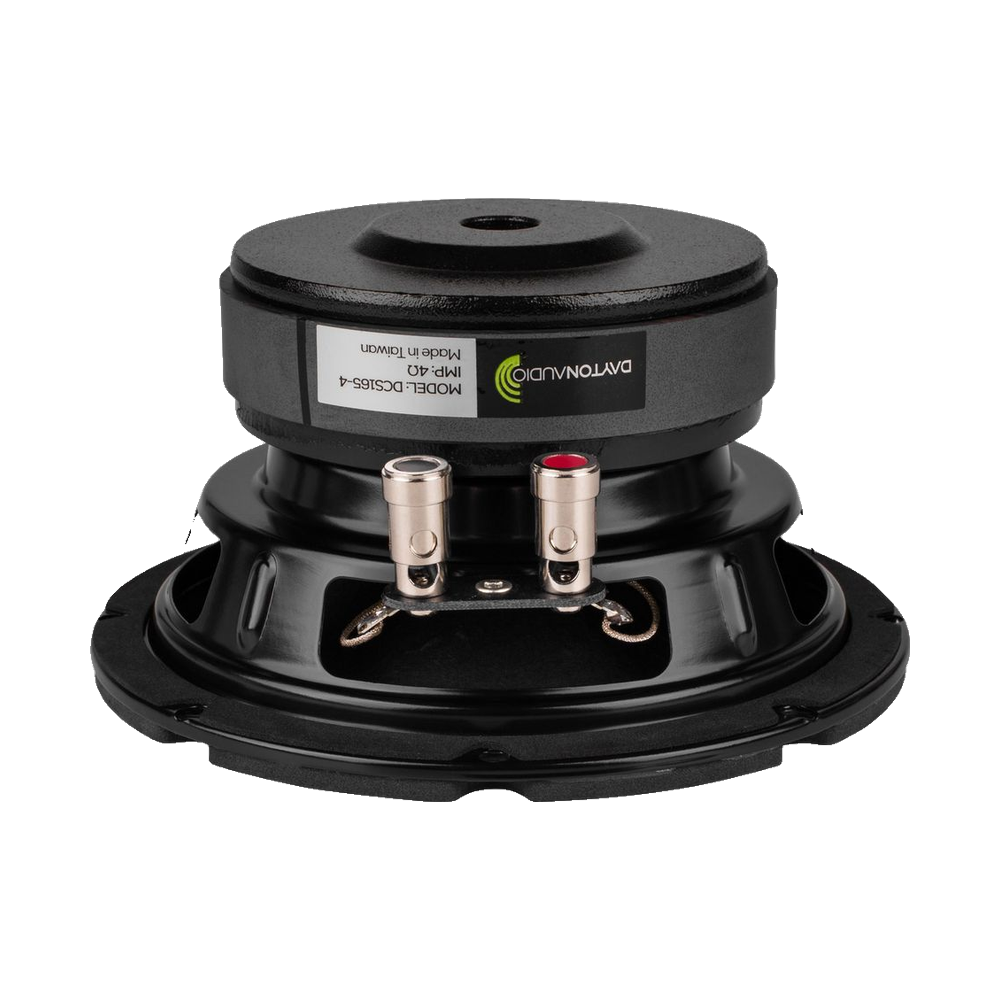

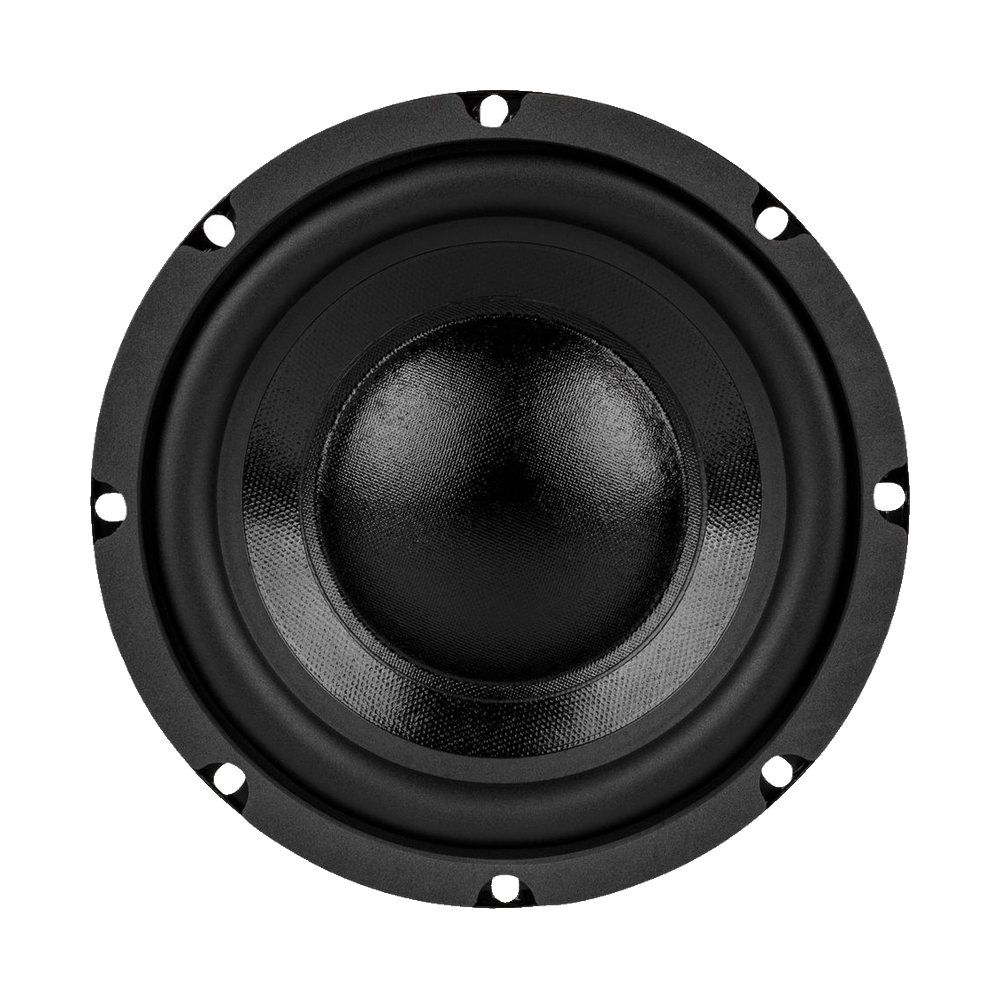

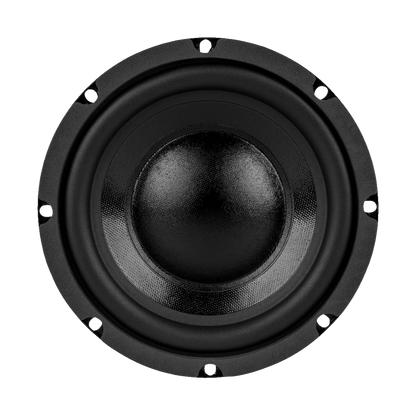

Dayton Audio - 6.5" Classic Subwoofer - DCS165-4
Dayton Audio - 6.5" Classic Subwoofer - DCS165-4
Description:
Capable of impressive low end when installed in enclosures of less than 0.5 cubic feet, the DCS165-4 6-1/2" subwoofer from Dayton Audio's Classic Series is the perfect low cost solution for compact low frequency designs.
Dayton Audio's rugged DCS165-4 6-1/2" subwoofer has all of the performance-enhancing attributes you would expect from a larger high-output subwoofer. With a vented pole piece and 4 ohm, 4-layer voice coil, this driver can handle up 100 watt RMS. The non-pressed paper cone is reinforced with Kevlar to increase stiffness, which promotes linear travel through the limits of its excursion. In addition, the pole piece includes a copper cap that keeps inductance to a minimum. The DCS165-4 driver is ideal for use in small multimedia speakers, portable speakers, or even automotive systems where space is at a minimum.
Features:
- 4-layer VC with polyimide former allows high power handling
- Vented pole piece and bumped back plate provide plenty of VC travel with minimal compression
- Copper pole piece cap minimizes inductance
- Rigid non-pressed treated paper/Kevlar cone with rubber surround
- Great for home and automotive applications
Specifications:
Code | DCS165-4 |
Description | 6½" Classic Subwoofer 4 Ohm |
Type | Subwoofer |
Size | 6.5" |
Power | 100W |
Coil | 38.5mmØ |
Impedance | 4Ω (Re 3.4Ω) |
Depth | 83mm |
Sens. | 87.4dB |
Re | 3.4Ω |
Qms | 6.62 |
Qes | 0.36 |
Qts | 0.34 |
Vas | 12.1L |
Sd | 124.7cm² |
Cms | 0.5mm/N |
Fs | 35.7Hz |
Mms | 39.5g |
Zn | 4Ω |
Le | 1.43mH |
Diam. | 167mmØ |
Manufacturer | Dayton Audio |
Impedance (Ohm) | 4 ohm |
Power (RMS) | 51-100 Watt |
Inch | 6.5 |
Series | Classic |
Hole | 143mmØ |
Prms | 100W |
