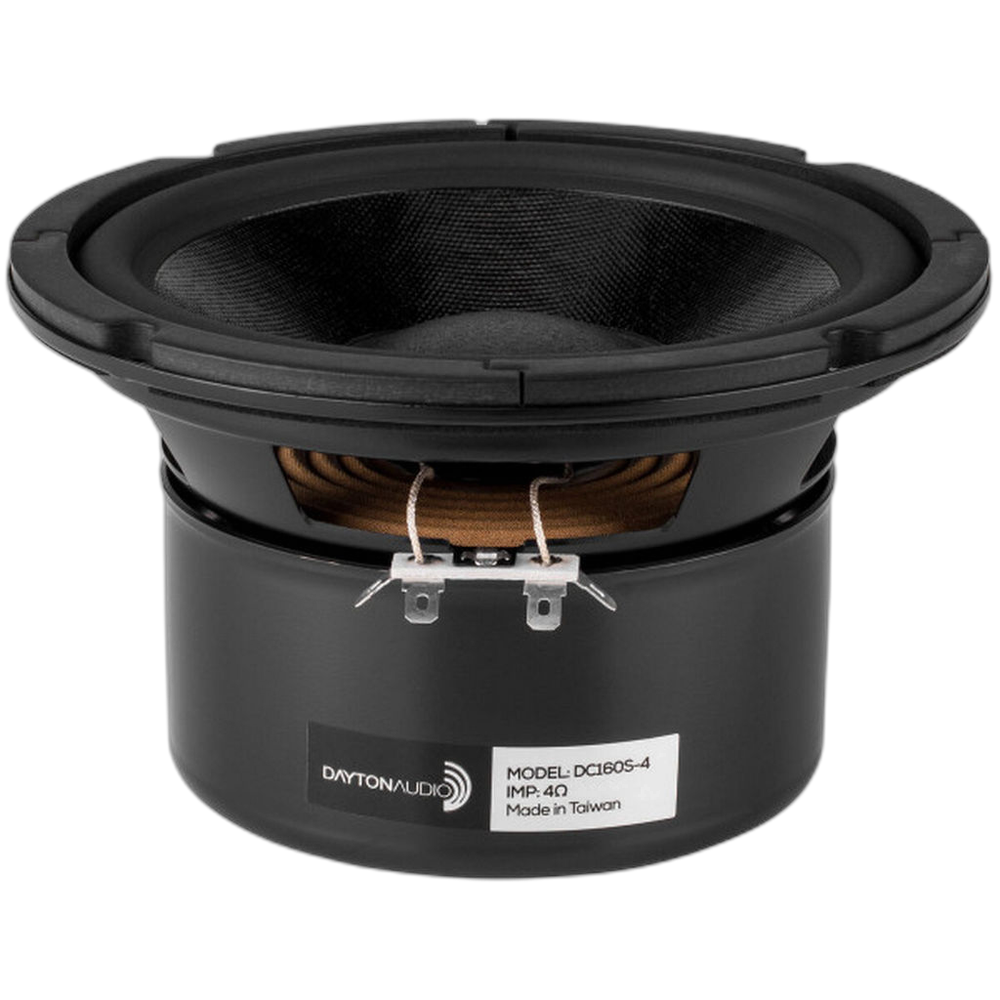

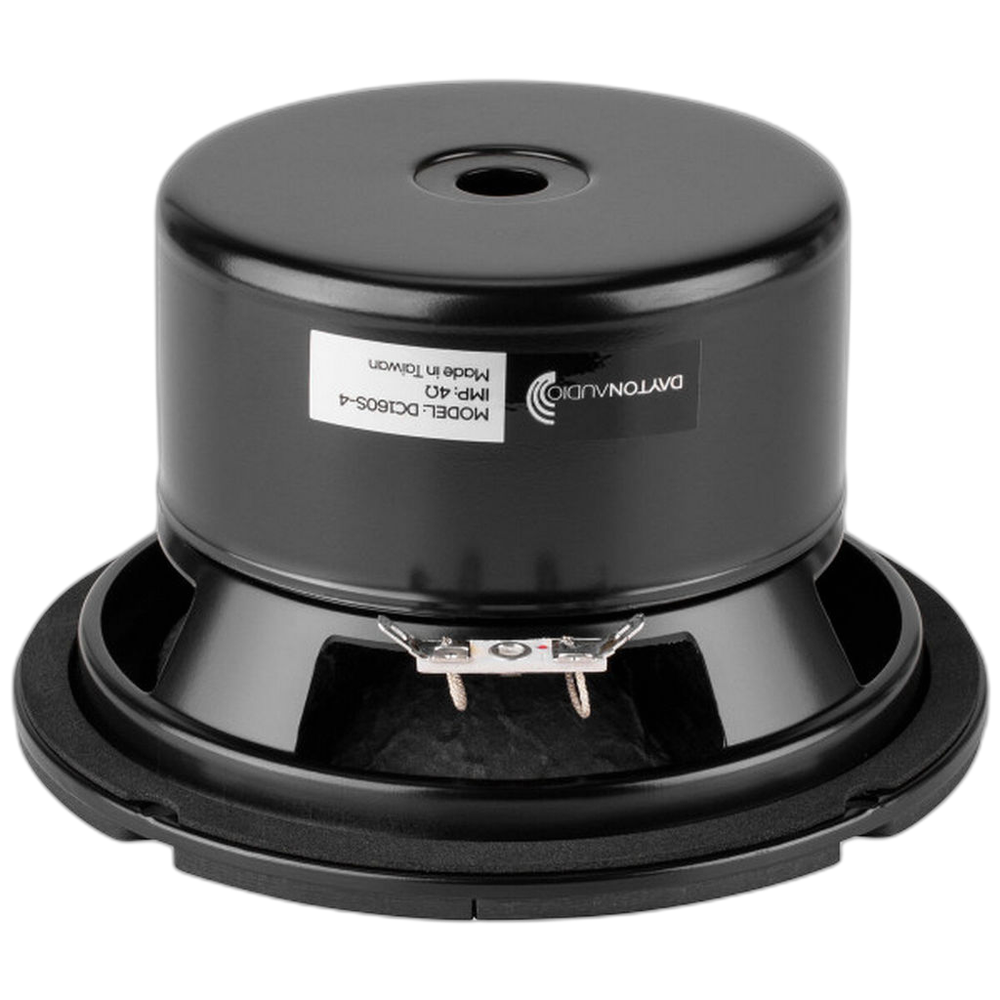

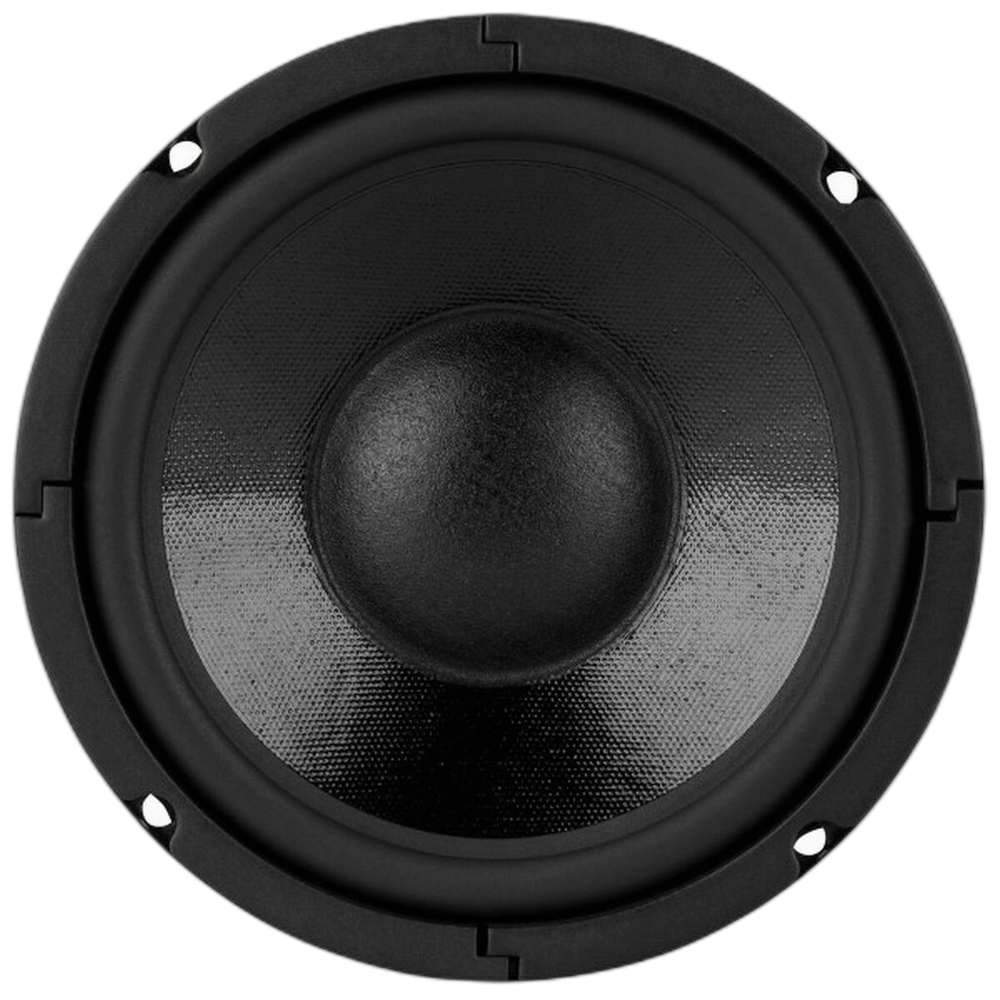

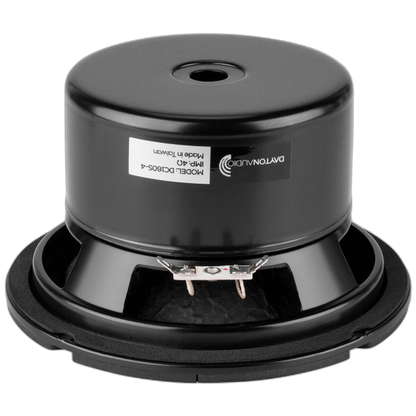

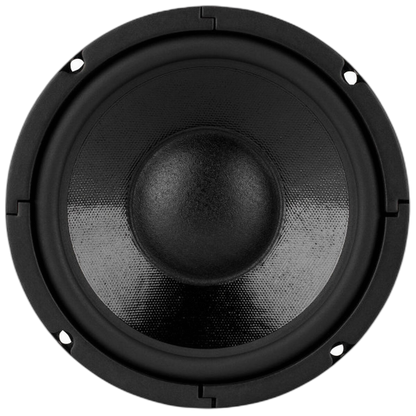

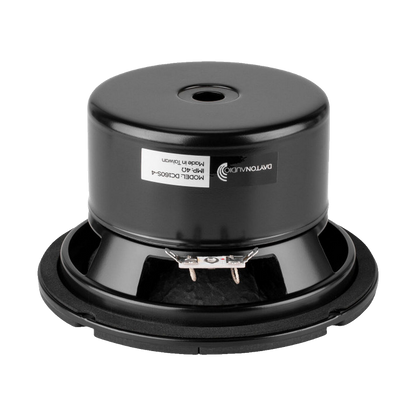

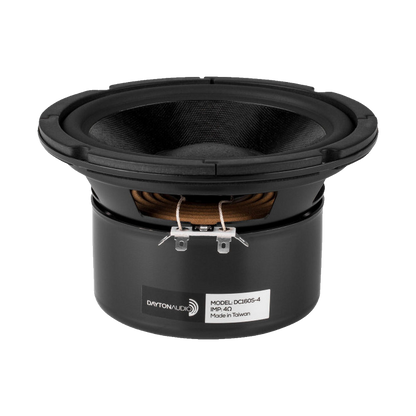

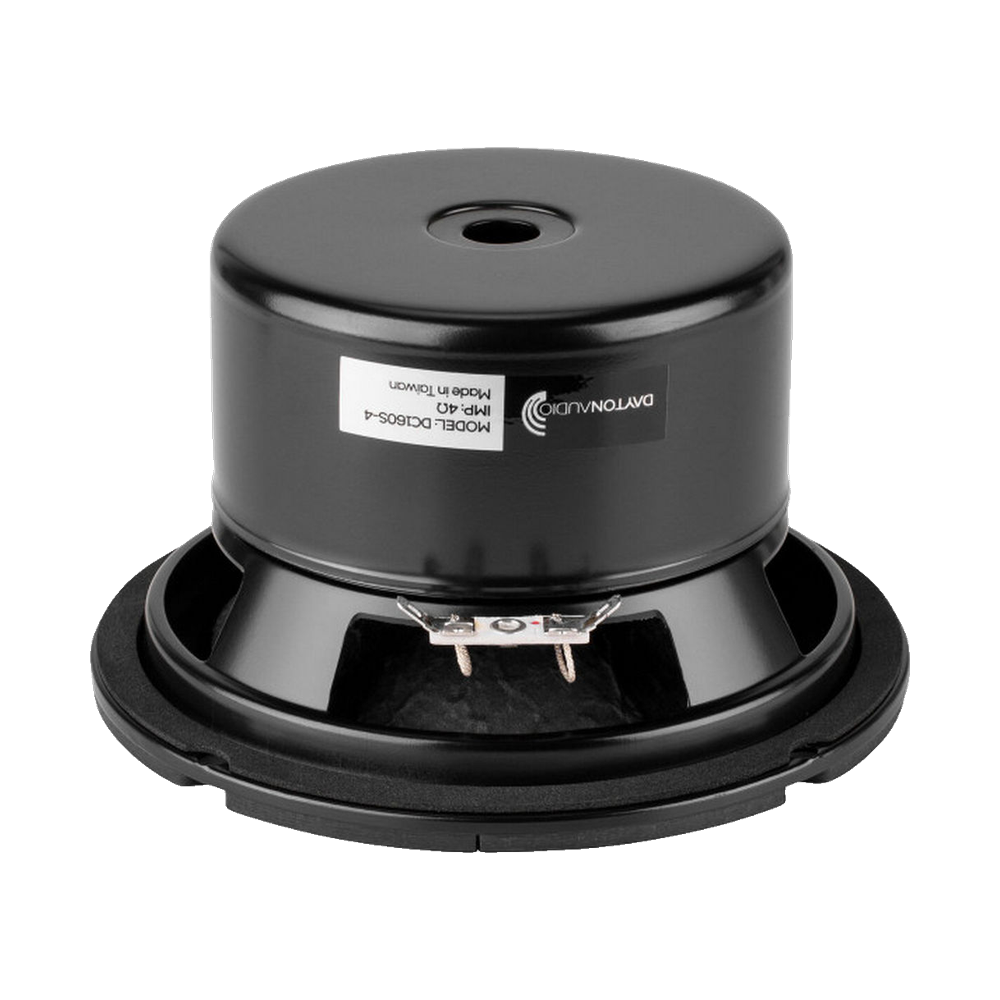

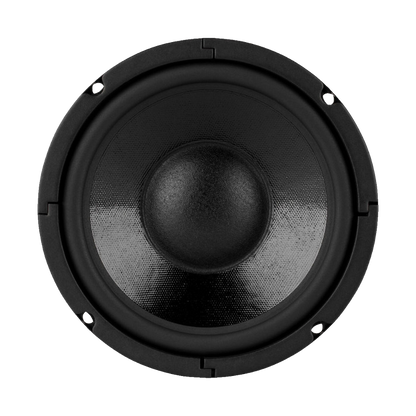

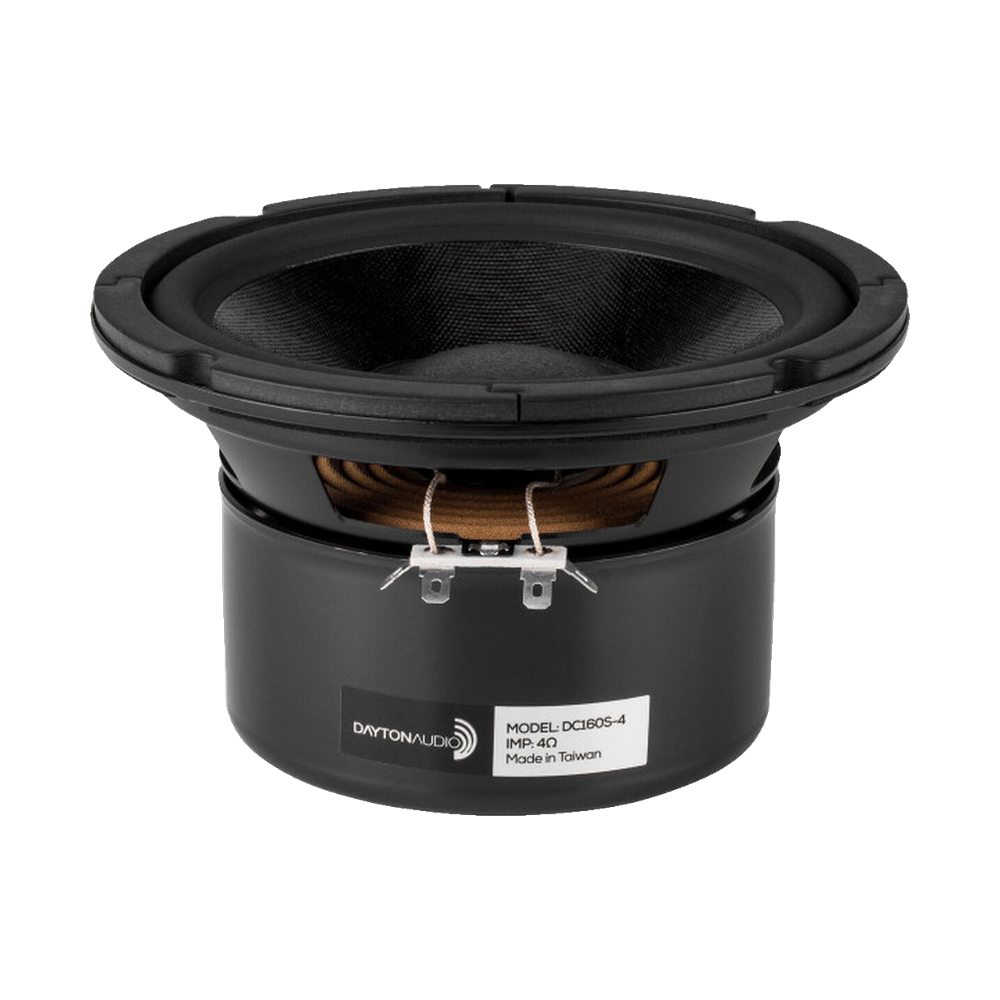

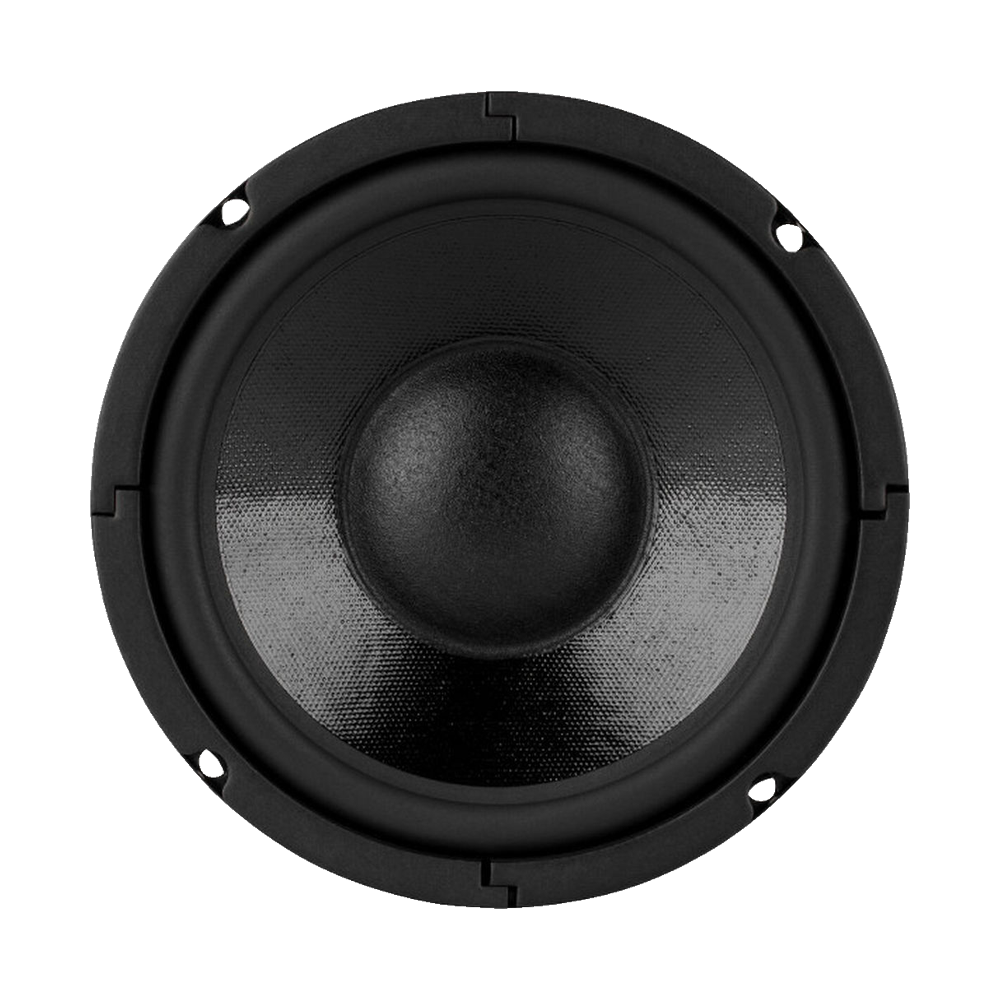

Dayton Audio - 6½" Classic Shielded Woofer - DC160S-4
Dayton Audio - 6½" Classic Shielded Woofer - DC160S-4
Regular price
$96.95
Regular price
Sale price
$96.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description
The DC160S 6½" woofer features a non-pressed treated paper cone allows for smooth frequency response, while the aluminium voice coil former and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate. The DC160S produces excellent low frequency performance and can be used as a small subwoofer.
Features
- 6½” shielded woofer can function as a woofer, midbass, or small subwoofer.
- Rubber surround, aluminium voice coil, and extended bump plate.
- 4 ohm impedance for series pair use in MTMs and centre channel speakers.

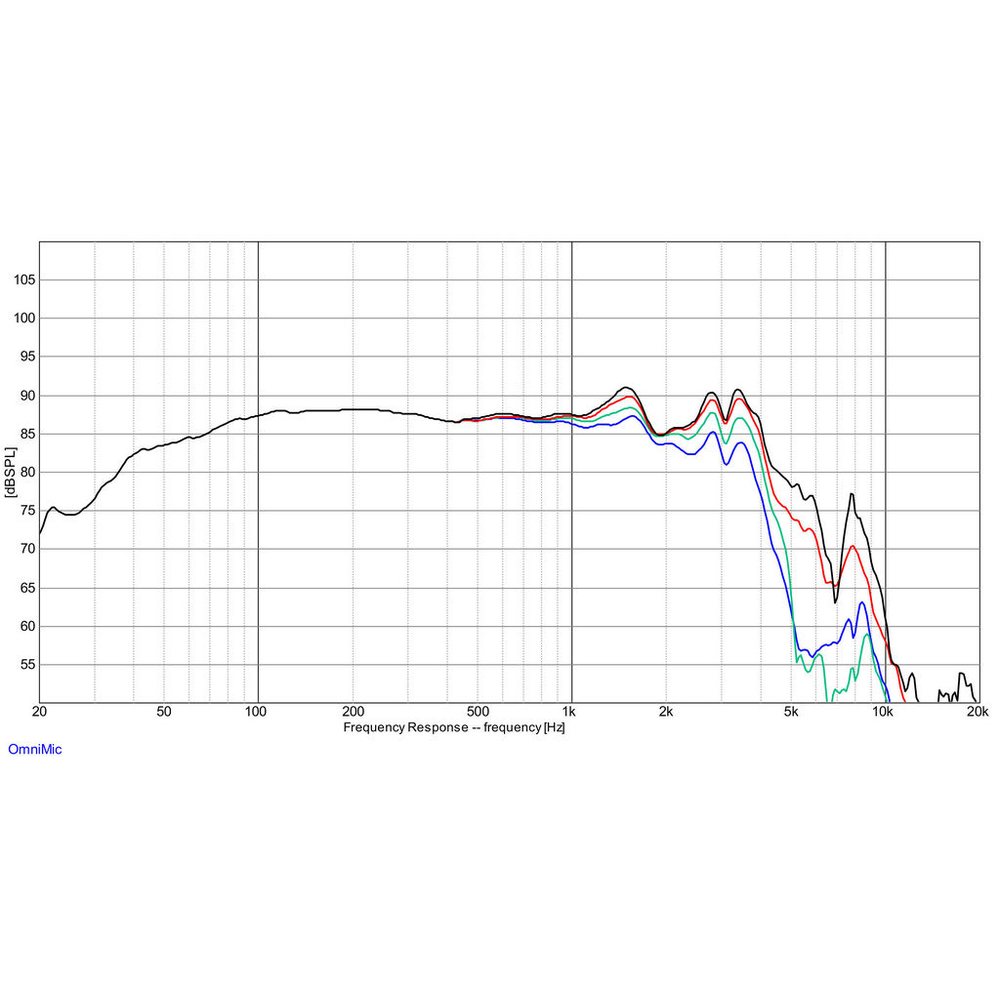

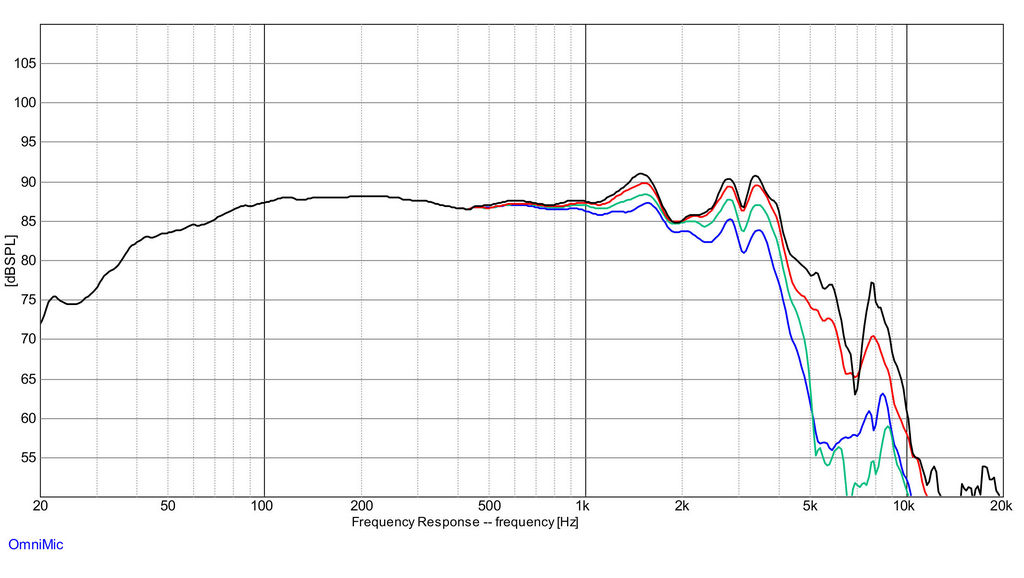

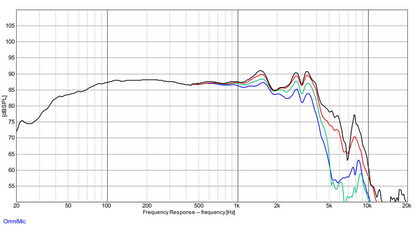

- Smooth frequency response up to 2kHz and great bass response.
- Shielded design increases performance.
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 6.5" |
| Nominal impedance | 4Ω |
| Series | Classic |
| Power handling (RMS) | 50 W |
| Power handling (program) | 100 W |
| Sensitivity | 88.5 dB |
| Frequency range | 33 – 4,000 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 30.9 Hz |
|---|---|
| DC resistance (Re) | 3.5 Ω |
| Voice coil inductance (Le) | 0.89 mH |
| Mechanical Q (Qms) | 2.61 |
| Electrical Q (Qes) | 0.34 |
| Total Q (Qts) | 0.3 |
| Equivalent volume (Vas) | 23.2 L |
| Compliance (Cms) | 0.88 mm/N |
| Moving mass (Mms) | 30 g |
| Mechanical resistance (Rms) | 2.232 kg/s |
| Force factor (Bl) | 7.68 T·m |
| Effective piston area (Sd) | 136.8 cm² |
| Linear excursion (Xmax, one-way) | 3.4 mm |
| Displacement volume (Vd) | 46.51 cm³ |
| Efficiency bandwidth product (EBP) | 90.88 |
Motor
| Voice coil wire | Copper |
|---|

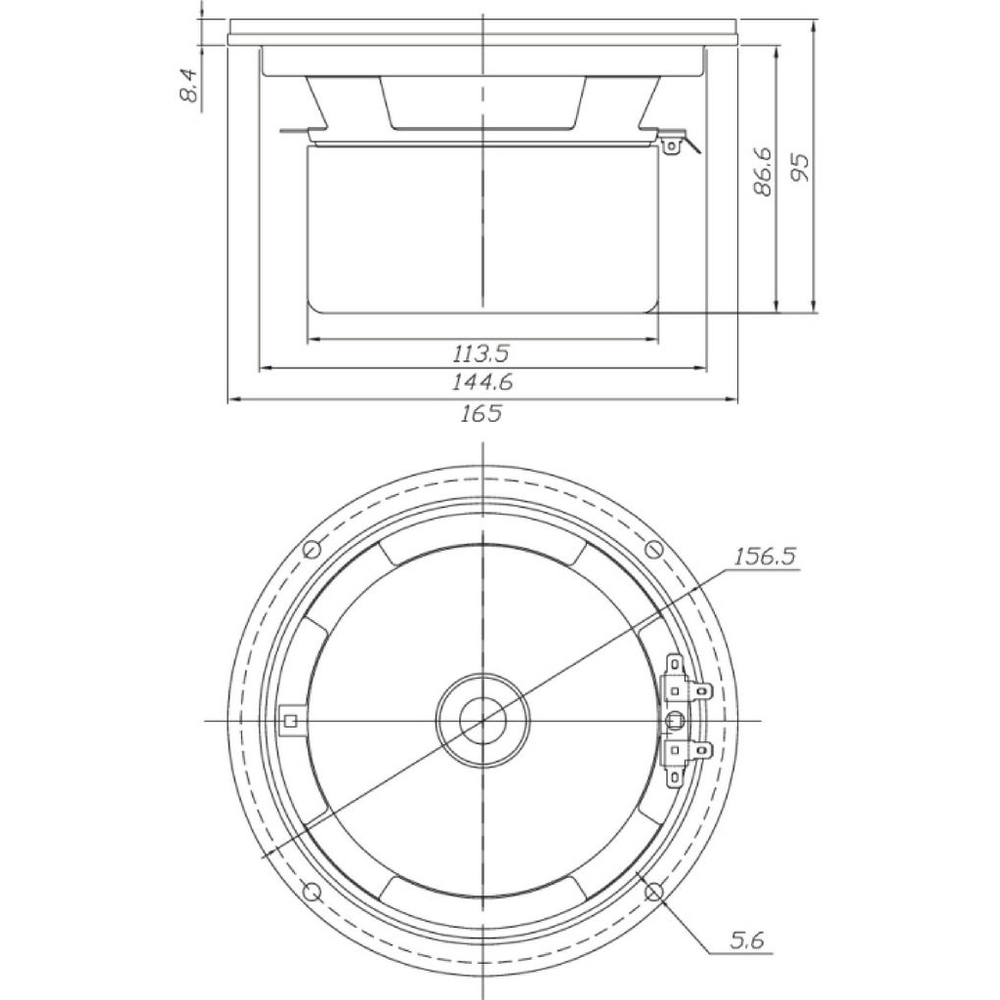

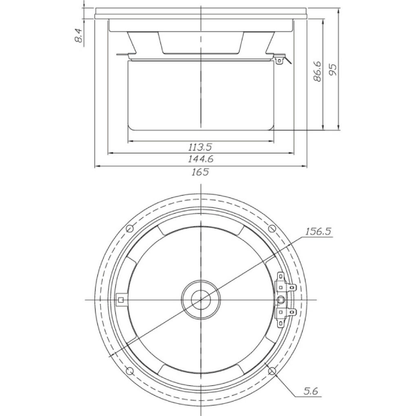

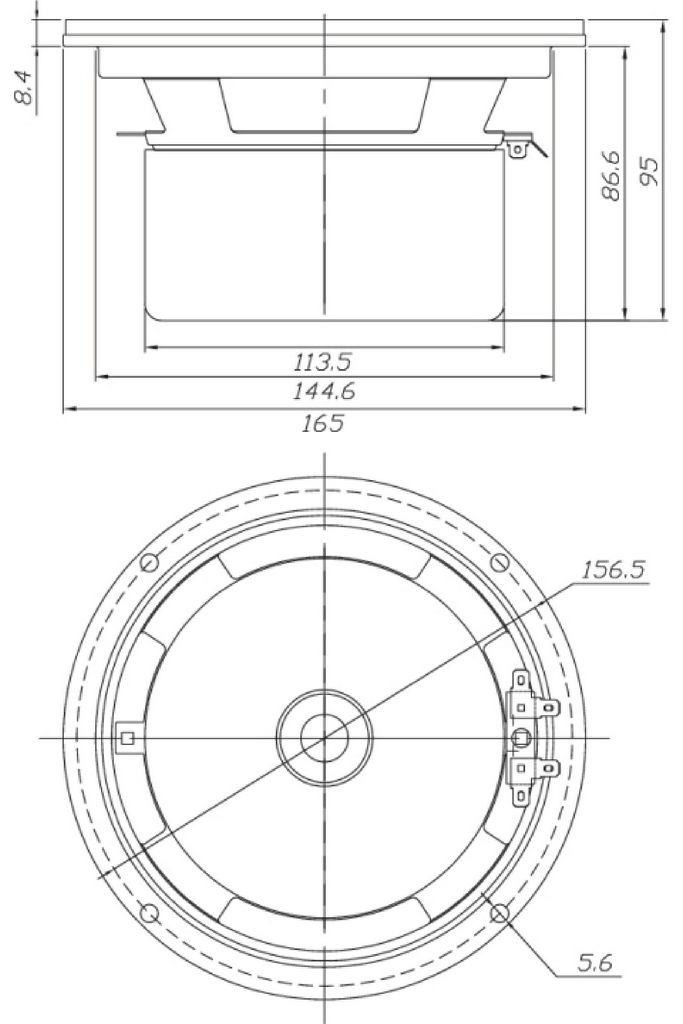

Mounting
| Overall diameter | 165 mm |
|---|---|
| Cutout diameter | 144.6 mm |
| Mounting depth | 95 mm |
| Mounting holes | 4 |
| Voice coil diameter | 35 mm |
| Weight | 2.268 kg |
Materials
| Cone | Treated Paper |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- DC160S-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange; no bolt holes (positions not on file). Check it against your driver before you cut.
