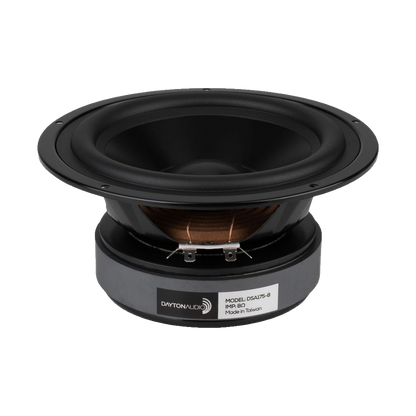

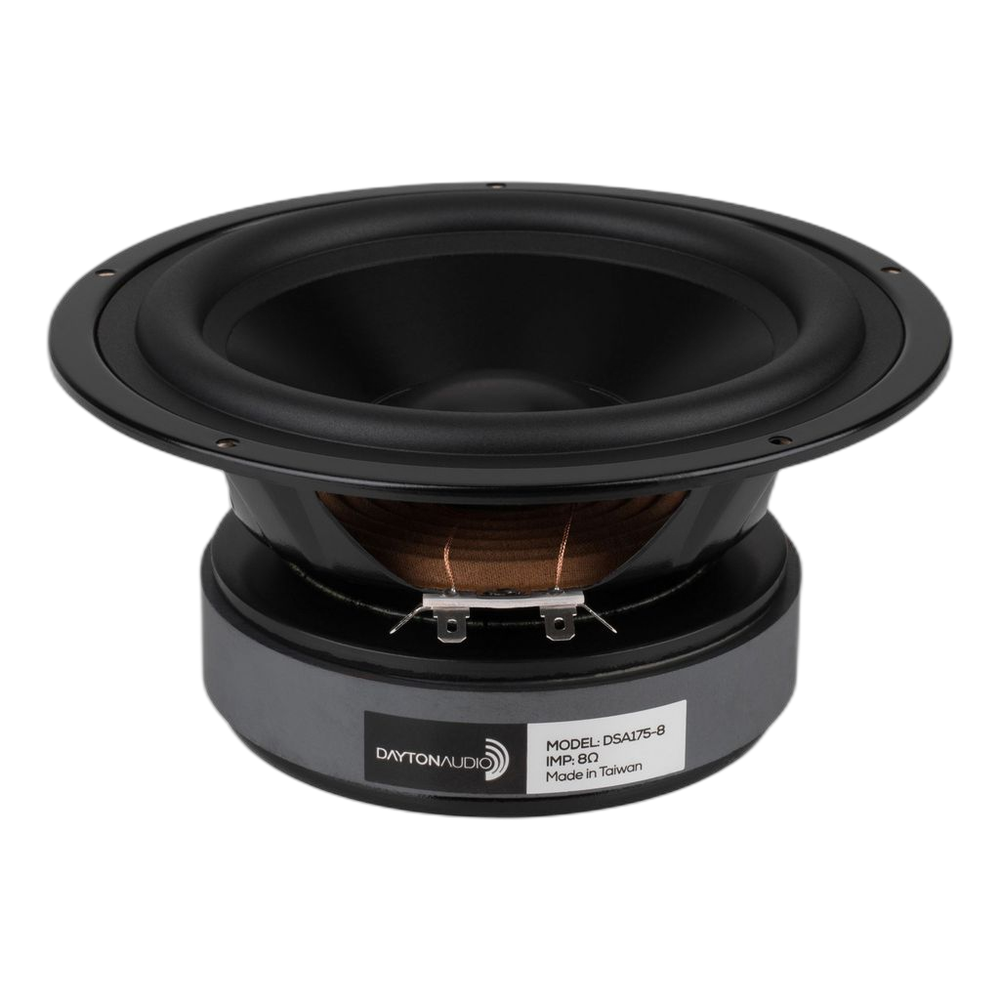

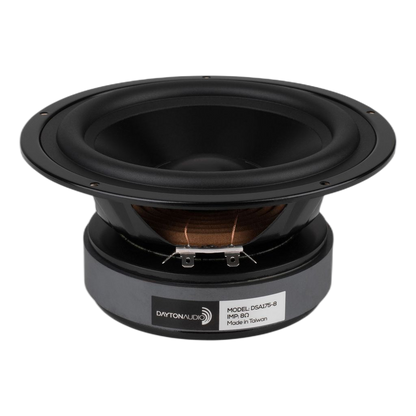

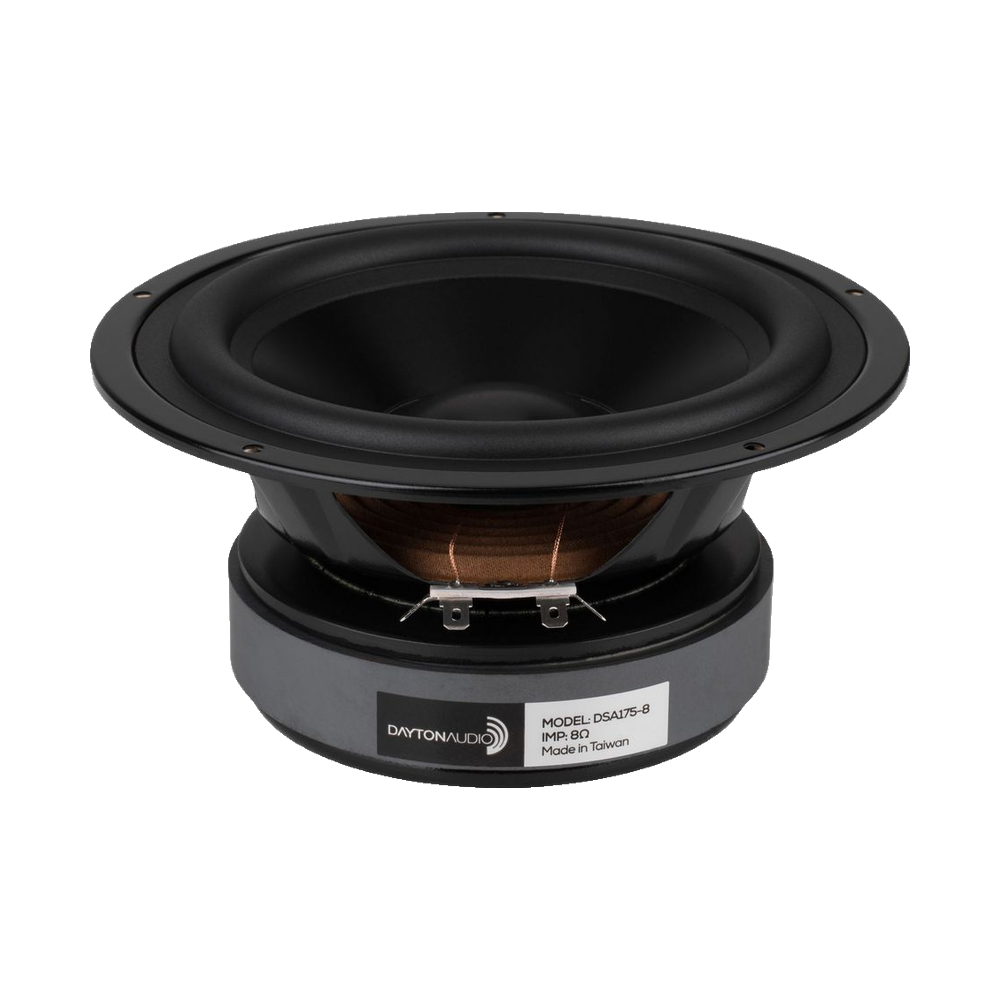

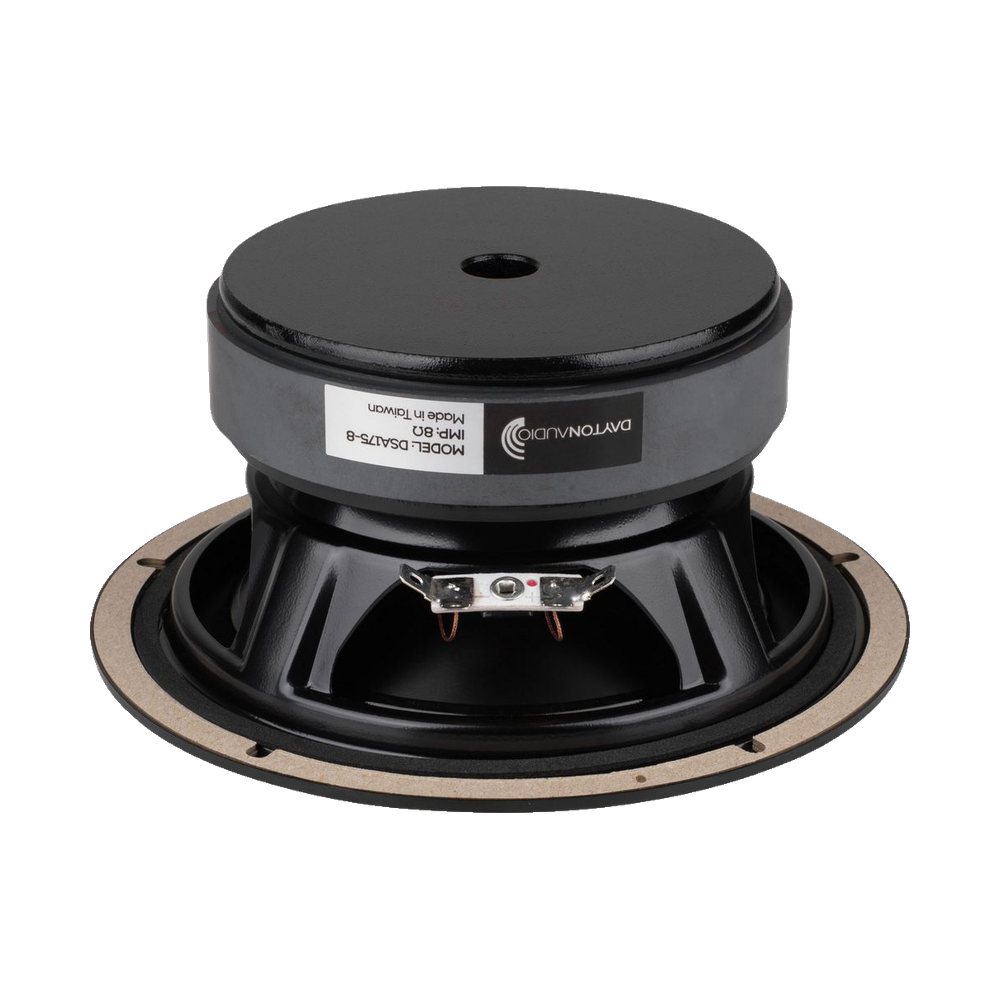

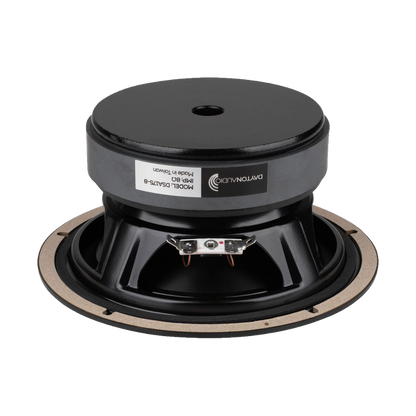

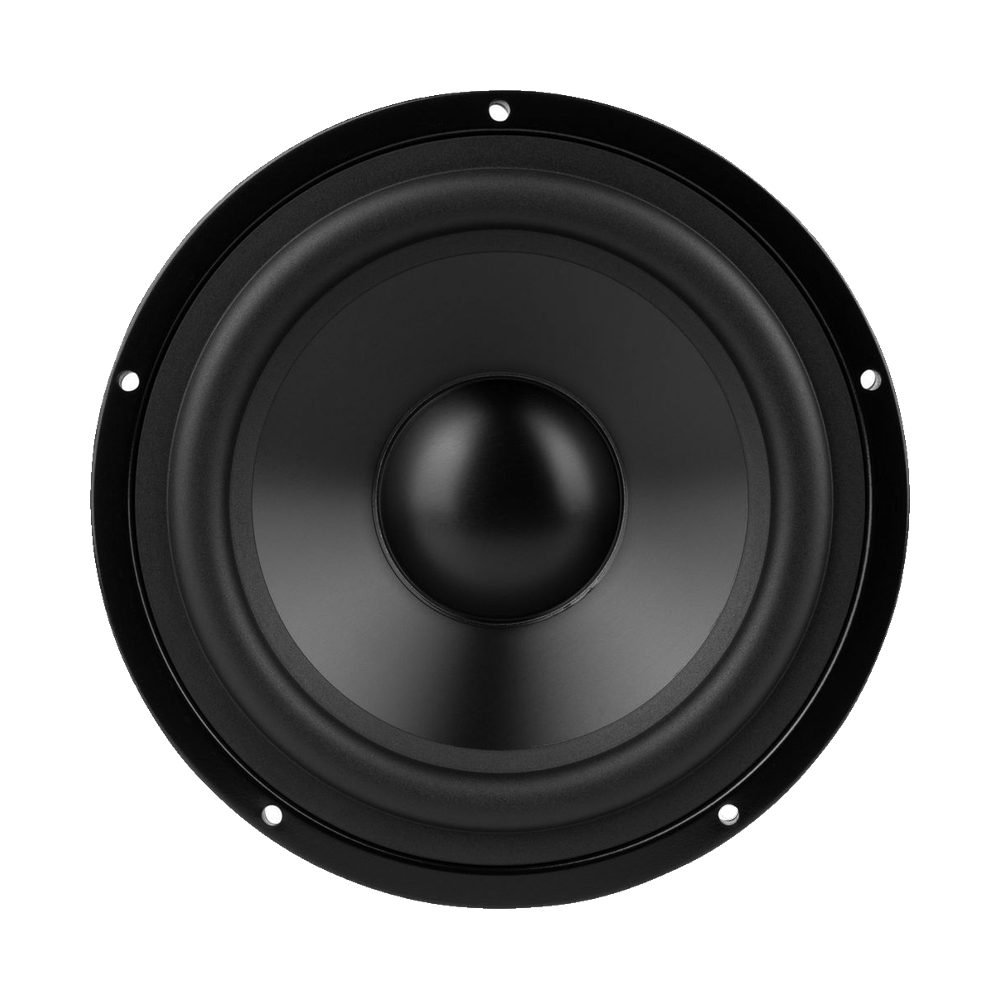

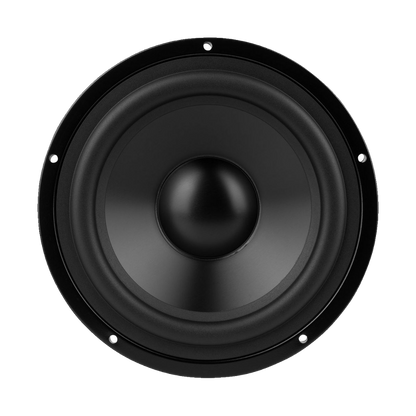

Dayton Audio - 6½" Designer Woofer Aluminium - DSA175-8
Dayton Audio - 6½" Designer Woofer Aluminium - DSA175-8
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
Although it's true that the Dayton Audio Designer Series DSA175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 39 Hz without exceeding Xmax is very impressive!
The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.
These speakers combine useful performance parameters with elegant style. Carefully optimised to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.
Features
- Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
- Low distortion motor system with copper shorting ring

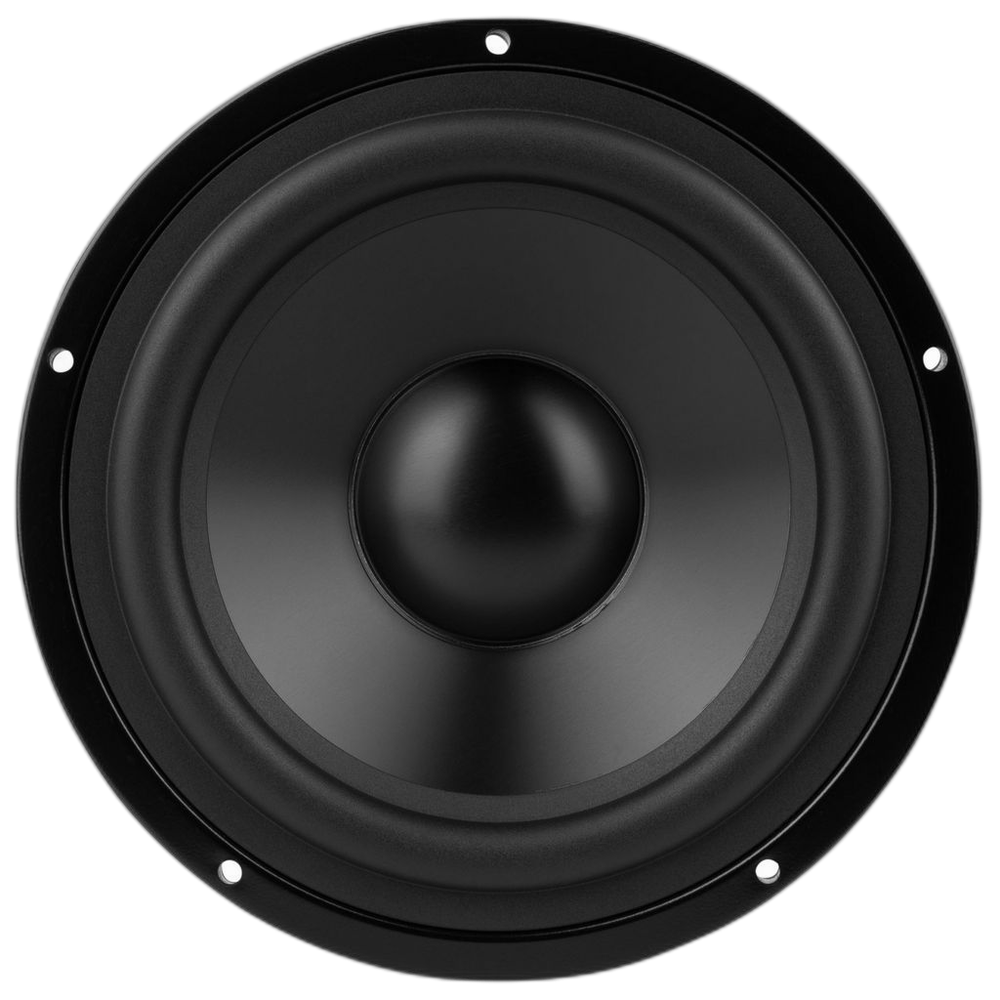

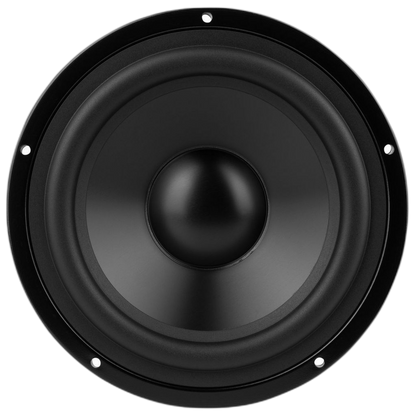

- Black anodised aluminium cone, half roll rubber surround for durability and accurate reproduction
- Optimised to yield the smallest possible box volume and lowest 3 dB down point

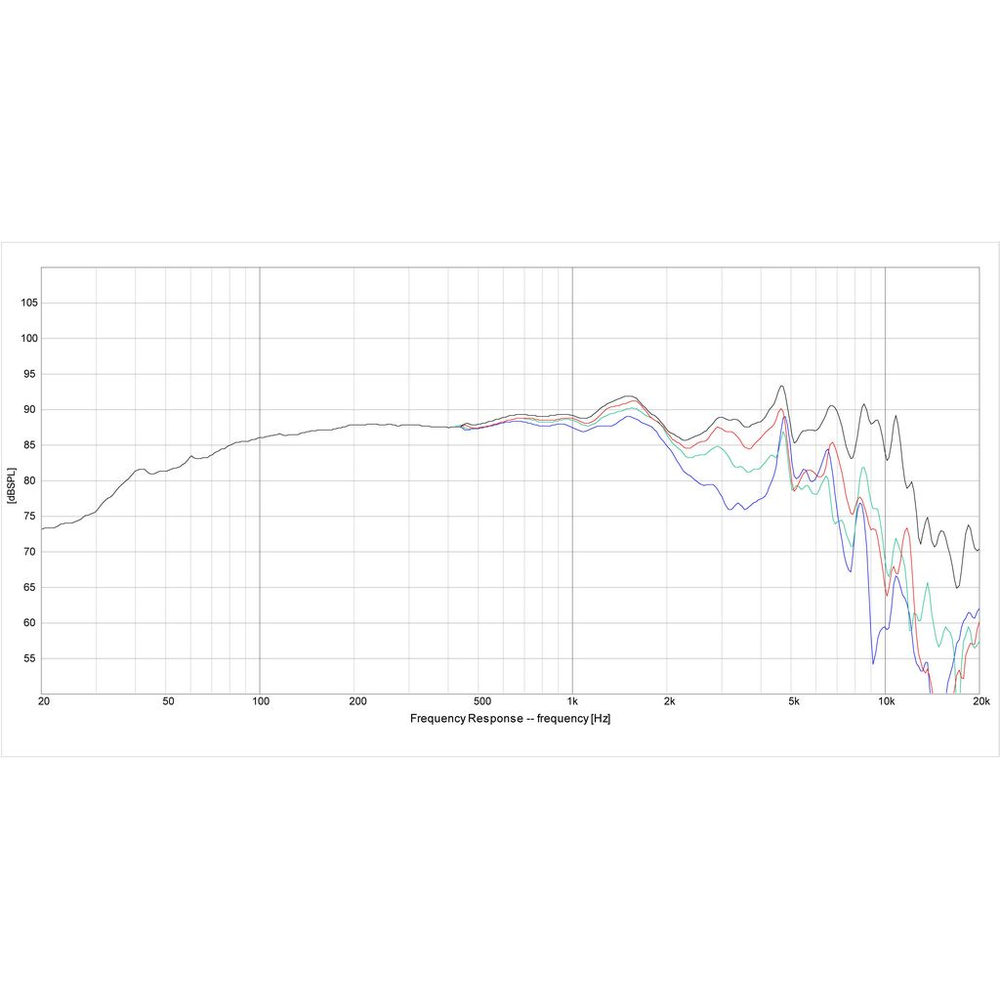

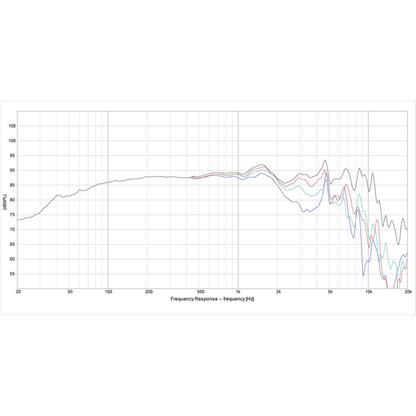

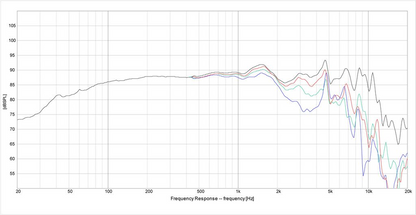

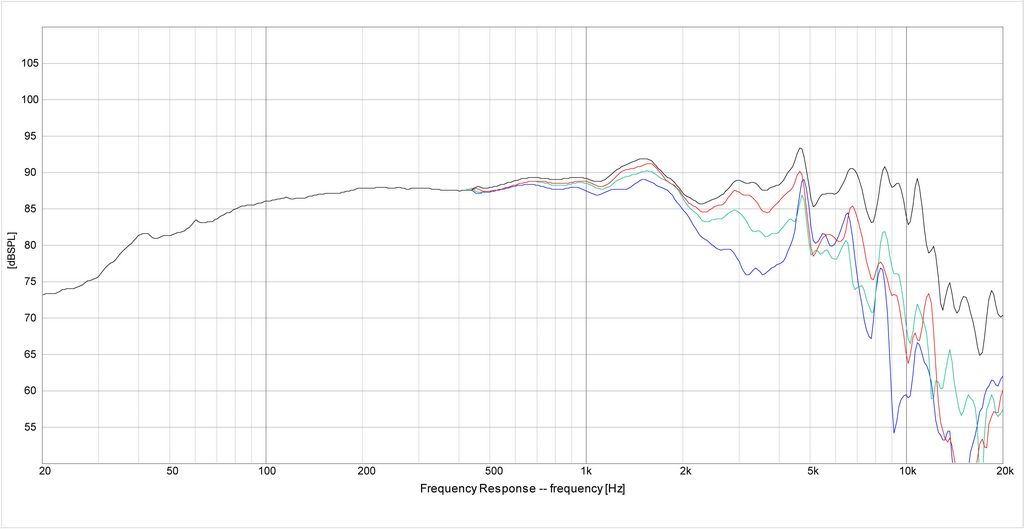

- Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers

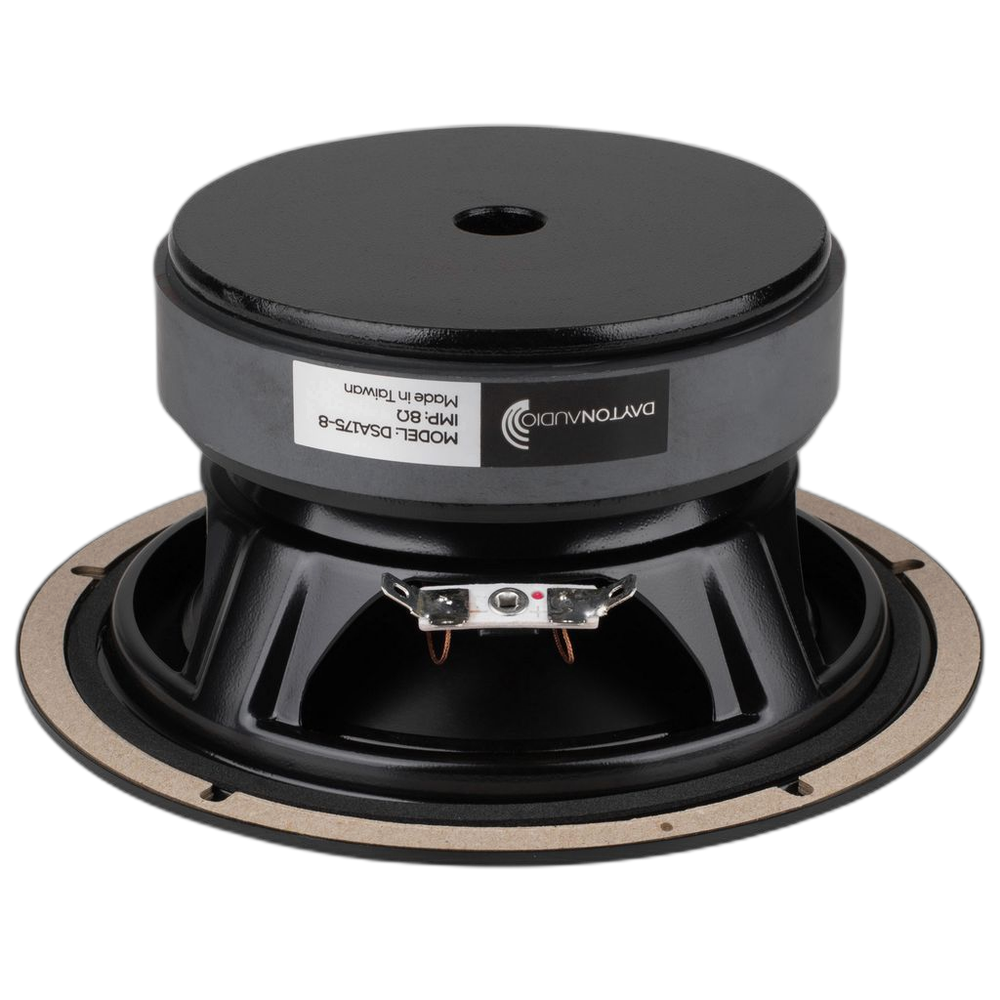

- Vented pole piece for minimised power compression and maximised reliability
- Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 6.5" |
| Nominal impedance | 8Ω |
| Series | Designer |
| Power handling (RMS) | 70 W |
| Power handling (program) | 140 W |
| Sensitivity | 88.1 dB |
| Frequency range | 38 – 7,500 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 38.36 Hz |
|---|---|
| DC resistance (Re) | 5.8 Ω |
| Voice coil inductance (Le) | 0.85 mH |
| Mechanical Q (Qms) | 1.66 |
| Electrical Q (Qes) | 0.35 |
| Total Q (Qts) | 0.29 |
| Equivalent volume (Vas) | 18.7 L |
| Compliance (Cms) | 0.71 mm/N |
| Moving mass (Mms) | 24.2 g |
| Mechanical resistance (Rms) | 3.514 kg/s |
| Force factor (Bl) | 9.75 T·m |
| Effective piston area (Sd) | 128.7 cm² |
| Linear excursion (Xmax, one-way) | 5.3 mm |
| Displacement volume (Vd) | 68.21 cm³ |
| Efficiency bandwidth product (EBP) | 109.6 |
Motor
| Magnet weight | 0.936 kg |
|---|---|
| Voice coil wire | Copper |

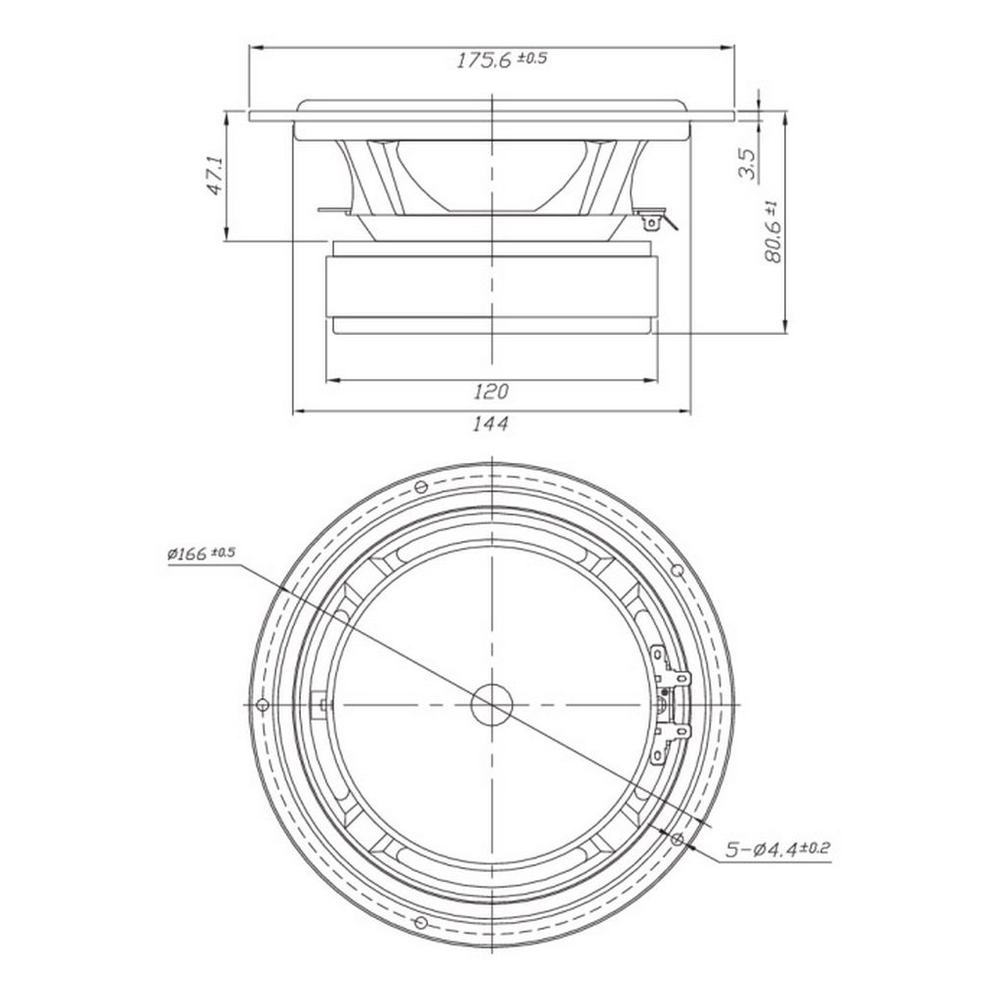

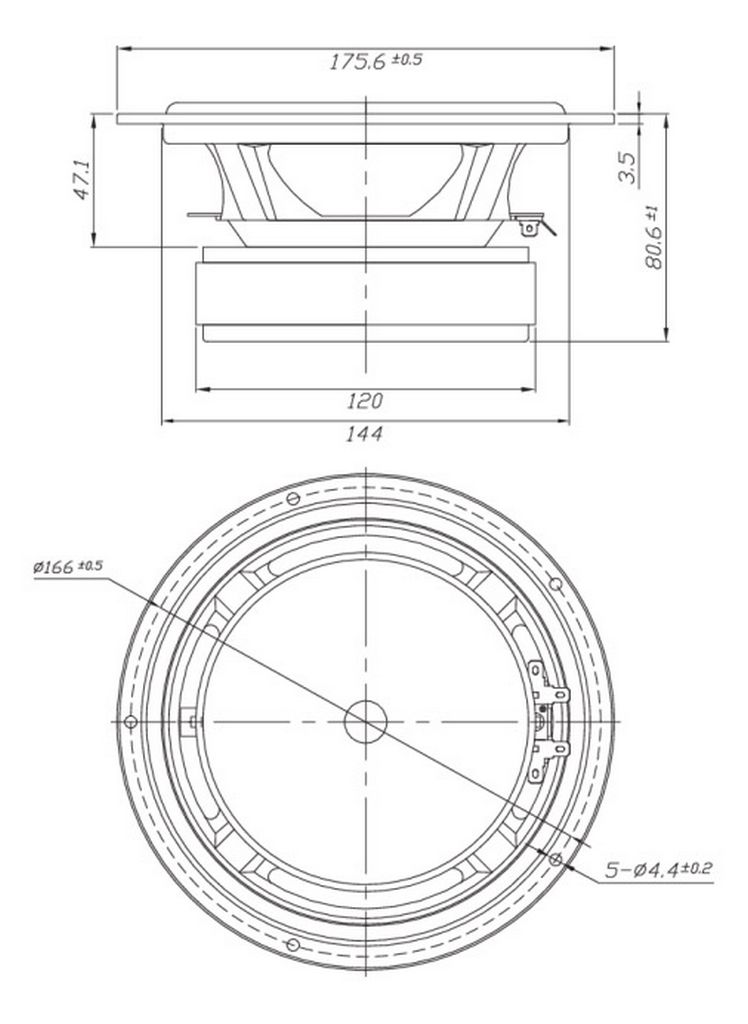

Mounting
| Overall diameter | 175.6 mm |
|---|---|
| Cutout diameter | 144 mm |
| Mounting depth | 80.6 mm |
| Flange thickness | 3.5 mm |
| Bolt circle diameter | 166 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 4.4 mm |
| Voice coil diameter | 35.5 mm |
| Weight | 2.336 kg |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- DSA175-8 Specification Sheet
- DSA175-8 Data Files
- DSA175-8 DSA175 3D File
- DSA175-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
