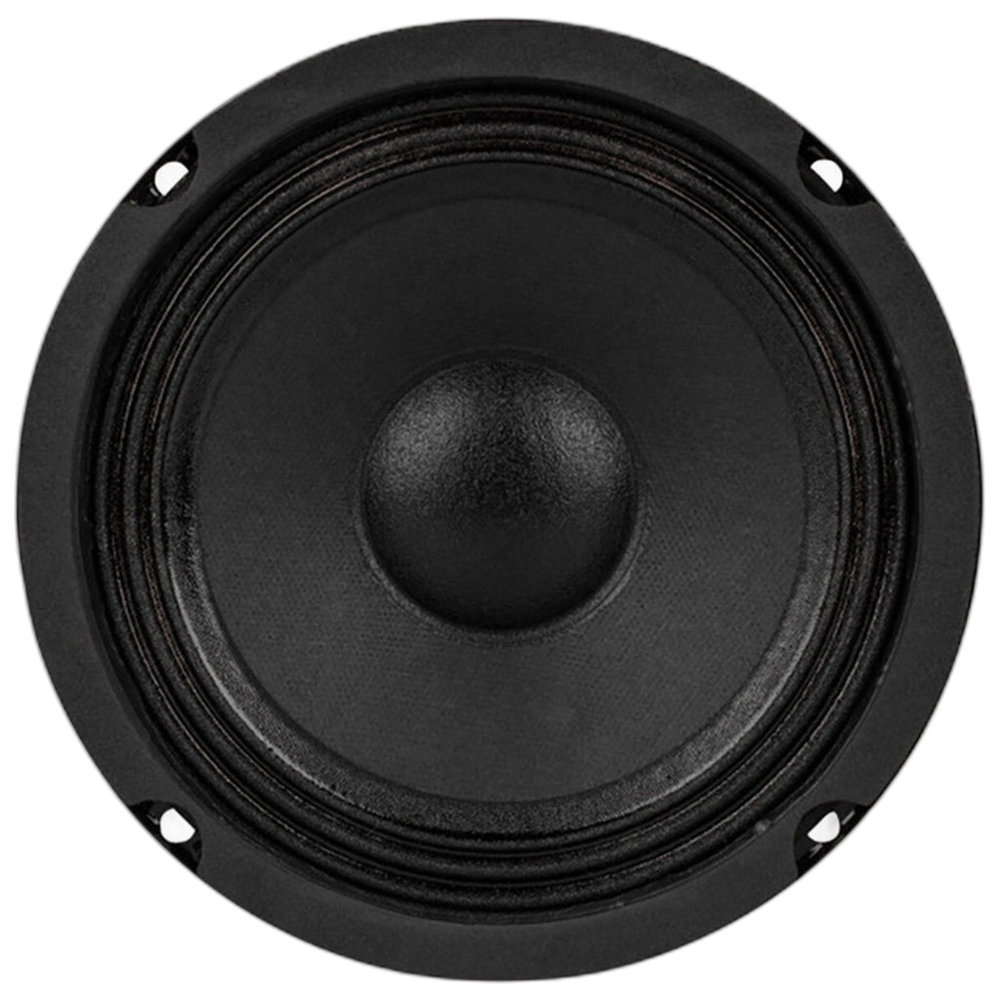

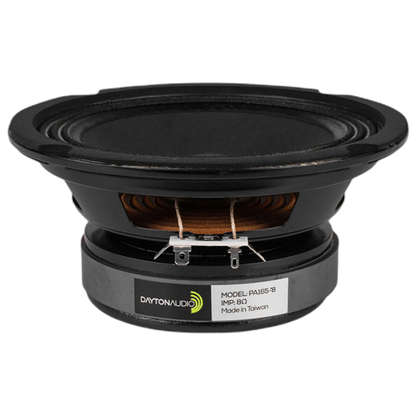

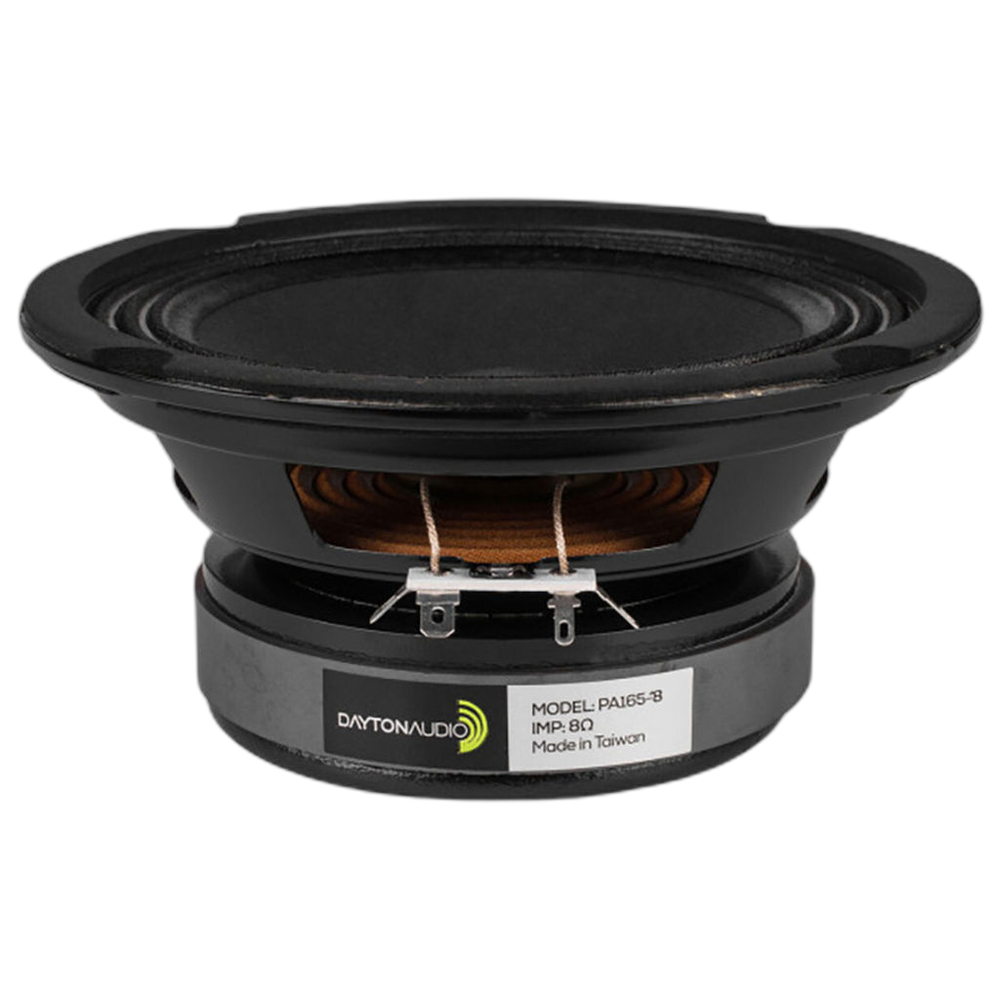

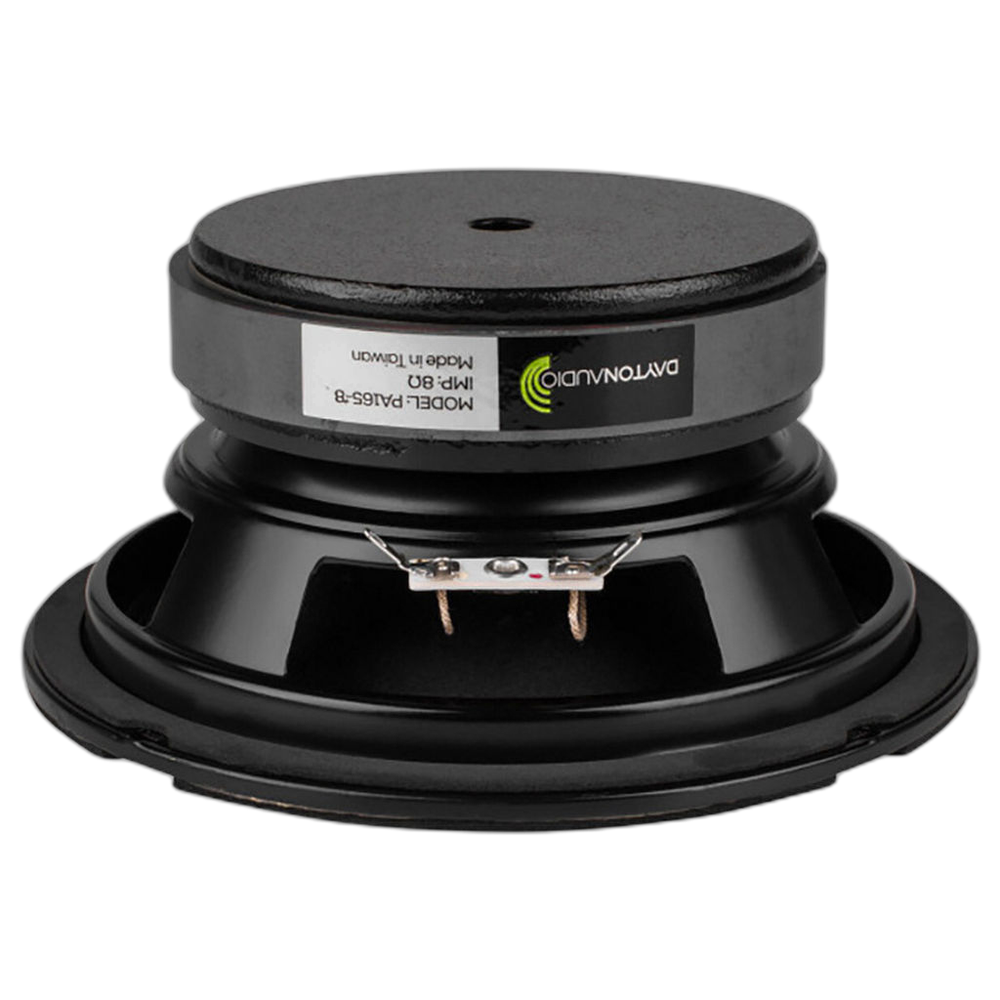

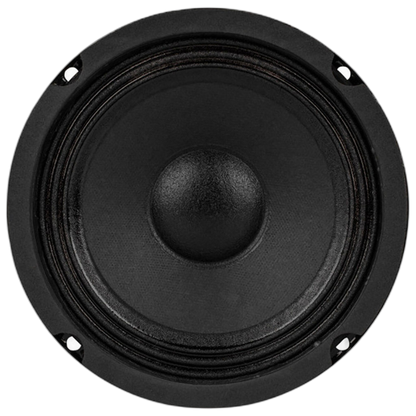

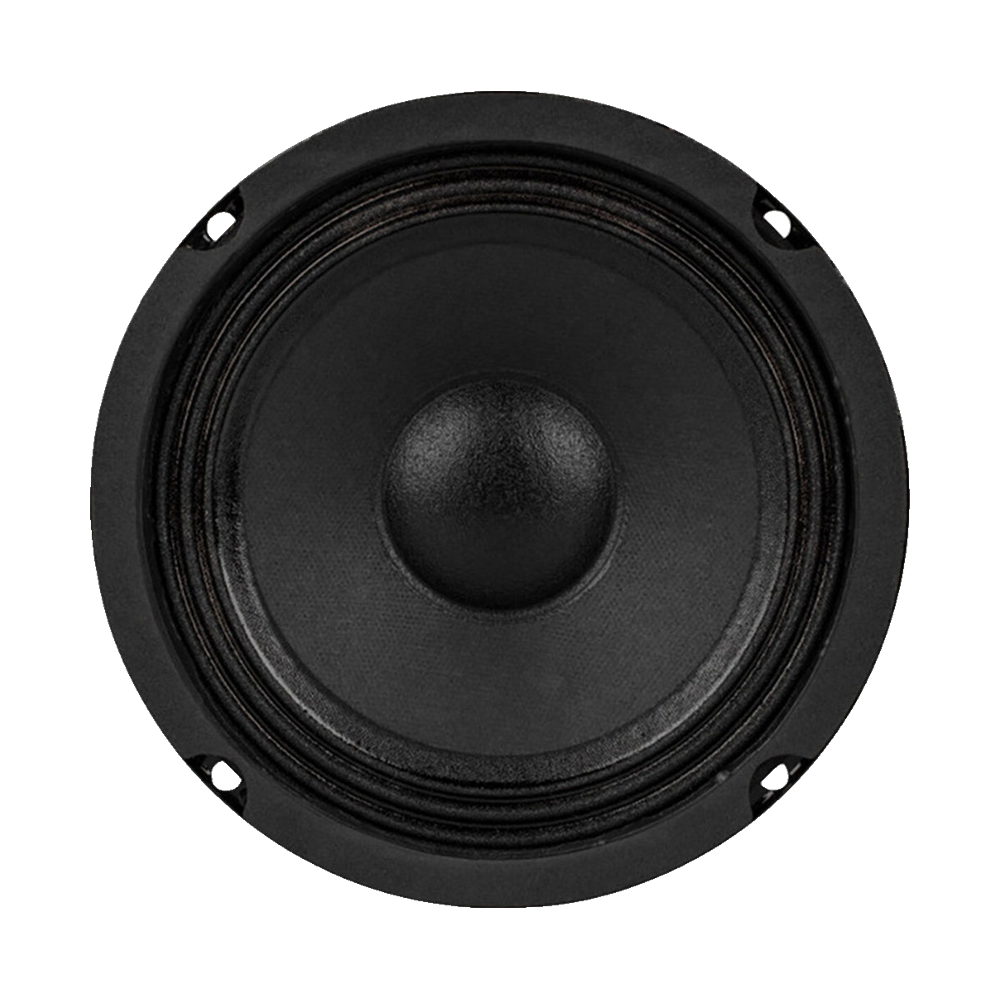

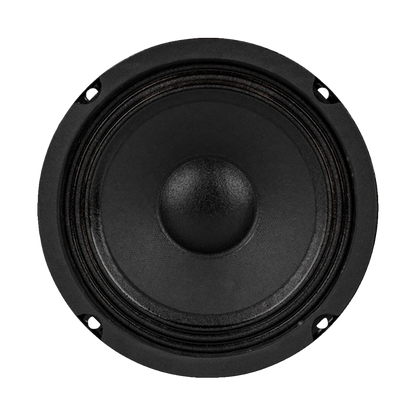

Dayton Audio - 6" Mid-Range Driver - PA165-8
Dayton Audio - 6" Mid-Range Driver - PA165-8
Regular price
$71.95
Regular price
Sale price
$71.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

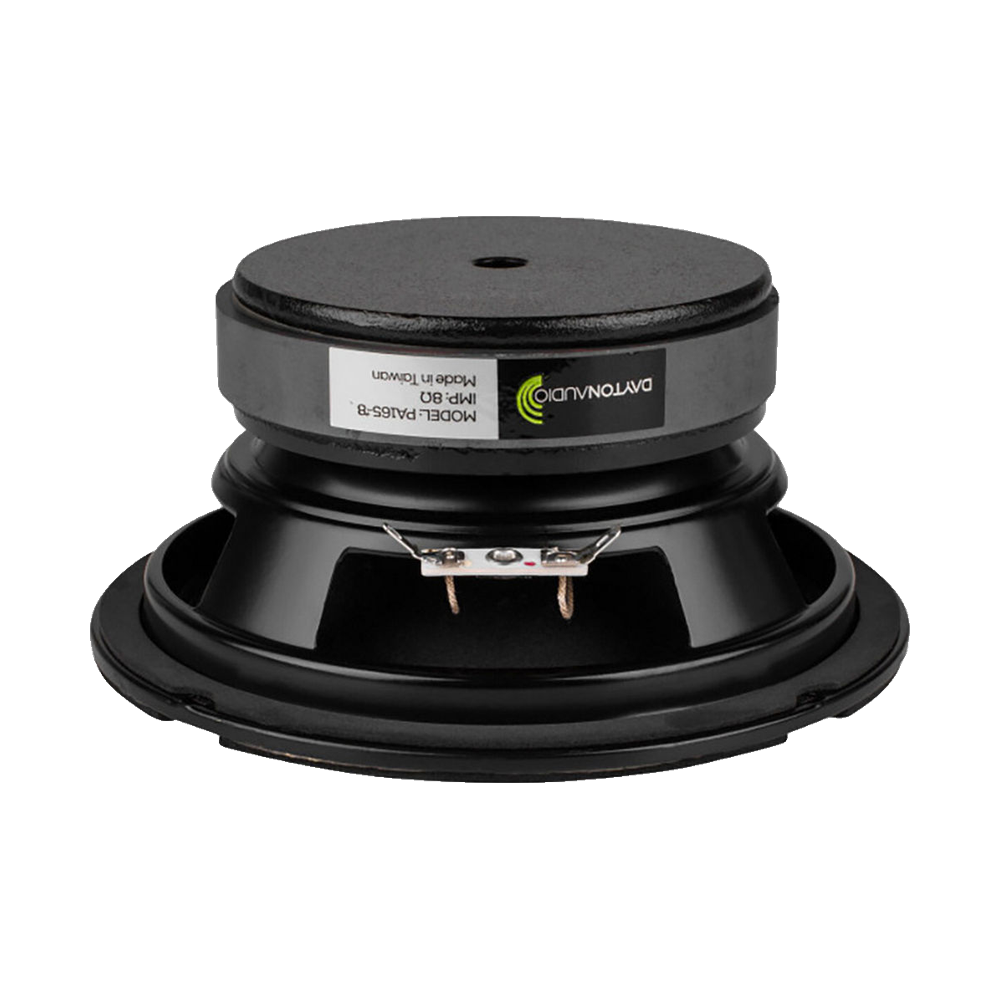

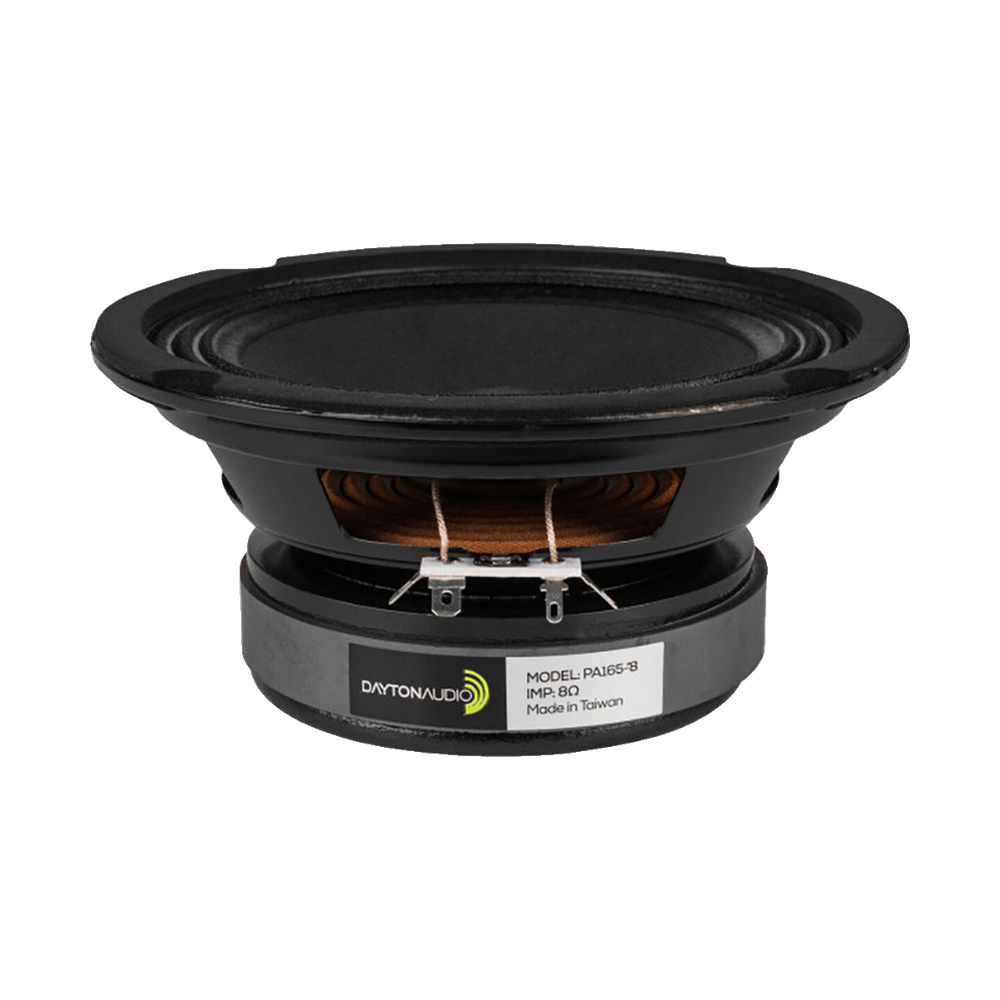

This unit was designed with the goal of the producing the highest possible output from a driver its size. Great for use in small stage monitors, as a midrange in multi-way systems, or even as a hi-fi midbass. Construction includes a steel frame, paper cone, treated cloth surround, vented pole piece and high-power-handling 1-1/2" aluminium voice coil.
Features
- High power and efficiency for extreme output
- Perfect for use as a high output midrange or midbass
- Even hung voice coil to maximise efficiency
- Naturally damped paper cone and cloth surround
Specifications
Specifications
General
| Driver type | Mid-Range |
|---|---|
| Nominal size | 6" |
| Nominal impedance | 8Ω |
| Series | Full-Range |
| Power handling (RMS) | 75 W |
| Power handling (program) | 150 W |
| Sensitivity | 92.9 dB |

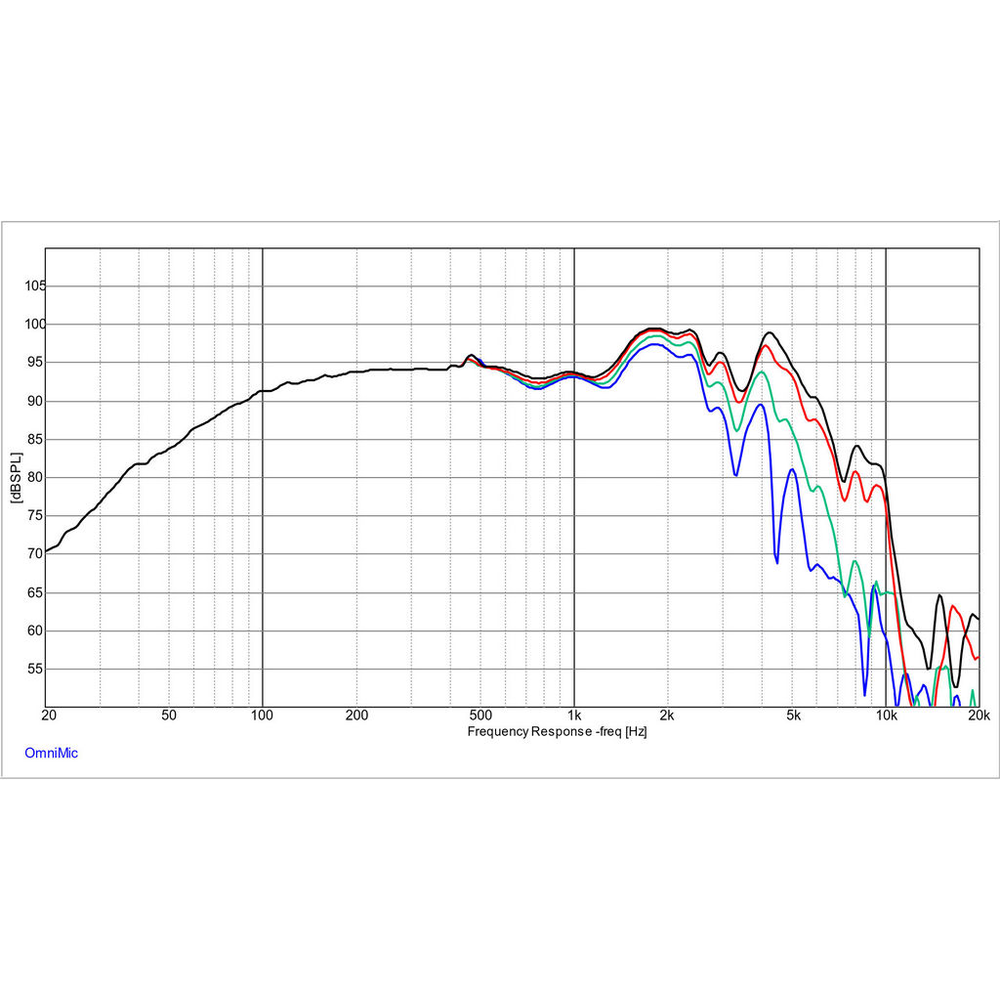

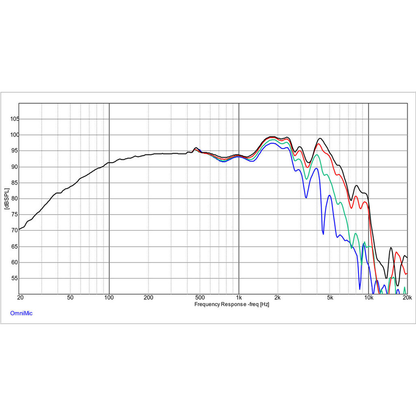

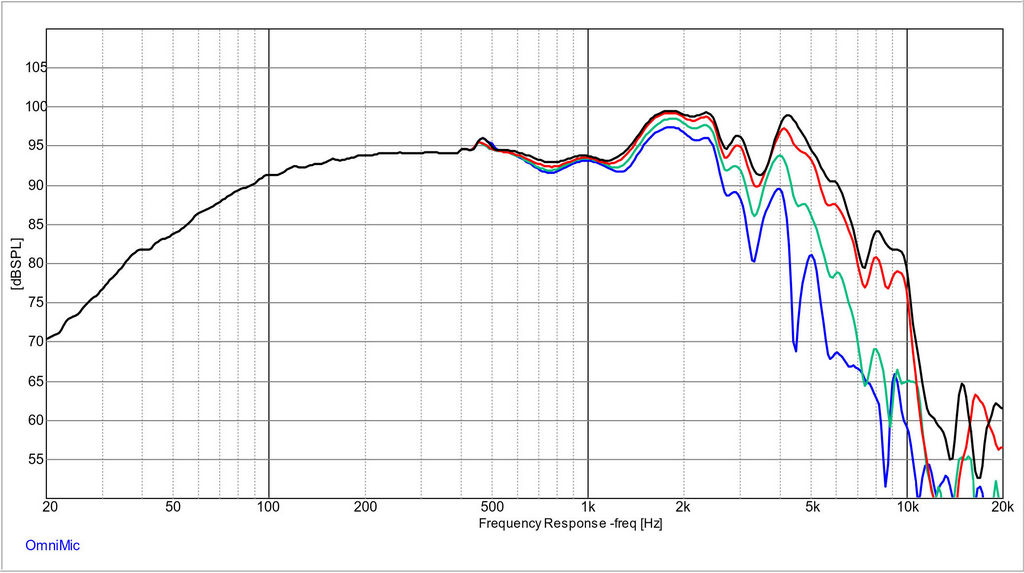

| Frequency range | 80 – 5,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 80.8 Hz |
|---|---|
| DC resistance (Re) | 5.15 Ω |
| Voice coil inductance (Le) | 0.54 mH |
| Mechanical Q (Qms) | 2.19 |
| Electrical Q (Qes) | 0.6 |
| Total Q (Qts) | 0.47 |
| Equivalent volume (Vas) | 9.2 L |
| Compliance (Cms) | 0.42 mm/N |
| Moving mass (Mms) | 9.2 g |
| Mechanical resistance (Rms) | 2.133 kg/s |
| Force factor (Bl) | 6.33 T·m |
| Effective piston area (Sd) | 120.8 cm² |
| Efficiency bandwidth product (EBP) | 134.7 |
Motor
| Voice coil wire | Copper |
|---|

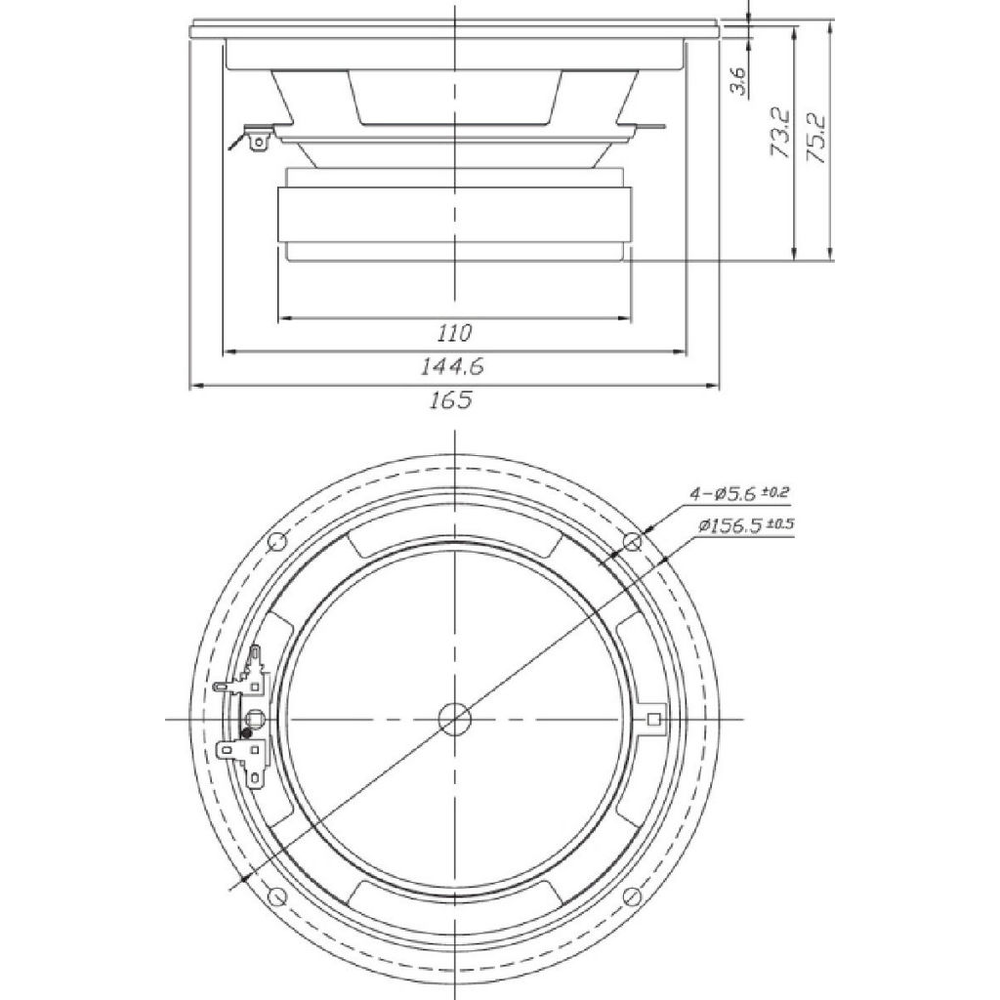

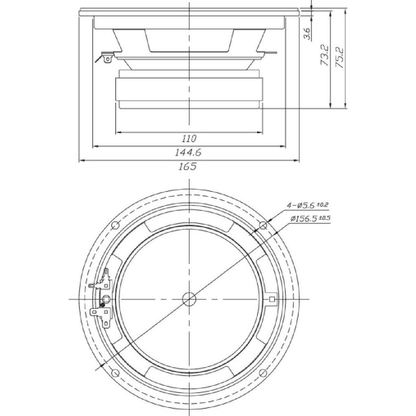

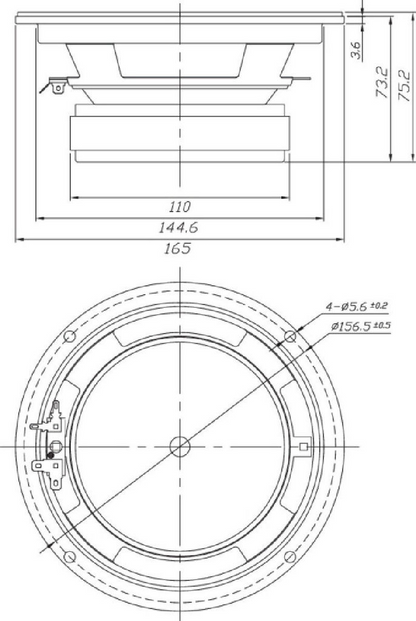

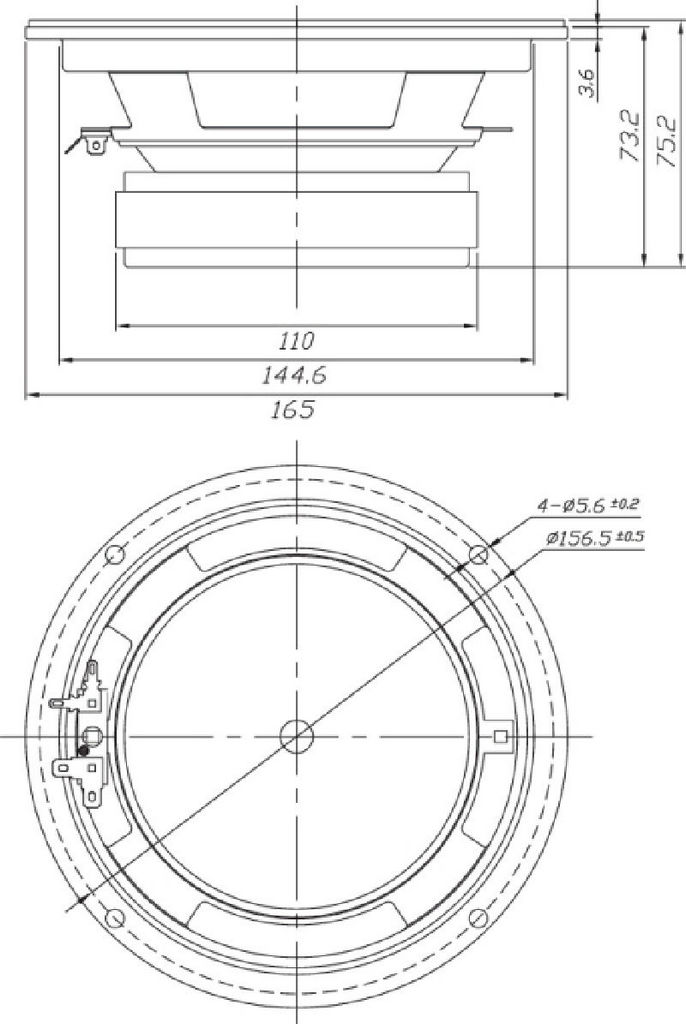

Mounting
| Overall diameter | 165 mm |
|---|---|
| Cutout diameter | 144.6 mm |
| Mounting depth | 75.2 mm |
| Flange thickness | 3.6 mm |
| Bolt circle diameter | 156.5 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 5.6 mm |
| Voice coil diameter | 35 mm |
| Weight | 1.905 kg |
Materials
| Cone | Paper |
|---|---|
| Surround | Cloth |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Sensitivity measured at 2.83V/1m.
Downloads
- PA165-8 Specification Sheet
- PA165-8 Data Files
- PA165-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
