Dayton Audio - 6" Low Profile Woofer - LW150-4
Dayton Audio - 6" Low Profile Woofer - LW150-4
Regular price
$104.95 AUD
Regular price
Sale price
$104.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
A 6" woofer from Dayton Audio built for very shallow enclosures. Its low-profile frame and venting let the back of the woofer sit directly against the cabinet, or be countersunk into it, so the enclosure can be less than 1-1/2" deep. Dayton suggests it for ultra-thin TV speakers, as a down-firing woofer in a low-powered system, and in centre channels, monitor stands and bookshelf stands.
Features

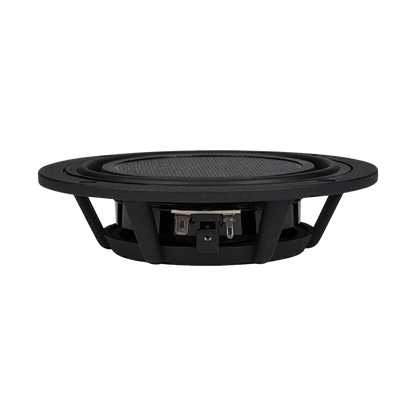

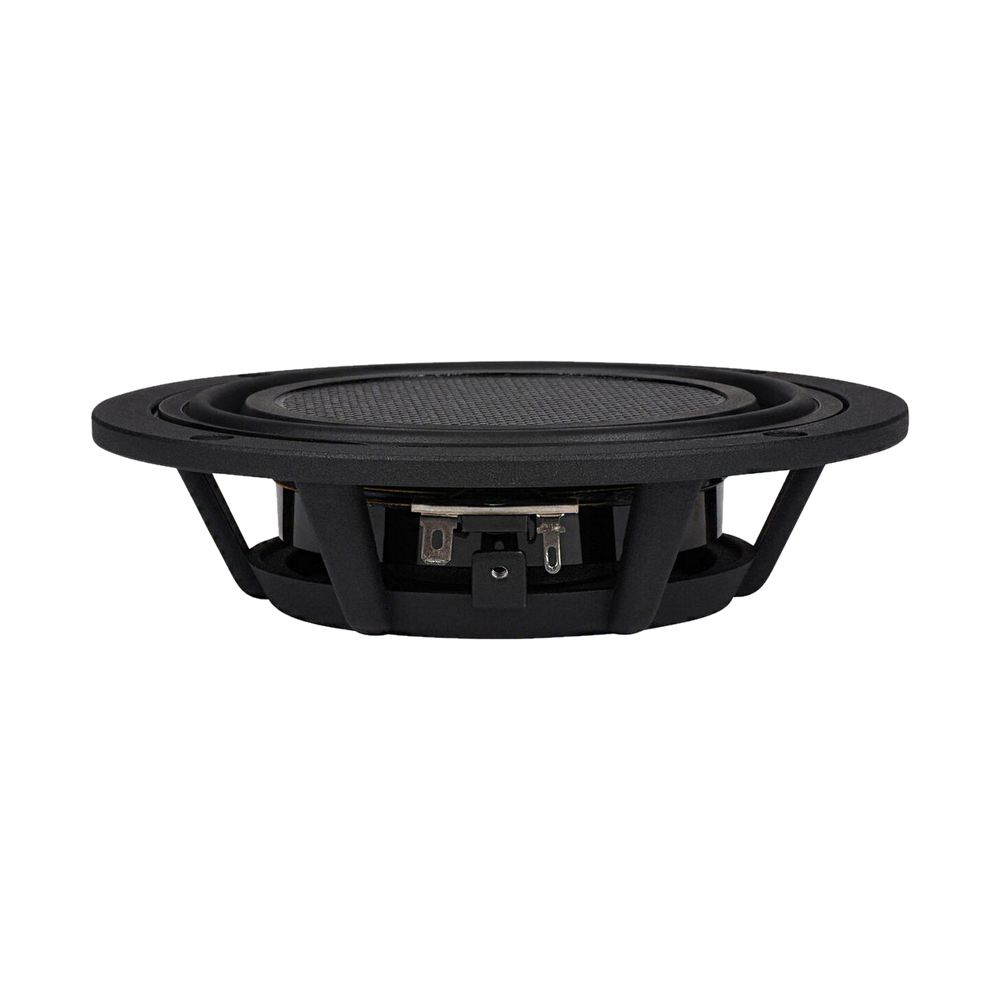

- Very low profile woofer fits in tight spots

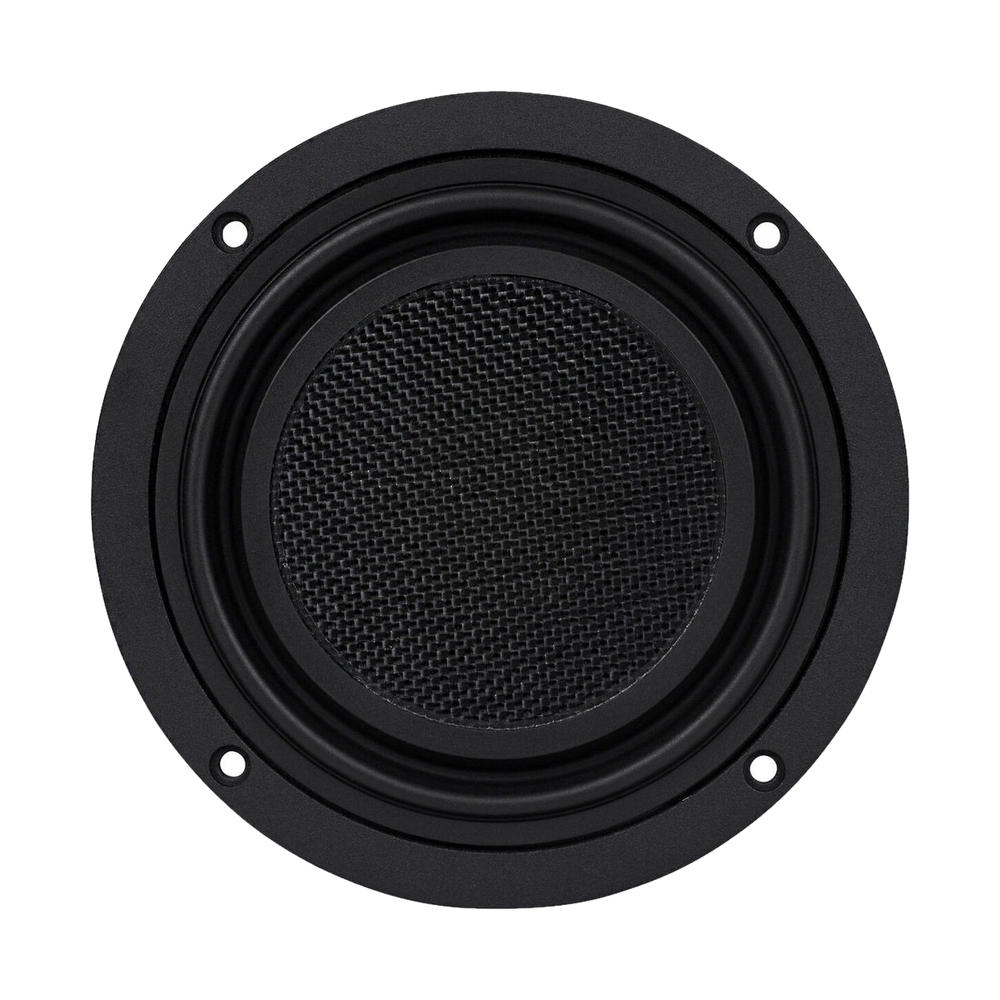

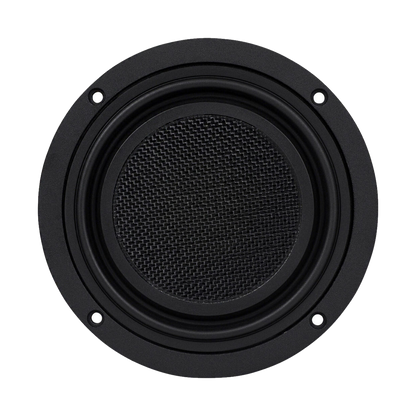

- Flat woven glass fibre/honeycomb aluminium composite cone
- Dual sandwiched spiders and S-shaped surround enhance linear travel
- Large 1¼" 4-layer voice coil and optimised T-pole gap geometry

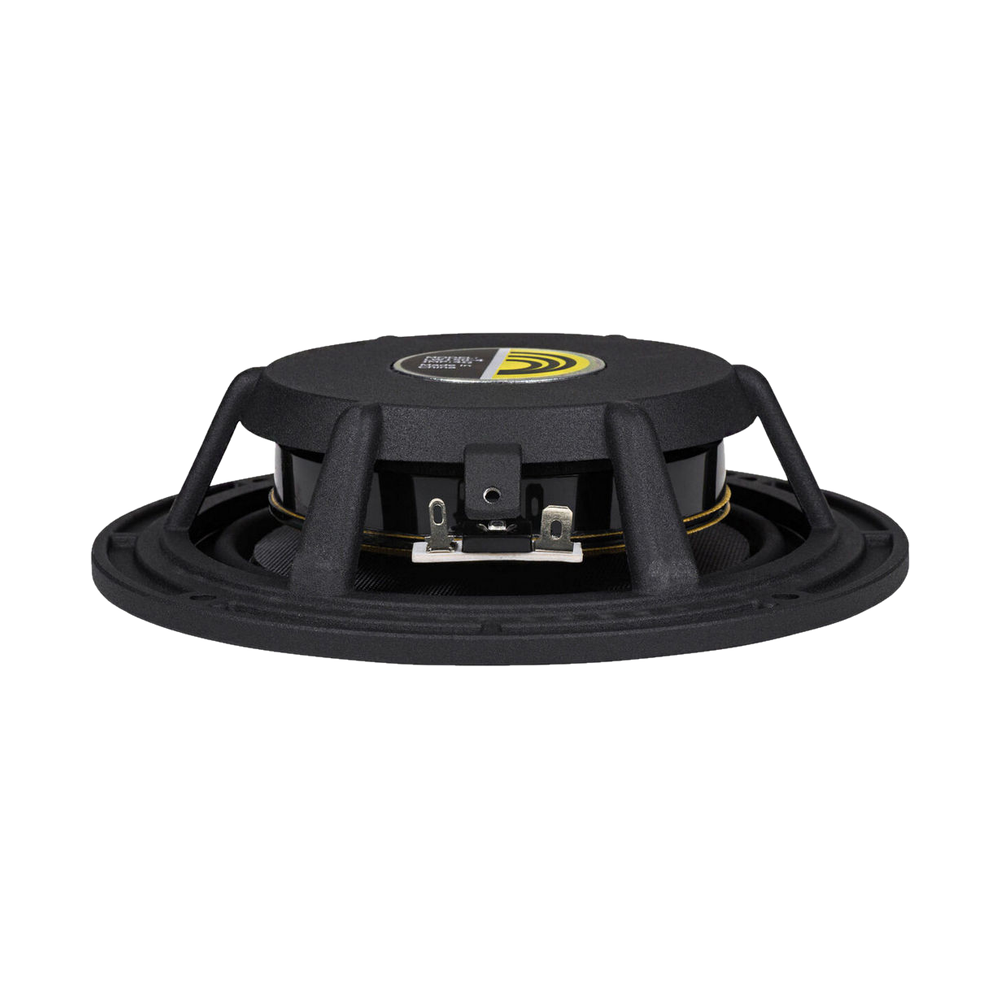

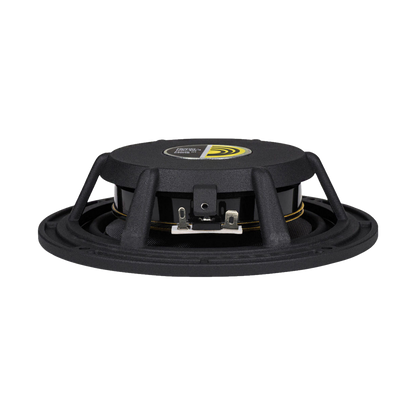

- Peripheral holes in the spider landing allow zero-clearance venting in shallow enclosures
- Suits on-wall, in-wall and car audio applications
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 6" |
| Nominal impedance | 4Ω |
| Power handling (RMS) | 40 W |
| Power handling (program) | 80 W |
| Sensitivity | 86.1 dB |
| Frequency range | 60 – 1,800 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 62.6 Hz |
|---|---|
| DC resistance (Re) | 3.6 Ω |
| Voice coil inductance (Le) | 0.86 mH |
| Mechanical Q (Qms) | 6.01 |
| Electrical Q (Qes) | 0.72 |
| Total Q (Qts) | 0.64 |
| Equivalent volume (Vas) | 3.49 L |
| Compliance (Cms) | 0.3 mm/N |
| Moving mass (Mms) | 21.9 g |
| Force factor (Bl) | 6.52 T·m |
| Effective piston area (Sd) | 91.6 cm² |
| Linear excursion (Xmax, one-way) | 4 mm |
| Displacement volume (Vd) | 36.64 cm³ |
| Efficiency bandwidth product (EBP) | 86.94 |

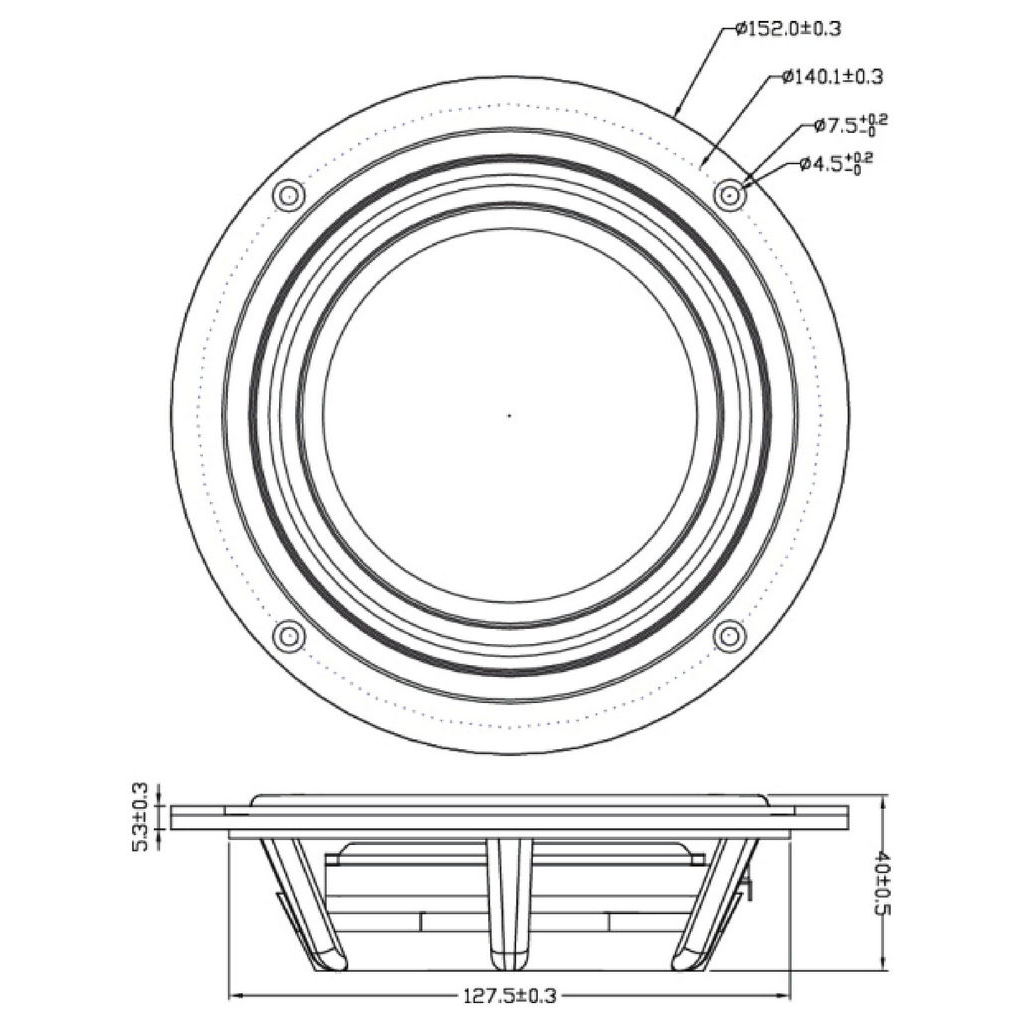

Mounting
| Overall diameter | 152.4 mm |
|---|---|
| Cutout diameter | 130.2 mm |
| Mounting depth | 34.92 mm |
| Voice coil diameter | 31.8 mm |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
