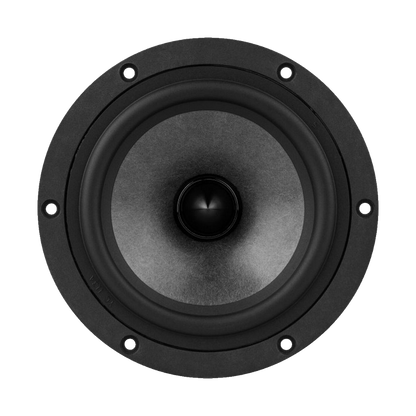

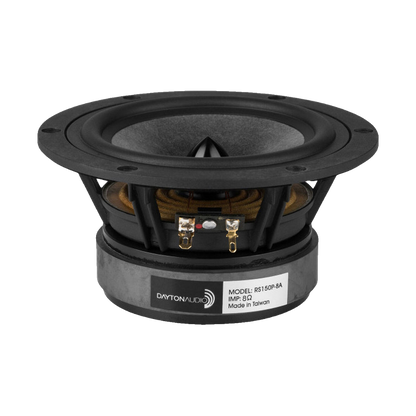

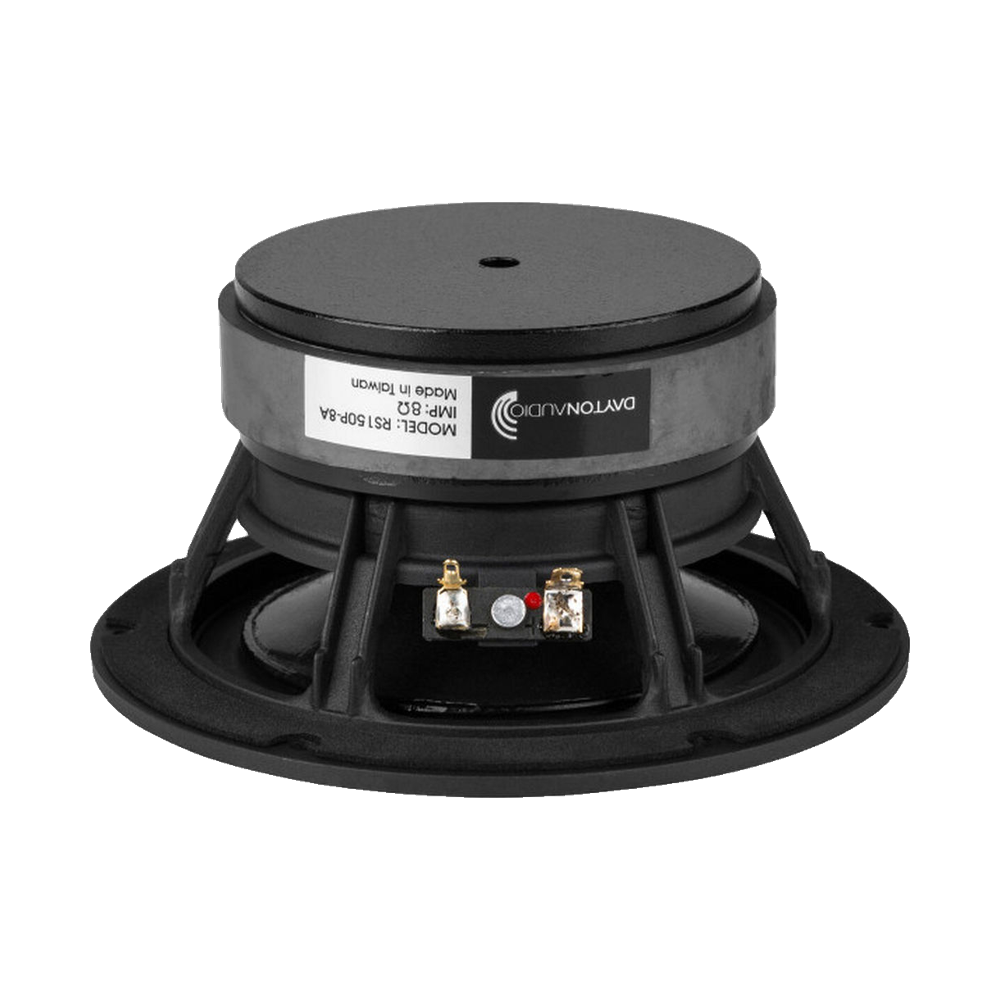

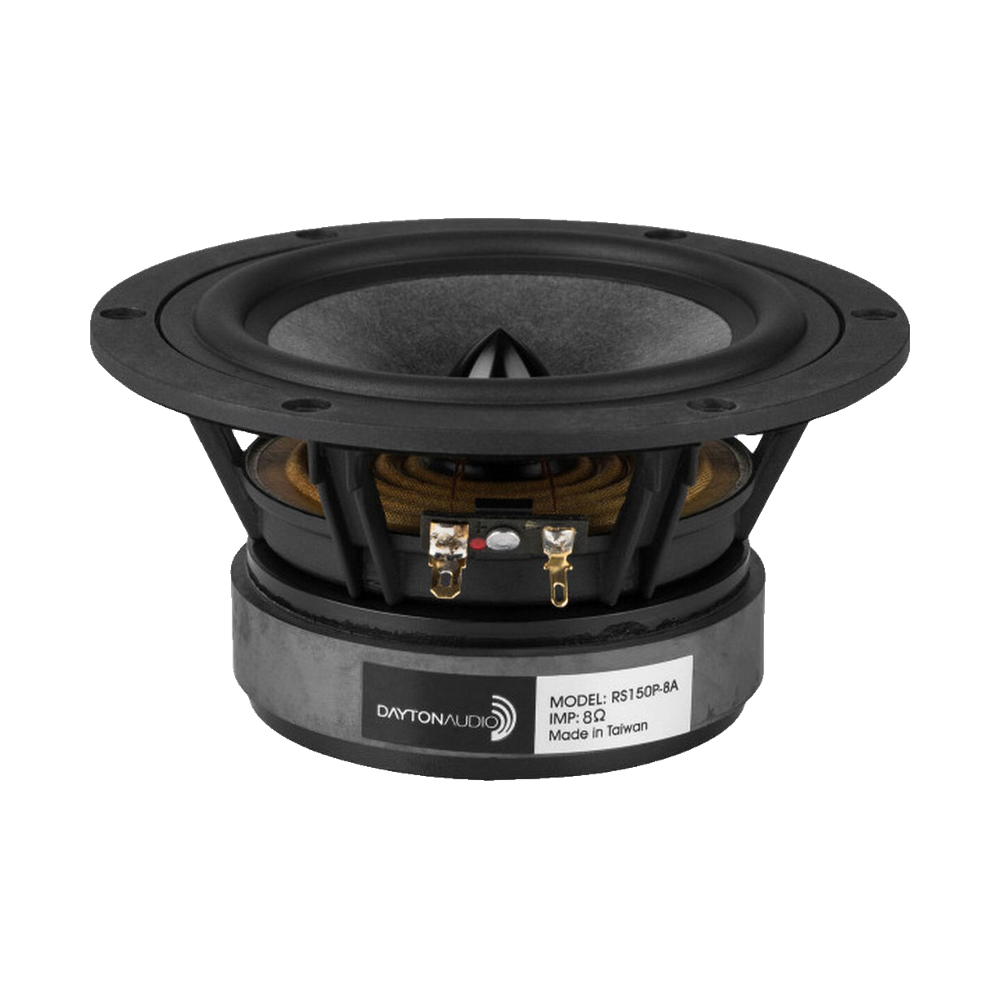

Dayton Audio - 6" Reference Woofer - RS150P-8A
Dayton Audio - 6" Reference Woofer - RS150P-8A
Regular price
$124.95
Regular price
Sale price
$124.95
Unit price
per
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Description

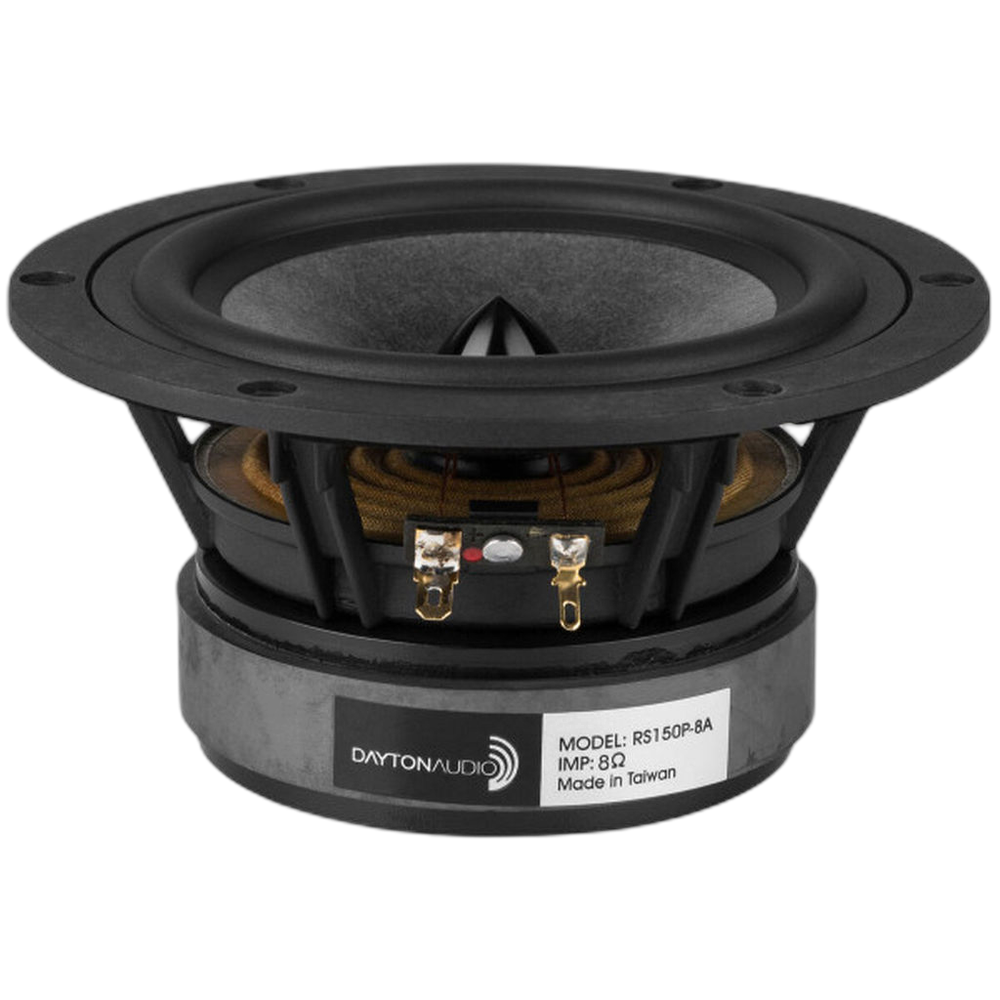

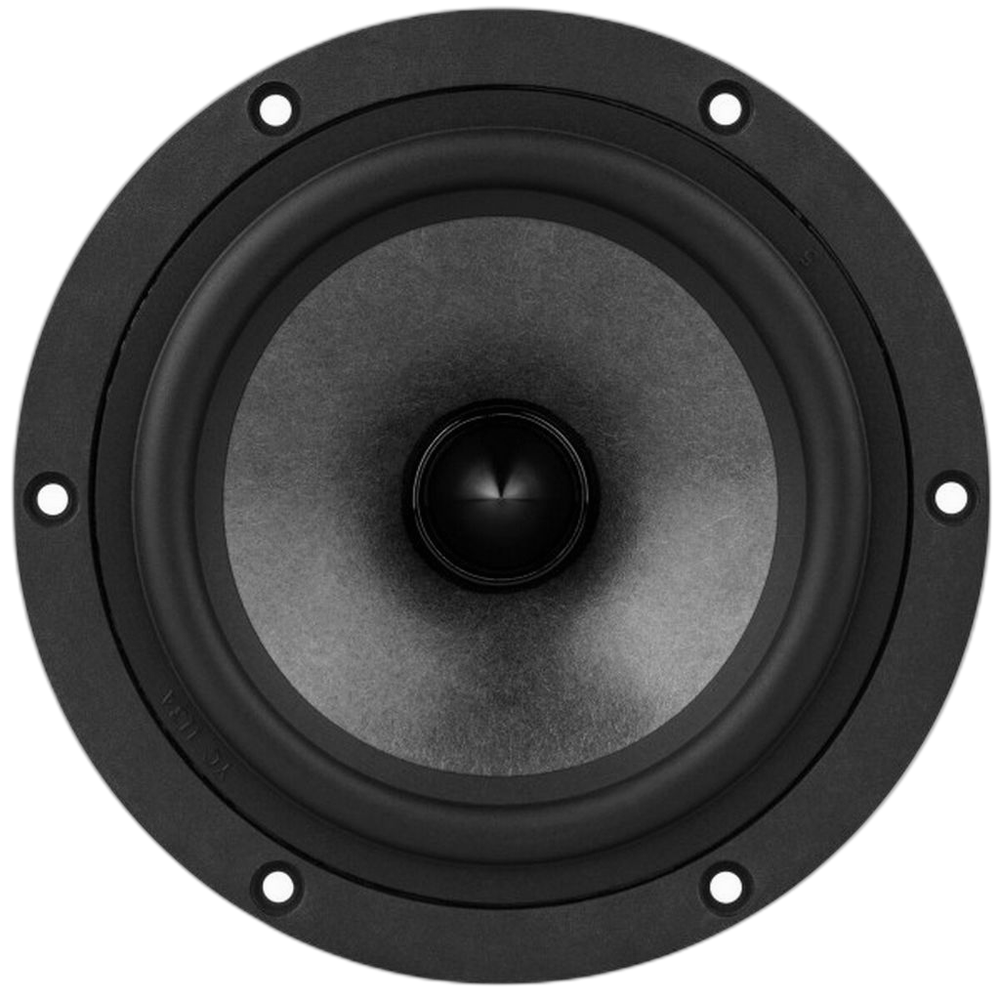

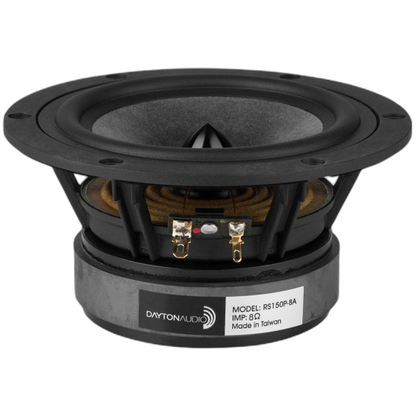

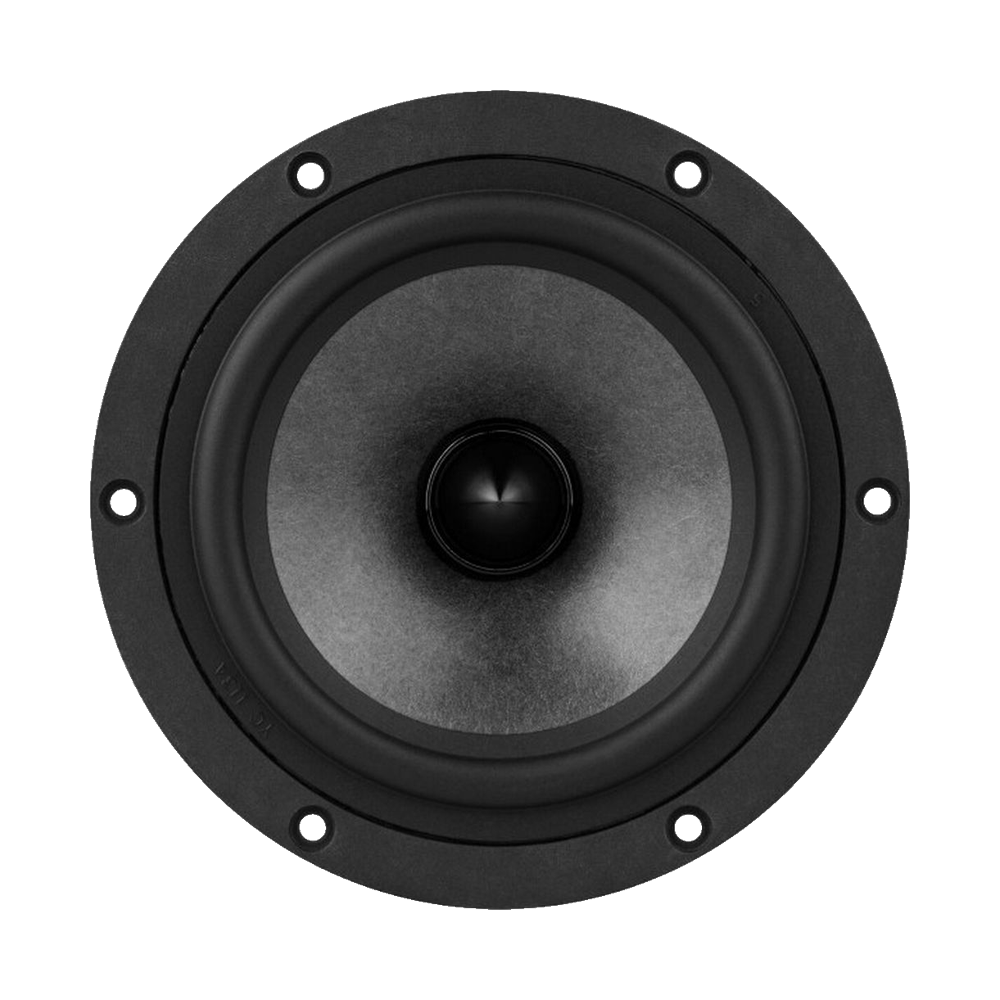

The 6” Reference Series paper cone driver uses a proprietary paper cone formulation combining natural paper pulp, synthetic Kevlar® and glass fibres to create an advanced non-woven fibre composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
Features

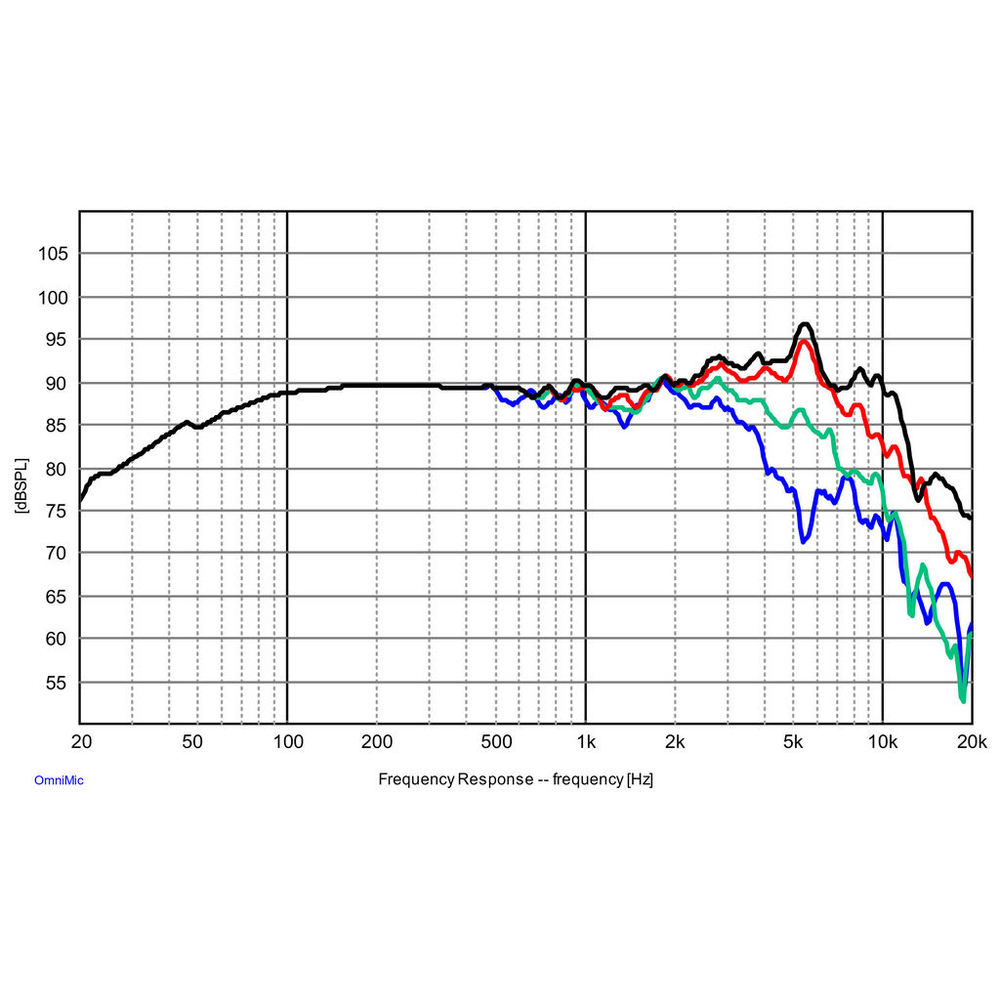

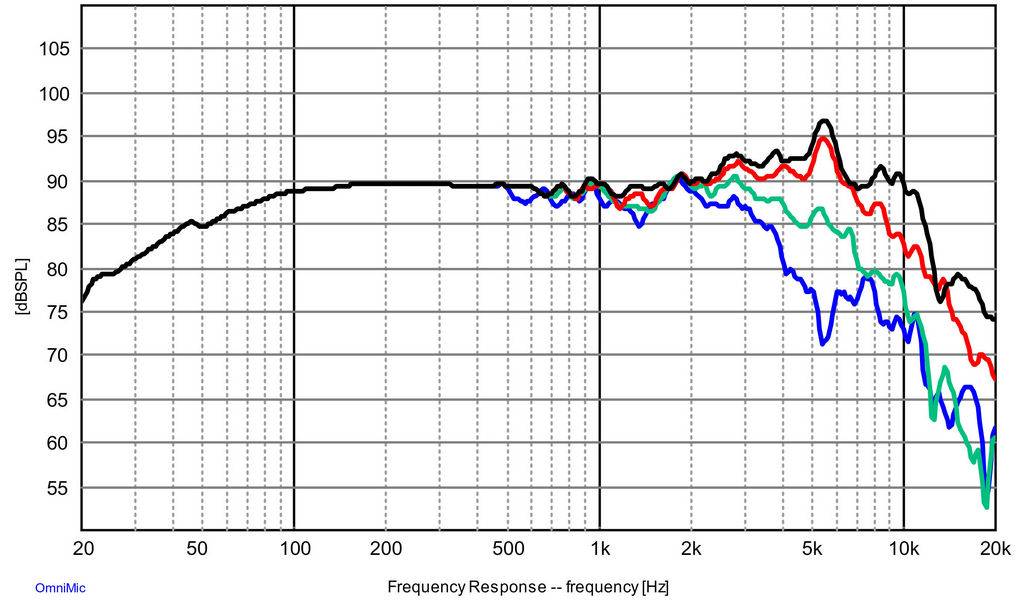

- Now with improved frequency response for easier crossover integration
- Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibres

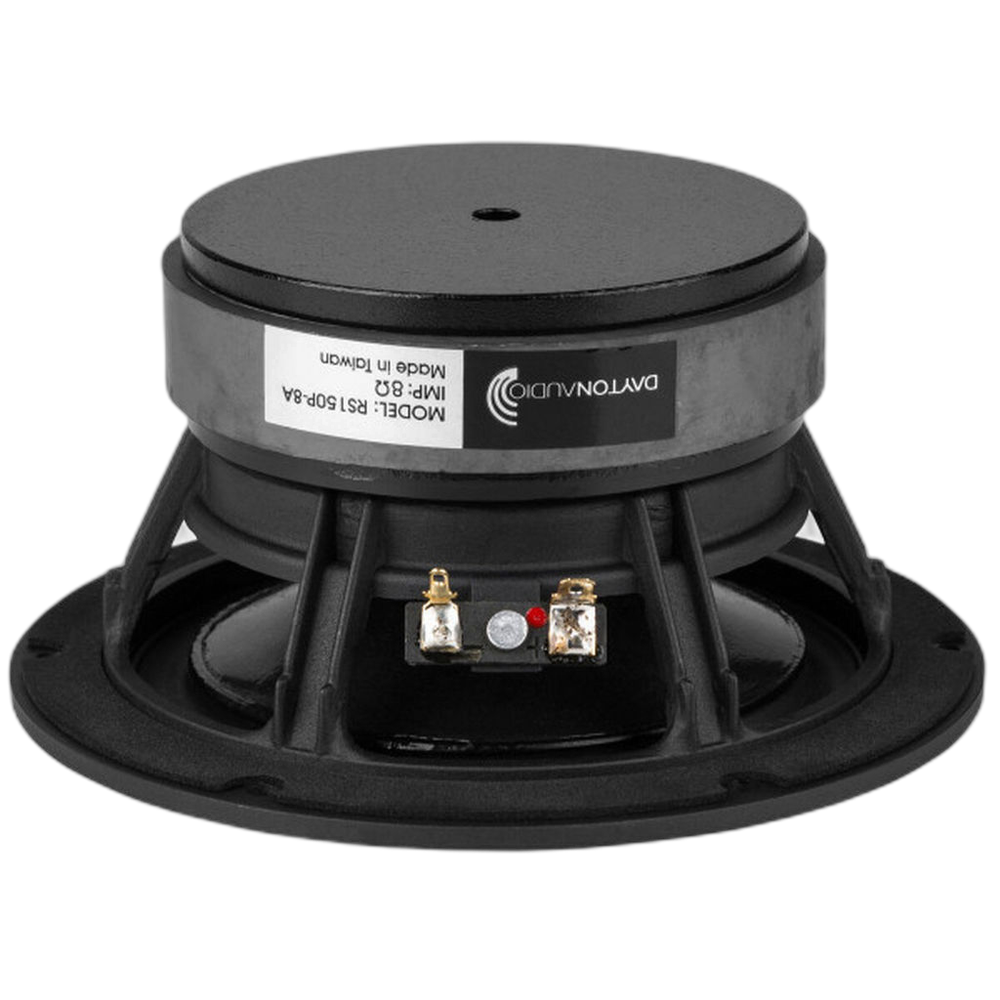

- Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminium phase plug
- Perfect for use as a woofer, midwoofer, or dedicated midrange driver
- 88.7 dB sensitivity and 4 mm of excursion
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 6" |
| Nominal impedance | 8Ω |
| Series | Reference |
| Power handling (RMS) | 40 W |
| Power handling (program) | 65 W |
| Sensitivity | 88.7 dB |
| Frequency range | 49 – 10,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 47.1 Hz |
|---|---|
| DC resistance (Re) | 6.7 Ω |
| Voice coil inductance (Le) | 0.65 mH |
| Mechanical Q (Qms) | 1.66 |
| Electrical Q (Qes) | 0.43 |
| Total Q (Qts) | 0.34 |
| Equivalent volume (Vas) | 16.7 L |
| Compliance (Cms) | 1.65 mm/N |
| Moving mass (Mms) | 6.9 g |
| Mechanical resistance (Rms) | 1.23 kg/s |
| Force factor (Bl) | 5.6 T·m |
| Effective piston area (Sd) | 85 cm² |
| Linear excursion (Xmax, one-way) | 4 mm |
| Displacement volume (Vd) | 34 cm³ |
| Efficiency bandwidth product (EBP) | 109.5 |

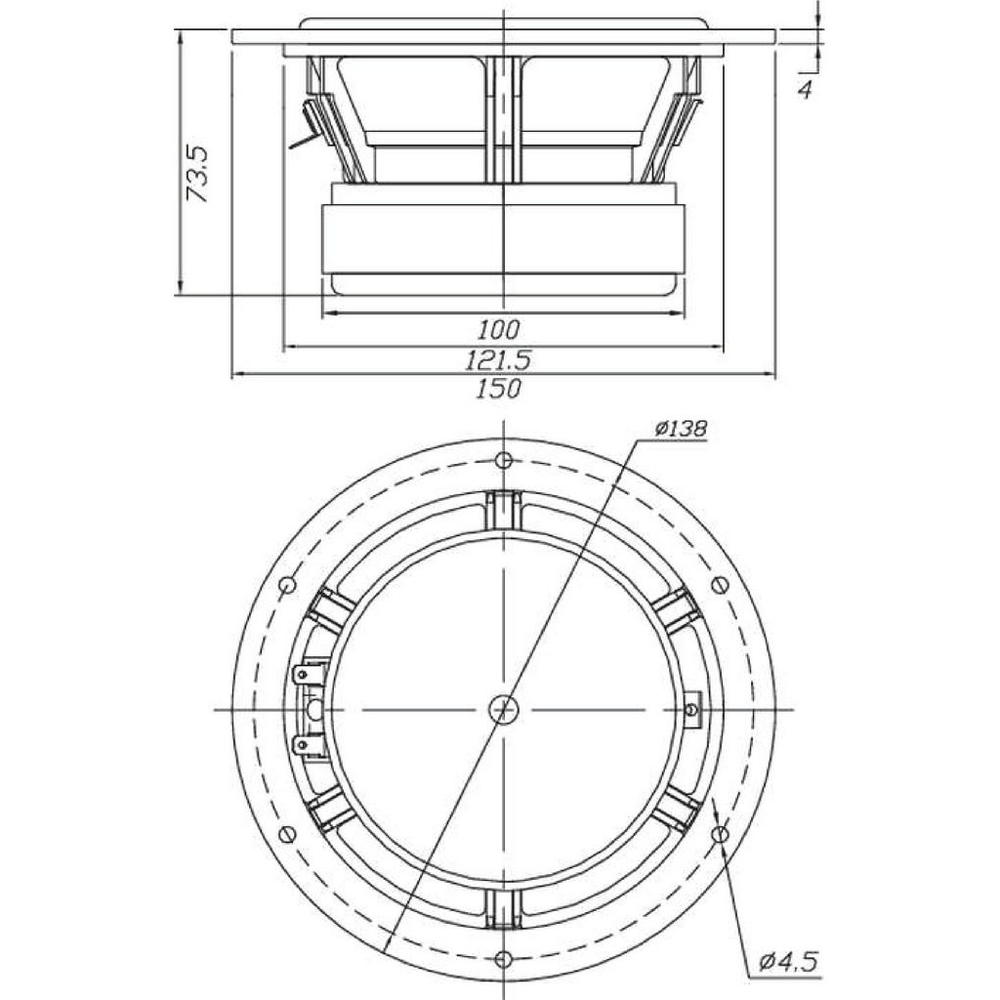

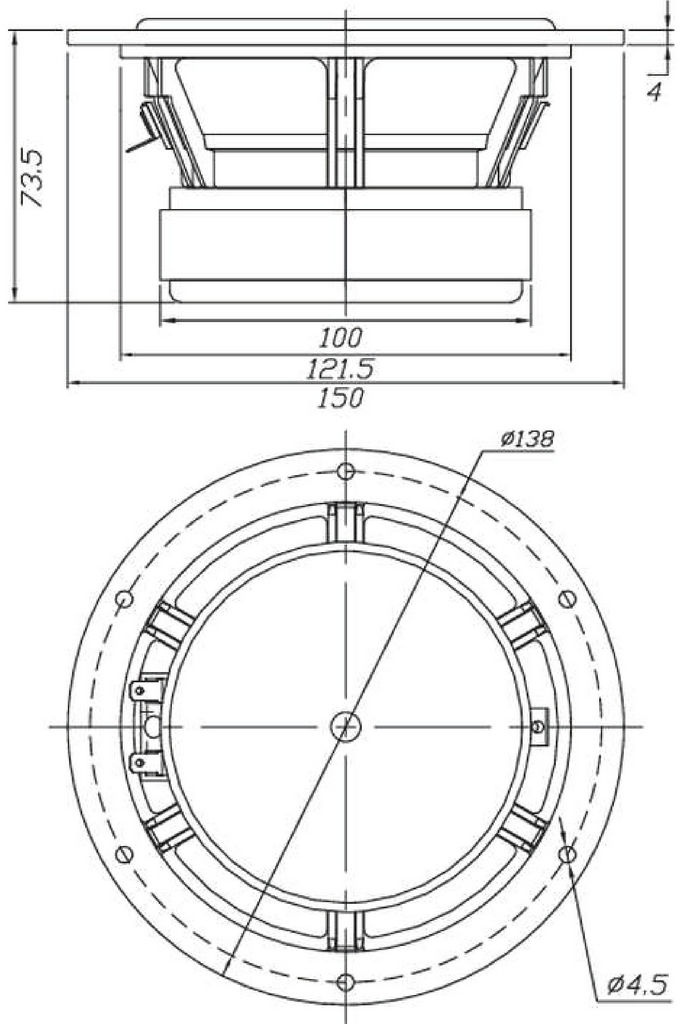

Mounting
| Overall diameter | 150 mm |
|---|---|
| Cutout diameter | 121.5 mm |
| Mounting depth | 73.5 mm |
| Flange thickness | 4 mm |
| Bolt circle diameter | 138 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 4.5 mm |
| Voice coil diameter | 25 mm |
| Weight | 1.406 kg |
Materials
| Cone | Paper / Kevlar |
|---|---|
| Surround | Rubber |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RS150P-8A Specification Sheet
- RS150P-8A Data Files
- RS150P-8A Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
