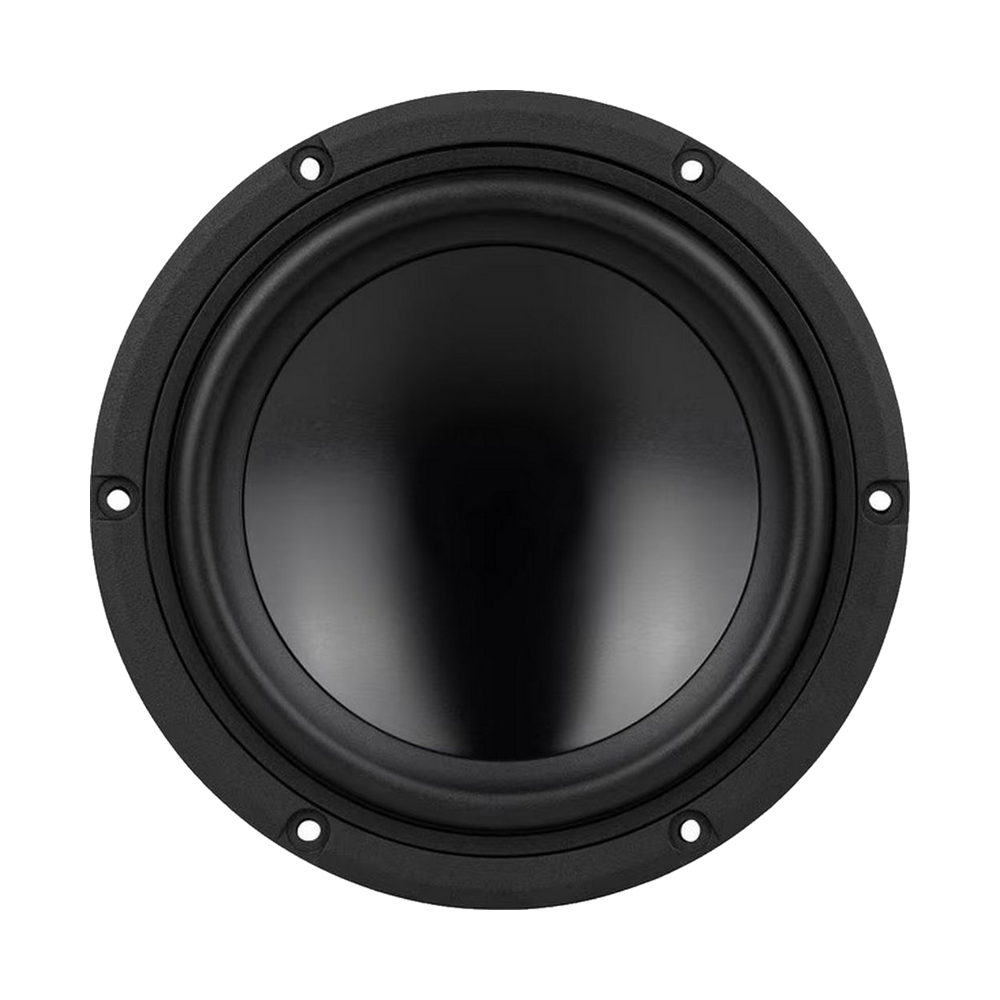

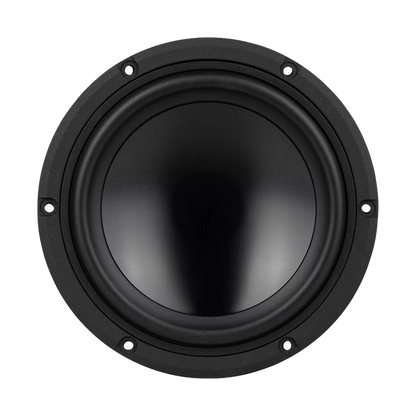

Dayton Audio - 6½" Signature Woofer - SIG180-4
Dayton Audio - 6½" Signature Woofer - SIG180-4
Regular price
$104.95 AUD
Regular price
Sale price
$104.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description

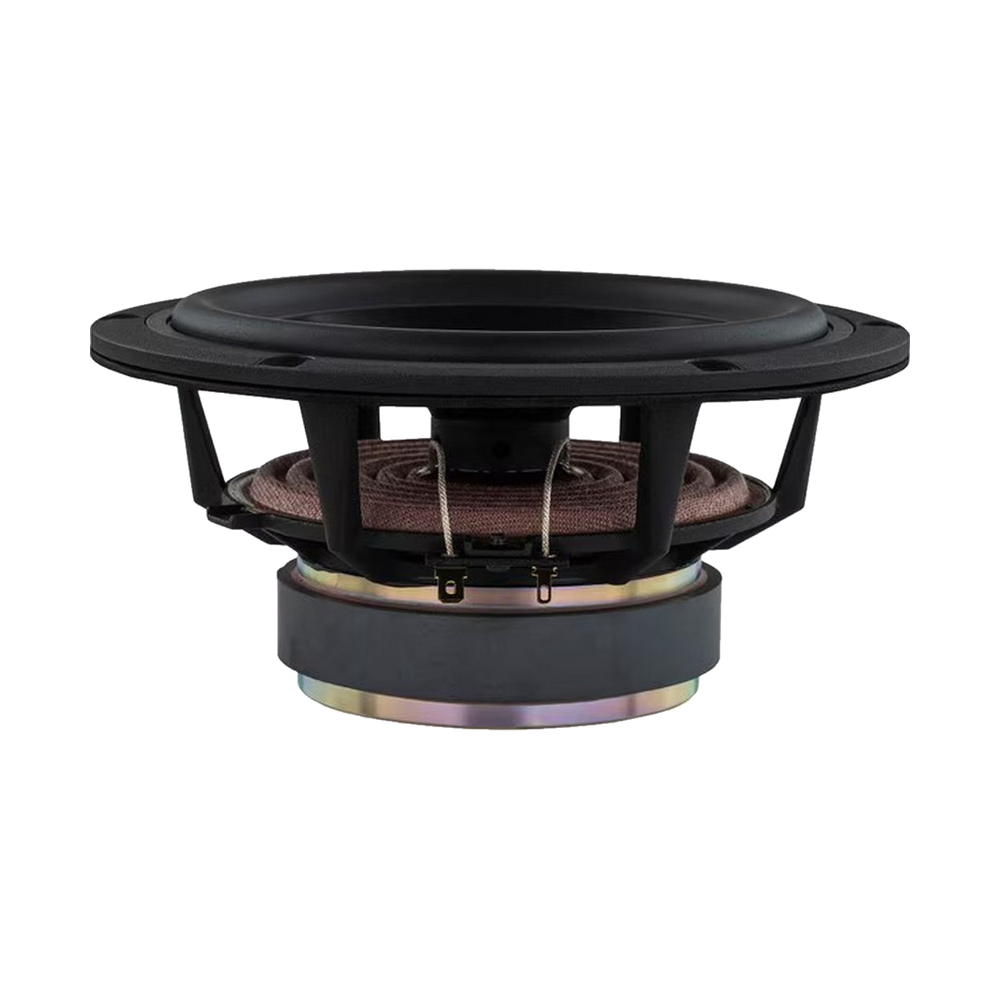

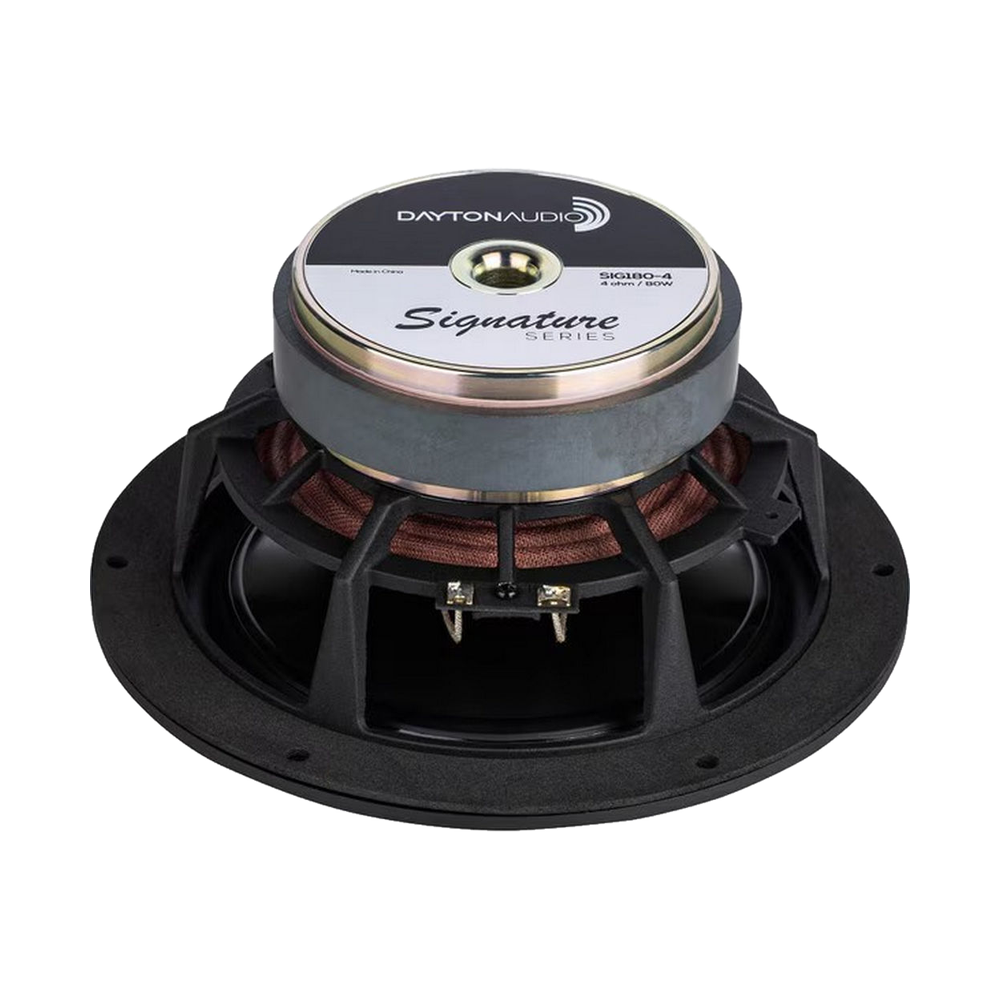

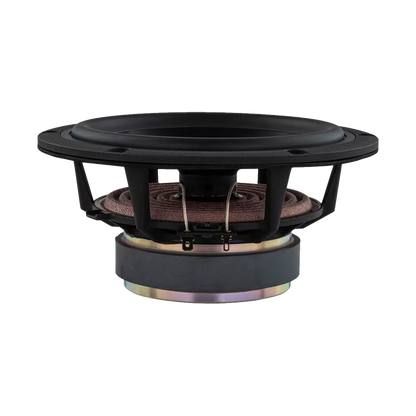

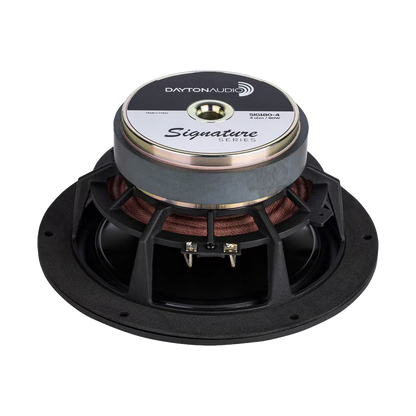

A 6½" woofer from Dayton Audio's Signature Series, with a one-piece concave black anodised aluminium cone, a polyimide former and an open cast aluminium frame. Dayton developed the series with Klippel testing for low distortion, and the vented former and elevated spider help it run cool.
Features
- Extensive Klippel LPM and LSI testing to optimise Bl symmetry and parameters
- Indexed cone/surround junction for a smooth transition and frequency response
- Polyimide formers for improved mechanical damping and a smooth frequency response
- One-piece concave black anodised aluminium cone
- Vented former and elevated spider for improved airflow
- Open cast aluminium frame for improved heat dissipation
- Countersunk stainless steel magnet badging for long-lasting looks
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 6.5" |
| Nominal impedance | 4Ω |
| Series | Signature |
| Power handling (RMS) | 80 W |
| Power handling (program) | 160 W |
| Sensitivity | 91 dB |
| Frequency range | 40 – 4,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 40.5 Hz |
|---|---|
| DC resistance (Re) | 3.7 Ω |
| Voice coil inductance (Le) | 0.47 mH |
| Mechanical Q (Qms) | 5.19 |
| Electrical Q (Qes) | 0.41 |
| Total Q (Qts) | 0.38 |
| Equivalent volume (Vas) | 23.2 L |
| Compliance (Cms) | 0.81 mm/N |
| Moving mass (Mms) | 19.2 g |
| Force factor (Bl) | 6.6 T·m |
| Effective piston area (Sd) | 143 cm² |
| Linear excursion (Xmax, one-way) | 5 mm |
| Displacement volume (Vd) | 71.5 cm³ |
| Efficiency bandwidth product (EBP) | 98.78 |
Motor
| Voice coil wire | Copper |
|---|

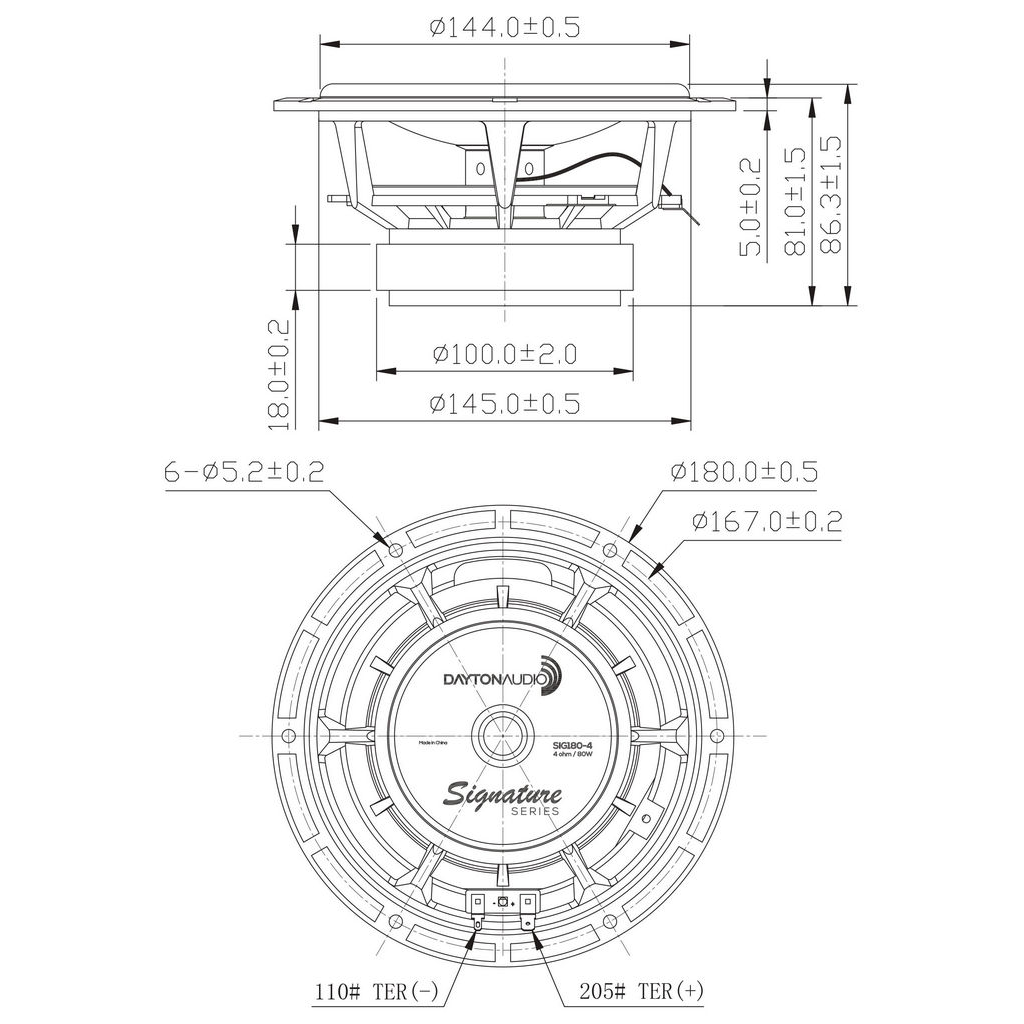

Mounting
| Overall diameter | 180.3 mm |
|---|---|
| Cutout diameter | 145 mm |
| Mounting depth | 81 mm |
| Mounting holes | 6 |
| Voice coil diameter | 31.8 mm |
| Weight | 1.647 kg |
Materials
| Cone | Aluminum Cone |
|---|---|
| Surround | Rubber |
| Voice coil former | Glass fiber |
| Basket | Cast aluminum |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
