Dayton Audio - 6½" Woofer Aluminium - DA175-8
Dayton Audio - 6½" Woofer Aluminium - DA175-8
Regular price
$86.95
Regular price
Sale price
$86.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

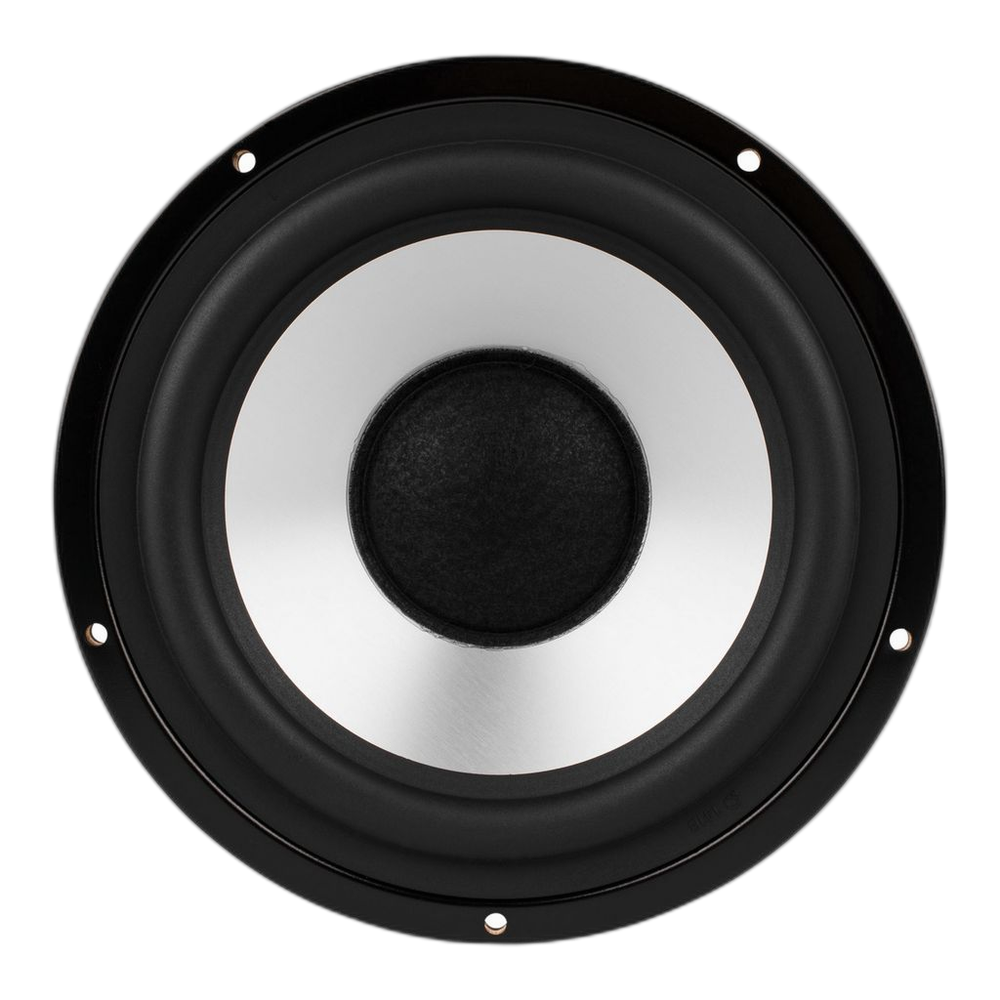

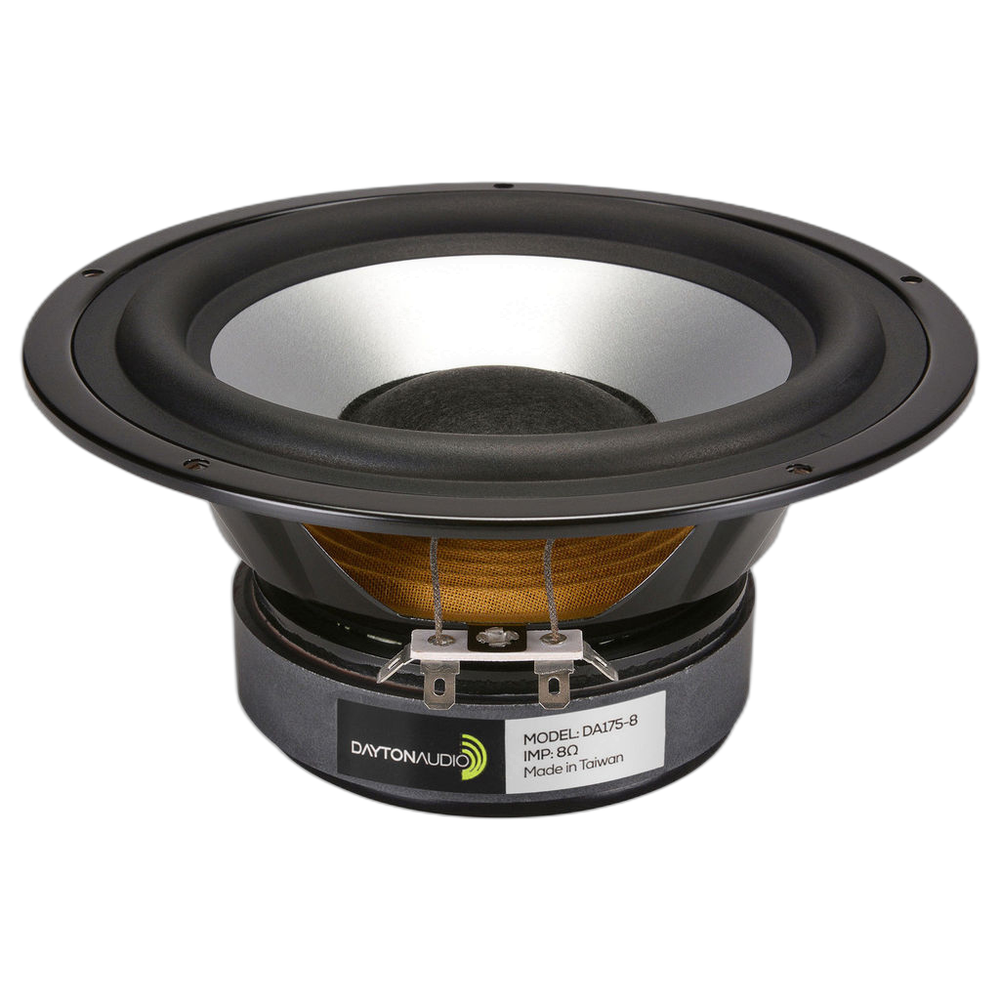

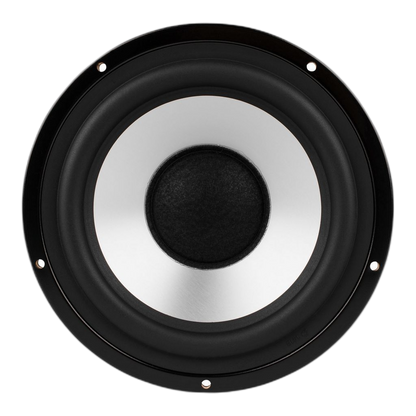

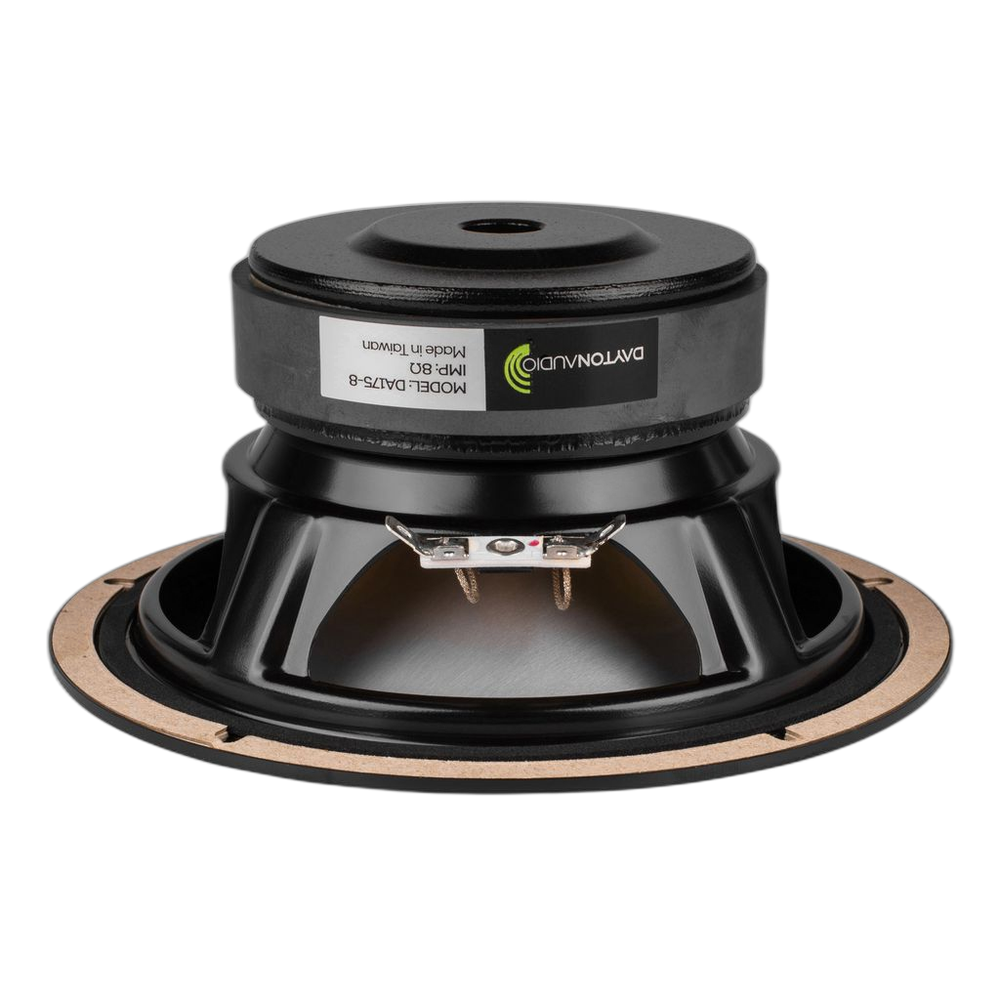

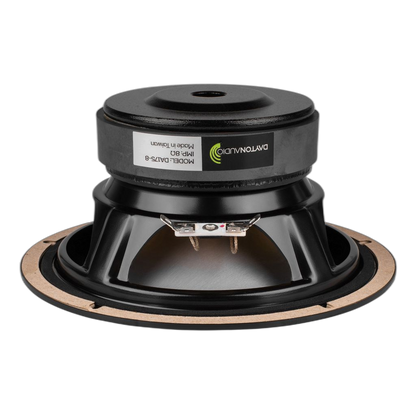

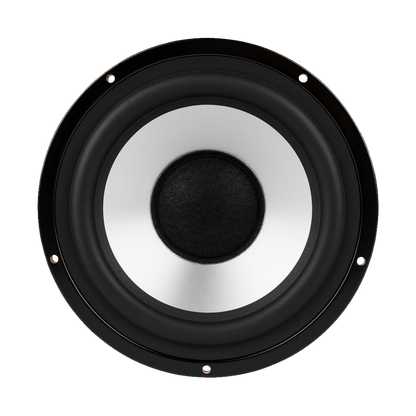

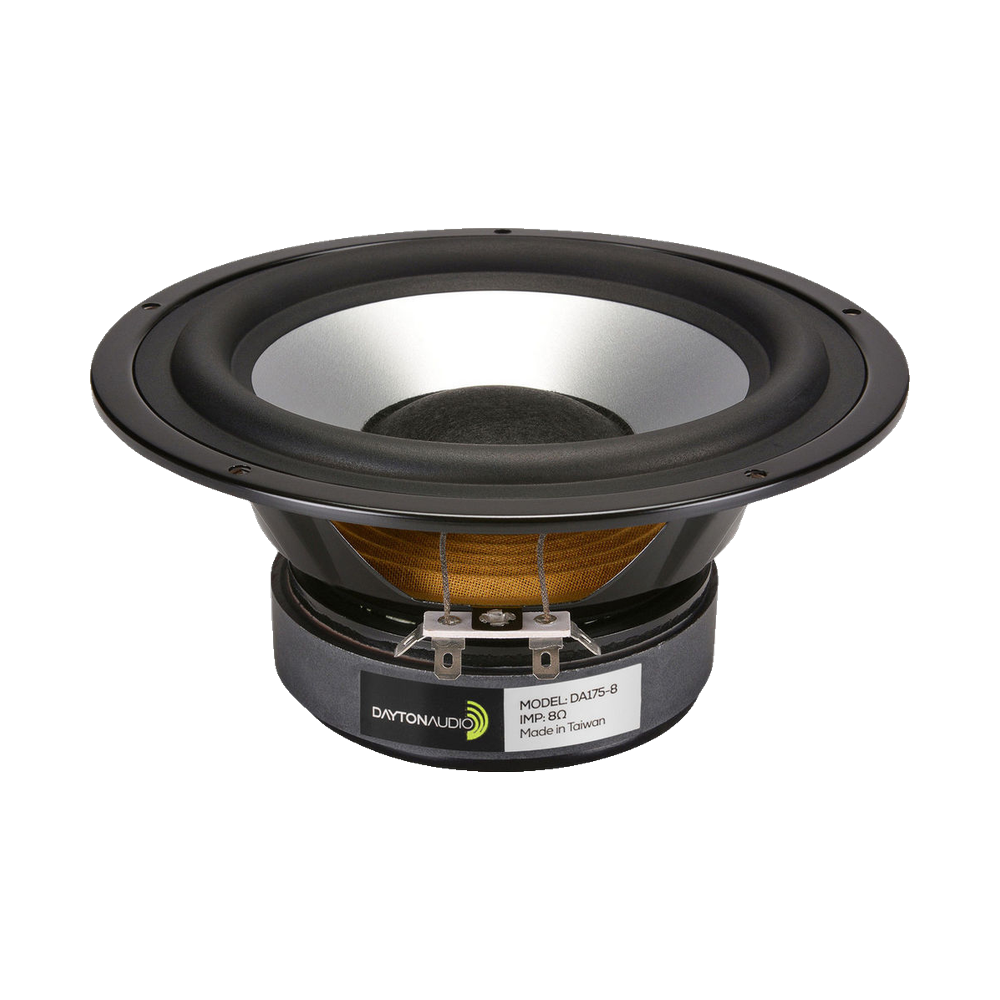

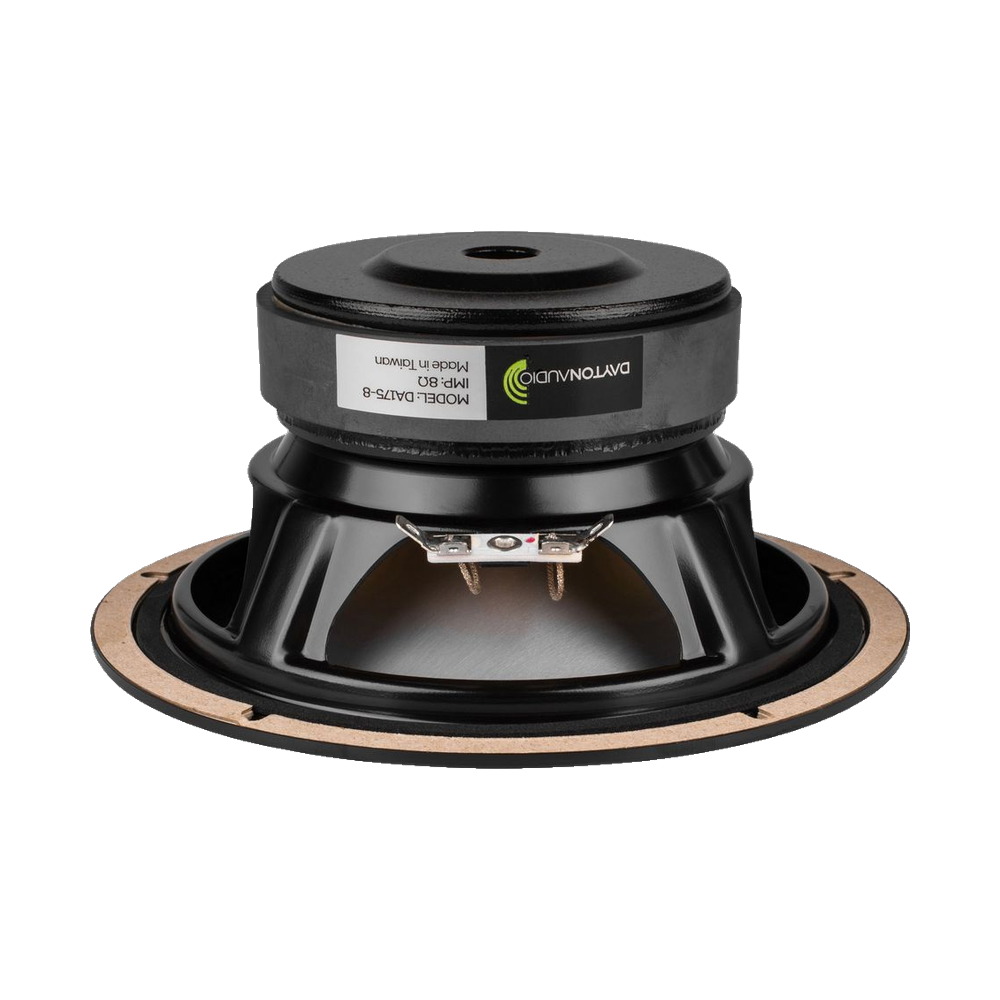

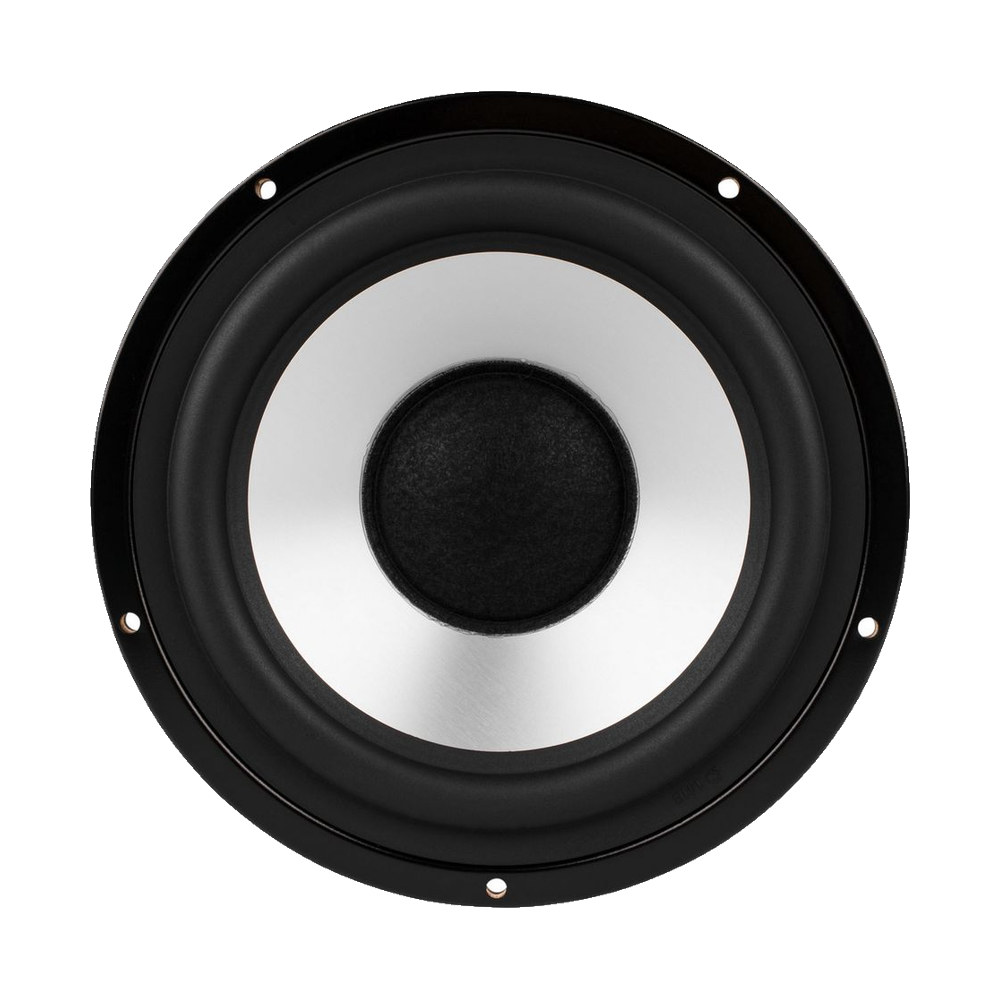

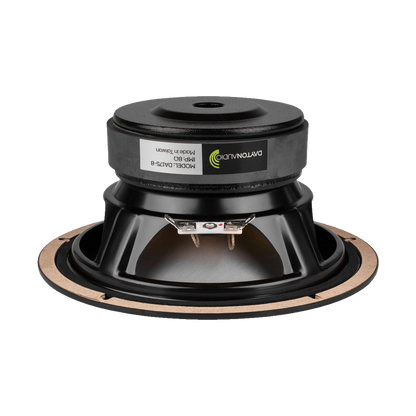

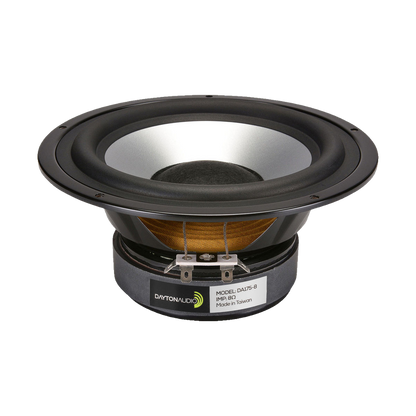

7" aluminium cone woofer with rubber surround, flat spider, and special composite dustcap. The cosmetic stamped steel frame provides a very high-class and professional look to your next speaker design. The aluminium cone offers a flat frequency response in the passband region with very low distortion.
Features
- Special composite dustcap
- Stamped steel frame provides a very high-class and professional look

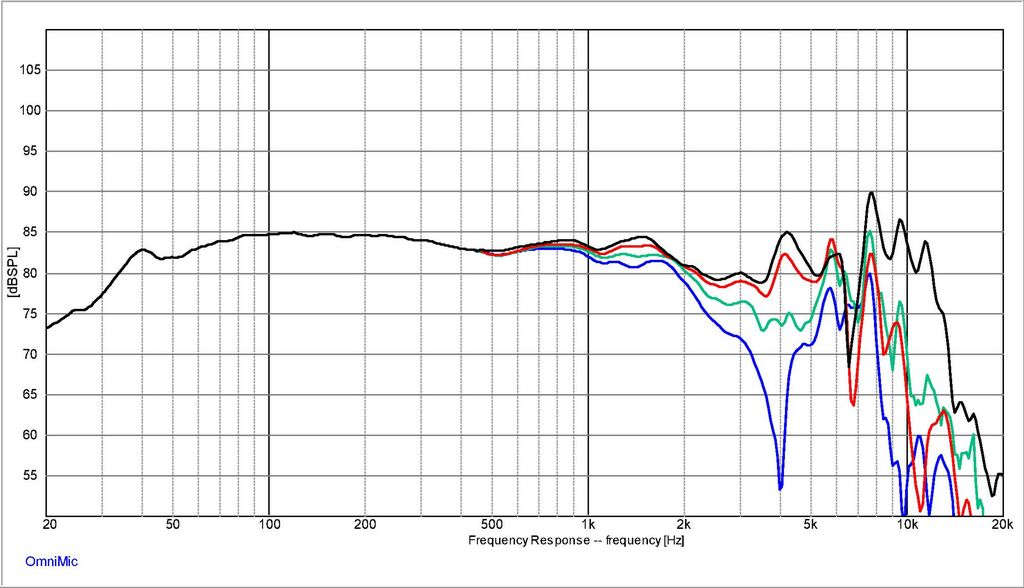

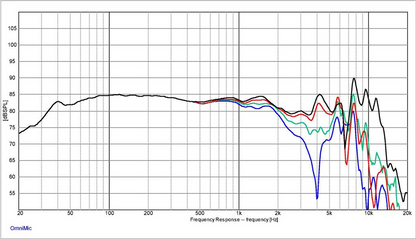

- Aluminium cone offers a flat frequency response in the passband region with very low distortion
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 6.5" |
| Nominal impedance | 8Ω |
| Series | Classic |
| Power handling (RMS) | 50 W |
| Power handling (program) | 100 W |
| Sensitivity | 85 dB |

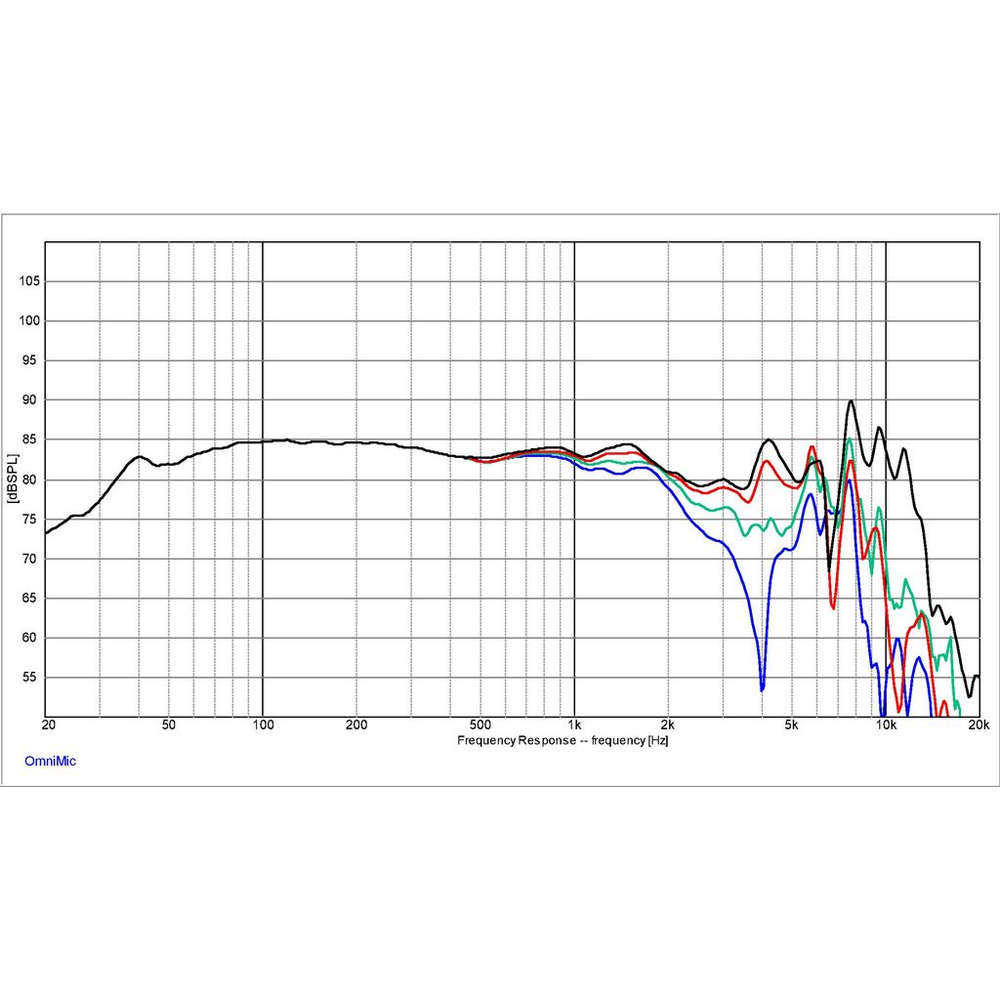

| Frequency range | 35 – 10,000 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 39 Hz |
|---|---|
| DC resistance (Re) | 5.9 Ω |
| Voice coil inductance (Le) | 1.14 mH |
| Mechanical Q (Qms) | 3.31 |
| Electrical Q (Qes) | 0.7 |
| Total Q (Qts) | 0.58 |
| Equivalent volume (Vas) | 16.3 L |
| Compliance (Cms) | 0.66 mm/N |
| Moving mass (Mms) | 25.2 g |
| Mechanical resistance (Rms) | 1.863 kg/s |
| Force factor (Bl) | 7.17 T·m |
| Effective piston area (Sd) | 132.7 cm² |
| Linear excursion (Xmax, one-way) | 4.25 mm |
| Displacement volume (Vd) | 56.4 cm³ |
| Efficiency bandwidth product (EBP) | 55.71 |
Motor
| Voice coil wire | Copper |
|---|

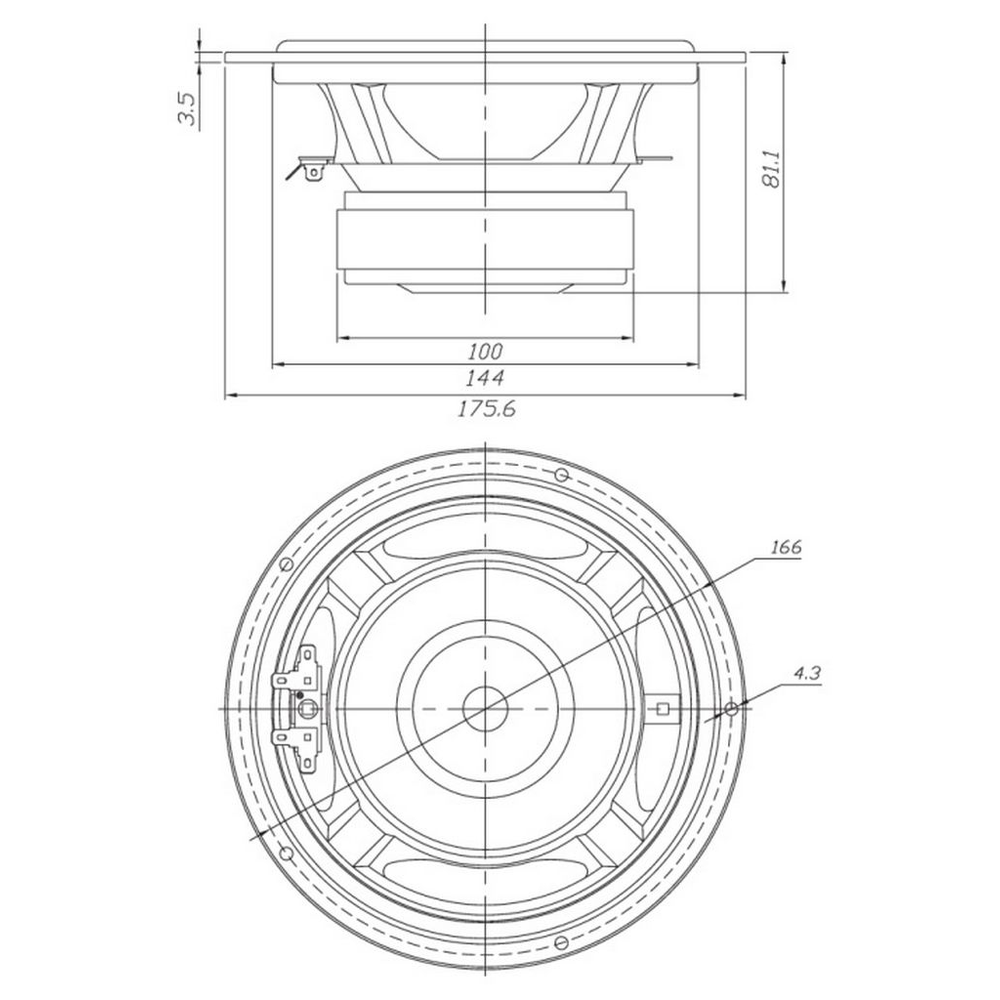

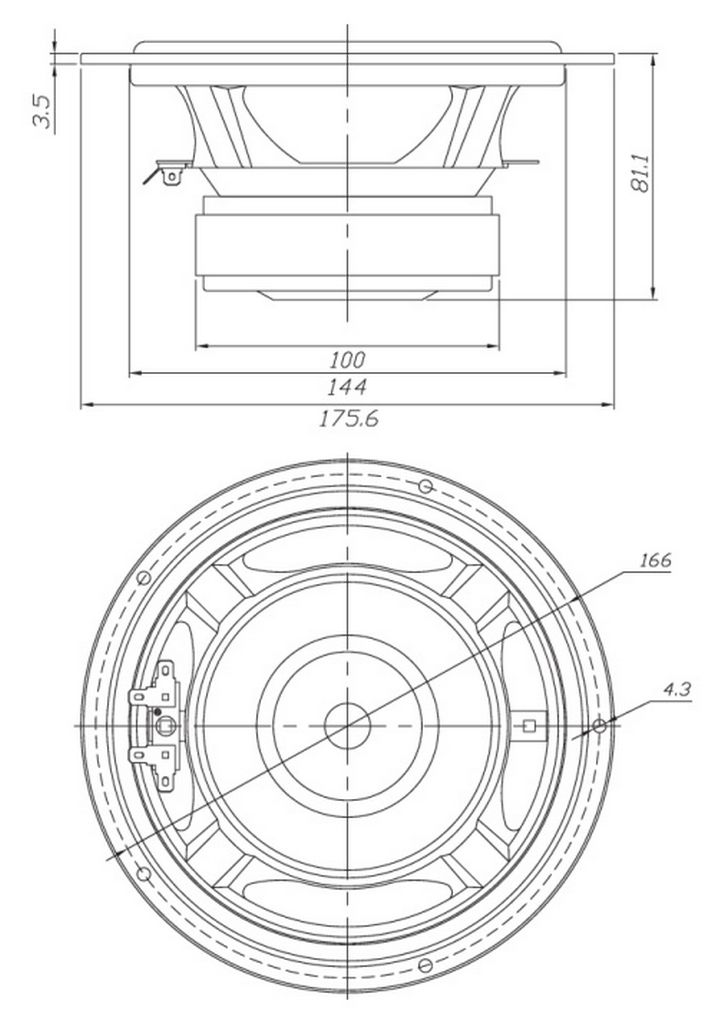

Mounting
| Overall diameter | 175.6 mm |
|---|---|
| Cutout diameter | 144 mm |
| Mounting depth | 81.1 mm |
| Flange thickness | 3.5 mm |
| Bolt circle diameter | 166 mm |
| Mounting holes | 5 |
| Mounting hole diameter | 4.3 mm |
| Voice coil diameter | 35 mm |
Materials
| Cone | Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 1W/1m.
Downloads
- DA175-8 Specification Sheet
- DA175-8 Data Files
- DA175-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
