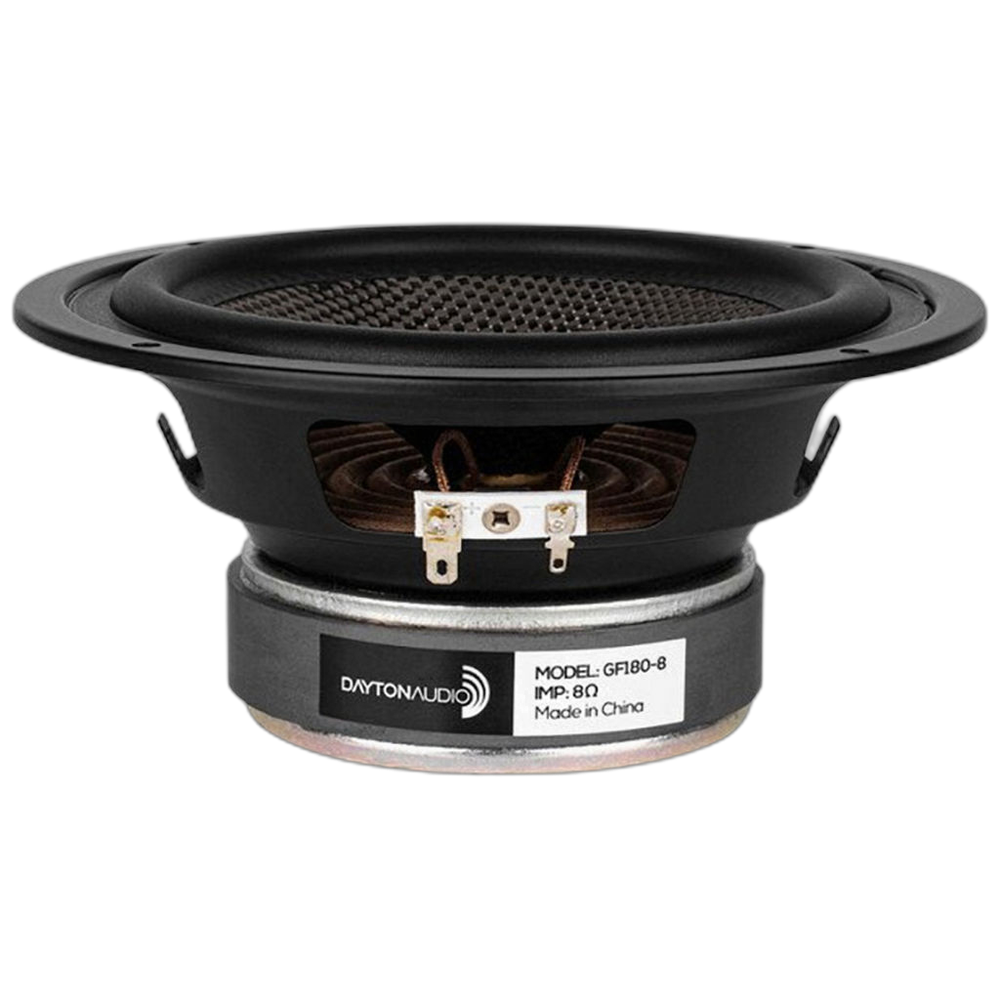

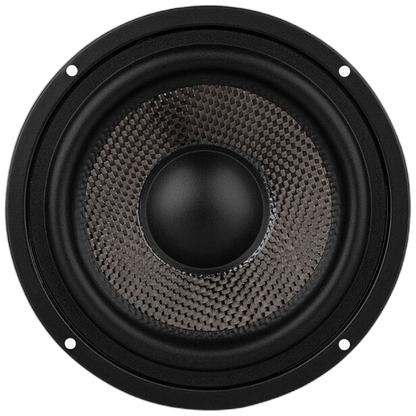

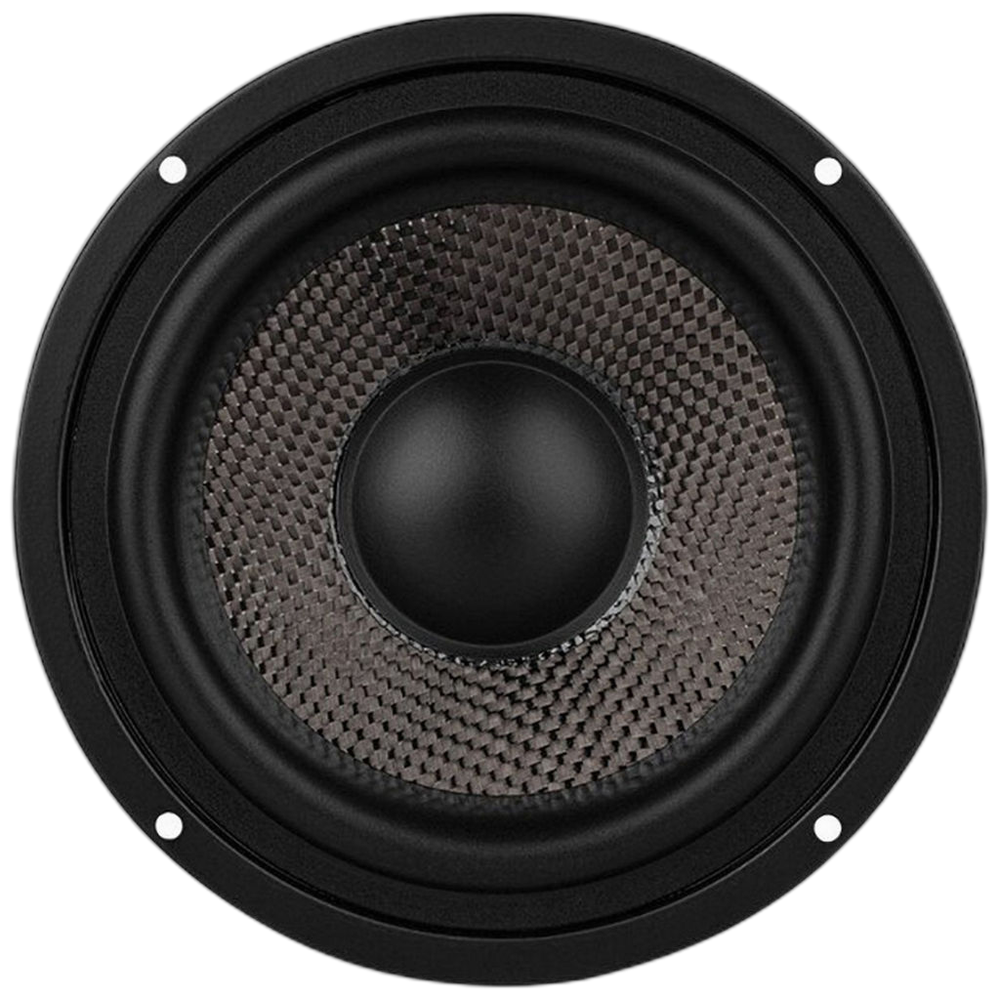

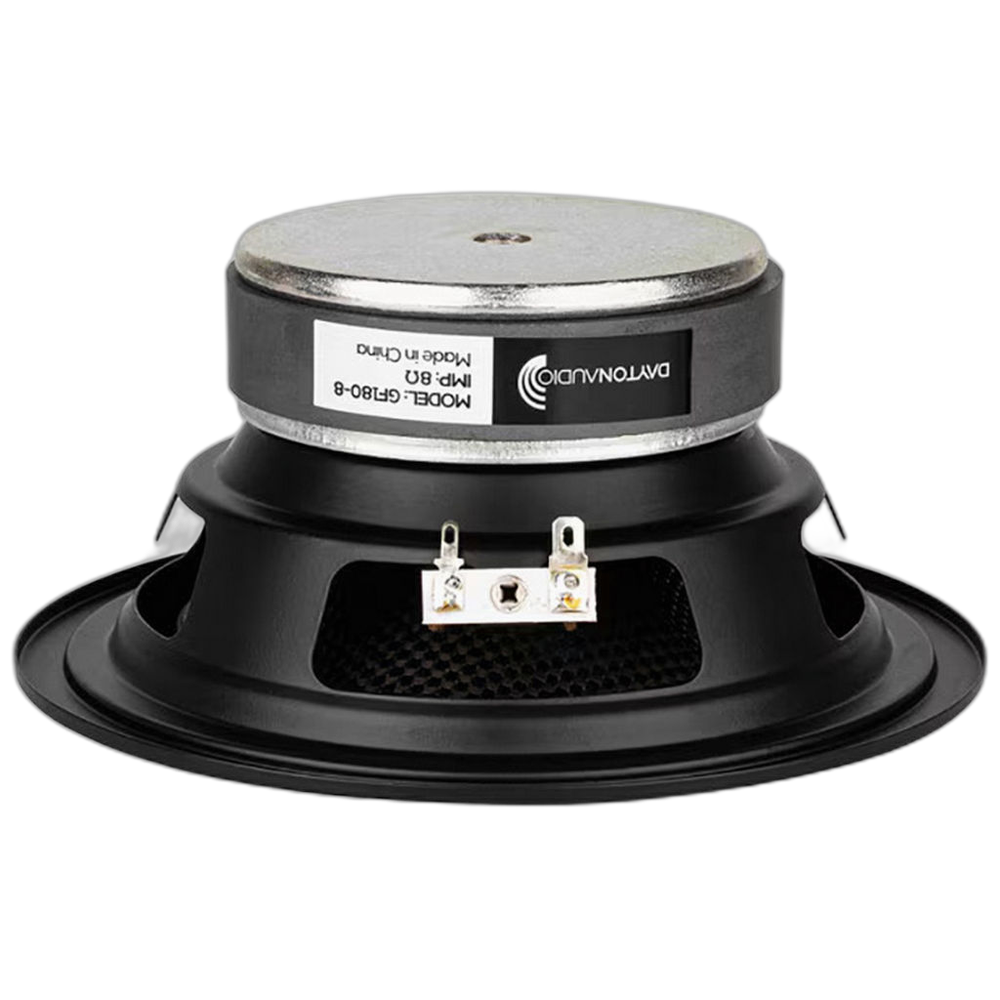

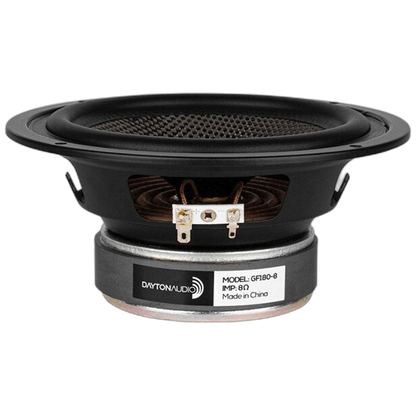

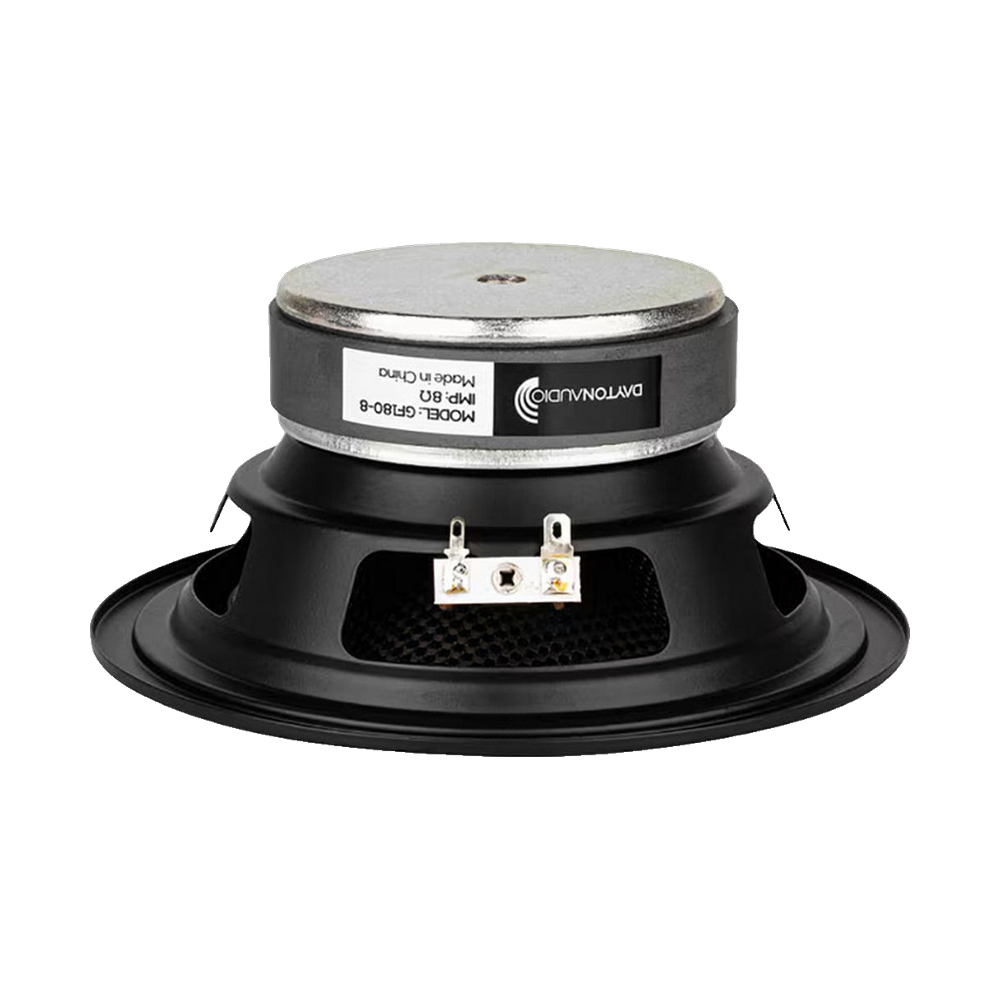

Dayton Audio - 6½" Woofer Glass Fibre - GF180-8
Dayton Audio - 6½" Woofer Glass Fibre - GF180-8
Out of stock
Couldn't load pickup availability
Description
Dayton Audio’s GF180-8 6-1/2” glass fibre cone woofer is built to produce powerful bass with smooth midrange response. The woven fibreglass cone and rubber surround damps cone resonances allowing an easy transition to tweeters when crossed over at 2,000 Hz. This affordable woofer is a great choice for 2-way bookshelf speaker designs.

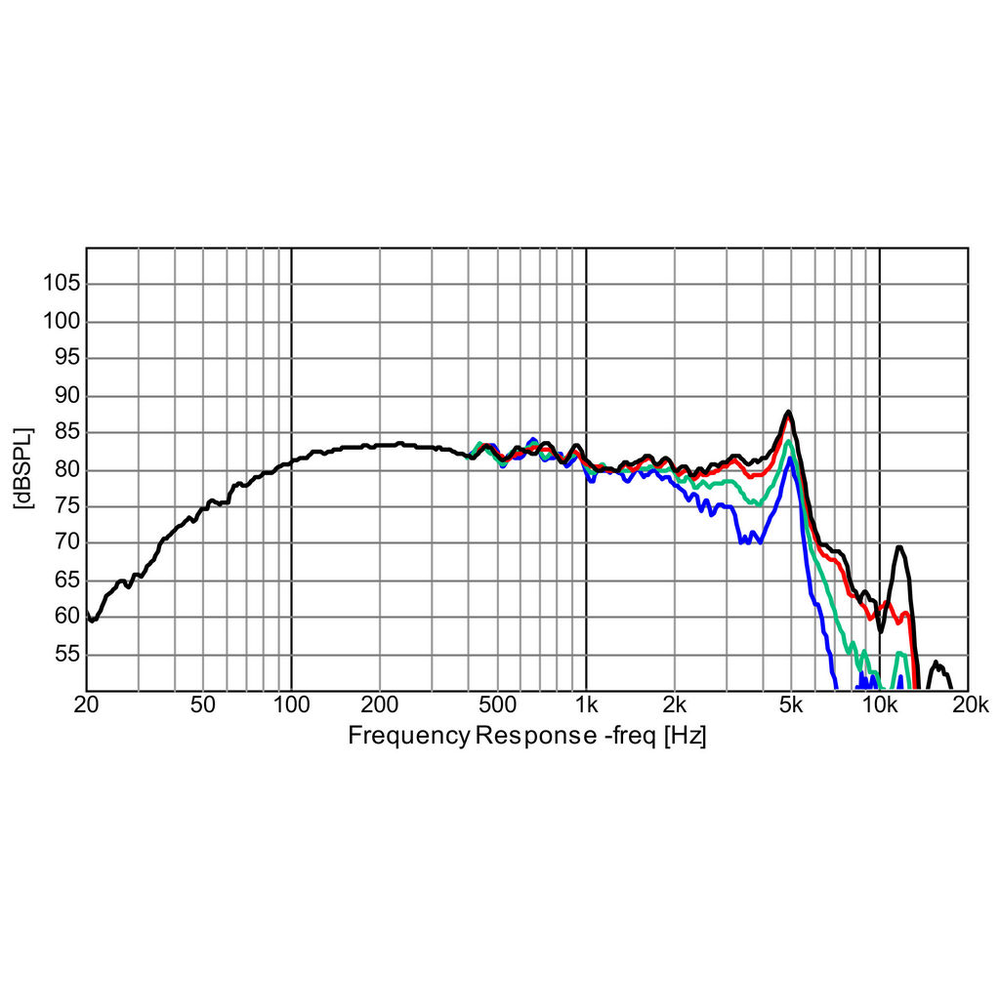

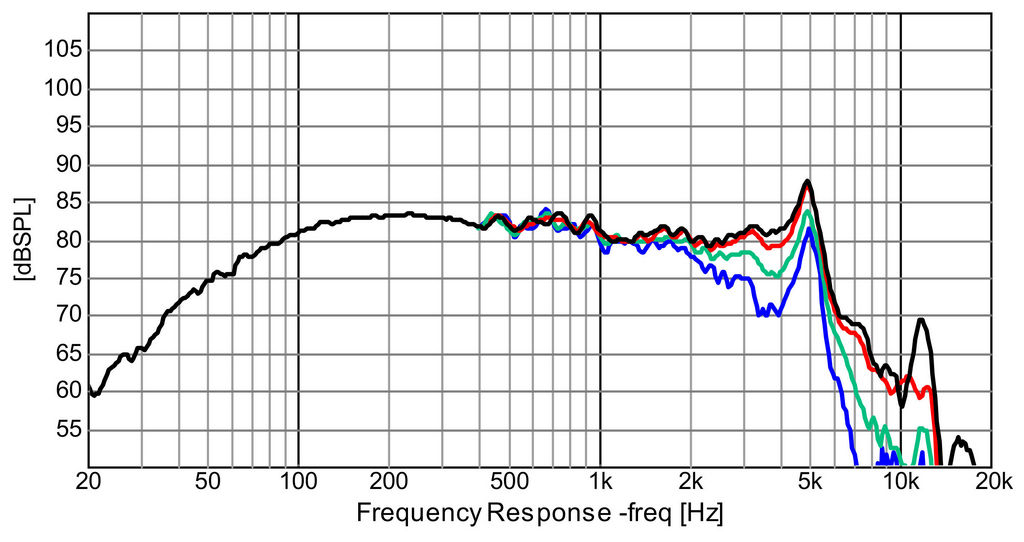

With flat response to 4,000 Hz and excellent low frequency extension, the GF180-8 6-1/2” glass fibre cone woofer from Dayton Audio is ideal for use in low cost 2-ways speaker designs. The naturally damped woven fibreglass cone is driven by a 4-layer voice coil wound on an aluminium former. This driver is a great choice for you next bookshelf speaker, multiple driver tower, or even portable sound systems.
Features
- Woven fibreglass cone lowers resonances for smooth response and natural sound
- 4-layer voice coil on an aluminium former provides excellent heat dissipation
- Rubber surround helps damp the outside edge of the cone improving high frequency response
- Vented pole piece releases air trapped under the dustcap for quiet operation
- Low-profile frame minimises diffraction making these drivers suitable for surface mount applications
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 6.5" |
| Nominal impedance | 8Ω |
| Series | Glass Fibre |
| Power handling (RMS) | 40 W |
| Power handling (program) | 80 W |
| Sensitivity | 87.9 dB |
| Frequency range | 50 – 5,000 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 53 Hz |
|---|---|
| DC resistance (Re) | 8 Ω |
| Voice coil inductance (Le) | 1.9 mH |
| Mechanical Q (Qms) | 3.07 |
| Electrical Q (Qes) | 0.6 |
| Total Q (Qts) | 0.5 |
| Equivalent volume (Vas) | 15.5 L |
| Compliance (Cms) | 0.65 mm/N |
| Moving mass (Mms) | 13.9 g |
| Mechanical resistance (Rms) | 1.508 kg/s |
| Force factor (Bl) | 7.9 T·m |
| Effective piston area (Sd) | 130.2 cm² |
| Linear excursion (Xmax, one-way) | 4 mm |
| Displacement volume (Vd) | 52.08 cm³ |
| Efficiency bandwidth product (EBP) | 88.33 |
Motor
| Voice coil wire | Copper |
|---|

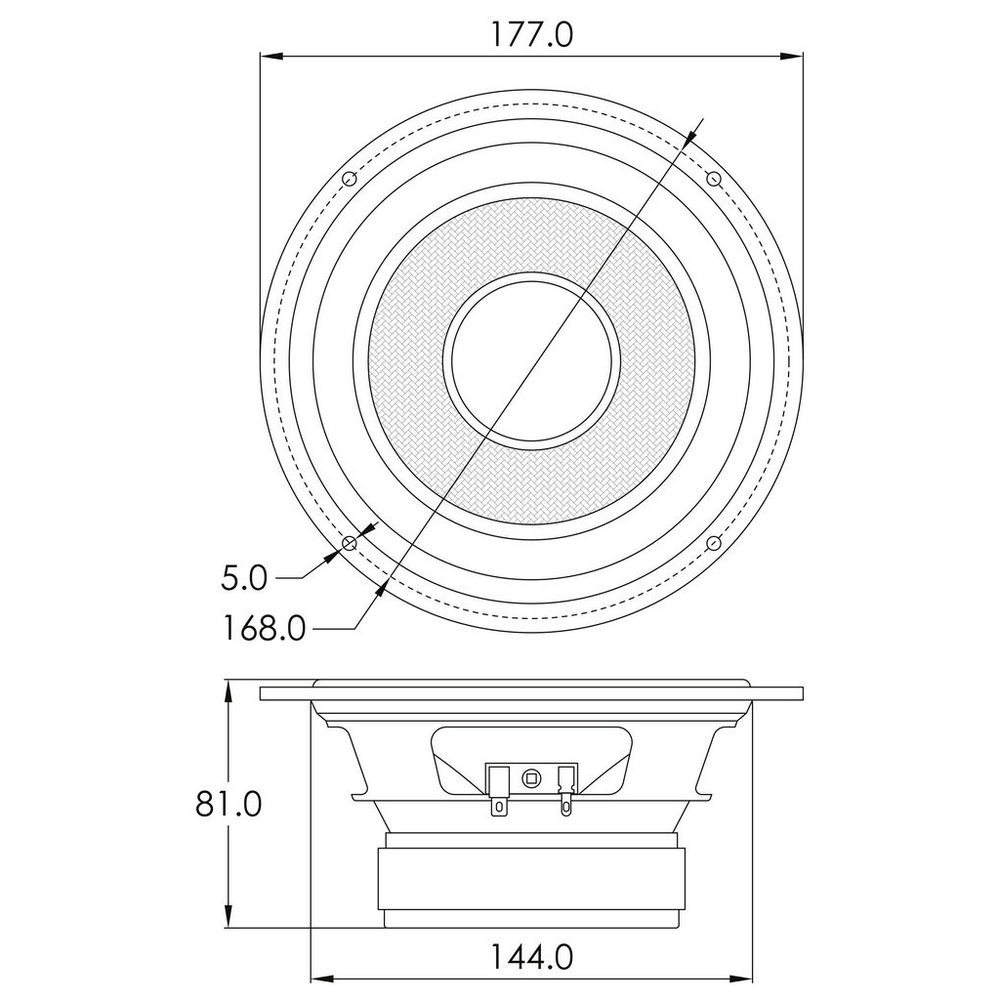

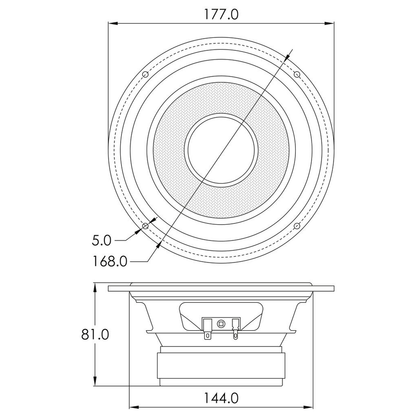

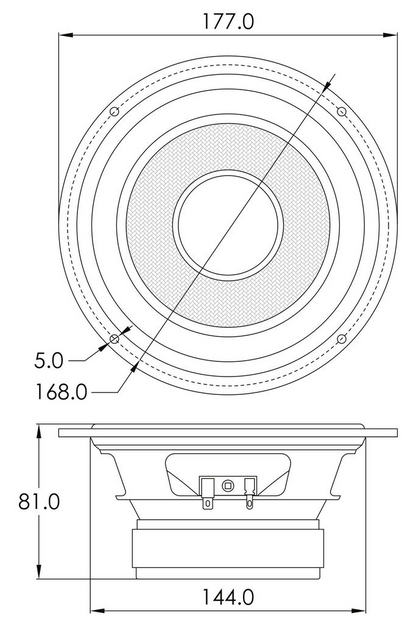

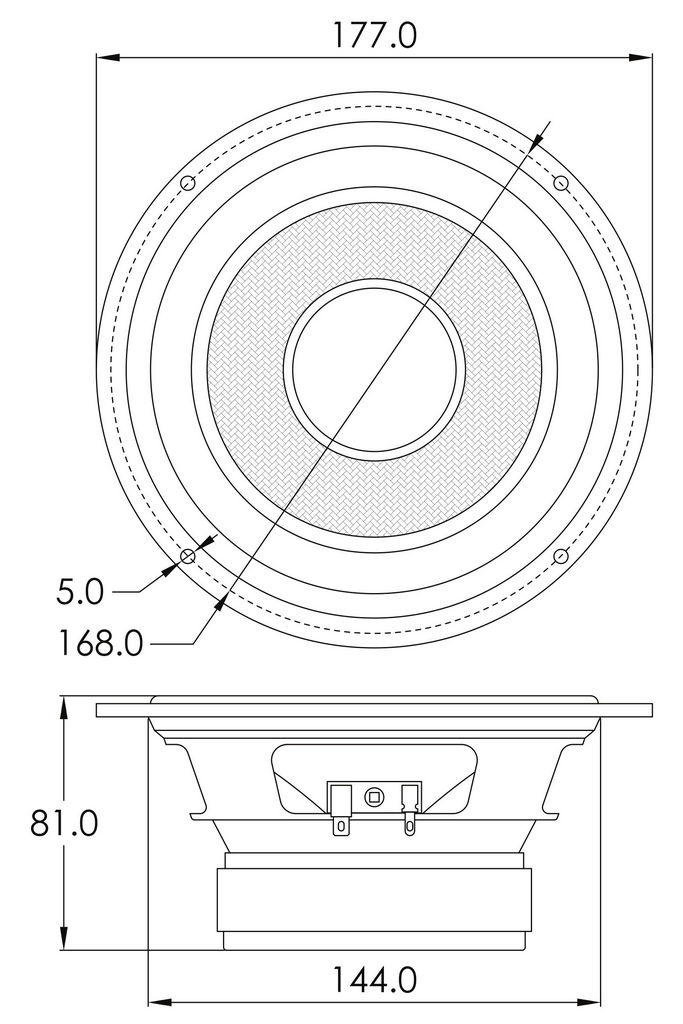

Mounting
| Overall diameter | 177 mm |
|---|---|
| Cutout diameter | 144 mm |
| Mounting depth | 81.03 mm |
| Bolt circle diameter | 168 mm |
| Mounting holes | 4 |
| Mounting hole diameter | 5 mm |
| Voice coil diameter | 25 mm |
Materials
| Cone | Fibreglass |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- GF180-8 Specification Sheet
- GF180-8 Data Files
- GF180-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
