Dayton Audio

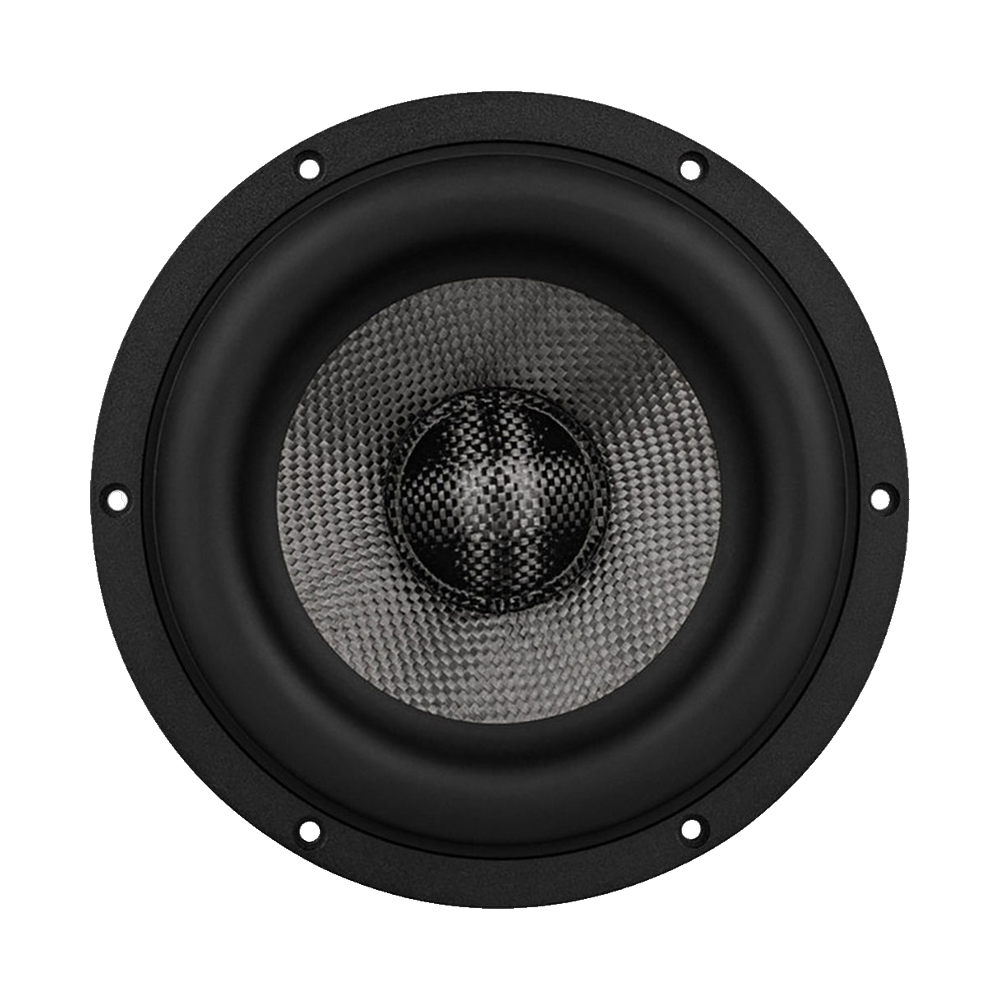

Dayton Audio - 7" Extended Range Subwoofer - Epique - E180HE-44

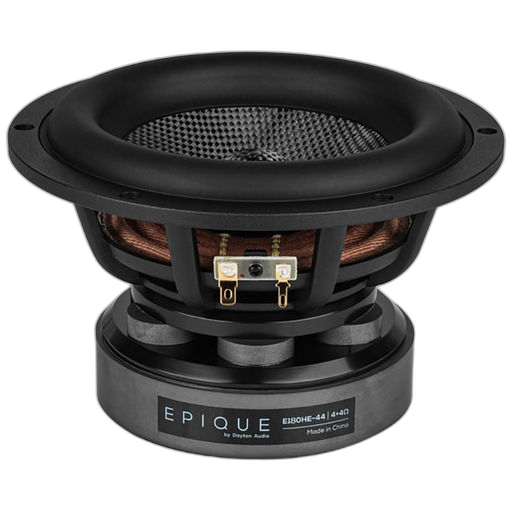

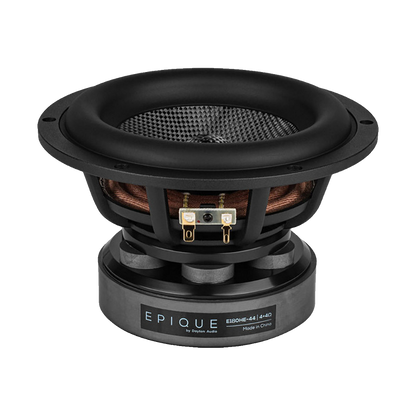

Dayton Audio - 7" Extended Range Subwoofer - Epique - E180HE-44

Regular price $265.95 AUD
Regular price Sale price $265.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

***BACKORDERED ITEM - LEAD TIME 7-14 DAYS***

Description:

Dayton Audio's Epique E180HE-44 7" with a carbon fiber cone and dual voice coils, introduces the world to a new class of speaker driver, an Extended Range Subwoofer (ERS). It was engineered to produce premium controlled subwoofer performance, while simultaneously achieving a smooth extended high frequency response. Thanks to the patented Multiple Magnet Air Gap (MMAG) dual gap motor, the motor force is nearly constant even when driven to the limits of its 14 mm Xmax. Capable of unheard-of excursion for its size while delivering smooth midrange response with low distortion, the E180HE-44 woofer gives you the opportunity to create systems that provide extraordinary accuracy and fidelity.

Features:

  • Patented dual gap MMAG motor design allows exceptional linearity for minimal distortion

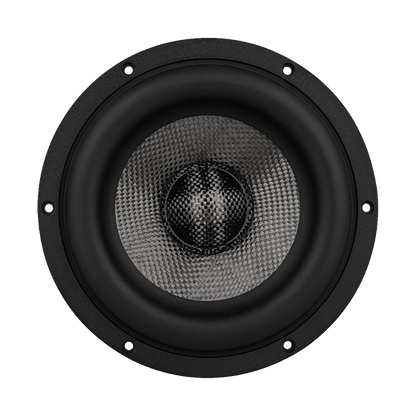

  • Lightweight damped carbon fiber cone delivers remarkably smooth response up to 45 degrees off axis
  • Incredibly linear 14 mm excursion to produce class leading low frequency extension and control
  • Extensive inductance control extends frequency response, lowers distortion, reduces compression, and increases power handling
  • Substantial venting keeps the voice coil cool to minimize power compression
  • Dual 4 ohm voice coils enable a variety wiring configurations and flexibility
  • Incredible versatility, premium performance as a subwoofer or woofer in 2-way designs

Specifications:

Code E180HE-44
Description 7" DVC MMAG Extended Range Subwoofer
Manufacturer Dayton Audio
Cms 0.61mm/N
Coil 38mmØ
Colour Black

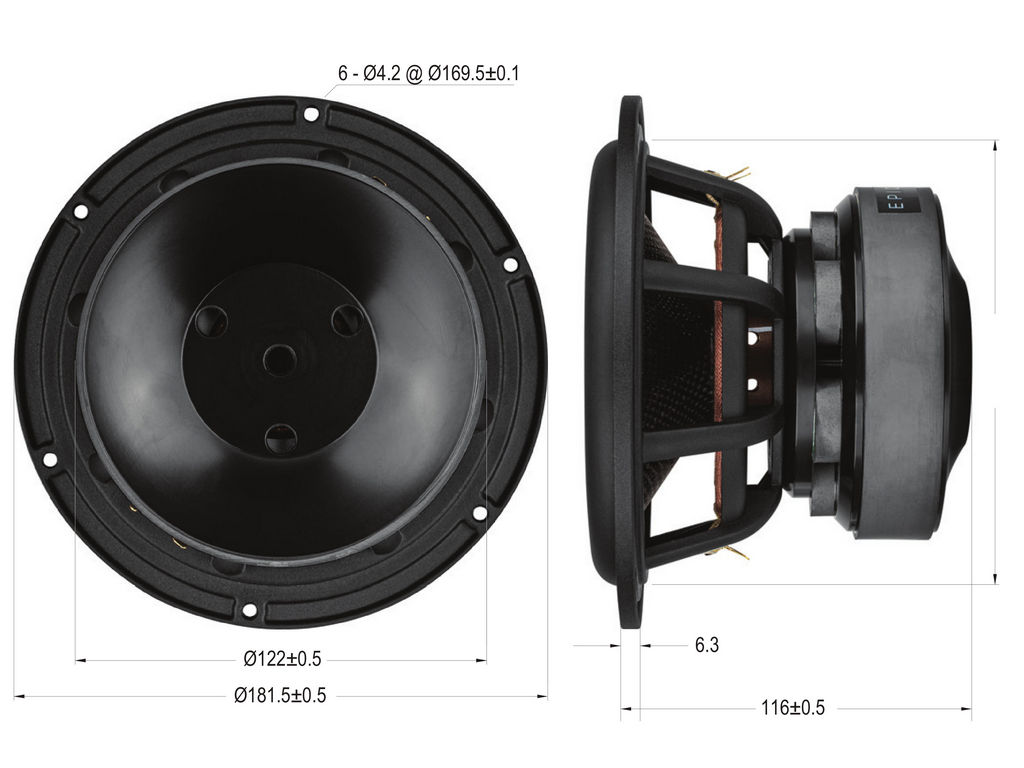

Depth 116mm
Diam. 182mmØ
Fs 35Hz
Hole 151mmØ
Impedance 2x 4Ω (Re 6.8Ω)
Impedance (Ohm) 4+4 ohm
Inch 7
Le 1.5mH
Mms 32.5g
Power 200W
Qes 0.54
Qms 2.93
Qts 0.46
Re 6.8Ω
Sd 136.1cm²
Sens. 83.8dB
Series Epique Series
Size 7"
Type DVC subwoofer
Vas 16.1L
Zn 2x 4Ω
