Dayton Audio - 7" Reference Woofer - RS180-4
Dayton Audio - 7" Reference Woofer - RS180-4
Out of stock
Couldn't load pickup availability
Description

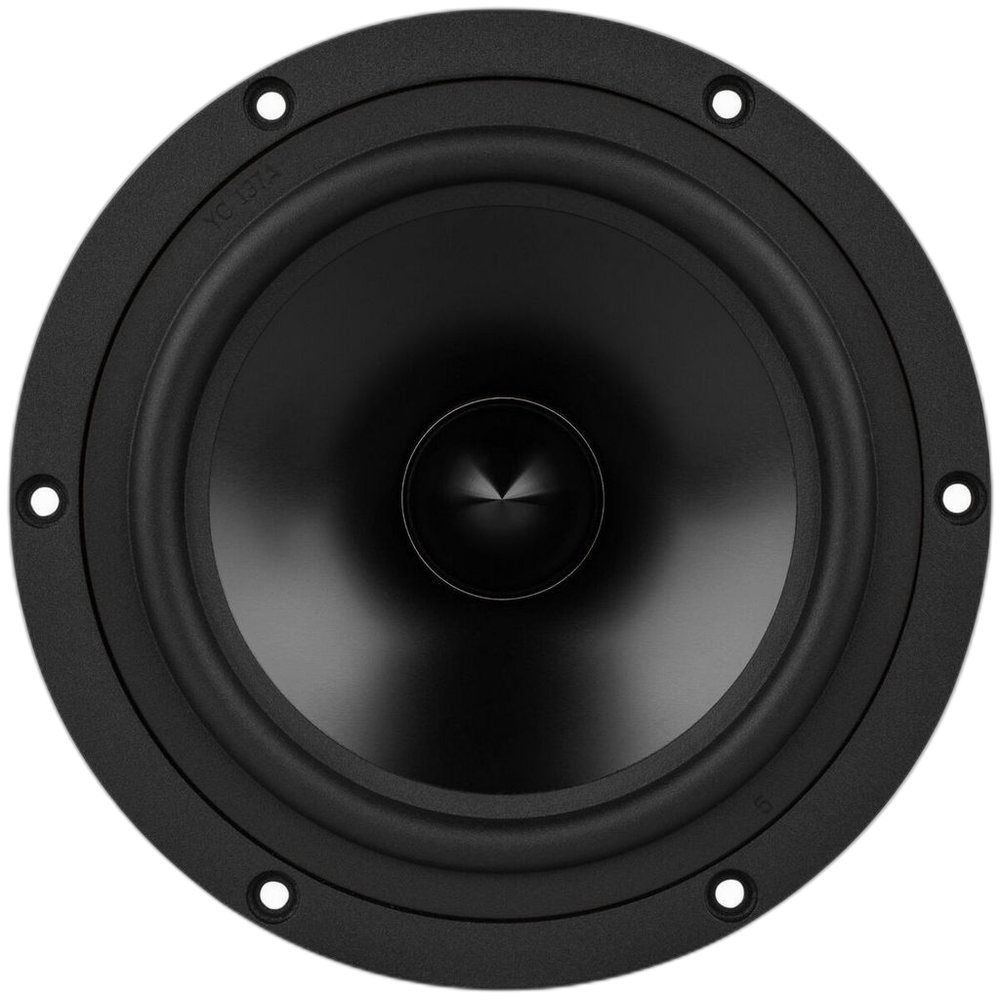

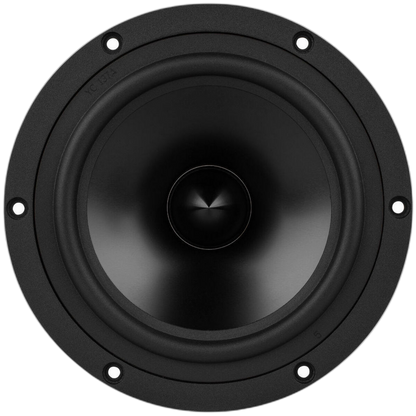

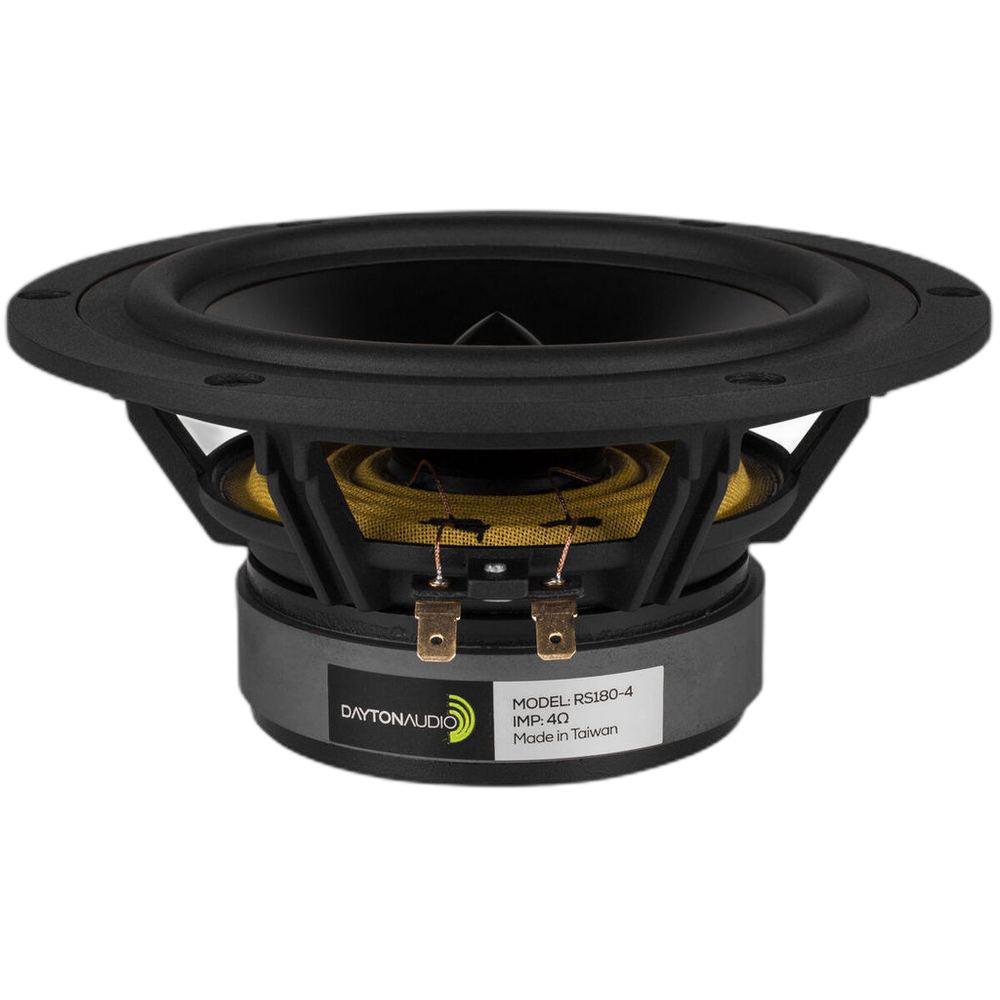

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilising a low-distortion motor system with two short-circuit paths and a rigid aluminium cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodised cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminium phase plug, rubber magnet boot, and gold spring terminals.
Features
- Great replacement for the Dayton RS180S-8 7" Reference Shielded Woofer 8 Ohm
- 4 ohm impedance is perfect for series pairs in MTMs and centre channel speakers
- Excellent car audio midrange/midbass
- High-end low-distortion motor with two shorting paths to reduce inductance
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 7" |
| Nominal impedance | 4Ω |
| Series | Reference |
| Power handling (RMS) | 60 W |
| Power handling (program) | 120 W |
| Sensitivity | 89.2 dB |

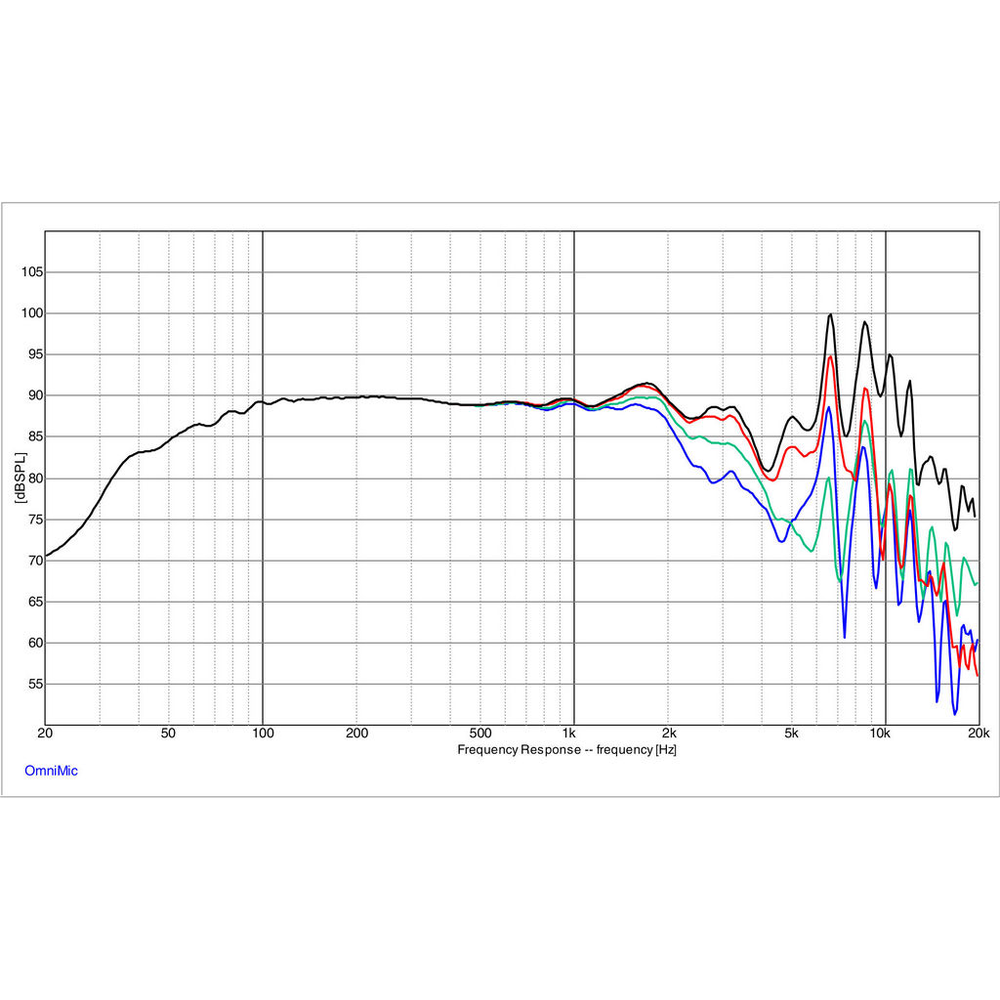

| Frequency range | 39 – 3,600 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 38.4 Hz |
|---|---|
| DC resistance (Re) | 3.1 Ω |
| Voice coil inductance (Le) | 0.45 mH |
| Mechanical Q (Qms) | 2.13 |
| Electrical Q (Qes) | 0.59 |
| Total Q (Qts) | 0.46 |
| Equivalent volume (Vas) | 21.2 L |
| Compliance (Cms) | 0.97 mm/N |
| Moving mass (Mms) | 17.8 g |
| Mechanical resistance (Rms) | 2.016 kg/s |
| Force factor (Bl) | 4.71 T·m |
| Effective piston area (Sd) | 124.7 cm² |
| Linear excursion (Xmax, one-way) | 6 mm |
| Displacement volume (Vd) | 74.82 cm³ |
| Efficiency bandwidth product (EBP) | 65.08 |
Motor
| Voice coil wire | Copper |
|---|

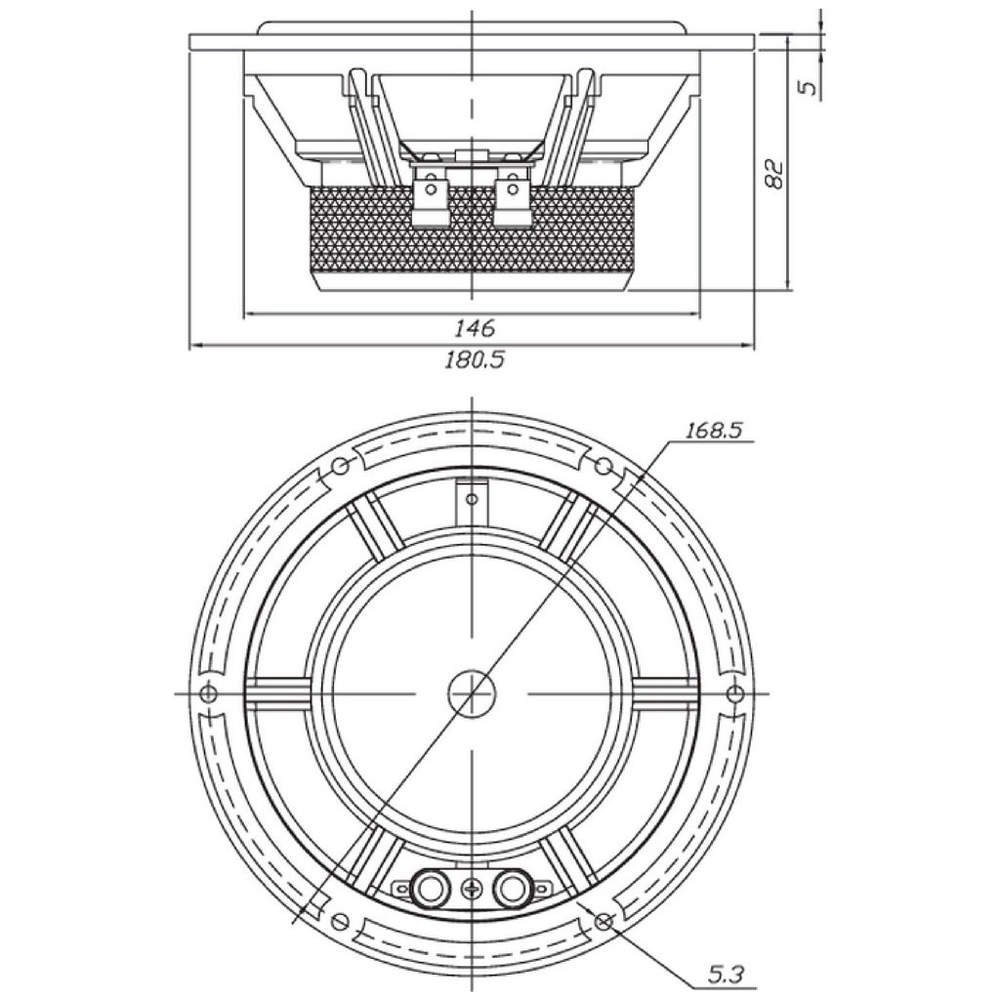

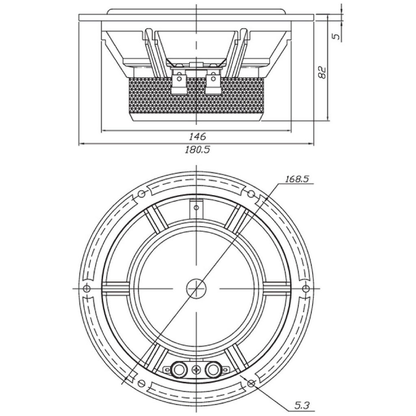

Mounting
| Overall diameter | 180.5 mm |
|---|---|
| Cutout diameter | 146 mm |
| Mounting depth | 82 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 168.5 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.3 mm |
| Voice coil diameter | 38 mm |
| Weight | 2.313 kg |
Materials
| Cone | Black Anodised Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RS180-4 Specification Sheet
- RS180-4 Data Files
- RS180-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
