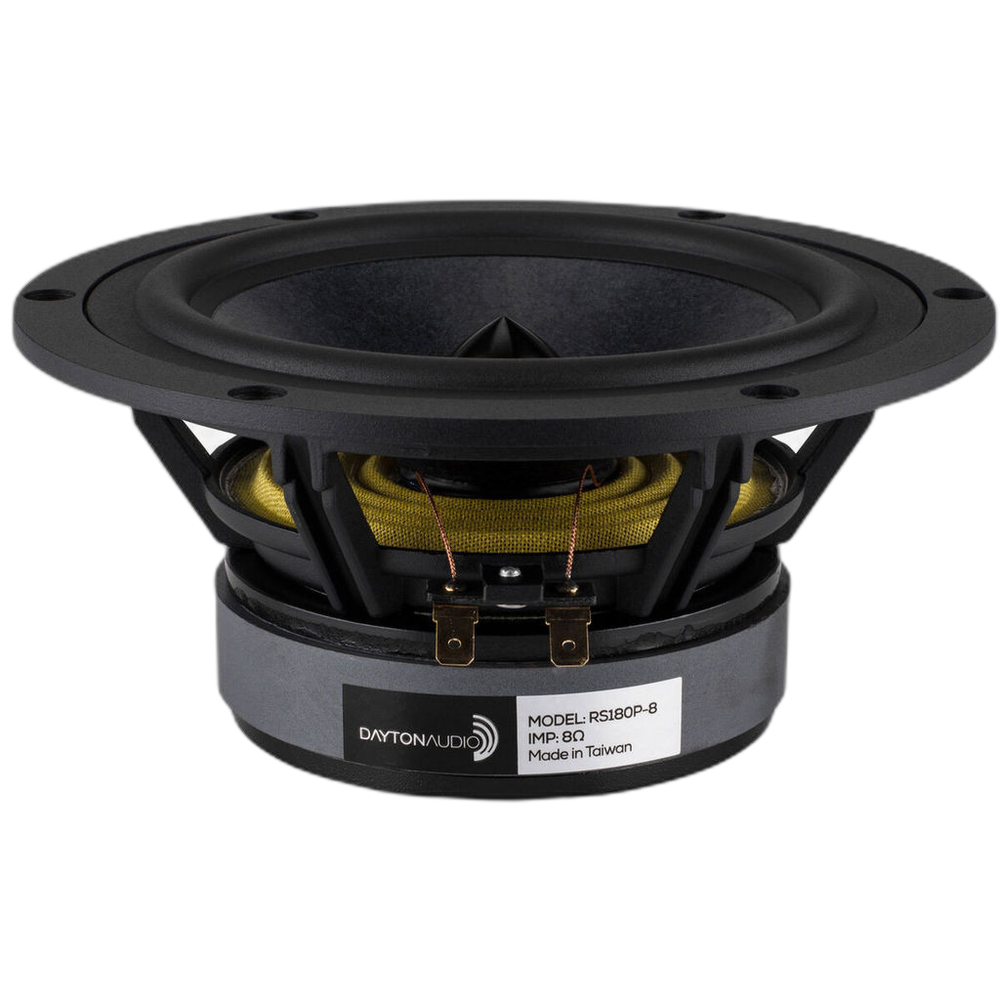

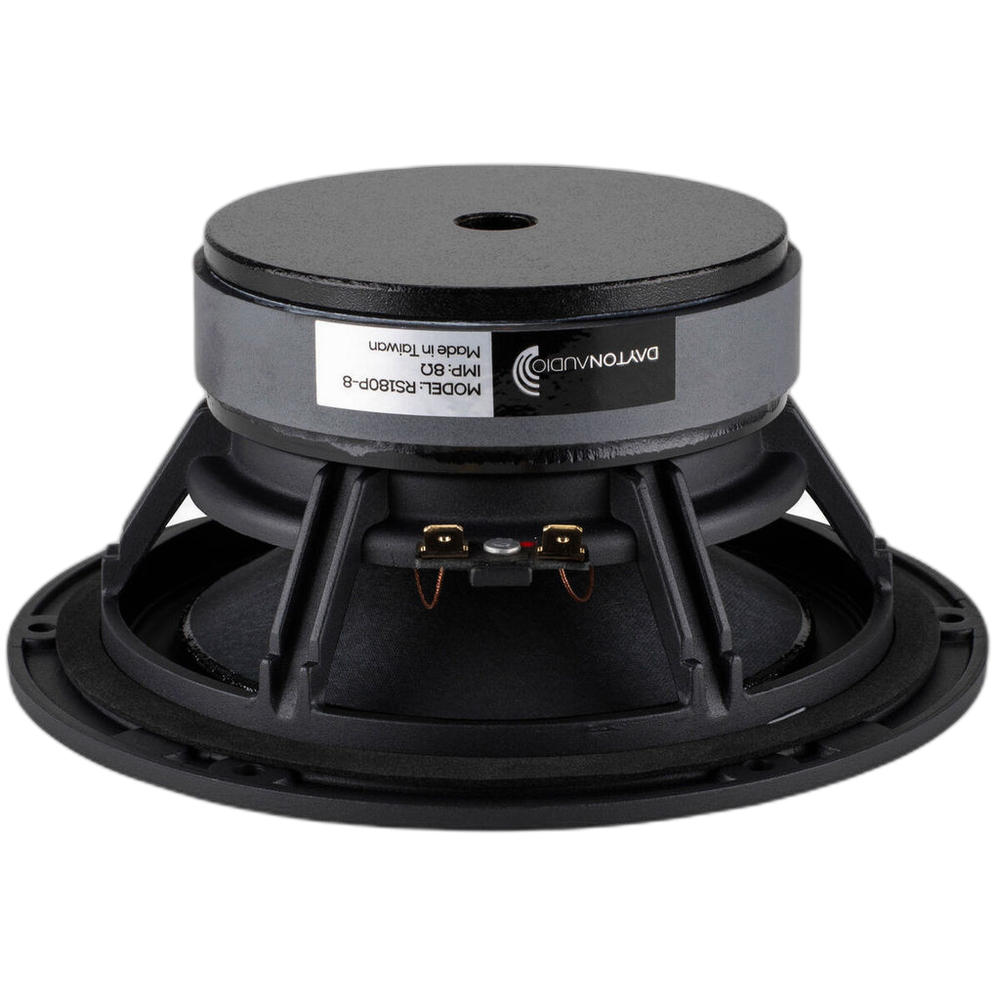

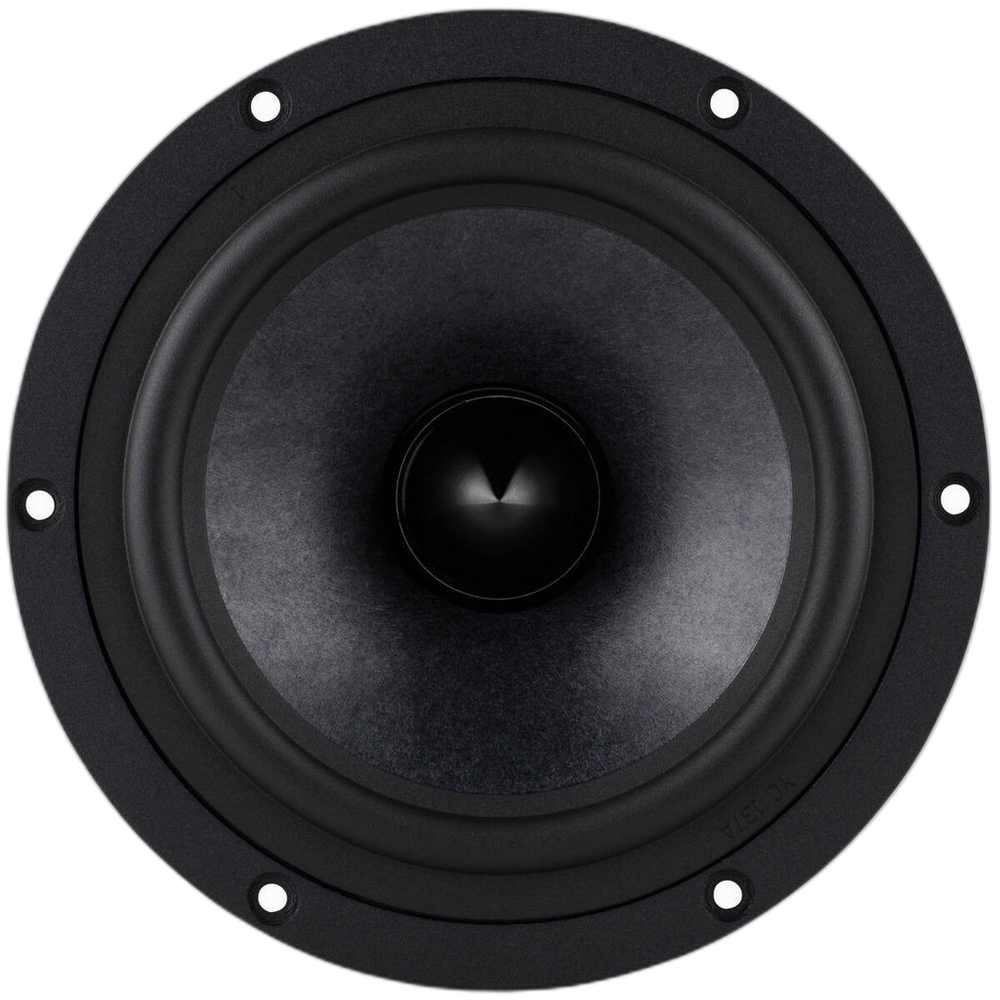

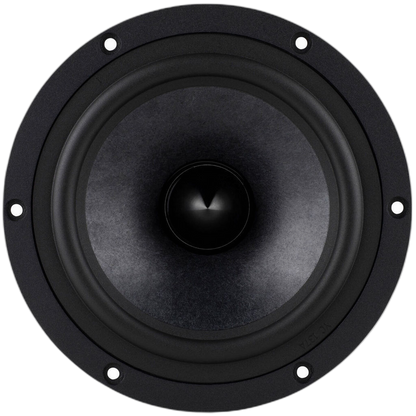

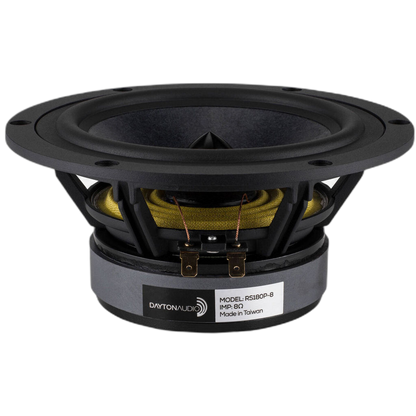

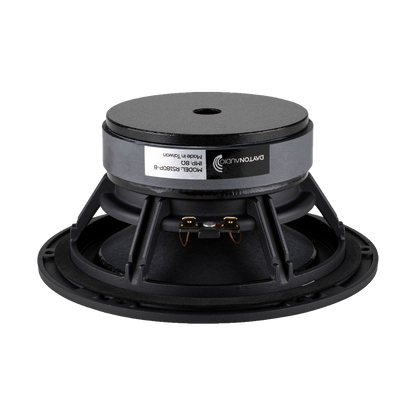

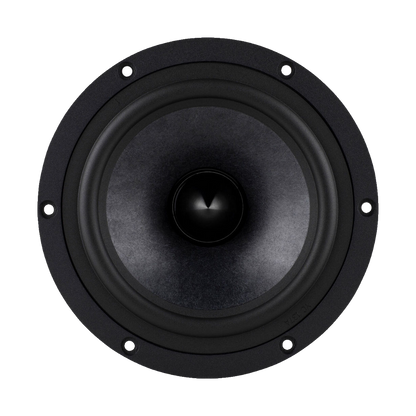

Dayton Audio - 7" Reference Woofer - RS180P-8
Dayton Audio - 7" Reference Woofer - RS180P-8
Regular price
$157.95
Regular price
Sale price
$157.95
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The 7" Reference Series Paper driver uses a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibres to create an advanced non-woven fibre composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
Features
- Three-part paper composite diaphragm featuring paper, Kevlar®, and glass fibres
- Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminium phase plug
- Perfect as woofers, midwoofers, or dedicated midrange drivers
- 6 mm Xmax and 89.8 dB 2.83V/1m sensitivity for dynamic performance
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 7" |
| Nominal impedance | 8Ω |
| Series | Reference |
| Power handling (RMS) | 60 W |
| Power handling (program) | 90 W |
| Sensitivity | 89.8 dB |
| Frequency range | 45 – 8,000 Hz |
Thiele/Small parameters
| Resonant frequency (Fs) | 45.8 Hz |
|---|---|
| DC resistance (Re) | 6.3 Ω |
| Voice coil inductance (Le) | 0.84 mH |
| Mechanical Q (Qms) | 1.49 |
| Electrical Q (Qes) | 0.44 |
| Total Q (Qts) | 0.34 |
| Equivalent volume (Vas) | 22 L |
| Compliance (Cms) | 0.98 mm/N |
| Moving mass (Mms) | 12.4 g |
| Mechanical resistance (Rms) | 2.395 kg/s |
| Force factor (Bl) | 7.16 T·m |
| Effective piston area (Sd) | 126.7 cm² |
| Linear excursion (Xmax, one-way) | 6 mm |
| Displacement volume (Vd) | 76.02 cm³ |
| Efficiency bandwidth product (EBP) | 104.1 |

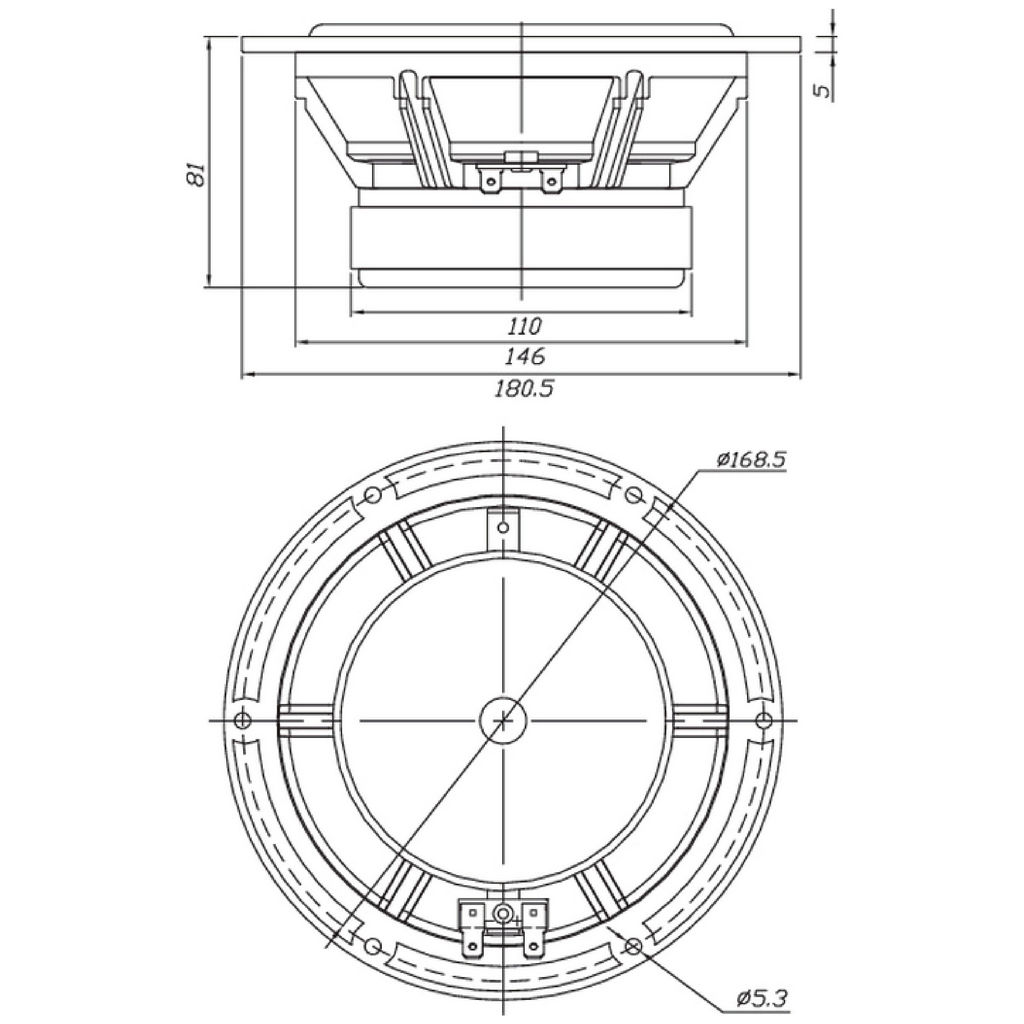

Mounting
| Overall diameter | 180.5 mm |
|---|---|
| Cutout diameter | 146 mm |
| Mounting depth | 81 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 168.5 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.3 mm |
| Voice coil diameter | 38.5 mm |
| Weight | 2.109 kg |
Materials
| Cone | Paper / Kevlar |
|---|---|
| Surround | Rubber |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RS180P-8 Specification Sheet
- RS180P-8 Data Files
- RS180P-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
