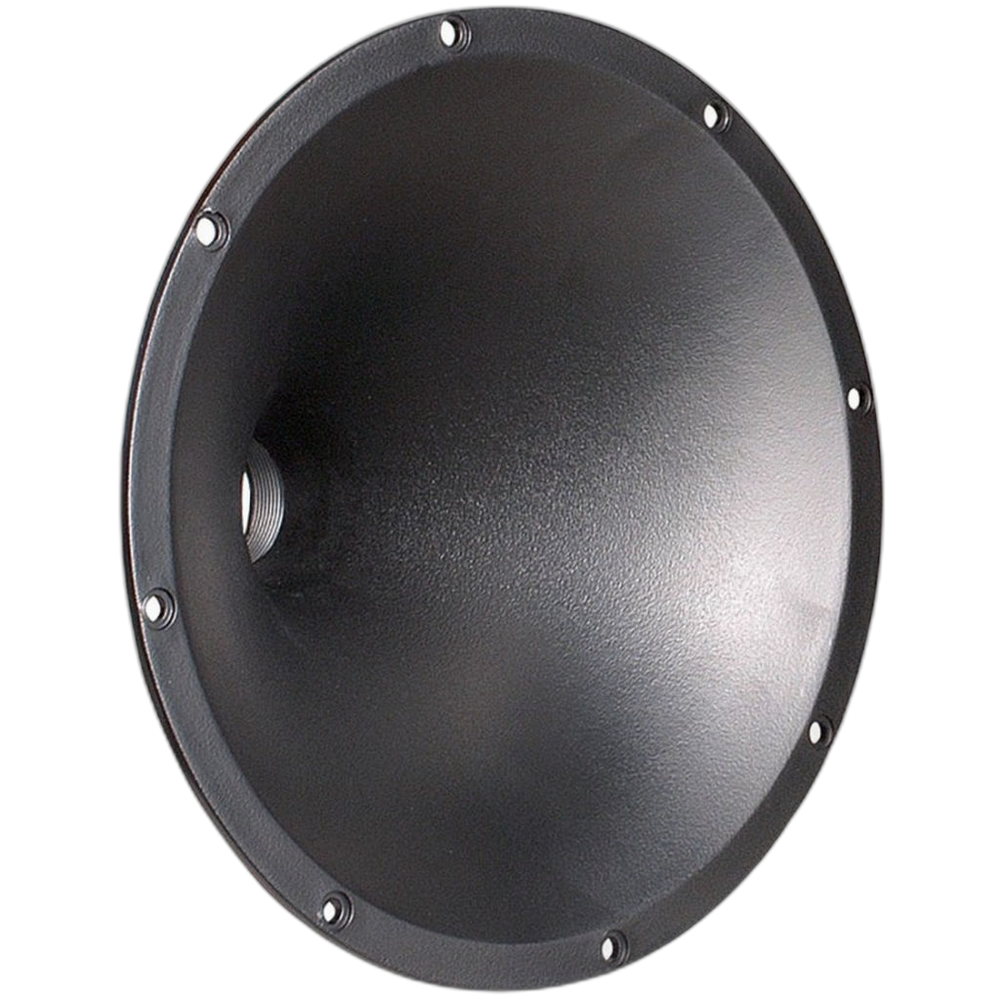

Dayton Audio - 8" Horn Waveguide - H08RW

Description

A waveguide couples the high frequency driver to the listening space without the harmful distortion artifacts of marginally designed and implemented horn loading. It achieves this through the use of non-traditional geometries and lower expansion rates. The resultant sound has less distortion, with an "open" characteristic not often associated with typical "pinched" or "honky" compression driver/horn combinations. Dayton Audio waveguides reveal all of the articulate, accurate sound reproduction that your HF drivers are capable of delivering, whether the application is live sound, critical studio monitoring, or demanding home audio playback. The Dayton Audio H08RW high frequency waveguide is precision molded from high-performance plastic, and has an industry-standard 1-3/8" x 18 TPI throat for mounting screw-on style drivers. It is designed to exhibit a nominal 75° conical-shaped coverage pattern, and will provide useful acoustical loading down to 2,200 Hz.

Features

• Uncoloured, natural sound
• Precision molded from high-performance premium plastics
• Standard 1⅜" mounting for screw-on compression drivers
• Dispersion pattern: 75° conical
• Recommended minimum crossover F of 2,200 Hz

Specifications
