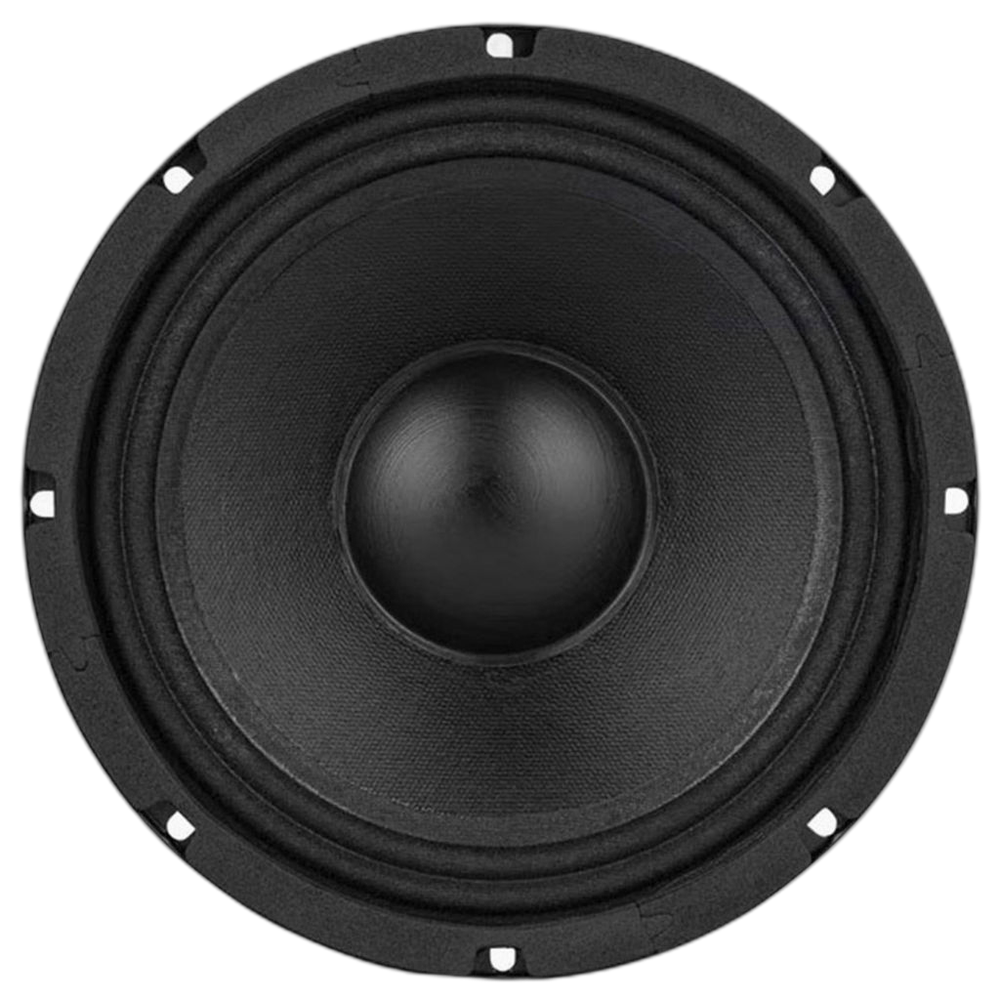

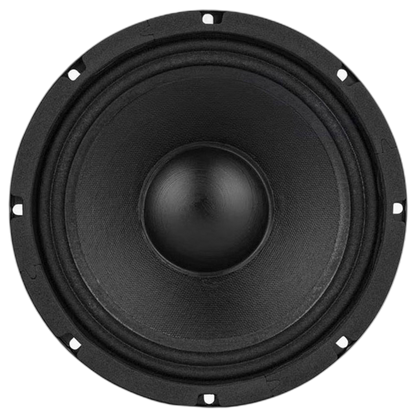

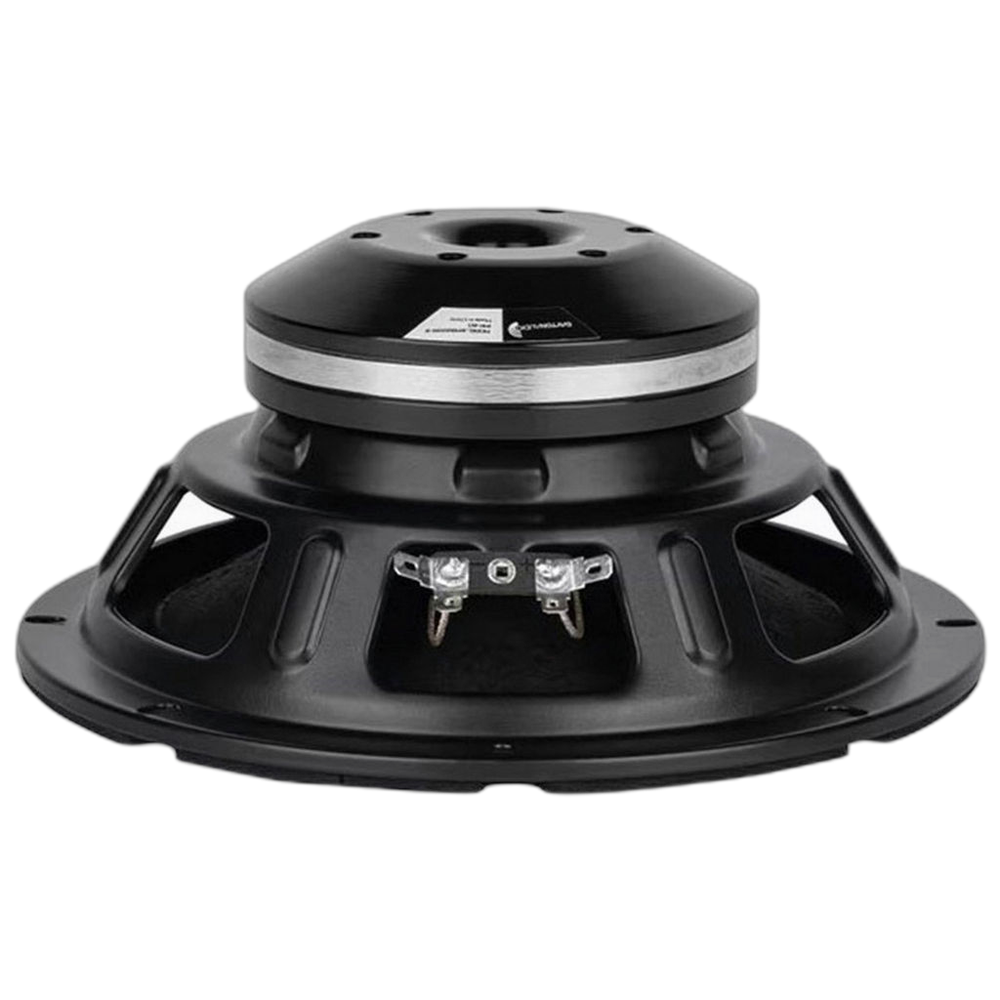

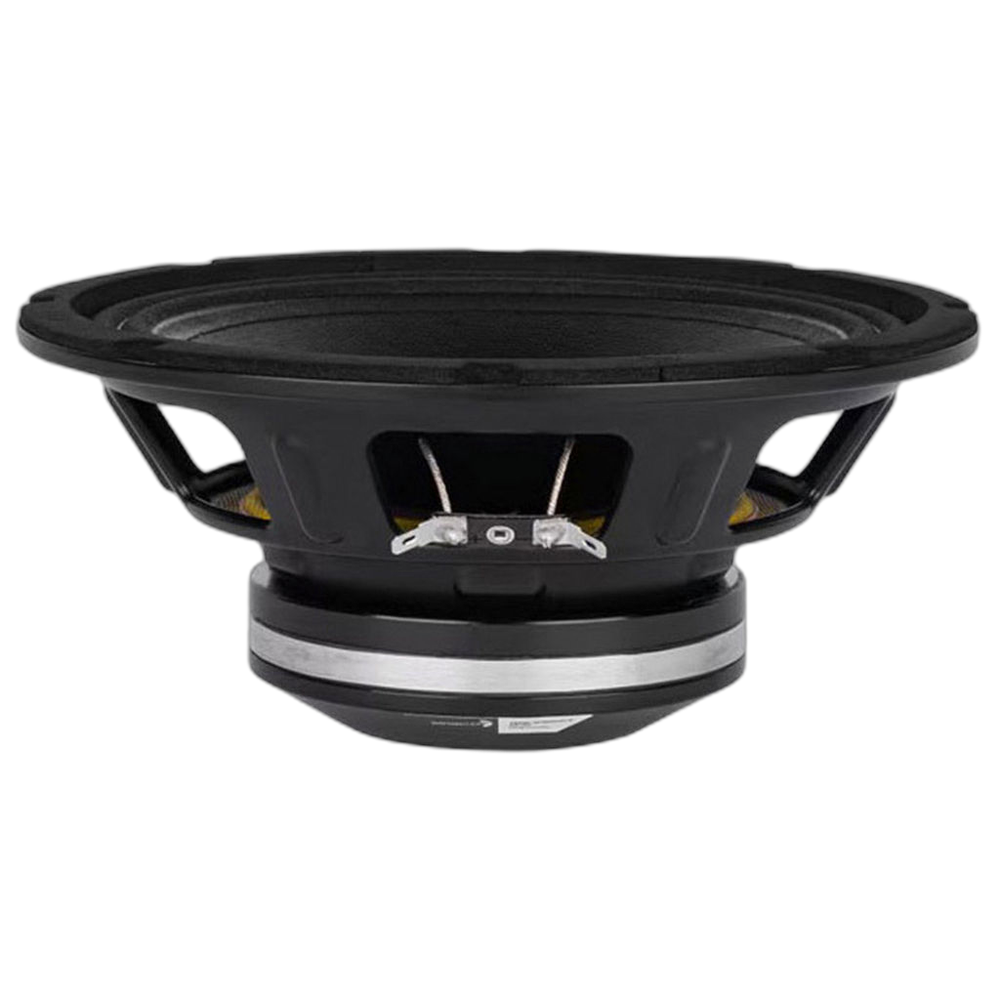

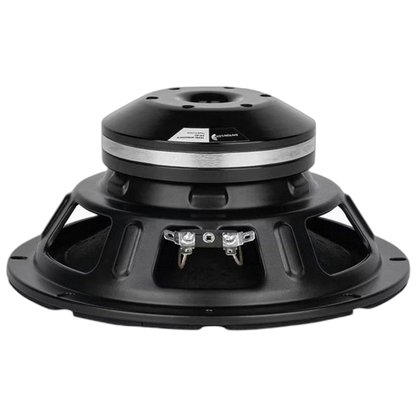

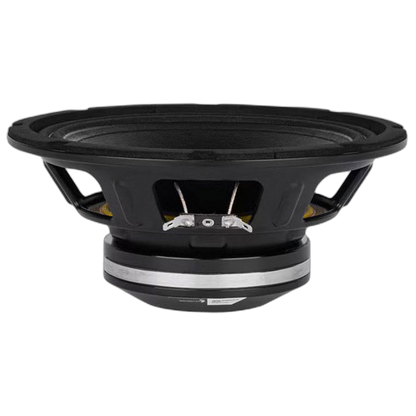

Dayton Audio - 8" Odeum Mid-Woofer Neo - 8MB200N-8
Dayton Audio - 8" Odeum Mid-Woofer Neo - 8MB200N-8
Regular price
$294.95 AUD
Regular price
Sale price
$294.95 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
The Dayton Audio ODEUM series 8" mid-bass woofer outperforms stock woofers in PA systems. The powerful 200W Pro driver features a neodymium motor, a 2" voice coil with a fibreglass former, and a copper inductance cap to lower distortion. A paper cone with cloth M-roll surrounds provides a neutral tone that is easy to tune, and peripheral venting helps keep the whole system cool when playing.
Features
- Powerful neodymium motor for superior output.
- Copper inductance cap for low distortion.
- Paper cone and cloth m-roll surround for high clarity, smooth response, and linear excursion for pounds of punch.
- 2" inside/outside wound copper voice coil leads on fibreglass former lend solid power handling capability.
- Under spider and rear periphery venting allow for a cooler running voice coil.
- Low Qts means high damping and smaller boxes.
Specifications
| Bl | 14.41Tm |
|---|---|
| Cms | 0.137mm/N |
| Coil | 50.8mmØ |

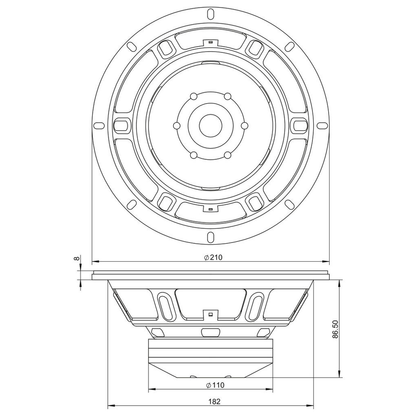

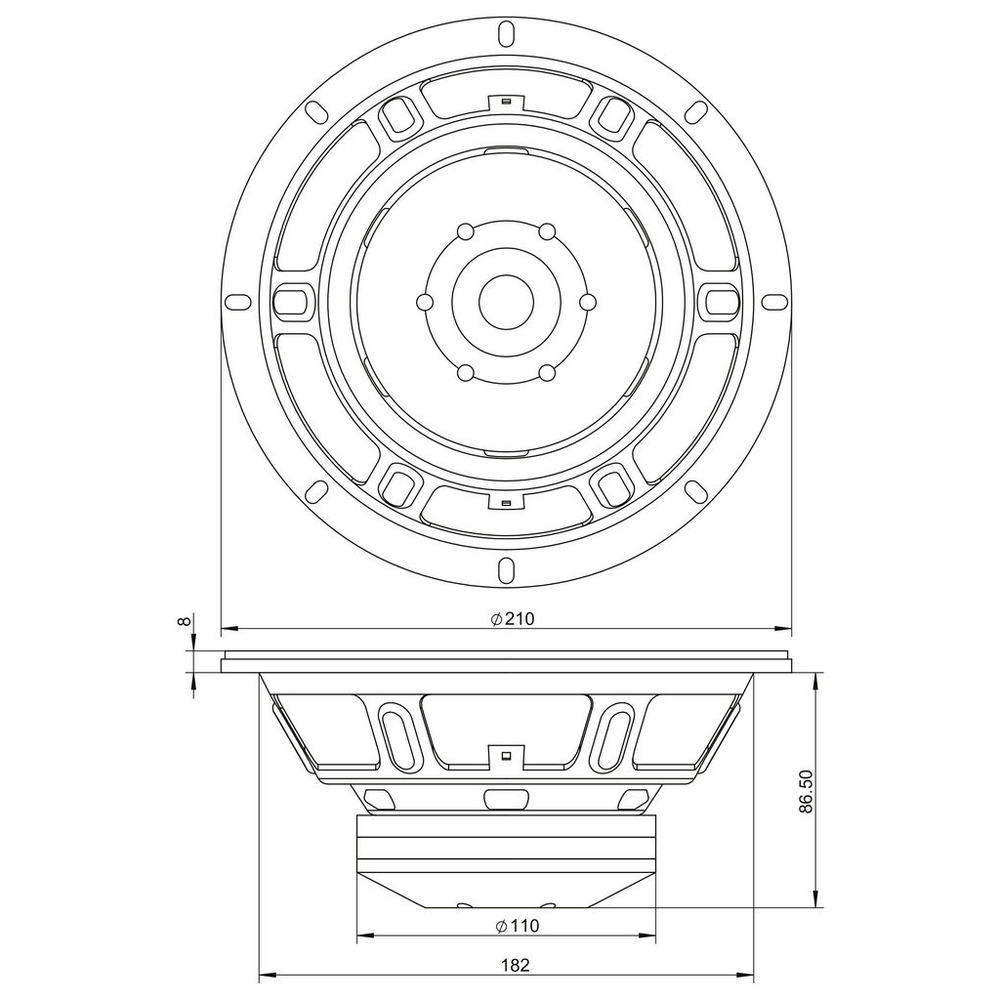

| Diam. | 210mmØ |

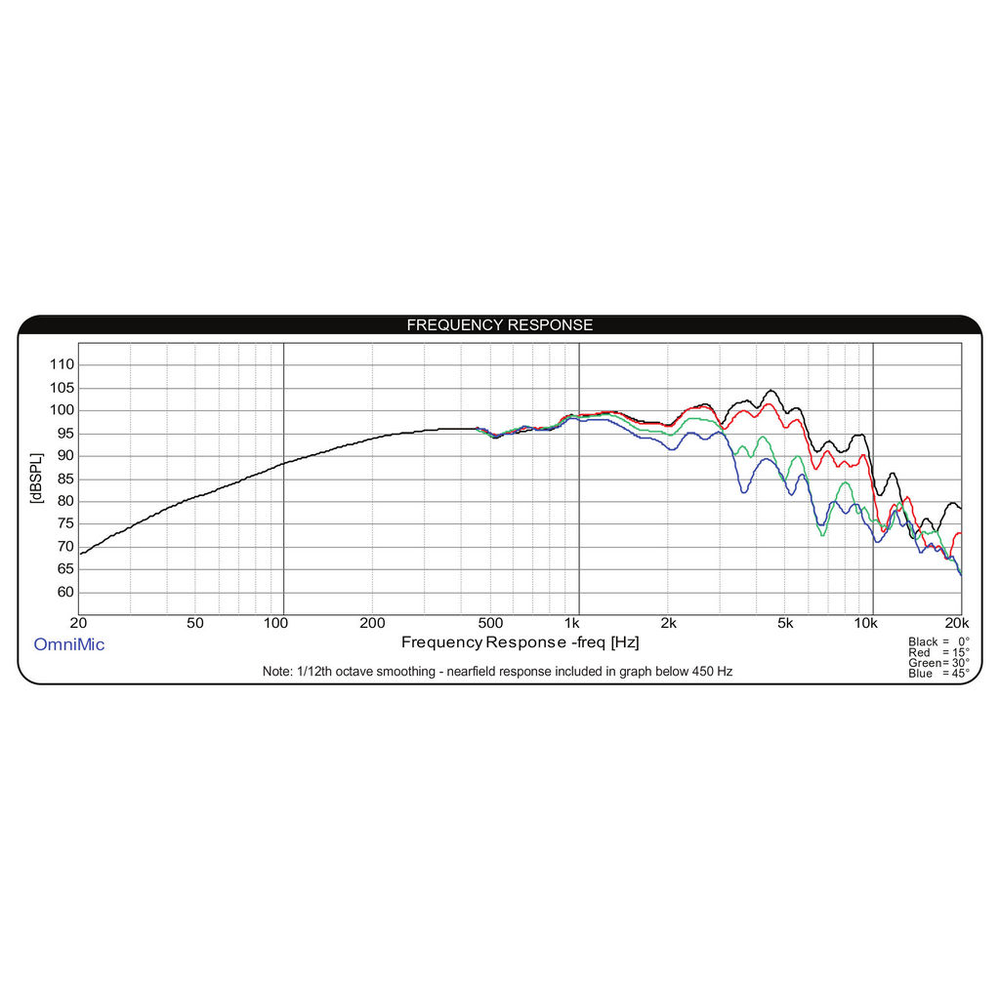

| Freq. | 75-5.8kHz |
| Fs | 94Hz |
| Hole | 182mmØ |
| Impedance | 8Ω Re 6Ω |
| Le | 0.17mH |
| Mag. | Neodymium |
| Manufacturer | Dayton Audio |
| Material | Paper |
| Mms | 20.89g |
| Power | 200Wrms |
| Qes | 0.35 |
| Qms | 4.43 |
| Qts | 0.32 |
| Re | 6Ω |
| Sd | 200.96cm² |
| Sens. | 95.5dB |
| Series | Odeum |
| Size | 8' |
| SPL | 95.5dB |
| Type | Midbass |
| Vas | 8.8L |
| VC | 50.8mmØ |
| Vd | 78.32cm³ |
| Xmax | 3.91mm |
| Zn | 8Ω |
