Dayton Audio - 8" Point Source Full Range Driver - PS220-8
Dayton Audio - 8" Point Source Full Range Driver - PS220-8
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS220-8 8" drivers superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series audio performance is complemented by the speakers striking appearance—they look great in dipole and other open back designs, too!
Features
- High sensitivity/minimal distortion-an ideal match for lower powered amplifiers
- Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
- Solid bass performance, thanks to usefully high excursion capability (5 mm Xmax)
- Optimised neodymium magnet provides high motor strength
- Low-mass copper clad aluminium voice coil
- Copper cap and copper ring on pole piece reduce inductance and distortion
- Kevlar reinforced paper cone is lightweight yet rigid and well controlled
Specifications
Specifications
General
| Driver type | Full Range |
|---|---|
| Nominal size | 8" |
| Nominal impedance | 8Ω |
| Series | Point Source |
| Power handling (RMS) | 40 W |
| Power handling (program) | 80 W |
| Sensitivity | 96.5 dB |

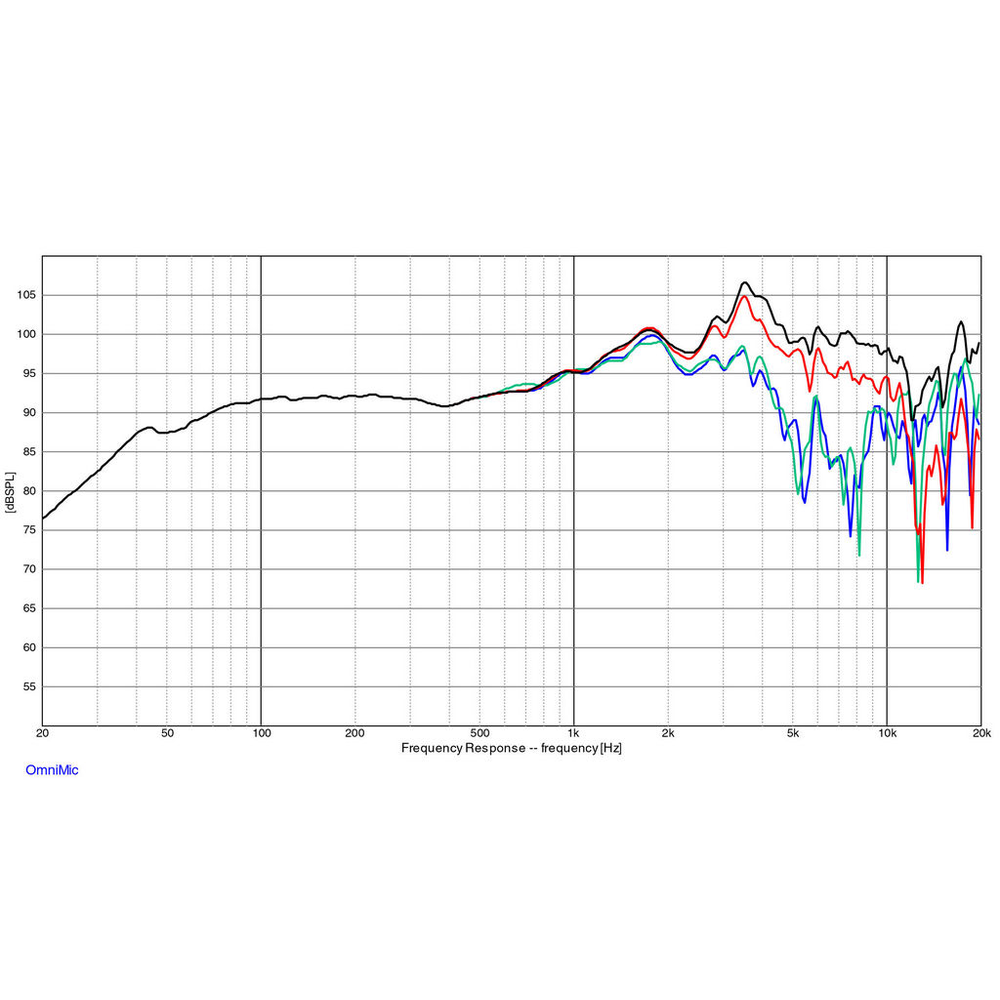

| Frequency range | 40 – 25,000 Hz |
| Suggested alignment | Ported |
Thiele/Small parameters
| Resonant frequency (Fs) | 46.4 Hz |
|---|---|
| DC resistance (Re) | 6.2 Ω |
| Voice coil inductance (Le) | 0.73 mH |
| Mechanical Q (Qms) | 5.73 |
| Electrical Q (Qes) | 0.4 |
| Total Q (Qts) | 0.38 |
| Equivalent volume (Vas) | 90.2 L |
| Compliance (Cms) | 1.41 mm/N |
| Moving mass (Mms) | 8.4 g |
| Mechanical resistance (Rms) | 0.4274 kg/s |
| Force factor (Bl) | 6.15 T·m |
| Effective piston area (Sd) | 216.4 cm² |
| Linear excursion (Xmax, one-way) | 4.8 mm |
| Displacement volume (Vd) | 103.9 cm³ |
| Efficiency bandwidth product (EBP) | 116 |
Motor
| Voice coil wire | Copper |
|---|

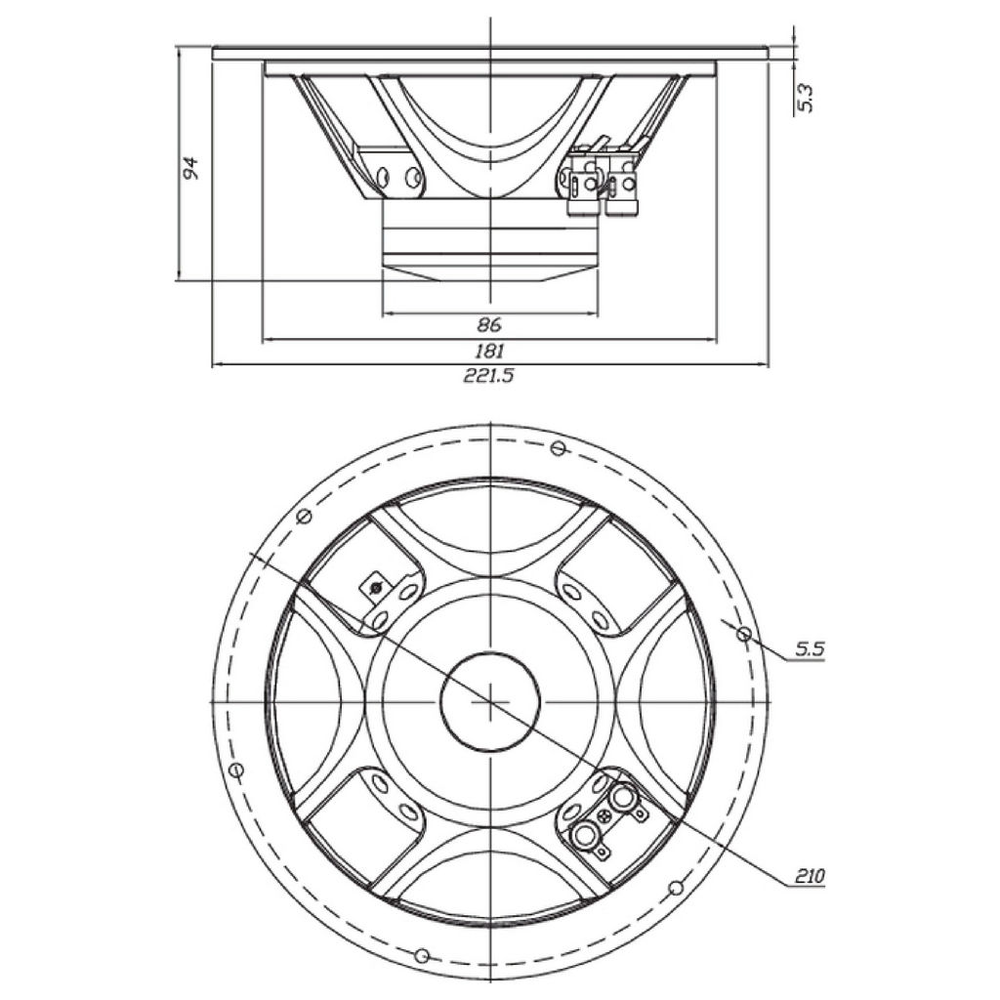

Mounting
| Overall diameter | 221.5 mm |
|---|---|
| Cutout diameter | 181 mm |
| Mounting depth | 94 mm |
| Flange thickness | 5.3 mm |
| Bolt circle diameter | 210 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.5 mm |
| Voice coil diameter | 25.4 mm |
Materials
| Cone | Paper / Kevlar |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Steel |
| Magnet | Neodymium |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- PS220-8 Specification Sheet
- PS220-8 Klippel Test Results
- PS220-8 Data Files
- PS220-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
