Dayton Audio

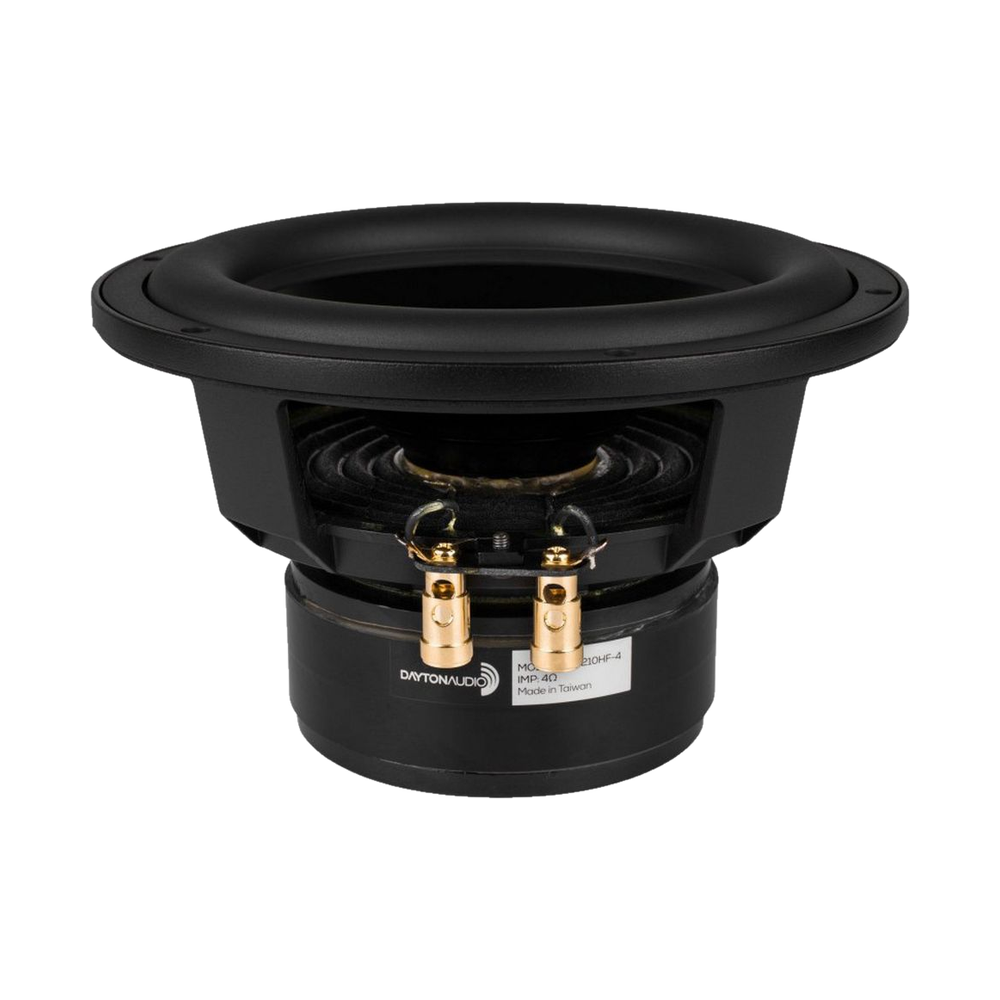

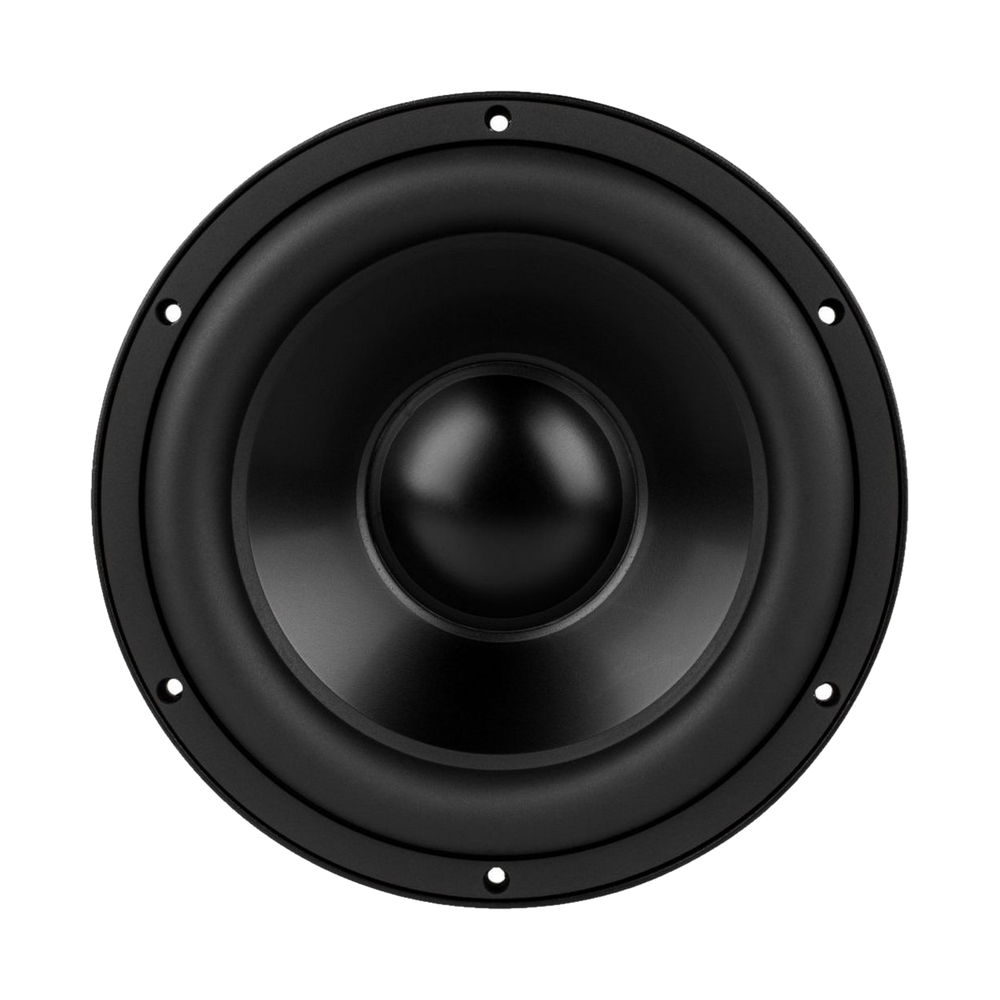

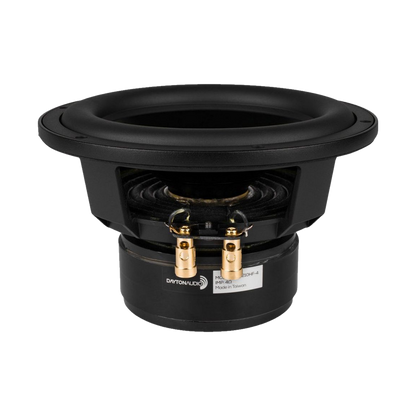

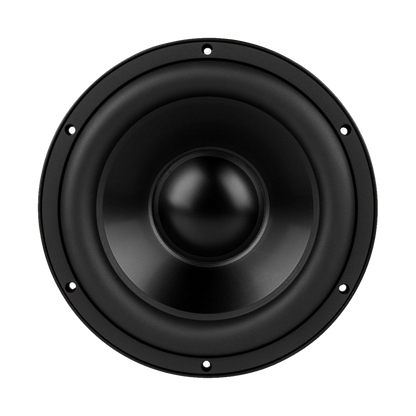

Dayton Audio - 8" Reference Series HF Subwoofer - RSS210HF-4

Dayton Audio - 8" Reference Series HF Subwoofer - RSS210HF-4

Regular price $324.95 AUD
Regular price Sale price $324.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intermodulation distortion are kept extremely low by utilising three short-circuit paths within the motor structure. A durable aramid fibre spider and extensive venting throughout provide quiet and uniform excursion. The black anodised cone, rubber surround, and custom basket give this driver a unique, high-end look. Choose the high fidelity version for home systems when you are looking for clean, low bass and are not restricted by cabinet size.

Features

  • Extensively vented motor eliminates compression and allows quiet excursion
  • Lightweight black anodised aluminium cone for rigidity and lower moving mass
  • Suitable for sealed or vented enclosures
  • Triple shorting ring motor for ultra-low distortion
  • 2-layer coil for reduced back EMF
  • Highest quality materials throughout for long-lasting performance

Specifications

General

Driver type Subwoofer
Nominal size 8"
Nominal impedance 4Ω
Series Reference
Power handling (RMS) 280 W
Power handling (program) 560 W
Sensitivity 85.6 dB
Frequency range 27 – 1,000 Hz

Thiele/Small parameters

Resonant frequency (Fs) 29.6 Hz
DC resistance (Re) 3.1 Ω
Voice coil inductance (Le) 0.7 mH
Mechanical Q (Qms) 3.25
Electrical Q (Qes) 0.69
Total Q (Qts) 0.57
Equivalent volume (Vas) 23.7 L
Compliance (Cms) 0.37 mm/N
Moving mass (Mms) 78.4 g
Force factor (Bl) 8.12 T·m
Effective piston area (Sd) 219 cm²
Linear excursion (Xmax, one-way) 9 mm
Displacement volume (Vd) 197.1 cm³
Efficiency bandwidth product (EBP) 42.9

Motor

Magnet weight 1.42 kg
Voice coil wire Copper

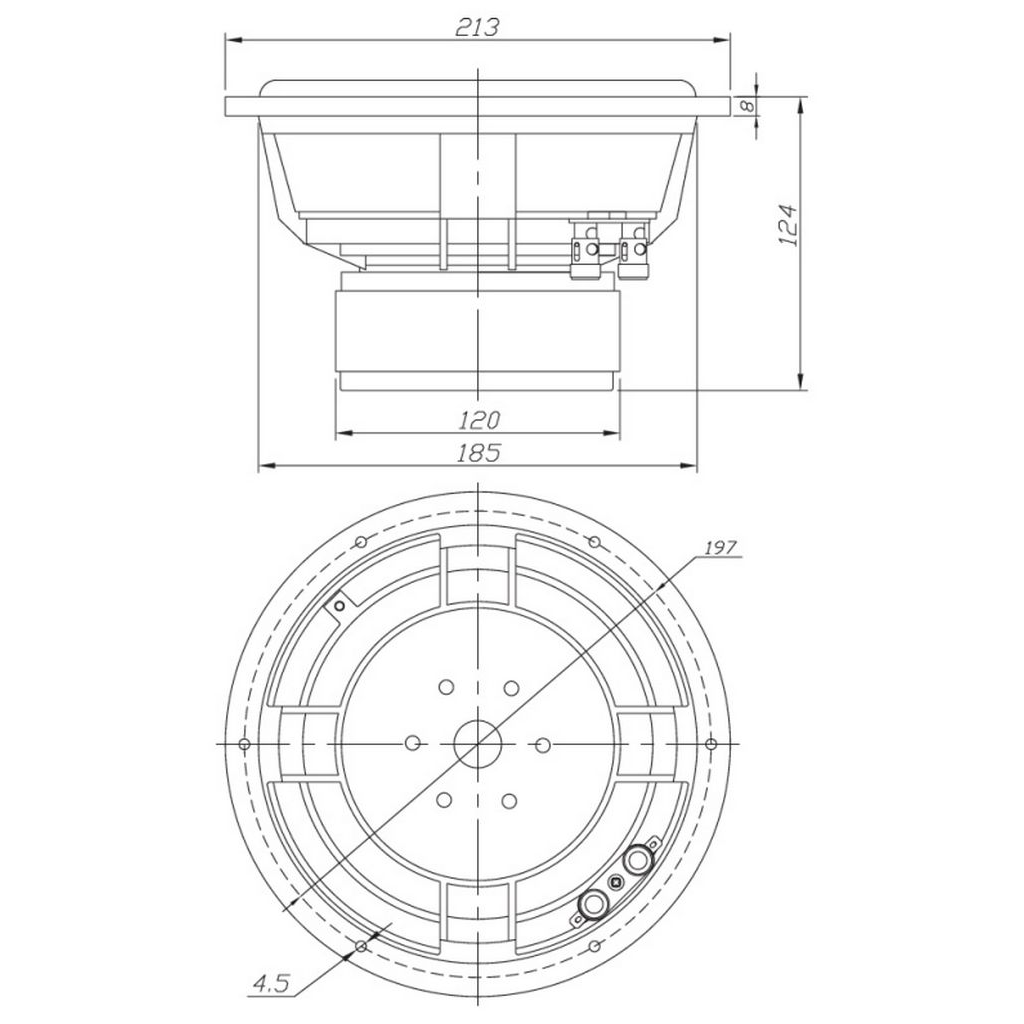

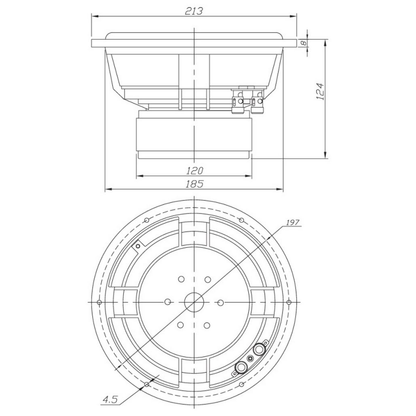

Mounting

Overall diameter 213 mm
Cutout diameter 185 mm
Mounting depth 124 mm
Flange thickness 8 mm
Bolt circle diameter 197 mm
Mounting holes 6
Mounting hole diameter 4.5 mm
Voice coil diameter 51 mm
Weight 3.992 kg

Materials

Cone Black Anodized Aluminum Cone
Surround Rubber
Voice coil former Aluminum
Basket Steel
Magnet Ferrite
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.
