Dayton Audio - 8" Reference Woofer - RS225-4
Dayton Audio - 8" Reference Woofer - RS225-4
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description

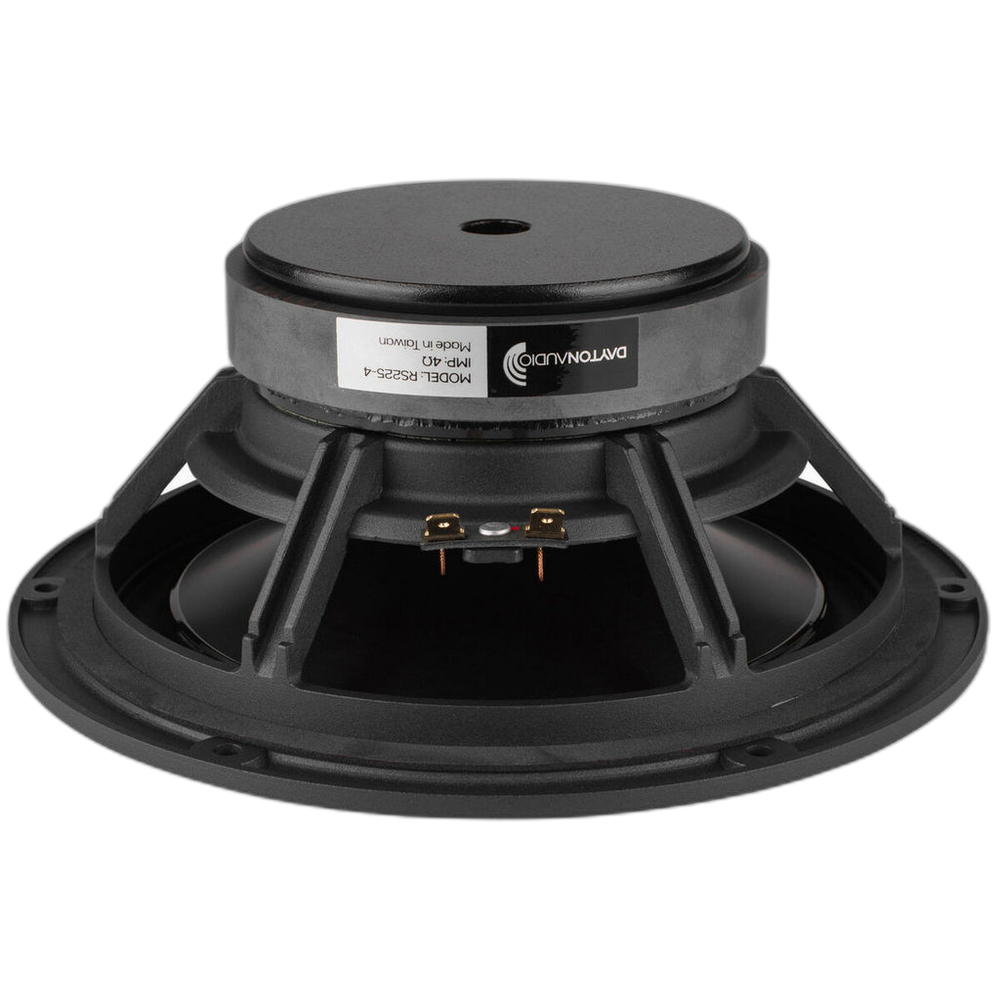

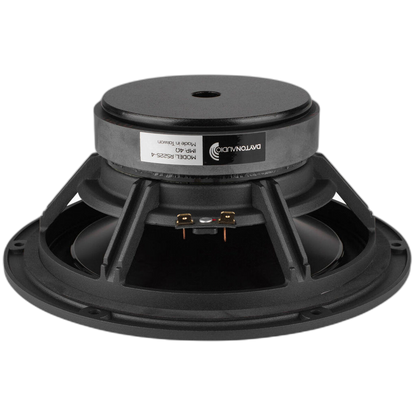

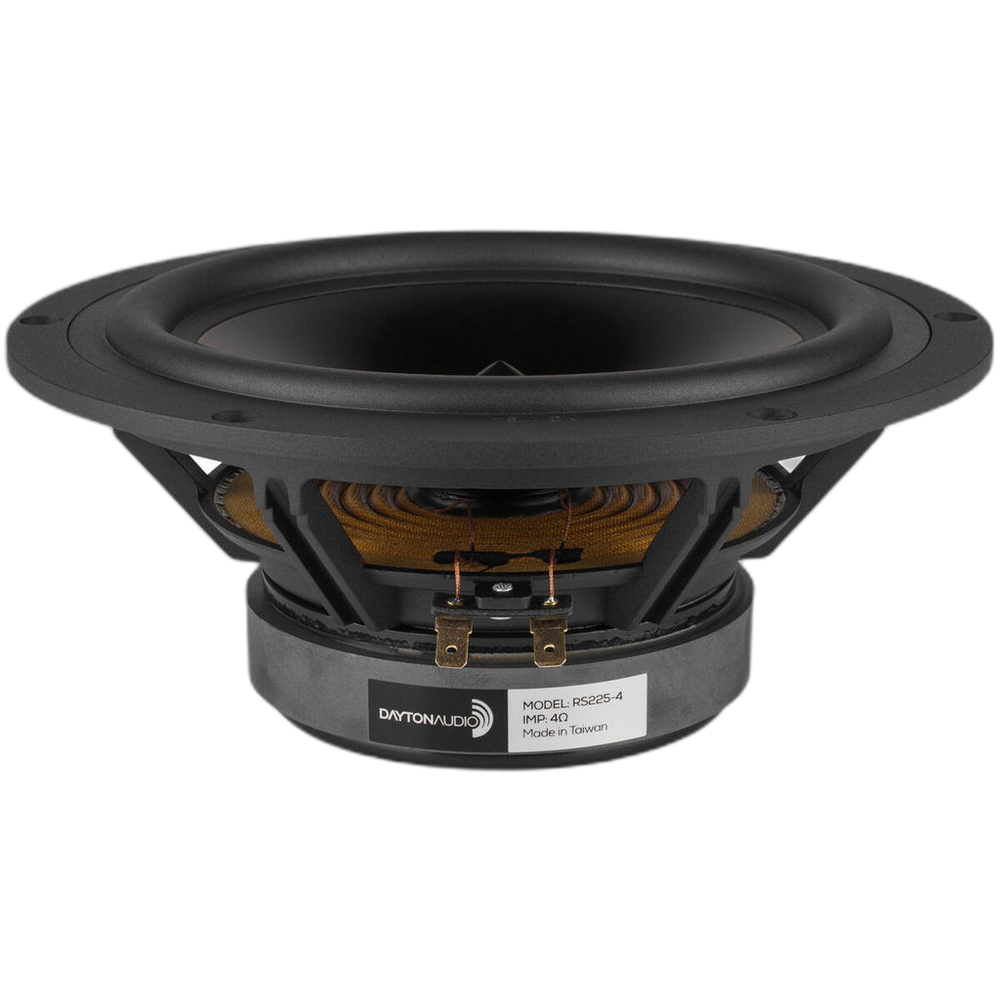

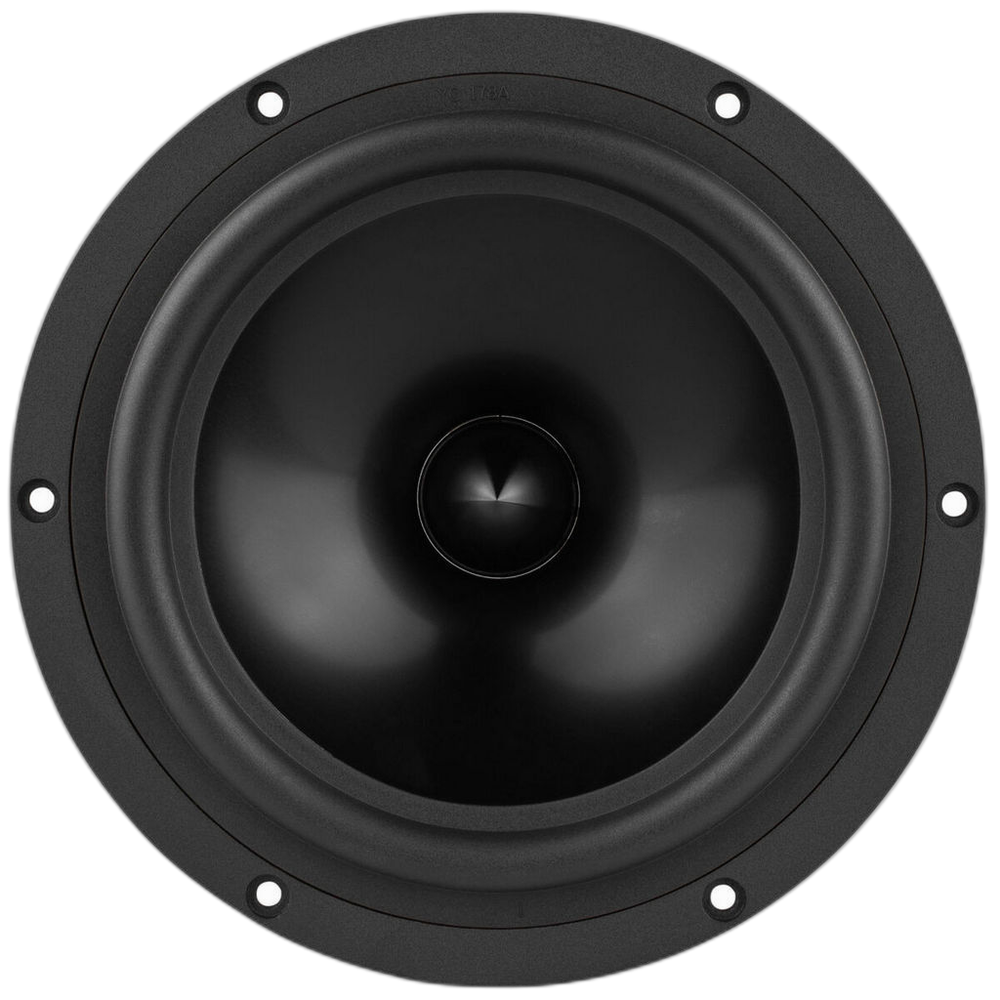

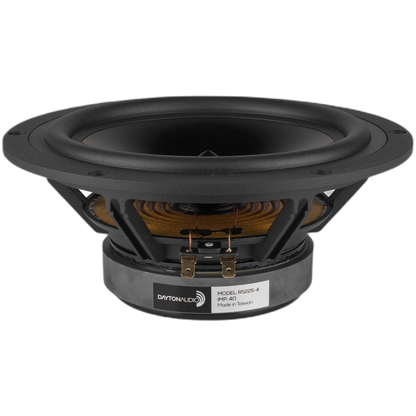

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilising a low-distortion motor system with two short-circuit paths and a rigid aluminium cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodised cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminium phase plug, rubber magnet boot, and gold spring terminals.
Features
- 4 ohm impedance is perfect for series pairs in MTMs and centre channel speakers
- Excellent car audio midrange/midbass
- High-end low-distortion motor with two shorting paths to reduce inductance
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 8" |
| Nominal impedance | 4Ω |
| Series | Reference |
| Power handling (RMS) | 80 W |
| Power handling (program) | 160 W |
| Sensitivity | 91 dB |

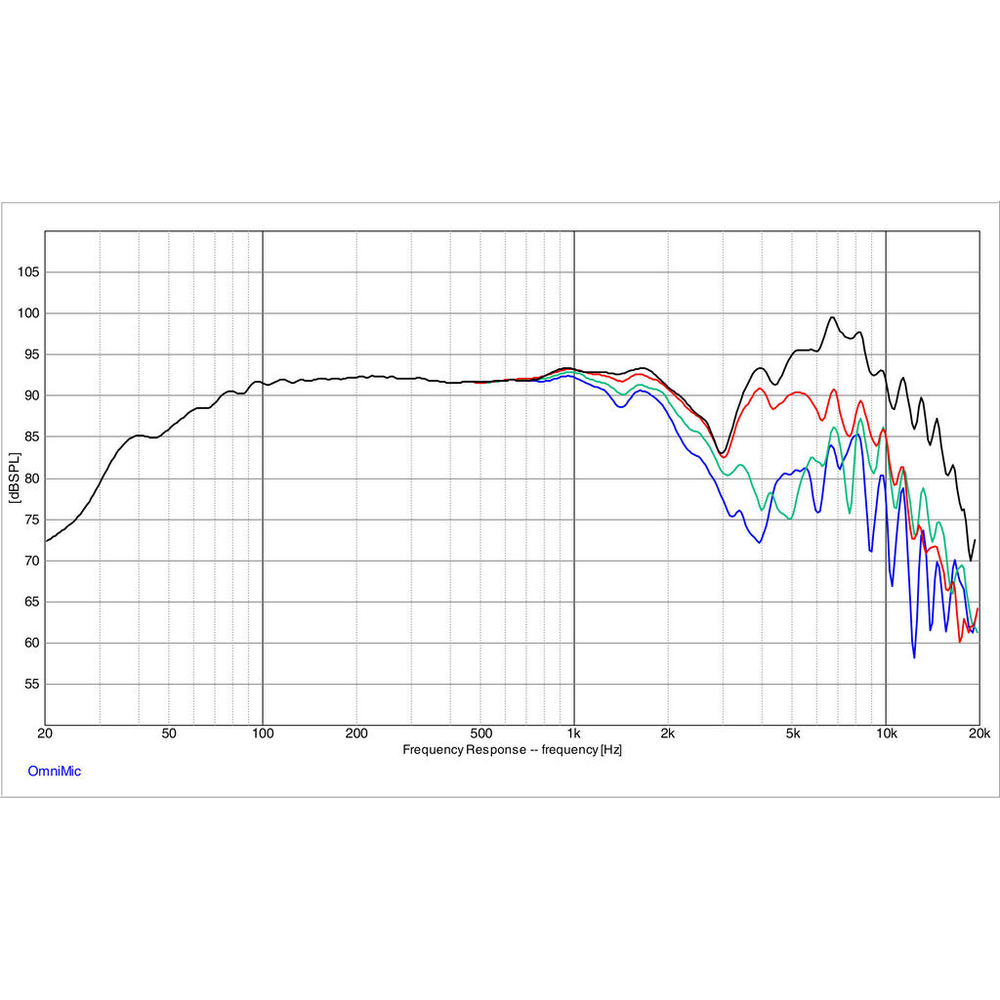

| Frequency range | 35 – 2,300 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 33 Hz |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Voice coil inductance (Le) | 0.49 mH |
| Mechanical Q (Qms) | 2.02 |
| Electrical Q (Qes) | 0.52 |
| Total Q (Qts) | 0.41 |
| Equivalent volume (Vas) | 46.4 L |
| Compliance (Cms) | 0.72 mm/N |
| Moving mass (Mms) | 32.2 g |
| Mechanical resistance (Rms) | 3.305 kg/s |
| Force factor (Bl) | 6.38 T·m |
| Effective piston area (Sd) | 213.8 cm² |
| Linear excursion (Xmax, one-way) | 6 mm |
| Displacement volume (Vd) | 128.3 cm³ |
| Efficiency bandwidth product (EBP) | 63.46 |
Motor
| Voice coil wire | Copper |
|---|

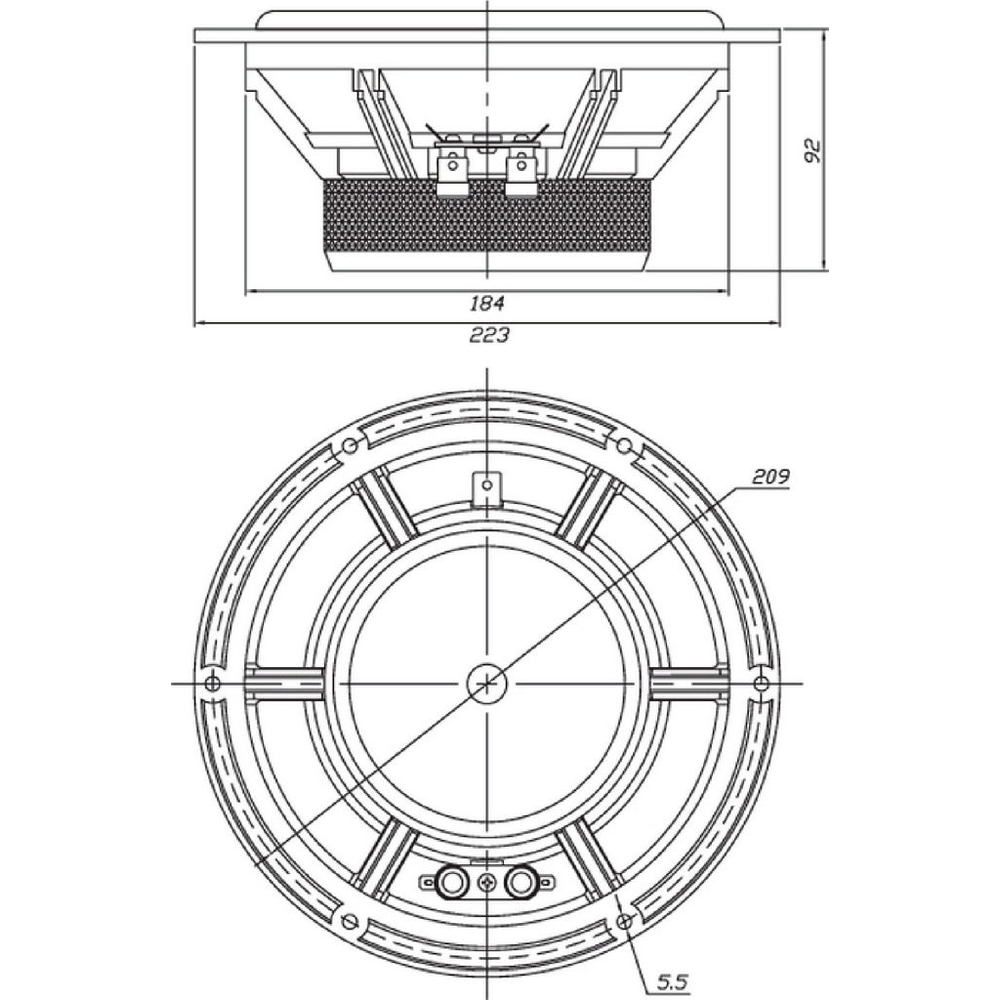

Mounting
| Overall diameter | 223 mm |
|---|---|
| Cutout diameter | 184 mm |
| Mounting depth | 92 mm |
| Bolt circle diameter | 209 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.5 mm |
| Voice coil diameter | 38 mm |
| Weight | 2.699 kg |
Materials
| Cone | Black Anodised Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RS225-4 Specification Sheet
- RS225-4 Data Files
- RS225-4 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Left out: recess depth not on file, so measure your flange. Check it against your driver before you cut.
