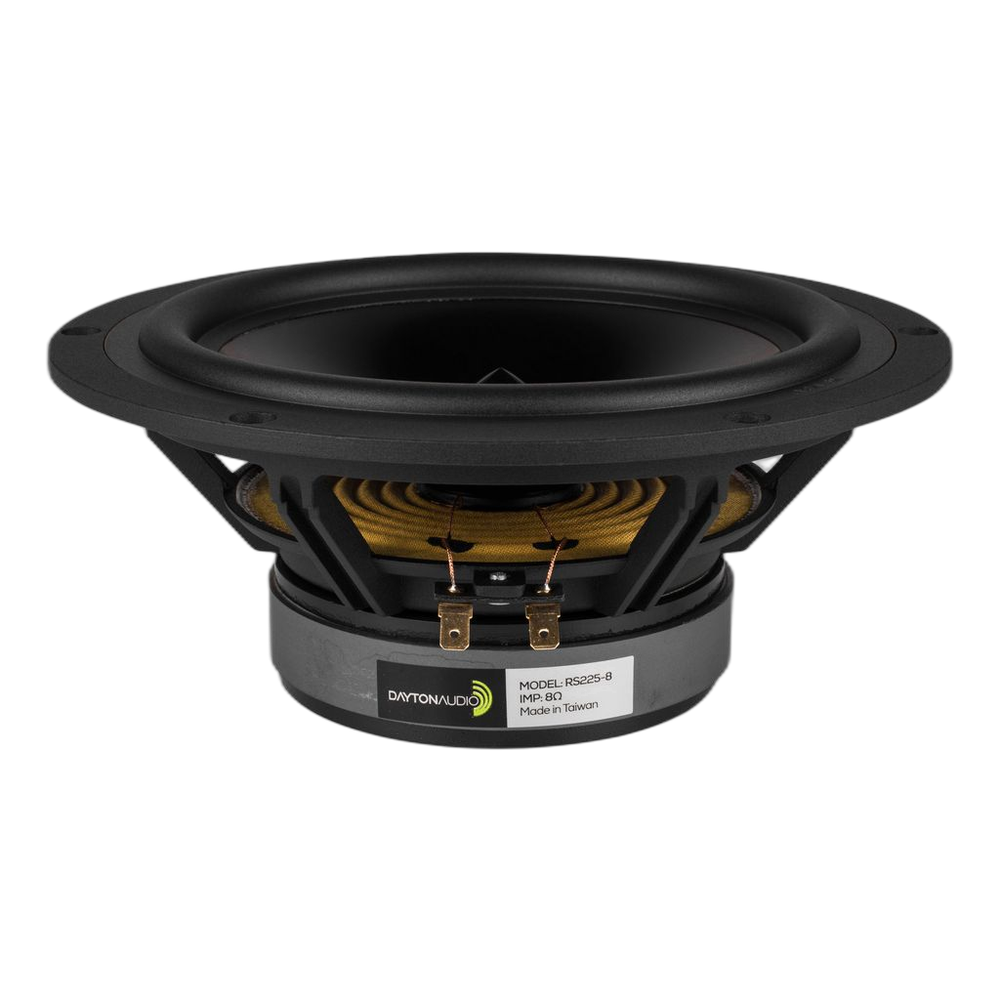

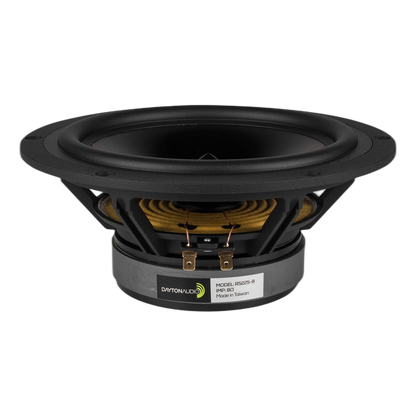

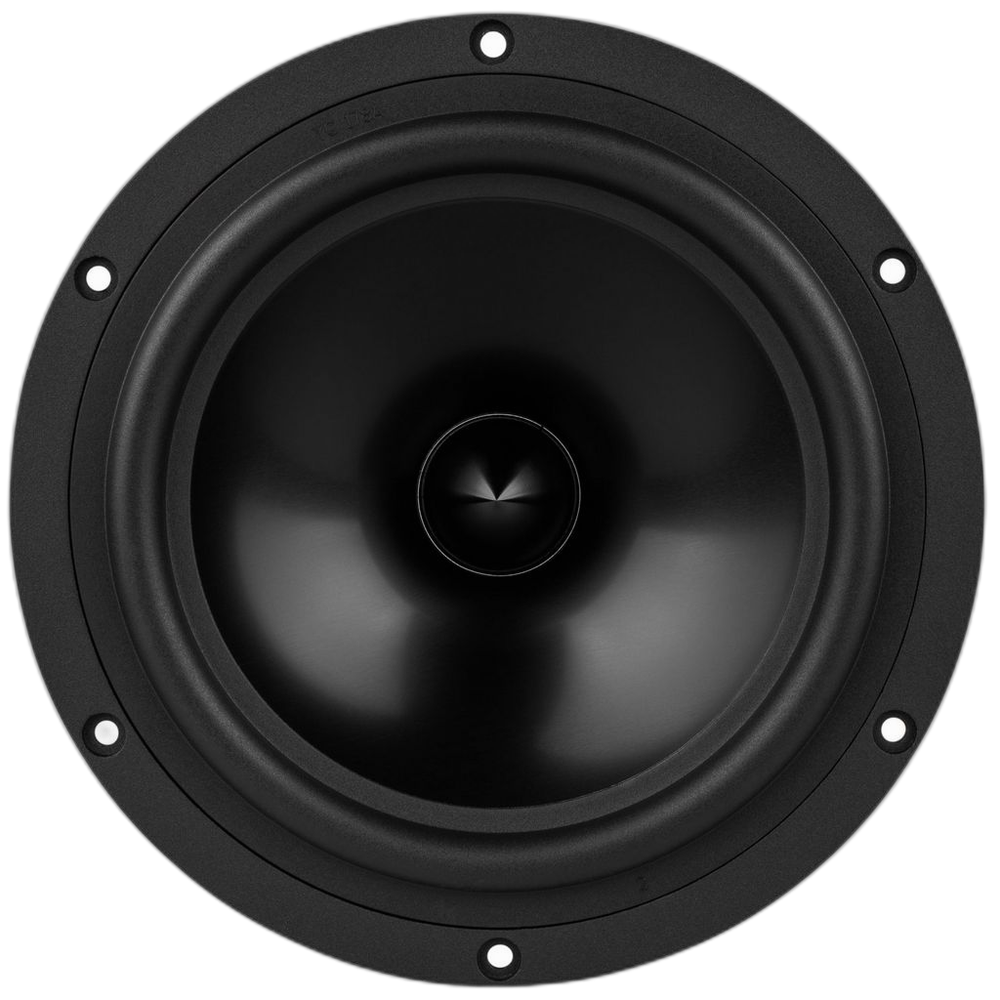

Dayton Audio - 8" Reference Woofer - RS225-8
Dayton Audio - 8" Reference Woofer - RS225-8
In stock
Stock status is updated regularly from my distributor. If the full quantity ordered isn’t available, I’ll get in touch.
Couldn't load pickup availability
Description
The Dayton Audio Reference Series was conceived with one goal in mind—low distortion. Each speaker was carefully designed and optimised to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS225-8 8" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.
Features
- One of the lowest distortion, highest resolution driver series available
- Low-distortion high-excursion motor system with two short-circuit paths
- Compliant suspension and rigid black anodised aluminium cone for strong bass performance
- Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminium phase plug
Specifications
Specifications
General
| Driver type | Woofer |
|---|---|
| Nominal size | 8" |
| Nominal impedance | 8Ω |
| Series | Reference |
| Power handling (RMS) | 80 W |
| Power handling (program) | 160 W |
| Sensitivity | 86.8 dB |

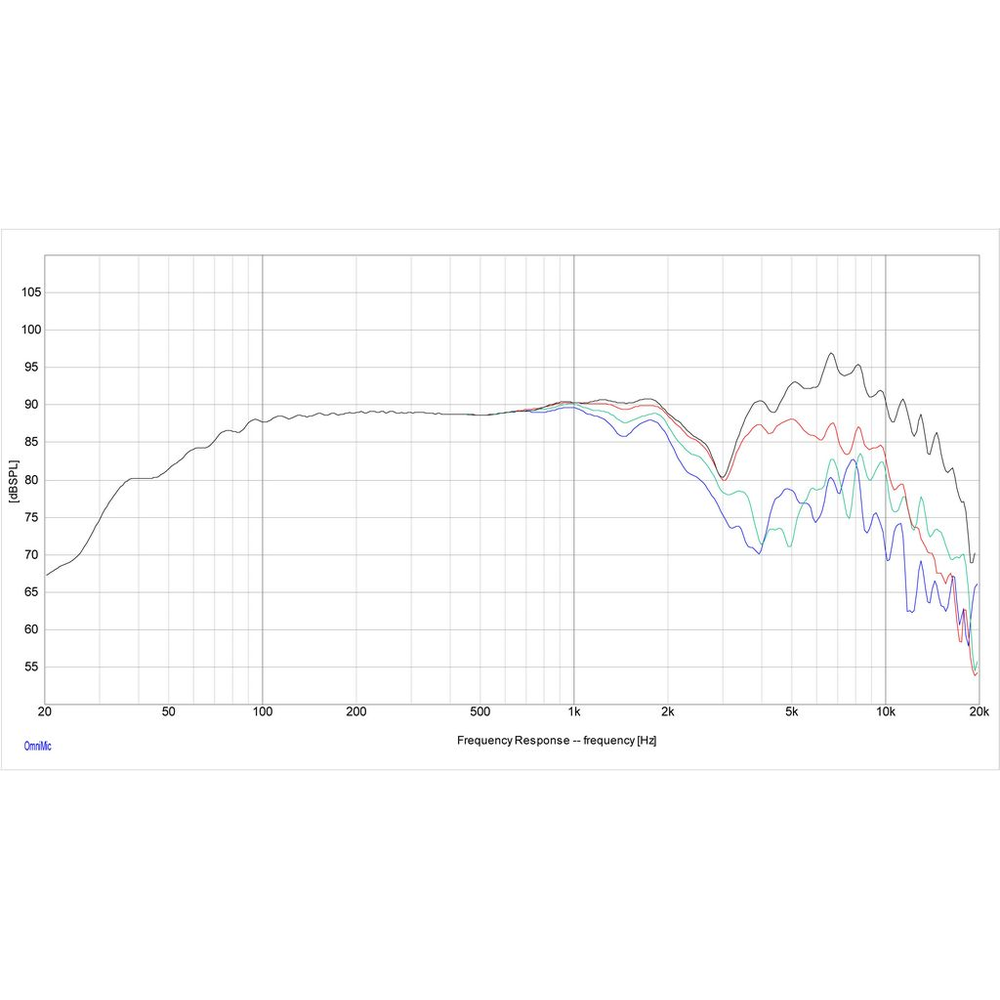

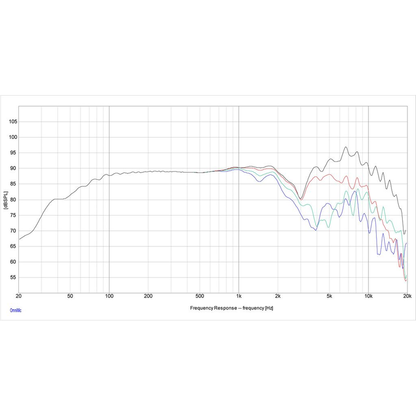

| Frequency range | 28 – 2,400 Hz |
| Suggested alignment | Either |
Thiele/Small parameters
| Resonant frequency (Fs) | 28.3 Hz |
|---|---|
| DC resistance (Re) | 6.5 Ω |
| Voice coil inductance (Le) | 0.86 mH |
| Mechanical Q (Qms) | 1.46 |
| Electrical Q (Qes) | 0.51 |
| Total Q (Qts) | 0.38 |
| Equivalent volume (Vas) | 56.8 L |
| Compliance (Cms) | 0.88 mm/N |
| Moving mass (Mms) | 35.8 g |
| Mechanical resistance (Rms) | 4.36 kg/s |
| Force factor (Bl) | 9.05 T·m |
| Effective piston area (Sd) | 213.8 cm² |
| Linear excursion (Xmax, one-way) | 7 mm |
| Displacement volume (Vd) | 149.7 cm³ |
| Efficiency bandwidth product (EBP) | 55.49 |
Motor
| Voice coil wire | Copper |
|---|

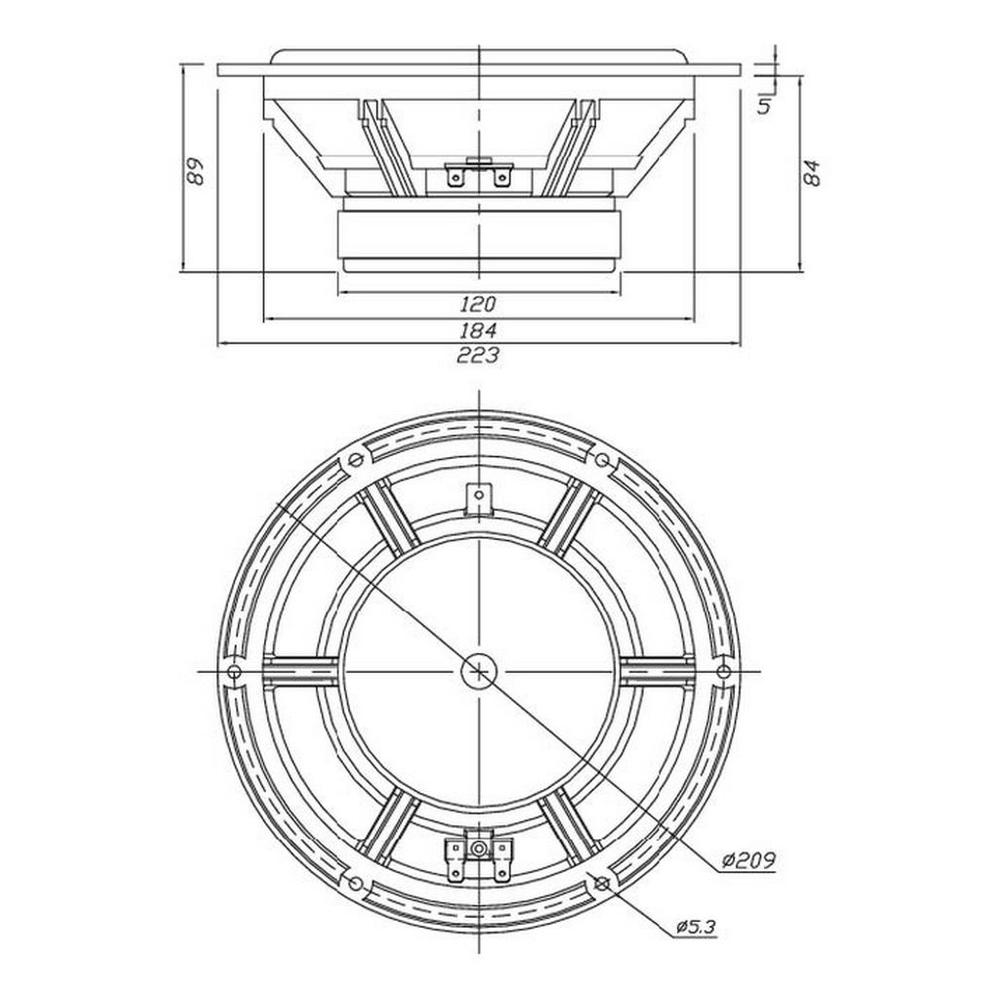

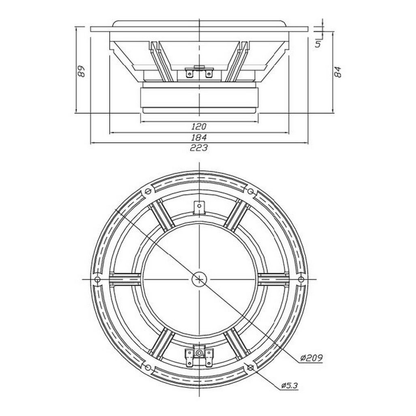

Mounting
| Overall diameter | 223 mm |
|---|---|
| Cutout diameter | 184 mm |
| Mounting depth | 84 mm |
| Flange thickness | 5 mm |
| Bolt circle diameter | 209 mm |
| Mounting holes | 6 |
| Mounting hole diameter | 5.3 mm |
| Voice coil diameter | 38 mm |
| Weight | 2.767 kg |
Materials
| Cone | Black Anodised Aluminium |
|---|---|
| Surround | Rubber |
| Voice coil former | Aluminium |
| Basket | Cast Aluminium |
| Magnet | Ferrite |
- Xmax is quoted one-way (peak), not peak-to-peak.
- Sensitivity measured at 2.83V/1m.
Downloads
- RS225-8 Specification Sheet
- RS225-8 Data Files
- RS225-8 Cutout & Recess Template (NB Audio) Every figure is straight off Dayton Audio's own spec sheet. Check it against your driver before you cut.
