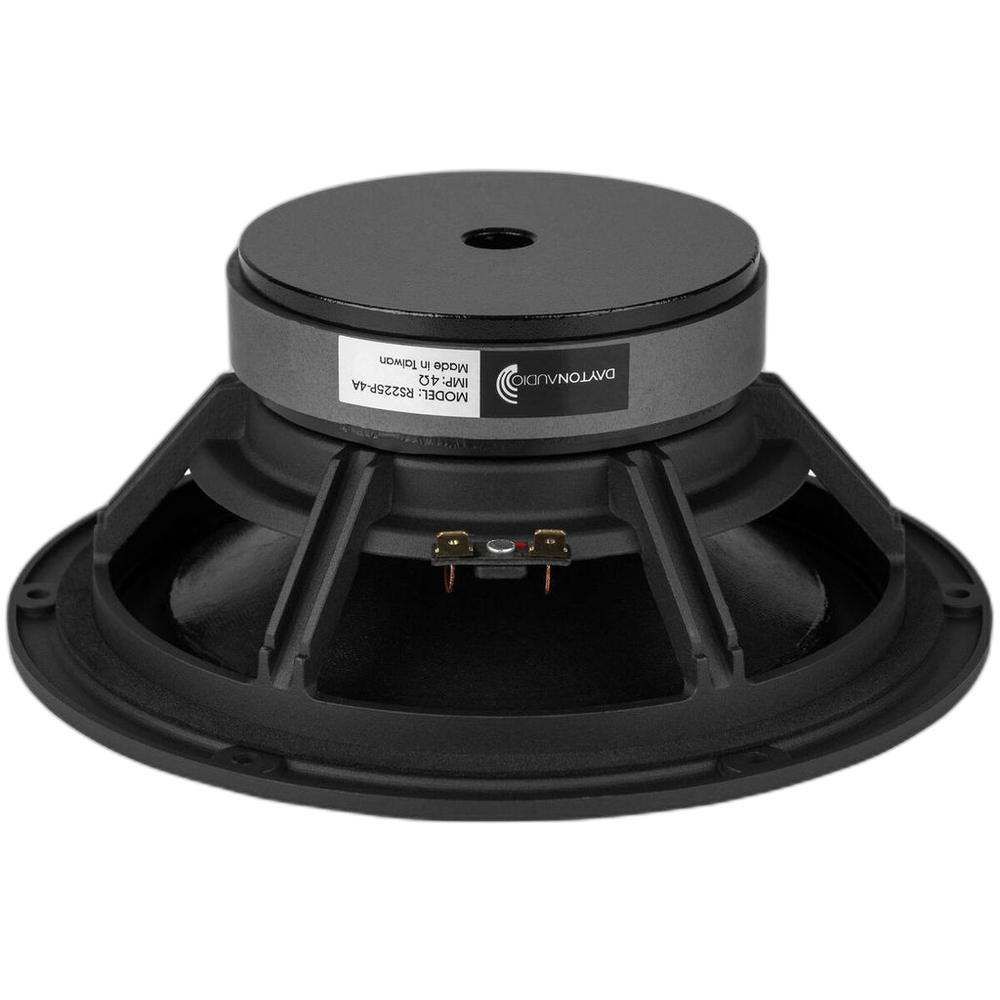

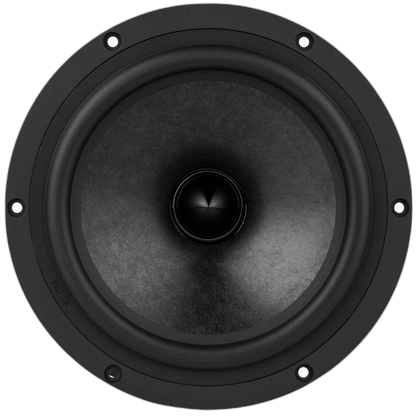

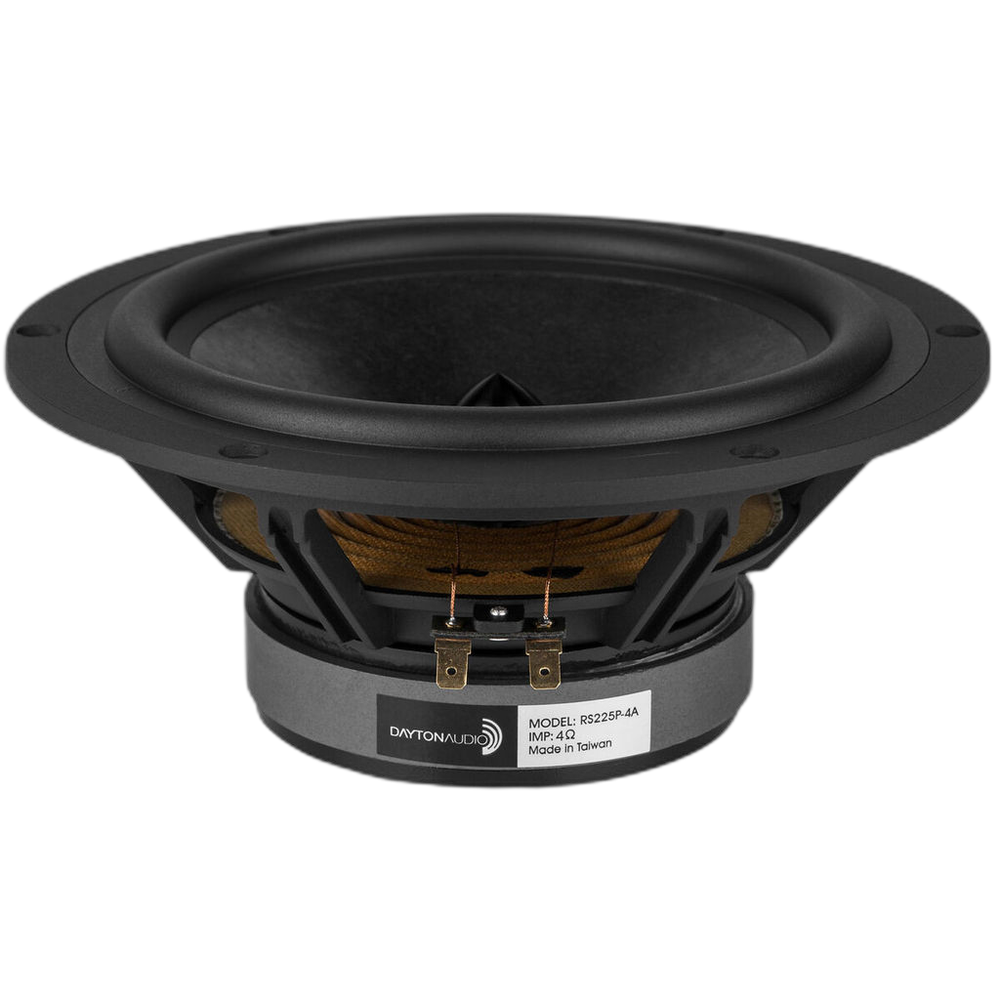

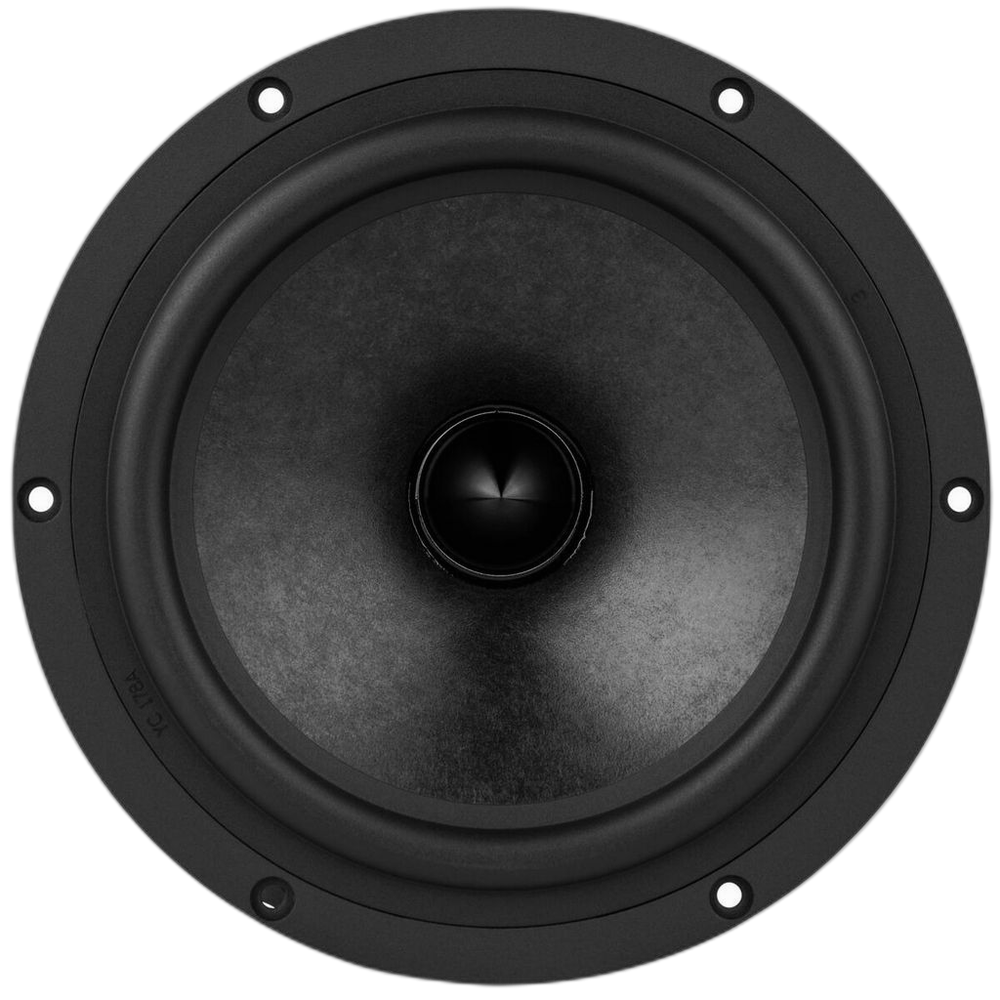

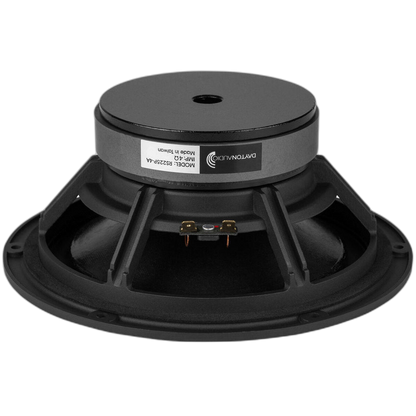

Dayton Audio - 8" Reference Woofer - RS225P-4A

Dayton Audio - 8" Reference Woofer - RS225P-4A

Regular price $194.95
Regular price Sale price $194.95
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

View full details

Description

The 8" Reference Series paper woofer use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibres to create an advanced non-woven fibre composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look. Redesigned for a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration. Available in 4Ω and 8Ω.

Features

  • Now with improved frequency response for easier crossover integration
  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibres
  • Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminium phase plug
  • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
  • 92.9 dB sensitivity and 6 mm of excursion

Specifications

General

Driver type Woofer
Nominal size 8"
Nominal impedance 4Ω
Series Reference
Power handling (RMS) 80 W
Power handling (program) 120 W
Sensitivity 92.9 dB

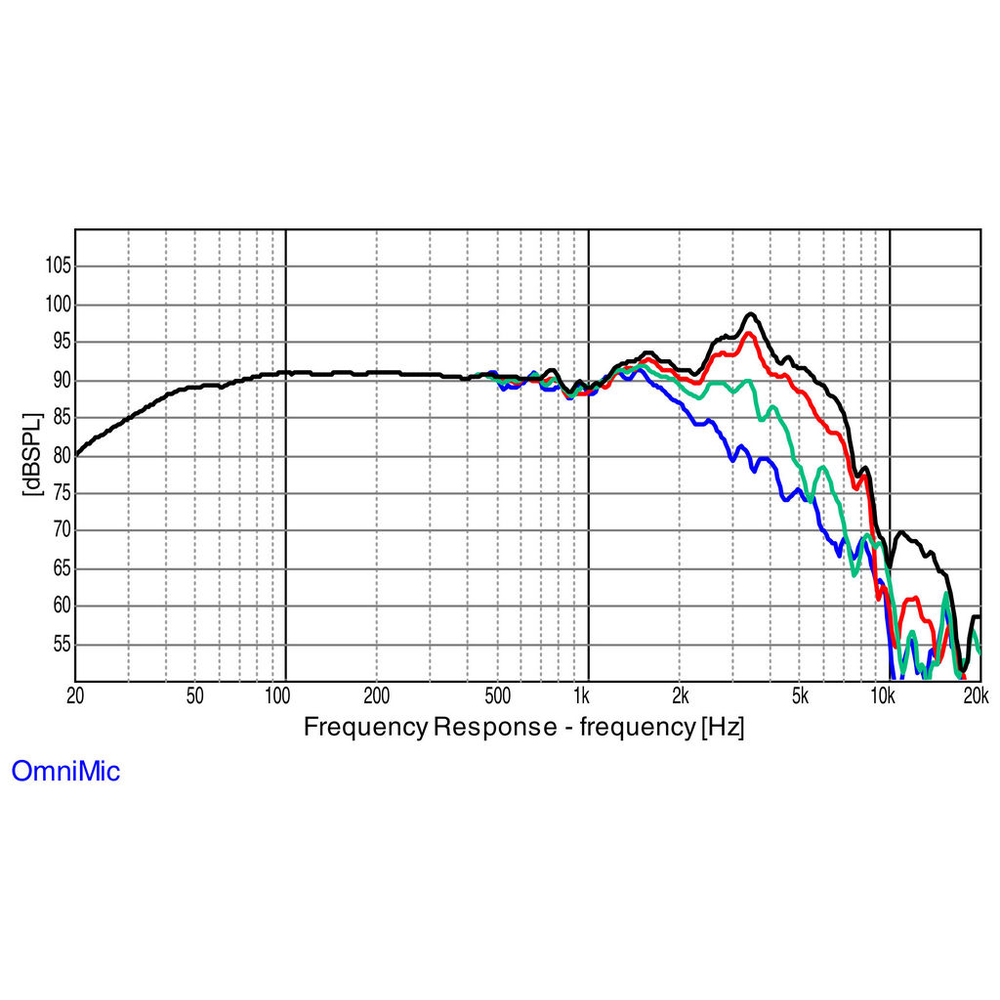

Frequency range 35 – 5,500 Hz
Suggested alignment Either

Thiele/Small parameters

Resonant frequency (Fs) 37.7 Hz
DC resistance (Re) 3.3 Ω
Voice coil inductance (Le) 0.51 mH
Mechanical Q (Qms) 1.85
Electrical Q (Qes) 0.48
Total Q (Qts) 0.38
Equivalent volume (Vas) 45.8 L
Compliance (Cms) 0.71 mm/N
Moving mass (Mms) 25 g
Mechanical resistance (Rms) 3.201 kg/s
Force factor (Bl) 6.4 T·m
Effective piston area (Sd) 213.8 cm²
Linear excursion (Xmax, one-way) 6 mm
Displacement volume (Vd) 128.3 cm³
Efficiency bandwidth product (EBP) 78.54

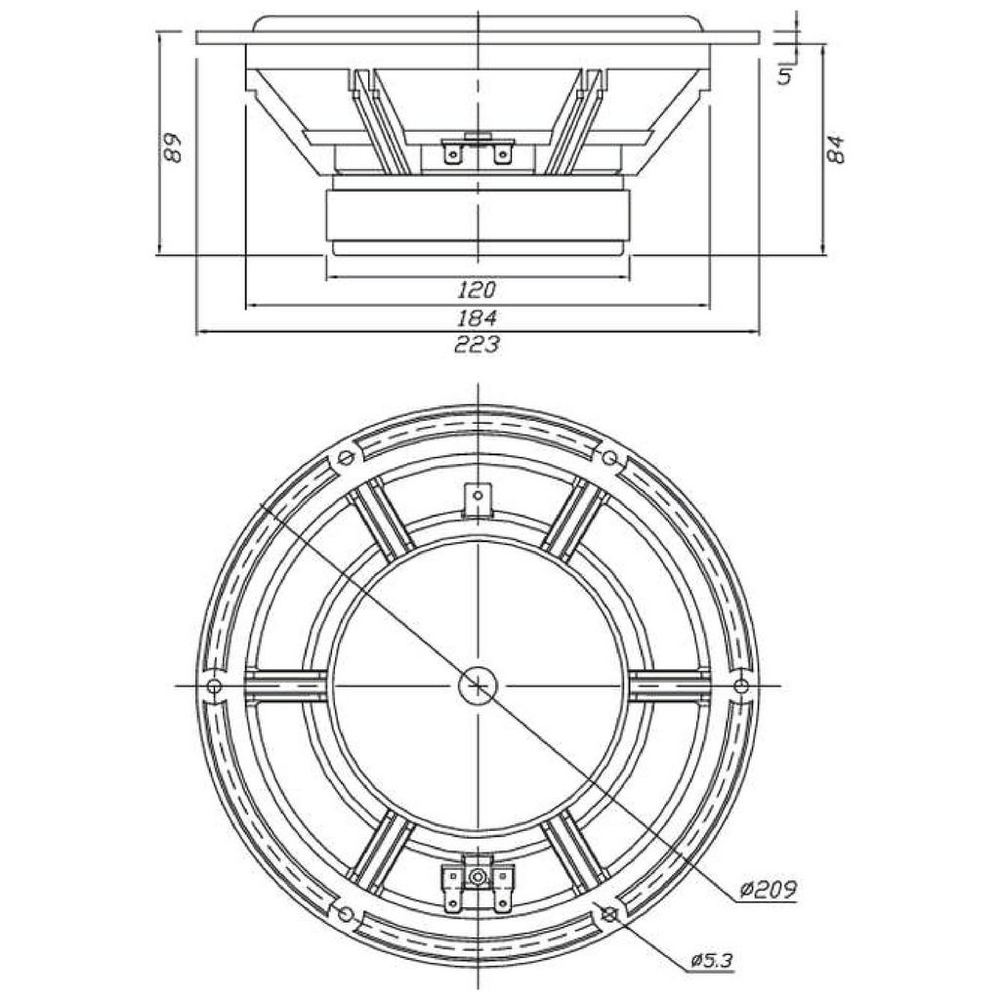

Mounting

Overall diameter 223 mm
Cutout diameter 184 mm
Mounting depth 84 mm
Flange thickness 5 mm
Bolt circle diameter 209 mm
Mounting holes 6
Mounting hole diameter 5.3 mm
Voice coil diameter 38.6 mm

Materials

Cone Paper / Kevlar
Surround Rubber
Basket Cast Aluminium
Magnet Ferrite
  • Xmax is quoted one-way (peak), not peak-to-peak.
  • Sensitivity measured at 2.83V/1m.
